### 1. Product Overview

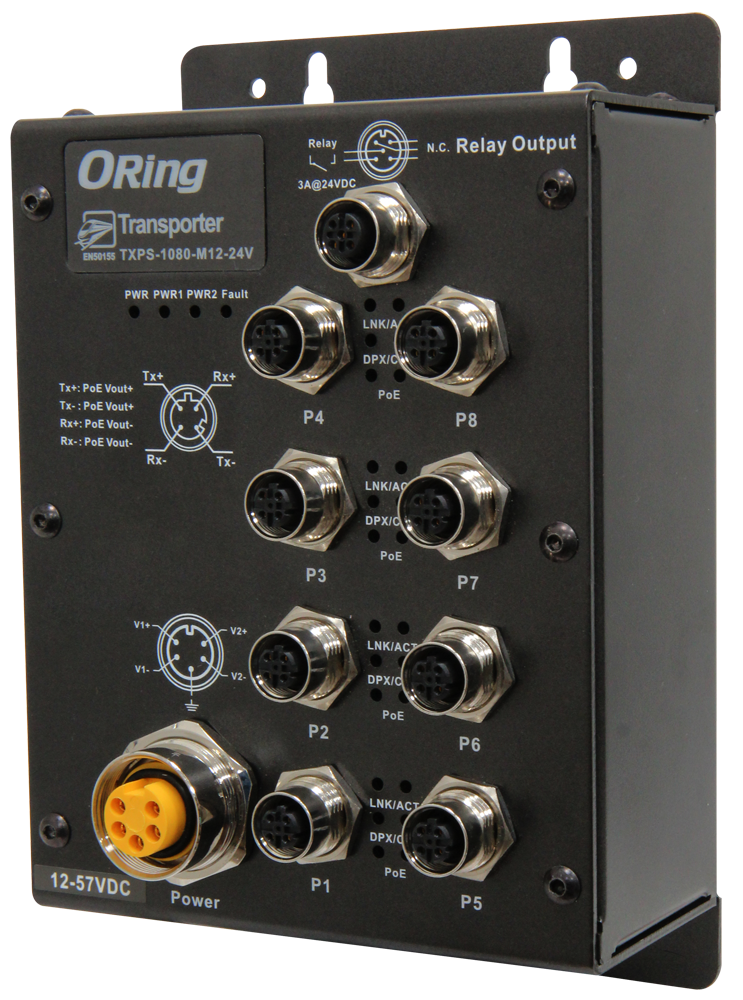

Product Name: TXPS-1080-M12-BP2-24V
Model: TXPS-1080-M12-BP2-24V
Series: TXPS-1080-M12-24V Series (Transporter™ Series)
Article Number: TXPS-1080-M12-BP2-24V
Manufacturer: ORing Industrial Networking Corp.

The TXPS-1080-M12-BP2-24V is an 8-port unmanaged Power over Ethernet (PoE) Ethernet switch designed for rugged industrial and transportation environments. It belongs to ORing’s Transporter™ Series, a product line engineered for railway, rolling stock, and vehicle applications requiring high reliability, vibration resistance, and compliance with EN50155 railway standards.

This model integrates 8x10/100/500Base-T(X) PoE P.S.E. ports with M12 D-coded connectors and includes a bypass function on the last two ports (BP2) for network redundancy and fault tolerance. It operates on a 24VDC dual redundant power input and is built to withstand extreme environmental conditions, making it ideal for mission-critical field deployments.

---

### 2. Key Features

- 8-Port Unmanaged PoE Ethernet Switch:
Provides eight 10/100/500Base-T(X) ports with Power Sourcing Equipment (P.S.E.) capability, enabling simultaneous data and power transmission over standard Ethernet cabling.

- M12 D-Coded Connectors:
All Ethernet ports use 4-pin M12 D-coded connectors, ensuring secure, vibration-resistant connections suitable for mobile and industrial environments.

- Bypass Function (BP2):
The “BP2” variant includes two bypass ports, maintaining network connectivity even if the switch loses power or fails, ensuring continuous data flow in daisy-chained topologies.

- EN50155 Compliance:
Fully compliant with EN50155, the European railway standard for electronic equipment used on rolling stock, covering temperature, vibration, shock, EMC, and power supply stability.

- Power over Ethernet (PoE) Support:
IEEE 802.3at compliant, delivering up to 30W per port, with a total PoE power budget of 60W (12–24VDC input) or 120W (24–57VDC input).

- Wide Operating Temperature:
Designed for harsh environments, supporting -40°C to +75°C operating range and -40°C to +85°C storage range.

- Dual Redundant Power Inputs:
Accepts 12–57VDC via a 5-pin M23 connector, providing redundancy for uninterrupted operation.

- Rugged IP30 Metal Enclosure:
Industrial-grade housing ensures protection against dust and mechanical impact.

- High Reliability:
Mean Time Between Failures (MTBF):
- TXPS-1080-M12-24V: 315,273 hours
- TXPS-1080-M12-BP2-24V: 306,849 hours

- Comprehensive EMC and Safety Certifications:
Meets CE, FCC, EN50121-3-2, EN55032, EN55024, and EN60950-1 standards.

---

### 3. Technical Specifications

Model Variants:
- TXPS-1080-M12-24V – 8-port unmanaged PoE switch
- TXPS-1080-M12-BP2-24V – 8-port unmanaged PoE switch with 2-port bypass

Physical Ports:
- 8 × 10/100/500Base-T(X) ports with M12 4-pin D-coded connectors
- BP2 model includes bypass on last two ports

Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE, up to 30W per port)

MAC Table: 4K MAC addresses
Switching Method: Store-and-Forward

LED Indicators:
- Power: 3 × Green LEDs (PWR1, PWR2, PWR3)
- Fault: 1 × Amber LED (indicates PWR1 or PWR2 failure)
- Port Indicators:
- Top Green: 10/100 Mbps Link/Activity
- Middle Amber: 500 Mbps Link/Activity
- Bottom Blue: PoE active

Relay Output:
- 3A at 24VDC capacity via M12 5-pin A-coded connector

Power Input:
- Dual DC inputs, 24V nominal (12–57VDC range)
- Connector: 5-pin M23
- Power consumption (typical): 3W (excluding PoE load)
- PoE Output Power:
- 60W total (12–24VDC input)
- 120W total (24–57VDC input)
- Overload and reverse polarity protection included

Physical Characteristics:
- Enclosure: IP30-rated metal housing
- Dimensions: 125 mm (W) × 65 mm (D) × 196 mm (H)
- Weight:
- TXPS-1080-M12-24V: 993 g
- TXPS-1080-M12-BP2-24V: 1015 g

Environmental Conditions:
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% (non-condensing)

---

### 4. Functionality

The TXPS-1080-M12-BP2-24V functions as an unmanaged Ethernet switch with integrated Power over Ethernet (PoE) capability. It automatically detects connected devices and negotiates link speed (10/100/500 Mbps) without requiring manual configuration.

Power over Ethernet Function:
Each port acts as a Power Sourcing Equipment (P.S.E.), supplying DC power to connected Powered Devices (PDs) such as IP cameras, wireless access points, or VoIP phones. This eliminates the need for separate power wiring, simplifying installation in constrained environments like train carriages or vehicles.

Bypass Functionality:
The BP2 model includes a hardware-based bypass circuit on the last two ports. In the event of power loss or switch failure, these ports automatically connect directly, maintaining network continuity and preventing communication breakdowns in daisy-chain or ring topologies.

Use Cases and Applications:
- Railway and rolling stock communication systems
- Onboard IP surveillance and passenger information systems
- Vehicle and bus network infrastructure
- Industrial automation and control networks
- Transportation monitoring and signaling systems

Compatibility:
Compatible with standard Ethernet devices supporting IEEE 802.3/802.3u/802.3at. Works seamlessly with ORing’s Open-Vision management utility for network monitoring (though unmanaged, it can be detected and monitored).

---

### 5. Components & Accessories

Included Items:
- 1 × TXPS-1080-M12-BP2-24V switch unit
- 1 × Quick Installation Guide

Optional Accessories:
- M12C: M12 cable accessories (various lengths and connector types available)

Connectors:
- Ethernet Ports: M12 4-pin D-coded (x8)
- Power Input: M23 5-pin connector (dual DC input)
- Relay Output: M12 5-pin A-coded connector

---

### 6. Installation & Setup

Installation Requirements:
- DC power source: 12–57VDC
- Proper grounding and shielding for EMC compliance
- Mounting surface or DIN-rail bracket (depending on installation environment)

Mounting Options:
- Panel or wall mounting using pre-drilled holes
- M12 connectors ensure secure mechanical coupling, ideal for vibration-prone environments

Configuration:
As an unmanaged switch, no software configuration is required. The device operates in plug-and-play mode, automatically detecting network topology and link parameters.

Power Connection:
Connect dual DC power inputs to the M23 connector for redundancy. The relay output can be wired to external alarms or control systems to signal power failures.

PoE Deployment:
Connect PoE-enabled devices directly to the M12 Ethernet ports. The switch automatically detects PoE-compatible devices and supplies power according to IEEE 802.3at standards.

---

### 7. Performance & Capabilities

Switching Performance:
- Store-and-forward architecture ensures reliable frame transmission and error checking.
- Supports full-duplex and half-duplex operation with flow control.
- 4K MAC address table allows efficient traffic management in medium-sized networks.

PoE Performance:
- Up to 30W per port (IEEE 802.3at compliant)
- Total PoE budget: 60W (12–24VDC input) or 120W (24–57VDC input)
- Intelligent power distribution ensures stable operation under varying loads.

Reliability and Redundancy:
- Dual power inputs prevent downtime due to power source failure.
- Bypass ports maintain network continuity during device outages.
- Relay output provides fault signaling for remote monitoring systems.

Efficiency:
- Typical power consumption: 3W (excluding PoE load)
- Passive cooling design with no moving parts, ensuring silent and maintenance-free operation.

Limitations:
- As an unmanaged switch, it lacks advanced Layer 2/3 management features (e.g., VLAN, QoS, SNMP).
- Designed primarily for fixed-speed Ethernet applications (10/100/500 Mbps).

---

### 8. Standards & Compliance

Electromagnetic Compatibility (EMC):
- CE EMC (EN 55024, EN 55032)
- FCC Part 15B Class A
- EN 50121-3-2 (Railway EMC standard)

Electromagnetic Interference (EMI):
- EN 55032, CISPR 32
- EN 61000-3-2, EN 61000-3-3
- FCC Part 15B Class A

Electromagnetic Susceptibility (EMS):
- EN 55024 (IEC/EN 61000-4-2 to -4-11)
- ESD: IEC/EN 61000-4-2
- Radiated Susceptibility: IEC/EN 61000-4-3
- EFT/Burst: IEC/EN 61000-4-4
- Surge: IEC/EN 61000-4-5
- Conducted Susceptibility: IEC/EN 61000-4-6
- Power Frequency Magnetic Field: IEC/EN 61000-4-8
- Voltage Dips/Interruptions: IEC/EN 61000-4-11

Environmental and Mechanical Tests:
- Shock: IEC 60068-2-27
- Free Fall: IEC 60068-2-31
- Vibration: IEC 60068-2-6

Safety:
- EN 60950-1 (Information Technology Equipment Safety)

Railway Standard Compliance:
- EN 50155 (Electronic equipment used on rolling stock)

MTBF (Mean Time Between Failures):
- TXPS-1080-M12-24V: 315,273 hours
- TXPS-1080-M12-BP2-24V: 306,849 hours

---

### 9. Additional Information

Warranty:
5-year limited warranty covering manufacturing defects and hardware reliability under normal operating conditions.

Support:
ORing provides technical documentation, installation guides, and optional network management software (Open-Vision) for monitoring and diagnostics.

Maintenance:
- No internal moving parts; maintenance-free design.
- Periodic inspection of connectors and power terminals recommended.
- Firmware updates not applicable (unmanaged device).

Product Lifecycle and Updates:
Version: V1.0 (May 2018). Specifications subject to change without notice. ORing periodically updates product firmware and hardware to maintain compliance with evolving standards.

Ordering Information:
- TXPS-1080-M12-24V: 8-port unmanaged PoE switch, M12 connectors, 24VDC input
- TXPS-1080-M12-BP2-24V: 8-port unmanaged PoE switch with 2-port bypass, M12 connectors, 24VDC input

Packaging:
- 1 × TXPS-1080-M12-BP2-24V unit
- 1 × Quick Installation Guide

Optional Accessories:
- M12C cable sets (various configurations)

---

### Summary

The ORing TXPS-1080-M12-BP2-24V is a rugged, unmanaged 8-port PoE Ethernet switch engineered for railway and industrial applications demanding high reliability, vibration resistance, and compliance with EN50155 standards. With M12 D-coded connectors, dual redundant power inputs, and bypass functionality, it ensures uninterrupted network operation even under harsh conditions.

Its wide temperature tolerance (-40°C to +75°C), robust IP30 metal enclosure, and comprehensive EMC and safety certifications make it a dependable choice for rolling stock, vehicle networks, and industrial automation systems. Offering IEEE 802.3at PoE support and up to 120W total power output, it simplifies deployment of powered devices while maintaining network integrity.

Backed by a 5-year warranty and ORing’s reputation for industrial networking excellence, the TXPS-1080-M12-BP2-24V delivers rugged performance, reliability, and ease of integration for mission-critical Ethernet applications.
