- **Processor:** Atmel ATSAMA5D35 ARM Cortex‑A5 CPU, 536 MHz with MMU - **Memory:** 512 MB LPDDR2 SDRAM, 8 GB eMMC Flash, 8 MB DataFlash for system backup - **Operating System:** Linux kernel 4.9.x (Debian‑based, apt‑get package management) - **Networking:** Dual Ethernet (1 × Gigabit + 1 × 10/100 Mbps) - **Serial Interfaces:** 8 × RS‑485 ports (4 isolated @ 1500–2500 Vrms, 4 non‑isolated), one port switchable to RS‑232 - **CAN Bus:** 2 × CAN 2.0 A/B compliant ports, up to 1 Mbps, 1500–2500 Vrms isolation - **USB:** 4 × USB 2.0 Host ports (480 Mbps), 1 × micro‑USB console port - **Expansion:** 1 × miniPCIe slot (full/half‑size), 1 × microSD slot (SDHC, up to 64 GB) - **Power Input:** 9 – 48 V DC via terminal block,

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor & Architecture:** - ARM Cortex-A5 ATSAMA5D35 CPU, 536 MHz with MMU support. - Optimized for low power consumption and high reliability in embedded systems. - **Memory & Storage:** - 512 MB LPDDR2 SDRAM. - 16 GB onboard eMMC Flash for OS and data storage. - 1 × microSD slot supporting up to 128 GB (SD 2.0/SDHC compliant). - **Operating System:** - Preinstalled Linux kernel 4.19.x (supports 3.18.x–5.4.x variants). - EXT4 file system with BareBox bootloader. - Debian-like environment with Artila-maintained apt repository. - **Networking:** - Dual Ethernet ports: 1 × Gigabit (GbE) and 1 × 10/100 Mbps. - 1.5 kV magnetic isolation on Ethernet interfaces. - DHCP and static IP configuration supported. - **Serial Communication:** - 4 × RS-485 serial ports with surge protection. - Optional 2500 Vrms isolation (Matrix-704i version). - Auto-direction control by hardware. - Baud rates up to 921.6 kbps. - **USB Interfaces:** - 1 × USB 2.0 host port (480 Mbps). - 1 × microUSB console/client port for debugging and power input. - **Expansion & Connectivity:** - 1 × full-size miniPCIe socket (internal). - 1 × micro-SIM slot (internal). - 2 × SMA antenna connector holes reserved for wireless modules. - **Power & Protection:** - Wide-range DC input: 9–48 V DC via terminal block or 12 V DC via jack. - Surge-protected serial interfaces. - Real-time clock (RTC) and watchdog timer integrated. - **Software Ecosystem:** - GCC 8.2.0 + glibc 2.28 toolchain. - Supports in-place C/C++ compilation. - Preinstalled web servers (Apache/Nginx/Lighttpd), databases (MySQL/SQLite/PostgreSQL), and scripting languages (PHP/Python/Perl/NodeJS). - Webmin for browser-based system administration.

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** Atmel ATSAMA5D35 ARM Cortex-A5 CPU, 536 MHz with integrated MMU. - **Operating System:** Preinstalled Linux kernel 4.19.xx with Debian package management. - **Memory:** 512 MB LPDDR2 SDRAM. - **Storage:** 8 GB eMMC Flash memory; microSD slot supporting SDHC cards up to 128 GB. - **Networking:** Dual Ethernet ports — one Gigabit (GbE) and one 10/100 Mbps (Fast Ethernet) with 1.5 kV magnetic isolation. - **Serial Communication:** - 4 × RS‑485 isolated ports (2500 Vrms isolation). - 4 × RS‑485 non‑isolated ports. - Auto direction control and software‑selectable RS‑232 mode on one port. - **CAN Bus:** 2 × CAN 2.0 A/B compliant ports, isolated to 2500 Vrms, supporting up to 1 Mbps. - **USB:** 4 × USB 2.0 host ports (480 Mbps high‑speed). - **Expansion:** 1 × full‑size miniPCIe slot and 1 × micro‑SIM socket for wireless modules (3G/4G/LTE/Wi‑Fi). - **Power Input:** 9 – 48 V DC via terminal block; typical consumption

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** ATMEL ATSAMA5D35 ARM Cortex-A5 CPU, 536 MHz with MMU. - **Memory:** 512 MB LPDDR2 SDRAM, 8 GB eMMC Flash, and 8 MB DataFlash for system backup. - **Operating System:** Linux kernel 4.9.x (Yocto-based), EXT4 file system, BareBox bootloader. - **Networking:** Dual Ethernet ports — one Gigabit (RJ45) and one 10/100 Mbps (RJ45). - **Serial Communication:** Four software-selectable RS-232/RS-485 ports with automatic flow control. - **USB Interfaces:** Two USB 2.0 high-speed host ports (480 Mbps) and one micro-USB console/client port. - **Storage Expansion:** One microSD slot (SD 2.0 compliant, SDHC up to 64 GB). - **Power Input:** 9–48 V DC via terminal block or 5 V DC via micro-USB. - **Power Consumption:**

Hersteller: Artila

Kategorie: IoT Gateway

ATMEL ATSAMA5D35 Cortex A5 536MHz based Industrial Low-Power Computer, Linux 3.18.xx with Ext4 filesystem preinstalled, 512MB LPDDR2 SDRAM and 8GB eMMC Flash Memory, 4* RS232(4-wire)/RS485 serial ports, 2* USB 2.0 host ports, 1* GbE and 1* 10/100Mb Ethernet ports, 1* microSD slot (SD 2.0 compliant with SDHC support), power input 9..48VDC via terminal block or 5VDC via microUSB, 0°...70°C operation temperature range, 78*108*24, Artila

Hersteller: Artila

Kategorie: IoT Gateway

- **High-Performance MCU:** Powered by an Atmel SAM4E16E Cortex-M4 SoC (120 MHz) with integrated 128 KB SRAM and 1 MB Flash, plus an additional 128 KB SRAM and 2 MB SPI Flash expansion. - **Comprehensive I/O Capability:** - 4 × 16-bit isolated analog inputs (AI) - 2 × 16-bit isolated analog outputs (AO) - 4 × opto-isolated digital inputs (DI) - 2 × relay outputs (DO) - 1 × Maxim 1-Wire interface for digital sensors - **Industrial-Grade Isolation:** - 1500 Vrms isolation for analog I/O - 2500 Vrms isolation for digital inputs and RS-485 interface - **Flexible Communication Interfaces:** - 10/100 Mbps Ethernet (RJ45, 1.5 kV magnetic isolation) - RS-232 and isolated RS-485 serial ports - microSD card slot for data logging and configuration storage - **Web-Based Control and Monitoring:** Integrated web server supporting AJAX-based remote configuration and monitoring. - **Cross-Platform Development Support:** C/C++ API available for Windows and Linux; compatible with Sourcery CodeBench Lite and Keil ARM toolchains. - **IoT Integration:** Supports Modbus, MQTT, and RESTful Web APIs for cloud connectivity and data exchange with PLCs or IoT gateways. - **DIN-Rail Mounting:** Compact industrial form factor for easy installation in control cabinets. - **Wide Power Input Range:** 9 – 48 V DC input for flexible deployment in industrial environments.

Hersteller: Artila

Kategorie: Automation Controller

- **High-performance ARM Cortex-M4 CPU:** Powered by the Atmel SAM4E16E SoC running at 120 MHz, providing robust processing for real-time control and data acquisition tasks. - **Integrated FreeRTOS environment:** Enables deterministic multitasking and real-time performance for embedded applications. - **Comprehensive I/O capabilities:** - 4 × 16-bit isolated analog input channels (voltage or current mode) - 4 × opto-isolated digital inputs (2500 Vrms isolation) - 2 × relay outputs (30 VDC @ 1 A or 125 VAC @ 0.5 A) - 2 × Maxim 1‑Wire interfaces for digital sensors - **Multiple communication interfaces:** - 1 × 10/100 Mbps Ethernet port with 1.5 kV magnetic isolation - 1 × isolated RS‑485 port (1500 Vrms) - 1 × RS‑232 serial console port - **Embedded web server and networking stack:** Supports lwIP and BSD socket libraries, enabling TCP/IP communication and web-based configuration. - **Flexible power input:** Operates from 9 VDC to 48 VDC, suitable for industrial power systems. - **DIN‑rail mountable design:** Compact and rugged enclosure for control cabinet installation. - **Windows configuration utility:** Simplifies device discovery, configuration, and firmware upgrades. - **Toolchain support:** Compatible with Atmel Studio, Sourcery CodeBench Lite, and Keil ARM toolchains. - **Expandable storage:** Onboard microSD socket for data logging and firmware storage. - **High isolation protection:** Analog, digital, and communication ports are isolated to prevent ground loops and electrical interference.

Hersteller: Artila

Kategorie: Automation Controller

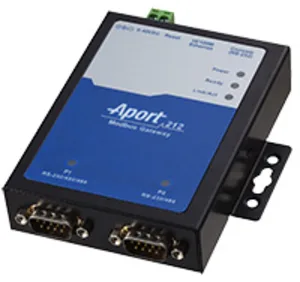

- **Programmable Gateway Platform:** Based on the NXP LPC1768 ARM Cortex-M3 MCU with FreeRTOS, supporting C/C++ development using the GCC Sourcery C++ Lite toolchain. - **Dual Configurable Serial Ports:** Two independent serial interfaces (1 × RS-232/422/485 and 1 × RS-232/485) with DB9 male connectors, each configurable for Modbus RTU/ASCII Master or Slave operation. - **Modbus Protocol Conversion:** Acts as a gateway between Modbus TCP and Modbus RTU/ASCII networks, supporting up to 16 Modbus TCP Masters and 32 Modbus TCP Slaves per serial port. - **Serial-to-Ethernet (S2E) Functionality:** Provides transparent serial-to-Ethernet data tunneling in TCP server or client mode. - **Industrial-Grade Design:** 15 kV ESD protection on serial ports, 1500 V magnetic isolation on Ethernet, and wide 9–40 VDC power input range. - **Flexible Configuration Interfaces:** Supports configuration via Web console, Telnet, serial console, and Windows-based Manager Utility software. - **Compact DIN-Rail Mountable Enclosure:** Designed for easy integration into industrial control panels. - **Comprehensive LED Indicators:** Power, Ready, Link/Activity, and RX/TX LEDs provide real-time operational status. - **Wide Operating Temperature Range:** 0°C to 70°C for reliable performance in industrial environments.

Hersteller: Artila

Kategorie: RS232

- **High-Performance MCU:** Equipped with an **NXP LPC1768 ARM Cortex-M3 CPU** running at **100 MHz**, providing robust processing power for real-time control and communication tasks. - **Integrated Memory:** Includes **512 KB on-chip Flash memory** and **64 KB SRAM**, suitable for embedded applications and user-developed firmware. - **Comprehensive I/O Capabilities:** - **16 opto-isolated digital inputs** (2500 Vrms isolation) for reliable signal acquisition in noisy industrial environments. - **8 relay outputs** rated at **30 VDC @ 1A** or **125 VAC @ 0.5A**, configurable as **Normally Open (NO)** or **Normally Closed (NC)** via onboard jumpers. - **Multiple Communication Interfaces:** - **1 x 10/100 Mbps Ethernet port** with **1.5 kV magnetic isolation** for network connectivity. - **1 x RS-232 full modem port** and **1 x isolated RS-485 port (2500 Vrms)** for serial communication. - **1 x RS-232 console port** for configuration and debugging. - **Network and Software Support:** - Supports **lwIP** (lightweight IP stack) and **BSD socket library** for TCP/IP networking. - Built-in **tiny web server** for remote configuration and monitoring. - **Windows configuration utility** for device setup and firmware management. - Compatible with **Sourcery CodeBench Lite** and **Keil ARM toolchains** for software development. - **Flexible Power Input:** Operates from **9–48 VDC**, supporting both power jack and terminal block connections. - **Industrial-Grade Design:** DIN-rail mountable aluminum enclosure, wide operating temperature range (**0–70°C**), and robust electrical isolation for industrial reliability. - **1-Wire Interface:** Three 3-pin terminal connectors supporting **Maxim 1-Wire** devices for temperature or sensor integration.

Hersteller: Artila

Kategorie: Automation Controller

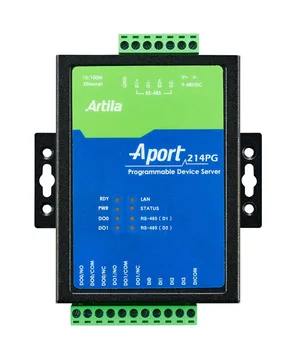

- **High-performance ARM Cortex-M4 Processor:** Equipped with an Atmel SAM4E16E SoC running at **120 MHz**, providing efficient real-time processing for industrial control and communication tasks. - **Ample Memory Resources:** Includes **1 MB on-chip flash** and **128 KB on-chip SRAM**, plus an additional **2 MB flash** and **128 KB SRAM** via SPI expansion for extended application storage and data buffering. - **Multiple Communication Interfaces:** - **Ethernet:** 1 × 10/100 Mbps port with RJ45 connector and 1.5 kV magnetic isolation. - **Serial:** 2 × RS-485 ports with automatic flow control and configurable termination resistors. - **Digital I/O:** 4 × isolated digital inputs (2500 Vrms isolation) and 2 × relay outputs (30 VDC @ 1 A or 125 VAC @ 0.5 A). - **Programmable under FreeRTOS:** Supports **FreeRTOS** with **lwIP** and **BSD socket** libraries for TCP/IP networking. Developers can use **Atmel Studio** and the **GCC Sourcery C++ Lite toolchain** for application development. - **Embedded Web Server Support:** Includes a lightweight web server framework with example programs for AJAX-based web interfaces and remote configuration. - **Flexible Power and Mounting Options:** Operates from **+9 to +48 VDC** and supports **wall-mounting** or **DIN-rail installation** (optional DK-35A kit). - **Industrial-grade Design:** Compact metal enclosure (78 × 108 × 24 mm), operating temperature range **0–70°C**, and compliance with **CE Class A** and **FCC Class A** standards. - **Remote Management and Firmware Upgrade:** Includes a Windows-based Manager Utility for device discovery, configuration, and remote firmware updates.

Hersteller: Artila

Kategorie: RS232

- **Purpose-Built for Matrix-5xx Series:** Engineered for seamless integration with Artila’s Matrix-5xx embedded computers, ensuring full compatibility and optimal signal integrity. - **Interface Conversion:** Converts an **RJ45 serial port** to a **DB9 female** connector, enabling connection to standard RS-232 serial devices. - **High-Quality Construction:** Manufactured with durable materials to withstand industrial conditions, ensuring long-term reliability and consistent performance. - **1.5-Meter Cable Length:** Provides sufficient reach for flexible equipment placement while minimizing signal degradation. - **Plug-and-Play Design:** No additional configuration required—simply connect to the Matrix-5xx RJ45 serial port and the target DB9 device. - **Secure Connection:** Precision-molded connectors ensure a tight, stable fit, reducing the risk of accidental disconnection or signal loss. - **Versatile Application:** Suitable for serial communication with modems, PLCs, sensors, industrial controllers, and other RS-232-compatible devices. - **Optimized Signal Transmission:** Shielded cable design minimizes electromagnetic interference (EMI) and cross-talk, ensuring stable data communication. - **Compact and Lightweight:** Designed for embedded and space-constrained environments where cable management and reliability are critical.

Hersteller: Artila

Kategorie: Accessories

- **Purpose-built for iPAC-50XX Series:** Designed specifically to connect the internal 10-pin serial port header of Artila’s iPAC-50XX controllers to external RS-232 devices. - **DB9 Male Connector:** Provides a standard RS-232 interface compatible with a wide range of serial peripherals such as modems, sensors, PLCs, and industrial instruments. - **10-pin IDC Header Interface:** Connects directly to the controller’s onboard serial port header, ensuring secure and correct pin alignment. - **Flat Ribbon Cable Construction:** Offers flexibility, compact routing, and easy installation within control panels or enclosures. - **Short 0.20 m Length:** Minimizes signal loss and electromagnetic interference (EMI) while maintaining sufficient reach for internal wiring. - **High Signal Integrity:** Designed for stable RS-232 communication with proper shielding and grounding through the DB9 connector. - **Plug-and-Play Compatibility:** No additional configuration required; simply connect the cable between the controller and the external device. - **Industrial-Grade Reliability:** Manufactured by Artila, known for robust embedded and industrial communication solutions.

Hersteller: Artila

Kategorie: Accessories

- **Complete Mounting Solution:** Supplied as a set containing two DIN rail adapters and four screws, providing all necessary components for immediate installation. - **Universal DIN Rail Compatibility:** Designed to fit standard 35 mm DIN rails (commonly referred to as “Top Hat” rails, type TS35), ensuring compatibility with a wide range of industrial and electrical enclosures. - **Durable Construction:** The adapters are made from high-quality, impact-resistant grey polymer material, offering mechanical stability and long-term durability in demanding environments. - **Corrosion-Resistant Hardware:** Includes four V2A (AISI 304) stainless-steel screws, providing excellent resistance to corrosion, oxidation, and environmental wear. - **Compact and Lightweight Design:** Optimized for minimal space usage within control cabinets while maintaining secure attachment strength. - **Ease of Installation:** Simple screw-based mounting system allows quick attachment and removal without specialized tools. - **Versatile Application Range:** Suitable for mounting small enclosures, terminal blocks, power supplies, relays, PLC modules, and other DIN rail-compatible devices. - **Reliable Mechanical Support:** Ensures stable fixation of devices under vibration, temperature variation, and mechanical stress conditions typical in industrial environments. - **Standardized Dimensions:** Conforms to DIN EN 60715 rail dimensions, ensuring universal fit and interchangeability.

Hersteller: Artila

Kategorie: Accessories

- **Processor:** NXP i.MX6ULL Cortex-A7 MPCore, up to 800 MHz - **Operating System:** Linux kernel 4.14.x with U-Boot bootloader and EXT4/EXT3/EXT2/VFAT/NFS file system support - **Memory:** 512 MB DDR3/LPDDR3 SDRAM and 16 MB DataFlash for system backup - **Storage Options:** Boot from eMMC or microSD card (SDHC up to 128 GB) - **Networking:** Dual 10/100 Mbps Ethernet ports (RJ45 with LED indicators) - **Serial Communication:** One RS-232/RS-485 port with automatic hardware direction control - **USB Interface:** One USB 2.0 OTG port (microUSB connector) - **Digital I/O:** Two isolated digital inputs (2500 Vrms isolation) and two solid-state relay outputs (80 VDC @ 1.5 A) - **Expansion:** One full-size miniPCIe slot, one micro-SIM socket, and two reserved SMA antenna holes - **Power Supply:** 9–48 VDC input, typical consumption 250 mA @ 12 VDC - **Operating Temperature:** 0°C to 70°C - **Mounting Options:** Wall mount or DIN-rail (optional kit) - **Certifications:** CE Class A, FCC Class A - **Software Development:** GCC 6.2.x + glibc 2.24 toolchain, supports in-place C/C++ compilation - **Package Management:** Artila-maintained repository with apt-get support - **Pre-installed Software:** Apache/Nginx/Lighttpd, MySQL/SQLite3/PostgreSQL, PHP/Python/Perl/NodeJS, Webmin

Hersteller: Artila

Kategorie: IoT Gateway

NXP i.MX6ULL Cortex A7 800MHz based Industrial Low-Power Computer,Linux kernel 4.14.x and file system, Supports bootup from eMMC or SD card, 512MB LPDDR3 SDRAM and 16 MB for system backup, 1* RS485 RS232, 2*DI (isolated 2500 Vrms), 1* USB 2.0 host ports, 2* 10/100Mb Ethernet ports, 1* microSD slot (SDHC support), 1* miniPCIe full size slot, 1* micro-SIM card socket, 9..48VDC power input (power consumption 250mA@12VDC typical), 0°...70°C operation temperature, 78*108*35, Artila

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor & Architecture:** Atmel ATSAMA5D35 ARM Cortex-A5 CPU, 536 MHz with MMU. - **Memory & Storage:** 512 MB LPDDR2 SDRAM, 8 GB eMMC Flash, and 8 MB DataFlash for system backup. - **Operating System:** Linux kernel 4.9.x / 4.14.x, bootable from eMMC or microSD. - **Networking:** Dual Ethernet ports (1 × Gigabit, 1 × 10/100 Mbps), dual miniPCIe slots for LTE/4G/3G/Wi-Fi modules, and dual micro-SIM sockets for cross-zone communication. - **Serial Communication:** 4 × isolated RS-485 (1500 Vrms), 2 × CAN bus 2.0 A/B (2500 Vrms isolation, up to 1 Mbps). - **USB & Console:** 2 × USB 2.0 host ports, 1 × micro-USB console port. - **Digital I/O:** 2 × isolated digital inputs (5–24 V logic high, 5000 Vrms isolation), 2 × solid-state relay outputs (80 VDC @ 1.5 A). - **GNSS & IMU:** Integrated u-blox M8 GNSS (GPS/GLONASS), 3-axis gyroscope, accelerometer, and magnetometer. - **Audio Output:** Line-out R/L, optional earphone jack, supports MP3/WAV. - **Power Supply:** 9–60 VDC input, typical 230 mA @ 12 VDC (

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** Atmel AT91SAM9G45 ARM9 CPU, 400 MHz with Memory Management Unit (MMU). - **Operating System:** Linux kernel 2.6.38 pre‑installed with U‑Boot bootloader. - **Memory:** 128 MB DDR2 SDRAM, 256 MB NAND Flash, and 2 MB DataFlash® for system backup. - **Compact Form Factor:** SoM dimensions 50 × 80 mm; carrier board designed for direct integration. - **Low Power Consumption:** Typical power usage below 2.5 W. - **Display Support:** 24‑bit TTL LCD interface with dimming control; supports TFT panels up to 1280 × 860 pixels. - **Touchscreen Interface:** 4‑wire resistive touchscreen support. - **Networking:** Integrated 10/100 Mbps Ethernet with on‑board PHY (DAVICOM DM9161) and 1.5 kV magnetic isolation. - **Multiple Serial Interfaces:** Four UARTs supporting up to 921.6 kbps with full modem control signals. - **USB Connectivity:** One USB 2.0 host port and one USB 2.0 device (client) port, both supporting 480 Mbps high‑speed mode. - **Peripheral Interfaces:** I²C, I²S, SPI, SD/MMC, GPIO, AC97 audio, and watchdog timers. - **Real‑Time Clock:** ST M41T81 RTC with on‑board 48 mAh lithium backup battery and external battery input. - **Software Ecosystem:** Pre‑installed Linux utilities, web server, SSH, FTP, and package management via IPKG. - **Development Tools:** GNU C/C++ cross‑compiler toolchain, GTK+, X11, GPE, and Qt4‑Embedded GUI support. - **Expansion and Debugging:** RS‑232 console port, GPIO headers, and local bus connectors for peripheral expansion. - **Starter Kit Availability:** Includes SoM, carrier board, power circuitry, and all essential I/O interfaces.

Hersteller: Artila

Kategorie: SBC Modules

- **Serial-to-Ethernet Conversion:** Provides transparent data communication between serial devices and Ethernet networks using standard TCP/IP protocols. - **Integrated Web Server:** 64KB of Flash memory dedicated to user web pages, Java applets, or ActiveX controls for browser-based device management. - **Multi-Protocol Support:** Operates as a **TCP Server**, **TCP Client**, or **UDP node**, supporting TCP, UDP, HTTP, Telnet, IP, ICMP, and ARP protocols. - **Flexible Serial Interface:** Supports RS-232, RS-422, and RS-485 modes with configurable baud rates from 1,200 to 38,400 bps. - **Programmable Digital I/O:** Nine programmable I/O pins (6 TTL-level, 3 CMOS-level) for external device control and monitoring. - **Multiple Configuration Interfaces:** Web console, Telnet console, serial console, and Windows-based configuration utility. - **Firmware Upgradeable:** Supports firmware updates for long-term maintainability. - **Compact Form Factor:** 30-pin dual-inline module with 2.00mm pitch for easy integration into embedded systems. - **Evaluation Kit Convenience:** Includes all necessary hardware and software for immediate evaluation and development. - **Industrial Reliability:** CE/FCC compliant, operating temperature range 0–70°C, and robust 9–40VDC power input for industrial environments.

Hersteller: Artila

Kategorie: RS232

GPS Antenna /Wire, Artila

Hersteller: Artila

Kategorie: Accessories

- **Processor:** TI Sitara AM3354 ARM Cortex‑A8, 32‑bit RISC architecture, 800 MHz (up to 1 GHz). - **Display:** 12‑inch TFT LCD, 800 × 600 resolution, 16.2 M colors, 600 cd/m² brightness, 1500:1 contrast ratio. - **Touchscreen:** Projected capacitive type, USB‑controlled, explosion‑proof, >85 % light transparency. - **Memory:** 256 MB DDR3 SDRAM (expandable to 512 MB). - **Storage:** 512 MB onboard eMMC NAND Flash; 1 × microSD slot supporting up to 64 GB SDHC. - **Graphics Engine:** PowerVR SGX530 3D graphics accelerator supporting Direct3D Mobile, OpenGL ES 1.1/2.0, OpenVG 1.0, and OpenMAX APIs. - **Connectivity:** - 2 × Gigabit Ethernet (10/100/1000 Mbps, RJ‑45) - 2 × USB 2.0 Host ports (480 Mbps, Type A) - 1 × RS‑232 serial port - 1 × CAN bus 2.0 A/B (up to 1 Mbps; optional second port) - **Power Input:** +18 VDC – +30 VDC (typical +24 VDC), 14.4 W consumption. - **Construction:** Die‑cast aluminum front bezel, metal rear housing, IP65‑rated front panel. - **Mounting:** Panel‑mount and VESA‑mount compatible; fanless design for industrial environments. - **Operating System:** Linux 4.9.x with Barebox bootloader, EXT4 filesystem, and QT5 graphics library. - **Software Environment:** LXDE desktop, Debian package management, pre‑installed development and web tools. - **Operating Range:** 0 °C – 50 °C, 25 – 85 % RH (non‑condensing). The HC‑3120’s combination of robust hardware, industrial‑grade materials, and open Linux software stack makes it a versatile platform for embedded HMI, SCADA, and automation control applications.

Hersteller: Artila

Kategorie: LCD HMI

- **High-Performance ARM Processor:** Powered by the **TI AM3352 Sitara ARM Cortex-A8** CPU at **1GHz**, delivering efficient processing for HMI and control applications. - **Integrated Graphics Engine:** Equipped with **SGX530 3D graphics engine** supporting **Direct3D Mobile**, **OpenGL ES 1.1/2.0**, **OpenVG 1.0**, and **OpenMAX**, enabling smooth rendering of graphical interfaces and animations. - **7-inch TFT LCD Display:** Features an **800×480 resolution**, **300 cd/m² brightness**, **1500:1 contrast ratio**, and **140°/120° viewing angles**, ensuring clear visibility in industrial lighting conditions. - **Rugged Industrial Design:** Fanless, compact, and **IP65-compliant front panel** for dust and water resistance, suitable for harsh environments. - **Flexible Connectivity:** Includes **3 serial ports (RS-232/422/485)**, **1 Ethernet port (10/100 Mbps)**, **2 USB 2.0 ports (Host and Client)**, and **1 microSD slot** supporting up to **64GB SDHC**. - **Linux-Based System:** Runs **Linux kernel 4.9.x**, supporting boot from **eMMC** or **microSD**, with optional HMI software and remote management capabilities. - **Mounting Versatility:** Supports **panel mount** and **VESA 75×75mm** mounting options for flexible installation. - **Wide PLC Compatibility:** Compatible with major PLC brands such as **Allen-Bradley**, **Mitsubishi**, **Siemens**, **Omron**, and **Koyo**, as well as **Modbus RTU/TCP Master/Slave** protocols. - **Low Power Consumption:** Operates at **24VDC**, consuming only **8W**, ideal for energy-efficient industrial systems. - **Enhanced Reliability:** Designed for **0–50°C operating temperature**, **10–90% humidity**, and **Level 4 ESD protection** (8kV contact, 15kV air-gap).

Hersteller: Artila

Kategorie: LCD HMI

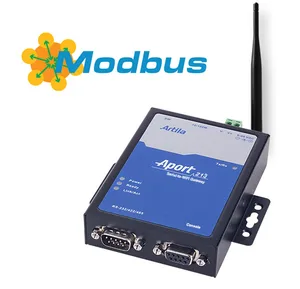

- **Multi-Protocol Gateway:** Supports Modbus RTU/ASCII to Modbus TCP conversion, enabling integration of legacy serial devices into modern Ethernet or Wi-Fi networks. - **Versatile Serial Interface:** One configurable RS-232/422/485 port with DB9 male connector, supporting up to 921.6 Kbps baud rate. - **Wireless Connectivity:** Integrated 2.4GHz IEEE 802.11b/g/n Wi-Fi interface with data rates up to 150 Mbps (40 MHz channel). - **Network Modes:** Operates as Access Point (AP), Station, Wi-Fi Direct, or WPS-enabled device. - **Secure Communication:** Supports WEP-64/128, WPA, and WPA2 encryption for secure wireless data transmission. - **Flexible Configuration:** Web-based interface, serial console, and Windows configuration utility for easy setup and management. - **High Reliability:** CE/FCC Class A compliant, industrial-grade design with 0–70°C operating temperature range. - **Power Flexibility:** Accepts 9–48 VDC input via terminal block or Micro-USB power source. - **Compact Design:** Small form factor (78 × 108 × 25 mm) suitable for DIN-rail or wall mounting. - **Firmware Upgradeable:** Supports remote firmware updates via web or Windows utility. - **Real-Time OS:** Built on FreeRTOS for stable and deterministic operation.

Hersteller: Artila

Kategorie: RS232

- **High-performance ARM9 Processor:** Equipped with a 400 MHz Atmel AT91SAM9G45 CPU with integrated Memory Management Unit (MMU), enabling efficient multitasking and Linux kernel operation. - **Linux-ready Platform:** Preloaded with Linux kernel 2.6.38, U-Boot bootloader, and a complete GNU C/C++ toolchain for immediate development. - **Integrated Memory:** 128 MB DDR2 SDRAM and 256 MB NAND Flash, plus 2 MB DataFlash® for system backup. - **Compact and Efficient Design:** Small 50 × 80 mm SoM footprint with typical power consumption under 2.5 W. - **Comprehensive I/O Interfaces:** Includes Ethernet, multiple UARTs, USB host/client, I²C, SPI, I²S, SD card, GPIO, AC97, LCD, and touchscreen interfaces. - **Advanced Display Support:** 24-bit TTL LCD interface supporting TFT panels up to 1280 × 860 pixels with dimming and backlight control. - **Networking Capability:** Integrated 10/100 Mbps Ethernet interface with onboard PHY (DAVICOM DM9161) and 1.5 kV magnetic isolation. - **Rich Peripheral Support:** Compatible with USB flash drives, Wi-Fi adapters, webcams, keyboards, mice, 3G modems, and Bluetooth devices. - **Software Ecosystem:** Includes preinstalled utilities, daemons, and drivers for rapid deployment—SSH, FTP, web server (lighttpd), MySQL, PHP, Python, and more. - **Expandable and Customizable:** Supports IPKG package management for software installation and updates; customizable USB device drivers. - **Industrial-grade Reliability:** Features watchdog timers, RTC with battery backup, and robust GPIO control for embedded applications.

Hersteller: Artila

Kategorie: SBC Modules

- **Processor:** Atmel ATSAMA5D35 ARM Cortex‑A5 MPU, 536 MHz, with MMU and VFPv4 floating‑point unit. - **Memory:** 512 MB LPDDR2 SDRAM, 8 GB eMMC Flash, and 8 MB DataFlash for system backup. - **Operating System:** Linux kernel 4.9.x with EXT4 file system and Barebox bootloader. - **Networking:** Dual Ethernet interfaces — one Gigabit (Micrel KSZ9031RNXCA) and one 10/100 Mbps (Micrel KSZ8081RNAIA). - **Interfaces:** SPI, I²C, I²S, UART × 4, CAN × 2, USB 2.0 Host × 2, SD 2.0 (SDHC), GPIO × 21. - **Power Efficiency:** Single 5 V DC input, typical consumption 0.75 W (

Hersteller: Artila

Kategorie: SBC Modules

M-X6ULL with CB-X6ULL carrier board with power circuitry, Ethernet, Serial port, USB, CAN, SD socket, mini-PCIe socket, 9..48VDC, Artila

Hersteller: Artila

Kategorie: SBC Modules
