- **Four Independent Isolated Serial Ports:** Each port supports RS-422 or RS-485 communication, selectable via DIP switch. Channel-to-channel isolation ensures electrical protection and noise immunity. - **High Isolation Voltage:** Provides **1000 V RMS** isolation between channels and system ground, protecting against surges and ground loops. - **Auto-Direction Flow Control for RS-485:** Hardware-based automatic data direction control eliminates the need for software toggling of RTS signals. - **CompactPCI 32-bit Interface:** Fully compliant with **PICMG 2.0 Rev. 2.1**, supporting 5V signaling and plug-and-play resource allocation. - **High-Speed Communication:** Each port supports baud rates from **50 bps to 115,200 bps**, configurable per channel. - **Plug-and-Play Configuration:** IRQ and I/O addresses are automatically assigned by the PCI BIOS, simplifying installation and system integration. - **Rugged Industrial Design:** Equipped with a **DB37 female connector** and optional breakout cables (DB9 or DB25). Designed for harsh industrial environments with wide operating temperature and humidity ranges. - **Multi-OS Support:** Compatible with **Windows 95/98/NT/2000/XP**, **Linux**, and **QNX** (upon request). - **Rear I/O Option (cPCI-3544R):** Supports rear I/O connectivity through the CompactPCI J2 connector for backplane integration. - **Surge Protection:** Built-in surge protectors safeguard communication lines from transient voltage spikes. - **Scalable System Expansion:** Supports up to **8 cards per system**, providing a total of **32 isolated serial ports**.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

- **Four Independent Isolated Serial Ports:** Each port supports RS-422 or RS-485 communication, selectable via DIP switch. Channel-to-channel isolation ensures signal integrity and protection against ground loops. - **High Isolation Voltage:** 1000 V RMS isolation between channels and system ground, providing robust electrical protection. - **Auto-Direction Flow Control for RS-485:** Hardware-based automatic data direction control eliminates the need for software toggling of RTS signals. - **CompactPCI 32-bit Interface:** Fully compliant with PICMG 2.0 Rev. 2.1, supporting 5V signaling and plug-and-play configuration. - **Plug-and-Play Configuration:** IRQ and I/O addresses are automatically assigned by the PCI BIOS, simplifying installation and system integration. - **High-Speed Communication:** Each port supports baud rates from 50 bps up to 115,200 bps, suitable for a wide range of industrial serial devices. - **Scalable System Expansion:** Up to eight cPCI-3544 cards can be installed in a single system, providing a maximum of 32 isolated serial ports. - **Rugged Industrial Design:** Equipped with a durable DB37 female connector and optional DB25 or DB9 breakout cables for field connectivity. - **Surge Protection:** Integrated surge protection circuitry safeguards against transient voltage spikes. - **Operating System Support:** Compatible with Windows 95/98/NT/2000/XP/XP Embedded and Linux operating systems. - **Rear I/O Support (cPCI-3544R):** Optional rear I/O version (cPCI-3544R) allows connection through the CompactPCI J2 connector for backplane routing.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

- **Four Independent Isolated Serial Ports:** Provides four fully isolated RS-422/RS-485 communication channels, each configurable via DIP switches for RS-422 or RS-485 operation. - **High Isolation Voltage:** 1000 V RMS isolation between channels ensures electrical protection and noise immunity in industrial environments. - **Auto-Direction Flow Control for RS-485:** Built-in automatic data direction control eliminates the need for software-based RTS signal management, simplifying half-duplex RS-485 communication. - **CompactPCI 32-bit Bus Interface:** Fully compliant with PICMG 2.0 Rev. 2.1 CompactPCI specifications, supporting 5V I/O signaling. - **Plug-and-Play Configuration:** IRQ and I/O address automatically assigned by PCI BIOS, reducing manual configuration and resource conflicts. - **High-Speed Communication:** Each port supports baud rates from 50 bps to 115,200 bps, suitable for a wide range of industrial serial devices. - **Surge Protection:** Integrated surge protectors safeguard communication lines against transient voltage spikes. - **Rugged Industrial Design:** Equipped with a durable DB37 female connector and optional DB9 or DB25 breakout cables for reliable field connectivity. - **Multi-OS Support:** Compatible with Windows 95/98/NT/2000/XP/XP Embedded and Linux operating systems. - **Scalable System Expansion:** Supports up to eight cards per system, providing a total of 32 isolated serial ports. - **Rear I/O Option (cPCI-3544R):** Optional rear I/O version available for backplane connectivity in CompactPCI chassis.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

- **Four Independent Isolated Serial Ports:** Each port supports RS-422 or RS-485 communication, selectable via DIP switches. - **High Isolation Protection:** 1000 V RMS isolation between channels ensures electrical safety and noise immunity. - **Auto-Direction Flow Control for RS-485:** Hardware-based automatic data direction management eliminates the need for software control signals. - **CompactPCI 32-bit Interface:** Compliant with **PICMG 2.0 Rev. 2.1**, supporting 5V I/O signaling. - **Plug-and-Play Configuration:** IRQ and I/O addresses automatically assigned by PCI BIOS; no manual configuration required. - **High-Speed Communication:** Each port supports baud rates from **50 bps to 115,200 bps**. - **Rear I/O Support:** The cPCI-3544R connects via the CompactPCI J2 connector to a rear transition module (cPCI-R3544). - **Rugged Industrial Design:** Equipped with a **DB37 female connector** and surge protection circuitry for reliable operation in harsh environments. - **Multi-OS Compatibility:** Supports **Windows 95/98/NT/2000/XP/XP Embedded**, **Linux**, and **QNX** (upon request). - **Scalable System Integration:** Up to **8 cards per system**, providing a total of **32 serial ports**. - **Applications:** Ideal for **factory automation**, **telecommunications**, **POS systems**, **traffic control**, **distributed monitoring**, and **data collection**.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

- **Four Independent Isolated Serial Ports:** Each port supports RS‑422 or RS‑485 operation, selectable via DIP switches. - **High Isolation Voltage:** 1000 V RMS channel‑to‑channel isolation ensures protection against ground loops and electrical noise. - **Auto‑Direction Flow Control (RS‑485):** Hardware‑based automatic data direction control eliminates the need for software toggling of RTS signals. - **CompactPCI 32‑bit Bus Interface:** Fully compliant with PICMG 2.0 Rev 2.1, supporting 5 V I/O signaling. - **Plug‑and‑Play Configuration:** IRQ and I/O addresses automatically assigned by PCI BIOS; no manual configuration required. - **High‑Speed Communication:** Each port configurable from 50 bps up to 115,200 bps. - **Rear I/O Support:** The “R” variant (cPCI‑3544R) enables rear I/O connectivity through the CompactPCI J2 connector and transition board. - **Surge Protection:** Integrated surge suppressors safeguard communication lines in harsh industrial environments. - **Rugged Connectors:** Industrial‑grade DB‑37 female connector on the board; DB‑25M or DB‑9M breakout cables available. - **Multi‑OS Driver Support:** Compatible with Windows 2000/XP/XP Embedded/NT/95/98 and Linux. - **Scalable System Expansion:** Up to eight cards per system, providing a maximum of 32 isolated serial ports. - **Industrial Reliability:** Designed for continuous operation in factory automation, distributed control, and data acquisition systems.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

- **Four Independent Isolated Serial Ports:** Provides four fully isolated RS-422/RS-485 ports, each configurable via DIP switch for RS-422 or RS-485 operation. - **High Isolation Voltage:** 1000 V RMS isolation between channels ensures protection against ground loops and electrical surges. - **Auto-Direction Flow Control (RS-485):** Hardware-based automatic data direction control eliminates the need for software toggling of transmit/receive lines in half-duplex RS-485 communication. - **CompactPCI 32-bit Interface:** Fully compliant with PICMG 2.0 Rev. 2.1 CompactPCI specifications, supporting 5V signaling. - **Plug-and-Play Configuration:** IRQ and I/O address automatically assigned by PCI BIOS, simplifying installation and system integration. - **High-Speed Communication:** Each port supports baud rates from 50 to 115,200 bps, suitable for a wide range of industrial serial devices. - **Rear I/O Support:** The cPCI-3544R variant supports rear I/O connectivity through the CompactPCI J2 connector, enabling cable-free front panels and improved system integration. - **Rugged Industrial Design:** Features a robust DB-37 female connector and surge protection circuitry for reliable operation in harsh environments. - **Multi-OS Driver Support:** Compatible with Windows 2000/XP/XP Embedded/NT/95/98 and Linux operating systems. - **Scalable System Expansion:** Supports up to eight cards per system, providing a maximum of 32 isolated serial ports. - **Applications:** Ideal for factory automation, distributed monitoring and control, telecommunications, POS systems, stock market terminals, and traffic control systems.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

- **Intelligent Serial Controller:** Built‑in Intel i960KA 32‑bit RISC processor (20 MHz) for offloading host CPU tasks. - **CompactPCI Compliance:** Fully compliant with PCI Specification Rev. 2.1; 32‑bit CompactPCI form factor. - **Plug‑and‑Play Configuration:** Automatic IRQ and I/O address assignment via PCI BIOS; no manual configuration required. - **High Scalability:** Modular design supports 8 to 64 ports per controller and up to two controllers per system (maximum 128 ports). - **Flexible Interface Options:** Supports RS‑232, RS‑422, and RS‑485 communication standards through expansion modules. - **Rear I/O Connectivity:** All serial ports are routed through rear I/O connectors for clean front‑panel integration. - **Operating System Support:** Compatible with Windows NT, SCO UNIX, XENIX, AT&T UNIX System V, and other UNIX variants. - **LED Diagnostics:** Front‑panel LEDs for Power, Reset, Fail, and Active status indication. - **High Reliability:** Industrial‑grade design with wide operating temperature range and robust electrical isolation (for cPCI‑6968). - **Ease of Expansion:** Additional 8‑port modules can be added in seconds without system reconfiguration.

Manufacturer: Adlink Technology Inc.

Category: cPCI Serial 4/8-Port

Compact PCI 4-port serial card, up to 921,6kBd, plug&play, max 4 cards/system, 2 independent RS232 ports (not isolated) and 2 port RS232/422/485 (isolation voltage 2000V / RS485), with 16550 UART, supports Win NT/95/98, with DB44 to DB9m cable, 160*100mm, Moxa

Manufacturer: Moxa

Category: cPCI Serial 4/8-Port

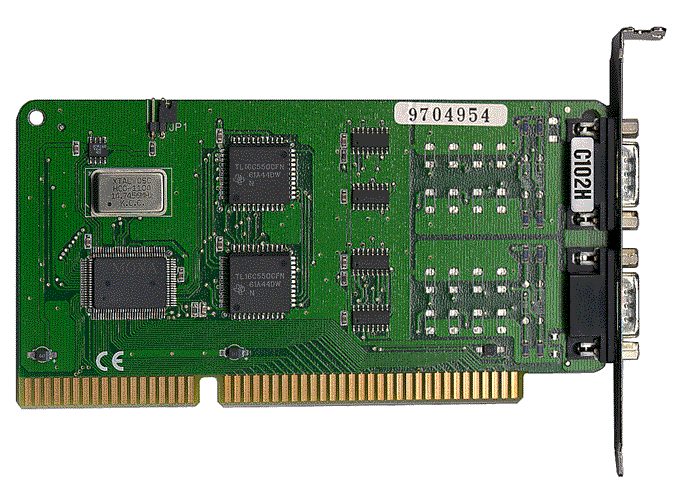

- **Dual Independent RS-422/RS-485 Ports:** Two fully independent asynchronous serial ports supporting both RS-422 and RS-485 standards for point-to-point or multidrop communication. - **High-Speed UARTs:** Equipped with two TI550C UARTs providing hardware flow control and FIFO buffering to prevent data loss at high transmission speeds. - **Custom ASIC Design:** Integrates multiple conventional ICs into a single ASIC, reducing board size to half-length and improving reliability. - **Software-Configurable Hardware:** No jumpers or DIP switches required; all I/O addresses and IRQs are configured via software utility (Io-irq.exe) and stored in onboard EEPROM. - **Flexible Communication Modes:** Supports full-duplex and half-duplex operation, echo and non-echo modes, and master/slave configurations for multidrop networks. - **Wide Baud Rate Range:** Operates from 50 bps to 921.6 kbps, with selectable normal and high-speed modes. - **Comprehensive OS Support:** Compatible with DOS, Windows 3.1, Windows 95, Windows NT, Linux, QNX, SCO UNIX/XENIX/OpenServer, OS/2, and FreeBSD. - **Surge and Isolation Options:** Surge and opto-isolation protection available in related models (C102HI, C102HIS). - **Compact ISA Interface:** 16-bit AT bus (ISA/EISA compatible) design ensures compatibility with legacy and industrial PC systems. - **Diagnostic and Programming Tools:** Bundled with Moxa’s PComm (Windows) and API-232 (DOS) libraries for application development, diagnostics, and monitoring.

Manufacturer: Moxa

Category: General Purpose Cards

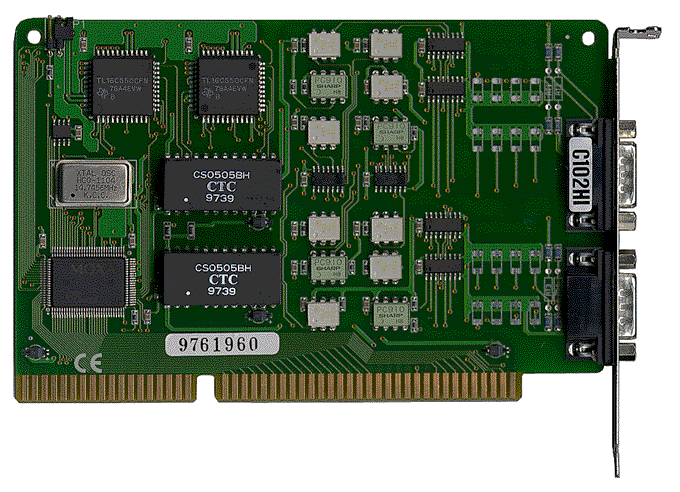

- **Dual Independent Serial Ports:** Two fully independent RS-422/RS-485 ports for simultaneous communication. - **Optical Isolation:** 2 kV isolation between the board and connected devices to protect against voltage surges and ground loops. - **High-Speed UARTs:** Equipped with two TI550C UARTs supporting baud rates from 50 bps to 921.6 kbps, ensuring reliable high-speed data transfer. - **Custom ASIC Design:** Moxa’s proprietary ASIC reduces component count, minimizes board size, and enhances reliability. - **Software-Configurable Hardware:** No jumpers or DIP switches; all I/O addresses and IRQs are configured via software utility (Io-irq.exe). - **EEPROM Configuration Storage:** On-board EEPROM retains configuration data, eliminating the need for manual reconfiguration. - **Flexible Communication Modes:** Supports RS-422 point-to-point and broadcast modes, and RS-485 point-to-point or multidrop, in both half- and full-duplex configurations. - **Comprehensive OS Support:** Compatible with DOS, Windows 3.1, Windows 95, Windows NT, Linux, QNX, SCO UNIX/XENIX/OpenServer, OS/2, and FreeBSD. - **Driver Support:** Moxa provides dedicated drivers for DOS, Windows 95, and Windows NT for optimal performance. - **Compact Half-Size ISA Board:** Designed for 16-bit ISA bus architecture, compatible with EISA systems. - **High Reliability:** Industrial-grade design with opto-isolation and surge protection (in related models). - **Diagnostic and Development Tools:** Bundled with Moxa’s PComm and API-232 libraries for application development and diagnostics.

Manufacturer: Moxa

Category: General Purpose Cards

- **Dual Independent RS-422/RS-485 Ports:** Two fully independent asynchronous serial ports supporting both RS-422 and RS-485 standards. - **High-Speed Operation:** Supports baud rates from 50 bps up to 921.6 Kbps using TI550C UARTs with on-chip hardware flow control. - **Optical Isolation and Surge Protection:** Provides up to 2 kV isolation and 2 kV surge protection, ensuring safe operation in harsh industrial environments. - **Software-Configurable Hardware:** No jumpers or DIP switches; all configuration (I/O address, IRQ, interrupt vector) is handled via software utility (Io-irq.exe) and stored in onboard EEPROM. - **Custom ASIC Design:** Reduces board size to half-length ISA form factor while maintaining full 16-bit AT bus compatibility. - **Flexible Communication Modes:** Supports RS-422 point-to-point full-duplex and broadcasting, as well as RS-485 point-to-point and multidrop, in both half- and full-duplex modes. - **Comprehensive OS Support:** Compatible with DOS, Windows 3.1, Windows 95, Windows NT, SCO UNIX/XENIX/OpenServer, OS/2, Linux, QNX, and FreeBSD. - **Driver and Utility Support:** Includes Moxa-provided drivers for DOS, Windows 95, and Windows NT, plus diagnostic and programming tools (PComm for Windows, API-232 for DOS). - **High Reliability:** Designed for industrial automation, data acquisition, and control systems requiring stable, long-distance serial communication.

Manufacturer: Moxa

Category: General Purpose Cards

- **Dual Independent RS-422/RS-485 Ports:** Supports two fully independent asynchronous serial ports for industrial communication. - **Custom ASIC Design:** Integrates multiple conventional ICs into a single ASIC, reducing board size to a compact half-length ISA form factor. - **Software Configuration:** No jumpers or switches required; configuration is performed via the DOS utility *Io-irq.exe*, which writes settings to onboard EEPROM. - **Flexible Communication Modes:** Supports point-to-point and multidrop connections, full-duplex and half-duplex operation, and both 2-wire and 4-wire configurations. - **UART Compatibility:** Equipped with two 16550-compatible UARTs providing 16-byte FIFO buffers for reliable high-speed data transmission. - **Wide Baud Rate Range:** Operates from 50 bps up to 115.2 Kbps (C102P model). - **Full Range of IRQs and I/O Addresses:** IRQs 2, 3, 4, 5, 7, 10, 11, 12, and 15; I/O address range 0x0000–0xFFFF. - **EEPROM Configuration Storage:** Retains configuration data even after power-off. - **Surge and Isolation Options:** Surge and isolation protection available in other C102 variants (C102HI, C102HIS). - **Operating System Support:** Compatible with DOS, Windows 3.1, Windows 95, Windows NT, SCO UNIX/XENIX, OS/2, Linux, QNX, and FreeBSD. - **Driver Support:** Moxa provides dedicated drivers for DOS, Windows 95, and Windows NT for optimal performance. - **Diagnostic and Development Tools:** Bundled with Moxa’s *PComm* communication library and utilities for Windows, and *API-232* library for DOS.

Manufacturer: Moxa

Category: General Purpose Cards

- **IEEE 1394 (FireWire) Interface:** Supports the IEEE 1394a standard, offering high-speed serial data transfer up to 400 Mbps (megabits per second). - **3 External + 1 Internal Ports:** Provides three external 6-pin FireWire ports and one internal 6-pin port for flexible device connectivity. - **Texas Instruments TSB43AB23 Chipset:** Ensures stable performance, low latency, and broad compatibility with a wide range of FireWire devices. - **Plug-and-Play PCI Interface:** Installs easily into any standard PCI slot, automatically recognized by most modern operating systems. - **Hot-Swappable Connectivity:** Devices can be connected or disconnected without powering down the computer. - **Broad Device Support:** Compatible with DV camcorders, external hard drives, CD/DVD burners, audio/video capture devices, and professional audio interfaces. - **Included Accessories:** Comes with a FireWire cable and driver CD for quick setup and installation. - **Backward Compatibility:** Supports both 100 Mbps, 200 Mbps, and 400 Mbps transfer modes (IEEE 1394a). - **Bus Power Support:** Provides power through the FireWire ports for self-powered devices (up to 12V DC, depending on system power supply). - **Optimized for Multimedia Applications:** Ideal for digital video editing, real-time audio recording, and high-speed data transfer tasks.

Manufacturer: No category

Category: General Purpose Cards

PCI 1 printer port, up to 1,5MByte parallel, NetMos Nm9805CV, 1*DB25f on card, Win driver CD

Manufacturer: No category

Category: General Purpose Cards

- **Dual Serial Ports (RS-232):** Provides two independent serial communication interfaces for connecting modems, barcode scanners, industrial controllers, or other serial-based devices. - **Single Parallel Port (LPT):** Adds one standard DB25 female parallel port for printers, CNC controllers, or other parallel-interface equipment. - **High-Speed Data Transfer:** Supports up to **1 MByte/s** data rate on serial ports and up to **1.5 MByte/s** on the parallel port, ensuring fast and stable communication. - **Advanced UART Technology:** Equipped with **16-byte FIFO UART** buffers for each serial channel, minimizing CPU load and improving data throughput during high-speed transfers. - **Reliable NetMos NM9835CV Chipset:** Utilizes the proven NetMos (MosChip) NM9835CV PCI controller, known for its stability, compatibility, and broad driver support. - **Plug-and-Play PCI Interface:** Fully compliant with the PCI 2.2 specification, allowing automatic resource allocation and easy installation in standard PCI slots. - **Comprehensive OS Support:** Includes Windows driver CD for quick setup and compatibility with major Windows operating systems. - **Flexible Port Layout:** Two DB9 male connectors are integrated directly on the card bracket, while the DB25 female parallel port is provided on an additional slot bracket connected via ribbon cable. - **Industrial and Legacy Support:** Ideal for environments requiring continued use of RS-232 and LPT interfaces, such as manufacturing, laboratory, and embedded systems.

Manufacturer: No category

Category: General Purpose Cards

- **Multi-Port Expansion:** Provides **four serial (RS-232)** ports and **one parallel (IEEE 1284)** port via a single PCI slot. - **High-Speed Data Transfer:** Supports serial data rates up to **1 MByte/s** and parallel data throughput up to **1.5 MByte/s**, enabling efficient communication with high-speed peripherals. - **Advanced UART Technology:** Each serial port is equipped with a **16-byte FIFO UART buffer**, reducing CPU load and improving data integrity during high-speed communication. - **Reliable Controller Chipset:** Built on the **NetMos Nm9845CV** controller, known for its robust performance and compatibility with a wide range of PCI-based systems. - **Flexible Port Configuration:** - On-card connectors: **1 × DB9 male** (serial) and **1 × DB25 female** (parallel). - Additional ports: **3 × DB9 male** serial ports provided via an **extra slot bracket** connected by ribbon cable. - **Plug-and-Play PCI Interface:** Fully compliant with PCI bus specifications, supporting automatic resource allocation (IRQ and I/O address). - **Comprehensive OS Support:** Includes **Windows driver CD**, ensuring compatibility with major Windows operating systems (Windows 98/ME/2000/XP and later). - **Ideal for Legacy and Industrial Applications:** Perfect for connecting serial-based devices such as modems, barcode scanners, CNC controllers, POS systems, and printers.

Manufacturer: No category

Category: General Purpose Cards

PCI 4 external and 1 internal USB port card, each port full/high/low data transaction, PCI 2.2 compliant, 3,3/2,5V multi power supply, 3,3V suspend power for wake up functions, Win driver CD

Manufacturer: No category

Category: General Purpose Cards

- **Single Parallel Port Expansion:** Provides one standard IEEE 1284-compatible parallel port (DB25 female connector) for printers or parallel-interface devices. - **Low-Profile PCI Design:** Compact PCB and bracket suitable for slim desktop and industrial PCs; includes low-profile bracket for space-constrained installations. - **High Data Throughput:** Supports data transfer rates up to **1.5 MByte/s**, ensuring efficient communication with high-speed printers and parallel devices. - **Reliable Controller Chipset:** Built around the **NetMos NM9805CV** PCI-to-Parallel controller, known for stable performance and wide OS compatibility. - **Plug-and-Play PCI Interface:** Fully compliant with PCI 2.2/2.3 standards, supporting 32-bit, 33 MHz PCI bus operation. - **Comprehensive Driver Support:** Includes a **Windows driver CD** for easy installation on Windows operating systems (Windows 98SE, 2000, XP, Vista, 7, 8, 10, and later). - **Standard DB25 Female Connector:** Provides a direct connection to printers or other parallel devices using standard DB25 male cables. - **Backward Compatibility:** Supports legacy parallel communication modes (SPP, EPP, ECP) for compatibility with a wide range of devices. - **Industrial and Office Applications:** Ideal for connecting printers, plotters, CNC controllers, instrumentation, and other parallel-interface equipment.

Manufacturer: No category

Category: General Purpose Cards

- **Four Independent USB 3.0 Controllers:** Each USB port is managed by a dedicated **NEC/Renesas μPD720202** host controller, ensuring full 5 Gbps bandwidth per port without contention or performance degradation. - **High Bandwidth Performance:** Supports up to **2 GB/s total data throughput**, leveraging the **x4 PCI Express Gen2** interface for simultaneous multi-port operation. - **Industrial-Grade Power Design:** Features an **on-board regulated 5VDC power supply** with **user-configurable current limits** (900 mA or 1500 mA per port). This ensures stable and reliable power delivery to connected USB devices, even under heavy load. - **Software-Programmable Power Control:** Each port’s power can be individually turned on or off via software, enabling **fault recovery** and **remote device management**. - **No External Power Required:** The card draws power directly from the PCI Express bus, eliminating the need for external adapters or cables. - **Backward Compatibility:** Fully compatible with **USB 2.0, USB 1.1, and USB 1.0** devices, ensuring seamless integration with legacy peripherals. - **Industrial Reliability:** Designed for **machine vision**, **industrial automation**, and **data acquisition** environments, with robust connectors and secure mounting options. - **Operating System Support:** Compatible with **Windows XP, Windows 7, Windows 8 (32/64-bit)**, and **Linux** operating systems.

Manufacturer: Neousys Technology

Category: General Purpose Cards

- **Eight USB 3.0 Ports:** Provides eight SuperSpeed USB 3.0 ports, each capable of up to 5 Gbps data transfer rate, backward compatible with USB 2.0/1.1/1.0 devices. - **Four Independent Controllers:** Equipped with four NEC/Renesas μPD720202 host controllers, ensuring dedicated bandwidth per port and eliminating performance bottlenecks common in single-controller designs. - **High Bandwidth Performance:** Supports up to 2 GB/s total throughput across all ports, ideal for multi-camera or high-speed data streaming applications. - **PCI Express Gen2 x4 Interface:** Compliant with PCI Express Base Specification Revision 2.0, providing a stable, high-speed connection to the host system. - **Industrial Power Design:** On-board regulated 5VDC power supply with user-configurable per-port current limits (900 mA or 1500 mA). - **Software-Programmable Power Control:** Each port can be individually powered on or off via software, enabling fault recovery and power management. - **No External Power Required:** Draws power directly from the PCI Express bus, simplifying installation and reducing cabling complexity. - **Robust Mechanical Design:** Features panel-accessible Type-A connectors with M2 screw threads and on-board connectors with cable tie points for secure connections in vibration-prone environments. - **Wide OS Compatibility:** Supports Windows XP, Windows 7/8 (32-bit and 64-bit), and Linux operating systems. - **Industrial Temperature Range:** Operates reliably from 0°C to 60°C with adequate airflow. - **Machine Vision Ready:** Optimized for industrial imaging systems, frame grabbers, and high-speed cameras.

Manufacturer: Neousys Technology

Category: General Purpose Cards

PCI 32bit 1 parallel card, bidirectional, ECP, EPP, plug and play, 83byte buffer, Sunix

Manufacturer: No category

Category: General Purpose Cards

PCI 32bit 2 parallel card, bidirectional, plug and play, 83byte buffer, Sunix

Manufacturer: No category

Category: General Purpose Cards

- **Single-Port RS-232 Interface:** Provides one standard RS-232 serial communication port for connecting serial devices such as modems, sensors, controllers, and terminals. - **Advanced UART Controller:** Equipped with a 16650 UART featuring a 32-byte FIFO buffer, enabling smooth data flow and minimizing CPU load during high-speed data transfers. - **High Data Rate Support:** Supports baud rates up to 460.8 kbps, ensuring compatibility with both standard and high-speed serial communication requirements. - **Flexible Resource Configuration:** Supports COM1–COM8 port addressing and selectable IRQ lines (IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, IRQ12, IRQ15) for flexible system integration. - **ISA Bus Interface:** Designed for systems utilizing the ISA (Industry Standard Architecture) bus, ensuring compatibility with legacy industrial PCs and embedded systems. - **Compact Form Factor:** With dimensions of 157 mm × 58 mm, the card fits easily into standard ISA slots without obstructing adjacent components. - **Industrial Reliability:** Built with high-quality components for long-term operation in industrial environments, offering stable performance under continuous use. - **Plug-and-Play Configuration:** Simplified setup through jumper or DIP switch configuration for port and IRQ selection. - **Broad Compatibility:** Works with a wide range of operating systems and legacy software that support standard COM port communication.

Manufacturer: No category

Category: General Purpose Cards

PCI 32bit 1 RS232 card, 1*16650 FIFO UART, max 921600bd

Manufacturer: No category

Category: General Purpose Cards

UPCI 32bit 1 RS232 card, 1*16650 FIFO UART, max 921600bd

Manufacturer: No category

Category: General Purpose Cards
