Comprehensive Product Summary: Neousys PCIe-USB380
### 1. Product Overview
Product Name: PCIe-USB380
Model Number: PCIe-USB380
Series: PCIe-USB3.0 Host Adapter Series
Article Number: PCIe-USB380
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)

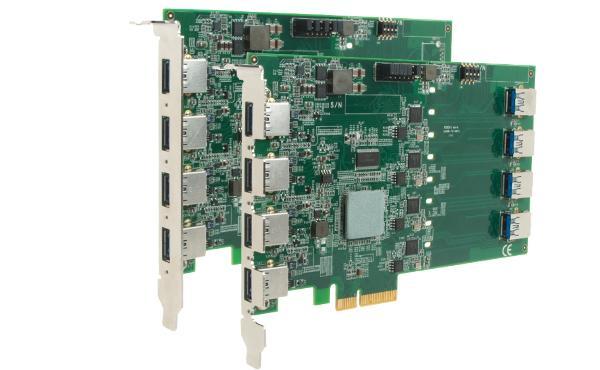

The Neousys PCIe-USB380 is an industrial-grade, high-performance 8-port USB 3.0 host adapter card designed for machine vision, industrial automation, and high-speed data acquisition applications. It integrates four independent NEC/Renesas μPD720202 USB 3.0 host controllers and a PCI Express Gen2 x4 interface, delivering up to 2 GB/s total bandwidth. The card provides robust power management, software-programmable per-port control, and reliable mechanical design for demanding industrial environments.
### 2. Key Features
- Eight USB 3.0 Ports: Provides eight SuperSpeed USB 3.0 ports, each capable of up to 5 Gbps data transfer rate, backward compatible with USB 2.0/1.1/1.0 devices.
- Four Independent Controllers: Equipped with four NEC/Renesas μPD720202 host controllers, ensuring dedicated bandwidth per port and eliminating performance bottlenecks common in single-controller designs.
- High Bandwidth Performance: Supports up to 2 GB/s total throughput across all ports, ideal for multi-camera or high-speed data streaming applications.
- PCI Express Gen2 x4 Interface: Compliant with PCI Express Base Specification Revision 2.0, providing a stable, high-speed connection to the host system.
- Industrial Power Design: On-board regulated 5VDC power supply with user-configurable per-port current limits (900 mA or 1500 mA).
- Software-Programmable Power Control: Each port can be individually powered on or off via software, enabling fault recovery and power management.
- No External Power Required: Draws power directly from the PCI Express bus, simplifying installation and reducing cabling complexity.
- Robust Mechanical Design: Features panel-accessible Type-A connectors with M2 screw threads and on-board connectors with cable tie points for secure connections in vibration-prone environments.
- Wide OS Compatibility: Supports Windows XP, Windows 7/8 (32-bit and 64-bit), and Linux operating systems.
- Industrial Temperature Range: Operates reliably from 0°C to 60°C with adequate airflow.
- Machine Vision Ready: Optimized for industrial imaging systems, frame grabbers, and high-speed cameras.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Bus Interface | PCI Express Gen2 x4 lanes, compliant with PCI Express Base Specification Revision 2.0 |
| USB Ports | 8x USB 3.0 ports (backward compatible with USB 2.0/1.1/1.0) |
| USB Controllers | 4x NEC/Renesas μPD720202 USB 3.0 Host Controllers |
| USB Specification Compliance | Universal Serial Bus 3.0 Specification Revision 1.0; Intel® xHCI Specification Revision 1.0 |
| USB Connectors | 4x panel-accessible USB 3.0 Type-A connectors with M2 screw threads; 4x on-board USB 3.0 Type-A connectors with cable tie fixing points |
| Per-Port Current Limit | User-configurable 900 mA or 1500 mA |
| Power Input (from PCIe bus) | Max 2.0 A @ 3.3 V; Max 5.5 A @ 12 V |
| Operating Temperature | 0°C to 60°C (with ambient airflow) |
| Dimensions | 168 mm (W) × 111 mm (H) |
| Total Bandwidth | Up to 2 GB/s aggregate throughput |
| Power Supply | On-board regulated 5VDC output for USB devices |
| Compatibility | Windows XP, Windows 7/8 (32/64-bit), Linux |
| Weight | Approx. 150–200 g (typical for PCIe half/full-height cards) |
| Cooling Requirement | Requires ambient airflow for optimal thermal performance |
### 4. Functionality
The PCIe-USB380 functions as a high-speed USB 3.0 expansion card for industrial PCs and embedded systems. It connects to the host system via a PCI Express Gen2 x4 slot, providing eight independent USB 3.0 ports for peripheral devices such as cameras, sensors, storage drives, and data acquisition modules.
Each group of two ports is managed by an independent NEC/Renesas μPD720202 controller, ensuring that simultaneous data transfers do not compete for bandwidth. This architecture is particularly beneficial for machine vision systems where multiple cameras stream high-resolution images concurrently.
The on-board 5VDC regulated power supply ensures stable voltage delivery to connected devices, while the software-programmable per-port power control allows users to reset or disable individual ports without rebooting the system. This feature is valuable for fault recovery in automated environments.
Typical Applications:
- Industrial machine vision systems
- Multi-camera inspection setups
- High-speed data acquisition and logging
- Industrial automation and robotics
- USB-based sensor arrays
- Embedded computing platforms requiring multiple USB 3.0 interfaces
Compatibility:
- Compatible with standard PCI Express x4, x8, and x16 slots.
- Supports both Windows and Linux operating systems with dedicated driver packages.
### 5. Components & Accessories
Included Items:
1. PCIe-USB380 Host Adapter Card – 8-port USB 3.0 frame grabber card.
2. Drivers & Utilities DVD – Contains Windows and Linux drivers, installation utilities, and documentation.
Optional Accessories:
- USB3-Cable-3M: USB 3.0 Type-A to Micro-B cable with latched connectors, 3-meter length, designed for secure industrial connections.
Connectors:
- 4x front-panel USB 3.0 Type-A connectors with M2 screw threads for secure external connections.
- 4x on-board USB 3.0 Type-A connectors with cable tie points for internal device connections.
### 6. Installation & Setup
System Requirements:
- Available PCI Express x4 slot (compatible with x8 or x16 slots).
- Supported operating system (Windows XP/7/8 or Linux).
- Adequate airflow within the chassis for thermal management.
Installation Steps:
1. Power off the host computer and open the chassis.
2. Locate an available PCIe x4 (or larger) slot.
3. (Optional) Configure the per-port current limit using the onboard jumper headers:
- No jumper installed: default 900 mA limit.
- Jumper installed: 1500 mA limit.
4. Insert the PCIe-USB380 card into the slot and secure it with a screw.
5. Connect internal USB cables if required (for on-board ports).
6. Close the chassis and power on the system.
7. Install the appropriate driver package:
- Run `WIN_PCIE-USB380_340.exe` from the provided DVD or driver directory.
- Follow on-screen instructions to complete installation.
Configuration:
- After installation, each USB port can be managed via software for power control and monitoring.
- The card supports hot-plugging of USB devices, subject to OS and device compatibility.
### 7. Performance & Capabilities
Data Throughput:
- Each USB 3.0 port supports up to 5 Gbps (625 MB/s) theoretical bandwidth.
- Aggregate throughput up to 2 GB/s across all ports when operating simultaneously.
Power Delivery:
- On-board 5VDC regulated supply ensures stable voltage output.
- Per-port current limit configurable to 900 mA or 1500 mA, supporting both standard and high-power USB devices.
- No external power adapter required; draws power directly from PCIe bus.
Efficiency & Reliability:
- Independent controller architecture prevents bandwidth contention.
- Software-controlled power cycling enhances fault tolerance.
- Industrial-grade connectors and mechanical reinforcement ensure long-term reliability in vibration-prone environments.
Limitations:
- Operating temperature limited to 0–60°C; requires adequate airflow.
- Total power draw limited by PCIe bus current capacity (5.5A @ 12V maximum).
- Designed for industrial and commercial environments (not residential).
### 8. Standards & Compliance
Regulatory Compliance:
- FCC Class A: Complies with FCC Part 15 for commercial digital devices.
- Designed to minimize harmful interference in industrial environments.
- Operation in residential areas may cause interference requiring user mitigation.
- CE Marking: Meets applicable European Union directives for electromagnetic compatibility and safety.
- CE compliance requires use of CE-certified cables and components.
Industry Standards:
- PCI Express Base Specification Revision 2.0
- Universal Serial Bus 3.0 Specification Revision 1.0
- Intel® xHCI Specification Revision 1.0
Environmental & Safety:
- RoHS compliant (lead-free manufacturing).
- Designed for industrial-grade reliability and long lifecycle support.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 2 years; refer to Neousys policy).
- Covers defects in materials and workmanship under normal operating conditions.
Technical Support:
- Comprehensive support available via Neousys Technology’s website and authorized distributors.
- Driver updates, firmware revisions, and documentation available online.
Maintenance:
- No regular maintenance required beyond ensuring adequate airflow and dust-free environment.
- Periodic inspection of connectors and cables recommended for industrial installations.
Software & Driver Updates:
- Windows and Linux drivers provided on installation media and via online download.
- Regular updates ensure compatibility with new OS versions and USB device standards.
Ordering Information:
| Model | Description |
|------------|----------------|
| PCIe-USB380 | 8-Port USB 3.0 host adapter with 4x independent USB 3.0 controllers |
| PCIe-USB340 | 4-Port USB 3.0 host adapter with 4x independent USB 3.0 controllers |
Optional Accessory:
| Part Number | Description |
|------------------|----------------|
| USB3-Cable-3M | USB 3.0 Type-A to Micro-B cable with latched connectors, 3 meters |
Manufacturer Contact:
Neousys Technology Inc.
Industrial Computing Solutions
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
### Summary
The Neousys PCIe-USB380 is a high-performance, industrial-grade 8-port USB 3.0 host adapter card engineered for demanding machine vision and data acquisition applications. Its architecture—featuring four independent NEC/Renesas μPD720202 controllers and a PCIe Gen2 x4 interface—ensures full SuperSpeed USB 3.0 performance across all ports simultaneously. The card’s robust power design, configurable current limits, and software-controlled per-port power management make it ideal for environments requiring reliability, flexibility, and precise control.
With compliance to FCC Class A and CE standards, compatibility with major operating systems, and a rugged mechanical design, the PCIe-USB380 delivers exceptional performance and reliability for industrial computing platforms. It is a proven solution for system integrators and OEMs seeking to expand USB 3.0 connectivity in high-speed, multi-device environments without compromising stability or throughput.

### 1. Product Overview
Product Name: PCIe-USB380
Model Number: PCIe-USB380
Series: PCIe-USB3.0 Host Adapter Series
Article Number: PCIe-USB380
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
The Neousys PCIe-USB380 is an industrial-grade, high-performance 8-port USB 3.0 host adapter card designed for machine vision, industrial automation, and high-speed data acquisition applications. It integrates four independent NEC/Renesas μPD720202 USB 3.0 host controllers and a PCI Express Gen2 x4 interface, delivering up to 2 GB/s total bandwidth. The card provides robust power management, software-programmable per-port control, and reliable mechanical design for demanding industrial environments.
### 2. Key Features
- Eight USB 3.0 Ports: Provides eight SuperSpeed USB 3.0 ports, each capable of up to 5 Gbps data transfer rate, backward compatible with USB 2.0/1.1/1.0 devices.
- Four Independent Controllers: Equipped with four NEC/Renesas μPD720202 host controllers, ensuring dedicated bandwidth per port and eliminating performance bottlenecks common in single-controller designs.
- High Bandwidth Performance: Supports up to 2 GB/s total throughput across all ports, ideal for multi-camera or high-speed data streaming applications.
- PCI Express Gen2 x4 Interface: Compliant with PCI Express Base Specification Revision 2.0, providing a stable, high-speed connection to the host system.
- Industrial Power Design: On-board regulated 5VDC power supply with user-configurable per-port current limits (900 mA or 1500 mA).
- Software-Programmable Power Control: Each port can be individually powered on or off via software, enabling fault recovery and power management.
- No External Power Required: Draws power directly from the PCI Express bus, simplifying installation and reducing cabling complexity.
- Robust Mechanical Design: Features panel-accessible Type-A connectors with M2 screw threads and on-board connectors with cable tie points for secure connections in vibration-prone environments.
- Wide OS Compatibility: Supports Windows XP, Windows 7/8 (32-bit and 64-bit), and Linux operating systems.
- Industrial Temperature Range: Operates reliably from 0°C to 60°C with adequate airflow.
- Machine Vision Ready: Optimized for industrial imaging systems, frame grabbers, and high-speed cameras.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Bus Interface | PCI Express Gen2 x4 lanes, compliant with PCI Express Base Specification Revision 2.0 |
| USB Ports | 8x USB 3.0 ports (backward compatible with USB 2.0/1.1/1.0) |
| USB Controllers | 4x NEC/Renesas μPD720202 USB 3.0 Host Controllers |
| USB Specification Compliance | Universal Serial Bus 3.0 Specification Revision 1.0; Intel® xHCI Specification Revision 1.0 |
| USB Connectors | 4x panel-accessible USB 3.0 Type-A connectors with M2 screw threads; 4x on-board USB 3.0 Type-A connectors with cable tie fixing points |
| Per-Port Current Limit | User-configurable 900 mA or 1500 mA |
| Power Input (from PCIe bus) | Max 2.0 A @ 3.3 V; Max 5.5 A @ 12 V |
| Operating Temperature | 0°C to 60°C (with ambient airflow) |
| Dimensions | 168 mm (W) × 111 mm (H) |
| Total Bandwidth | Up to 2 GB/s aggregate throughput |
| Power Supply | On-board regulated 5VDC output for USB devices |
| Compatibility | Windows XP, Windows 7/8 (32/64-bit), Linux |
| Weight | Approx. 150–200 g (typical for PCIe half/full-height cards) |
| Cooling Requirement | Requires ambient airflow for optimal thermal performance |
### 4. Functionality
The PCIe-USB380 functions as a high-speed USB 3.0 expansion card for industrial PCs and embedded systems. It connects to the host system via a PCI Express Gen2 x4 slot, providing eight independent USB 3.0 ports for peripheral devices such as cameras, sensors, storage drives, and data acquisition modules.
Each group of two ports is managed by an independent NEC/Renesas μPD720202 controller, ensuring that simultaneous data transfers do not compete for bandwidth. This architecture is particularly beneficial for machine vision systems where multiple cameras stream high-resolution images concurrently.
The on-board 5VDC regulated power supply ensures stable voltage delivery to connected devices, while the software-programmable per-port power control allows users to reset or disable individual ports without rebooting the system. This feature is valuable for fault recovery in automated environments.
Typical Applications:
- Industrial machine vision systems
- Multi-camera inspection setups
- High-speed data acquisition and logging
- Industrial automation and robotics
- USB-based sensor arrays
- Embedded computing platforms requiring multiple USB 3.0 interfaces
Compatibility:
- Compatible with standard PCI Express x4, x8, and x16 slots.
- Supports both Windows and Linux operating systems with dedicated driver packages.
### 5. Components & Accessories
Included Items:
1. PCIe-USB380 Host Adapter Card – 8-port USB 3.0 frame grabber card.
2. Drivers & Utilities DVD – Contains Windows and Linux drivers, installation utilities, and documentation.
Optional Accessories:
- USB3-Cable-3M: USB 3.0 Type-A to Micro-B cable with latched connectors, 3-meter length, designed for secure industrial connections.
Connectors:
- 4x front-panel USB 3.0 Type-A connectors with M2 screw threads for secure external connections.
- 4x on-board USB 3.0 Type-A connectors with cable tie points for internal device connections.
### 6. Installation & Setup
System Requirements:
- Available PCI Express x4 slot (compatible with x8 or x16 slots).
- Supported operating system (Windows XP/7/8 or Linux).
- Adequate airflow within the chassis for thermal management.
Installation Steps:
1. Power off the host computer and open the chassis.
2. Locate an available PCIe x4 (or larger) slot.
3. (Optional) Configure the per-port current limit using the onboard jumper headers:
- No jumper installed: default 900 mA limit.
- Jumper installed: 1500 mA limit.
4. Insert the PCIe-USB380 card into the slot and secure it with a screw.
5. Connect internal USB cables if required (for on-board ports).
6. Close the chassis and power on the system.
7. Install the appropriate driver package:
- Run `WIN_PCIE-USB380_340.exe` from the provided DVD or driver directory.
- Follow on-screen instructions to complete installation.
Configuration:
- After installation, each USB port can be managed via software for power control and monitoring.
- The card supports hot-plugging of USB devices, subject to OS and device compatibility.
### 7. Performance & Capabilities
Data Throughput:
- Each USB 3.0 port supports up to 5 Gbps (625 MB/s) theoretical bandwidth.
- Aggregate throughput up to 2 GB/s across all ports when operating simultaneously.
Power Delivery:
- On-board 5VDC regulated supply ensures stable voltage output.
- Per-port current limit configurable to 900 mA or 1500 mA, supporting both standard and high-power USB devices.
- No external power adapter required; draws power directly from PCIe bus.
Efficiency & Reliability:
- Independent controller architecture prevents bandwidth contention.
- Software-controlled power cycling enhances fault tolerance.
- Industrial-grade connectors and mechanical reinforcement ensure long-term reliability in vibration-prone environments.
Limitations:
- Operating temperature limited to 0–60°C; requires adequate airflow.
- Total power draw limited by PCIe bus current capacity (5.5A @ 12V maximum).
- Designed for industrial and commercial environments (not residential).
### 8. Standards & Compliance
Regulatory Compliance:
- FCC Class A: Complies with FCC Part 15 for commercial digital devices.
- Designed to minimize harmful interference in industrial environments.
- Operation in residential areas may cause interference requiring user mitigation.
- CE Marking: Meets applicable European Union directives for electromagnetic compatibility and safety.
- CE compliance requires use of CE-certified cables and components.
Industry Standards:
- PCI Express Base Specification Revision 2.0
- Universal Serial Bus 3.0 Specification Revision 1.0
- Intel® xHCI Specification Revision 1.0
Environmental & Safety:
- RoHS compliant (lead-free manufacturing).
- Designed for industrial-grade reliability and long lifecycle support.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 2 years; refer to Neousys policy).
- Covers defects in materials and workmanship under normal operating conditions.
Technical Support:
- Comprehensive support available via Neousys Technology’s website and authorized distributors.
- Driver updates, firmware revisions, and documentation available online.
Maintenance:
- No regular maintenance required beyond ensuring adequate airflow and dust-free environment.
- Periodic inspection of connectors and cables recommended for industrial installations.
Software & Driver Updates:
- Windows and Linux drivers provided on installation media and via online download.
- Regular updates ensure compatibility with new OS versions and USB device standards.
Ordering Information:
| Model | Description |
|------------|----------------|
| PCIe-USB380 | 8-Port USB 3.0 host adapter with 4x independent USB 3.0 controllers |
| PCIe-USB340 | 4-Port USB 3.0 host adapter with 4x independent USB 3.0 controllers |
Optional Accessory:
| Part Number | Description |
|------------------|----------------|
| USB3-Cable-3M | USB 3.0 Type-A to Micro-B cable with latched connectors, 3 meters |
Manufacturer Contact:
Neousys Technology Inc.
Industrial Computing Solutions
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
### Summary
The Neousys PCIe-USB380 is a high-performance, industrial-grade 8-port USB 3.0 host adapter card engineered for demanding machine vision and data acquisition applications. Its architecture—featuring four independent NEC/Renesas μPD720202 controllers and a PCIe Gen2 x4 interface—ensures full SuperSpeed USB 3.0 performance across all ports simultaneously. The card’s robust power design, configurable current limits, and software-controlled per-port power management make it ideal for environments requiring reliability, flexibility, and precise control.
With compliance to FCC Class A and CE standards, compatibility with major operating systems, and a rugged mechanical design, the PCIe-USB380 delivers exceptional performance and reliability for industrial computing platforms. It is a proven solution for system integrators and OEMs seeking to expand USB 3.0 connectivity in high-speed, multi-device environments without compromising stability or throughput.
-
