Comprehensive Product Summary – ACS-2622A Box PC Fanless Intel C M 1.5GHz

---

### 1. Product Overview

Product Name: Box PC Fanless Intel C M 1.5GHz
Model: ACS-2622A
Series: ACS Industrial Box PC Series
Article Number: ACS-2622A
Manufacturer: Aplex Technology Inc.

The Aplex ACS-2622A is a compact, fanless industrial box PC designed for embedded and automation applications requiring reliable, silent, and energy-efficient computing. Built around the Intel® Celeron® M processor platform, this system delivers stable performance in harsh industrial environments. Its rugged steel construction, wide DC input range, and flexible expansion options make it suitable for machine control, data acquisition, digital signage, and industrial monitoring systems.

---

### 2. Key Features

- Fanless Design: Passive cooling architecture eliminates moving parts, reducing maintenance and improving reliability in dusty or vibration-prone environments.
- Intel® Celeron® M Processor: Standard configuration with 1.5 GHz CPU; optional upgrade to Pentium® M 1.8 GHz for enhanced performance.
- Chipset: Intel® 855GME + ICH4 chipset combination, providing stable platform support for embedded applications.
- Memory Support: 1 × SDRAM slot supporting up to 1 GB system memory.
- Comprehensive I/O Connectivity:
- 2 × COM ports for serial communication
- 4 × USB 2.0 ports for peripheral connectivity
- 1 × LAN (10/100 Mbps Ethernet) for network access
- 1 × VGA and 1 × DVI output for dual-display capability
- 1 × PS/2 port for keyboard and mouse
- 1 × Audio interface (Mic-in, Line-in, Line-out)
- Storage Options: Internal space for 1 × 2.5" HDD and 1 × slim-type CDRW drive.
- Expansion Capability: 2 × PCI slots for additional interface or control cards.
- Power Flexibility: Wide-range DC input (11 – 28 VDC) with optional 230 VAC adapter for versatile deployment.
- Rugged Construction: Steel chassis ensures durability and electromagnetic shielding.
- Mounting Options: Wall-mountable design for space-constrained or fixed installations.
- Certifications: CE and FCC Class A compliance for industrial and commercial environments.

---

### 3. Technical Specifications

Processor:
- Intel® Celeron® M 1.5 GHz (standard)
- Optional Intel® Pentium® M 1.8 GHz

Chipset:
- Intel® 855GME + ICH4

Memory:
- 1 × SDRAM slot, maximum capacity 1 GB

Storage:
- 1 × 2.5" HDD bay
- 1 × Slim-type CDRW drive bay

Expansion Slots:
- 2 × PCI slots

I/O Interfaces:
- Serial: 2 × COM ports
- USB: 4 × USB 2.0 ports
- LAN: 1 × 10/100 Mbps Ethernet port
- Display: 1 × VGA, 1 × DVI
- Audio: 1 × Mic-in, 1 × Line-in, 1 × Line-out
- PS/2: 1 × Keyboard & Mouse combo port

Power Input:
- DC 11 – 28 V
- Optional AC 230 V adapter

Construction Material:
- Steel chassis

Operating Temperature:
- 0 °C to 60 °C

Storage Temperature:
- –20 °C to 80 °C

Dimensions:
- Main unit: 390 mm (W) × 100.196 mm (H) × 212.5 mm (D)
- With wall mount kit: 410 mm (W) × 105.1 mm (H) × 212.5 mm (D)

Weight:
- Approximately 5 kg

Certifications:
- CE / FCC Class A

Mounting:
- Wall mount

---

### 4. Functionality

The ACS-2622A operates as a compact, embedded computing platform optimized for industrial automation, control, and monitoring. Its fanless design ensures silent operation and long-term reliability, particularly in environments where dust, vibration, or temperature fluctuations could impair traditional fan-cooled systems.

How It Works:
The system integrates an Intel® Celeron® M processor with the Intel® 855GME chipset, providing a balance between performance and power efficiency. The chipset supports integrated graphics output through VGA and DVI interfaces, enabling connection to industrial monitors or operator panels. The onboard I/O ports allow direct interfacing with sensors, controllers, and peripheral devices, while the PCI slots enable system expansion for specialized I/O cards, motion controllers, or communication modules.

Use Cases and Applications:
- Industrial automation and machine control
- Data acquisition and process monitoring
- Human–machine interface (HMI) systems
- Digital signage and kiosk systems
- Transportation and vehicle-mounted computing
- Embedded control in manufacturing or logistics environments

Compatibility:
The system supports standard PC operating systems such as Windows® XP Embedded, Windows® 2000/XP, and Linux distributions compatible with Intel® 855GME architecture. Peripheral compatibility is ensured through standard USB, COM, and PCI interfaces.

---

### 5. Components & Accessories

Included Components:
- ACS-2622A main unit (fanless box PC)
- Wall-mount kit (optional, depending on configuration)
- Power input terminal block for DC connection
- User documentation and installation guide

Optional Accessories:
- 230 VAC external power adapter
- 2.5" HDD or SSD (user-supplied or pre-installed)
- Slim-type CDRW or DVD-ROM drive
- PCI expansion cards (e.g., additional serial ports, fieldbus interfaces, data acquisition cards)
- Mounting brackets or DIN-rail adapters (if required for specific installations)

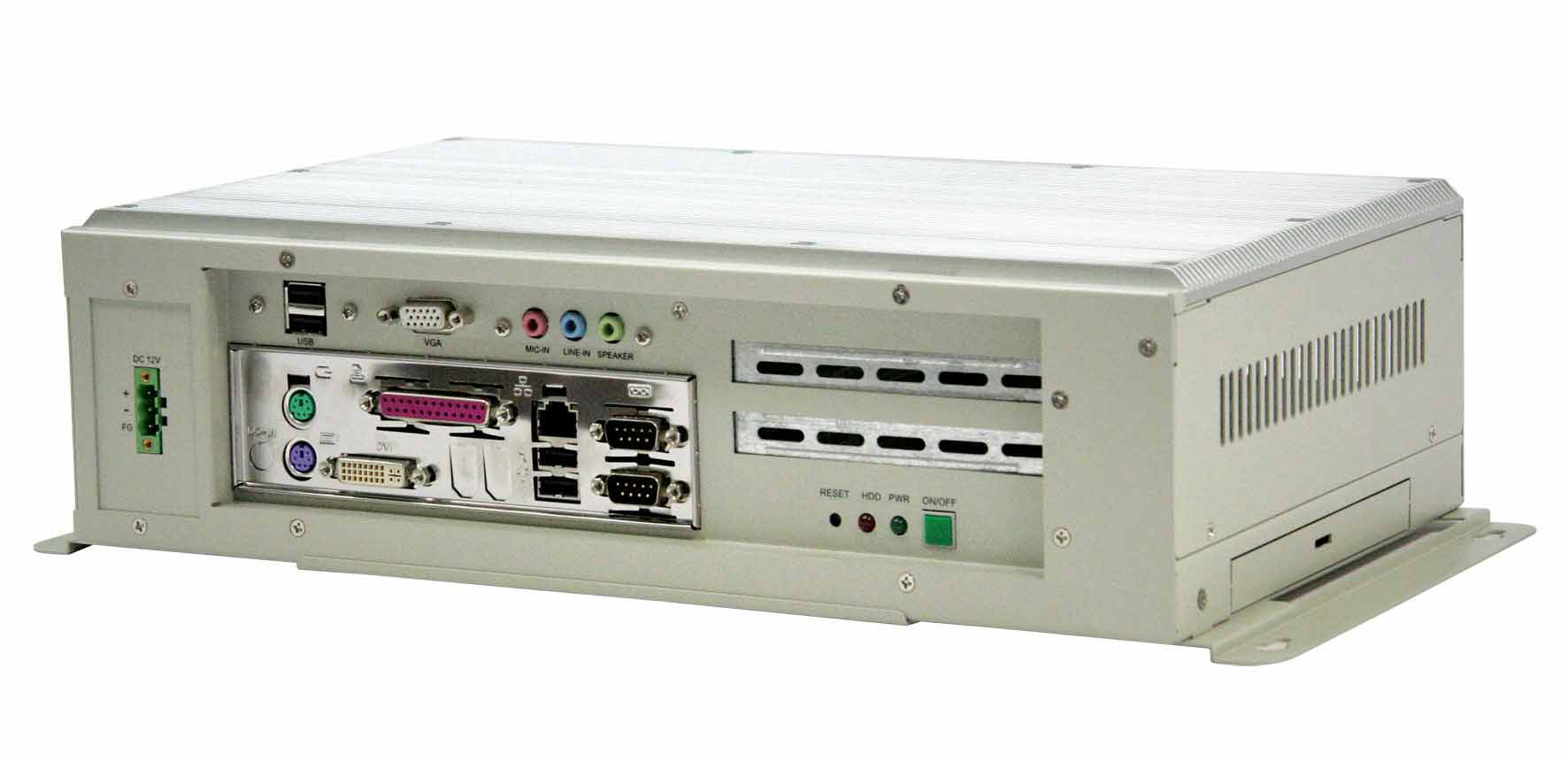

Connectors and Interfaces:
- DC power input terminal (11 – 28 VDC)
- VGA and DVI video connectors
- RJ-45 Ethernet port (10/100 Mbps)
- USB 2.0 Type A ports (×4)
- DB9 connectors for COM ports (×2)
- PS/2 mini-DIN connector for keyboard/mouse
- 3.5 mm audio jacks for Mic-in, Line-in, and Line-out

---

### 6. Installation & Setup

Requirements:
- DC power source within 11 – 28 V range or optional 230 VAC adapter
- Compatible display (VGA or DVI)
- Keyboard and mouse via PS/2 or USB
- Storage device (HDD/SSD) and optical drive (optional)

Mounting Options:
- Standard wall-mount configuration using the included bracket set
- Optional custom mounting solutions for panel or enclosure integration

Configuration Steps:
1. Secure the system to the mounting surface using the wall-mount kit.
2. Connect DC power input to the terminal block or use the optional AC adapter.
3. Attach display devices via VGA or DVI connectors.
4. Connect keyboard, mouse, and other peripherals.
5. Install storage devices (2.5" HDD and/or slim optical drive) as required.
6. Power on the system and configure BIOS settings for boot sequence and peripheral detection.
7. Install the desired operating system and drivers for chipset, LAN, and audio.

Environmental Considerations:
Ensure adequate ventilation around the chassis for passive heat dissipation. The fanless design relies on the steel enclosure as a heat sink; therefore, avoid enclosing the unit in sealed compartments without airflow.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel® Celeron® M 1.5 GHz processor provides sufficient computing power for control logic, data logging, and visualization tasks. The optional Pentium® M 1.8 GHz upgrade enhances multitasking and graphical performance for more demanding applications.

Memory and Storage:
With up to 1 GB SDRAM, the system supports lightweight operating systems and embedded applications. The 2.5" HDD bay allows installation of high-capacity drives for data storage, while the slim optical drive bay supports removable media for software updates or data transfer.

I/O and Expansion:
The combination of 2 × COM ports, 4 × USB 2.0 ports, and 2 × PCI slots provides flexibility for connecting industrial devices, sensors, and expansion modules. The 10/100 Mbps Ethernet interface ensures reliable network communication for remote monitoring or SCADA integration.

Efficiency and Reliability:
The fanless architecture minimizes power consumption and mechanical wear. The wide DC input range (11 – 28 V) supports direct connection to industrial power systems, vehicle batteries, or unregulated DC sources.

Limitations:
- Memory limited to 1 GB SDRAM
- No built-in wireless connectivity (requires external module)
- Single Ethernet interface (10/100 Mbps, not Gigabit)
- Designed for moderate computing loads rather than high-performance processing

---

### 8. Standards & Compliance

Certifications:
- CE (Conformité Européenne): Ensures compliance with European safety, health, and environmental protection standards.
- FCC Class A: Certified for electromagnetic compatibility in industrial and commercial environments.

Industry Standards:
- Compliant with Intel® embedded platform specifications
- Supports standard PCI interface for expansion
- USB 2.0 compliant ports
- VGA and DVI video outputs conform to standard display protocols

Environmental and Safety Compliance:
- Designed for operation within 0 °C to 60 °C ambient temperature range
- Storage temperature tolerance from –20 °C to 80 °C
- Steel enclosure provides EMI shielding and mechanical protection

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal operating conditions.

Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Assistance is available for system configuration, BIOS updates, and peripheral compatibility.

Maintenance:
The fanless design minimizes maintenance requirements. Periodic inspection of connectors, power terminals, and ventilation surfaces is recommended to ensure optimal thermal performance. Storage devices (HDD/SSD) and optical drives can be replaced or upgraded as needed.

Software and Firmware Updates:
BIOS and driver updates are available from Aplex to maintain compatibility with new operating systems and peripheral devices. Users can update firmware via USB or optical drive as part of regular maintenance.

Lifecycle and Availability:
As part of Aplex’s industrial product line, the ACS-2622A is designed for long-term availability and stable component sourcing, ensuring continuity for OEM and system integrator projects.

---

### Summary

The Aplex ACS-2622A Box PC Fanless Intel C M 1.5 GHz is a robust, industrial-grade embedded computer engineered for reliability, flexibility, and silent operation. Its combination of Intel® Celeron® M processing, fanless steel enclosure, wide DC input, and versatile I/O interfaces makes it ideal for automation, control, and embedded applications. With CE/FCC certification, wall-mount capability, and expansion flexibility via PCI slots, it provides a dependable platform for industrial computing environments where durability and stability are paramount.
