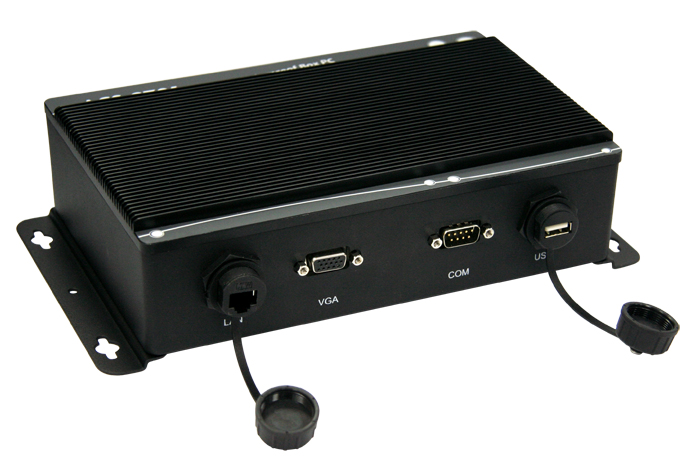

1. Product Overview
Product Name: ACS-2701
Model: ACS-2701
Series: Industrial Box PC Series – Waterproof Fanless Embedded Systems
Article Number: ACS-2701
Manufacturer: Aplex Technology Inc.
The Aplex ACS-2701 is a rugged, waterproof, fanless box PC designed for industrial and outdoor applications requiring high reliability under harsh environmental conditions. Built around Intel’s ULV Celeron® M 1GHz processor and the Intel® 910GMLE + ICH6M chipset, this compact embedded computer delivers stable performance, low power consumption, and extended temperature operation. Its IP65-rated aluminum alloy enclosure ensures complete protection against dust and water ingress, making it ideal for use in manufacturing, automation, transportation, and field-based control systems.
2. Key Features
- Rugged Waterproof Design: The ACS-2701 features a fully sealed aluminum alloy enclosure compliant with IP65 standards, ensuring resistance to dust, water jets, and environmental contaminants.
- Fanless Architecture: Passive cooling eliminates moving parts, enhancing reliability and reducing maintenance requirements.
- Intel® ULV Celeron® M 1GHz Processor: Provides efficient performance for embedded and industrial control applications while maintaining low thermal output.
- Wide Temperature Range: Operates reliably in environments ranging from -20°C to +60°C, suitable for both indoor and outdoor deployments.
- Flexible Power Input: Supports a wide DC input range from 11V to 28V, accommodating various industrial power systems. An optional IP67-rated AC/DC power adapter is available for additional flexibility.
- Expansion Capability: Includes two PCI expansion slots for additional I/O or communication cards, enabling system customization.
- Comprehensive Connectivity: Equipped with IP65-rated connectors for COM, USB 2.0, and LAN interfaces, ensuring sealed and secure connections.
- Storage and Optical Drive Support: Provides space for one 2.5" HDD and one slim-type CDRW drive, allowing both data storage and media access.
- Mounting Flexibility: Supports standalone operation or wall-mount installation using the included mounting kit.
- Industrial-Grade Reliability: Designed for continuous operation in demanding environments with vibration, dust, and moisture exposure.
3. Technical Specifications
Processor & Chipset:
- CPU: Intel® ULV Celeron® M 1GHz
- Chipset: Intel® 910GMLE + Intel® ICH6M
Memory:
- 1 x 200-pin DDR2 SO-DIMM socket
- Supports DDR2 400/533 MHz SDRAM
- Maximum memory capacity: 2GB
Storage:
- 1 x 2.5" HDD bay (internal)
- 1 x slim-type CDRW drive bay
Expansion Slots:
- 2 x PCI slots for add-on cards
I/O Interfaces (IP65-rated connectors):
- 1 x COM port (RS-232/422/485 configurable depending on model variant)
- 1 x USB 2.0 port
- 1 x LAN port (10/100/1000 Mbps Ethernet)
Power Supply:
- Input voltage: 11VDC to 28VDC wide-range input
- Optional IP67-rated AC/DC power adapter (230VAC input)
Environmental:
- Operating temperature: -20°C to +60°C
- Storage temperature: typically -40°C to +85°C (manufacturer standard for similar models)
- Relative humidity: up to 95% non-condensing
Enclosure & Construction:
- Material: Aluminum alloy, corrosion-resistant, sealed design
- Protection rating: IP65 (dust-tight and water jet resistant)
- Cooling: Fanless passive heat dissipation
Physical Dimensions & Weight:
- Dimensions: 223 mm (W) × 62 mm (H) × 146 mm (D)
- Weight: 2.1 kg
4. Functionality
The ACS-2701 operates as a compact, embedded industrial computer suitable for automation, control, and monitoring tasks. Its fanless design and sealed enclosure allow it to function reliably in dusty, humid, or outdoor environments where conventional PCs would fail.
Operation:
The system runs on Intel’s ULV Celeron® M processor, optimized for low power consumption and stable performance. The chipset combination (Intel® 910GMLE + ICH6M) supports essential I/O and memory interfaces, ensuring compatibility with industrial-grade peripherals.
Use Cases & Applications:
- Industrial Automation: Machine control, process monitoring, and data acquisition in manufacturing plants.
- Transportation Systems: Vehicle-mounted computing, traffic control, and logistics management.
- Outdoor Kiosks & Terminals: Information displays, ticketing systems, and public service terminals exposed to weather.
- Marine & Field Operations: Control systems in marine environments or remote field installations.
- Energy & Utilities: Monitoring and control in power substations, renewable energy systems, and oil & gas facilities.
Compatibility:
The ACS-2701 supports standard operating systems compatible with Intel x86 architecture, including Windows Embedded, Linux distributions, and real-time operating systems (RTOS) commonly used in industrial automation.
5. Components & Accessories
Included Components:
- ACS-2701 main unit (IP65-rated aluminum enclosure)
- Wall-mount kit for standalone or fixed installation
- IP65-rated connectors for COM, USB, and LAN ports
- Power input connector (DC terminal block or sealed connector depending on configuration)
Optional Accessories:

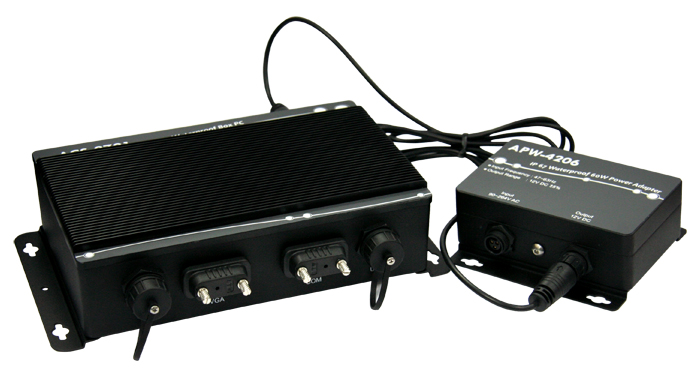

- IP67-rated AC/DC power adapter (230VAC input to 12–24VDC output)
- Additional PCI expansion cards (I/O, communication, or data acquisition modules)
- 2.5" HDD or SSD storage device
- Slim-type CDRW or DVD optical drive
- Extended temperature-rated memory modules
- Cable sets with waterproof connectors for field installation
Connectors:
Each external interface is sealed with IP65-rated connectors to maintain enclosure integrity. These connectors are typically circular industrial-grade types with threaded coupling for secure attachment.
6. Installation & Setup
Requirements:
- DC power source within 11–28V range or optional AC/DC adapter
- Mounting surface capable of supporting 2.1 kg
- Adequate clearance for cable connections and ventilation (passive cooling)
Mounting Options:
- Wall Mount: The included wall-mount kit allows secure attachment to vertical or horizontal surfaces.
- Standalone Operation: The unit can operate as a desktop or shelf-mounted system in protected environments.
Configuration:
- Install memory module (up to 2GB DDR2 SO-DIMM)
- Mount 2.5" HDD or SSD and optional slim optical drive
- Connect IP65-rated cables for COM, USB, and LAN interfaces
- Supply DC power via the designated connector
- Load operating system and configure BIOS/firmware settings as required
Setup Notes:
The fanless design requires no active cooling setup. Ensure that the enclosure’s heat-dissipating surfaces are not obstructed. For outdoor or high-vibration environments, use industrial-grade storage and memory components.
7. Performance & Capabilities
Processing Performance:
The Intel® ULV Celeron® M 1GHz processor provides sufficient computational power for embedded control, data logging, and communication tasks. Its ultra-low-voltage design minimizes heat generation, enabling fanless operation.
Memory & Storage:
With up to 2GB DDR2 memory and support for a 2.5" HDD, the system can handle moderate data processing and storage requirements typical of industrial automation and monitoring systems.
Expansion & Customization:
Two PCI slots allow integration of specialized cards such as additional serial ports, fieldbus interfaces, or data acquisition modules, extending the system’s capabilities.
Efficiency:
The wide DC input range and low power consumption make the ACS-2701 energy-efficient and suitable for battery-powered or vehicle-based systems.
Limitations:
While robust and reliable, the ACS-2701 is not designed for high-performance computing or graphics-intensive applications. Its single-core processor and limited memory capacity are optimized for stability and longevity rather than raw speed.
8. Standards & Compliance
Ingress Protection:
- IP65-rated enclosure: Dust-tight and protected against water jets from any direction.
Optional Power Adapter:
- IP67-rated AC/DC adapter available for enhanced environmental protection.
Electrical & Safety Compliance:
- Designed to meet industrial EMC and safety standards (specific certifications may include CE, FCC Class A, and RoHS compliance, consistent with Aplex industrial product line).
Environmental Standards:
- Wide temperature operation (-20°C to +60°C) aligns with industrial-grade environmental specifications.
- RoHS-compliant materials ensure environmentally responsible manufacturing.
Industry Standards:
- Compatible with standard PCI interface specifications.
- Supports standard Ethernet and USB 2.0 communication protocols.
9. Additional Information
Warranty:
Typically covered by Aplex’s standard industrial product warranty (commonly 1–2 years, depending on region and distributor). Warranty covers manufacturing defects and hardware failures under normal operating conditions.
Support:
Aplex provides technical documentation, driver support, and firmware updates through its official support channels. Integration assistance and customization services are available for OEM and system integrator clients.
Maintenance:
The fanless, sealed design minimizes maintenance requirements. Periodic inspection of connectors and external seals is recommended to ensure continued IP65 protection. Internal components such as storage drives can be serviced by authorized technicians if necessary.
Software & Updates:
Compatible with a range of operating systems, including Windows Embedded, Linux, and other x86-based platforms. BIOS and firmware updates are available from Aplex to enhance compatibility and performance.
Lifecycle & Reliability:
The ACS-2701 is engineered for long-term availability and stable operation in mission-critical environments. Its industrial-grade components and passive cooling design contribute to extended mean time between failures (MTBF).
Summary
The Aplex ACS-2701 Waterproof IP65 Fanless Box PC is a compact, durable, and energy-efficient embedded computing solution tailored for industrial and outdoor applications. With its Intel® ULV Celeron® M 1GHz processor, IP65-rated aluminum enclosure, wide operating temperature range, and flexible power input, it delivers reliable performance in harsh conditions. The inclusion of PCI expansion slots, sealed I/O connectors, and support for both HDD and optical drives make it a versatile platform for automation, control, and monitoring systems.
Engineered for stability, longevity, and environmental resilience, the ACS-2701 exemplifies Aplex’s commitment to industrial-grade computing solutions that combine performance, protection, and flexibility in a compact form factor.
