Comprehensive Product Summary – ADP-1080 8" Color TFT Industrial Display Monitor
### 1. Product Overview

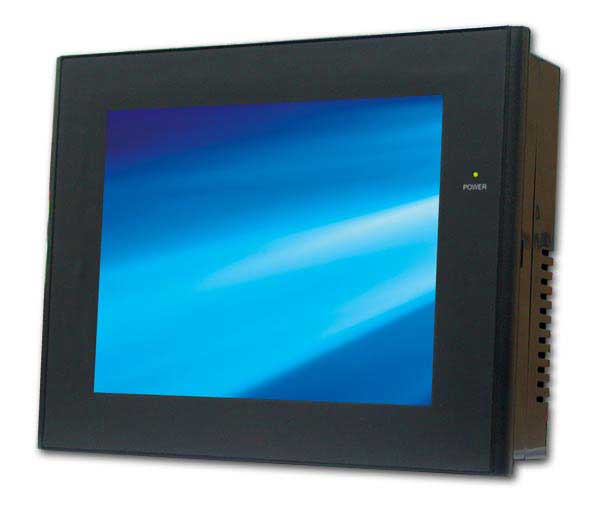

Product Name: ADP-1080 8" Color TFT Industrial Display Monitor
Model Number: ADP-1080
Series: ADP Industrial Display Series
Article Number: ADP-1080
Manufacturer: Aplex Technology Inc.
The Aplex ADP-1080 is a compact, ruggedized 8-inch color TFT industrial display monitor designed for demanding industrial and embedded applications. It combines a high-quality SVGA TFT LCD panel with versatile input options, robust environmental protection, and flexible mounting configurations. Engineered for reliability in harsh environments, the ADP-1080 provides clear visual performance, durable construction, and compatibility with a wide range of industrial control systems and embedded PCs.
### 2. Key Features
- 8-inch SVGA TFT LCD Display:
Delivers a native resolution of 800 × 600 pixels, providing sharp and vibrant image quality suitable for industrial visualization, control panels, and HMI (Human-Machine Interface) applications.
- Multiple Video Input Options:
Standard VGA input with optional DVI, Composite Video, and S-Video interfaces, ensuring compatibility with various industrial PCs, embedded systems, and legacy video sources.
- Touch Screen Options:
Available with RS-232 or USB interface sealed touch screen, offering flexible integration for interactive control and data input in industrial environments.
- Rugged Front Panel Protection:
The front bezel is NEMA 4 / IP65 compliant, providing resistance against dust, water splashes, and industrial contaminants, making it suitable for factory floors, automation systems, and outdoor kiosks.
- Flexible Power Input:
Standard DC 12V input with optional wide-range DC 11–28V support, allowing integration into diverse power systems and industrial control cabinets.
- User-Friendly OSD Control:
On-Screen Display (OSD) controls located on the backside of the unit for easy configuration of brightness, contrast, and display parameters.
- Compact and Lightweight Design:
Constructed with a durable plastic housing, the ADP-1080 offers a balance of strength and reduced weight, simplifying installation and maintenance.
- Mounting Flexibility:
Supports VESA 75 mm mounting and panel mount configurations, enabling installation in control panels, enclosures, or on articulated arms.
- Environmental Durability:
Designed to operate reliably in a wide temperature range and under vibration and shock conditions typical of industrial environments.
### 3. Technical Specifications
Display Panel:
- Type: 8-inch Color TFT LCD
- Resolution: 800 × 600 (SVGA)
- Aspect Ratio: 4:3
- Display Colors: 16.2 million (typical for TFT panels)
- Viewing Area: Approx. 162 × 121 mm (typical for 8" SVGA)
- Brightness / Contrast Ratio: (Not specified, typically 250–400 cd/m² for this class)
- Backlight: LED backlight (typical for industrial TFT displays)
Input Interfaces:
- Standard: VGA (Analog RGB)
- Optional: DVI, Composite Video, S-Video
- Touch Interface (optional): RS-232 or USB
Power Requirements:
- Input Voltage: DC 12V (standard)
- Optional Input Range: DC 11–28V
- Power Consumption: (Not specified, typically <15W for 8" TFT)
Mechanical Specifications:
- Housing Material: Plastic
- Dimensions: 230 mm (W) × 175 mm (H) × 55 mm (D)
- Panel Cutout Dimensions: 222 mm × 167 mm
- Mounting Options: Panel mount / VESA 75 mm mount
- Weight: (Not specified, estimated 1.2–1.5 kg typical for this size)
Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10% to 90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
### 4. Functionality
The Aplex ADP-1080 functions as a versatile industrial-grade display monitor designed for integration into control systems, automation panels, and embedded computing environments. It operates as a secondary or primary display for industrial PCs, PLCs, or embedded controllers, providing real-time visualization of process data, system status, and user interfaces.
How It Works:
The monitor receives video signals through its VGA or optional DVI/Video/S-Video inputs. The internal controller processes these signals and drives the TFT LCD panel to display images with high clarity and color accuracy. When equipped with the optional touch screen, the ADP-1080 allows user interaction through touch input, which is transmitted via RS-232 or USB to the host system.
Use Cases and Applications:
- Industrial automation and process control panels
- Human-Machine Interface (HMI) terminals
- Embedded system displays
- Factory monitoring and SCADA visualization
- Machine control consoles
- Kiosk and point-of-information systems
- Transportation and logistics terminals
- Laboratory and test equipment displays
Compatibility:
The ADP-1080 is compatible with a wide range of operating systems and hardware platforms that support standard VGA or DVI video output. The optional touch screen interfaces (RS-232 or USB) are supported by most modern operating systems with standard HID or serial touch drivers.
### 5. Components & Accessories
Included Components:
- ADP-1080 Display Unit
- Power Input Connector (DC 12V)
- VGA Signal Cable (standard configuration)
- User Manual / Quick Installation Guide
Optional Accessories:
- DVI, Composite Video, or S-Video input modules
- RS-232 or USB touch screen module
- Power adapter (AC to DC 12V or 24V)
- VESA 75 mounting bracket or arm
- Panel mounting kit (for flush installation)
- Protective front cover or sealing gasket (for enhanced IP protection)
Connectors:
- VGA (DB-15)
- Optional DVI (DVI-D)
- Optional Composite Video (RCA)
- Optional S-Video (Mini-DIN)
- Power Input Jack (DC barrel or terminal block)
- Touch Interface Port (RS-232 DB-9 or USB Type-A/B)
### 6. Installation & Setup
Installation Requirements:
- Power Supply: DC 12V (or 11–28V optional) regulated power source
- Mounting Surface: Flat panel or VESA 75 mm compatible bracket
- Environmental Conditions: Within specified temperature and humidity limits
Mounting Options:
1. Panel Mount:
The ADP-1080 can be installed into a control panel or enclosure using the specified cutout dimensions (222 × 167 mm). The front bezel provides IP65 protection when properly sealed against the panel surface.
2. VESA 75 Mount:
The rear panel includes VESA 75 mm mounting holes, allowing attachment to standard monitor arms, wall mounts, or custom brackets.
Configuration:
- Connect the VGA (or optional DVI/Video) cable to the host system.
- Connect the DC power input to a regulated 12V or 11–28V source.
- If equipped with a touch screen, connect the RS-232 or USB cable to the host system.
- Use the rear OSD control buttons to adjust brightness, contrast, and display settings.
- Verify image alignment and touch calibration (if applicable).
### 7. Performance & Capabilities
Display Performance:
The ADP-1080 provides stable, flicker-free image rendering with consistent color reproduction across its 8-inch SVGA panel. The 800×600 resolution ensures compatibility with legacy and modern industrial systems while maintaining clear visibility for text, graphics, and process data.
Speed and Response:
The TFT technology ensures fast response times suitable for dynamic graphical interfaces and video playback. The optional touch screen supports responsive input for real-time control applications.
Power Efficiency:
Operating on low DC voltage, the monitor consumes minimal power, making it suitable for energy-conscious installations and embedded systems with limited power budgets.
Environmental Robustness:
The unit’s IP65-rated front bezel and vibration/shock resistance enable reliable operation in environments subject to mechanical stress, dust, and moisture exposure.
Limitations:
- The display resolution (800×600) may not be suitable for high-definition graphical applications.
- Plastic housing, while lightweight, offers less mechanical rigidity compared to metal enclosures.
- Operating temperature limited to 0–50°C; not intended for extreme cold or high-heat environments without additional protection.
### 8. Standards & Compliance
Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, ensuring protection against dust ingress and water jets from any direction.
Electrical and EMC Compliance:
- CE Certification: Conforms to European safety and electromagnetic compatibility standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for industrial and commercial electronic equipment, ensuring minimal electromagnetic interference (EMI).
Mechanical and Environmental Standards:
- Designed to meet industrial-grade vibration and shock resistance criteria (1G vibration, 15G shock).
- Compliant with general industrial display standards for reliability and durability.
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (commonly 1–2 years) covering defects in materials and workmanship under normal operating conditions. Extended warranty options may be available through Aplex or authorized distributors.
Technical Support:
Aplex provides comprehensive technical support, including product documentation, driver downloads (for touch screen models), and configuration assistance. Support is available through online resources, email, and authorized service centers.
Maintenance:
- Regularly clean the front panel with a soft, dry cloth; avoid solvents or abrasive materials.
- Ensure ventilation openings (if any) remain unobstructed.
- Verify cable connections periodically to prevent signal loss or power interruptions.
- For touch screen models, recalibrate periodically for optimal accuracy.
Firmware and Software Updates:
Touch screen drivers and firmware updates (if applicable) can be obtained from Aplex’s official support portal. Updates ensure compatibility with new operating systems and improve touch performance.
Lifecycle and Availability:
The ADP-1080 is part of Aplex’s long-term industrial product line, designed for extended availability and consistent form factor to support OEM and system integrator requirements.
### Summary
The Aplex ADP-1080 8" Color TFT Industrial Display Monitor is a robust, versatile, and cost-effective solution for industrial visualization and control applications. With its 800×600 SVGA resolution, multiple input options, optional touch interface, and IP65-rated front bezel, it delivers reliable performance in demanding environments. Its compact dimensions (230 × 175 × 55 mm), flexible mounting options, and wide DC input range (11–28V) make it adaptable to a variety of industrial and embedded installations.
Engineered to meet CE and FCC Class A standards, the ADP-1080 ensures compliance, durability, and long-term operational stability. Whether deployed in factory automation, process monitoring, or embedded control systems, it provides a dependable display platform that balances performance, protection, and ease of integration.
End of Product Summary – ADP-1080 8" Color TFT Industrial Display Monitor
### 1. Product Overview
Product Name: ADP-1080 8" Color TFT Industrial Display Monitor
Model Number: ADP-1080
Series: ADP Industrial Display Series
Article Number: ADP-1080
Manufacturer: Aplex Technology Inc.
The Aplex ADP-1080 is a compact, ruggedized 8-inch color TFT industrial display monitor designed for demanding industrial and embedded applications. It combines a high-quality SVGA TFT LCD panel with versatile input options, robust environmental protection, and flexible mounting configurations. Engineered for reliability in harsh environments, the ADP-1080 provides clear visual performance, durable construction, and compatibility with a wide range of industrial control systems and embedded PCs.
### 2. Key Features
- 8-inch SVGA TFT LCD Display:
Delivers a native resolution of 800 × 600 pixels, providing sharp and vibrant image quality suitable for industrial visualization, control panels, and HMI (Human-Machine Interface) applications.
- Multiple Video Input Options:
Standard VGA input with optional DVI, Composite Video, and S-Video interfaces, ensuring compatibility with various industrial PCs, embedded systems, and legacy video sources.
- Touch Screen Options:
Available with RS-232 or USB interface sealed touch screen, offering flexible integration for interactive control and data input in industrial environments.
- Rugged Front Panel Protection:
The front bezel is NEMA 4 / IP65 compliant, providing resistance against dust, water splashes, and industrial contaminants, making it suitable for factory floors, automation systems, and outdoor kiosks.
- Flexible Power Input:
Standard DC 12V input with optional wide-range DC 11–28V support, allowing integration into diverse power systems and industrial control cabinets.
- User-Friendly OSD Control:
On-Screen Display (OSD) controls located on the backside of the unit for easy configuration of brightness, contrast, and display parameters.
- Compact and Lightweight Design:
Constructed with a durable plastic housing, the ADP-1080 offers a balance of strength and reduced weight, simplifying installation and maintenance.
- Mounting Flexibility:
Supports VESA 75 mm mounting and panel mount configurations, enabling installation in control panels, enclosures, or on articulated arms.
- Environmental Durability:
Designed to operate reliably in a wide temperature range and under vibration and shock conditions typical of industrial environments.
### 3. Technical Specifications
Display Panel:
- Type: 8-inch Color TFT LCD
- Resolution: 800 × 600 (SVGA)
- Aspect Ratio: 4:3
- Display Colors: 16.2 million (typical for TFT panels)
- Viewing Area: Approx. 162 × 121 mm (typical for 8" SVGA)
- Brightness / Contrast Ratio: (Not specified, typically 250–400 cd/m² for this class)
- Backlight: LED backlight (typical for industrial TFT displays)
Input Interfaces:
- Standard: VGA (Analog RGB)
- Optional: DVI, Composite Video, S-Video
- Touch Interface (optional): RS-232 or USB
Power Requirements:
- Input Voltage: DC 12V (standard)
- Optional Input Range: DC 11–28V
- Power Consumption: (Not specified, typically <15W for 8" TFT)
Mechanical Specifications:
- Housing Material: Plastic
- Dimensions: 230 mm (W) × 175 mm (H) × 55 mm (D)
- Panel Cutout Dimensions: 222 mm × 167 mm
- Mounting Options: Panel mount / VESA 75 mm mount
- Weight: (Not specified, estimated 1.2–1.5 kg typical for this size)
Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10% to 90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
### 4. Functionality
The Aplex ADP-1080 functions as a versatile industrial-grade display monitor designed for integration into control systems, automation panels, and embedded computing environments. It operates as a secondary or primary display for industrial PCs, PLCs, or embedded controllers, providing real-time visualization of process data, system status, and user interfaces.
How It Works:
The monitor receives video signals through its VGA or optional DVI/Video/S-Video inputs. The internal controller processes these signals and drives the TFT LCD panel to display images with high clarity and color accuracy. When equipped with the optional touch screen, the ADP-1080 allows user interaction through touch input, which is transmitted via RS-232 or USB to the host system.
Use Cases and Applications:
- Industrial automation and process control panels
- Human-Machine Interface (HMI) terminals
- Embedded system displays
- Factory monitoring and SCADA visualization
- Machine control consoles
- Kiosk and point-of-information systems
- Transportation and logistics terminals
- Laboratory and test equipment displays
Compatibility:
The ADP-1080 is compatible with a wide range of operating systems and hardware platforms that support standard VGA or DVI video output. The optional touch screen interfaces (RS-232 or USB) are supported by most modern operating systems with standard HID or serial touch drivers.
### 5. Components & Accessories
Included Components:
- ADP-1080 Display Unit
- Power Input Connector (DC 12V)
- VGA Signal Cable (standard configuration)
- User Manual / Quick Installation Guide
Optional Accessories:
- DVI, Composite Video, or S-Video input modules
- RS-232 or USB touch screen module
- Power adapter (AC to DC 12V or 24V)
- VESA 75 mounting bracket or arm
- Panel mounting kit (for flush installation)
- Protective front cover or sealing gasket (for enhanced IP protection)
Connectors:

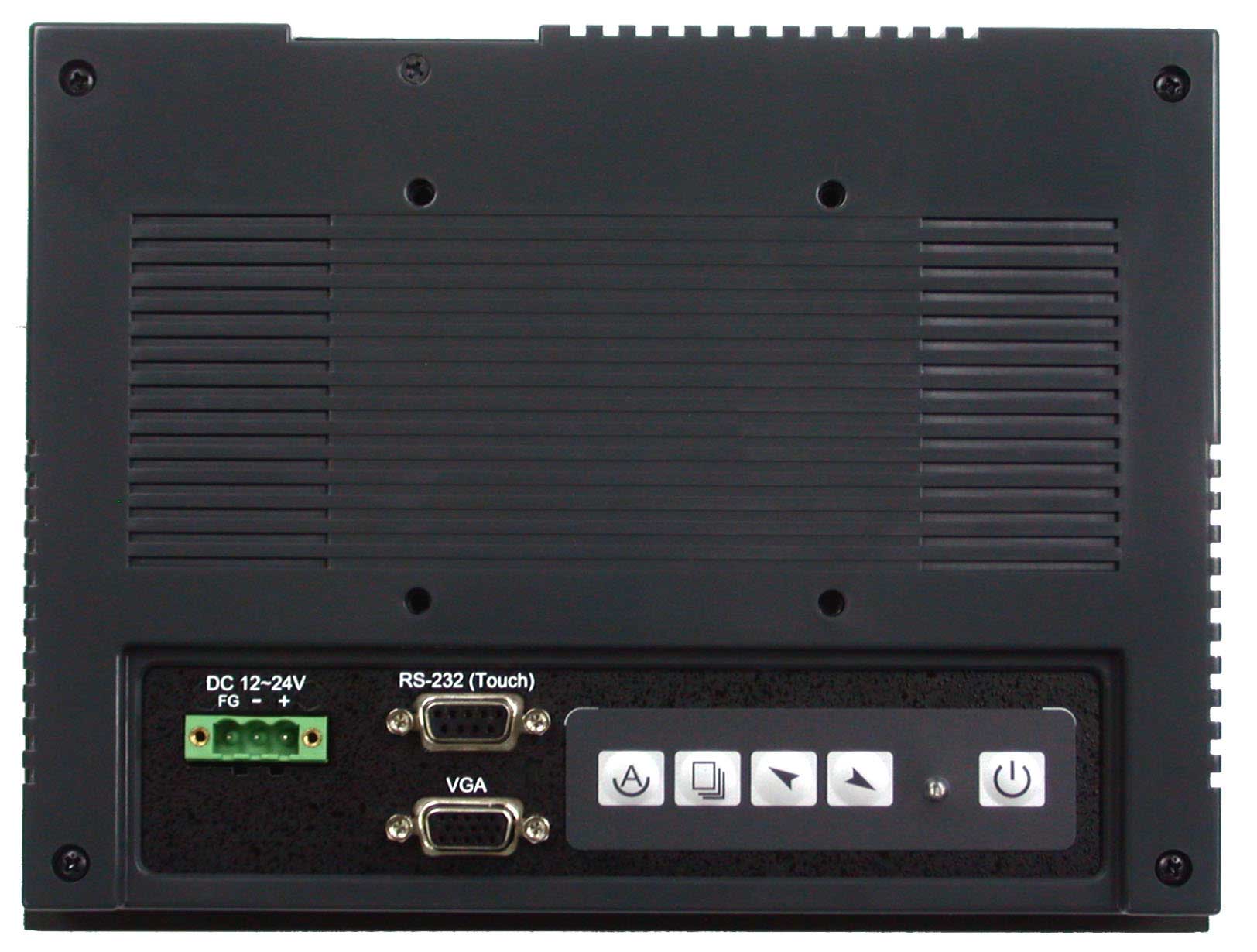

- VGA (DB-15)
- Optional DVI (DVI-D)
- Optional Composite Video (RCA)
- Optional S-Video (Mini-DIN)
- Power Input Jack (DC barrel or terminal block)
- Touch Interface Port (RS-232 DB-9 or USB Type-A/B)
### 6. Installation & Setup
Installation Requirements:
- Power Supply: DC 12V (or 11–28V optional) regulated power source
- Mounting Surface: Flat panel or VESA 75 mm compatible bracket
- Environmental Conditions: Within specified temperature and humidity limits
Mounting Options:
1. Panel Mount:
The ADP-1080 can be installed into a control panel or enclosure using the specified cutout dimensions (222 × 167 mm). The front bezel provides IP65 protection when properly sealed against the panel surface.
2. VESA 75 Mount:
The rear panel includes VESA 75 mm mounting holes, allowing attachment to standard monitor arms, wall mounts, or custom brackets.
Configuration:
- Connect the VGA (or optional DVI/Video) cable to the host system.
- Connect the DC power input to a regulated 12V or 11–28V source.
- If equipped with a touch screen, connect the RS-232 or USB cable to the host system.
- Use the rear OSD control buttons to adjust brightness, contrast, and display settings.
- Verify image alignment and touch calibration (if applicable).
### 7. Performance & Capabilities
Display Performance:
The ADP-1080 provides stable, flicker-free image rendering with consistent color reproduction across its 8-inch SVGA panel. The 800×600 resolution ensures compatibility with legacy and modern industrial systems while maintaining clear visibility for text, graphics, and process data.
Speed and Response:
The TFT technology ensures fast response times suitable for dynamic graphical interfaces and video playback. The optional touch screen supports responsive input for real-time control applications.
Power Efficiency:
Operating on low DC voltage, the monitor consumes minimal power, making it suitable for energy-conscious installations and embedded systems with limited power budgets.
Environmental Robustness:
The unit’s IP65-rated front bezel and vibration/shock resistance enable reliable operation in environments subject to mechanical stress, dust, and moisture exposure.
Limitations:
- The display resolution (800×600) may not be suitable for high-definition graphical applications.
- Plastic housing, while lightweight, offers less mechanical rigidity compared to metal enclosures.
- Operating temperature limited to 0–50°C; not intended for extreme cold or high-heat environments without additional protection.
### 8. Standards & Compliance
Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, ensuring protection against dust ingress and water jets from any direction.
Electrical and EMC Compliance:
- CE Certification: Conforms to European safety and electromagnetic compatibility standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for industrial and commercial electronic equipment, ensuring minimal electromagnetic interference (EMI).
Mechanical and Environmental Standards:
- Designed to meet industrial-grade vibration and shock resistance criteria (1G vibration, 15G shock).
- Compliant with general industrial display standards for reliability and durability.
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (commonly 1–2 years) covering defects in materials and workmanship under normal operating conditions. Extended warranty options may be available through Aplex or authorized distributors.
Technical Support:
Aplex provides comprehensive technical support, including product documentation, driver downloads (for touch screen models), and configuration assistance. Support is available through online resources, email, and authorized service centers.
Maintenance:
- Regularly clean the front panel with a soft, dry cloth; avoid solvents or abrasive materials.
- Ensure ventilation openings (if any) remain unobstructed.
- Verify cable connections periodically to prevent signal loss or power interruptions.
- For touch screen models, recalibrate periodically for optimal accuracy.
Firmware and Software Updates:
Touch screen drivers and firmware updates (if applicable) can be obtained from Aplex’s official support portal. Updates ensure compatibility with new operating systems and improve touch performance.
Lifecycle and Availability:
The ADP-1080 is part of Aplex’s long-term industrial product line, designed for extended availability and consistent form factor to support OEM and system integrator requirements.
### Summary
The Aplex ADP-1080 8" Color TFT Industrial Display Monitor is a robust, versatile, and cost-effective solution for industrial visualization and control applications. With its 800×600 SVGA resolution, multiple input options, optional touch interface, and IP65-rated front bezel, it delivers reliable performance in demanding environments. Its compact dimensions (230 × 175 × 55 mm), flexible mounting options, and wide DC input range (11–28V) make it adaptable to a variety of industrial and embedded installations.
Engineered to meet CE and FCC Class A standards, the ADP-1080 ensures compliance, durability, and long-term operational stability. Whether deployed in factory automation, process monitoring, or embedded control systems, it provides a dependable display platform that balances performance, protection, and ease of integration.
End of Product Summary – ADP-1080 8" Color TFT Industrial Display Monitor
-
ADP-1080.pdf
PDF Catalog
No accessories available.
