Comprehensive Product Summary – ADP-1121 Industrial Display Monitor

---

### 1. Product Overview

Product Name: ADP-1121
Model Number: ADP-1121
Series: Industrial Display Monitor Series
Article Number: ADP-1121
Manufacturer: Aplex Technology Inc.

Product Description:

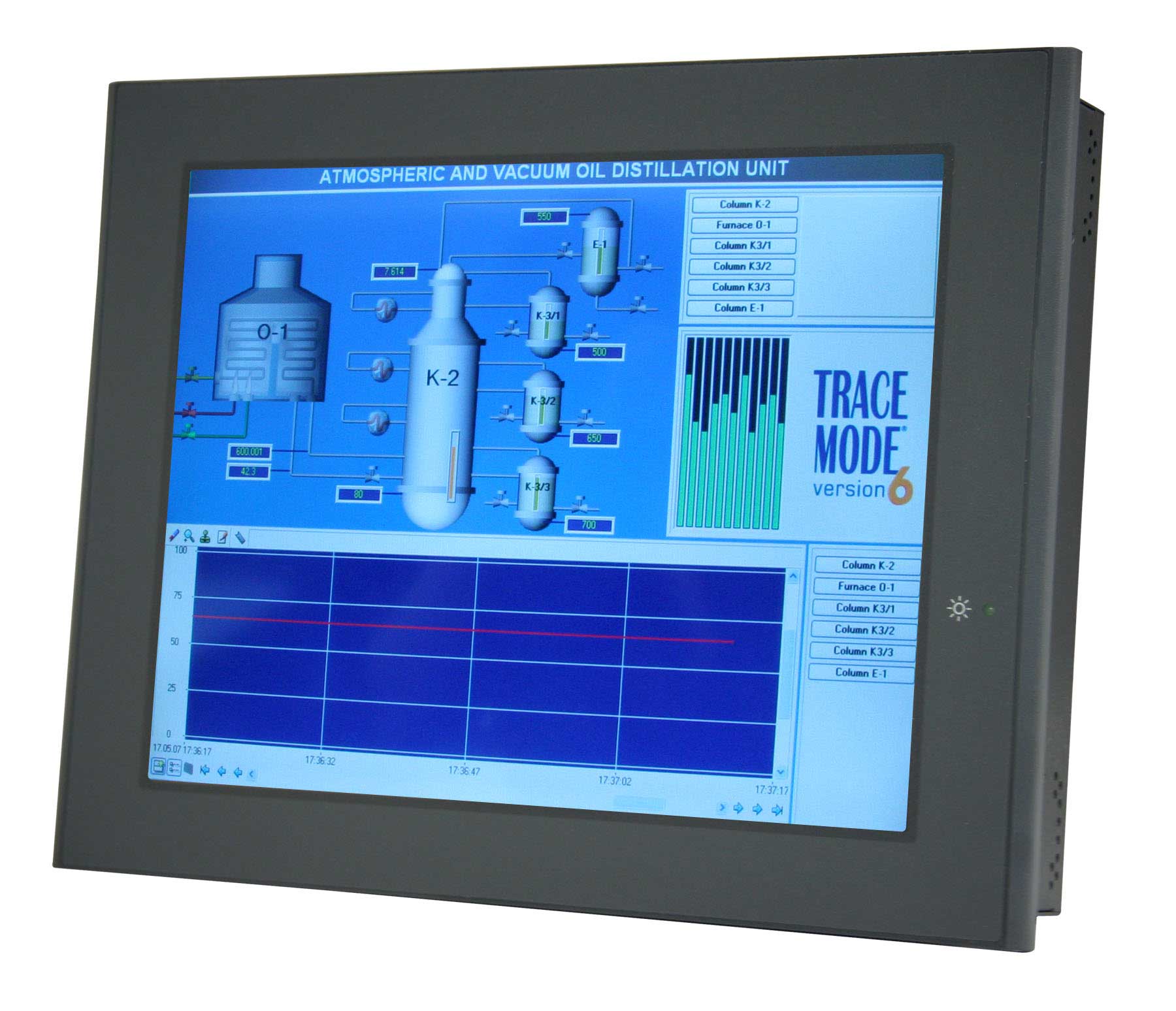

The ADP-1121 is a 12.1-inch color TFT industrial display monitor designed for demanding industrial and embedded applications. It features a rugged construction with an IP65-rated front panel, multiple video input options, and flexible power input support. Engineered for reliability and durability, the ADP-1121 provides high-quality visual performance in harsh environments, making it suitable for factory automation, control systems, kiosks, and industrial HMI (Human-Machine Interface) applications.

---

### 2. Key Features

- Display Type: 12.1-inch Color TFT LCD panel
- Resolution: SVGA 800 × 600 pixels
- Aspect Ratio: 4:3 standard industrial format
- Input Interfaces: Standard VGA input; optional DVI, Composite Video, and S-Video inputs available
- Touchscreen Options: Optional sealed resistive touchscreen with RS-232 or USB interface
- Front Panel Protection: IP65 / NEMA 4 compliant front bezel for dust and water resistance
- Power Input: Standard 12 VDC input; optional wide-range 11–28 VDC input supported
- On-Screen Display (OSD): Rear-mounted OSD control buttons for brightness, contrast, and display settings
- Mounting Options: Panel mount and VESA 75 mm mount compatibility
- Construction: Heavy-duty steel chassis with a durable plastic front bezel
- Environmental Tolerance: Designed for operation in industrial temperature and humidity ranges
- Certifications: CE and FCC Class A compliance for electromagnetic compatibility

Unique Selling Points:
- Industrial-grade reliability with IP65-rated front protection
- Flexible video input and power options for integration versatility
- Compact and rugged design suitable for embedded and panel-mount applications
- Optional touchscreen interface for interactive control systems
- Wide operating temperature range for harsh industrial environments

---

### 3. Technical Specifications

Display Characteristics:
- Display Size: 12.1 inches (diagonal)
- Display Type: Color TFT LCD
- Native Resolution: 800 × 600 (SVGA)
- Color Support: Full color (16.2 million colors typical)
- Viewing Angle: Typical industrial TFT viewing angles (horizontal and vertical)
- Brightness & Contrast: Optimized for indoor and semi-outdoor industrial environments

Mechanical Specifications:
- Construction: Heavy-duty steel chassis with plastic front bezel
- Overall Dimensions: 317 mm (W) × 243 mm (H) × 45 mm (D)
- Panel Cutout Dimensions: 301 mm × 227 mm (for panel mounting)
- Mounting Options: Panel mount / VESA 75 mm mount
- Weight: Approx. 2.5–3.0 kg (typical, depending on configuration)

Power Specifications:
- Input Voltage: DC 12 V standard
- Optional Input Range: DC 11–28 V (wide-range input option)
- Power Consumption: Optimized for low power operation (typical < 25 W)

Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10% to 95% @ 40°C, non-condensing (without touchscreen)
- Vibration Resistance: 1G peak, 10–150 Hz (random vibration)
- Shock Resistance: 30G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications:
- EMC Compliance: CE / FCC Class A

---

### 4. Functionality

Operational Overview:
The ADP-1121 functions as a standalone industrial-grade display monitor designed to interface with a variety of control systems, industrial PCs, and embedded controllers. It accepts standard VGA input signals and can optionally support DVI, composite video, or S-Video inputs for flexible integration with different video sources.

Touchscreen Functionality (Optional):
When equipped with the optional resistive touchscreen, the ADP-1121 allows direct user interaction through touch input. The touchscreen can be connected via RS-232 or USB interface, depending on system requirements. This feature makes it ideal for HMI applications, control panels, and operator interfaces.

Use Cases and Applications:
- Factory automation and process control systems
- Industrial machinery monitoring and control panels
- Embedded system display terminals
- Kiosk and point-of-information systems
- Transportation and logistics control stations
- Building automation and energy management systems

Compatibility:
- Compatible with standard VGA output devices (industrial PCs, embedded controllers, PLCs)
- Optional DVI and video input support for multimedia or legacy systems
- Touchscreen interface compatible with Windows, Linux, and embedded OS platforms supporting USB or RS-232 touch drivers

---

### 5. Components & Accessories

Included Components:
- ADP-1121 12.1" Industrial Display Monitor
- Power cable or DC input connector (depending on configuration)
- VGA signal cable
- Mounting brackets or panel-mount clamps
- User manual and installation guide

Optional Accessories:
- Touchscreen Kit: Sealed resistive touchscreen with RS-232 or USB interface
- Video Input Modules: DVI, Composite Video, or S-Video input boards
- Power Adapter: External AC-to-DC adapter for 12 VDC input
- Mounting Accessories: VESA 75 mm mounting arms, wall mounts, or panel-mount kits
- Cables: Extended VGA, DVI, or USB cables for remote installation

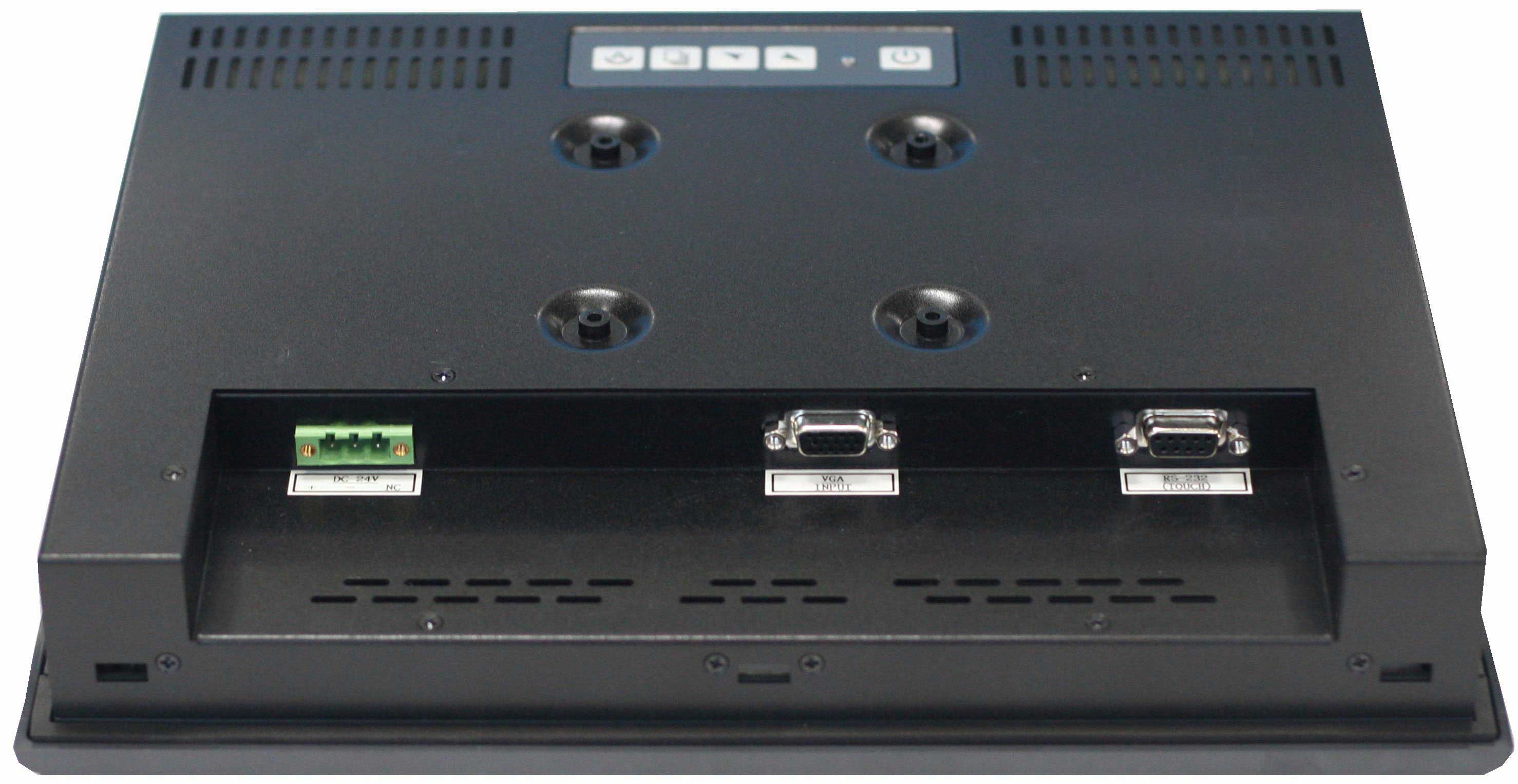

Connectors:
- VGA (DB-15) connector for video input
- Optional DVI-I, RCA (Video), or S-Video connectors
- DC power input jack (12 VDC or 11–28 VDC)
- RS-232 or USB port for touchscreen interface (optional)

---

### 6. Installation & Setup

Installation Requirements:
- DC power source (12 VDC standard or 11–28 VDC optional)
- Compatible video signal source (VGA, DVI, or Video)
- Mounting surface or bracket compatible with panel cutout or VESA 75 mm pattern

Mounting Options:
- Panel Mount: Designed for flush installation into control panels or enclosures using the 301 × 227 mm cutout dimensions.
- VESA Mount: Supports standard 75 × 75 mm VESA mounting pattern for arm or wall mounting.

Setup Procedure:
1. Prepare the mounting surface and ensure proper cutout dimensions.
2. Secure the monitor using panel clamps or VESA mount hardware.
3. Connect the power input to a regulated 12 VDC or 11–28 VDC source.
4. Connect the VGA (or optional DVI/Video) cable to the video source.
5. If equipped with a touchscreen, connect the RS-232 or USB cable to the host system.
6. Power on the system and adjust display parameters using the rear OSD controls.

Configuration:
- OSD (On-Screen Display) controls located on the backside allow adjustment of brightness, contrast, color temperature, and input source selection.
- Touchscreen calibration (if applicable) can be performed through the operating system’s control panel or supplied driver software.

---

### 7. Performance & Capabilities

Display Performance:
- Crisp and clear SVGA resolution suitable for industrial visualization and control interfaces.
- Stable image quality with minimal flicker and consistent color reproduction.
- Optimized brightness and contrast for readability in various lighting conditions.

Power Efficiency:
- Low power consumption design suitable for continuous 24/7 operation.
- Optional wide-range DC input allows integration into systems with variable power sources.

Durability:
- Rugged steel chassis ensures mechanical stability and resistance to vibration and shock.
- IP65-rated front bezel protects against dust, oil, and water splashes, ensuring long-term reliability in industrial environments.

Limitations:
- Resolution limited to 800 × 600 (SVGA), which may not be suitable for high-definition applications.
- Touchscreen option may slightly reduce optical clarity compared to non-touch models.
- Operating temperature range limited to 0–50°C; not intended for extreme outdoor environments without additional enclosure protection.

---

### 8. Standards & Compliance

Ingress Protection:
- Front Panel: IP65 / NEMA 4 compliant, ensuring protection against dust ingress and low-pressure water jets.

Electromagnetic Compatibility:
- CE Certification: Conforms to European EMC directives for industrial environments.
- FCC Class A: Meets U.S. Federal Communications Commission standards for electromagnetic emissions in commercial and industrial applications.

Safety and Reliability:
- Designed and tested for industrial-grade vibration and shock resistance.
- Complies with standard industrial safety and performance requirements.

Industry Standards Supported:
- VESA 75 mm mounting standard
- VGA and DVI video signal standards
- RS-232 and USB communication protocols for touchscreen interface

---

### 9. Additional Information

Warranty:
- Standard manufacturer’s warranty (typically 1–2 years, depending on region and configuration) covering defects in materials and workmanship.

Technical Support:
- Aplex provides comprehensive technical support, including installation guidance, driver downloads, and troubleshooting assistance.
- Firmware and driver updates available through the manufacturer’s website.

Maintenance:
- Front panel can be cleaned with mild detergent and soft cloth; avoid abrasive materials.
- Periodic inspection recommended for connectors and mounting hardware in high-vibration environments.
- Touchscreen calibration may be required periodically for optimal accuracy.

Product Lifecycle and Availability:
- Long-term availability typical of industrial-grade products, ensuring continuity for OEM and system integrator applications.
- Backward compatibility with previous Aplex display models for easy system upgrades.

Software & Driver Support:
- Touchscreen drivers available for major operating systems including Windows, Linux, and embedded platforms.
- Plug-and-play functionality for non-touch models using standard VGA/DVI interfaces.

Customization Options:
- Optional branding, bezel color, and input configurations available for OEM projects.
- Custom power input ranges and connector types can be specified for volume orders.

---

### Summary

The Aplex ADP-1121 is a robust, 12.1-inch color TFT industrial display monitor engineered for reliability, flexibility, and performance in industrial and embedded environments. With its IP65-rated front bezel, multiple video input options, optional touchscreen interface, and wide-range DC power input, it provides a versatile display solution for control panels, automation systems, and industrial workstations. Its rugged steel chassis, compliance with CE/FCC Class A standards, and support for both panel and VESA mounting make it a dependable choice for OEMs and system integrators seeking a compact yet durable industrial display platform.

Key Technical Highlights:
- 12.1" SVGA (800×600) TFT LCD
- VGA input (DVI/Video/S-Video optional)
- IP65 front bezel, NEMA 4 compliant
- Optional RS-232/USB touchscreen
- 12 VDC input (11–28 VDC optional)
- Dimensions: 317 × 243 × 45 mm
- Operating Temp: 0–50°C
- CE / FCC Class A certified

The ADP-1121 exemplifies Aplex’s commitment to delivering high-quality, industrial-grade display solutions that combine durability, performance, and adaptability for a wide range of professional applications.
