Comprehensive Product Summary – ADP-1174-05 17" SXGA TFT Industrial Display Monitor

---

### 1. Product Overview

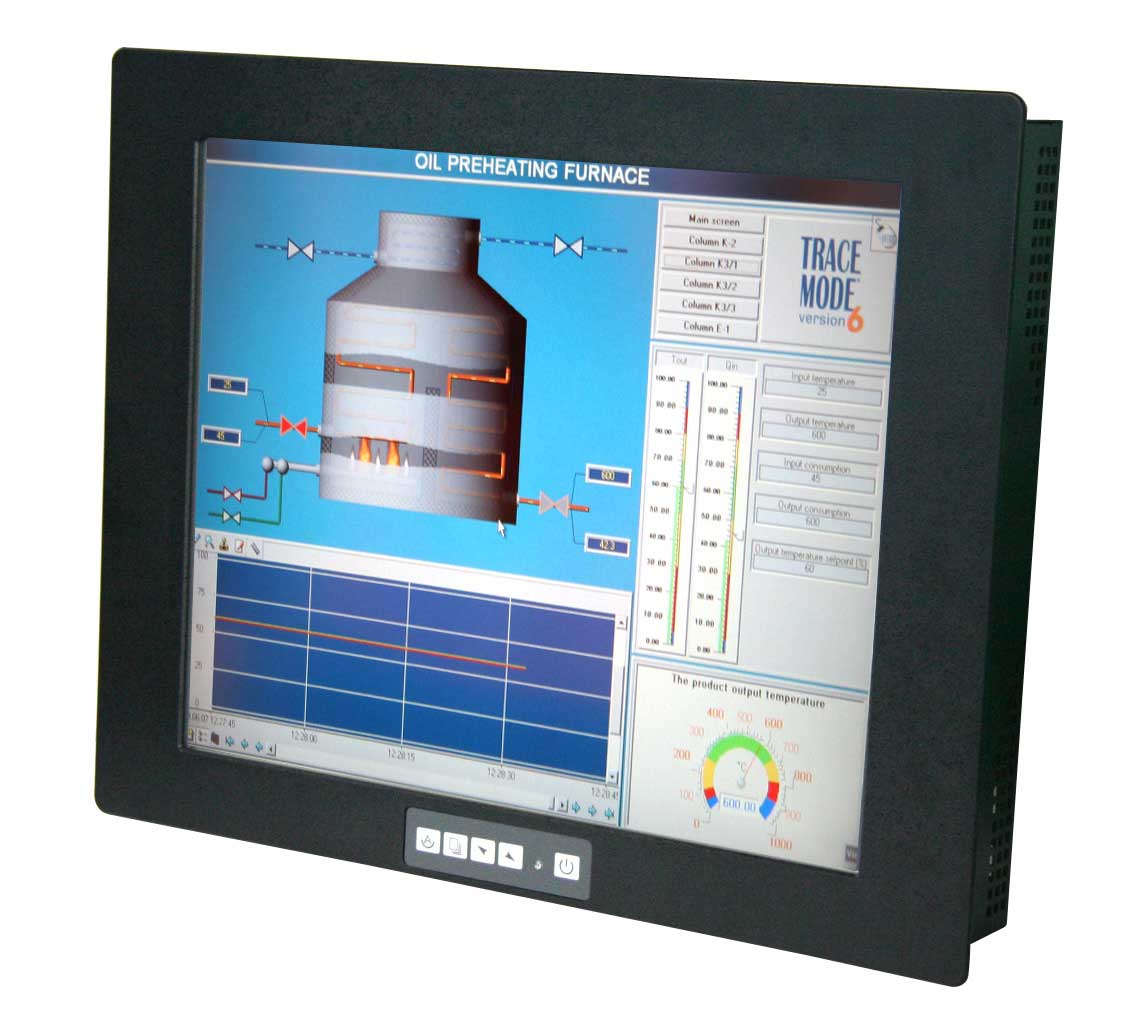

Product Name: 17" SXGA TFT Industrial Display Monitor
Model Number: ADP-1174-05
Article Number: ADP-1174-05
Series: ADP Industrial Display Series
Manufacturer: [Manufacturer name not specified in source content; typically produced by an industrial display solutions provider specializing in ruggedized human–machine interface (HMI) and panel display systems.]

The ADP-1174-05 is a 17-inch industrial-grade TFT display monitor designed for demanding industrial, automation, and embedded system environments. It combines robust mechanical construction, wide power input flexibility, and environmental durability with high-quality visual performance. The monitor is engineered for long-term reliability in harsh operating conditions, making it suitable for factory automation, process control, machine interfaces, and industrial visualization systems.

---

### 2. Key Features

- Display Type: 17-inch SXGA (1280 × 1024) TFT LCD panel
- Industrial Grade Design: Built for continuous operation in industrial environments with reinforced mechanical structure and extended temperature tolerance
- Flexible Power Input: Supports AC 100–240V input as standard; optional DC 11–28V input version available for mobile or embedded applications
- Rugged Construction: Available with steel front bezel and steel chassis or optional aluminum front bezel with steel chassis for enhanced corrosion resistance and reduced weight
- Mounting Flexibility: Supports panel mount and VESA 75 mm mounting standards for versatile installation in control panels, enclosures, or arm-mounted systems
- Environmental Protection: NEMA 4 / IP65 compliant front bezel, providing protection against dust, moisture, and splashing water
- Wide Operating Temperature Range: Designed to operate reliably from 0°C to 50°C (32°F to 122°F)
- Extended Storage Temperature Range: Safe storage from –20°C to 60°C (–4°F to 140°F)
- Vibration and Shock Resistance: Tested to 1G peak (5–500 Hz random vibration) and 15G peak acceleration (11 ms duration shock) for mechanical robustness
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety
- Industrial Reliability: Engineered for 24/7 operation with stable performance and long service life

---

### 3. Technical Specifications

Display Characteristics:
- Display Size: 17 inches (diagonal)
- Display Type: TFT LCD (Thin Film Transistor Liquid Crystal Display)
- Resolution: SXGA (1280 × 1024 pixels)
- Aspect Ratio: 5:4
- Brightness, Contrast, and Viewing Angle: [Not specified in source; typically 250–350 cd/m² brightness, 700:1 contrast ratio, and 160°/160° viewing angles for industrial-grade panels.]
- Color Support: 16.7 million colors (typical for 8-bit TFT panels)

Mechanical Specifications:
- Front Bezel Material: Steel (standard) or optional aluminum
- Chassis Material: Steel
- Overall Dimensions: 439 mm (W) × 348 mm (H) × 64.7 mm (D)
- Mounting Options: Panel mount and VESA 75 mm mount compatible
- Construction Type: Industrial-grade metal enclosure for durability and EMI shielding

Power Input:
- Standard Input: AC 100–240V, 50/60 Hz
- Optional Input: DC 11–28V (for mobile or embedded system integration)

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: –20°C to 60°C (–4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE Certified (Conformité Européenne)
- FCC Class A (for industrial/commercial environments)

---

### 4. Functionality

The ADP-1174-05 functions as a high-performance industrial display monitor designed for integration into control systems, operator interfaces, and industrial PCs. It provides clear, high-resolution visual output for monitoring, control, and data visualization tasks in manufacturing, automation, and process environments.

How It Works:
The monitor connects to a host system (such as an industrial PC, embedded controller, or workstation) via standard video interfaces (e.g., VGA, DVI, or HDMI, depending on configuration). It displays graphical user interfaces, process data, or video feeds in real time. The TFT LCD technology ensures stable image quality, fast response, and consistent color reproduction under continuous operation.

Use Cases and Applications:
- Factory Automation: Machine control panels, production line monitoring, and SCADA visualization
- Process Control: Displaying process parameters, alarms, and control interfaces in chemical, oil & gas, or water treatment facilities
- Embedded Systems: Integration into kiosks, terminals, or custom industrial equipment
- Transportation and Logistics: Vehicle-mounted or control room displays for monitoring and dispatch systems
- Energy and Utilities: Power plant control rooms, renewable energy monitoring systems
- Marine and Defense Applications: Ruggedized display for navigation or mission control (when configured with optional DC input and enhanced sealing)

Compatibility:
The ADP-1174-05 is compatible with a wide range of industrial PCs, embedded controllers, and automation systems supporting standard video output formats. It can be integrated into both legacy and modern control architectures.

---

### 5. Components & Accessories

Included Items:
- ADP-1174-05 17" SXGA TFT Industrial Display Monitor
- Power cable (for AC input version)
- Mounting brackets or clamps for panel installation
- User manual and installation guide

Optional Accessories:
- DC power input module (11–28V)
- Aluminum front bezel upgrade
- Touch screen option (resistive or capacitive, depending on configuration)
- VESA mounting arm or bracket
- Signal cables (VGA/DVI/HDMI, depending on configuration)
- Protective screen cover or anti-glare film

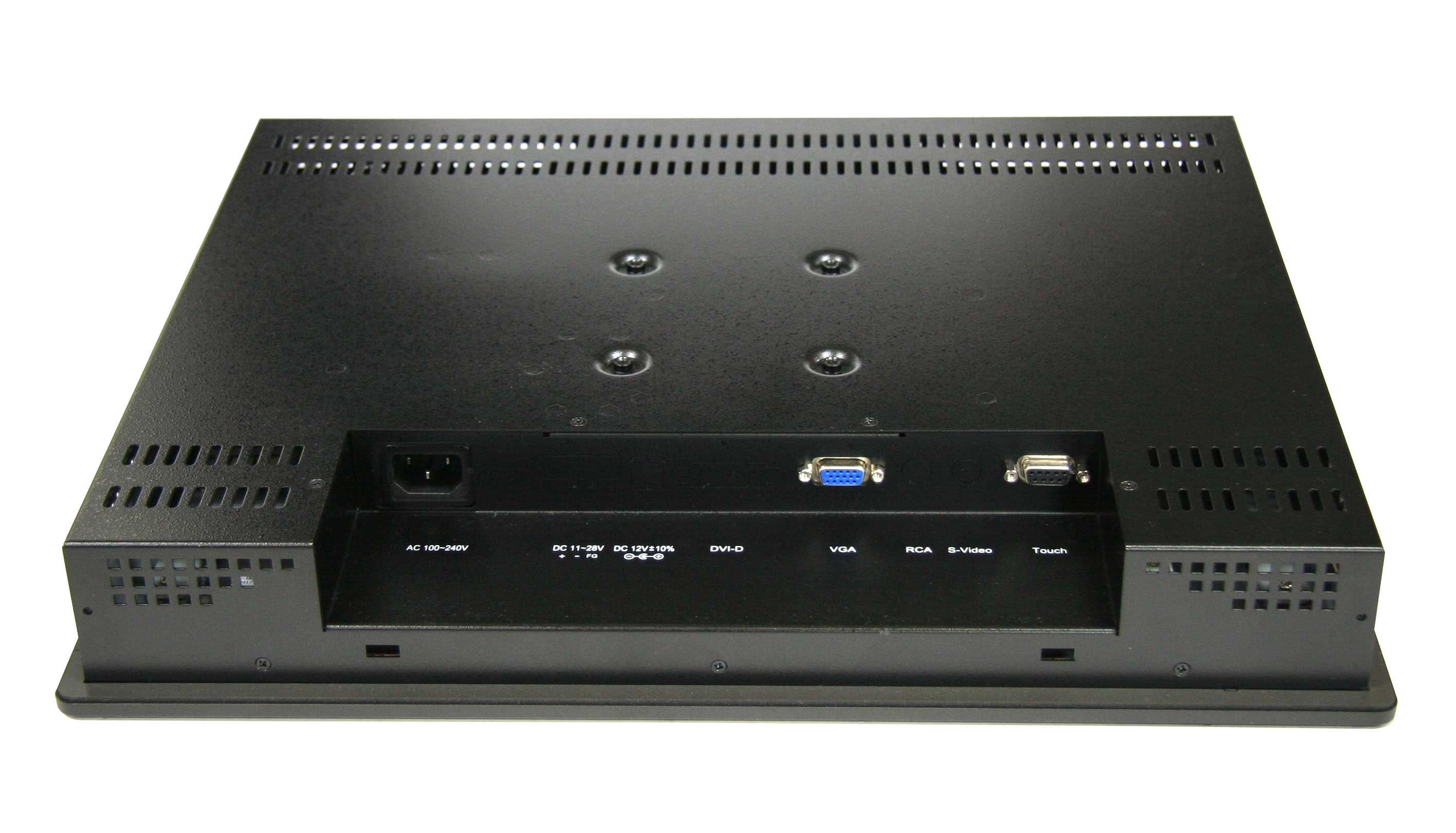

Connectors:
While not explicitly listed in the source, typical configurations include:
- Video Input: VGA (D-Sub 15-pin), DVI-D, or HDMI
- Power Connector: AC inlet (IEC type) or DC terminal block (for DC version)
- Optional Touch Interface: USB or RS-232 (for touch-enabled models)

---

### 6. Installation & Setup

Installation Requirements:
- Suitable for panel or VESA 75 mm mounting
- Requires stable power source (AC 100–240V or DC 11–28V depending on model)
- Adequate ventilation or enclosure space to maintain operating temperature range

Mounting Options:
- Panel Mount: The monitor can be flush-mounted into a control panel or cabinet using the provided mounting brackets. This configuration ensures a sealed front surface compliant with NEMA 4 / IP65 standards.
- VESA 75 Mount: Compatible with standard VESA 75 mm mounting arms, brackets, or stands for flexible positioning in workstations or operator consoles.

Configuration:
- Connect video input cable to host system
- Connect power input (AC or DC)
- Adjust display settings (brightness, contrast, color) via on-screen display (OSD) controls
- Verify image alignment and resolution settings on the host system

Setup Considerations:
- Ensure environmental conditions (temperature, humidity, vibration) are within specified limits
- For panel mounting, ensure gasket or sealing ring is properly installed to maintain IP65 protection
- For DC-powered installations, verify polarity and voltage range before connection

---

### 7. Performance & Capabilities

Display Performance:
The 17" SXGA TFT panel provides sharp, high-resolution imagery suitable for detailed process visualization and control interfaces. The SXGA resolution (1280 × 1024) offers a balanced combination of screen real estate and pixel density for industrial HMI applications.

Speed and Response:
TFT technology ensures fast response times, minimizing motion blur and latency in dynamic visualizations or video feeds.

Capacity and Efficiency:
The monitor is optimized for continuous 24/7 operation with low power consumption relative to CRT or older LCD technologies. The optional DC input version enhances energy efficiency in mobile or embedded systems.

Environmental Performance:
The ADP-1174-05 maintains stable operation under vibration (1G) and shock (15G) conditions, ensuring reliability in environments with mechanical stress or movement. The wide temperature range and humidity tolerance make it suitable for both indoor and semi-outdoor installations.

Limitations:
- Not designed for direct outdoor sunlight readability unless configured with high-brightness panel options
- Touch functionality not included in base model (optional)
- Requires proper enclosure sealing for full IP65 compliance when panel-mounted

---

### 8. Standards & Compliance

Ingress Protection:
- NEMA 4 / IP65 compliant front bezel – protects against dust, dirt, and water jets from any direction, ensuring suitability for industrial and semi-outdoor environments.

Electromagnetic Compatibility (EMC):
- CE Certified: Conforms to European safety and EMC directives for industrial equipment.
- FCC Class A: Meets U.S. Federal Communications Commission standards for electromagnetic emissions in industrial and commercial environments.

Mechanical and Environmental Standards:
- Designed and tested for 1G vibration (5–500 Hz random) and 15G shock (11 ms) per industrial-grade mechanical durability standards.
- Complies with general industrial environmental specifications for temperature and humidity.

Quality and Safety:
- Manufactured under quality-controlled processes ensuring consistent performance and reliability.
- Meets or exceeds typical industrial display standards for durability, safety, and electromagnetic compatibility.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard 1-year limited warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty options may be available depending on supplier or integrator.

Support:
Technical support includes installation guidance, configuration assistance, and troubleshooting resources. Documentation typically includes user manuals, mechanical drawings, and electrical specifications.

Maintenance:
- Regular cleaning of the front bezel and screen surface with non-abrasive materials
- Periodic inspection of mounting hardware and electrical connections
- Ensure ventilation openings (if any) remain unobstructed
- Firmware or OSD settings can be updated or adjusted as needed

Product Lifecycle and Updates:
The ADP-1174-05 is part of a long-term industrial product line designed for extended availability and backward compatibility. Future revisions may include updated display panels, enhanced brightness, or additional input interfaces while maintaining mechanical and electrical compatibility with existing installations.

---

### Summary

The ADP-1174-05 17" SXGA TFT Industrial Display Monitor is a robust, high-performance display solution engineered for industrial and embedded applications requiring durability, reliability, and visual clarity. With its rugged steel or aluminum-steel construction, flexible power input options, and compliance with NEMA 4/IP65, CE, and FCC Class A standards, it is ideally suited for harsh environments such as factory floors, control rooms, and process automation systems. Its combination of mechanical strength, environmental resilience, and visual performance ensures dependable operation in mission-critical industrial applications.
