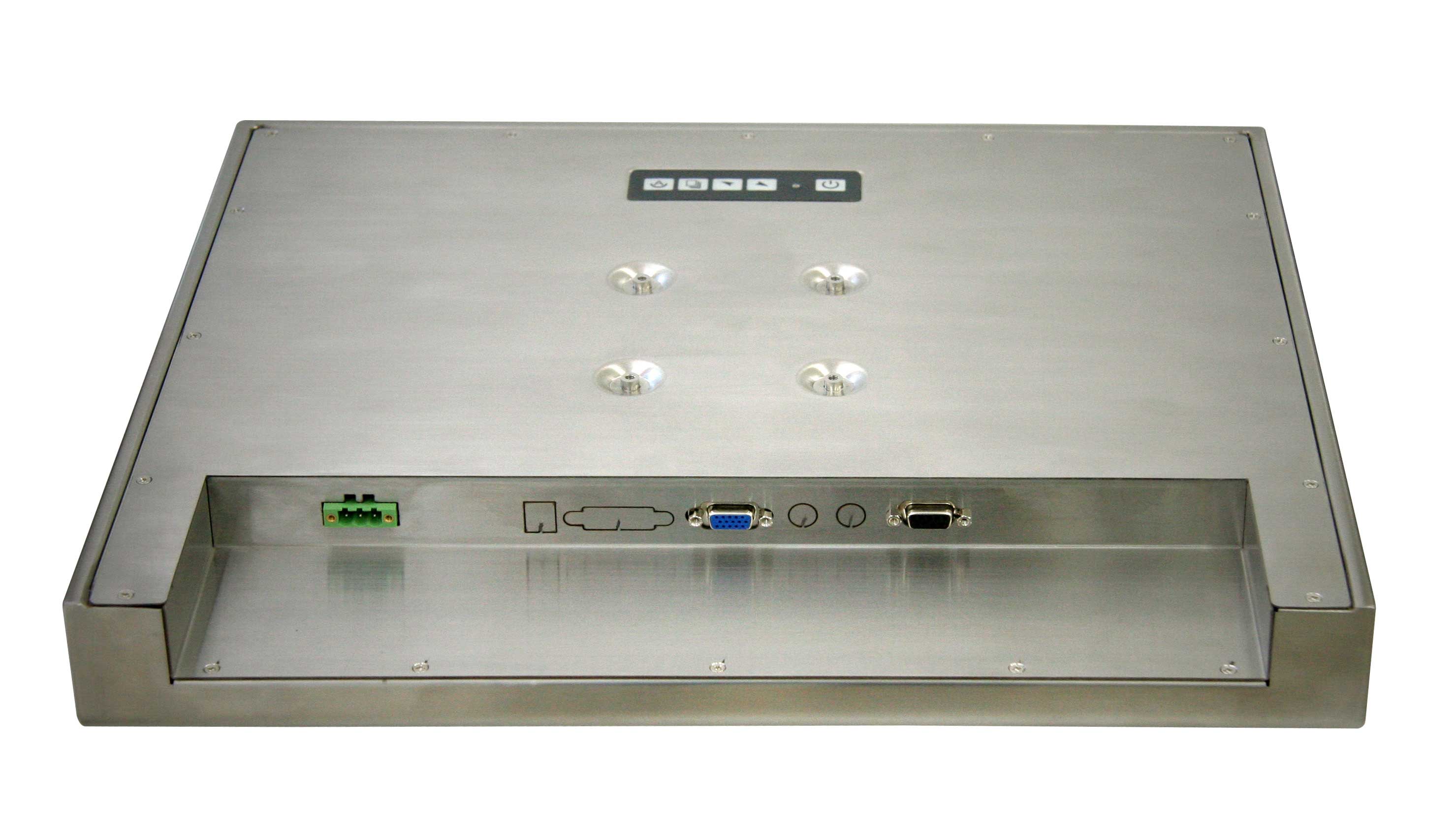

- OSD (On-Screen Display) Controls: Conveniently located on the backside for easy configuration of brightness, contrast, and display settings.
- VESA 75 Mounting Compatibility: Supports VESA 75 mm mounting standard for flexible installation on panels, arms, or walls.
- High Reliability: Rated for 50,000 hours MTBF, ensuring long-term operational stability in continuous-use environments.
- Optional Black Finish: Available with a black-coated stainless steel enclosure for aesthetic or environmental matching.
- Stainless Steel Enclosure: Constructed from high-grade stainless steel, ensuring corrosion resistance and easy cleaning, ideal for hygienic or harsh environments.
- IP65 Protection (Front and Sides): The enclosure provides IP65 / NEMA 4 protection on five sides (excluding the I/O side), safeguarding against dust, water jets, and contaminants.
- Wide DC Power Input Range: Supports DC 11–28V input, allowing flexible integration with various industrial power systems.
- Optional Analog Touch Screen: Enables intuitive user interaction and control, suitable for HMI (Human-Machine Interface) applications.
- Multiple Video Input Options: Standard VGA input, with optional DVI, S-Video, or RCA interfaces for broader compatibility with legacy and modern systems.
- OSD (On-Screen Display) Controls: Conveniently located on the backside for easy configuration of brightness, contrast, and display settings.
- VESA 75 Mounting Compatibility: Supports VESA 75 mm mounting standard for flexible installation on panels, arms, or walls.
- High Reliability: Rated for 50,000 hours MTBF, ensuring long-term operational stability in continuous-use environments.
- Optional Black Finish: Available with a black-coated stainless steel enclosure for aesthetic or environmental matching.
Comprehensive Product Summary – ADP-1176 17" Stainless Steel Enclosure LCD Display
### 1. Product Overview

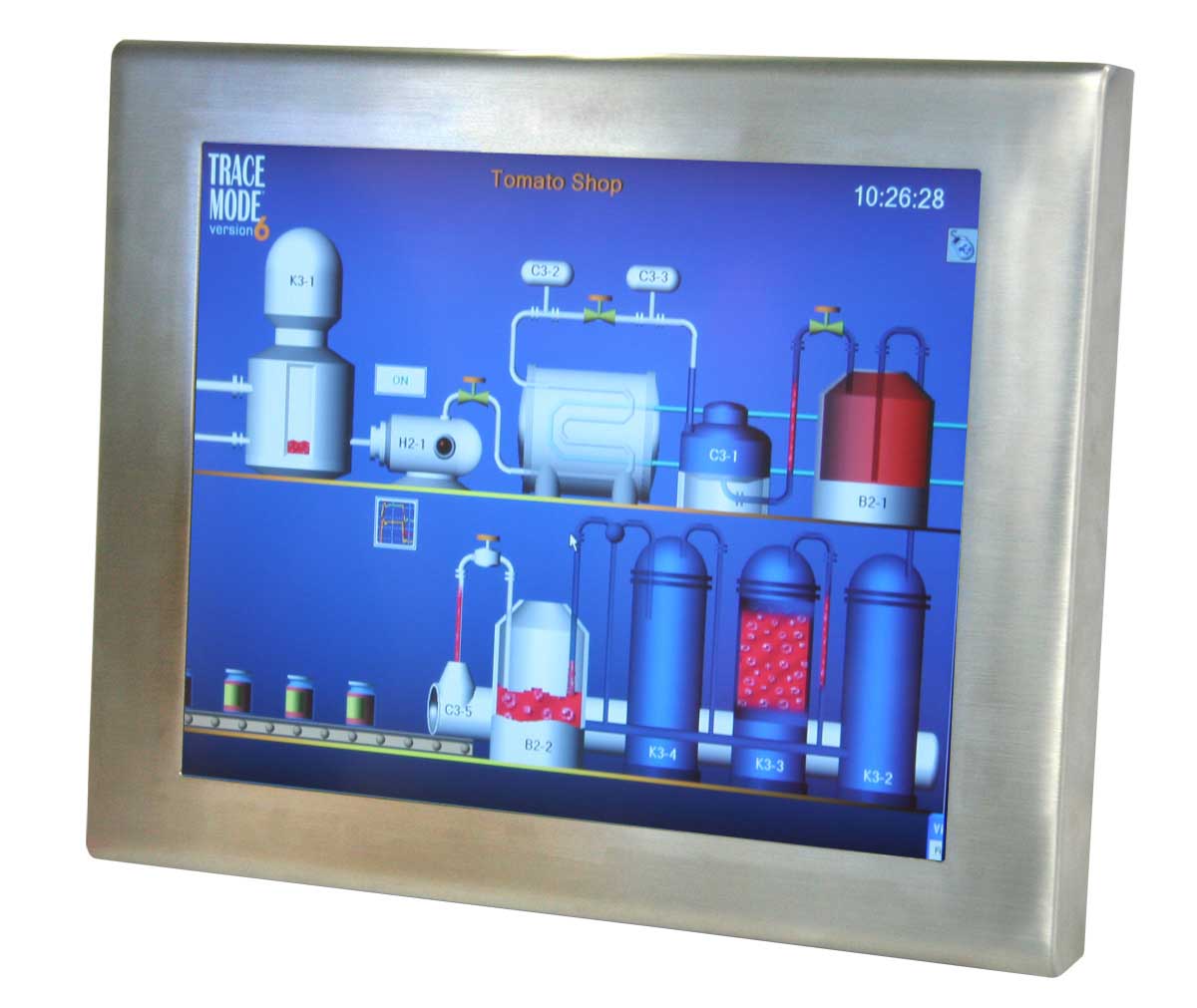

Product Name: 17" Stainless Steel Enclosure LCD Display
Model Number: ADP-1176
Article Number: ADP-1176
Series: Industrial Stainless Steel Display Series
Manufacturer: Aplex Technology Inc.
The Aplex ADP-1176 is a ruggedized 17-inch industrial-grade LCD display designed for demanding environments where durability, hygiene, and reliability are critical. Engineered with a stainless steel enclosure and IP65-rated protection on five sides, this display is ideal for use in food processing, pharmaceutical manufacturing, marine, and industrial automation applications. The ADP-1176 combines robust mechanical construction with high-quality visual performance, offering a resolution of 1280 × 1024 pixels, optional analog touch functionality, and versatile video input options.
### 2. Key Features
- 17-inch SXGA LCD Panel: Delivers a native resolution of 1280 × 1024 pixels, providing sharp and clear image quality suitable for industrial monitoring and control interfaces.
- Stainless Steel Enclosure: Constructed from high-grade stainless steel, ensuring corrosion resistance and easy cleaning, ideal for hygienic or harsh environments.
- IP65 Protection (Front and Sides): The enclosure provides IP65 / NEMA 4 protection on five sides (excluding the I/O side), safeguarding against dust, water jets, and contaminants.
- Wide DC Power Input Range: Supports DC 11–28V input, allowing flexible integration with various industrial power systems.
- Optional Analog Touch Screen: Enables intuitive user interaction and control, suitable for HMI (Human-Machine Interface) applications.
- Multiple Video Input Options: Standard VGA input, with optional DVI, S-Video, or RCA interfaces for broader compatibility with legacy and modern systems.
- OSD (On-Screen Display) Controls: Conveniently located on the backside for easy configuration of brightness, contrast, and display settings.
- VESA 75 Mounting Compatibility: Supports VESA 75 mm mounting standard for flexible installation on panels, arms, or walls.
- High Reliability: Rated for 50,000 hours MTBF, ensuring long-term operational stability in continuous-use environments.
- Optional Black Finish: Available with a black-coated stainless steel enclosure for aesthetic or environmental matching.
### 3. Technical Specifications
Display Panel:
- Size: 17 inches (diagonal)
- Resolution: 1280 × 1024 (SXGA)
- Brightness: 300 cd/m² (typical)
- MTBF: 50,000 hours
- Touchscreen: Optional analog resistive touch
Mechanical Specifications:
- Enclosure Material: Stainless steel (brushed finish, corrosion-resistant)
- Dimensions: 432 mm (W) × 358 mm (H) × 57.4 mm (D)
- Weight (Net): Approximately 10.17 kg
- Mounting: VESA 75 mm standard mounting holes
- Color Options: Standard stainless steel silver; optional black finish
Power:
- Input Voltage: DC 11–28V
- Power Connector: Industrial-grade DC input jack
Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: IP65 / NEMA 4 compliant on five sides (excluding I/O side)
Certifications:
- CE Certified
- FCC Class A Compliant
### 4. Functionality
The Aplex ADP-1176 functions as a high-performance industrial display designed to interface with control systems, embedded computers, or industrial PCs. It operates as a visual output device for monitoring, control, and data visualization in environments where standard consumer displays would fail due to exposure to moisture, dust, or cleaning chemicals.
How It Works:
The display receives video signals through its VGA input (or optional DVI/S-Video/RCA interfaces) and renders them on its 17-inch SXGA LCD panel. The optional analog touch screen allows users to interact directly with the display, enabling touch-based control of industrial software interfaces. The OSD (On-Screen Display) controls on the rear panel allow users to adjust brightness, contrast, and other display parameters.
Use Cases and Applications:
- Industrial Automation: Machine control panels, production line monitoring, and process visualization.
- Food & Beverage Industry: Hygienic environments requiring stainless steel enclosures and easy cleaning.
- Pharmaceutical Manufacturing: Cleanroom applications where contamination resistance is essential.
- Marine and Outdoor Systems: Environments exposed to humidity, salt, or vibration.
- Public Information Displays: Kiosks or terminals in rugged or semi-outdoor locations.
Compatibility:
The ADP-1176 is compatible with a wide range of industrial PCs, embedded systems, and control units supporting VGA or DVI video output. The DC power input range (11–28V) ensures compatibility with standard industrial power supplies and vehicle-based systems.
### 5. Components & Accessories
Included Items:
- ADP-1176 17" Stainless Steel Enclosure LCD Display
- DC power input connector (standard industrial type)
- Mounting hardware for VESA 75 installation
- User manual and quick installation guide
Optional Accessories:
- Analog resistive touch screen module
- Video input adapters (DVI, S-Video, RCA)
- Black-coated stainless steel enclosure variant
- Power adapter (AC to DC 24V)
- Mounting brackets or arms for wall/panel installation
Connectors:
- Video Input: VGA (standard), optional DVI/S-Video/RCA
- Power Input: DC 11–28V terminal or connector
- Touch Interface (if equipped): USB or RS-232 (depending on configuration)
### 6. Installation & Setup
Requirements:
- DC power source within 11–28V range
- Compatible video output (VGA or optional DVI/S-Video/RCA)
- Mounting surface or bracket supporting VESA 75 mm pattern
Mounting Options:
- VESA 75 mm Mount: Allows attachment to standard monitor arms, wall mounts, or panel brackets.
- Panel Mounting: Can be integrated into control panels or enclosures using optional mounting kits.
Configuration:
- Connect the display to the power source and video signal.
- Adjust display parameters using the rear OSD controls.
- If equipped with a touch screen, connect the touch interface cable (USB or RS-232) to the host system and install the appropriate driver.
Setup Notes:
- Ensure proper grounding and shielding for industrial environments.
- Avoid direct exposure to high-pressure water jets on the I/O side.
- Maintain ambient temperature within the specified operating range for optimal performance.
### 7. Performance & Capabilities
Display Performance:
- Resolution: 1280 × 1024 (SXGA) ensures detailed visualization of industrial process data.
- Brightness: 300 cd/m² provides clear visibility under typical indoor and semi-outdoor lighting conditions.
- Viewing Angle: Optimized for operator visibility in control room or workstation setups.
- MTBF: 50,000 hours, supporting continuous 24/7 operation.
Electrical Performance:
- Power Efficiency: Designed for low power consumption within the 11–28V DC range.
- Signal Compatibility: Supports standard VGA analog signals; optional digital and composite inputs expand versatility.
Mechanical & Environmental Performance:
- Shock and Vibration Resistance: Engineered to withstand industrial vibration (1G, 5–500 Hz) and shock (15G, 11 ms).
- Ingress Protection: IP65-rated enclosure prevents ingress of dust and water jets, ensuring reliability in washdown or outdoor conditions.
- Temperature Tolerance: Operates reliably from 0°C to 50°C, with storage capability down to -20°C and up to 60°C.
Limitations:
- The I/O side is not IP65-protected; care must be taken to prevent exposure to liquids or contaminants on that side.
- Brightness level (300 cd/m²) may not be suitable for direct sunlight readability.
- Touch functionality is optional and may not be included in all configurations.
### 8. Standards & Compliance
Ingress Protection:
- IP65 / NEMA 4 compliant on five sides (excluding I/O side), ensuring protection against dust and water jets.
Certifications:
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.
Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of industrial mounting solutions.
- Environmental Standards: Designed to meet industrial-grade vibration and shock resistance requirements.
These certifications and standards confirm that the ADP-1176 is suitable for deployment in regulated industrial and commercial environments, ensuring both safety and reliability.
### 9. Additional Information
Warranty:
- Standard manufacturer’s warranty (typically 1–2 years, depending on region and configuration).
- Covers defects in materials and workmanship under normal operating conditions.
Support:
- Technical support and documentation available from Aplex Technology.
- Firmware and driver updates (for touch screen models) provided through official support channels.
Maintenance:
- The stainless steel enclosure allows for easy cleaning with non-corrosive agents.
- Regular inspection of connectors and seals is recommended to maintain IP65 integrity.
- Avoid abrasive cleaning materials that could damage the surface finish.
Product Lifecycle & Updates:
- Designed for long-term availability and support in industrial applications.
- Backward-compatible with previous Aplex industrial display systems.
- Optional customization available for OEM or system integrator requirements (e.g., branding, enclosure color, input configuration).
### Summary
The Aplex ADP-1176 17" Stainless Steel Enclosure LCD Display is a robust, industrial-grade display solution engineered for environments requiring durability, hygiene, and reliability. With its stainless steel IP65-rated enclosure, wide DC power input range, and multiple video interface options, it provides exceptional flexibility for system integrators and industrial operators. Its 17-inch SXGA panel delivers clear, detailed visuals, while optional touch functionality enhances interactivity for control and monitoring applications.
Designed to meet CE and FCC Class A standards, the ADP-1176 ensures compliance with industrial safety and electromagnetic requirements. Its rugged construction, vibration and shock resistance, and long MTBF make it a dependable choice for continuous operation in harsh or sensitive environments such as food processing, pharmaceuticals, and factory automation.
In summary, the ADP-1176 represents a high-quality, versatile, and reliable industrial display solution that combines performance, protection, and adaptability in a stainless steel form factor optimized for demanding professional applications.
