Discover embedded, communication and automation solutions tailored to your application.
- Display Type: 19-inch SXGA TFT LCD panel
- Resolution: 1280 × 1024 pixels (SXGA)
- Brightness: 300 cd/m² typical luminance for clear visibility in industrial lighting conditions
- Touchscreen: Resistive touch technology for reliable operation with gloves or stylus
- Front Panel Protection: IP65-rated front bezel for dust and water resistance
- Input Signal Support:
- Standard VGA analog input
- Optional DVI and S-Video inputs for flexible connectivity
- Display Compatibility: Supports multiple resolutions from 640 × 480 (VGA) up to 1600 × 1200 (UXGA) with auto phase and auto position adjustment
- On-Screen Display (OSD): Rear-mounted OSD controls for configuration and calibration
- Mounting Options: VESA 75 mm mount compatibility; optional rack-mount kit available
- Power Input:
- Standard AC 100–240 V input
- Optional DC 11–28 V input for industrial and mobile applications
- Construction: Rugged steel chassis and front bezel for enhanced mechanical strength
- Operating Flexibility: Designed for continuous operation in industrial environments
- Resolution: 1280 × 1024 pixels (SXGA)
- Brightness: 300 cd/m² typical luminance for clear visibility in industrial lighting conditions
- Touchscreen: Resistive touch technology for reliable operation with gloves or stylus
- Front Panel Protection: IP65-rated front bezel for dust and water resistance
- Input Signal Support:
- Standard VGA analog input
- Optional DVI and S-Video inputs for flexible connectivity
- Display Compatibility: Supports multiple resolutions from 640 × 480 (VGA) up to 1600 × 1200 (UXGA) with auto phase and auto position adjustment
- On-Screen Display (OSD): Rear-mounted OSD controls for configuration and calibration
- Mounting Options: VESA 75 mm mount compatibility; optional rack-mount kit available
- Power Input:
- Standard AC 100–240 V input
- Optional DC 11–28 V input for industrial and mobile applications
- Construction: Rugged steel chassis and front bezel for enhanced mechanical strength
- Operating Flexibility: Designed for continuous operation in industrial environments
Comprehensive Product Summary – ADP-1190T Industrial Display Monitor
### 1. Product Overview
Product Name: ADP-1190T
Model Number: ADP-1190T
Series: ADP Industrial Display Series
Article Number: ADP-1190T
Manufacturer: Aplex Technology Inc.

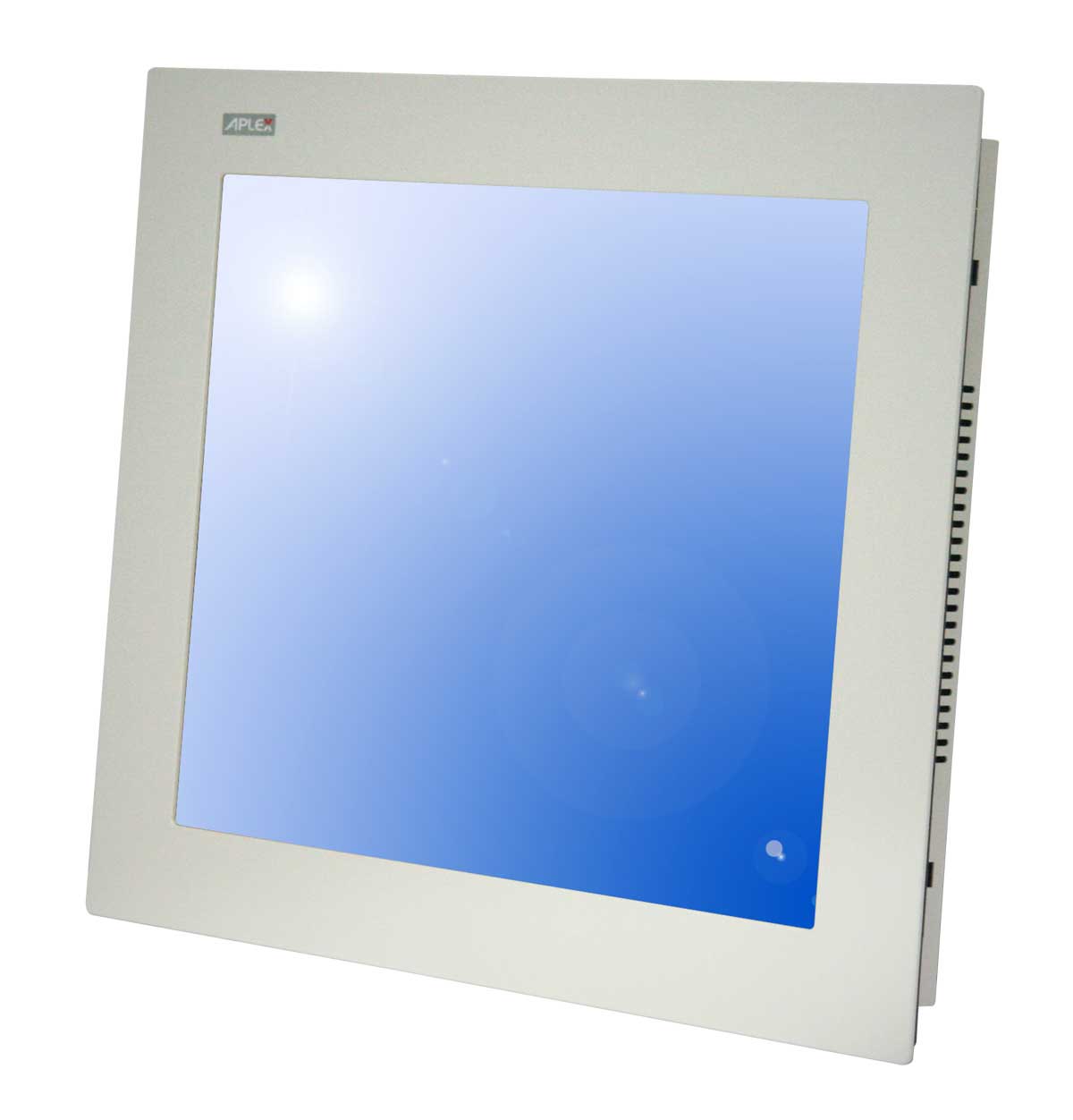

The Aplex ADP-1190T is a 19-inch SXGA TFT Industrial Display Monitor designed for demanding industrial and commercial environments requiring robust construction, high display performance, and flexible input options. Engineered with a steel chassis and front bezel, the ADP-1190T combines durability with precision display technology. It features a resistive touch interface, IP65-rated front panel protection, and versatile mounting options, making it suitable for factory automation, control systems, and embedded industrial applications.
### 2. Key Features
- Display Type: 19-inch SXGA TFT LCD panel
- Resolution: 1280 × 1024 pixels (SXGA)
- Brightness: 300 cd/m² typical luminance for clear visibility in industrial lighting conditions
- Touchscreen: Resistive touch technology for reliable operation with gloves or stylus
- Front Panel Protection: IP65-rated front bezel for dust and water resistance
- Input Signal Support:
- Standard VGA analog input
- Optional DVI and S-Video inputs for flexible connectivity
- Display Compatibility: Supports multiple resolutions from 640 × 480 (VGA) up to 1600 × 1200 (UXGA) with auto phase and auto position adjustment
- On-Screen Display (OSD): Rear-mounted OSD controls for configuration and calibration
- Mounting Options: VESA 75 mm mount compatibility; optional rack-mount kit available
- Power Input:
- Standard AC 100–240 V input
- Optional DC 11–28 V input for industrial and mobile applications
- Construction: Rugged steel chassis and front bezel for enhanced mechanical strength
- Operating Flexibility: Designed for continuous operation in industrial environments
### 3. Technical Specifications
Display Characteristics:
- Panel Size: 19 inches (diagonal)
- Display Type: TFT LCD (Thin Film Transistor)
- Native Resolution: 1280 × 1024 (SXGA)
- Brightness: 300 cd/m²
- Aspect Ratio: 5:4
- Color Support: 16.7 million colors (typical for industrial TFT panels)
- Viewing Angle: Typically 160° horizontal / 140° vertical (standard for SXGA TFT panels)
- Response Time: Approx. 5–8 ms (typical for industrial-grade TFT displays)
Mechanical Specifications:
- Chassis Material: Steel chassis with steel front bezel
- Dimensions: 484 mm (W) × 400 mm (H) × 71.7 mm (D)
- Weight: Approximately 11.6 kg
- Mounting Options:
- VESA 75 mm mount pattern
- Optional rack-mount kit for panel or cabinet integration
Touchscreen:
- Type: 5-wire resistive touch panel
- Interface: USB or RS-232 (depending on configuration)
- Durability: Designed for high-use industrial environments
Power Requirements:
- Standard Input: AC 100–240 V, 50/60 Hz
- Optional Input: DC 11–28 V for flexible power integration
- Power Consumption: Typically < 50 W (depending on configuration and brightness settings)
Environmental Specifications:
- Front Panel Protection: IP65-rated (dust-tight and protected against water jets)
- Operating Temperature: 0°C to 50°C (typical industrial range)
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10%–90% non-condensing
### 4. Functionality
The Aplex ADP-1190T functions as a high-performance industrial display monitor capable of interfacing with a wide range of control systems, embedded PCs, and industrial computers. Its resistive touch interface allows for direct user interaction, even when wearing gloves, making it ideal for manufacturing, automation, and process control environments.
Display Operation:
The monitor automatically detects input signal resolution and adjusts display parameters through auto phase and auto position functions, ensuring optimal image clarity across supported resolutions (640×480 to 1600×1200). The rear-mounted OSD controls allow users to fine-tune brightness, contrast, color balance, and input selection.
Use Cases and Applications:
- Factory automation and process control systems
- Human-Machine Interface (HMI) terminals
- Industrial PCs and embedded control panels
- Test and measurement equipment displays
- Transportation and logistics control stations
- Kiosk and information display systems
Compatibility:
The ADP-1190T supports standard VGA analog input and optional DVI or S-Video interfaces, ensuring compatibility with a wide range of industrial computers, embedded systems, and legacy equipment.
### 5. Components & Accessories
Included Components:
- ADP-1190T main display unit
- AC power cable (for 100–240 V input models)
- Touchscreen interface cable (USB or RS-232, depending on configuration)
- User manual and installation guide
Optional Accessories:
- Rack Mount Kit: For integration into 19-inch rack systems or control cabinets
- DC Power Cable: For 11–28 VDC power input configurations
- Signal Cables: Optional DVI or S-Video cables for alternative input connections
- Mounting Brackets: For wall or panel mounting using VESA 75 mm standard

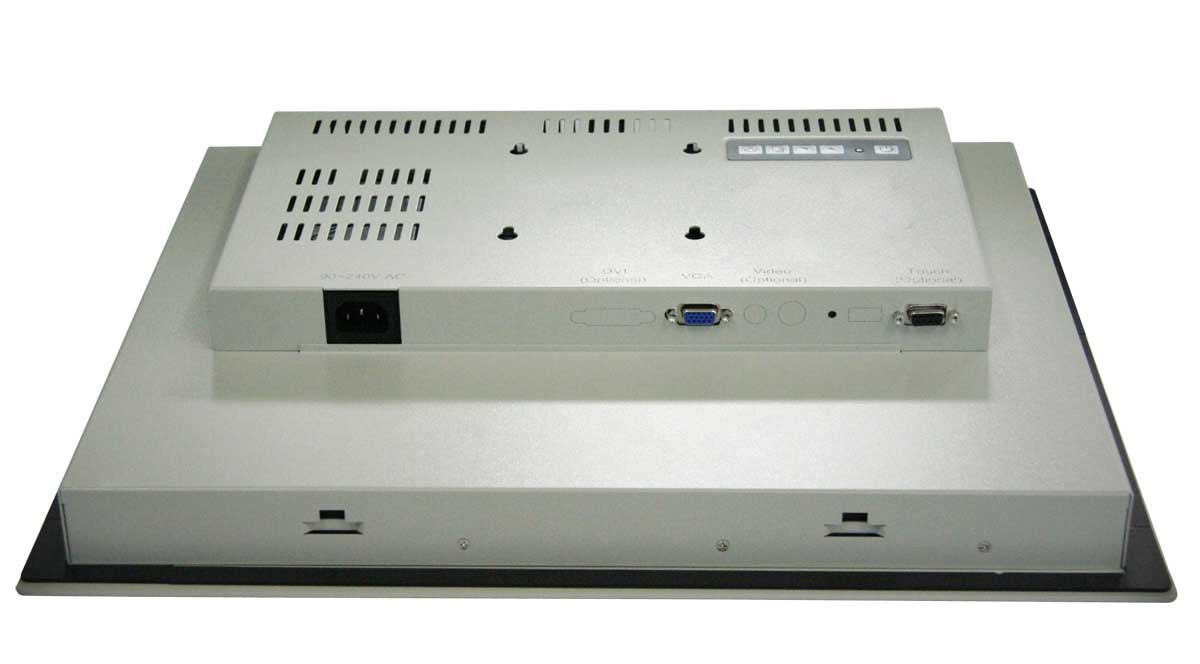

Connectors:
- Video Input: VGA (standard), optional DVI and S-Video
- Power Connector: AC inlet or DC terminal block (depending on model)
- Touch Interface: USB or RS-232 port
### 6. Installation & Setup
Installation Requirements:
- Mounting surface or rack system compatible with VESA 75 mm pattern
- Power source: AC 100–240 V or DC 11–28 V (depending on configuration)
- Compatible video output from host system (VGA, DVI, or S-Video)
Mounting Options:
- VESA 75 mm Mount: For wall or arm mounting
- Rack Mount Kit: Optional accessory for 19-inch rack integration
- Panel Mounting: Possible with appropriate brackets and sealing for IP65 compliance
Setup Procedure:
1. Secure the monitor using the chosen mounting method.
2. Connect the video input cable (VGA, DVI, or S-Video).
3. Connect the power cable to the appropriate input (AC or DC).
4. Connect the touch interface cable (USB or RS-232) to the host system.
5. Power on the display and configure settings via the rear OSD controls.
6. Calibrate the touch panel using the provided software or system utility.
Configuration Options:
- Brightness, contrast, and color adjustment via OSD
- Input source selection (VGA/DVI/S-Video)
- Auto phase and auto position for signal optimization
- Touch calibration and sensitivity adjustment
### 7. Performance & Capabilities
Display Performance:
The ADP-1190T delivers sharp, high-contrast images with a native SXGA resolution of 1280×1024 pixels. Its 300 cd/m² brightness ensures clear visibility under various lighting conditions, while the wide viewing angles maintain image consistency across operator positions.
Touch Responsiveness:
The resistive touch panel provides accurate and reliable input detection, suitable for environments where capacitive touch may be impractical due to gloves, moisture, or contaminants.
Signal Processing:
The monitor’s internal controller supports automatic phase and position adjustment, ensuring optimal image alignment across multiple input resolutions. This feature simplifies integration with diverse systems and reduces setup time.
Power Efficiency:
With a typical power consumption below 50 W, the ADP-1190T offers energy-efficient operation suitable for continuous industrial use.
Limitations:
- Resistive touch technology may have lower optical clarity compared to capacitive alternatives.
- The 5:4 aspect ratio may not be ideal for widescreen applications.
- Rear-mounted OSD controls may require rear access for adjustments.
### 8. Standards & Compliance
Ingress Protection:
- Front Panel: IP65-rated, ensuring protection against dust ingress and low-pressure water jets.
Safety and Regulatory Compliance:
- Electrical Safety: Designed to comply with international safety standards for industrial equipment (IEC/EN 60950-1 or equivalent).
- EMC Compliance: Meets industrial electromagnetic compatibility standards (EN 55022, EN 55024).
- RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances Directive.
Industry Standards:
- VESA Mounting Standard: 75 mm pattern for universal mounting compatibility.
- Display Interface Standards: VGA, DVI, and S-Video signal compatibility.
### 9. Additional Information
Warranty:
Typically supplied with a 1-year limited manufacturer’s warranty, covering defects in materials and workmanship under normal operating conditions. Extended warranty options may be available through Aplex or authorized distributors.
Technical Support:
Aplex provides comprehensive technical support, including installation assistance, driver and firmware updates, and troubleshooting guidance. Documentation and software resources are available through the manufacturer’s support portal.
Maintenance:
- Regular cleaning of the front panel with non-abrasive materials to maintain IP65 integrity.
- Periodic inspection of connectors and cables for wear or damage.
- Touchscreen calibration as needed to maintain accuracy.
Software & Firmware Updates:
Firmware updates may be provided to enhance compatibility or performance. Touchscreen drivers are available for major operating systems, including Windows and Linux.
Serviceability:
The modular design allows for straightforward replacement of key components such as the touch panel or display module, minimizing downtime in industrial environments.
### Summary
The Aplex ADP-1190T is a rugged, high-performance 19-inch SXGA industrial display monitor engineered for reliability and versatility in industrial automation, control, and monitoring applications. With its IP65-rated front panel, resistive touch interface, wide input compatibility, and robust steel construction, it delivers dependable operation in harsh environments. The combination of AC and DC power options, VESA and rack mounting flexibility, and broad resolution support makes it a highly adaptable solution for system integrators and OEMs seeking a durable and configurable industrial display platform.
Key Technical Summary Table
| Parameter | Specification |
|------------|----------------|
| Display Size | 19" TFT LCD |
| Resolution | 1280 × 1024 (SXGA) |
| Brightness | 300 cd/m² |
| Touch Type | Resistive |
| Input Signals | VGA (standard), optional DVI/S-Video |
| Supported Resolutions | 640×480 to 1600×1200 |
| Power Input | AC 100–240 V, optional DC 11–28 V |
| Dimensions | 484 × 400 × 71.7 mm |
| Weight | ~11.6 kg |
| Mounting | VESA 75 mm, optional rack mount |
| Construction | Steel chassis and front bezel |
| Front Protection | IP65 |
| OSD Location | Rear side |
| Manufacturer | Aplex Technology Inc. |
In essence, the ADP-1190T exemplifies industrial-grade display engineering—combining durability, configurability, and performance in a compact, serviceable form factor suitable for a wide range of industrial and embedded display applications.
### 1. Product Overview
Product Name: ADP-1190T
Model Number: ADP-1190T
Series: ADP Industrial Display Series
Article Number: ADP-1190T
Manufacturer: Aplex Technology Inc.
The Aplex ADP-1190T is a 19-inch SXGA TFT Industrial Display Monitor designed for demanding industrial and commercial environments requiring robust construction, high display performance, and flexible input options. Engineered with a steel chassis and front bezel, the ADP-1190T combines durability with precision display technology. It features a resistive touch interface, IP65-rated front panel protection, and versatile mounting options, making it suitable for factory automation, control systems, and embedded industrial applications.
### 2. Key Features
- Display Type: 19-inch SXGA TFT LCD panel
- Resolution: 1280 × 1024 pixels (SXGA)
- Brightness: 300 cd/m² typical luminance for clear visibility in industrial lighting conditions
- Touchscreen: Resistive touch technology for reliable operation with gloves or stylus
- Front Panel Protection: IP65-rated front bezel for dust and water resistance
- Input Signal Support:
- Standard VGA analog input
- Optional DVI and S-Video inputs for flexible connectivity
- Display Compatibility: Supports multiple resolutions from 640 × 480 (VGA) up to 1600 × 1200 (UXGA) with auto phase and auto position adjustment
- On-Screen Display (OSD): Rear-mounted OSD controls for configuration and calibration
- Mounting Options: VESA 75 mm mount compatibility; optional rack-mount kit available
- Power Input:
- Standard AC 100–240 V input
- Optional DC 11–28 V input for industrial and mobile applications
- Construction: Rugged steel chassis and front bezel for enhanced mechanical strength
- Operating Flexibility: Designed for continuous operation in industrial environments
### 3. Technical Specifications
Display Characteristics:
- Panel Size: 19 inches (diagonal)
- Display Type: TFT LCD (Thin Film Transistor)
- Native Resolution: 1280 × 1024 (SXGA)
- Brightness: 300 cd/m²
- Aspect Ratio: 5:4
- Color Support: 16.7 million colors (typical for industrial TFT panels)
- Viewing Angle: Typically 160° horizontal / 140° vertical (standard for SXGA TFT panels)
- Response Time: Approx. 5–8 ms (typical for industrial-grade TFT displays)
Mechanical Specifications:
- Chassis Material: Steel chassis with steel front bezel
- Dimensions: 484 mm (W) × 400 mm (H) × 71.7 mm (D)
- Weight: Approximately 11.6 kg
- Mounting Options:
- VESA 75 mm mount pattern
- Optional rack-mount kit for panel or cabinet integration
Touchscreen:
- Type: 5-wire resistive touch panel
- Interface: USB or RS-232 (depending on configuration)
- Durability: Designed for high-use industrial environments
Power Requirements:
- Standard Input: AC 100–240 V, 50/60 Hz
- Optional Input: DC 11–28 V for flexible power integration
- Power Consumption: Typically < 50 W (depending on configuration and brightness settings)
Environmental Specifications:
- Front Panel Protection: IP65-rated (dust-tight and protected against water jets)
- Operating Temperature: 0°C to 50°C (typical industrial range)
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10%–90% non-condensing
### 4. Functionality
The Aplex ADP-1190T functions as a high-performance industrial display monitor capable of interfacing with a wide range of control systems, embedded PCs, and industrial computers. Its resistive touch interface allows for direct user interaction, even when wearing gloves, making it ideal for manufacturing, automation, and process control environments.
Display Operation:
The monitor automatically detects input signal resolution and adjusts display parameters through auto phase and auto position functions, ensuring optimal image clarity across supported resolutions (640×480 to 1600×1200). The rear-mounted OSD controls allow users to fine-tune brightness, contrast, color balance, and input selection.
Use Cases and Applications:
- Factory automation and process control systems
- Human-Machine Interface (HMI) terminals
- Industrial PCs and embedded control panels
- Test and measurement equipment displays
- Transportation and logistics control stations
- Kiosk and information display systems
Compatibility:
The ADP-1190T supports standard VGA analog input and optional DVI or S-Video interfaces, ensuring compatibility with a wide range of industrial computers, embedded systems, and legacy equipment.
### 5. Components & Accessories
Included Components:
- ADP-1190T main display unit
- AC power cable (for 100–240 V input models)
- Touchscreen interface cable (USB or RS-232, depending on configuration)
- User manual and installation guide
Optional Accessories:
- Rack Mount Kit: For integration into 19-inch rack systems or control cabinets
- DC Power Cable: For 11–28 VDC power input configurations
- Signal Cables: Optional DVI or S-Video cables for alternative input connections
- Mounting Brackets: For wall or panel mounting using VESA 75 mm standard
Connectors:
- Video Input: VGA (standard), optional DVI and S-Video
- Power Connector: AC inlet or DC terminal block (depending on model)
- Touch Interface: USB or RS-232 port
### 6. Installation & Setup
Installation Requirements:
- Mounting surface or rack system compatible with VESA 75 mm pattern
- Power source: AC 100–240 V or DC 11–28 V (depending on configuration)
- Compatible video output from host system (VGA, DVI, or S-Video)
Mounting Options:
- VESA 75 mm Mount: For wall or arm mounting
- Rack Mount Kit: Optional accessory for 19-inch rack integration
- Panel Mounting: Possible with appropriate brackets and sealing for IP65 compliance
Setup Procedure:
1. Secure the monitor using the chosen mounting method.
2. Connect the video input cable (VGA, DVI, or S-Video).
3. Connect the power cable to the appropriate input (AC or DC).
4. Connect the touch interface cable (USB or RS-232) to the host system.
5. Power on the display and configure settings via the rear OSD controls.
6. Calibrate the touch panel using the provided software or system utility.
Configuration Options:
- Brightness, contrast, and color adjustment via OSD
- Input source selection (VGA/DVI/S-Video)
- Auto phase and auto position for signal optimization
- Touch calibration and sensitivity adjustment
### 7. Performance & Capabilities
Display Performance:
The ADP-1190T delivers sharp, high-contrast images with a native SXGA resolution of 1280×1024 pixels. Its 300 cd/m² brightness ensures clear visibility under various lighting conditions, while the wide viewing angles maintain image consistency across operator positions.
Touch Responsiveness:
The resistive touch panel provides accurate and reliable input detection, suitable for environments where capacitive touch may be impractical due to gloves, moisture, or contaminants.
Signal Processing:
The monitor’s internal controller supports automatic phase and position adjustment, ensuring optimal image alignment across multiple input resolutions. This feature simplifies integration with diverse systems and reduces setup time.
Power Efficiency:
With a typical power consumption below 50 W, the ADP-1190T offers energy-efficient operation suitable for continuous industrial use.
Limitations:
- Resistive touch technology may have lower optical clarity compared to capacitive alternatives.
- The 5:4 aspect ratio may not be ideal for widescreen applications.
- Rear-mounted OSD controls may require rear access for adjustments.
### 8. Standards & Compliance
Ingress Protection:
- Front Panel: IP65-rated, ensuring protection against dust ingress and low-pressure water jets.
Safety and Regulatory Compliance:
- Electrical Safety: Designed to comply with international safety standards for industrial equipment (IEC/EN 60950-1 or equivalent).
- EMC Compliance: Meets industrial electromagnetic compatibility standards (EN 55022, EN 55024).
- RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances Directive.
Industry Standards:
- VESA Mounting Standard: 75 mm pattern for universal mounting compatibility.
- Display Interface Standards: VGA, DVI, and S-Video signal compatibility.
### 9. Additional Information
Warranty:
Typically supplied with a 1-year limited manufacturer’s warranty, covering defects in materials and workmanship under normal operating conditions. Extended warranty options may be available through Aplex or authorized distributors.
Technical Support:
Aplex provides comprehensive technical support, including installation assistance, driver and firmware updates, and troubleshooting guidance. Documentation and software resources are available through the manufacturer’s support portal.
Maintenance:
- Regular cleaning of the front panel with non-abrasive materials to maintain IP65 integrity.
- Periodic inspection of connectors and cables for wear or damage.
- Touchscreen calibration as needed to maintain accuracy.
Software & Firmware Updates:
Firmware updates may be provided to enhance compatibility or performance. Touchscreen drivers are available for major operating systems, including Windows and Linux.
Serviceability:
The modular design allows for straightforward replacement of key components such as the touch panel or display module, minimizing downtime in industrial environments.
### Summary
The Aplex ADP-1190T is a rugged, high-performance 19-inch SXGA industrial display monitor engineered for reliability and versatility in industrial automation, control, and monitoring applications. With its IP65-rated front panel, resistive touch interface, wide input compatibility, and robust steel construction, it delivers dependable operation in harsh environments. The combination of AC and DC power options, VESA and rack mounting flexibility, and broad resolution support makes it a highly adaptable solution for system integrators and OEMs seeking a durable and configurable industrial display platform.
Key Technical Summary Table
| Parameter | Specification |
|------------|----------------|
| Display Size | 19" TFT LCD |
| Resolution | 1280 × 1024 (SXGA) |
| Brightness | 300 cd/m² |
| Touch Type | Resistive |
| Input Signals | VGA (standard), optional DVI/S-Video |
| Supported Resolutions | 640×480 to 1600×1200 |
| Power Input | AC 100–240 V, optional DC 11–28 V |
| Dimensions | 484 × 400 × 71.7 mm |
| Weight | ~11.6 kg |
| Mounting | VESA 75 mm, optional rack mount |
| Construction | Steel chassis and front bezel |
| Front Protection | IP65 |
| OSD Location | Rear side |
| Manufacturer | Aplex Technology Inc. |
In essence, the ADP-1190T exemplifies industrial-grade display engineering—combining durability, configurability, and performance in a compact, serviceable form factor suitable for a wide range of industrial and embedded display applications.
-
ADP-1190.pdf
PDF Catalog
No accessories available.
