Comprehensive Product Summary – AHM-6103 10.4" SVGA Fanless Panel PC LX800

---

### 1. Product Overview

Product Name: AHM-6103
Model Number: AHM-6103
Series: Industrial Fanless Panel PC Series
Article Number: AHM-6103
Manufacturer: Aplex Technology Inc.

The AHM-6103 is a rugged, industrial-grade 10.4-inch fanless panel PC designed for embedded control, automation, and human-machine interface (HMI) applications. It integrates a low-power AMD LX-800 500 MHz processor, a high-brightness SVGA display, and a resistive touch interface within a durable metal housing. Engineered for reliability in demanding environments, the AHM-6103 combines compact design, flexible I/O connectivity, and wide DC power input support, making it suitable for industrial automation, factory control, and embedded system integration.

---

### 2. Key Features

- Fanless Architecture: The AHM-6103 employs a fanless thermal design, ensuring silent operation and enhanced reliability by eliminating moving parts susceptible to dust and vibration.
- 10.4" SVGA Display: Features an 800 × 600 resolution TFT LCD panel with a brightness of 400 cd/m² and a wide viewing angle of 130°, providing clear visibility in industrial environments.
- Resistive Touch Screen: Equipped with an analog resistive touch panel for precise input, suitable for gloved or stylus-based operation.
- Low-Power Embedded CPU: Powered by an AMD LX-800 500 MHz processor, optimized for low heat generation and stable performance in continuous operation.
- Flexible Memory and Storage: Supports one 200-pin SO-DIMM DDR 266/333 MHz memory module up to 1 GB, with space for a 2.5" HDD and one CompactFlash (CF) card slot for solid-state storage.
- Comprehensive I/O Connectivity: Includes multiple serial ports (RS-232/422/485), USB 2.0 interfaces, LAN, VGA, audio, and PS/2 ports for versatile peripheral integration.
- Wide DC Power Input: Operates on 11–28 VDC input, accommodating various industrial power systems.
- Durable Construction: Black alloy front bezel with metal housing ensures mechanical strength and electromagnetic shielding.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C and storage from -20°C to 60°C, with vibration and shock resistance for industrial reliability.
- Mounting Flexibility: Supports both panel and VESA 75 mounting options for easy integration into control panels or machinery.
- Compliance and Certification: Meets CE and FCC Class A standards and features a NEMA 4 / IP65-rated front bezel for dust and water resistance.
- Operating System Support: Compatible with Windows CE.NET 4.2/5.0, Windows XP Professional, and Windows XP Embedded.

---

### 3. Technical Specifications

Display:
- Size: 10.4 inches (diagonal)
- Resolution: 800 × 600 (SVGA)
- Brightness: 400 cd/m²
- Viewing Angle: 130°
- Backlight Lifetime: 40,000 hours (typical)
- Touch Screen: Analog resistive type

Processor (CPU):
- Type: AMD LX-800
- Clock Speed: 500 MHz
- Architecture: x86-compatible embedded processor

Memory (DRAM):
- Slot: 1 × 200-pin SO-DIMM
- Type: DDR 266/333 MHz
- Capacity: 256 MB standard, expandable up to 1 GB

Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot

Power Input:
- Voltage Range: 11–28 VDC
- Power Connector: DC terminal block (industrial-grade)

I/O Interfaces:
- Serial Ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- COM3: RS-232
- COM4: Reserved for touch screen controller
- USB Ports:
- 2 × External USB 2.0
- 2 × Internal USB 2.0 (via 2×5 2.0 mm pin header)
- LAN: 1 × 10/100 Mbps Ethernet (RJ-45)
- VGA Output: 1 × VGA port for external display
- Audio: AC’97 Codec with Line-in, Line-out, and Microphone input
- PS/2: 1 × PS/2 port for keyboard and mouse
- Other Controls: On-board buzzer, reset switch, power on/off switch
- Optional Ports: 2 × SATA ports (optional configuration)

Mechanical:
- Dimensions: 317 mm (W) × 243 mm (H) × 62 mm (D)
- Cut-out Size: 303 mm × 230 mm
- Weight: 4.3 kg (9.48 lbs)
- Front Bezel Color: Black
- Housing Material: Metal chassis with alloy front bezel

---

### 4. Functionality

The AHM-6103 functions as a compact, all-in-one industrial computing platform integrating display, processing, and input capabilities. Its fanless design and solid-state storage options make it ideal for environments where dust, vibration, or temperature fluctuations could affect conventional PCs.

Typical Use Cases:
- Human-Machine Interface (HMI) terminals in production lines
- Industrial automation control panels
- Embedded systems for process monitoring
- Machine control and data acquisition systems
- Building automation and facility management
- Kiosk and information display systems

Operation:
The system boots from either a 2.5" HDD or CompactFlash card, depending on configuration. The resistive touch screen provides direct user interaction with the operating system and application software. The multiple serial and USB ports enable connection to sensors, PLCs, barcode scanners, and other industrial peripherals. The LAN interface supports network connectivity for remote monitoring or data exchange.

Compatibility:
Supports Windows CE.NET 4.2/5.0, Windows XP Professional, and Windows XP Embedded, allowing integration with legacy and modern industrial software platforms.

---

### 5. Components & Accessories

Included Components:
- AHM-6103 main unit (panel PC)
- Integrated 10.4" SVGA LCD with resistive touch screen
- Power input terminal block
- Mounting brackets for panel or VESA 75 installation
- User manual and driver CD (depending on shipment configuration)

Optional Accessories:
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash card for OS and data storage
- SATA interface cables (for optional SATA ports)
- External power adapter (11–28 VDC input compatible)
- Wall-mount or arm-mount kits (VESA 75 standard)
- Additional I/O expansion modules (via internal headers)

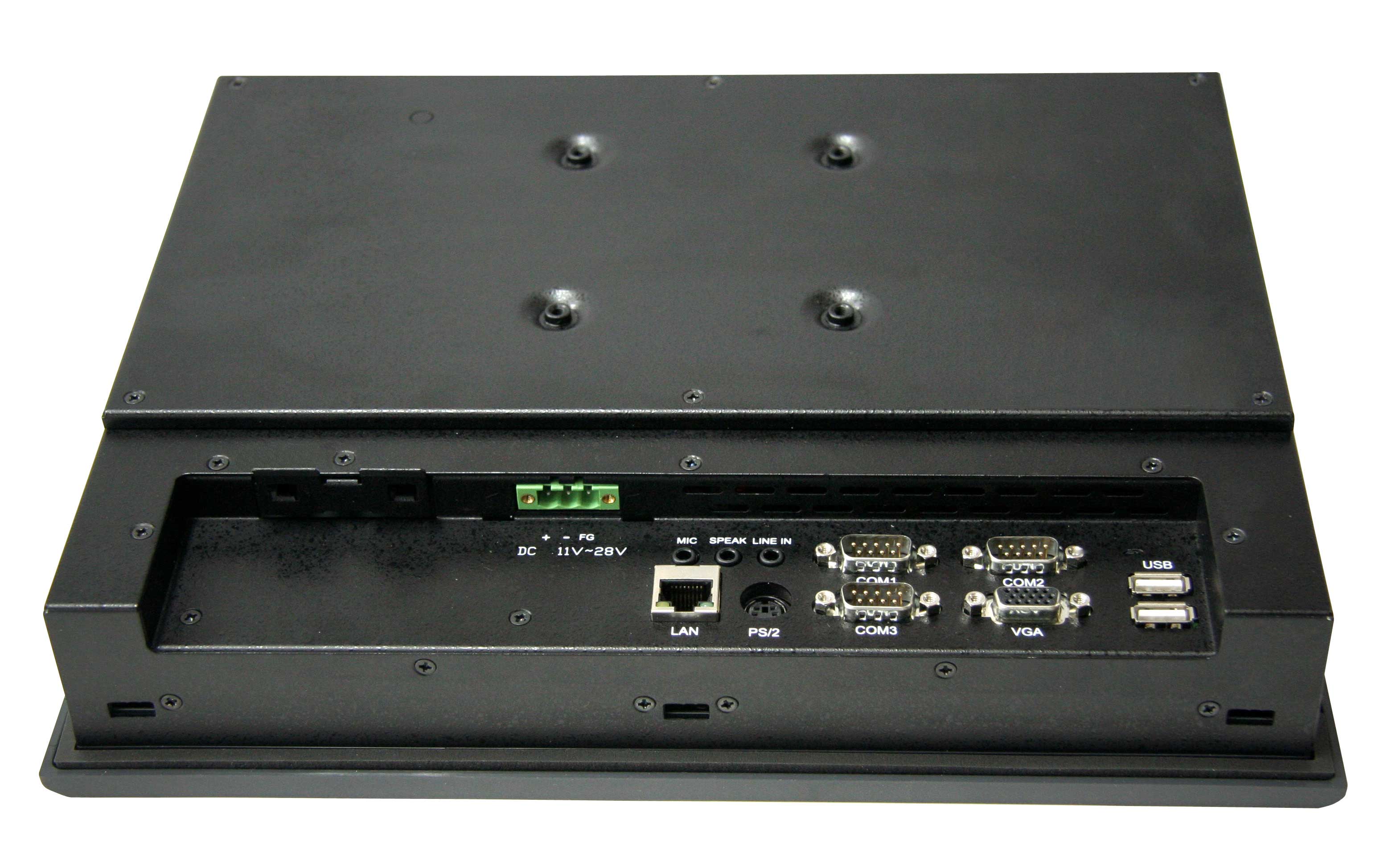

Connectors and Interfaces:
- DC power input terminal
- RJ-45 LAN port
- DB9 connectors for serial ports
- USB Type-A connectors for external USB 2.0
- VGA D-sub 15-pin connector
- PS/2 mini-DIN connector
- Audio jacks (Line-in, Line-out, Mic)

---

### 6. Installation & Setup

Requirements:
- DC power source within 11–28 VDC range
- Mounting surface or bracket compatible with panel cut-out (303 × 230 mm) or VESA 75 mount
- Operating environment within 0–50°C and 10–90% relative humidity (non-condensing)

Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets; suitable for flush installation in control panels or enclosures.
- VESA 75 Mount: Compatible with standard 75 × 75 mm VESA mounting arms or brackets for flexible positioning.

Configuration:
- Memory and storage devices can be installed via accessible internal slots.
- BIOS and system settings are configurable through the integrated setup utility.
- Operating system installation supported via CompactFlash or HDD.
- Touch screen calibration performed through OS-level utilities.

Power Connection:
- Connect DC power input to the terminal block, ensuring correct polarity and voltage range.
- Power on via the front-mounted switch.

---

### 7. Performance & Capabilities

Processing Performance:
- The AMD LX-800 500 MHz CPU provides sufficient computing power for HMI, control, and data acquisition tasks while maintaining low thermal output.

Memory and Storage:
- Up to 1 GB DDR memory ensures stable multitasking for embedded applications.
- Dual storage options (HDD and CF) allow flexible system configuration for performance or reliability.

Display and Input:
- The 10.4" SVGA display delivers crisp visuals suitable for graphical interfaces and monitoring dashboards.
- The resistive touch panel supports accurate input even in industrial environments where gloves are used.

Connectivity:
- Multiple serial ports support legacy industrial communication protocols (RS-232/422/485).
- USB 2.0 ports enable connection to modern peripherals such as flash drives, cameras, or input devices.
- Ethernet connectivity allows integration into local or remote networks for data exchange and remote control.

Environmental Performance:
- Operates reliably in ambient temperatures from 0°C to 50°C.
- Withstands vibration levels of 5–500 Hz (1G peak-to-peak) and shock up to 15G (11 ms duration).
- NEMA 4 / IP65-rated front bezel protects against dust and water ingress, ensuring long-term durability.

Limitations:
- Designed for moderate computing loads; not intended for high-performance or graphics-intensive applications.
- Limited to 10/100 Mbps Ethernet (no Gigabit LAN).
- Maximum memory capacity of 1 GB may constrain modern multitasking environments.

---

### 8. Standards & Compliance

Environmental and Safety Ratings:
- Front Bezel Protection: NEMA 4 / IP65 compliant (dust-tight and water-resistant front panel)
- Vibration Resistance: 5–500 Hz, 1G peak-to-peak
- Shock Resistance: 15G, 11 ms duration

Certifications:
- CE Marking: Conforms to European safety and electromagnetic compatibility (EMC) directives.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial and commercial environments.

Industry Standards:
- Compliant with VESA 75 mounting standard
- AC’97 audio codec standard
- RS-232/422/485 serial communication standards
- USB 2.0 and Ethernet IEEE 802.3 standards

---

### 9. Additional Information

Operating System Support:
- Windows CE.NET 4.2
- Windows CE.NET 5.0
- Windows XP Professional
- Windows XP Embedded

Warranty and Support:
- Standard manufacturer’s warranty (typically 1–2 years, depending on region and distributor) covering defects in materials and workmanship.
- Technical support available through Aplex Technology’s service network, including firmware updates, driver downloads, and configuration assistance.

Maintenance:
- Minimal maintenance required due to fanless design.
- Periodic cleaning of the front bezel and touch screen recommended.
- Storage devices (HDD/CF) may be replaced or upgraded as needed.

Software and Firmware Updates:
- BIOS and driver updates available from Aplex Technology’s official support portal.
- OS image customization supported for embedded deployments.

Longevity and Reliability:
- Designed for 24/7 operation in industrial environments.
- Long product lifecycle support ensures availability for extended production runs and system integration projects.

---

### Summary

The Aplex AHM-6103 is a robust, compact, and energy-efficient 10.4-inch fanless panel PC engineered for industrial and embedded applications. With its AMD LX-800 processor, resistive touch interface, and wide DC power input, it delivers reliable performance in harsh environments. The system’s metal housing, IP65-rated front bezel, and comprehensive I/O connectivity make it an ideal choice for factory automation, machine control, and HMI systems requiring long-term stability and low maintenance.

Its flexible mounting options, broad OS compatibility, and industrial-grade durability position the AHM-6103 as a dependable solution for integrators and OEMs seeking a balance of performance, reliability, and cost efficiency in embedded computing platforms.
