## 1. Product Overview

Product Name: APC-3211 12.1" SVGA Cel 2.4GHz IP65 Panel PC
Model Number: APC-3211
Series: APC-3000 Industrial Panel PC Series
Article Number: APC-3211
Manufacturer: Aplex Technology Inc.

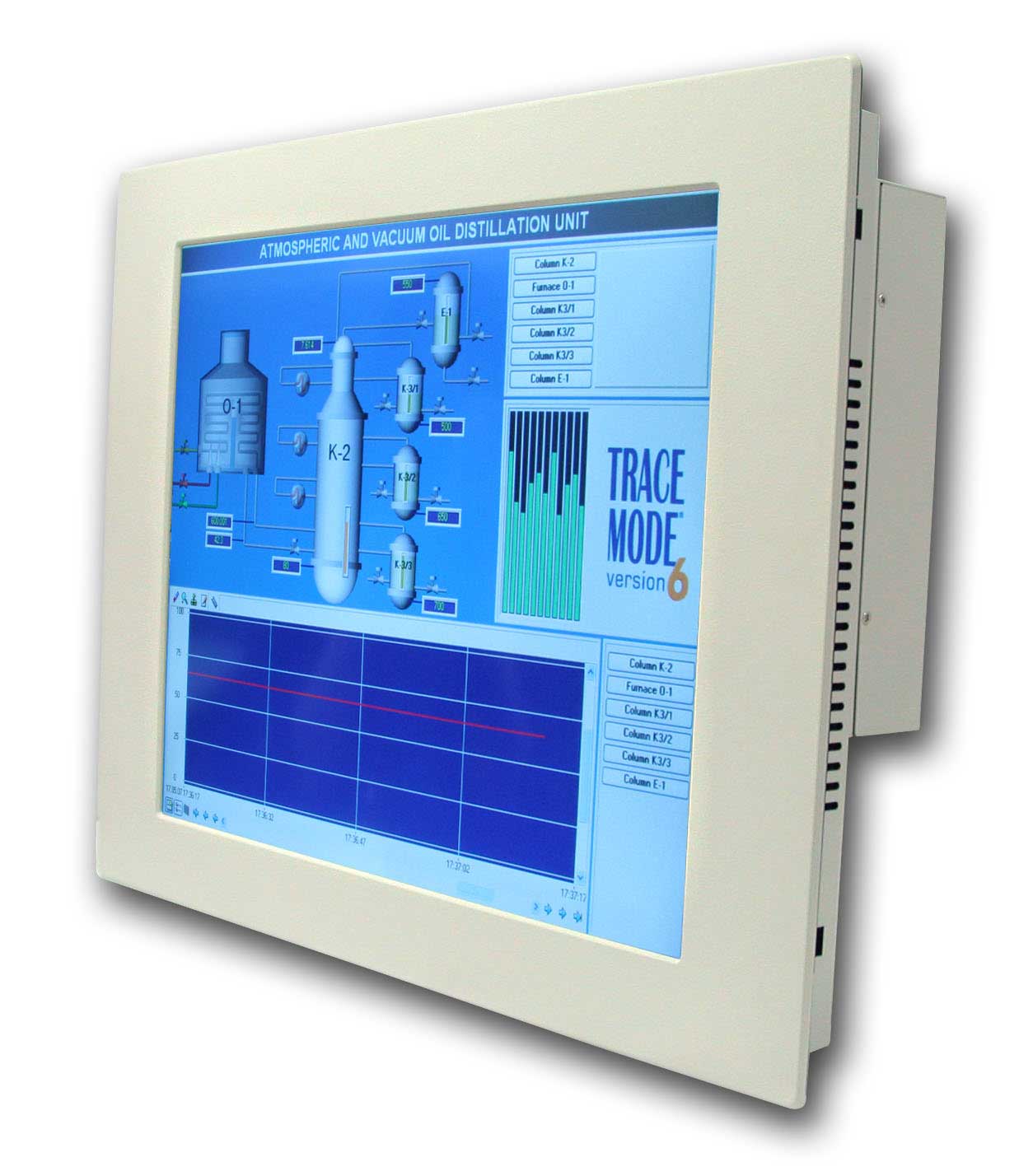

The Aplex APC-3211 is a rugged, industrial-grade panel PC designed for demanding automation, control, and monitoring applications. It integrates a 12.1-inch SVGA TFT LCD display with a high-performance Intel Celeron 2.4GHz processor, offering reliable computing power in harsh industrial environments. The system features a sealed IP65-rated front panel, ensuring protection against dust, water, and contaminants, and supports flexible expansion through PCI slots and multiple I/O interfaces.

---

## 2. Key Features

- Display: 12.1-inch SVGA TFT LCD with 800×600 resolution and 300 cd/m² luminance.
- Processor: Intel Celeron 2.4GHz CPU, optional upgrade to Pentium 4 up to 2.8GHz.
- Front Panel Protection: IP65 / NEMA 4 compliant front bezel for dust and water resistance.
- Expansion Capability: Two PCI expansion slots for additional interface or control cards.
- I/O Connectivity:
- 3 × COM ports (serial interfaces)
- 4 × USB 2.0 ports
- 1 × LAN port (Ethernet)
- 1 × VGA output
- Storage Options:
- 1 × 2.5" HDD bay
- 1 × slim-line DVD-RW drive bay
- 1 × CompactFlash (CF) slot
- Touchscreen Option: Resistive touch panel available as an optional feature.
- Construction: Heavy-duty steel chassis with optional stainless steel front bezel for enhanced corrosion resistance.
- Mounting: Panel mount design for integration into control cabinets or operator consoles.
- Power Input: Universal AC input 100–240V.
- Operating Temperature: 0°C to 50°C; storage temperature 0°C to 60°C.
- Certifications: CE and FCC Class A compliance.
- Backlight Lifetime: 50,000 hours typical.

---

## 3. Technical Specifications

Display:
- Type: 12.1" TFT LCD
- Resolution: 800 × 600 (SVGA)
- Brightness: 300 cd/m²
- Backlight Lifetime: 50,000 hours
- Optional Touchscreen: 5-wire resistive type

Processor & Chipset:
- Standard: Intel Celeron 2.4GHz
- Optional: Intel Pentium 4 up to 2.8GHz

Memory:
- Supports standard DDR memory (capacity dependent on configuration)

Storage:
- 1 × 2.5" HDD bay
- 1 × Slim-line DVD-RW drive bay
- 1 × CompactFlash slot

Expansion Slots:
- 2 × PCI slots

I/O Interfaces:
- 3 × COM (RS-232/422/485 configurable depending on model)
- 4 × USB 2.0
- 1 × LAN (RJ-45 Ethernet)
- 1 × VGA output

Power Supply:
- Input Voltage: AC 100–240V
- Frequency: 50/60Hz

Mechanical Construction:
- Chassis: Heavy-duty steel
- Front Bezel: Aluminum or optional stainless steel
- Mounting: Panel mount
- Front Panel Rating: IP65 / NEMA 4

Dimensions & Weight:
- Cut-out Dimension: 370 × 244.5 mm
- Overall Dimension: 390(W) × 265(H) × 117(D) mm
- Weight: Approx. 6–7 kg (depending on configuration)

Environmental Conditions:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: 0°C to 60°C
- Relative Humidity: 10%–90% non-condensing

Certifications:
- CE Marking
- FCC Class A

---

## 4. Functionality

The APC-3211 functions as a fully integrated industrial panel PC, combining display, computing, and control capabilities in a single enclosure. It is designed for use in industrial automation, process control, machine interface, and data acquisition systems.

Operation:
The system operates as a standard PC platform running Windows or Linux operating systems, allowing integration with SCADA, MES, or HMI software. The front-mounted LCD provides real-time visualization of process data, while the optional resistive touchscreen enables intuitive operator interaction.

Use Cases and Applications:
- Factory automation and production line control
- Machine vision and inspection systems
- Process monitoring and data logging
- Building automation and facility management
- Transportation and logistics terminals
- Food and beverage production (with stainless steel front option)

Compatibility:
- Compatible with standard PC peripherals and industrial communication protocols.
- Supports Ethernet networking, serial communication, and USB connectivity for sensors, PLCs, and external devices.

---

## 5. Components & Accessories

Included Components:
- APC-3211 Panel PC main unit
- Power cable (AC 100–240V)
- Mounting brackets for panel installation
- User manual and driver CD

Optional Accessories:

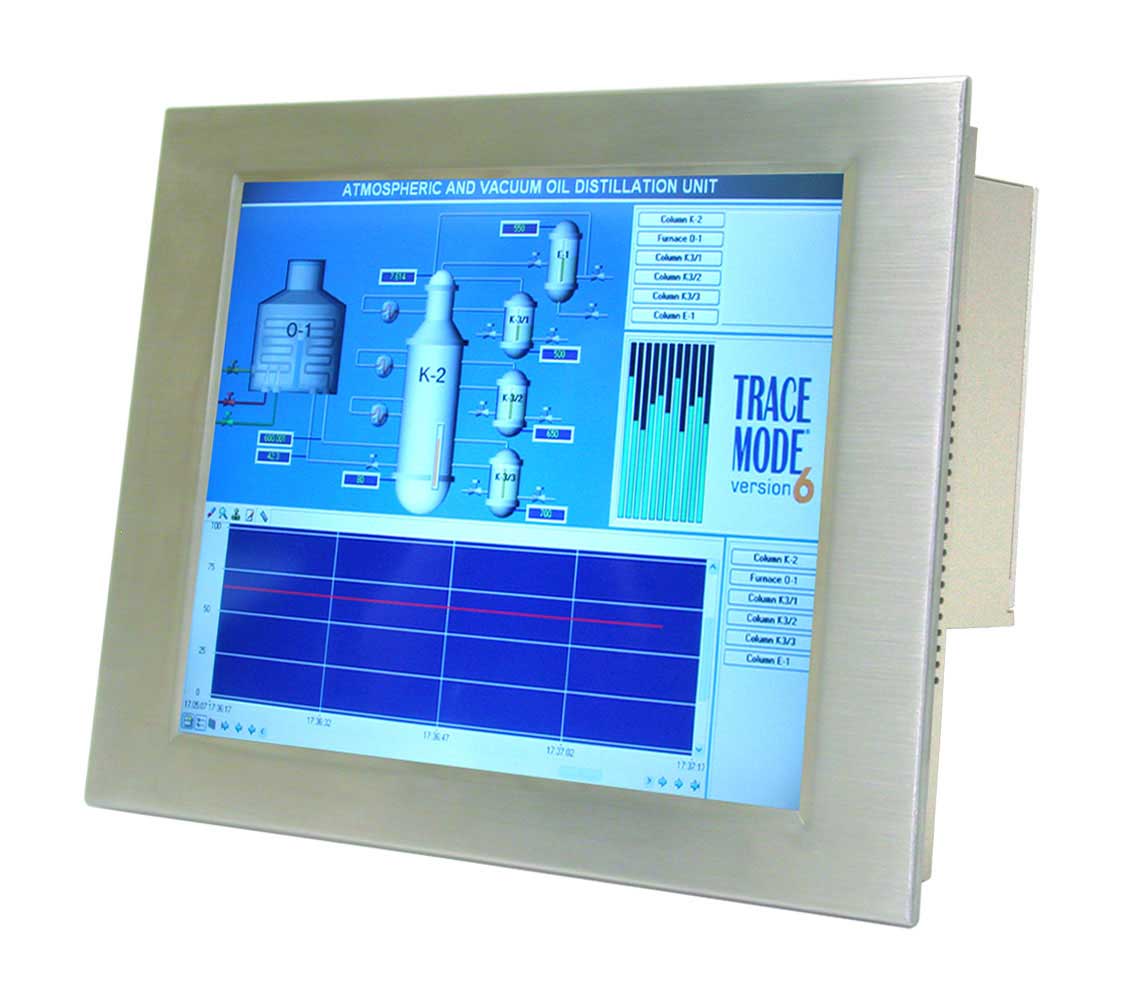

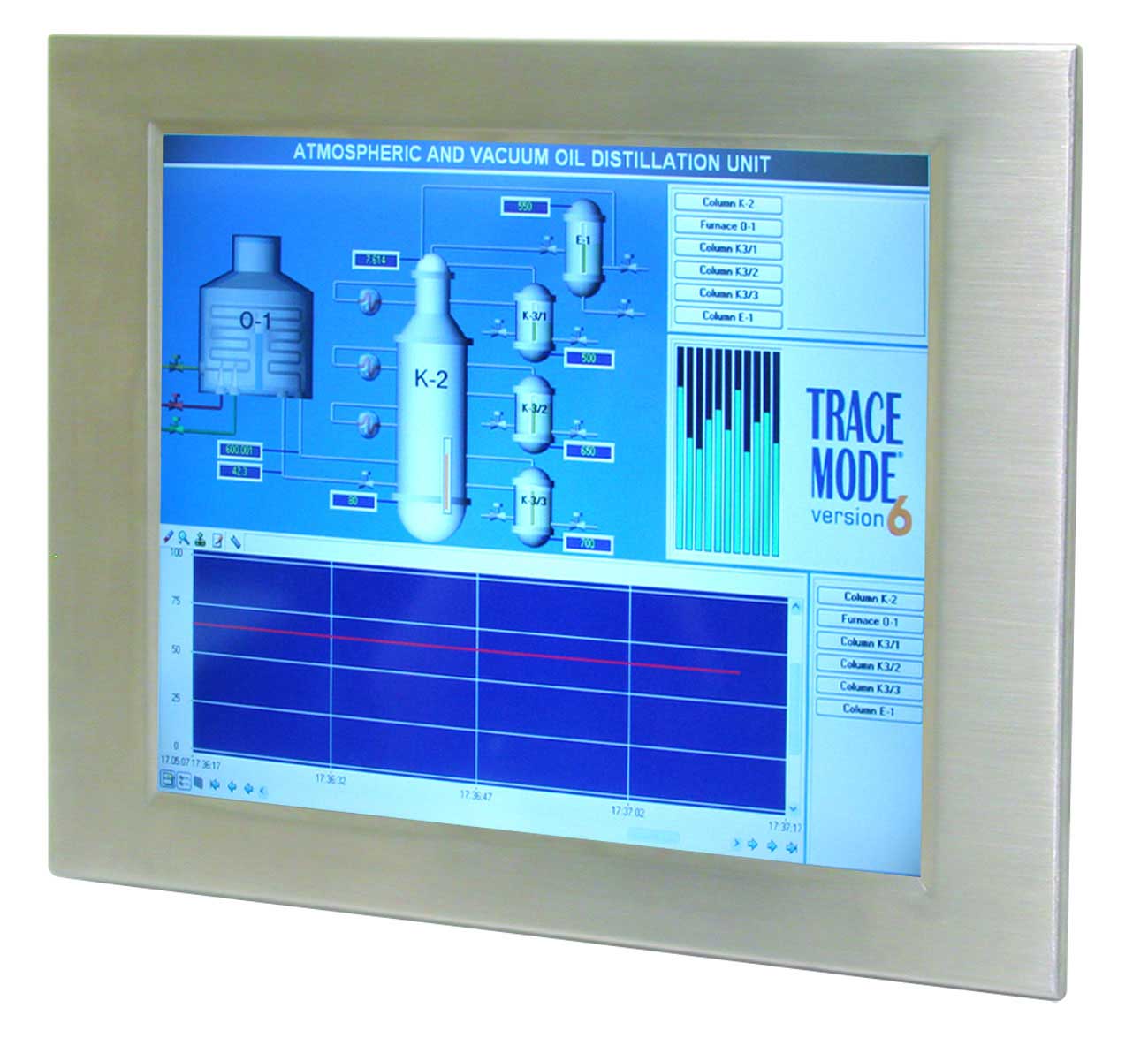

- Stainless steel front bezel for enhanced corrosion resistance
- Resistive touchscreen module
- Additional PCI expansion cards (I/O, communication, or motion control)
- CompactFlash storage card
- Wall-mount or VESA-mount kits (depending on configuration)

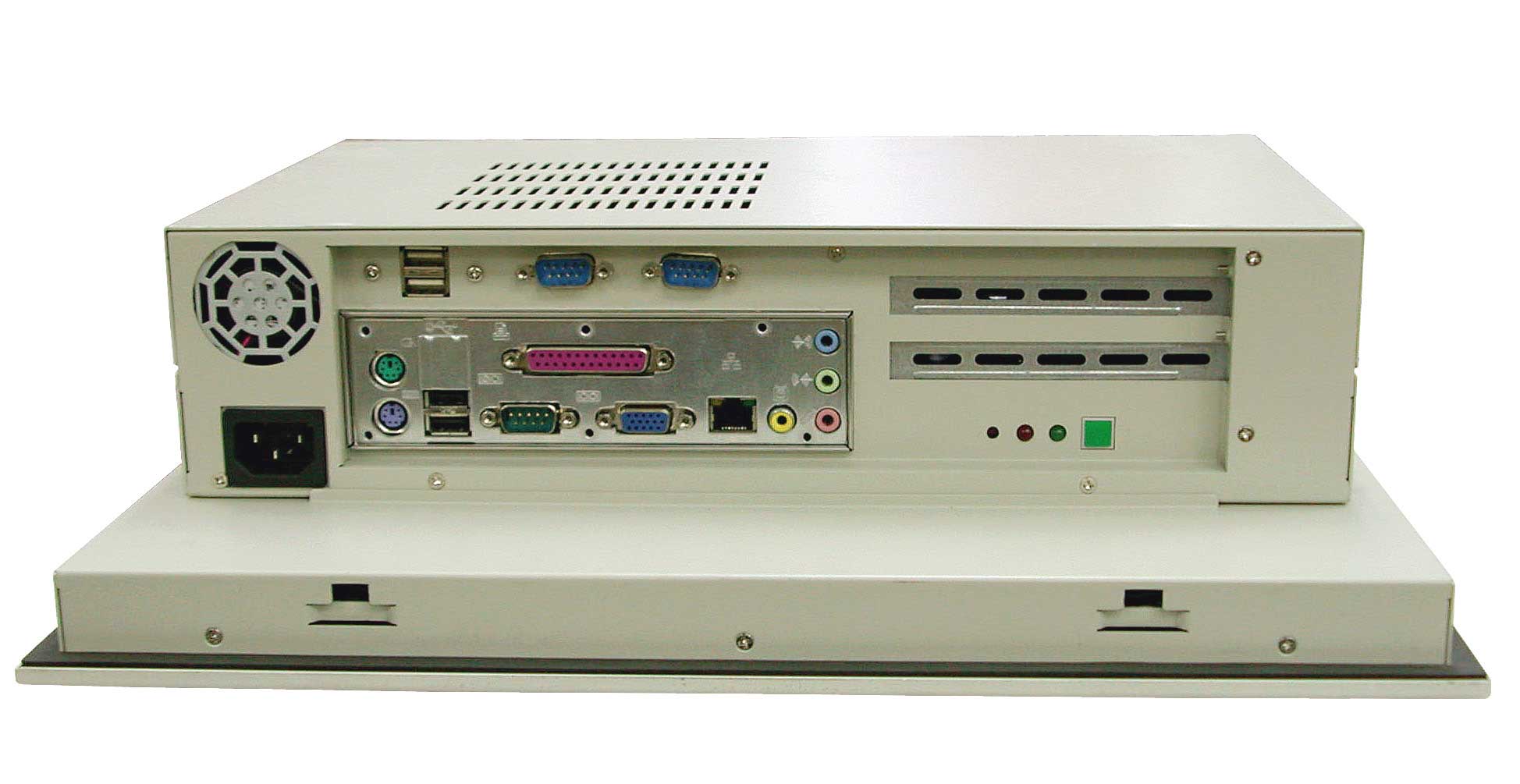

Connectors:
- Power input connector (AC)
- LAN (RJ-45)
- USB 2.0 ports
- COM ports (DB9)
- VGA output (DB15)
- Audio connectors (if configured)

---

## 6. Installation & Setup

Installation Requirements:
- Panel cut-out dimension: 370 × 244.5 mm
- Mounting depth clearance: Minimum 117 mm behind panel surface
- Power source: AC 100–240V, 50/60Hz

Mounting Options:
- Standard panel mount using included brackets
- Optional wall or VESA mounting kits available

Setup Procedure:
1. Prepare the panel cut-out according to specified dimensions.
2. Insert the APC-3211 into the cut-out and secure it using the provided mounting brackets.
3. Connect power, network, and peripheral cables.
4. Configure BIOS and operating system settings as required.
5. Install drivers and application software (HMI, SCADA, etc.).

Configuration:
- BIOS configurable for boot sequence, I/O settings, and power management.
- Supports standard operating systems such as Windows XP/7/10 (embedded versions) or Linux distributions.

---

## 7. Performance & Capabilities

Processing Performance:
- Intel Celeron 2.4GHz CPU provides stable performance for industrial control and visualization tasks.
- Optional Pentium 4 2.8GHz upgrade enhances computational capability for more demanding applications.

Graphics Performance:
- Integrated VGA output supports external display connection for extended visualization.
- SVGA resolution (800×600) suitable for HMI and control interfaces.

Storage & Data Handling:
- Supports both HDD and CompactFlash for flexible data storage and system backup.
- Slim-line DVD-RW allows software installation and data archiving.

System Expansion:
- Two PCI slots enable integration of additional communication or control cards (e.g., fieldbus, motion control, or data acquisition).

Efficiency & Reliability:
- Fan-cooled or passive cooling design (depending on configuration) ensures stable operation in industrial environments.
- Long backlight life (50,000 hours) minimizes maintenance downtime.

Limitations:
- Designed for moderate temperature environments (0–50°C); not suitable for extreme outdoor conditions without additional enclosure.
- SVGA resolution may limit display detail for complex graphical interfaces.

---

## 8. Standards & Compliance

Environmental & Safety Standards:
- IP65 / NEMA 4 Front Panel: Dust-tight and protected against water jets, suitable for washdown environments.
- CE Compliance: Conforms to European safety and electromagnetic compatibility directives.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial and commercial environments.

Quality & Manufacturing Standards:
- Manufactured under ISO 9001 quality management system.
- Designed for long-term industrial operation with high MTBF components.

Electrical Safety:
- Universal AC input with over-voltage and surge protection.
- Grounding and shielding designed to minimize electrical noise and interference.

---

## 9. Additional Information

Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration).

Support & Service:
- Technical support provided by Aplex Technology and authorized distributors.
- Firmware and driver updates available through manufacturer’s website.
- Optional extended warranty and on-site service plans.

Maintenance:
- Minimal maintenance required due to sealed front panel and durable construction.
- Periodic cleaning of front bezel and ventilation openings recommended.
- Backlight replacement possible after extended use (50,000-hour rated life).

Software & Updates:
- Compatible with major operating systems (Windows Embedded, Linux).
- BIOS and driver updates available for download.
- Supports remote management and system monitoring via network interface.

Product Family Compatibility:
The APC-3211 belongs to the APC-3000 series, which includes models with different display sizes and resolutions:
- APC-3211: 12.1" SVGA (800×600)
- APC-3511: 15" XGA (1024×768)
- APC-3711: 17" SXGA (1280×1024)
- APC-3911: 19" SXGA (1280×1024)

All models share similar mechanical design, I/O configuration, and environmental specifications, allowing consistent integration across various industrial applications.

---

### Summary

The Aplex APC-3211 is a robust, versatile industrial panel PC engineered for reliability and performance in factory automation, process control, and industrial HMI applications. Its combination of a 12.1-inch SVGA display, Intel Celeron 2.4GHz processor, IP65-rated front panel, and extensive connectivity options make it an ideal solution for environments requiring durable, long-life computing platforms. With flexible expansion, optional touchscreen, and stainless steel front bezel, the APC-3211 provides both performance and adaptability for a wide range of industrial and commercial uses.

---
