## 1. Product Overview

Product Name: APC‑3213 Panel PC
Model: APC‑3213
Series: APC‑3000 Industrial Panel PC Series
Article Number: APC‑3213
Manufacturer: Aplex Technology Inc.

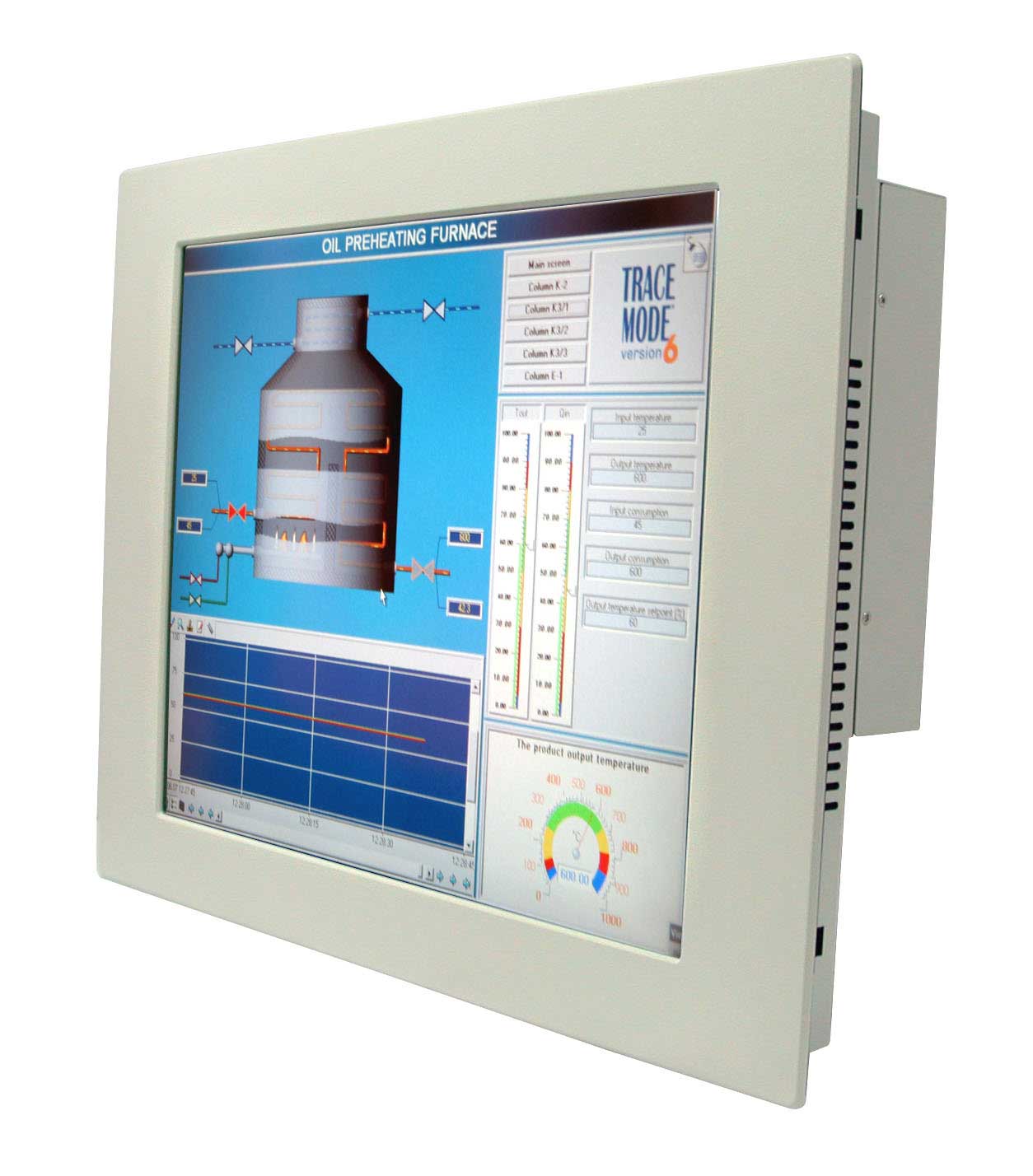

The APC‑3213 is a rugged, industrial-grade 12.1‑inch SVGA Panel PC designed for demanding automation, control, and monitoring applications. It combines a compact, durable mechanical design with flexible expansion options and reliable performance for industrial environments. The system integrates a 1.5 GHz processor, two PCI expansion slots, and multiple storage and I/O options, making it suitable for factory automation, process control, and embedded computing tasks.

---

## 2. Key Features

- 12.1‑inch SVGA TFT LCD Display:
Native resolution of 800 × 600 pixels, providing clear and stable image quality for industrial HMI and control interfaces.

- Processor Options:
Standard configuration with a 1.5 GHz CPU, with optional upgrade to Pentium M 1.8 GHz for enhanced performance.

- Dual PCI Expansion Slots:
Two full‑height PCI slots allow integration of additional I/O, communication, or motion control cards, providing system scalability.

- Flexible Storage Support:
Space for one 2.5‑inch HDD and one slim‑line DVD‑RW drive, plus one CompactFlash (CF) slot for solid‑state storage or OS deployment.

- Rugged Construction:
Heavy‑duty steel chassis ensures mechanical stability and vibration resistance. Optional stainless‑steel front bezel enhances corrosion resistance and hygiene, ideal for food, pharmaceutical, or outdoor applications.

- Touchscreen Option:
Optional resistive touch panel for intuitive user interaction in industrial HMI environments.

- Environmental Protection:
IP65 / NEMA 4‑rated front bezel protects against dust and water ingress, suitable for harsh industrial conditions.

- Flexible Power Input:
Supports AC 100–240 V universal input or DC 11–28 V wide‑range input, enabling deployment in diverse power environments.

- Long‑Life Display:
LCD backlight rated for 50,000 hours, ensuring long‑term reliability and reduced maintenance.

- Regulatory Compliance:
Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

## 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Display Size | 12.1 inches (TFT LCD) |
| Display Resolution | 800 × 600 pixels (SVGA) |
| Brightness (Luminance) | 300 cd/m² |
| Backlight Lifetime | 50,000 hours |
| Processor | 1.5 GHz CPU (optional Pentium M 1.8 GHz) |
| Expansion Slots | 2 × PCI |
| Storage Options | 1 × 2.5" HDD bay, 1 × slim‑line DVD‑RW bay, 1 × CompactFlash slot |
| Construction | Heavy‑duty steel chassis; optional stainless‑steel front bezel |
| Touchscreen | Optional 5‑wire resistive touch panel |
| Power Input | AC 100–240 V (universal) or DC 11–28 V (wide‑range) |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | 0 °C to 60 °C |
| Ingress Protection | IP65 / NEMA 4 (front panel) |
| Certifications | CE, FCC Class A |
| Mounting Method | Panel mount |
| Cut‑out Dimensions | 370 × 244.5 mm |
| Overall Dimensions (W × H × D) | 390 × 265 × 122 mm |
| Weight | (Not specified; typical for class ≈ 6–8 kg) |
| Color / Finish | Industrial gray or optional stainless steel |
| Cooling | Fan‑assisted or passive (depending on configuration) |

---

## 4. Functionality

The APC‑3213 Panel PC functions as an all‑in‑one embedded computing platform integrating display, processing, and expansion capabilities in a single enclosure.

### Operation
- The system boots from internal HDD, CF card, or optical drive, running standard operating systems such as Windows XP Embedded, Windows 7 Embedded, or Linux distributions.
- The integrated LCD and optional resistive touchscreen provide a responsive human‑machine interface (HMI) for real‑time control and monitoring.
- Dual PCI slots allow connection of industrial I/O cards, fieldbus interfaces, or data acquisition modules.

### Use Cases
- Factory Automation: Machine control, production line monitoring, and SCADA terminals.
- Process Control: Chemical, pharmaceutical, or food processing environments requiring sealed front panels.
- Transportation & Logistics: Vehicle‑mounted or kiosk‑based control systems.
- Building Automation: HVAC control, energy management, and security monitoring.
- Embedded Systems: OEM integration into industrial equipment or test benches.

### Compatibility
- Compatible with standard PCI interface cards.
- Supports standard 2.5‑inch SATA or IDE drives (depending on configuration).
- CF slot supports Type I/II CompactFlash cards for OS or data storage.
- Power input flexibility allows integration into both AC‑powered and DC‑powered systems.

---

## 5. Components & Accessories

### Included Components
- APC‑3213 main unit (Panel PC assembly)
- Mounting brackets for panel installation
- Power cable (AC or DC version depending on order)
- User manual / quick installation guide

### Optional Accessories
- Stainless‑steel front bezel for enhanced durability and hygiene
- Resistive touchscreen module
- Slim‑line DVD‑RW drive
- 2.5‑inch HDD or SSD (user‑selectable capacity)
- CompactFlash card for OS or data storage
- DC power adapter (for 11–28 V DC input)
- PCI expansion cards (I/O, communication, motion control, etc.)

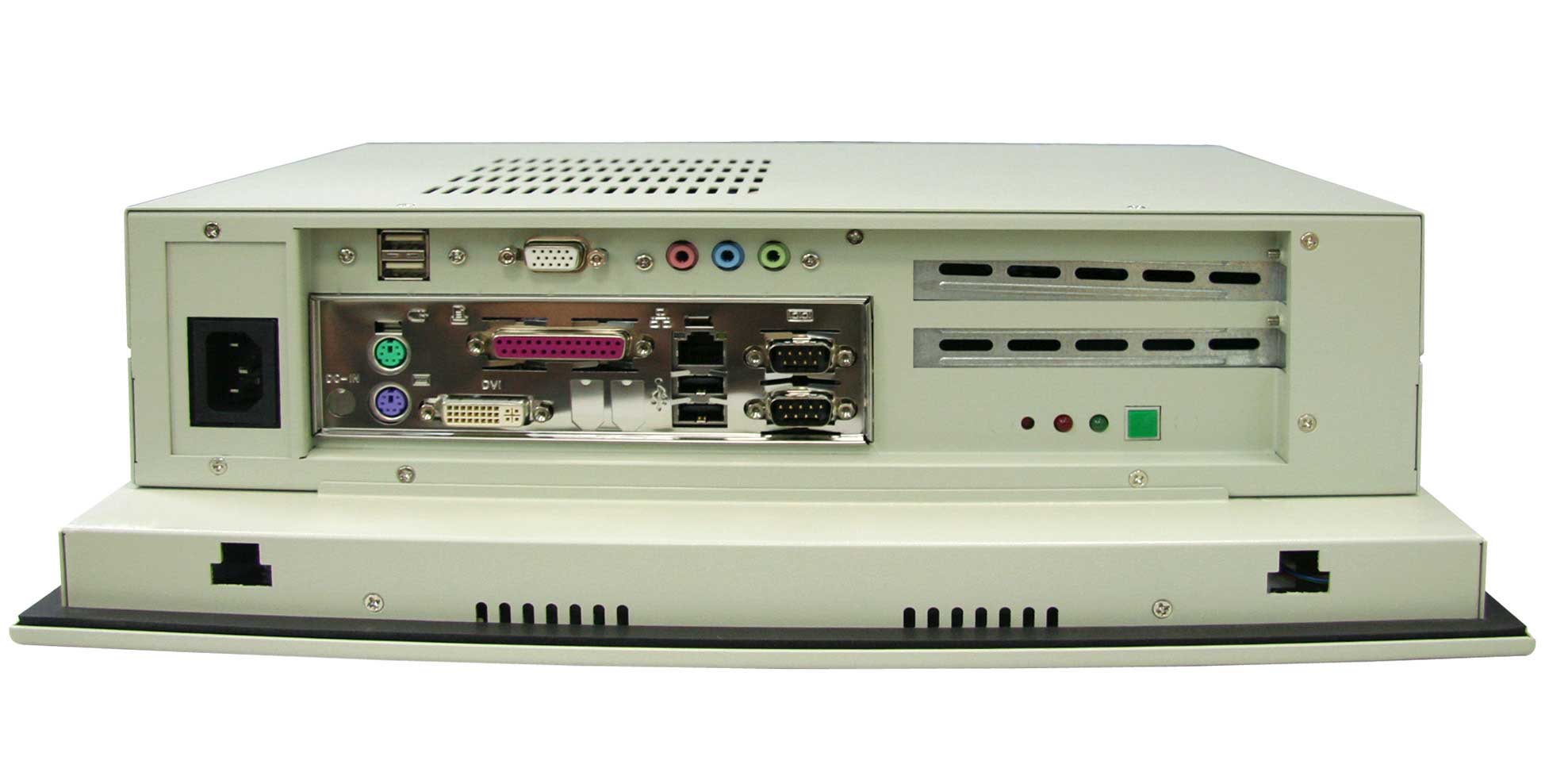

### Connectors & Interfaces
While not explicitly listed, typical APC‑series units include:
- VGA output (for external display)
- USB 2.0 ports
- RS‑232/422/485 serial ports
- Ethernet LAN port
- Audio line‑in/out
- Power input connector (AC or DC)

---

## 6. Installation & Setup

### Requirements
- Power Source: 100–240 VAC or 11–28 VDC regulated supply.
- Mounting Surface: Flat, rigid panel capable of supporting the unit’s weight.
- Cut‑out Dimensions: 370 mm × 244.5 mm (W × H).

### Mounting Options
- Panel Mounting: The APC‑3213 is designed for flush installation into control panels or enclosures using the supplied mounting brackets.
- Front Protection: When properly mounted, the front bezel maintains IP65 / NEMA 4 protection against dust and water jets.

### Configuration
1. Mount the unit into the prepared panel cut‑out using the included clamps.
2. Connect power input (AC or DC as specified).
3. Attach peripherals such as keyboard, mouse, or network cable.
4. Install storage media (HDD, CF, or DVD‑RW).
5. Load operating system and configure BIOS settings as required.

### Maintenance Access
The rear panel provides access to expansion slots and storage bays for easy upgrades or servicing without removing the entire unit from the panel.

---

## 7. Performance & Capabilities

### Processing Performance
- The 1.5 GHz CPU provides sufficient computing power for industrial HMI, data logging, and control applications.
- Optional Pentium M 1.8 GHz upgrade enhances multitasking and graphical performance.

### Display Performance
- 12.1‑inch SVGA TFT LCD with 300 cd/m² brightness ensures readability under typical indoor lighting.
- 50,000‑hour backlight life minimizes downtime and replacement costs.

### Expansion & Scalability
- Two PCI slots enable integration of specialized hardware such as motion controllers, fieldbus adapters (e.g., PROFIBUS, CAN, Modbus), or additional I/O.
- Storage flexibility supports both mechanical and solid‑state drives.

### Power Efficiency
- Wide‑range DC input (11–28 V) allows direct connection to industrial power systems or vehicle batteries.
- Efficient power design reduces heat generation and supports fanless operation in some configurations.

### Environmental Performance
- Operating temperature range of 0 °C to 50 °C supports deployment in controlled industrial environments.
- IP65 front protection ensures resistance to dust and water spray, suitable for wash‑down or dusty areas.

### Limitations
- Not designed for extreme outdoor temperatures or direct sunlight readability.
- Limited to SVGA resolution (800 × 600), which may constrain high‑density graphical interfaces.
- Expansion limited to two PCI slots (no PCIe support).

---

## 8. Standards & Compliance

The APC‑3213 meets multiple industrial and regulatory standards to ensure safety, reliability, and electromagnetic compatibility.

| Standard / Certification | Description |
|-------------------------------|-----------------|
| CE Marking | Conforms to European safety and EMC directives. |
| FCC Class A | Meets U.S. Federal Communications Commission standards for industrial/commercial environments. |
| IP65 / NEMA 4 Front Panel | Dust‑tight and protected against water jets from any direction. |
| RoHS Compliance | Manufactured in accordance with environmental and hazardous substance restrictions (typical for Aplex products). |
| Quality Standards | Produced under ISO 9001‑certified manufacturing processes. |

These certifications ensure that the APC‑3213 can be safely integrated into industrial control systems and comply with international installation requirements.

---

## 9. Additional Information

### Warranty
- Standard Warranty: Typically 1 year limited warranty (extendable depending on region and distributor).
- Covers defects in materials and workmanship under normal industrial use.

### Technical Support
- Manufacturer Support: Aplex Technology provides technical documentation, driver downloads, and firmware updates through its official support portal.
- Service Options: On‑site or depot repair services available via authorized distributors.

### Maintenance
- Preventive Maintenance: Periodic cleaning of ventilation openings and inspection of connectors recommended.
- Backlight Replacement: LCD backlight rated for 50,000 hours; replacement available through service centers.
- Storage Upgrades: HDD and CF modules can be replaced or upgraded without full disassembly.

### Software & Firmware Updates
- BIOS and driver updates available from Aplex support.
- Compatible with major industrial operating systems (Windows Embedded, Linux).

### Lifecycle & Availability
- Designed for long‑term availability typical of industrial products, ensuring consistent supply for OEM and system integrator projects.
- Backward compatibility within the APC‑3000 series allows easy migration between display sizes (12.1", 15", 17", 19").

---

## Summary Table of Related Models (for Reference)

| Model | Display Size | Resolution | Brightness (cd/m²) | Dimensions (W × H × D) |
|------------|------------------|----------------|-------------------------|-----------------------------|
| APC‑3213 | 12.1" SVGA | 800 × 600 | 300 | 390 × 265 × 122 mm |
| APC‑3513 | 15" XGA | 1024 × 768 | 300–400 | 410 × 310 × 122 mm |
| APC‑3713 | 17" SXGA | 1280 × 1024 | 300 | 457 × 355 × 128 mm |
| APC‑3913 | 19" SXGA | 1280 × 1024 | 300 | 484 × 400 × 129 mm |

This table illustrates the scalability of the APC‑3000 series, allowing users to select display sizes and resolutions according to application requirements while maintaining consistent mechanical and electrical design principles.

---

## Conclusion

The Aplex APC‑3213 Panel PC is a robust, versatile, and expandable industrial computing platform engineered for reliability in harsh environments. Its combination of a 12.1‑inch SVGA display, 1.5 GHz processor, dual PCI expansion, and IP65‑rated front panel makes it ideal for a wide range of industrial automation and control applications.

With flexible power input options, long‑life display, and compliance with CE and FCC standards, the APC‑3213 delivers dependable performance and long‑term availability for OEMs, system integrators, and industrial end users seeking a compact yet powerful panel‑mount computing solution.

---
