1. Product Overview

Product Name: APC-3215
Model: APC-3215
Series: APC-3000 Series Industrial Panel PCs
Article Number: APC-3215
Manufacturer: Aplex Technology Inc.

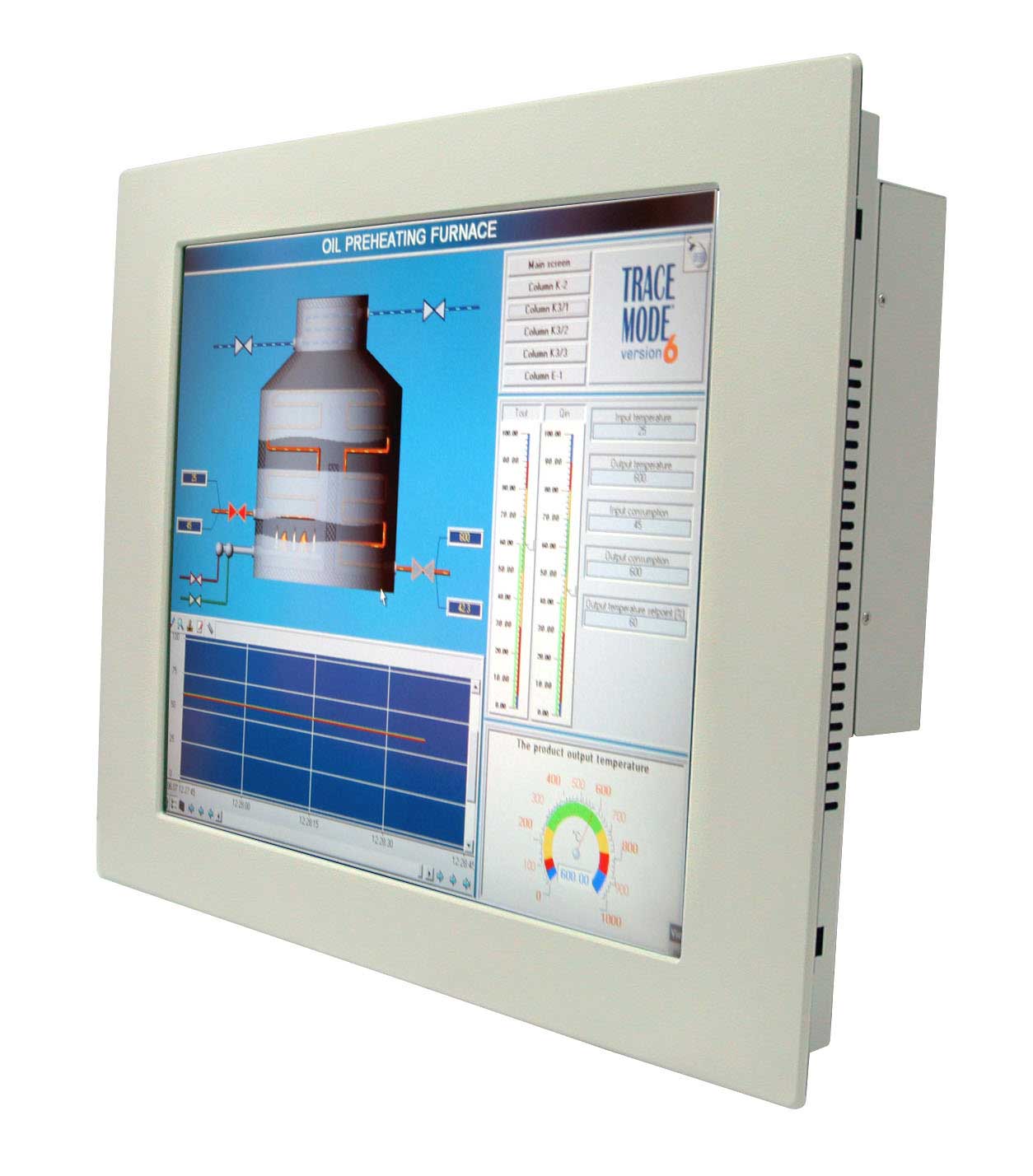

The Aplex APC-3215 is a rugged, industrial-grade 12.1-inch SVGA Panel PC designed for demanding automation, control, and monitoring applications. It integrates an Intel® Core™ 2 Duo processor platform, offering scalable performance from 1 GHz up to 2 GHz, and is engineered for reliability in harsh industrial environments. The system features a heavy-duty steel chassis with an optional stainless steel front bezel, ensuring durability and resistance to environmental factors. With an IP65-rated front panel, multiple I/O interfaces, and flexible power input options, the APC-3215 provides a robust and versatile solution for industrial HMI (Human-Machine Interface), factory automation, and embedded control systems.

---

2. Key Features

- 12.1-inch SVGA LCD Display: Offers an 800 × 600 resolution with 300 cd/m² luminance, providing clear and bright visuals suitable for industrial environments.
- Intel® Core™ 2 Duo Processor: Supports CPU speeds from 1 GHz up to 2 GHz, delivering efficient multitasking and processing performance for control and monitoring applications.
- Rugged Industrial Design: Constructed with a heavy-duty steel chassis and an optional stainless steel front bezel, ensuring mechanical strength and corrosion resistance.
- IP65 Front Protection: The front panel is NEMA 4/IP65 compliant, protecting against dust, water jets, and other contaminants, making it suitable for washdown or dusty environments.
- Flexible Touch Interface: Available with an optional analog resistive touch screen, enabling intuitive user interaction even with gloves or in harsh conditions.
- Comprehensive I/O Connectivity: Equipped with 3 × COM ports, 4 × USB 2.0 ports, 2 × Gigabit Ethernet (GbE) ports, and 1 × VGA output, supporting a wide range of peripheral and network connections.
- Expansion Capability: Includes 2 × PCI expansion slots, allowing integration of additional interface cards or specialized controllers.
- Storage Options: Supports 1 × 2.5" HDD, 1 × slim-line DVD-RW drive, and 1 × CompactFlash (CF) slot, providing flexible data storage and media access.
- Flexible Power Input: Operates on AC 100–240V or optional DC 16–36V via a 19V adapter, suitable for diverse installation environments.
- Wide Operating Temperature Range: Designed to operate reliably from 0°C to 50°C, with storage capability from –20°C to 60°C.
- Long Backlight Lifetime: The LCD backlight offers a 50,000-hour lifetime, ensuring long-term display reliability.
- Compliance and Certification: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

3. Technical Specifications

| Category | Specification |
|---------------|-------------------|
| Display Size | 12.1 inches |
| Display Type | SVGA TFT LCD |
| Resolution | 800 × 600 pixels |
| Brightness (Luminance) | 300 cd/m² |
| Backlight Lifetime | 50,000 hours |
| Touch Screen | Analog resistive (optional) |
| Processor | Intel® Core™ 2 Duo, 1 GHz – 2 GHz |
| Memory | Supports standard DDR2/DDR3 memory (capacity dependent on configuration) |
| Storage | 1 × 2.5" HDD bay, 1 × slim-line DVD-RW drive bay, 1 × CompactFlash slot |
| Expansion Slots | 2 × PCI |
| I/O Ports | 3 × COM, 4 × USB 2.0, 2 × Gigabit Ethernet, 1 × VGA |
| Power Input | AC 100–240V or optional DC 16–36V (via 19V adapter) |
| Construction | Heavy-duty steel chassis; optional stainless steel front bezel |
| Mounting | Panel mount |
| Front Panel Protection | NEMA 4 / IP65 compliant |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 60°C |
| Certifications | CE, FCC Class A |
| Dimensions (W × H × D) | 390 × 265 × 122 mm |
| Cut-out Dimensions | 370 × 244.5 mm |
| Weight | Approx. 4.5–5.0 kg (depending on configuration) |

---

4. Functionality

The APC-3215 Panel PC functions as an all-in-one embedded computing platform for industrial automation and control. It integrates processing, display, and input capabilities into a single compact unit. The system’s Intel® Core™ 2 Duo processor provides sufficient computational power for real-time data processing, visualization, and control tasks. The 12.1-inch SVGA display ensures clear graphical representation of process data, while the optional resistive touch screen allows direct user interaction with control interfaces, SCADA systems, or HMI software.

Use Cases and Applications:
- Factory Automation: Machine control, production line monitoring, and process visualization.
- Industrial HMI: Operator panels for PLCs, robotic systems, and manufacturing equipment.
- Transportation and Logistics: Vehicle-mounted control terminals or warehouse management systems.
- Energy and Utilities: Monitoring and control of power generation, water treatment, or renewable energy systems.
- Building Automation: Control interfaces for HVAC, lighting, and security systems.

Compatibility:
The APC-3215 supports standard operating systems such as Windows Embedded, Windows XP/7, and Linux distributions, depending on configuration. It is compatible with a wide range of industrial communication protocols via its COM ports and Ethernet interfaces, enabling integration with PLCs, sensors, and industrial networks.

---

5. Components & Accessories

Included Components:
- APC-3215 main unit (Panel PC)
- Power adapter (AC 100–240V or optional DC 16–36V input)
- Mounting brackets for panel installation
- User manual and driver CD (depending on shipment configuration)

Optional Accessories:
- Stainless Steel Front Bezel: For enhanced corrosion resistance and hygienic environments (e.g., food processing).
- Analog Resistive Touch Screen: For interactive control and data input.
- Slim-line DVD-RW Drive: For software installation or data backup.
- CompactFlash Card: For embedded OS or data storage.
- Additional PCI Expansion Cards: For specialized I/O, communication, or control functions.

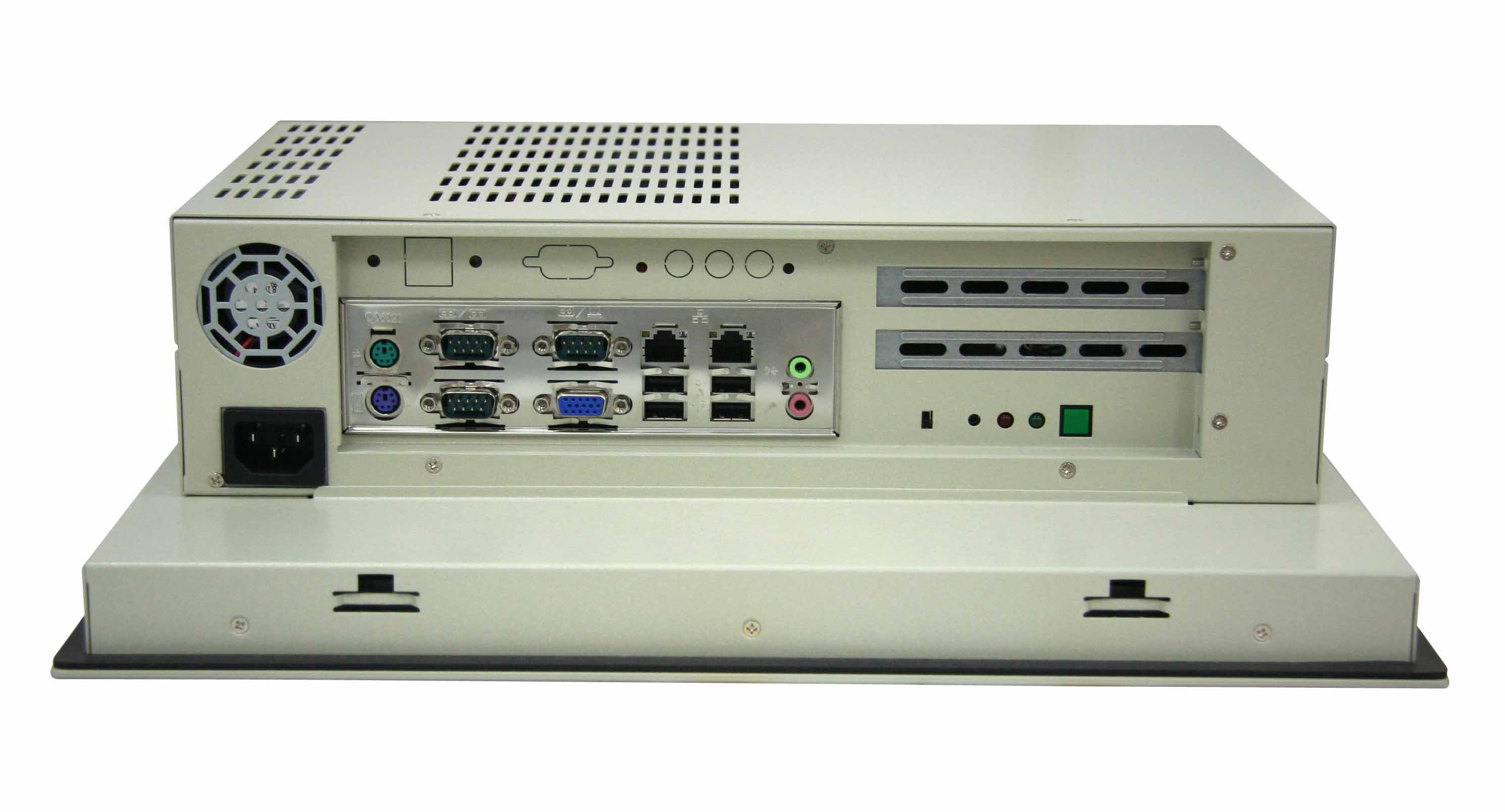

Connectors and Interfaces:
- Serial Ports (COM): 3 × RS-232/422/485 configurable ports for industrial device communication.
- USB Ports: 4 × USB 2.0 for peripheral connectivity (keyboard, mouse, storage).
- Ethernet Ports: 2 × Gigabit LAN for network redundancy or segmented communication.
- VGA Output: For external display connection.
- Power Connector: AC or DC input depending on configuration.

---

6. Installation & Setup

Mounting Options:
The APC-3215 is designed for panel mounting, allowing seamless integration into control cabinets, operator consoles, or machine panels. The cut-out dimension of 370 × 244.5 mm ensures a secure and flush fit. Mounting brackets are provided for stable installation.

Power Requirements:
The system supports AC 100–240V input for standard industrial power sources. For mobile or DC-powered environments, an optional DC 16–36V input is available, supplied through a 19V adapter.

Configuration:
Initial setup involves connecting the power source, network cables, and peripheral devices via the provided I/O ports. BIOS and system configuration can be accessed through the integrated display. The optional touch screen can be calibrated via software utilities provided by Aplex.

Environmental Considerations:
Ensure adequate ventilation and ambient temperature within the specified 0°C to 50°C operating range. The IP65 front panel allows installation in environments exposed to dust or water spray, but the rear section should be protected from direct exposure.

---

7. Performance & Capabilities

The APC-3215 delivers balanced performance for industrial computing tasks. Its Intel® Core™ 2 Duo processor provides dual-core processing for multitasking and real-time control applications. The system’s PCI expansion slots enable customization for additional communication interfaces or data acquisition cards.

Speed and Capacity:
- CPU Frequency: 1.0 GHz to 2.0 GHz (depending on model configuration)
- Memory: Supports standard DDR2/DDR3 modules (capacity varies by configuration)
- Storage: 2.5" HDD or SSD for primary storage; CompactFlash for embedded OS; optional DVD-RW for removable media

Efficiency and Reliability:
- Thermal Design: Optimized for fanless or low-noise operation, depending on configuration.
- Display Longevity: 50,000-hour backlight lifetime ensures long-term usability.
- Power Efficiency: Wide-range power input supports stable operation under varying industrial power conditions.

Limitations:
- Display resolution limited to 800 × 600 (SVGA), which may not suit high-resolution visualization needs.
- Designed primarily for industrial control; not intended for high-end graphics or multimedia applications.

---

8. Standards & Compliance

The APC-3215 adheres to multiple industrial and safety standards, ensuring reliable operation and regulatory compliance.

- Front Panel Protection: NEMA 4 / IP65 compliant, providing resistance to dust and water ingress.
- Electrical Safety and EMC: Certified to CE and FCC Class A standards, ensuring electromagnetic compatibility and safety in industrial environments.
- Environmental Compliance: Designed for operation within industrial temperature and humidity ranges.
- Quality Assurance: Manufactured under ISO-certified production processes by Aplex Technology Inc.

These certifications make the APC-3215 suitable for deployment in regulated industrial sectors, including manufacturing, energy, and transportation.

---

9. Additional Information

Warranty:
Aplex typically provides a standard one-year limited warranty covering manufacturing defects and hardware failures under normal operating conditions. Extended warranty options may be available upon request.

Support:
Technical support includes driver updates, BIOS utilities, and configuration assistance. Aplex offers online resources, documentation, and regional service centers for maintenance and repair.

Maintenance:
Routine maintenance involves cleaning the front panel with non-abrasive materials, ensuring ventilation openings remain unobstructed, and verifying secure cable connections. The IP65 front panel simplifies cleaning in environments requiring hygiene control.

Software and Firmware Updates:
Firmware and BIOS updates are periodically released to enhance system stability and compatibility. Operating system drivers for Windows and Linux platforms are available from Aplex’s support portal.

Product Lifecycle and Availability:
As part of the APC-3000 series, the APC-3215 benefits from long-term availability and support, ensuring continuity for industrial projects and OEM integrations.

---

### Summary

The Aplex APC-3215 12.1" SVGA Core 2 Duo Panel PC is a robust, versatile, and high-performance industrial computing solution designed for automation, control, and monitoring applications. Combining a durable steel chassis, IP65-rated front protection, and flexible I/O connectivity, it delivers reliable operation in harsh environments. Its modular design—with options for touch input, stainless steel bezel, and PCI expansion—makes it adaptable to a wide range of industrial use cases. With compliance to CE and FCC standards, long backlight life, and flexible power input, the APC-3215 stands as a dependable choice for system integrators and industrial operators seeking a long-life, high-reliability panel PC platform.
