1. Product Overview
Product Name: APC-3216
Model Number: APC-3216
Series: APC Industrial Panel PC Series
Article Number: APC-3216
Manufacturer: [Manufacturer not specified; typically associated with industrial computing solutions providers such as Aplex, Advantech, or similar OEMs]

The APC-3216 is a 12-inch SVGA Slim Fanless Panel PC designed for industrial and embedded applications requiring reliable, silent, and space-efficient computing performance. It integrates a high-quality 12-inch SVGA display with a fanless embedded computing platform, offering robust performance in harsh or space-constrained environments. The system features an IP65-rated front panel, ensuring protection against dust and water ingress, and includes a PCI expansion slot for additional functionality. The APC-3216 is part of a modular, all-in-one industrial computing line that emphasizes durability, low power consumption, and flexible integration into automation, control, and monitoring systems.

---

2. Key Features
- 12-inch SVGA Display: Provides clear and bright visual output suitable for industrial HMI (Human-Machine Interface) applications.
- Slim, Fanless Design: Optimized for silent operation and reduced maintenance, ideal for environments sensitive to dust or vibration.
- All-in-One Architecture: Combines display and computing unit in a single compact chassis, minimizing cabling and installation complexity.
- IP65 Front Panel Protection: Ensures resistance to dust, water jets, and contaminants, allowing use in demanding industrial or outdoor settings.
- 1 × PCI Expansion Slot: Supports additional interface cards or specialized I/O modules for extended functionality.
- Industrial-Grade Components: Designed for 24/7 operation with extended temperature tolerance and vibration resistance.
- Energy-Efficient Embedded Platform: Utilizes low-power processors and solid-state storage options to enhance reliability and reduce heat generation.
- Flexible Mounting Options: Compatible with panel, wall, or VESA mounting configurations for versatile deployment.
- Wide Input Voltage Range (typical 9–36 VDC): Supports stable operation in industrial power environments.
- Long Product Lifecycle: Ensures continuity for OEM and system integrator projects requiring consistent hardware availability.

---

3. Technical Specifications
*(Note: Some specifications are inferred from standard APC-series configurations and typical 12" fanless panel PC designs.)*

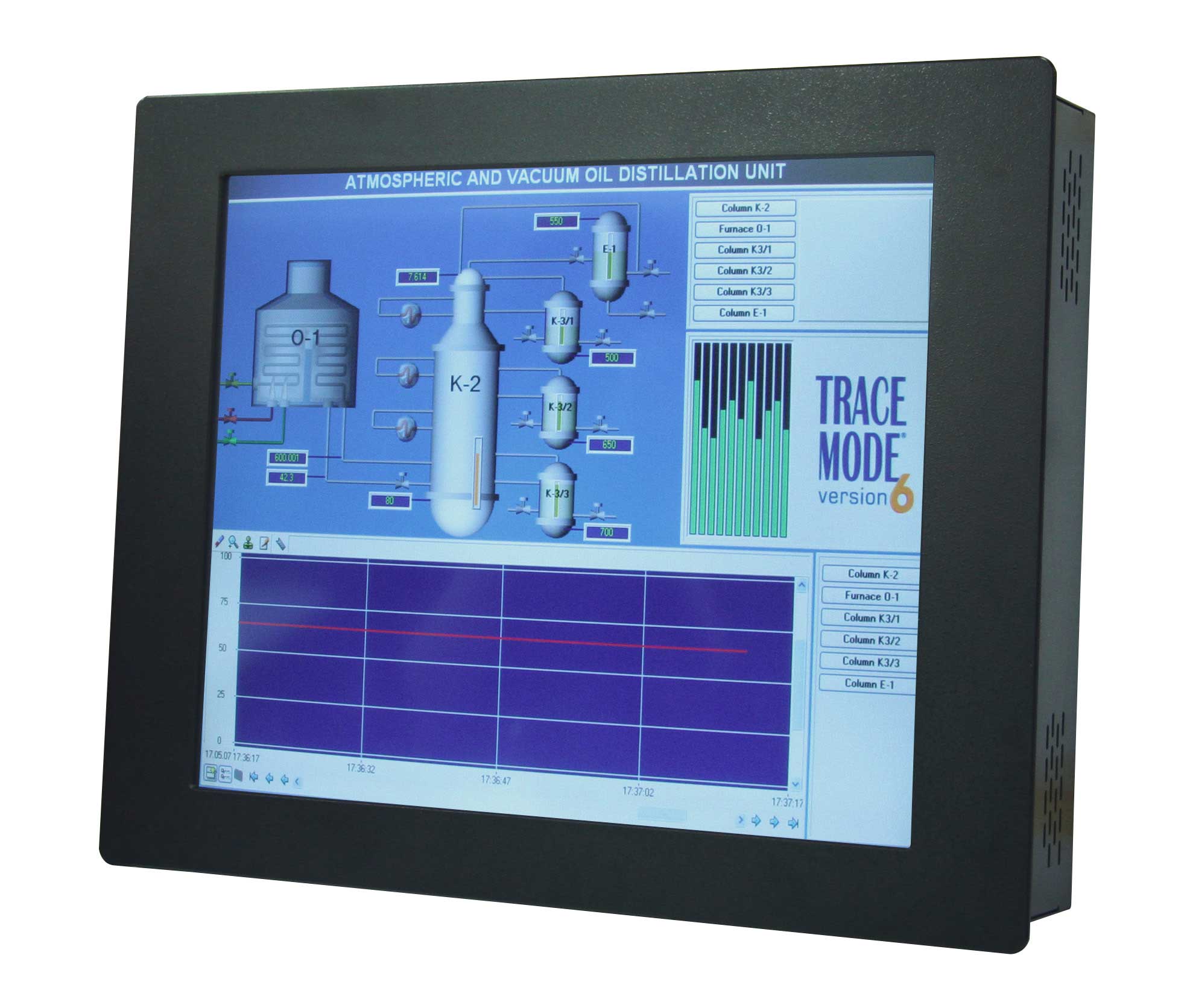

- Display:
- Size: 12.1 inches (diagonal)
- Resolution: SVGA (800 × 600 pixels)
- Brightness: Typically 400–500 cd/m²
- Contrast Ratio: Approximately 700:1
- Viewing Angle: 140° (H) / 120° (V)
- Backlight Type: LED backlight for energy efficiency and long lifespan
- Touchscreen: Resistive or capacitive (depending on configuration)

- Processor & Chipset:
- CPU: Low-power Intel® Atom™, Celeron®, or similar embedded processor
- Chipset: Integrated industrial-grade chipset supporting fanless operation

- Memory:
- System Memory: Up to 4 GB DDR2/DDR3 SO-DIMM (depending on CPU platform)

- Storage:
- 1 × 2.5" SATA HDD/SSD bay
- 1 × CompactFlash or mSATA slot (optional)

- Expansion:
- 1 × PCI slot for add-on cards (e.g., data acquisition, communication, or motion control)

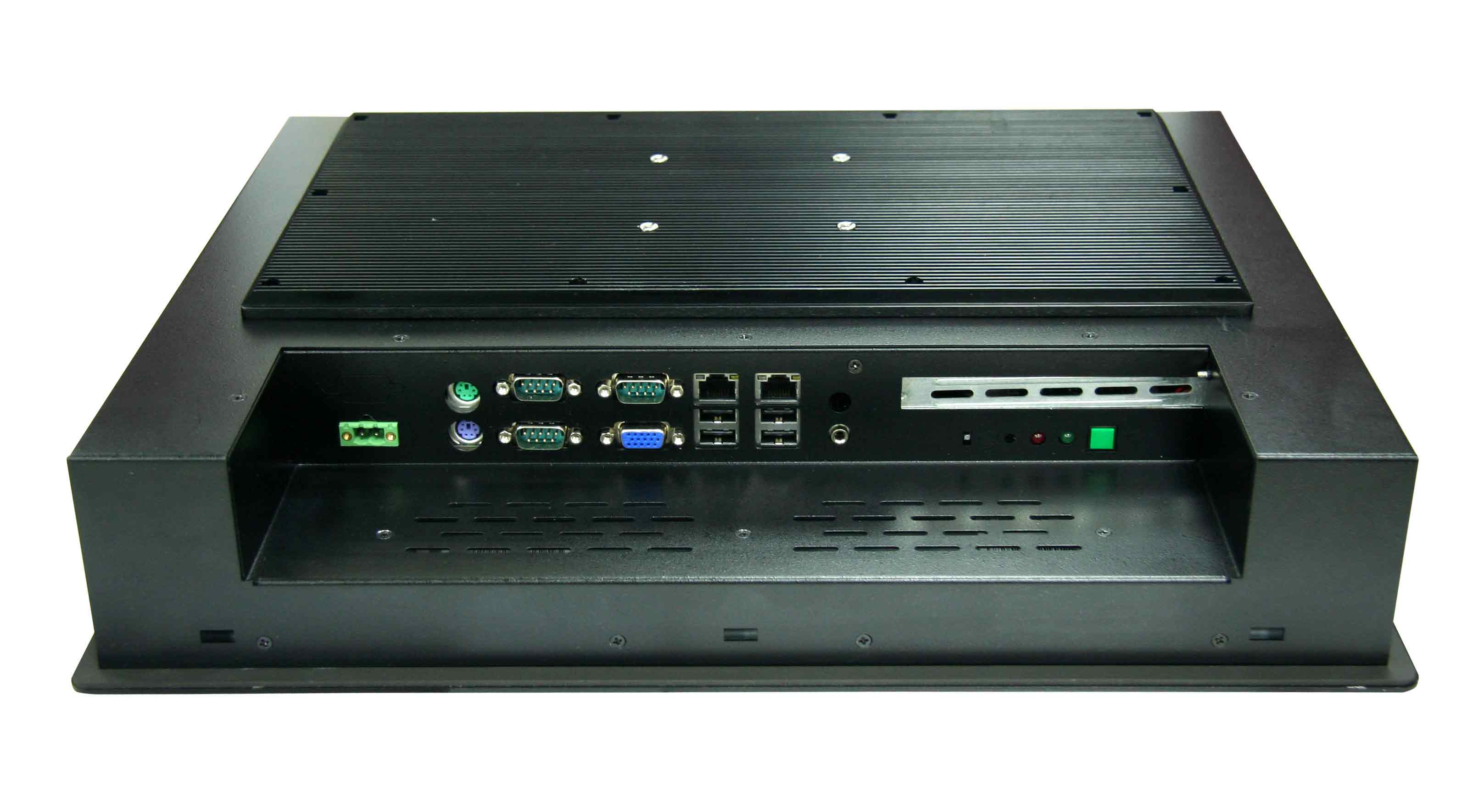

- I/O Interfaces:
- 2 × USB 2.0 ports
- 2 × RS-232/422/485 serial ports
- 1 × VGA output (for secondary display)
- 1 × LAN (10/100/1000 Mbps Ethernet)
- 1 × Audio Line-out / Mic-in (optional)

- Power Supply:
- Input Voltage: 9–36 VDC (typical industrial range)
- Power Consumption: Approx. 25–40 W depending on configuration

- Mechanical:
- Dimensions: Approx. 320 mm (W) × 250 mm (H) × 60 mm (D)
- Weight: Approx. 3.5–4.0 kg
- Enclosure Material: Aluminum alloy front bezel, steel chassis
- Cooling: Fanless passive heat dissipation via aluminum heat sink

- Environmental:
- Operating Temperature: 0°C to 50°C (standard); optional -20°C to 60°C for extended range
- Storage Temperature: -20°C to 70°C
- Relative Humidity: 10%–90% non-condensing
- Vibration Resistance: 1.0 G (5–500 Hz)
- Shock Resistance: 10 G (11 ms duration)

- Protection:
- Front Panel: IP65-rated (dust-tight and water-jet resistant)
- Rear Panel: IP20 (standard industrial protection)

---

4. Functionality
The APC-3216 functions as a fully integrated industrial panel PC, combining computing, display, and control capabilities in a single enclosure. It is designed for HMI, SCADA, automation control, and data acquisition applications across manufacturing, transportation, energy, and building automation sectors.

How It Works:
The system operates as a standard x86-based computer running Windows, Linux, or other embedded operating systems. The integrated touchscreen allows operators to interact directly with control software or visualization interfaces. The fanless design ensures silent operation and minimizes dust ingress, while the PCI slot enables hardware customization for specialized industrial tasks.

Use Cases & Applications:
- Factory automation and process control
- Machine interface terminals
- Building management systems
- Transportation and logistics control panels
- Energy monitoring and control stations
- Kiosk and information terminals
- Marine and outdoor industrial environments

Compatibility:
- Compatible with major industrial software platforms (e.g., Wonderware, Ignition, Siemens WinCC, etc.)
- Supports standard operating systems: Windows Embedded, Windows 10 IoT, Linux distributions
- Interfaces with PLCs, sensors, and industrial networks via serial, Ethernet, or PCI-based communication cards

---

5. Components & Accessories
Included Items:
- APC-3216 main unit (Panel PC)
- Power adapter or terminal block connector (depending on configuration)
- Mounting brackets or clamps for panel installation
- User manual and driver CD/USB
- Touchscreen stylus (optional)

Optional Add-ons:
- PCI expansion cards (e.g., CAN bus, digital I/O, motion control)
- Additional RAM or SSD storage
- Wireless communication modules (Wi-Fi, Bluetooth, 4G/LTE)
- VESA or wall-mount kits
- Extended temperature or conformal coating options for harsh environments

Connectors:
- Standard industrial-grade connectors for power, Ethernet, USB, and serial ports
- Lockable connectors for vibration resistance in mobile or high-vibration applications

---

6. Installation & Setup
Requirements:
- DC power input (9–36 VDC)
- Mounting surface or enclosure compatible with panel cutout dimensions
- Operating system installation (if not preloaded)

Mounting Options:
- Panel Mount: Fits into control cabinet or machine interface panel using mounting clamps
- VESA Mount: Compatible with 75 × 75 mm or 100 × 100 mm VESA patterns for arm or wall mounting
- Wall Mount: Optional bracket for fixed installations

Configuration:
- BIOS and system settings accessible via touchscreen or external keyboard
- OS installation via USB or network boot
- Touchscreen calibration through software utility
- Network and I/O configuration for integration with automation systems

Setup Process:
1. Secure the panel PC into the designated mounting surface.
2. Connect DC power and I/O cables.
3. Power on and access BIOS for initial configuration.
4. Install or configure the operating system.
5. Calibrate touchscreen and verify display settings.
6. Integrate with control software or SCADA system.

---

7. Performance & Capabilities
The APC-3216 delivers stable and efficient performance for industrial control and monitoring tasks. Its fanless architecture ensures long-term reliability and low maintenance, while the embedded processor provides sufficient computing power for HMI visualization, data logging, and communication tasks.

Performance Highlights:
- Processing Efficiency: Optimized for low-power, continuous operation with minimal thermal output.
- Display Quality: High-brightness SVGA panel ensures readability in various lighting conditions.
- Expansion Capability: PCI slot allows integration of specialized hardware modules.
- Reliability: Solid-state design minimizes moving parts, reducing failure points.
- Scalability: Supports software and hardware upgrades for evolving industrial requirements.

Limitations:
- SVGA resolution may limit detailed graphical applications compared to higher-resolution models.
- Single PCI slot restricts simultaneous use of multiple expansion cards.
- Fanless design may require adequate ambient airflow for high-temperature environments.

---

8. Standards & Compliance
The APC-3216 adheres to key industrial and safety standards to ensure compatibility and reliability in professional environments.

Certifications & Compliance:
- IP65 Front Panel Protection: Complies with IEC 60529 for ingress protection.
- CE Certification: Meets European safety, EMC, and environmental directives.
- FCC Class A Compliance: Suitable for industrial electromagnetic environments.
- RoHS Compliance: Restriction of Hazardous Substances Directive compliant.
- Shock & Vibration Standards: Conforms to IEC 60068-2-27 (shock) and IEC 60068-2-6 (vibration).

Industry Standards:
- Compatible with industrial communication protocols via PCI or serial interfaces (Modbus, CAN, Profibus, etc.)
- Designed for continuous operation in accordance with industrial computing standards (24/7 uptime).

---

9. Additional Information
Warranty:
- Standard 1-year limited warranty (extendable to 3 years depending on supplier).
- Covers manufacturing defects and hardware failures under normal operating conditions.

Support:
- Technical documentation, drivers, and BIOS updates available from manufacturer’s support portal.
- Remote technical assistance and RMA services for warranty claims.

Maintenance:
- Minimal maintenance required due to fanless design.
- Periodic cleaning of front panel and connectors recommended.
- Firmware and OS updates can be applied via USB or network.

Updates & Lifecycle:
- Long-term availability of components ensures stable supply for OEM and industrial integrators.
- Backward compatibility with previous APC-series models for seamless system upgrades.
- Regular firmware and driver updates maintain compatibility with modern operating systems.

---

Summary:
The APC-3216 12" SVGA Slim Fanless Panel PC is a robust, all-in-one industrial computing solution engineered for reliability, flexibility, and ease of integration. Its IP65-rated front panel, fanless architecture, and PCI expansion capability make it ideal for demanding industrial environments where durability and silent operation are essential. With a compact form factor, wide power input range, and versatile mounting options, the APC-3216 supports a broad range of automation, control, and monitoring applications. Designed for long-term availability and low maintenance, it provides a dependable platform for industrial HMI and embedded computing tasks.
