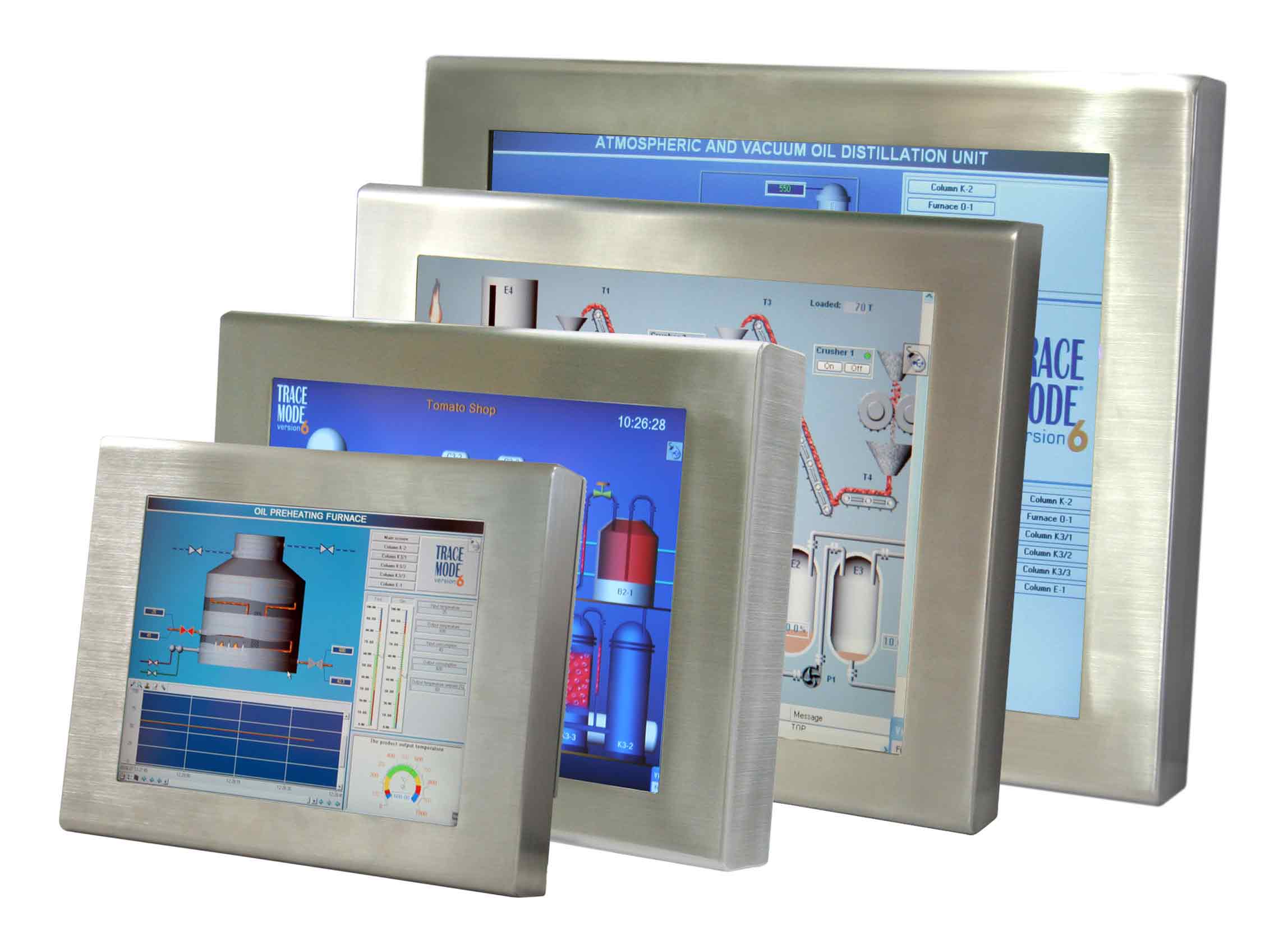

Comprehensive Product Summary – APC-3280 Stainless Steel Fanless Panel PC

---

### 1. Product Overview

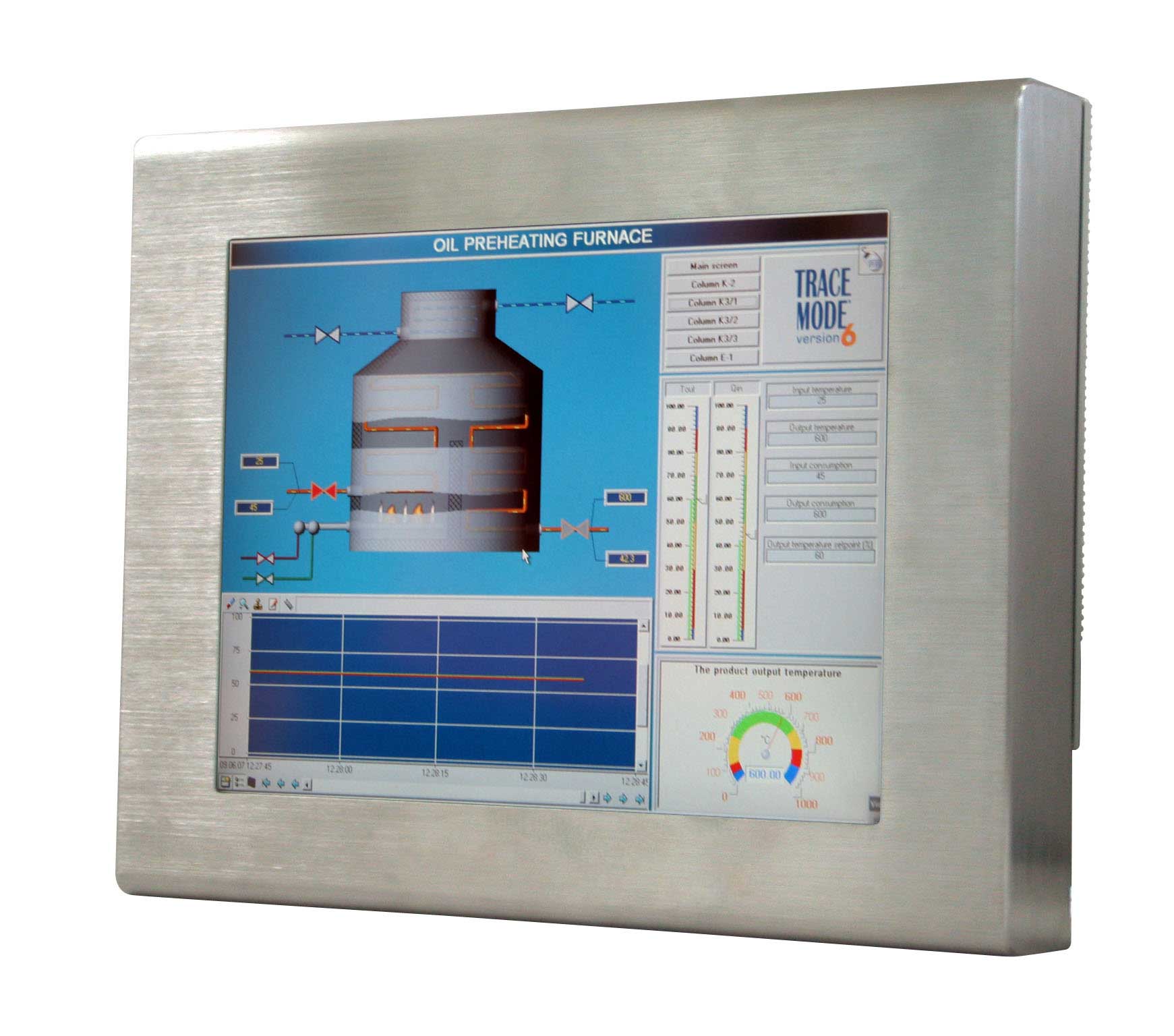

Product Name: APC-3280
Model Number: APC-3280
Series: Industrial Stainless Steel Fanless Panel PC Series
Article Number: APC-3280
Manufacturer: Aplex Technology Inc.

The APC-3280 is a 12-inch SVGA industrial-grade fanless panel PC designed for demanding environments requiring durability, hygiene, and reliable performance. Engineered with a stainless steel enclosure and a sealed front panel rated to IP65/NEMA 4 standards, this system is optimized for industrial automation, food processing, pharmaceutical production, and other applications where resistance to dust, moisture, and corrosion is essential. The unit integrates an energy-efficient Intel® Celeron® M processor platform, supports up to 1 GB of system memory, and provides multiple I/O interfaces for flexible connectivity. Its fanless architecture ensures silent operation and low power consumption, making it suitable for continuous operation in harsh or noise-sensitive environments.

---

### 2. Key Features

- 12-inch SVGA Display: 800 × 600 resolution LCD panel with 300 cd/m² brightness and a 50,000-hour backlight lifetime for long-term industrial use.
- Fanless Design: Passive cooling system eliminates moving parts, reducing maintenance and improving reliability in dusty or vibration-prone environments.
- Stainless Steel Enclosure: Full stainless steel housing provides corrosion resistance and easy cleaning, ideal for hygienic or outdoor applications.
- Processor Options: Supports Intel® Celeron® M 1.0 GHz up to Pentium® 4 Mobile 1.6 GHz CPUs, balancing performance and power efficiency.
- Memory Support: Up to 1 GB RAM for stable multitasking and embedded control operations.
- Comprehensive I/O Connectivity:
- 1 × COM port (RS-232/422/485 configurable)
- 4 × USB 2.0 ports
- 1 × VGA output
- 1 × LAN port (Ethernet)
- Storage Flexibility: Space for one 2.5" HDD and one CompactFlash (CF) slot for solid-state storage or OS deployment.
- Touchscreen Options: Available with enhanced safety glass or optional resistive touchscreen for interactive control interfaces.
- Power Input Range: Wide DC input range of 11–28 VDC (nominal 16–36 VDC supported), suitable for industrial power systems.

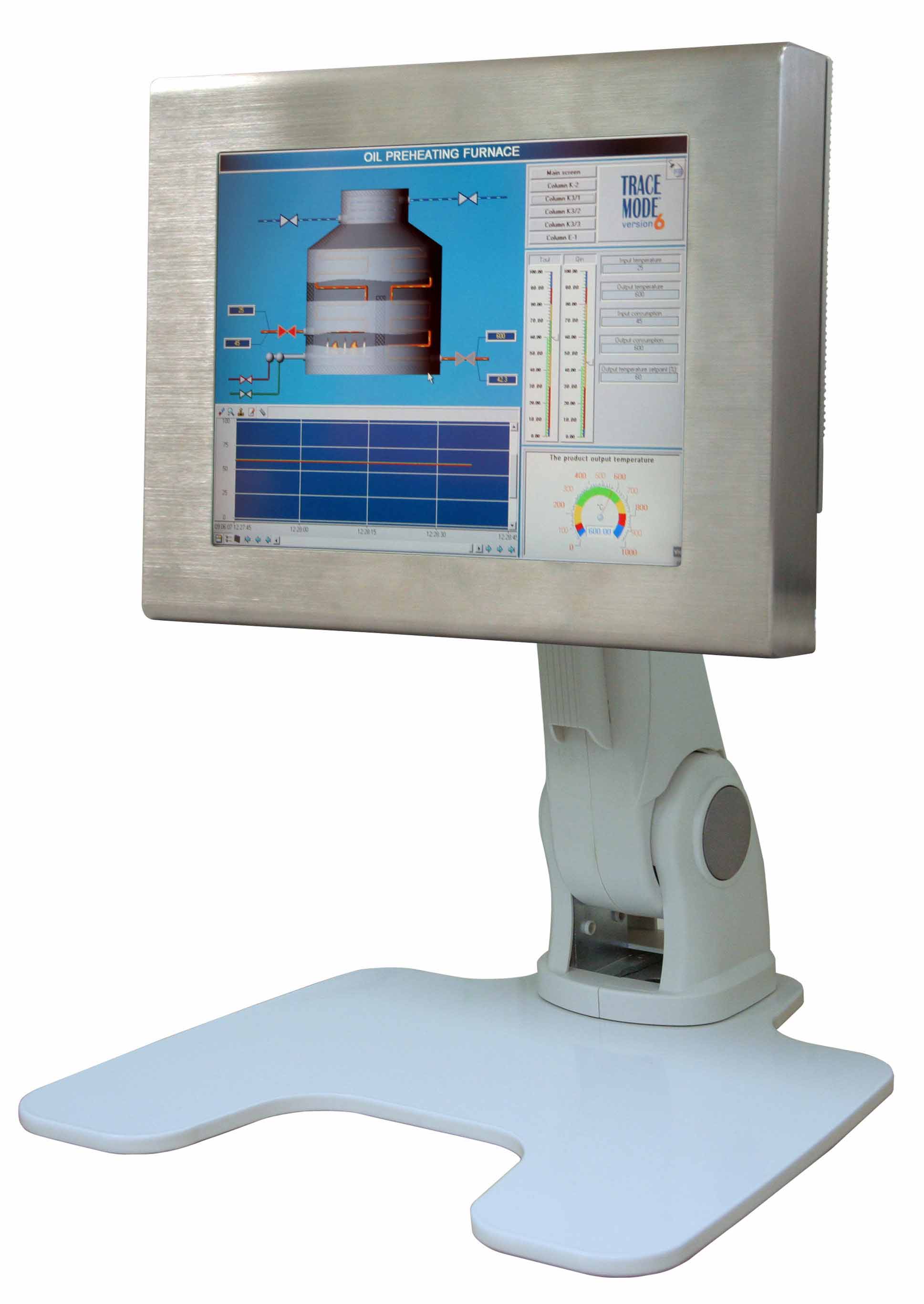

- Mounting Compatibility: VESA 75 mm mount for flexible installation on panels, arms, or walls.
- Environmental Protection: IP65-rated front bezel (NEMA 4 equivalent) ensures protection against water jets and dust ingress.
- Certifications: CE and FCC Class A compliance for electromagnetic compatibility and safety.
- Operating Temperature Range: 0°C to 50°C, suitable for most indoor and semi-outdoor industrial environments.

---

### 3. Technical Specifications

Display Specifications:
- Display Size: 12 inches (diagonal)
- Display Type: TFT LCD
- Resolution: 800 × 600 pixels (SVGA)
- Brightness: 300 cd/m²
- Backlight Lifetime: 50,000 hours (typical)
- Touchscreen: Optional 5-wire resistive touchscreen or protective safety glass

System Specifications:
- Processor: Intel® Celeron® M 1.0 GHz (upgradable to Pentium® 4 Mobile 1.6 GHz)
- Memory: Up to 1 GB DDR RAM
- Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash slot
- Graphics: Integrated VGA controller with external VGA output

I/O Interfaces:
- 1 × COM port (RS-232/422/485)
- 4 × USB 2.0 ports
- 1 × VGA output
- 1 × LAN (RJ-45 Ethernet)

Power Specifications:
- Input Voltage: DC 11–28 V (recommended 16–36 VDC range)
- Power Consumption: Low power design (exact wattage dependent on configuration)

Mechanical Specifications:
- Construction: Full stainless steel enclosure
- Dimensions: 330 mm (W) × 260 mm (H) × 59 mm (D)
- Mounting: VESA 75 mm standard mount
- Weight: Approx. 4–5 kg (depending on configuration)

Environmental Specifications:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: 0°C to 60°C
- Front Panel Rating: IP65 / NEMA 4 compliant (front side only)
- Cooling System: Fanless passive heat dissipation

Certifications:
- CE Mark
- FCC Class A

---

### 4. Functionality

The APC-3280 operates as a fully integrated industrial panel PC, combining computing, display, and control functions in a single sealed unit. It is designed for embedded control, HMI (Human-Machine Interface), and data acquisition tasks in industrial automation systems. The stainless steel enclosure and IP65-rated front panel make it suitable for washdown environments, such as food and beverage production lines, pharmaceutical cleanrooms, and outdoor kiosks.

Typical Use Cases:
- Industrial process monitoring and control
- Machine automation and HMI terminals
- Food and beverage production systems
- Pharmaceutical and laboratory environments
- Marine and outdoor information terminals
- Factory data collection and SCADA interfaces

Compatibility:
The system supports standard operating systems used in industrial computing, such as Windows Embedded, Windows XP/7, or Linux distributions. It can interface with PLCs, sensors, and other industrial equipment via serial, USB, or Ethernet connections.

Operation:
The fanless design uses passive heat dissipation through the stainless steel chassis, ensuring silent operation and minimal maintenance. The wide DC input range allows direct connection to industrial power supplies or vehicle systems. The optional resistive touchscreen enables intuitive user interaction even when wearing gloves.

---

### 5. Components & Accessories

Included Components:
- APC-3280 main unit (stainless steel panel PC)
- Power input connector (DC terminal block or cable)
- Mounting brackets or VESA 75 mm mounting holes
- User manual and quick installation guide

Optional Accessories:
- Resistive touchscreen panel (factory option)
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Power adapter (AC to DC converter, 24 VDC output)
- CompactFlash storage card
- 2.5" HDD or SSD drive
- External keyboard and mouse (USB interface)

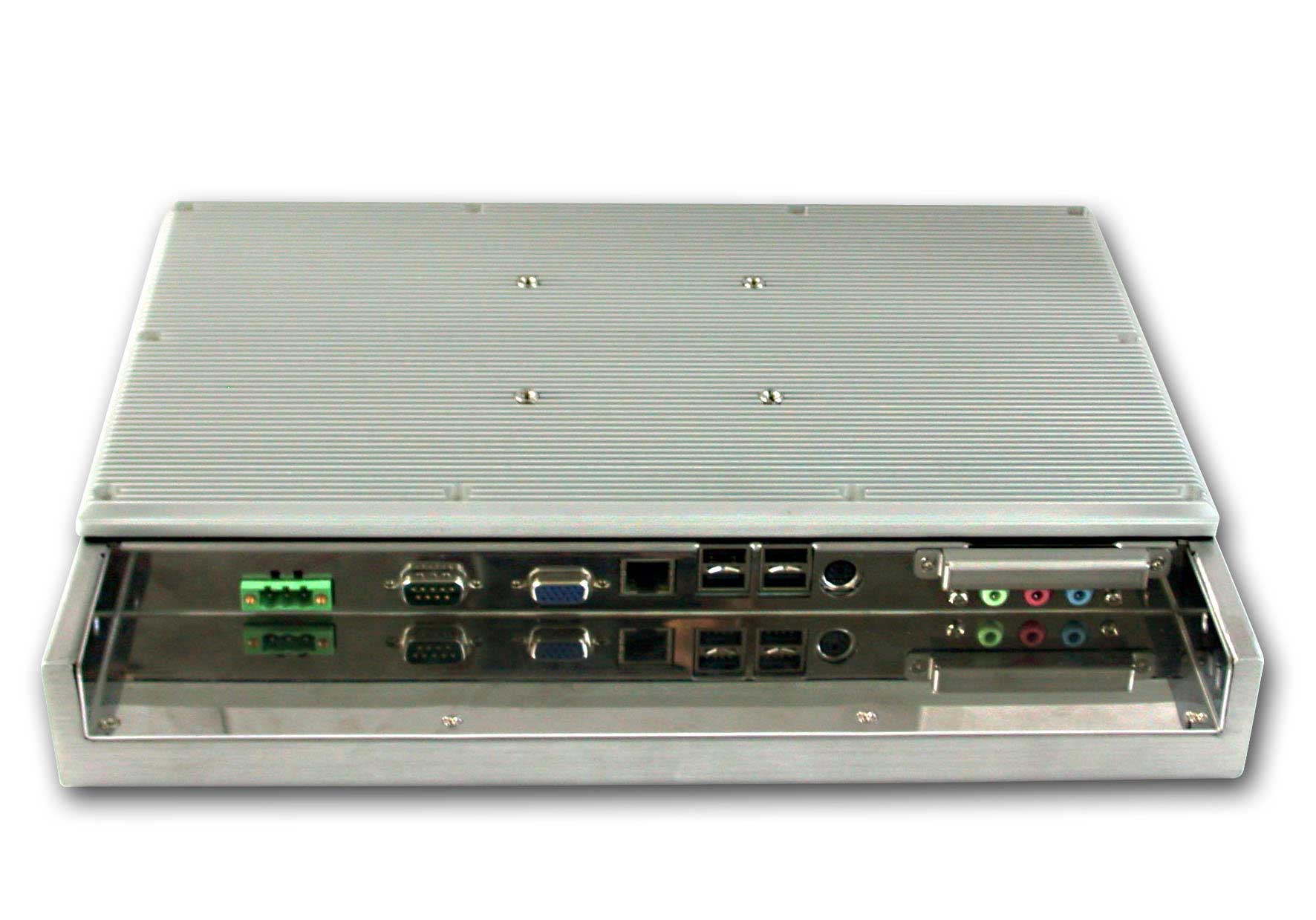

Connectors:
- 1 × COM (DB9 or terminal block)
- 4 × USB 2.0 (Type A)
- 1 × VGA (DB15)
- 1 × LAN (RJ-45)
- 1 × DC power input connector

---

### 6. Installation & Setup

Installation Requirements:
- DC power source within 11–28 V range (recommended 24 VDC)
- Mounting surface or bracket compatible with VESA 75 mm pattern
- Adequate ventilation space for passive heat dissipation

Mounting Options:
- VESA 75 Mount: Standard 75 × 75 mm hole pattern for wall, arm, or panel mounting.
- Panel Mount (optional): Can be integrated into control panels or enclosures using mounting brackets.

Setup Procedure:
1. Secure the unit using the VESA 75 mount or panel-mount brackets.
2. Connect the DC power input to a regulated 24 VDC source.
3. Attach peripherals (keyboard, mouse, network cable, etc.) via USB and LAN ports.
4. Install the desired operating system on the HDD or CF card.
5. Configure BIOS and system settings as required for the application.
6. Calibrate the touchscreen (if equipped) using the provided software utility.

Maintenance Considerations:
- The fanless design minimizes dust accumulation and mechanical wear.
- The stainless steel surface can be cleaned with mild detergents or disinfectants.
- Ensure that the rear I/O area is protected from direct water exposure, as only the front panel is IP65-rated.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel® Celeron® M 1.0 GHz processor provides efficient performance for embedded control, data logging, and HMI applications. The optional upgrade to a Pentium® 4 Mobile 1.6 GHz CPU offers enhanced computational capability for more demanding tasks.

Memory & Storage:
With up to 1 GB of RAM and dual storage options (HDD and CF), the APC-3280 supports both traditional and solid-state storage configurations. This flexibility allows for reliable operation in vibration-prone environments where HDDs may be less suitable.

Display Performance:
The 12-inch SVGA display delivers clear, bright visuals suitable for indoor and semi-outdoor use. The 300 cd/m² luminance ensures readability under various lighting conditions, while the 50,000-hour backlight lifetime supports long-term deployment.

Power Efficiency:
The system’s low power consumption and wide DC input range make it ideal for energy-conscious installations and mobile or remote applications powered by DC systems.

Environmental Durability:
The stainless steel enclosure and IP65 front protection enable operation in environments exposed to moisture, dust, and cleaning agents. The fanless design further enhances reliability by eliminating air intake paths for contaminants.

Limitations:
- The IP65 rating applies only to the front panel; the rear I/O area should be protected from direct exposure to liquids.
- Limited to 1 GB RAM, which may constrain high-end computing applications.
- Display resolution (800×600) is optimized for control interfaces rather than high-definition graphics.

---

### 8. Standards & Compliance

Environmental and Safety Standards:
- IP65 / NEMA 4 Front Panel: Protection against dust and water jets, suitable for washdown environments.
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.

Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of industrial mounting solutions.
- RoHS Compliance (implied for Aplex products): Restriction of hazardous substances in electronic equipment.

These certifications and standards confirm that the APC-3280 meets the requirements for industrial-grade reliability, safety, and electromagnetic compatibility.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (1–2 years, depending on region and distributor) covering defects in materials and workmanship under normal use.

Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Assistance is available for system integration, BIOS configuration, and OS installation.

Maintenance & Service:
- Routine cleaning of the stainless steel surface is recommended to maintain hygiene and appearance.
- Periodic inspection of connectors and cables ensures stable operation.
- The fanless design eliminates the need for fan replacement or internal dust cleaning.

Software & Updates:
Compatible with major industrial operating systems (Windows Embedded, Windows XP/7, Linux). BIOS and driver updates are periodically released to enhance compatibility and performance.

Lifecycle & Reliability:
The APC-3280 is designed for long-term availability and stable operation in industrial environments. The 50,000-hour backlight life and solid-state design contribute to extended service life and reduced total cost of ownership.

---

### Summary

The Aplex APC-3280 is a rugged, stainless steel, fanless 12-inch SVGA panel PC engineered for industrial and hygienic applications. Combining a durable IP65-rated front panel, energy-efficient Intel® mobile processors, and versatile I/O connectivity, it delivers reliable performance in environments where cleanliness, durability, and silent operation are critical. Its flexible mounting options, wide DC power input, and long-life display make it an ideal solution for automation, control, and monitoring systems across manufacturing, food processing, and outdoor industries.

---

Key Technical Highlights (Quick Reference):

| Parameter | Specification |
|------------|----------------|
| Display | 12" SVGA TFT LCD, 800×600, 300 cd/m² |
| Processor | Intel® Celeron® M 1.0 GHz (up to Pentium® 4 M 1.6 GHz) |
| Memory | Up to 1 GB RAM |
| Storage | 1 × 2.5" HDD, 1 × CF slot |
| I/O Ports | 1 × COM, 4 × USB 2.0, 1 × VGA, 1 × LAN |
| Power Input | DC 11–28 V (recommended 16–36 VDC) |
| Dimensions | 330 × 260 × 59 mm |
| Enclosure | Stainless steel |
| Mounting | VESA 75 |
| Protection | IP65 front (NEMA 4) |
| Operating Temp | 0°C to 50°C |
| Certifications | CE, FCC Class A |

---

In essence, the APC-3280 exemplifies Aplex’s commitment to robust, hygienic, and efficient industrial computing solutions. Its stainless steel construction, fanless operation, and flexible configuration options make it a dependable choice for mission-critical applications requiring both performance and durability.
