Comprehensive Product Summary – APC-3562 Industrial Fanless Panel PC

---

### 1. Product Overview

Product Name: APC-3562
Model Number: APC-3562
Series: APC-3000 Series Industrial Panel PCs
Article Number: APC-3562
Manufacturer: Aplex Technology Inc.

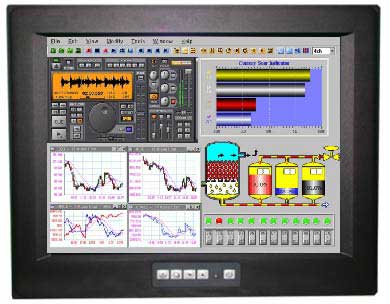

The Aplex APC-3562 is a 15-inch XGA industrial fanless panel PC designed for demanding industrial automation, control, and monitoring applications. It combines robust mechanical construction, flexible expansion capability, and reliable fanless operation for environments where durability, stability, and long-term availability are critical. The system integrates a 15" XGA TFT LCD display, supports two PCI expansion slots, and offers a wide DC power input range, making it suitable for factory automation, process control, machine interface, and embedded industrial computing.

---

### 2. Key Features

- 15" XGA TFT LCD Display:
Native resolution of 1024 × 768 pixels, providing clear and sharp image quality suitable for industrial HMI (Human-Machine Interface) applications.

- Fanless Design:
The system operates without a cooling fan, reducing noise, minimizing dust ingress, and improving reliability in harsh environments.

- Processor:
Equipped with an Intel Celeron M 1.0 GHz processor, offering a balance between performance and low power consumption for embedded control tasks.

- Memory:
Supports 1 × DDR SODIMM slot, expandable up to 1 GB of system memory.

- Expansion Capability:
Includes 2 × PCI expansion slots, allowing integration of additional I/O, communication, or control cards for customized industrial applications.

- Touchscreen Option:
Available with an optional resistive touchscreen, enabling intuitive user interaction even when wearing gloves.

- Front Panel Protection:
The front bezel is NEMA 4 / IP65 compliant, ensuring protection against dust and water ingress. An optional stainless steel front bezel is available for enhanced corrosion resistance and hygiene-critical environments.

- Connectivity:
Provides a comprehensive set of industrial I/O interfaces:
- 2 × USB 2.0 ports
- 4 × COM ports (serial interfaces)
- 1 × LAN port (Ethernet)
- 1 × CompactFlash (CF) slot
- Space for 1 × 2.5" HDD and 1 × slim CD-ROM drive

- Power Input:
Wide-range DC 11–28V input supports flexible power configurations in industrial systems.

- Mounting Options:
Designed for panel mounting and VESA 75 compatibility, allowing easy integration into control panels or machinery.

- Operating Temperature:
Reliable operation in ambient temperatures from 0°C to 50°C, with storage capability from –10°C to 75°C.

- Certifications:
Complies with CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display:
- Size: 15 inches (diagonal)
- Type: TFT LCD
- Resolution: 1024 × 768 (XGA)
- Brightness (Luminance): 400 cd/m²
- Backlight Lifetime: 50,000 hours (typical)
- Touchscreen: Optional 5-wire resistive type

Mechanical Construction:
- Chassis: Heavy-duty steel construction for durability
- Front Bezel: Aluminum or optional stainless steel front bezel
- Front Panel Rating: NEMA 4 / IP65 compliant
- Mounting: Panel mount or VESA 75 mm
- Dimensions: 410 (W) × 310 (H) × 106 (D) mm
- Panel Cutout: 390 × 290 mm
- Weight: Approximately 7.3 kg (net weight)

System Hardware:
- CPU: Intel Celeron M 1.0 GHz
- Chipset: Intel 852GM + ICH4
- Memory: 1 × DDR SODIMM slot, up to 1 GB
- Storage:
- 1 × 2.5" HDD bay
- 1 × slim-type CD-ROM drive bay
- 1 × CompactFlash slot

Expansion:
- 2 × PCI slots for add-on cards

I/O Interfaces:
- 2 × USB 2.0 ports
- 4 × COM ports (RS-232/422/485 configurable)
- 1 × RJ-45 LAN port (10/100 Mbps Ethernet)
- Audio and optional GPIO depending on configuration

Power:
- Input Voltage: DC 11–28V
- Power Consumption: Optimized for low power operation (exact value dependent on configuration)

Environmental:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: –10°C to 75°C
- Relative Humidity: 10%–90% (non-condensing)
- Vibration/Shock Resistance: Industrial-grade tolerance (typical for panel-mount systems)

Certifications:
- CE Marking
- FCC Class A compliance

---

### 4. Functionality

The APC-3562 functions as a fully integrated industrial panel PC, combining computing, display, and control interfaces in a single compact unit. It is designed for continuous operation in industrial environments where reliability and minimal maintenance are essential.

How It Works:
- The system boots from internal storage (HDD, CF, or CD-ROM) and runs standard operating systems such as Windows Embedded, Linux, or other industrial control software.
- The integrated LCD and optional touchscreen provide a direct user interface for monitoring and control.
- The fanless design uses passive cooling through the metal chassis, ensuring silent operation and reduced dust accumulation.
- The dual PCI slots allow users to expand the system with specialized I/O cards, motion controllers, or communication interfaces.

Use Cases & Applications:
- Factory automation and process control
- Machine vision and inspection systems
- HMI terminals for production lines
- Building automation and facility management
- Transportation and logistics control panels
- Data acquisition and monitoring systems
- Kiosk and information terminals in industrial settings

Compatibility:
- Compatible with standard PC operating systems (Windows XP Embedded, Windows 7 Embedded, Linux)
- Supports standard PCI interface cards
- Integrates easily with PLCs, sensors, and industrial networks via serial and Ethernet ports

---

### 5. Components & Accessories

Included Components:
- APC-3562 main unit (panel PC)
- Power connector terminal block
- Mounting brackets for panel installation
- User manual and driver CD (depending on shipment configuration)

Optional Accessories:
- Resistive touchscreen module
- Stainless steel front bezel
- 2.5" HDD or SSD storage device
- Slim-type CD-ROM or DVD-ROM drive
- CompactFlash card for embedded OS
- PCI expansion cards (I/O, communication, motion control)
- VESA mounting kit
- Power adapter (for AC to DC conversion if required)

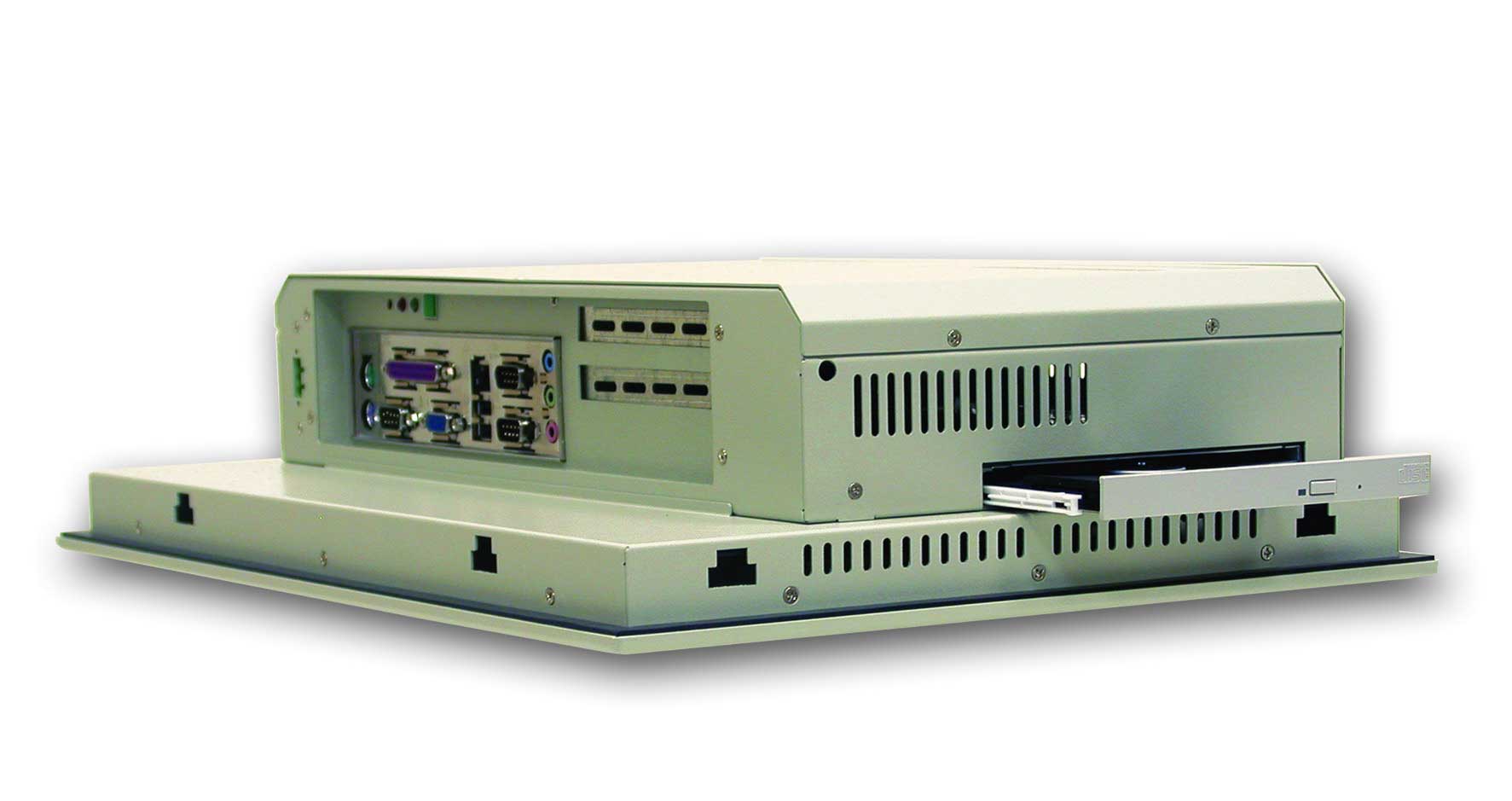

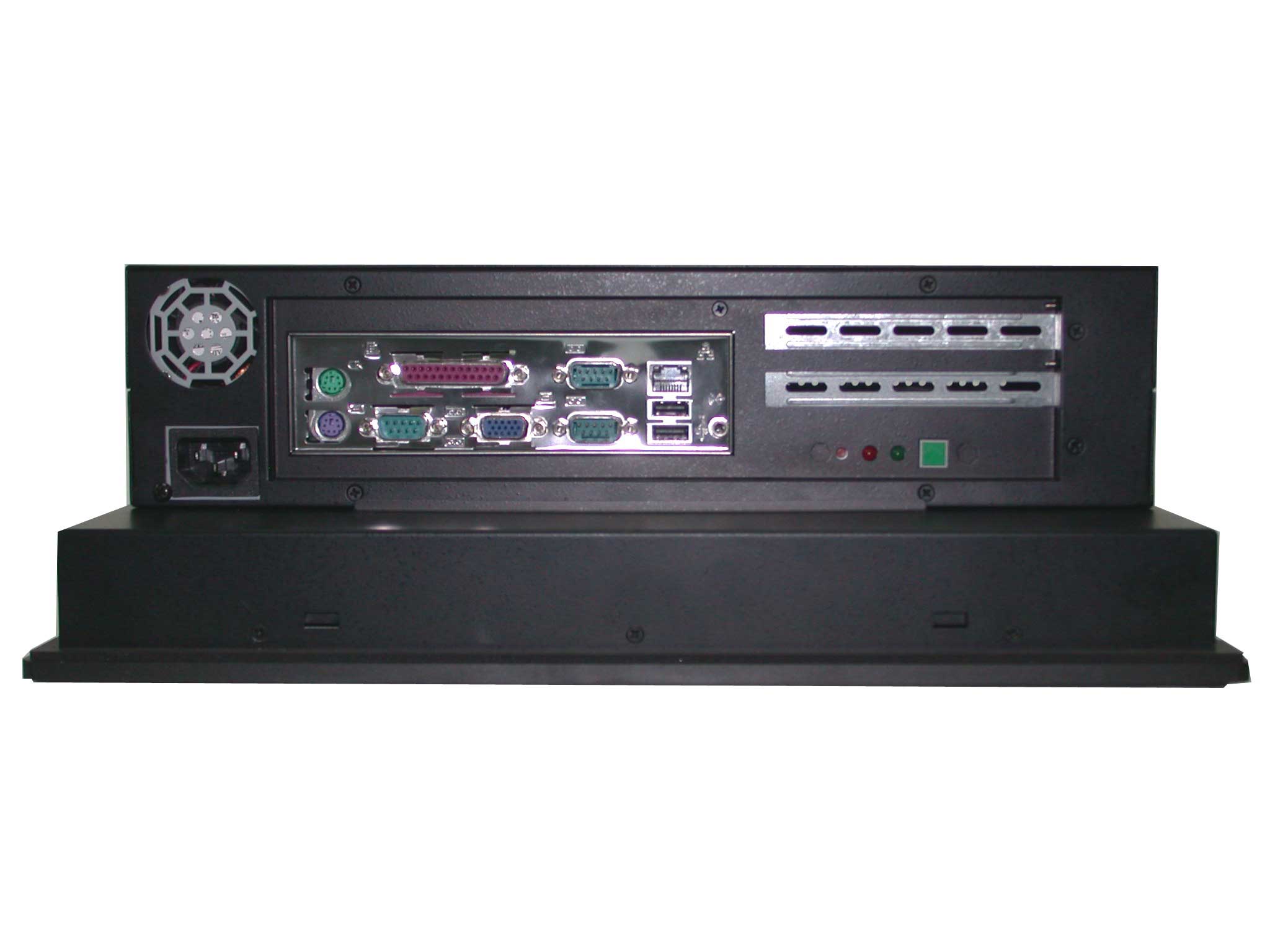

Connectors:
- USB ports (Type A)
- COM ports (DB9 connectors)
- LAN port (RJ-45)
- Power input terminal block
- Optional audio and GPIO connectors

---

### 6. Installation & Setup

Requirements:
- DC power supply within 11–28V range
- Panel cutout dimensions: 390 × 290 mm
- Adequate ventilation for passive cooling
- Grounded installation environment for EMC compliance

Mounting Options:
- Panel Mount: Standard installation using included mounting brackets; suitable for control cabinets and operator panels.
- VESA 75 Mount: Optional mounting for arm or wall installations.

Configuration:
- Memory and storage devices can be installed or upgraded via accessible internal bays.
- BIOS and system settings configurable through standard PC interface.
- Operating system installation via CD-ROM, USB, or CompactFlash.
- Touchscreen calibration (if equipped) performed through software utilities.

Setup Steps:
1. Prepare panel cutout and ensure proper alignment.
2. Insert the APC-3562 into the cutout and secure with mounting brackets.
3. Connect DC power input and I/O cables.
4. Power on the system and install the desired operating system.
5. Configure network and serial communication settings.
6. Calibrate touchscreen (if applicable) and install application software.

---

### 7. Performance & Capabilities

Processing Performance:
- The Intel Celeron M 1.0 GHz CPU provides stable performance for industrial control, data acquisition, and HMI applications.
- Fanless architecture ensures consistent thermal performance without moving parts.

Graphics & Display:
- Integrated Intel 852GM graphics chipset supports XGA resolution with 400 cd/m² brightness, ensuring visibility in industrial lighting conditions.

Memory & Storage:
- Up to 1 GB DDR memory supports multitasking for control and monitoring applications.
- Flexible storage options (HDD, CF, CD-ROM) allow for both embedded and removable media configurations.

Expansion & Connectivity:
- Dual PCI slots enable system customization for specialized industrial interfaces.
- Multiple COM ports support legacy serial devices, while USB and LAN provide modern connectivity.

Efficiency:
- Low power consumption due to mobile-class CPU and fanless design.
- Wide DC input range allows direct connection to industrial power systems.

Limitations:
- Memory limited to 1 GB (DDR SODIMM)
- CPU performance suitable for control and HMI tasks but not for high-end computing or graphics-intensive applications.
- Operating temperature limited to 0–50°C; not suitable for extreme outdoor environments without additional protection.

---

### 8. Standards & Compliance

Environmental & Safety Standards:
- NEMA 4 / IP65 Front Panel: Dust-tight and protected against water jets, suitable for washdown or dusty environments.
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. electromagnetic interference (EMI) standards for industrial equipment.

Industry Standards:
- VESA 75 Mounting Interface: Ensures compatibility with standard mounting arms and brackets.
- PCI Expansion Interface: Complies with standard PCI bus specifications for add-on cards.
- RoHS Compliance: Manufactured in accordance with environmental directives restricting hazardous substances (typical for Aplex products).

---

### 9. Additional Information

Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration) covering defects in materials and workmanship.

Technical Support:
- Aplex provides technical documentation, driver downloads, and firmware updates through its official support portal.
- Engineering support available for system integration and customization.

Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of front panel and connectors recommended.
- Storage devices (HDD/CF) may require replacement after extended use.

Software & Updates:
- Supports BIOS updates and driver packages from Aplex.
- Compatible with major industrial operating systems and SCADA/HMI software platforms.

Lifecycle & Availability:
- Designed for long-term availability and stable supply for industrial OEMs and system integrators.
- Backward compatibility within the APC-3000 series ensures easy migration and upgrade paths.

---

### Summary

The Aplex APC-3562 is a 15-inch XGA fanless industrial panel PC engineered for reliability, flexibility, and performance in industrial automation environments. With its Intel Celeron M 1.0 GHz processor, dual PCI expansion slots, IP65-rated front panel, and wide DC power input, it provides a robust platform for HMI, control, and monitoring applications. The combination of fanless operation, durable steel construction, and optional stainless steel bezel makes it suitable for harsh or hygiene-sensitive environments such as manufacturing, food processing, and logistics control systems.

Its comprehensive I/O connectivity, expandability, and long product lifecycle make the APC-3562 a dependable choice for system integrators and industrial OEMs seeking a stable embedded computing solution.
