Comprehensive Product Summary – APC-3917 19" SXGA Slim Fanless Core2Duo Panel PC

---

### 1. Product Overview

Product Name: APC-3917
Model Number: APC-3917
Series: APC-3000 Series Industrial Panel PCs
Article Number: APC-3917
Manufacturer: Aplex Technology Inc.

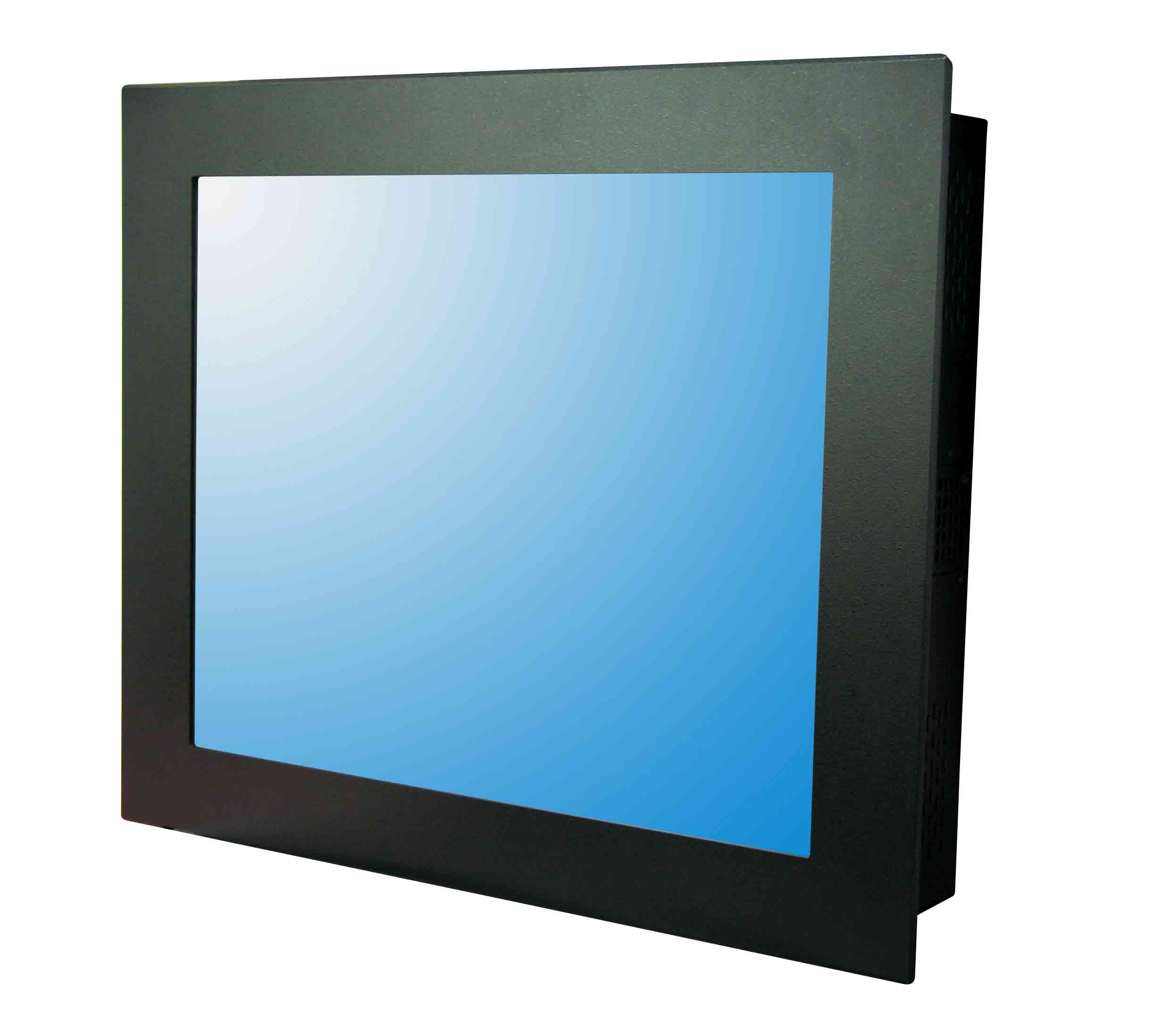

The APC-3917 is a 19-inch SXGA slim fanless industrial panel PC designed for high-reliability applications in industrial automation, control systems, and embedded computing environments. It integrates a Core2Duo 1.6 GHz processor in a compact, all-in-one panel design that combines display, computing, and I/O interfaces in a single ruggedized unit. The system features a 1× PCI expansion slot, multiple communication ports, and flexible mounting options, making it suitable for factory automation, process monitoring, and machine control applications where durability, silent operation, and performance are critical.

---

### 2. Key Features

- 19" SXGA TFT LCD Display:
High-resolution 1280×1024 display with 300 cd/m² luminance for clear, detailed visualization in industrial environments.

- Fanless Core2Duo Processor:
Equipped with an Intel® Core2Duo 1.6 GHz CPU, providing efficient performance with low power consumption and silent operation.

- Slim All-in-One Design:
Combines display, computing unit, and I/O interfaces in a compact chassis (484 × 400 × 94.3 mm), ideal for space-constrained installations.

- Expansion Capability:
Includes 1× PCI slot for additional interface or control cards and 1× PCIe Mini Card slot for wireless or communication modules.

- Comprehensive Connectivity:
Offers 3× COM ports, 4× USB 2.0 ports, 2× Gigabit Ethernet (GbE) ports, and 1× VGA output for peripheral and network integration.

- Storage Flexibility:
Supports 1× 2.5" HDD and 1× CompactFlash (CF) slot for data storage and system expansion.

- Optional Resistive Touchscreen:
Provides intuitive user interaction and control, suitable for HMI (Human-Machine Interface) applications.

- Wide DC Power Input Range:
Operates from 16–36 VDC, ensuring compatibility with industrial power systems and vehicle-based installations.

- Rugged Construction:
Built with a steel front panel and housing, ensuring mechanical durability and resistance to vibration and shock.

- Environmental Protection:
NEMA 4 / IP65 compliant front bezel protects against dust and water ingress, suitable for harsh industrial environments.

- Flexible Mounting Options:
Supports panel mount and VESA 75 mounting standards for versatile installation on machinery, walls, or control panels.

- Certified for Industrial Use:
Meets CE and FCC Class A standards for electromagnetic compatibility and safety compliance.

---

### 3. Technical Specifications

Display:
- Type: 19" SXGA TFT LCD
- Resolution: 1280 × 1024 pixels
- Luminance: 300 cd/m²
- Backlight Lifetime: 50,000 hours (typical)
- Touchscreen: Optional 5-wire resistive touch panel

Processor & Memory:
- CPU: Intel® Core2Duo 1.6 GHz
- Memory: 512 MB RAM (expandable depending on configuration)

Storage:
- Drive Bay: 1 × 2.5" HDD slot
- Removable Media: 1 × CompactFlash (CF) slot

Expansion:
- PCI Slot: 1 × PCI expansion slot
- Mini PCIe Slot: 1 × PCIe Mini Card slot

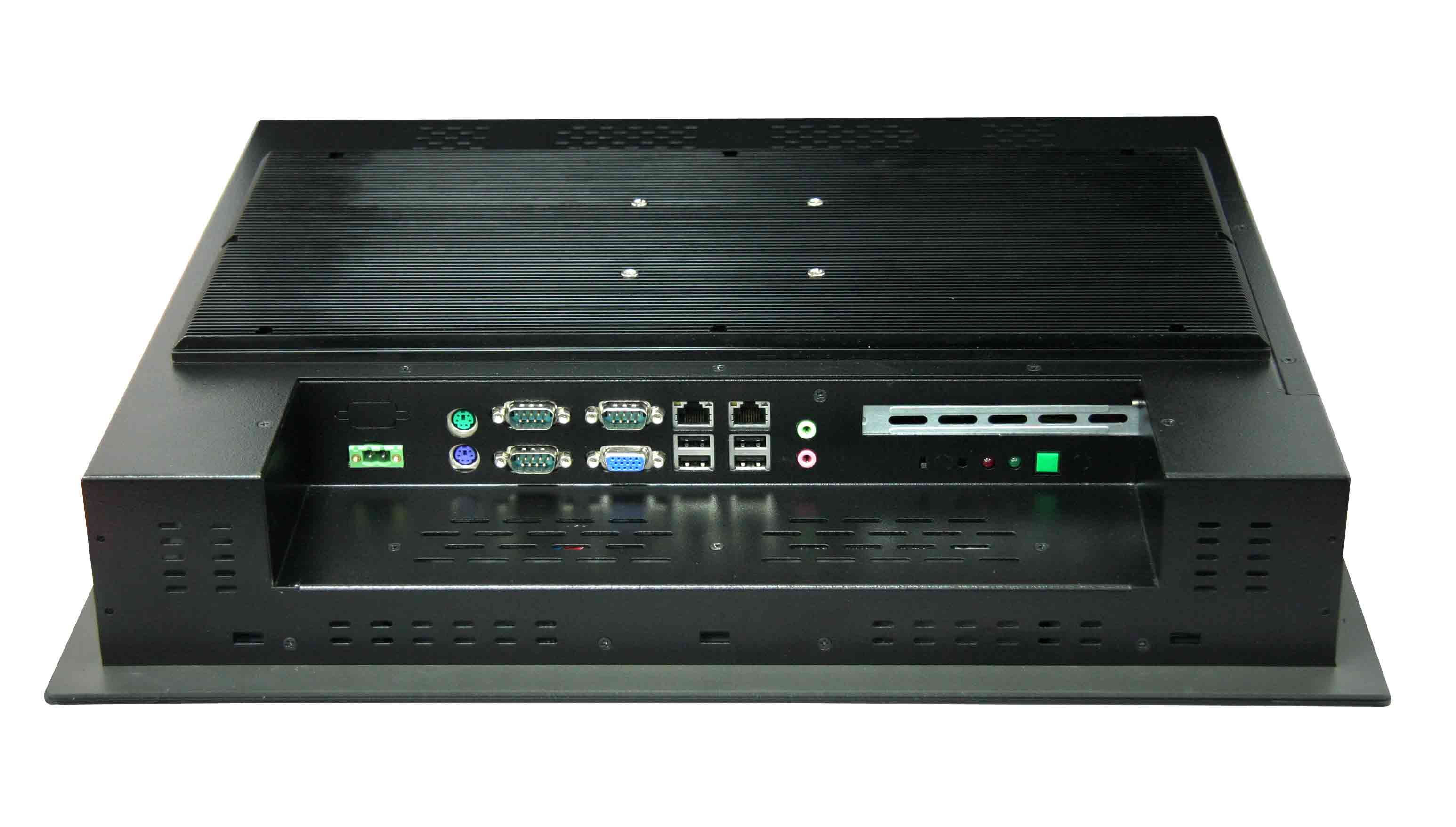

I/O Interfaces:
- Serial Ports: 3 × COM ports (RS-232/422/485 configurable depending on model)
- USB Ports: 4 × USB 2.0 ports
- Ethernet: 2 × Gigabit Ethernet (GbE) ports
- Video Output: 1 × VGA port

Power:
- Input Voltage: 16–36 VDC (nominal 19 VDC)
- Power Consumption: Optimized for fanless operation (exact wattage dependent on configuration)

Mechanical:
- Construction: Steel front panel and housing
- Front Bezel Protection: NEMA 4 / IP65 compliant
- Mounting Options: Panel mount / VESA 75 mount
- Cut-out Dimensions: 448 × 360 mm
- Overall Dimensions: 484 (W) × 400 (H) × 94.3 (D) mm
- Weight: Approx. 8–10 kg (depending on configuration)

Environmental:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10%–90% non-condensing

Certifications:
- EMC Compliance: CE / FCC Class A
- Ingress Protection: NEMA 4 / IP65 front bezel

---

### 4. Functionality

The APC-3917 functions as a fully integrated industrial panel PC, combining display, processing, and I/O in a single enclosure. It is designed for continuous operation in industrial environments where reliability and low maintenance are essential.

How It Works:
- The system boots from its internal HDD or CF storage and runs standard operating systems such as Windows Embedded, Linux, or other industrial OS platforms.
- The Core2Duo processor provides sufficient computing power for SCADA, HMI, data acquisition, and control applications.
- The fanless design ensures silent operation and reduces mechanical wear, improving long-term reliability.
- The touchscreen interface (optional) allows operators to interact directly with control software, simplifying machine operation and monitoring.

Use Cases & Applications:
- Factory automation and process control
- Machine vision and inspection systems
- Industrial HMI terminals
- Building automation and facility management
- Transportation and vehicle-mounted control systems
- Data logging and monitoring stations
- Kiosk and information display systems

Compatibility:
- Compatible with standard industrial communication protocols via COM ports and Ethernet interfaces.
- Supports integration with PLCs, sensors, and industrial controllers.
- Expandable through PCI and Mini PCIe slots for additional I/O, fieldbus, or wireless modules.

---

### 5. Components & Accessories

Included Components:
- APC-3917 main unit (panel PC)
- Power connector or adapter (depending on configuration)
- Mounting brackets for panel or VESA installation
- User manual and documentation

Optional Accessories:
- Resistive touchscreen module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash storage card
- PCI expansion cards (e.g., additional serial ports, fieldbus interfaces)
- Mini PCIe wireless communication module (Wi-Fi, 3G/4G, etc.)
- Power adapter (16–36 VDC input compatible)
- Cables for COM, USB, and Ethernet connections

Connectors:
- Standard industrial-grade connectors for power, I/O, and network interfaces
- VGA port for external display connection
- USB ports for peripheral devices such as keyboard, mouse, or USB storage

---

### 6. Installation & Setup

Requirements:
- DC power source within 16–36 VDC range
- Proper ventilation and clearance for heat dissipation
- Mounting surface compatible with panel or VESA 75 standard

Mounting Options:
- Panel Mount: Fits into a 448 × 360 mm cut-out; secured with mounting clamps or screws.
- VESA 75 Mount: Allows attachment to arms, brackets, or wall mounts using standard 75 × 75 mm hole pattern.

Configuration:
- BIOS and system settings accessible via on-screen interface.
- Operating system installation via USB or CF card.
- Network and serial communication setup through standard OS configuration tools.
- Optional touchscreen calibration via software utility.

Setup Steps:
1. Prepare the mounting surface and ensure cut-out dimensions match specifications.
2. Insert the panel PC into the cut-out and secure it using the provided mounting hardware.
3. Connect power, Ethernet, and peripheral cables.
4. Power on the system and configure BIOS or OS settings as required.
5. Install application software or connect to existing control systems.

---

### 7. Performance & Capabilities

Processing Performance:
- The Intel® Core2Duo 1.6 GHz CPU delivers balanced performance for multitasking and industrial control applications.
- Fanless thermal design ensures stable operation without active cooling components.

Graphics & Display:
- 19" SXGA (1280×1024) display provides sharp, high-contrast visuals suitable for detailed process visualization.
- Optional resistive touchscreen enhances interactivity and usability in control environments.

Networking & Communication:
- Dual Gigabit Ethernet ports enable redundant or segmented network configurations for improved reliability.
- Multiple COM ports support legacy and modern serial communication standards.

Storage & Expansion:
- Supports both HDD and CF storage for flexible data management.
- PCI and Mini PCIe slots allow hardware customization for specialized industrial interfaces.

Efficiency & Reliability:
- Fanless design reduces dust ingress and mechanical failure points.
- Low power consumption supports energy-efficient operation.
- Extended operating temperature range ensures performance stability in varied environments.

Limitations:
- Limited to Core2Duo performance class; not intended for high-end graphics or computationally intensive workloads.
- Memory capacity (512 MB standard) may require upgrade for modern OS or applications.
- Fanless design may limit performance scalability due to thermal constraints.

---

### 8. Standards & Compliance

Certifications:
- CE Certified: Conforms to European safety and electromagnetic compatibility standards.
- FCC Class A: Meets U.S. Federal Communications Commission requirements for industrial and commercial environments.

Environmental & Mechanical Standards:
- NEMA 4 / IP65 Front Bezel: Ensures protection against dust, water spray, and industrial contaminants.
- RoHS Compliance: Manufactured in accordance with environmental regulations restricting hazardous substances (typical for Aplex products).

Industry Standards Supported:
- VESA 75 Mounting Standard for mechanical compatibility.
- PCI and PCIe Mini Card Standards for expansion compatibility.
- Ethernet IEEE 802.3 for network communication.
- USB 2.0 Specification for peripheral connectivity.

---

### 9. Additional Information

Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration).
- Covers defects in materials and workmanship under normal operating conditions.

Support:
- Technical documentation, drivers, and manuals available from Aplex Technology’s support portal.
- Firmware and BIOS updates provided periodically for performance and compatibility improvements.
- Customer service and RMA support available through authorized distributors.

Maintenance:
- Minimal maintenance required due to fanless design.
- Periodic cleaning of front panel and connectors recommended.
- Storage devices (HDD/CF) may require replacement based on usage cycles.

Software & Updates:
- Compatible with major operating systems including Windows Embedded, Windows XP/7 (depending on configuration), and Linux distributions.
- BIOS and driver updates available for download from manufacturer’s website.
- Optional software utilities for touchscreen calibration and system monitoring.

---

### Summary

The Aplex APC-3917 is a robust, fanless 19-inch SXGA industrial panel PC engineered for demanding automation and control applications. Its Core2Duo 1.6 GHz processor, comprehensive I/O options, and rugged steel construction make it a reliable solution for environments requiring continuous operation, low maintenance, and flexible integration. With IP65 front protection, wide DC input range, and expandable architecture, the APC-3917 delivers a balance of performance, durability, and adaptability for industrial, transportation, and embedded system deployments.
