1. Product Overview
Product Name: AX5212
Model Number: AX5212
Series: AX5000 Series (Analog Output ISA Cards)
Article Number: AX5212
Manufacturer: Axiom
The Axiom AX5212 is an industrial-grade analog output expansion card designed for ISA bus systems. It provides eight independent digital-to-analog (DA) output channels with 12-bit resolution and a maximum sampling rate of 33 kS/s. Engineered for precision analog signal generation, the AX5212 is suitable for control, automation, and data acquisition applications that require reliable analog voltage or current outputs. The card integrates seamlessly with legacy ISA-based industrial PCs and supports multiple output ranges, making it a versatile solution for laboratory instrumentation, process control, and test environments.
2. Key Features
- Eight Analog Output Channels: Provides 8 independent DA channels for simultaneous or sequential analog signal generation.
- 12-bit Resolution: Ensures fine granularity and high precision in analog output signals, suitable for control and measurement applications.
- Sampling Rate: Capable of up to 33 kS/s (33,000 samples per second), enabling smooth waveform generation and responsive control.
- Multiple Output Ranges: Configurable output voltage and current ranges including 0–5 V, 0–10 V, ±2.5 V, ±5 V, and 4–20 mA, supporting a wide variety of analog devices and sensors.
- ISA Bus Interface: Designed for standard ISA bus architecture, ensuring compatibility with legacy industrial PC systems.
- Windows Driver Support: Includes a Windows-compatible driver for easy integration with modern software environments and application development platforms.
- 50-Pin Connector: Utilizes a standard 50-pin connector for reliable signal transmission and easy interfacing with external equipment or terminal boards.
- Industrial Form Factor: Compact and robust design (334 mm × 99 mm) optimized for installation in industrial PC chassis.
- Manufacturer Reliability: Produced by Axiom, known for high-quality industrial I/O and data acquisition hardware.
3. Technical Specifications
- Bus Interface: ISA (Industry Standard Architecture)
- Analog Output Channels: 8 independent DA channels
- Resolution: 12 bits per channel
- Maximum Sampling Rate: 33 kS/s (33,000 samples per second)
- Output Voltage Ranges:
- 0 to 5 V
- 0 to 10 V
- ±2.5 V
- ±5 V
- Output Current Range: 4 to 20 mA (programmable current loop output)
- Connector Type: 50-pin header connector (standard industrial pinout)
- Physical Dimensions: 334 mm (length) × 99 mm (height)
- Weight: Approx. 0.5–0.8 kg (typical for ISA cards of this size; actual weight may vary)
- Material: Multi-layer PCB with industrial-grade components and gold-plated edge connector for reliable ISA bus contact
- Power Requirements: Supplied via ISA bus (standard ±12 V and +5 V rails)
- Operating Temperature Range: Typically 0°C to +50°C (industrial environment)
- Storage Temperature Range: -20°C to +70°C
- Humidity: 0–90% RH, non-condensing
- Insulation Resistance: >100 MΩ between analog and digital grounds (typical)
- Output Drive Capability: Sufficient to drive standard analog loads and instrumentation inputs
4. Functionality
The Axiom AX5212 functions as an analog output (DA) interface card for ISA-based computer systems. It converts digital data from the host PC into precise analog voltage or current signals. Each of the eight channels can be individually programmed to output a specific voltage or current level within the supported ranges.
Operation Principle:
- The host PC sends digital values to the AX5212 via the ISA bus.
- The onboard 12-bit digital-to-analog converters (DACs) translate these digital values into corresponding analog signals.
- The output stage conditions the signal to the selected range (voltage or current).
- The analog outputs are available through the 50-pin connector for connection to external devices such as actuators, transducers, or control circuits.
Use Cases and Applications:
- Industrial process control systems requiring analog control outputs.
- Laboratory instrumentation for signal generation and testing.
- Data acquisition systems needing analog output channels for simulation or control.
- Automation systems controlling motors, valves, or other analog-driven components.
- Educational and research environments for analog signal experimentation.
Compatibility:
- Compatible with ISA bus industrial PCs and embedded controllers.
- Supported by Windows operating systems via the provided driver.
- Can interface with Axiom terminal boards, signal conditioning modules, or third-party analog input/output systems.
5. Components & Accessories
Included Items:
- AX5212 ISA card (main unit)
- Windows driver software (on CD or downloadable package)
- User manual and installation guide
- 50-pin connector pinout documentation
Optional Accessories:
- 50-pin flat ribbon cable for external connection
- Terminal board or breakout module for easy wiring of analog signals
- Mounting brackets or retention clips for secure installation in industrial PC chassis
- Software development kit (SDK) for custom application integration
Connectors and Interfaces:
- Main Connector: 50-pin header for analog outputs and ground references
- Bus Connector: ISA edge connector (gold-plated contacts) for data, address, and power lines
6. Installation & Setup
System Requirements:
- ISA bus slot available on the host PC motherboard
- Compatible operating system (Windows with Axiom driver support)
- Sufficient power supply capacity for the additional card load
Installation Procedure:
1. Power off the host PC and disconnect it from the power source.
2. Insert the AX5212 card into an available ISA slot, ensuring proper alignment and secure seating.
3. Fasten the card bracket to the chassis using the provided screw.
4. Connect the 50-pin cable or terminal board to the card’s output connector.
5. Power on the system and install the Windows driver software.
6. Configure the output ranges and channel parameters using the provided software or API.
Configuration:
- Output ranges can be selected via software configuration or onboard jumpers (depending on revision).
- Channel calibration and offset adjustments can be performed through the driver utility.
- The driver provides functions for writing analog values, setting update rates, and synchronizing outputs.
Mounting Options:
- Standard ISA slot mounting within industrial PC chassis.
- Optional retention clips or brackets for vibration-resistant installations.
7. Performance & Capabilities
Speed and Throughput:
- Maximum update rate of 33 kS/s across all channels, allowing for dynamic waveform generation and responsive control loops.
- Low latency communication through the ISA bus interface.
Resolution and Accuracy:
- 12-bit resolution provides 4096 discrete output levels per channel.
- High linearity and low noise output ensure accurate analog representation of digital data.
Capacity and Channel Independence:
- Eight fully independent channels allow simultaneous control of multiple analog devices.
- Each channel can be configured for different output ranges, enabling mixed voltage and current outputs in one system.
Efficiency and Stability:
- Stable output under varying load conditions due to precision reference circuitry.
- Low drift and high repeatability suitable for long-term industrial operation.
Limitations:
- Designed for ISA bus systems only; not compatible with PCI or PCIe slots.
- Sampling rate limited to 33 kS/s, which may not be sufficient for high-frequency waveform generation.
- Requires proper grounding and shielding to minimize analog noise in electrically noisy environments.
8. Standards & Compliance
Certifications and Compliance:
- Designed in accordance with ISA bus electrical and mechanical specifications.
- Complies with CE and FCC Class A requirements for electromagnetic compatibility (typical for industrial cards).
- Manufactured under ISO 9001 quality management standards.
- RoHS compliant (lead-free manufacturing process).
Industry Standards:
- ISA (Industry Standard Architecture) bus interface standard.
- Analog output ranges conform to common industrial control signal standards (0–10 V, ±5 V, 4–20 mA).
- Compatible with standard industrial wiring and terminal board configurations.
9. Additional Information
Warranty:
- Standard manufacturer’s warranty (typically 1–2 years) covering defects in materials and workmanship.
Technical Support:
- Axiom provides technical documentation, driver updates, and application notes.
- Support available via email, online portal, or authorized distributors.
Maintenance:
- Minimal maintenance required; periodic inspection of connectors and contacts recommended.
- Keep the card free from dust and contaminants to ensure long-term reliability.
Software and Firmware Updates:
- Windows driver updates available from Axiom’s official website.
- Firmware updates (if applicable) can be applied via software utility.
Service and Replacement:
- Replacement units and spare parts available through Axiom’s distribution network.
- Calibration services may be offered for precision applications.
Environmental Considerations:
- Designed for industrial environments with moderate temperature and humidity.
- Ensure adequate ventilation within the PC chassis to maintain stable operating temperature.
Summary
The Axiom AX5212 8-Channel 12-bit ISA Analog Output Card is a robust and versatile solution for generating precise analog signals in industrial and laboratory environments. With eight independent 12-bit DA channels, configurable voltage and current output ranges, and a 33 kS/s sampling rate, it provides reliable performance for control, automation, and data acquisition tasks. Its compatibility with ISA bus systems and Windows driver support make it ideal for legacy system upgrades or specialized industrial applications requiring stable analog output capabilities.
Key Highlights:
- 8 analog output channels, 12-bit resolution
- Output ranges: 0–5 V, 0–10 V, ±2.5 V, ±5 V, 4–20 mA
- Sampling rate: 33 kS/s
- ISA bus interface, 50-pin connector
- Dimensions: 334 × 99 mm
- Windows driver support
- Manufactured by Axiom for industrial reliability
This comprehensive analog output card delivers precision, flexibility, and long-term dependability for engineers and system integrators working with ISA-based control and measurement systems.
Product Name: AX5212
Model Number: AX5212
Series: AX5000 Series (Analog Output ISA Cards)
Article Number: AX5212
Manufacturer: Axiom
The Axiom AX5212 is an industrial-grade analog output expansion card designed for ISA bus systems. It provides eight independent digital-to-analog (DA) output channels with 12-bit resolution and a maximum sampling rate of 33 kS/s. Engineered for precision analog signal generation, the AX5212 is suitable for control, automation, and data acquisition applications that require reliable analog voltage or current outputs. The card integrates seamlessly with legacy ISA-based industrial PCs and supports multiple output ranges, making it a versatile solution for laboratory instrumentation, process control, and test environments.
2. Key Features
- Eight Analog Output Channels: Provides 8 independent DA channels for simultaneous or sequential analog signal generation.
- 12-bit Resolution: Ensures fine granularity and high precision in analog output signals, suitable for control and measurement applications.
- Sampling Rate: Capable of up to 33 kS/s (33,000 samples per second), enabling smooth waveform generation and responsive control.
- Multiple Output Ranges: Configurable output voltage and current ranges including 0–5 V, 0–10 V, ±2.5 V, ±5 V, and 4–20 mA, supporting a wide variety of analog devices and sensors.
- ISA Bus Interface: Designed for standard ISA bus architecture, ensuring compatibility with legacy industrial PC systems.
- Windows Driver Support: Includes a Windows-compatible driver for easy integration with modern software environments and application development platforms.
- 50-Pin Connector: Utilizes a standard 50-pin connector for reliable signal transmission and easy interfacing with external equipment or terminal boards.
- Industrial Form Factor: Compact and robust design (334 mm × 99 mm) optimized for installation in industrial PC chassis.
- Manufacturer Reliability: Produced by Axiom, known for high-quality industrial I/O and data acquisition hardware.
3. Technical Specifications
- Bus Interface: ISA (Industry Standard Architecture)
- Analog Output Channels: 8 independent DA channels
- Resolution: 12 bits per channel
- Maximum Sampling Rate: 33 kS/s (33,000 samples per second)
- Output Voltage Ranges:
- 0 to 5 V
- 0 to 10 V
- ±2.5 V
- ±5 V
- Output Current Range: 4 to 20 mA (programmable current loop output)
- Connector Type: 50-pin header connector (standard industrial pinout)
- Physical Dimensions: 334 mm (length) × 99 mm (height)
- Weight: Approx. 0.5–0.8 kg (typical for ISA cards of this size; actual weight may vary)
- Material: Multi-layer PCB with industrial-grade components and gold-plated edge connector for reliable ISA bus contact
- Power Requirements: Supplied via ISA bus (standard ±12 V and +5 V rails)
- Operating Temperature Range: Typically 0°C to +50°C (industrial environment)
- Storage Temperature Range: -20°C to +70°C
- Humidity: 0–90% RH, non-condensing
- Insulation Resistance: >100 MΩ between analog and digital grounds (typical)
- Output Drive Capability: Sufficient to drive standard analog loads and instrumentation inputs
4. Functionality
The Axiom AX5212 functions as an analog output (DA) interface card for ISA-based computer systems. It converts digital data from the host PC into precise analog voltage or current signals. Each of the eight channels can be individually programmed to output a specific voltage or current level within the supported ranges.
Operation Principle:
- The host PC sends digital values to the AX5212 via the ISA bus.
- The onboard 12-bit digital-to-analog converters (DACs) translate these digital values into corresponding analog signals.
- The output stage conditions the signal to the selected range (voltage or current).
- The analog outputs are available through the 50-pin connector for connection to external devices such as actuators, transducers, or control circuits.
Use Cases and Applications:
- Industrial process control systems requiring analog control outputs.
- Laboratory instrumentation for signal generation and testing.
- Data acquisition systems needing analog output channels for simulation or control.
- Automation systems controlling motors, valves, or other analog-driven components.
- Educational and research environments for analog signal experimentation.
Compatibility:
- Compatible with ISA bus industrial PCs and embedded controllers.
- Supported by Windows operating systems via the provided driver.
- Can interface with Axiom terminal boards, signal conditioning modules, or third-party analog input/output systems.
5. Components & Accessories
Included Items:
- AX5212 ISA card (main unit)
- Windows driver software (on CD or downloadable package)
- User manual and installation guide
- 50-pin connector pinout documentation
Optional Accessories:
- 50-pin flat ribbon cable for external connection
- Terminal board or breakout module for easy wiring of analog signals
- Mounting brackets or retention clips for secure installation in industrial PC chassis
- Software development kit (SDK) for custom application integration
Connectors and Interfaces:
- Main Connector: 50-pin header for analog outputs and ground references
- Bus Connector: ISA edge connector (gold-plated contacts) for data, address, and power lines
6. Installation & Setup
System Requirements:
- ISA bus slot available on the host PC motherboard
- Compatible operating system (Windows with Axiom driver support)
- Sufficient power supply capacity for the additional card load
Installation Procedure:
1. Power off the host PC and disconnect it from the power source.
2. Insert the AX5212 card into an available ISA slot, ensuring proper alignment and secure seating.
3. Fasten the card bracket to the chassis using the provided screw.
4. Connect the 50-pin cable or terminal board to the card’s output connector.
5. Power on the system and install the Windows driver software.
6. Configure the output ranges and channel parameters using the provided software or API.
Configuration:
- Output ranges can be selected via software configuration or onboard jumpers (depending on revision).
- Channel calibration and offset adjustments can be performed through the driver utility.
- The driver provides functions for writing analog values, setting update rates, and synchronizing outputs.
Mounting Options:
- Standard ISA slot mounting within industrial PC chassis.
- Optional retention clips or brackets for vibration-resistant installations.
7. Performance & Capabilities
Speed and Throughput:
- Maximum update rate of 33 kS/s across all channels, allowing for dynamic waveform generation and responsive control loops.
- Low latency communication through the ISA bus interface.
Resolution and Accuracy:
- 12-bit resolution provides 4096 discrete output levels per channel.
- High linearity and low noise output ensure accurate analog representation of digital data.
Capacity and Channel Independence:
- Eight fully independent channels allow simultaneous control of multiple analog devices.
- Each channel can be configured for different output ranges, enabling mixed voltage and current outputs in one system.
Efficiency and Stability:
- Stable output under varying load conditions due to precision reference circuitry.
- Low drift and high repeatability suitable for long-term industrial operation.
Limitations:
- Designed for ISA bus systems only; not compatible with PCI or PCIe slots.
- Sampling rate limited to 33 kS/s, which may not be sufficient for high-frequency waveform generation.
- Requires proper grounding and shielding to minimize analog noise in electrically noisy environments.
8. Standards & Compliance
Certifications and Compliance:
- Designed in accordance with ISA bus electrical and mechanical specifications.
- Complies with CE and FCC Class A requirements for electromagnetic compatibility (typical for industrial cards).
- Manufactured under ISO 9001 quality management standards.
- RoHS compliant (lead-free manufacturing process).
Industry Standards:
- ISA (Industry Standard Architecture) bus interface standard.
- Analog output ranges conform to common industrial control signal standards (0–10 V, ±5 V, 4–20 mA).
- Compatible with standard industrial wiring and terminal board configurations.
9. Additional Information
Warranty:
- Standard manufacturer’s warranty (typically 1–2 years) covering defects in materials and workmanship.
Technical Support:
- Axiom provides technical documentation, driver updates, and application notes.
- Support available via email, online portal, or authorized distributors.
Maintenance:
- Minimal maintenance required; periodic inspection of connectors and contacts recommended.
- Keep the card free from dust and contaminants to ensure long-term reliability.
Software and Firmware Updates:
- Windows driver updates available from Axiom’s official website.
- Firmware updates (if applicable) can be applied via software utility.
Service and Replacement:
- Replacement units and spare parts available through Axiom’s distribution network.
- Calibration services may be offered for precision applications.
Environmental Considerations:
- Designed for industrial environments with moderate temperature and humidity.
- Ensure adequate ventilation within the PC chassis to maintain stable operating temperature.
Summary

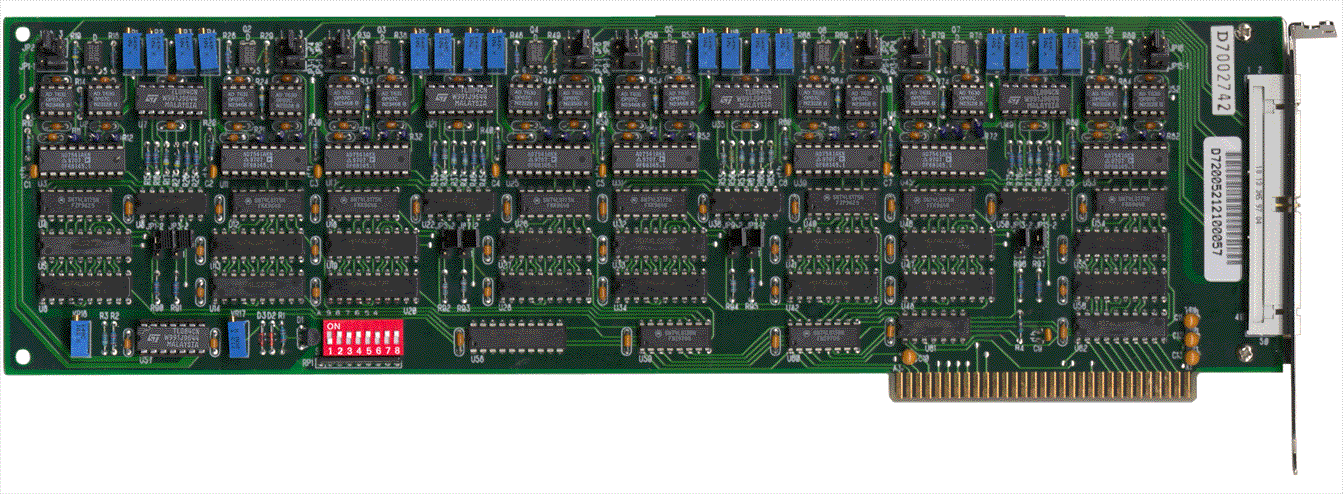

The Axiom AX5212 8-Channel 12-bit ISA Analog Output Card is a robust and versatile solution for generating precise analog signals in industrial and laboratory environments. With eight independent 12-bit DA channels, configurable voltage and current output ranges, and a 33 kS/s sampling rate, it provides reliable performance for control, automation, and data acquisition tasks. Its compatibility with ISA bus systems and Windows driver support make it ideal for legacy system upgrades or specialized industrial applications requiring stable analog output capabilities.
Key Highlights:
- 8 analog output channels, 12-bit resolution
- Output ranges: 0–5 V, 0–10 V, ±2.5 V, ±5 V, 4–20 mA
- Sampling rate: 33 kS/s
- ISA bus interface, 50-pin connector
- Dimensions: 334 × 99 mm
- Windows driver support
- Manufactured by Axiom for industrial reliability
This comprehensive analog output card delivers precision, flexibility, and long-term dependability for engineers and system integrators working with ISA-based control and measurement systems.
No manuals/catalogs available.
No accessories available.
