cBP-3064
Power Backplane cPCI 3U Quad 47 pin
479,00 EUR
including VAT 570.01 EUR
- Redundant Quad 47‑pin Power Interface: Supports up to four 47‑pin CompactPCI power supply modules for redundancy and load sharing, ensuring uninterrupted system operation.
- Multiple Power Input Options: Equipped with four ATX‑type connectors for flexible DC power input configurations.
- CompactPCI 3U Form Factor: Conforms to the 3U CompactPCI mechanical standard, allowing seamless integration into ADLINK’s cPCIS‑1000/2000 chassis.
- High Reliability Design: Built with industrial‑grade PCB materials and connectors for continuous operation in demanding environments.
- Redundant Power Management: Supports hot‑swappable redundant PSUs compliant with PICMG 2.11, enabling fault‑tolerant power delivery.
- Optimized Layout: Compact 161.56 mm × 128.7 mm board size for efficient space utilization within 3U chassis.
- Compatibility: Designed for use with ADLINK cPS‑175/AC, cPS‑175/48, cPS‑175/24, and other 47‑pin redundant power supplies.
- Integrated Signal Management: Provides standard control signals such as INH#, DEG#, and FAL# for power inhibit, derating, and fault indication.
- Industrial‑Grade Connectors: Utilizes Positronic PCIH47F300A1/PCI47F300A1 connectors for secure, high‑current power transmission.
- Ease of Maintenance: Modular design allows quick replacement of power modules without system downtime.
- Multiple Power Input Options: Equipped with four ATX‑type connectors for flexible DC power input configurations.
- CompactPCI 3U Form Factor: Conforms to the 3U CompactPCI mechanical standard, allowing seamless integration into ADLINK’s cPCIS‑1000/2000 chassis.
- High Reliability Design: Built with industrial‑grade PCB materials and connectors for continuous operation in demanding environments.
- Redundant Power Management: Supports hot‑swappable redundant PSUs compliant with PICMG 2.11, enabling fault‑tolerant power delivery.
- Optimized Layout: Compact 161.56 mm × 128.7 mm board size for efficient space utilization within 3U chassis.
- Compatibility: Designed for use with ADLINK cPS‑175/AC, cPS‑175/48, cPS‑175/24, and other 47‑pin redundant power supplies.
- Integrated Signal Management: Provides standard control signals such as INH#, DEG#, and FAL# for power inhibit, derating, and fault indication.
- Industrial‑Grade Connectors: Utilizes Positronic PCIH47F300A1/PCI47F300A1 connectors for secure, high‑current power transmission.
- Ease of Maintenance: Modular design allows quick replacement of power modules without system downtime.
1. Product Overview
Product Name: Power Backplane cPCI 3U Quad 47‑pin
Model Number: cBP‑3064
Article Number: cBP‑3064
Series: CompactPCI 3U Power Backplane Series
Manufacturer: ADLINK Technology Inc.
Brand: NuIPC®
The ADLINK cBP‑3064 is a 3U CompactPCI power backplane designed to provide a robust, redundant power interface for industrial and embedded computing systems. It features a quad 47‑pin redundant power socket configuration and multiple ATX connectors, enabling flexible integration with CompactPCI sub‑systems such as the cPCIS‑1000 and cPCIS‑2000 series. The backplane is engineered for high reliability, compliance with PICMG 2.11 power interface standards, and compatibility with ADLINK’s redundant power supply units (PSUs) such as the cPS‑175 and cPS‑150R series.
2. Key Features
- Redundant Quad 47‑pin Power Interface: Supports up to four 47‑pin CompactPCI power supply modules for redundancy and load sharing, ensuring uninterrupted system operation.
- Multiple Power Input Options: Equipped with four ATX‑type connectors for flexible DC power input configurations.
- CompactPCI 3U Form Factor: Conforms to the 3U CompactPCI mechanical standard, allowing seamless integration into ADLINK’s cPCIS‑1000/2000 chassis.
- High Reliability Design: Built with industrial‑grade PCB materials and connectors for continuous operation in demanding environments.
- Redundant Power Management: Supports hot‑swappable redundant PSUs compliant with PICMG 2.11, enabling fault‑tolerant power delivery.
- Optimized Layout: Compact 161.56 mm × 128.7 mm board size for efficient space utilization within 3U chassis.
- Compatibility: Designed for use with ADLINK cPS‑175/AC, cPS‑175/48, cPS‑175/24, and other 47‑pin redundant power supplies.
- Integrated Signal Management: Provides standard control signals such as INH#, DEG#, and FAL# for power inhibit, derating, and fault indication.
- Industrial‑Grade Connectors: Utilizes Positronic PCIH47F300A1/PCI47F300A1 connectors for secure, high‑current power transmission.
- Ease of Maintenance: Modular design allows quick replacement of power modules without system downtime.
3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Form Factor | 3U CompactPCI Power Backplane |
| Dimensions | 161.56 mm (W) × 128.7 mm (H) |
| Power Interface | Quad 47‑pin redundant CompactPCI power sockets |
| Power Connectors | 4 × ATX‑type DC input connectors |
| Connector Type | Positronic PCIH47F300A1 / PCI47F300A1 |
| Material | Multi‑layer FR‑4 PCB, industrial‑grade copper traces |
| Operating Voltage | Supports +5 V, +3.3 V, +12 V, −12 V rails |
| Signal Support | INH#, DEG#, FAL#, V1SENSE, V2SENSE, V3SENSE, GA[2..0] |
| Compliance | PICMG 2.11 CompactPCI Power Interface Standard |
| Mounting | 3U chassis slot mounting, 4‑slot width |
| Weight | Approx. 0.3 kg (board only) |
| Cooling | Passive; relies on chassis airflow |
| Operating Temperature | 0 °C – 70 °C (with forced air) |
| Storage Temperature | −40 °C – +85 °C |
| Relative Humidity | < 95 % @ 40 °C, non‑condensing |
4. Functionality
The cBP‑3064 functions as the central power distribution and management backplane for CompactPCI 3U systems. It accepts redundant power modules through its four 47‑pin sockets, each capable of hot‑swap insertion. The backplane aggregates and balances power from multiple PSUs, distributing regulated voltages (+5 V, +3.3 V, +12 V, −12 V) to the system backplane or peripheral connectors.
Use Cases and Applications:
- Industrial automation controllers
- Embedded computing platforms
- Telecommunications and networking systems
- Data acquisition and control systems
- Redundant CompactPCI sub‑systems (e.g., cPCIS‑2102, cPCIS‑2152)
Compatibility:
- Fully compatible with ADLINK cPS‑175 series (AC/DC input 47‑pin PSUs)
- Integrates with cPCIS‑1000/2000 chassis and cBP‑305x/306x backplane family
- Supports ATX power input for hybrid configurations
5. Components & Accessories
Included Components:
- cBP‑3064 power backplane PCB assembly
- Four ATX‑type power input connectors
- Quad 47‑pin redundant PSU sockets
Optional Accessories:
- ADLINK cPS‑175/AC, cPS‑175/48, cPS‑175/24 redundant power supplies
- CompactPCI chassis (cPCIS‑1000 or cPCIS‑2000 series)
- Power supply frame (cPCI‑PSF) for PS2‑size ATX PSU integration
- Drive bay frame (cPCI‑DBF) for storage devices
- EMC slot panels (cPCI‑SP3E) for shielding unused slots
Connectors and Signals:
- CN101–CN104: 47‑pin PSU sockets (V1 = +5 V, V2 = +3.3 V, V3 = +12 V, V4 = −12 V)
- CN105: INH# power inhibit connector (2‑pin)
- CN106: Current sharing and geographic address connector
- CN107: Screw terminals for external AC input lines
6. Installation & Setup
Requirements:
- Compatible 3U CompactPCI chassis with appropriate PSU bays
- Redundant 47‑pin power supply modules (e.g., cPS‑175 series)
- Proper airflow within chassis (minimum 15 CFM recommended)
Mounting Options:
- Direct installation into 3U chassis slot (4‑slot width)
- Secured using standard CompactPCI card guides and screws
Configuration Steps:
1. Power off the system and ensure all PSUs are disconnected.
2. Insert the cBP‑3064 into the designated power bay of the chassis.
3. Connect up to four 47‑pin redundant PSUs to the backplane sockets.
4. Attach ATX connectors or screw terminals for auxiliary power input if required.
5. Connect INH# and FAL# signal lines to system control logic for power management.
6. Verify proper grounding and chassis connection before applying power.
Safety Notes:
- Use only PICMG 2.11‑compliant connectors (Positronic PCIH47F300A1).
- Ensure correct polarity on all DC lines to prevent damage.
- Maintain adequate cooling to prevent thermal derating.
7. Performance & Capabilities
- Power Handling: Supports up to 175 W per PSU module; total system capacity scalable with redundancy.
- Redundancy: Dual or quad PSU operation for fault tolerance; automatic load sharing across modules.
- Efficiency: Dependent on PSU modules (typically 73 % – 80 %).
- Hot‑Swap Capability: Allows PSU replacement without system shutdown.
- Signal Monitoring: Provides DEG# (derate), FAL# (fault), and INH# (inhibit) signals for system diagnostics.
- Voltage Regulation: Maintains ±3 % on +5 V and ±5 % on other rails when used with compliant PSUs.
- Current Sharing: ±10 % current balance between parallel PSUs on +5 V and +3.3 V rails.
- Operating Limits: Full rated output at 0 °C – 40 °C with forced air; derating above 40 °C.
8. Standards & Compliance
- Mechanical Standard: CompactPCI 3U form factor (PICMG 2.0 R2.1)
- Power Interface Standard: PICMG 2.11 (47‑pin redundant power supply interface)
- Electrical Safety: UL 1950, CSA C22.2 No. 950, EN 60950 (when used with certified PSUs)
- EMC Compliance: Meets EN 55022 Class A/B, EN 61000‑3‑2, EN 61000‑3‑3, and EN 50082‑2 (system‑level compliance)
- Environmental: Designed for industrial temperature range and vibration tolerance per IEC 60068‑2‑6
- RoHS/CE: Manufactured in compliance with CE marking and environmental directives applicable to ADLINK products
9. Additional Information
Warranty:
ADLINK provides a one‑year limited warranty from the date of purchase, covering defects in materials and workmanship. The warranty excludes damage due to misuse, modification, or operation beyond specified limits.
Technical Support:
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: service@adlink.com.tw / nuipc@adlink.com.tw
- Phone: +886‑2‑8226‑5877
- Fax: +886‑2‑8226‑5717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan, R.O.C.
Maintenance:
- Periodically inspect connectors for dust or oxidation.
- Ensure all PSU modules are securely seated.
- Replace faulty PSUs immediately to maintain redundancy.
- Keep airflow paths unobstructed for optimal cooling.
Firmware/Updates:
The cBP‑3064 is a passive backplane and does not require firmware updates. System‑level updates may apply to associated controller modules or PSUs.
Service & Replacement:
ADLINK offers repair and replacement services for defective units under warranty. Customers should provide model number, serial number, and system configuration details when requesting service.
### Summary
The ADLINK cBP‑3064 Power Backplane is a high‑reliability 3U CompactPCI component engineered for redundant power distribution in industrial computing environments. With its quad 47‑pin redundant PSU interface, multiple ATX connectors, and PICMG 2.11 compliance, it ensures stable, fault‑tolerant power delivery for mission‑critical systems. Its compact 161.56 × 128.7 mm footprint, robust PCB design, and compatibility with ADLINK’s cPS‑175 series power supplies make it an ideal choice for cPCIS‑1000/2000 sub‑systems and other 3U CompactPCI platforms requiring high availability and modular power management.
Product Name: Power Backplane cPCI 3U Quad 47‑pin
Model Number: cBP‑3064
Article Number: cBP‑3064
Series: CompactPCI 3U Power Backplane Series
Manufacturer: ADLINK Technology Inc.
Brand: NuIPC®
The ADLINK cBP‑3064 is a 3U CompactPCI power backplane designed to provide a robust, redundant power interface for industrial and embedded computing systems. It features a quad 47‑pin redundant power socket configuration and multiple ATX connectors, enabling flexible integration with CompactPCI sub‑systems such as the cPCIS‑1000 and cPCIS‑2000 series. The backplane is engineered for high reliability, compliance with PICMG 2.11 power interface standards, and compatibility with ADLINK’s redundant power supply units (PSUs) such as the cPS‑175 and cPS‑150R series.
2. Key Features
- Redundant Quad 47‑pin Power Interface: Supports up to four 47‑pin CompactPCI power supply modules for redundancy and load sharing, ensuring uninterrupted system operation.
- Multiple Power Input Options: Equipped with four ATX‑type connectors for flexible DC power input configurations.
- CompactPCI 3U Form Factor: Conforms to the 3U CompactPCI mechanical standard, allowing seamless integration into ADLINK’s cPCIS‑1000/2000 chassis.
- High Reliability Design: Built with industrial‑grade PCB materials and connectors for continuous operation in demanding environments.
- Redundant Power Management: Supports hot‑swappable redundant PSUs compliant with PICMG 2.11, enabling fault‑tolerant power delivery.
- Optimized Layout: Compact 161.56 mm × 128.7 mm board size for efficient space utilization within 3U chassis.
- Compatibility: Designed for use with ADLINK cPS‑175/AC, cPS‑175/48, cPS‑175/24, and other 47‑pin redundant power supplies.
- Integrated Signal Management: Provides standard control signals such as INH#, DEG#, and FAL# for power inhibit, derating, and fault indication.
- Industrial‑Grade Connectors: Utilizes Positronic PCIH47F300A1/PCI47F300A1 connectors for secure, high‑current power transmission.
- Ease of Maintenance: Modular design allows quick replacement of power modules without system downtime.
3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Form Factor | 3U CompactPCI Power Backplane |
| Dimensions | 161.56 mm (W) × 128.7 mm (H) |
| Power Interface | Quad 47‑pin redundant CompactPCI power sockets |
| Power Connectors | 4 × ATX‑type DC input connectors |
| Connector Type | Positronic PCIH47F300A1 / PCI47F300A1 |
| Material | Multi‑layer FR‑4 PCB, industrial‑grade copper traces |
| Operating Voltage | Supports +5 V, +3.3 V, +12 V, −12 V rails |
| Signal Support | INH#, DEG#, FAL#, V1SENSE, V2SENSE, V3SENSE, GA[2..0] |
| Compliance | PICMG 2.11 CompactPCI Power Interface Standard |
| Mounting | 3U chassis slot mounting, 4‑slot width |
| Weight | Approx. 0.3 kg (board only) |
| Cooling | Passive; relies on chassis airflow |
| Operating Temperature | 0 °C – 70 °C (with forced air) |
| Storage Temperature | −40 °C – +85 °C |
| Relative Humidity | < 95 % @ 40 °C, non‑condensing |
4. Functionality
The cBP‑3064 functions as the central power distribution and management backplane for CompactPCI 3U systems. It accepts redundant power modules through its four 47‑pin sockets, each capable of hot‑swap insertion. The backplane aggregates and balances power from multiple PSUs, distributing regulated voltages (+5 V, +3.3 V, +12 V, −12 V) to the system backplane or peripheral connectors.
Use Cases and Applications:
- Industrial automation controllers
- Embedded computing platforms
- Telecommunications and networking systems
- Data acquisition and control systems
- Redundant CompactPCI sub‑systems (e.g., cPCIS‑2102, cPCIS‑2152)
Compatibility:
- Fully compatible with ADLINK cPS‑175 series (AC/DC input 47‑pin PSUs)
- Integrates with cPCIS‑1000/2000 chassis and cBP‑305x/306x backplane family
- Supports ATX power input for hybrid configurations
5. Components & Accessories
Included Components:
- cBP‑3064 power backplane PCB assembly
- Four ATX‑type power input connectors
- Quad 47‑pin redundant PSU sockets
Optional Accessories:
- ADLINK cPS‑175/AC, cPS‑175/48, cPS‑175/24 redundant power supplies
- CompactPCI chassis (cPCIS‑1000 or cPCIS‑2000 series)
- Power supply frame (cPCI‑PSF) for PS2‑size ATX PSU integration
- Drive bay frame (cPCI‑DBF) for storage devices
- EMC slot panels (cPCI‑SP3E) for shielding unused slots
Connectors and Signals:
- CN101–CN104: 47‑pin PSU sockets (V1 = +5 V, V2 = +3.3 V, V3 = +12 V, V4 = −12 V)
- CN105: INH# power inhibit connector (2‑pin)
- CN106: Current sharing and geographic address connector
- CN107: Screw terminals for external AC input lines
6. Installation & Setup
Requirements:
- Compatible 3U CompactPCI chassis with appropriate PSU bays
- Redundant 47‑pin power supply modules (e.g., cPS‑175 series)
- Proper airflow within chassis (minimum 15 CFM recommended)
Mounting Options:
- Direct installation into 3U chassis slot (4‑slot width)
- Secured using standard CompactPCI card guides and screws
Configuration Steps:
1. Power off the system and ensure all PSUs are disconnected.
2. Insert the cBP‑3064 into the designated power bay of the chassis.
3. Connect up to four 47‑pin redundant PSUs to the backplane sockets.
4. Attach ATX connectors or screw terminals for auxiliary power input if required.
5. Connect INH# and FAL# signal lines to system control logic for power management.
6. Verify proper grounding and chassis connection before applying power.
Safety Notes:
- Use only PICMG 2.11‑compliant connectors (Positronic PCIH47F300A1).
- Ensure correct polarity on all DC lines to prevent damage.
- Maintain adequate cooling to prevent thermal derating.
7. Performance & Capabilities
- Power Handling: Supports up to 175 W per PSU module; total system capacity scalable with redundancy.
- Redundancy: Dual or quad PSU operation for fault tolerance; automatic load sharing across modules.
- Efficiency: Dependent on PSU modules (typically 73 % – 80 %).
- Hot‑Swap Capability: Allows PSU replacement without system shutdown.
- Signal Monitoring: Provides DEG# (derate), FAL# (fault), and INH# (inhibit) signals for system diagnostics.
- Voltage Regulation: Maintains ±3 % on +5 V and ±5 % on other rails when used with compliant PSUs.
- Current Sharing: ±10 % current balance between parallel PSUs on +5 V and +3.3 V rails.
- Operating Limits: Full rated output at 0 °C – 40 °C with forced air; derating above 40 °C.
8. Standards & Compliance
- Mechanical Standard: CompactPCI 3U form factor (PICMG 2.0 R2.1)
- Power Interface Standard: PICMG 2.11 (47‑pin redundant power supply interface)
- Electrical Safety: UL 1950, CSA C22.2 No. 950, EN 60950 (when used with certified PSUs)
- EMC Compliance: Meets EN 55022 Class A/B, EN 61000‑3‑2, EN 61000‑3‑3, and EN 50082‑2 (system‑level compliance)
- Environmental: Designed for industrial temperature range and vibration tolerance per IEC 60068‑2‑6
- RoHS/CE: Manufactured in compliance with CE marking and environmental directives applicable to ADLINK products
9. Additional Information
Warranty:
ADLINK provides a one‑year limited warranty from the date of purchase, covering defects in materials and workmanship. The warranty excludes damage due to misuse, modification, or operation beyond specified limits.
Technical Support:
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: service@adlink.com.tw / nuipc@adlink.com.tw
- Phone: +886‑2‑8226‑5877
- Fax: +886‑2‑8226‑5717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan, R.O.C.
Maintenance:
- Periodically inspect connectors for dust or oxidation.
- Ensure all PSU modules are securely seated.
- Replace faulty PSUs immediately to maintain redundancy.
- Keep airflow paths unobstructed for optimal cooling.
Firmware/Updates:
The cBP‑3064 is a passive backplane and does not require firmware updates. System‑level updates may apply to associated controller modules or PSUs.
Service & Replacement:
ADLINK offers repair and replacement services for defective units under warranty. Customers should provide model number, serial number, and system configuration details when requesting service.
### Summary
The ADLINK cBP‑3064 Power Backplane is a high‑reliability 3U CompactPCI component engineered for redundant power distribution in industrial computing environments. With its quad 47‑pin redundant PSU interface, multiple ATX connectors, and PICMG 2.11 compliance, it ensures stable, fault‑tolerant power delivery for mission‑critical systems. Its compact 161.56 × 128.7 mm footprint, robust PCB design, and compatibility with ADLINK’s cPS‑175 series power supplies make it an ideal choice for cPCIS‑1000/2000 sub‑systems and other 3U CompactPCI platforms requiring high availability and modular power management.
-
cBP-3208+3206+3204R_Datasheet_3.pdf
PDF Catalog

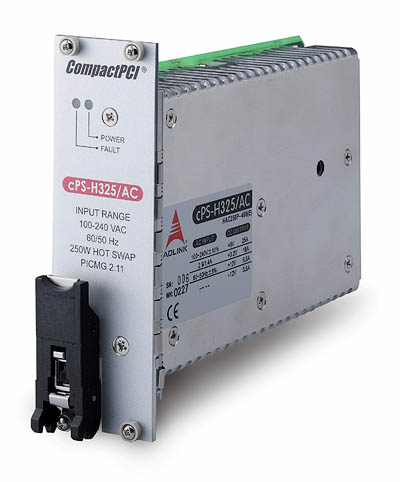

- cPS-H325AC - cPCI power supply 47pin 85..265 ACV

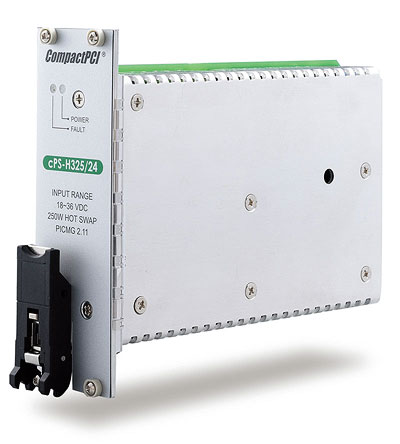

- cPS-H325/24 - cPCI power supply 47pin 24DCV 250W

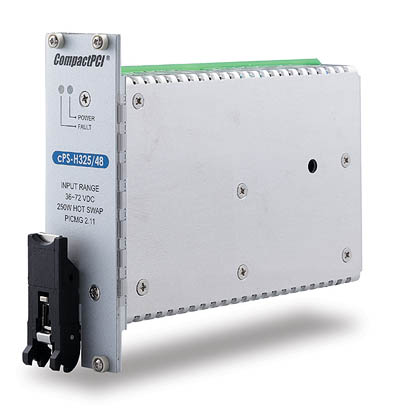

- cPS-H325/48 - cPCI power supply 47pin 36..72 DCV
