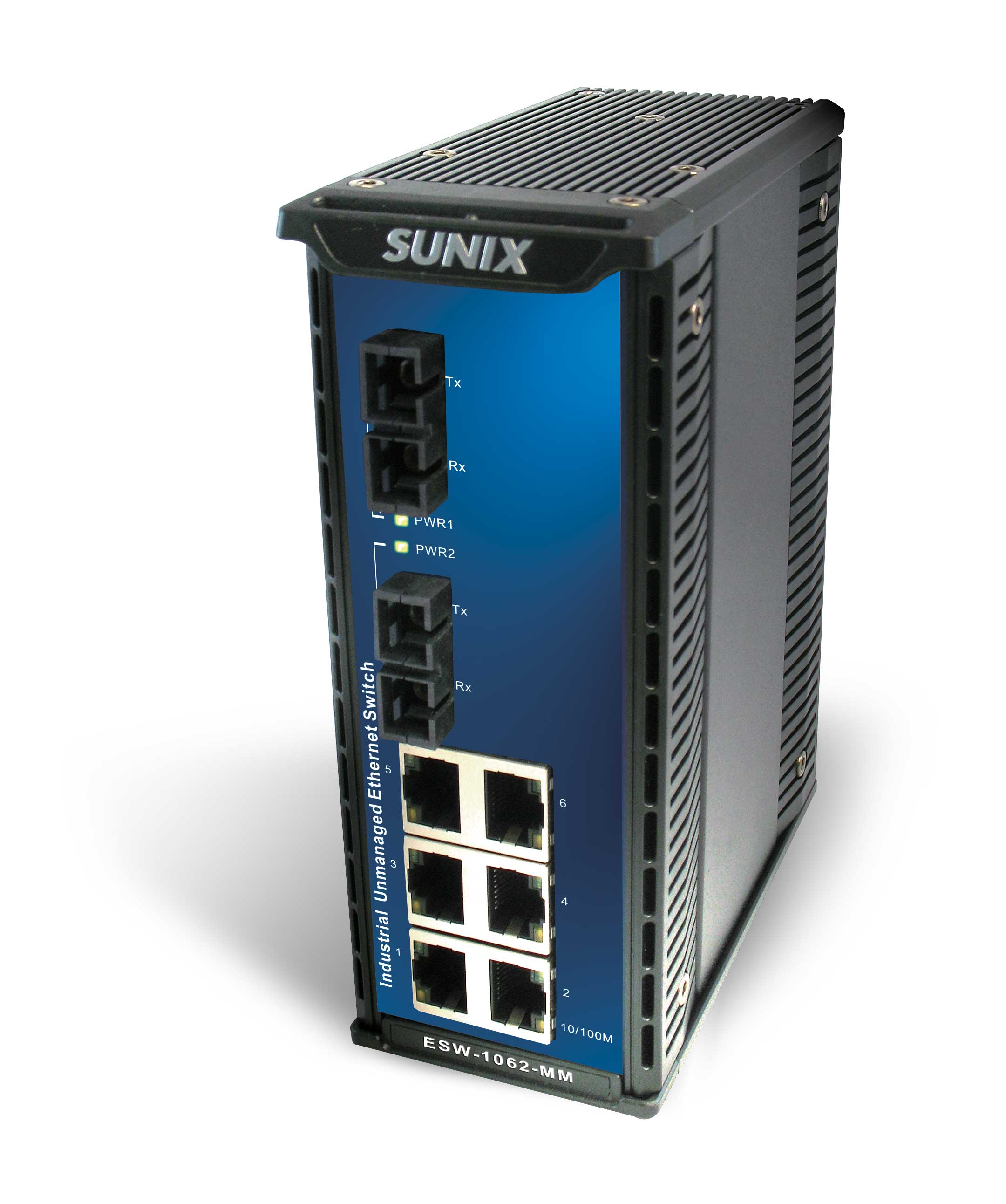

Comprehensive Product Summary – SUNIX ESW-1062-MMC-E Industrial Ethernet Switch

---

### 1. Product Overview

Product Name: Industrial 6*TX 2*FX MM Switch (Extended Temperature)
Model Number: ESW-1062-MMC-E
Series: ESW-1062 Series – Unmanaged Industrial Ethernet Switches
Article Number: ESW-1062-MMC-E
Manufacturer: SUNIX Co., Ltd.
Product Category: Industrial Unmanaged Fast Ethernet Switch
Product Type: 8-Port Industrial Ethernet Switch (6 Copper + 2 Fiber)

The SUNIX ESW-1062-MMC-E is an unmanaged industrial-grade Ethernet switch designed for mission-critical automation and control networks. It provides six 10/100Base-T(X) RJ45 copper ports and two 100Base-FX multi-mode fiber ports, offering a robust and reliable communication backbone for harsh industrial environments. The switch supports redundant dual DC power inputs, a configurable alarm relay output, and extended operating temperature capability, making it ideal for continuous 24/7 operation in demanding field conditions.

---

### 2. Key Features

- 8-Port Configuration:
Six 10/100Base-T(X) RJ45 ports and two 100Base-FX multi-mode fiber ports for flexible network topology and long-distance connectivity.

- Industrial-Grade Design:
Engineered for harsh environments with extended temperature range (-40°C to +85°C), high vibration resistance, and robust IP30 aluminum enclosure.

- Unmanaged Operation:
Plug-and-play functionality with no configuration required, ensuring quick deployment and minimal maintenance.

- Fiber Optic Connectivity:
Two 100Base-FX multi-mode ports (50/125 μm fiber, up to 2 km transmission distance) provide EMI/RFI immunity and secure, interference-free data transmission.

- Redundant Power Inputs:
Dual 12–48VDC power inputs ensure uninterrupted operation in case of primary power failure.

- Alarm Relay Output:
One configurable relay output for system fault indication (e.g., power failure or port link down), enabling integration with external alarm systems.

- High Electrical Protection:
- ESD protection: ±4kV DC on Ethernet ports
- Surge protection: ±2000V DC on power input
- Reverse polarity protection included

- Compact DIN-Rail Mountable Form Factor:
Designed for easy installation in control cabinets or industrial panels.

- Low Power Consumption:
Typical consumption of 12W (1A @ 12VDC), ensuring energy efficiency and reduced heat generation.

- Reliability and Longevity:
Designed for 24/7 continuous operation with a 5-year manufacturer warranty.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Model | ESW-1062-MMC-E |
| Series | ESW-1062 Unmanaged Industrial Ethernet Switch |
| Ports | 6 × 10/100Base-T(X) RJ45 + 2 × 100Base-FX (Multi-Mode) |
| Transmission Speed | 10/100 Mbps (Auto-Negotiation) |
| Transmission Distance | RJ45: up to 100 m (Cat5e/6 UTP); Fiber: up to 2 km (50/125 μm MM) |
| Fiber Connector Type | SC (standard); ST optional |
| Alarm Contact | 1 configurable relay output |
| Power Input | Dual 12–48VDC (nominal 24VDC) |
| Power Consumption | 12V / 1A (12W typical) |
| Protection | ESD: 4kV (Ethernet ports); Surge: 2kV (power); Reverse polarity protection |
| Enclosure | IP30-rated aluminum housing |
| Mounting | DIN-rail and wall-mountable |
| Dimensions (W × D × H) | 30 × 68.5 × 105 mm |
| Weight | Approx. 0.4 kg |
| Operating Temperature | Extended: -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Cooling Method | Passive (fanless) |
| Certifications | UL60950, CAN/CSA-C22.2 No.60950, UL/cUL Class 1 Div 2, CE, FCC Part 15, CISPR (EN55022) Class A |
| Shock Resistance | IEC60068-2-27 |
| Vibration Resistance | IEC60068-2-6 |
| Free-Fall Test | IEC60068-2-32 |
| Warranty | 5 years |

---

### 4. Functionality

The ESW-1062-MMC-E functions as an unmanaged Layer 2 Ethernet switch, automatically detecting and forwarding Ethernet frames between connected devices. It supports auto-negotiation and auto-MDI/MDI-X on all RJ45 ports, simplifying network setup without manual configuration.

Operational Principles:
- Each copper port supports 10/100 Mbps full/half-duplex operation.
- The two fiber ports extend network reach up to 2 km using multi-mode fiber, ideal for connecting remote nodes or control panels.
- The switch forwards packets based on MAC address learning and filtering, ensuring efficient data flow with minimal latency.

Use Cases and Applications:
- Factory automation and process control networks
- Building management systems (BMS)
- Transportation and traffic control systems
- Power and utility monitoring
- Oil, gas, and mining field communications
- Remote I/O and PLC interconnection
- Industrial camera and sensor networks

Compatibility:
- Fully compliant with IEEE 802.3 and 802.3u standards
- Compatible with standard Ethernet devices, PLCs, HMIs, and SCADA systems
- Supports both copper and fiber network topologies

---

### 5. Components & Accessories

Included Items:
- ESW-1062-MMC-E switch unit
- Removable terminal block connector for power input and alarm relay
- DIN-rail mounting clip (pre-installed)
- Quick installation guide

Optional Accessories:
- Wall-mounting brackets
- Fiber optic patch cords (SC or ST type)
- Single-mode fiber transceiver variants (for extended distance up to 30 km)
- Redundant DC power supply units

Connectors:
- RJ45 Ports: 6 × 10/100Base-T(X), auto MDI/MDI-X
- Fiber Ports: 2 × 100Base-FX (SC-type, multi-mode)
- Power Connector: Removable terminal block (12–48VDC dual input)
- Alarm Relay: Configurable dry contact output

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 12–48VDC regulated source
- Mounting surface: DIN-rail (35 mm standard) or wall panel
- Ambient temperature: -40°C to +85°C
- Humidity: up to 95% non-condensing

Mounting Options:
- DIN-Rail Mounting:
The switch includes a rear DIN-rail clip for quick attachment to standard industrial rails.
- Wall Mounting:
Optional brackets allow secure installation on flat surfaces or inside enclosures.

Configuration:
- As an unmanaged switch, no software setup or configuration is required.
- Simply connect power and network cables; the device automatically initializes and begins forwarding traffic.
- The alarm relay can be wired to external indicators or control systems for fault monitoring.

Power Connection:
- Connect dual DC inputs to the removable terminal block for redundancy.
- The switch automatically switches to the secondary input if the primary fails.
- Reverse polarity protection prevents damage from incorrect wiring.

---

### 7. Performance & Capabilities

Network Performance:
- Switching Capacity: 1.6 Gbps (non-blocking)
- Packet Forwarding Rate: 1.19 Mpps (for 64-byte packets)
- MAC Address Table: 1K entries (auto-learning and aging)
- Latency: <10 µs (typical for 100 Mbps full-duplex)

Transmission Distance:
- Copper Ports: Up to 100 meters (Cat5e/6 UTP cable)
- Fiber Ports (MM): Up to 2 km (50/125 μm multi-mode fiber)

Electrical & Environmental Performance:
- ESD Immunity: ±4kV (contact discharge)
- Surge Protection: ±2kV (power line)
- Shock Resistance: IEC60068-2-27 compliant
- Vibration Resistance: IEC60068-2-6 compliant
- Free-Fall Test: IEC60068-2-32 compliant

Efficiency & Reliability:
- Fanless design ensures silent operation and eliminates mechanical failure points.
- Low power consumption (12W typical) reduces heat and extends component life.
- Continuous operation supported in extreme industrial conditions (24/7 uptime).

Limitations:
- Unmanaged design means no VLAN, QoS, or SNMP management features.
- Fixed fiber configuration (multi-mode only) – single-mode variant available separately.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX / 100Base-FX)
- IEEE 802.3x (Full-duplex flow control)

Electrical & Safety Compliance:
- UL60950 (Information Technology Equipment Safety)
- CAN/CSA-C22.2 No.60950
- UL/cUL Class 1, Division 2 (Hazardous Locations)

EMC & Environmental Compliance:
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- CE Marking (EMC Directive compliance)
- EN61000-4-2 (ESD immunity)
- EN61000-4-4 (EFT/Burst immunity)
- EN61000-4-5 (Surge immunity, Level 3)
- EN61000-4-6 (Conducted immunity)

Mechanical & Environmental Testing:
- IEC60068-2-27 (Shock)
- IEC60068-2-6 (Vibration)
- IEC60068-2-32 (Free-fall)

Ingress Protection:
- IP30-rated aluminum enclosure for protection against solid objects and mechanical impact.

Certifications:
- CE, FCC, UL, CSA, and RoHS compliant.

---

### 9. Additional Information

Warranty:
5-year limited manufacturer warranty covering defects in materials and workmanship under normal industrial use.

Support & Maintenance:
- SUNIX provides technical documentation, installation guides, and product datasheets.
- Technical support available via SUNIX service centers and authorized distributors.
- No firmware updates required (unmanaged model).

Maintenance Recommendations:
- Periodically inspect power and network connections for secure fit.
- Clean fiber connectors with appropriate optical cleaning tools.
- Ensure adequate ventilation and avoid exposure to corrosive environments.

Product Lifecycle & Reliability:
- Designed for long-term industrial deployment with MTBF exceeding 100,000 hours.
- Passive cooling and solid-state design minimize maintenance requirements.

Upgrade Path:
- For applications requiring network management, VLAN, or redundancy features, SUNIX offers managed and lite-managed variants (e.g., ESW-8062-MM or ESW-2042MM).

Ordering Information:
- Model: ESW-1062-MMC-E (Multi-Mode, Extended Temperature)
- Available Variants:
- ESW-1062-MMC (Standard Temperature, Multi-Mode)
- ESW-1062-SSC (Single-Mode, 30 km fiber)

Manufacturer Contact:
SUNIX Co., Ltd. – Industrial Networking Division
Website: [www.sunix.com](https://www.sunix.com)
Support Email: support@sunix.com

---

### Summary

The SUNIX ESW-1062-MMC-E is a compact, rugged, and reliable unmanaged industrial Ethernet switch designed for mission-critical automation networks. With six 10/100Base-T(X) copper ports and two 100Base-FX multi-mode fiber ports, it provides flexible connectivity for both local and remote devices. Its extended temperature range (-40°C to +85°C), redundant power inputs, and robust electrical protection make it suitable for deployment in extreme industrial environments such as manufacturing plants, transportation systems, and energy facilities.

The switch’s plug-and-play operation eliminates configuration complexity, while its alarm relay output and dual power design enhance system reliability. Certified to major industrial and safety standards (UL, CE, FCC, CSA), the ESW-1062-MMC-E ensures dependable performance and long service life in continuous 24/7 operations.

---

In essence, the ESW-1062-MMC-E delivers industrial-grade Ethernet connectivity with fiber-optic flexibility, electrical robustness, and environmental resilience—ideal for automation engineers seeking a maintenance-free, high-reliability networking solution.
