Comprehensive Product Summary – EX9212LoRa-S

---

### 1. Product Overview

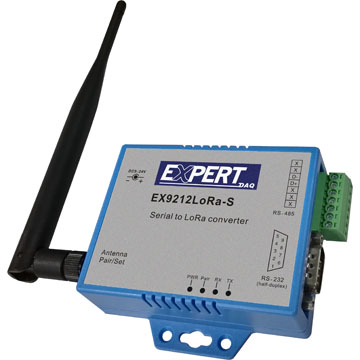

Product Name: LoRa to RS232/RS422/RS485 Interface Converter
Model: EX9212LoRa-S
Series: EX9212LoRa Series (LoRa Interface Converter & DI/DO Controller Series)
Article Number: EX9212LoRa-S
Manufacturer: TOPSCCC (www.topsccc.com)
Manual Version: 1.1.0 (Edition 201909v1.1, dated 2019-09-19)

The EX9212LoRa-S is a member of the EX9212LoRa series of industrial-grade LoRa interface gateways designed to bridge long-range LoRa wireless communication with traditional serial interfaces such as RS-232 (half-duplex) and RS-485. It enables transparent or Modbus-based data transmission between remote IoT devices and host systems over distances up to 5 kilometers in free space. The device integrates a Semtech SX1272 LoRa transceiver, a 32-bit microcontroller, and robust industrial-grade protection features, making it suitable for automation, telemetry, and remote monitoring applications.

---

### 2. Key Features

- Dual Serial Interface Support: Provides one configurable port supporting RS-232 (half-duplex) and RS-485 communication modes.
- LoRa Wireless Connectivity: Utilizes the Semtech SX1272 LoRa transceiver for long-range, low-power wireless communication in the ISM 862–936 MHz band.
- High Sensitivity and Power: Receiver sensitivity of -137 dBm and transmit output power up to +20 dBm for extended communication range.
- Low Power Consumption: Sleep current as low as 3 µA in power-down mode; TX current <140 mA at 20 dBm output; RX current <10 mA.
- Integrated Security: Hardware AES encryption engine supporting 128-, 192-, and 256-bit AES encryption for secure data transmission.
- Flexible Data Rates: Supports LoRa data rates from 0.244 to 18.2 kbps and FSK up to 300 kbps.
- Star Network Topology: Designed for star-type LoRa network configurations, ideal for centralized data collection.
- Industrial Design: Compact, durable plastic enclosure suitable for industrial environments.
- Built-in Surge Protection: RS-485 interface includes surge protection and terminal resistor for reliable field operation.
- Easy Configuration: Configurable via Windows-based setup utility and DIP switch interface.
- Status Indicators: LED indicators for system power (SYS), transmit (Tx), and receive (Rx) activity.
- Wide Power Input Range: Operates from 9–24 VDC, supporting flexible power supply options.
- Environmental Robustness: Operating temperature range from -10°C to +70°C; storage temperature from -20°C to +80°C.
- Compact and Lightweight: Dimensions 100 × 90 × 25 mm; weight 150 g (excluding power supply).

---

### 3. Technical Specifications

Processor and Memory
- CPU: 32-bit MCU, 40 MHz clock speed
- Memory: 16 KB SRAM, 128 KB Flash ROM

LoRa Wireless Module
- Chipset: Semtech SX1272
- Frequency Range: ISM band 862–936 MHz
- Receiver Sensitivity: -137 dBm
- Transmit Output Power: +20 dBm
- Sleep Current: 3 µA (power-down state)
- TX Current: <140 mA @ 20 dBm
- RX Current: <10 mA
- Security: AES encryption (128/192/256-bit)
- Packet Engine: Up to 256 bytes with CRC
- Antenna: SMA type, 2 dBi, detachable/changeable
- Communication Distance: Up to 5000 meters (free space)
- Data Rate: 0.244–18.2 kbps (LoRa) / 300 kbps (FSK)
- Network Mode: Star topology

Serial Communication Interface
- Port Type: 1 × RS-232 (half-duplex) / RS-485 selectable
- RS-232 Connector: DB9 female
- Pins: Rx, Tx, GND, RTS, CTS
- RS-485 Connector: 2-pin terminal (Data+, Data−)
- Built-in RS-485 Terminal Resistor
- Baud Rate: 9600–115.2 kbps
- Parity: None, Odd, Even
- Data Bits: 7 or 8
- Stop Bits: 1 or 2
- Surge Protection: Integrated on RS-485 lines

Power Requirements
- Input Voltage: DC 9–24 V
- Current Consumption: 150 mA @ 9 V, 60 mA @ 24 V
- Typical Power Consumption: 12 VDC / 20 mA, 9 VDC / 30 mA
- Power Connector: DC-IN jack (inner positive, outer negative)
- Alternative Power Input: 2-wire terminal block

Indicators
- SYS (Green): System power indicator
- Tx (Green): Data transmission indicator
- Rx (Red): Data reception indicator

Physical Characteristics
- Dimensions: 100 mm (W) × 90 mm (D) × 25 mm (H)
- Weight: 150 g (excluding power adapter)
- Enclosure: Industrial-grade plastic housing

Environmental Conditions
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -20°C to +80°C

---

### 4. Functionality

The EX9212LoRa-S functions as a LoRa-to-Serial interface converter, enabling transparent or Modbus-based data exchange between serial devices and remote LoRa nodes. It acts as a bridge between wired serial communication (RS-232/RS-485) and long-range LoRa wireless networks.

Operation Principle:
Data received from a serial device (e.g., PLC, sensor, or controller) is encapsulated and transmitted over the LoRa wireless link using the SX1272 transceiver. On the receiving end, another LoRa gateway or node decodes and outputs the data through its corresponding serial interface. This allows seamless long-distance serial communication without physical cabling.

Use Cases and Applications:
- Industrial automation and remote control systems
- Smart metering (water, gas, electricity)
- Environmental monitoring (temperature, humidity, air quality)
- Agricultural and livestock management
- Smart street lighting and power distribution monitoring
- Community safety and alarm systems
- Long-range telemetry and data acquisition networks

Compatibility:
- Compatible with Modbus RTU/ASCII protocols and transparent serial data transmission.
- Works with standard RS-232 and RS-485 devices.

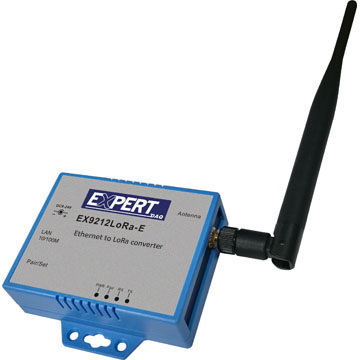

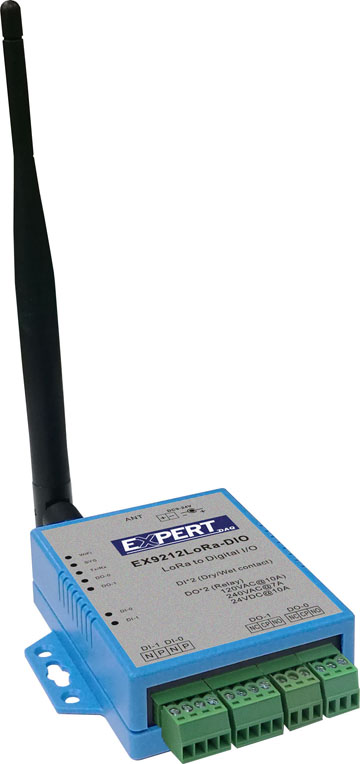

- Can be paired with other EX9212LoRa series devices (E/MTCP, U, DIO models) for hybrid network architectures.

---

### 5. Components & Accessories

Included Items:
- 1 × EX9212LoRa-S Gateway Unit
- 1 × Antenna (SMA type, 2 dBi)
- 1 × Power Adapter (optional, 9–24 VDC, 500 mA)
- 1 × Documentation & Utility CD (includes Windows setup tools and drivers)

Connectors and Interfaces:
- DC-IN Power Outlet: 9–24 VDC input, inner positive, outer negative
- RS-232 Port: DB9 female connector
- RS-485 Port: 2-pin terminal block (Data+, Data−)
- Antenna Connector: SMA female, detachable
- Reset Button: For reboot or factory reset
- LED Indicators: SYS, Tx, Rx

Optional Accessories:
- USB-to-RS232 converter (for configuration)
- Crosslink RS-232 adapter (for setup)
- Alternative antennas for extended range or specific frequency tuning

---

### 6. Installation & Setup

Power Connection:
Connect the supplied DC adapter or a regulated 9–24 VDC power source to the DC-IN jack. The SYS LED will illuminate when power is correctly applied.

Serial Connection:
- For RS-232: Connect using a standard DB9 cable (Rx ↔ Tx, Tx ↔ Rx, GND ↔ GND).
- For RS-485: Connect Data+ and Data− lines to the corresponding terminals on the device.

Antenna Installation:
Attach the supplied SMA antenna to the antenna connector. Ensure it is securely fastened and oriented vertically for optimal signal performance.

Configuration Procedure:
1. Set DIP Switches:
- All DIP switches up: configuration mode.
- Only switch #1 down: operation mode.
2. Connect to PC:
- Use a USB-to-RS232 converter for configuration.
3. Run LoRa Setting Tool (Windows Utility):
- Detect COM port, read existing parameters, and modify as needed.
- Adjustable parameters include frequency, spreading factor, bandwidth, Tx power, and encryption key.
4. Write Settings:
- Save configuration to device and reboot.
5. Reset Function:
- Press reset button 2–4 seconds to reboot, or >5 seconds to restore factory defaults.

Default Communication Parameters:
- UART: 9600 bps, 8 data bits, no parity, 1 stop bit
- LoRa Frequency: 915.5 MHz
- Spreading Factor: 9
- Bandwidth: 125 kHz
- Tx Power: 20 dBm
- Encryption Key: 30313233343536373839414243444546 (hexadecimal)

---

### 7. Performance & Capabilities

Wireless Range:
- Up to 5,000 meters (free space, line-of-sight conditions)

Data Throughput:
- LoRa Mode: 0.244–18.2 kbps
- FSK Mode: up to 300 kbps

Transmission Power:
- Adjustable up to +20 dBm (100 mW)

Receiver Sensitivity:
- -137 dBm, enabling robust reception in noisy environments

Power Efficiency:
- Ultra-low sleep current (3 µA) for energy-saving applications
- Typical operating current <140 mA during transmission

Reliability and Protection:
- Surge-protected RS-485 interface
- Built-in terminal resistor for stable differential signaling
- AES encryption for secure data integrity

Limitations:
- RS-232 operates in half-duplex mode only
- Communication range may vary depending on environmental conditions and antenna placement
- Configuration requires Windows-based utility software

---

### 8. Standards & Compliance

Communication Standards:
- RS-232 (EIA/TIA-232 standard)
- RS-485 (EIA/TIA-485 standard)
- LoRa modulation (Semtech SX1272 compliant)
- Modbus RTU/ASCII protocol support

Electrical and Safety:
- Built-in 1.5 kV magnetic isolation (for Ethernet models; serial model includes surge protection)
- DC power input polarity protection

Regulatory Compliance:
- Designed for operation in ISM frequency band (862–936 MHz)
- Complies with industrial EMC and safety guidelines for low-voltage DC devices

Environmental Compliance:
- RoHS-compliant materials and construction
- Operating temperature and humidity suitable for industrial environments

---

### 9. Additional Information

Warranty:
Standard manufacturer warranty (duration subject to regional policy). Covers defects in materials and workmanship under normal use.

Technical Support:
- Configuration and troubleshooting assistance available via TOPSCCC technical support.
- Firmware and utility updates provided through official website or support channels.

Maintenance:
- Periodically inspect antenna and connectors for corrosion or damage.
- Ensure proper ventilation and avoid exposure to moisture or direct sunlight.
- Firmware updates can be applied via Windows utility when available.

Software Tools:
- Windows Utility: Used for LoRa parameter configuration and serial communication setup.
- EXBrowser.EXE: IP search and configuration tool (for Ethernet models; not required for EX9212LoRa-S).

Firmware Updates:
- Device supports firmware updates via serial interface using manufacturer’s utility.
- Encryption keys and LoRa parameters can be reconfigured without firmware modification.

Packaging and Handling:
Each unit is shipped with protective packaging including the converter, antenna, optional power adapter, and documentation CD. Users should verify all components upon receipt and report any missing or damaged items to their distributor.

---

### Summary

The EX9212LoRa-S is a robust, industrial-grade LoRa-to-Serial converter engineered for long-range, low-power wireless communication in IoT and automation systems. It bridges RS-232 (half-duplex) and RS-485 serial interfaces with LoRa wireless networks, enabling data transmission over several kilometers without physical cabling. With its Semtech SX1272 transceiver, AES encryption, wide voltage tolerance, and industrial temperature range, the EX9212LoRa-S offers a reliable and secure solution for remote monitoring, telemetry, and control applications. Its compact design, simple configuration, and broad compatibility make it an ideal choice for system integrators and engineers deploying distributed IoT infrastructures in industrial, agricultural, and environmental monitoring domains.
