Comprehensive Product Summary – RAYON GPI8001 PoE Power Injector

---

### 1. Product Overview

Product Name: GPI8001
Model: GPI8001 (also available as GPI8001A and GPI8001C variants)
Series: GPI Series – Gigabit Power over Ethernet (PoE) Injectors
Article Number: GPI8001
Manufacturer: RAYON TECHNOLOGY CO., LTD.
Manufacturer Address: 2F, No. 177, Chung Shan 2 Rd., Lu Chou City, Taipei Hsien, Taiwan
Contact:
- Tel: +886-2-82858362
- Fax: +886-2-82857065
- Email: rayon@ms1.hinet.net
- Web: [www.rayontech.com](http://www.rayontech.com) / [www.computex.com.tw/rayon](http://www.computex.com.tw/rayon)

Product Description:
The RAYON GPI8001 is an eight-port Gigabit Power over Ethernet (PoE) power injector designed to deliver both data and electrical power to network devices over standard Ethernet cabling. It supports IEEE 802.3af PoE standards and Cisco legacy detection, providing up to 15.4W per port (with a maximum of 30W for high-power models). The injector operates on a 48VDC input and is engineered for 10/100/1000TX Ethernet environments, offering a compact, efficient, and scalable solution for powering multiple PoE-enabled devices in enterprise, industrial, or commercial network infrastructures.

---

### 2. Key Features

- Eight-Port Gigabit PoE Injector: Supports eight independent 10/100/1000Mbps Ethernet ports for simultaneous data and power transmission.
- IEEE 802.3af Compatibility: Fully compliant with the IEEE 802.3af PoE standard, ensuring interoperability with standard PoE-powered devices (PDs).
- Cisco Legacy Detection: Supports Cisco’s proprietary PoE detection mechanism for compatibility with legacy Cisco devices.
- High Power Output: Standard model provides 15.4W per port; the GPI8001C variant supports up to 30W per port for high-power applications (IEEE 802.3at equivalent).
- Dynamic Power Management: Intelligent power allocation across ports ensures optimal utilization of the total 120W power budget.
- LED Indicators: Front-panel LEDs provide real-time status for power, overload, short-circuit, and insufficient power conditions.
- Compact Design: Space-efficient enclosure (230 × 150 × 40 mm) suitable for rack, wall, or desktop installation.
- Scalable and Cost-Effective: Enables easy expansion of PoE capability in existing non-PoE networks without replacing switches.
- Power Over Data Lines: Supports PoE transmission over data pairs, ensuring compatibility with Gigabit Ethernet cabling.
- Environmental Robustness: Designed for reliable operation in a wide range of temperature and humidity conditions.
- Flexible Model Options:
- GPI8001A: IEEE 802.3af detection only.
- GPI8001C: High-power output and Cisco legacy detection.
- Custom configurations available upon request for specialized PoE power setups.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Number of Ports | 8 RJ45 ports |
| Data Rate | 10/100/1000 Mbps (Gigabit Ethernet) |
| Input Power | 48 VDC external power input |
| PoE Output Power | 15.4 W per port (standard), up to 30 W per port for GPI8001C |
| Total Power Budget | 120 W (aggregate PoE power capacity) |
| Power Management | Dynamic power allocation per port |
| PoE Mode | Power over Data Lines (supports Gigabit PoE) |
| Connectors | Data In: RJ45; Data Out: RJ45 |
| LED Indicators | PWR (Power On), POE 1–8 (status per port: normal, overload, short-circuit, insufficient power) |
| Dimensions | 230 mm (W) × 150 mm (D) × 40 mm (H) |
| Weight | Approx. 1.2–1.5 kg (typical, depending on configuration) |
| Material | Metal enclosure for durability and heat dissipation |
| Operating Temperature | -15°C to +50°C |
| Storage Temperature | -15°C to +80°C |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Humidity | 5%–95% RH (non-condensing) |
| Compliance | IEEE 802.3af, IEEE 802.3at (for high-power model), Cisco legacy detection |
| Mounting Options | Desktop, wall-mount, or rack-mount (optional brackets) |
| Manufacturer | RAYON TECHNOLOGY CO., LTD. |

---

### 4. Functionality

The GPI8001 functions as a mid-span PoE injector, enabling network administrators to add PoE capability to existing Ethernet infrastructure without replacing non-PoE switches. It injects DC power into the Ethernet cable while maintaining full data throughput, allowing connected devices such as IP cameras, VoIP phones, wireless access points, and network terminals to receive both power and data over a single cable.

Operational Principle:
- Data Input: The injector receives data signals from a non-PoE switch or router via the “Data In” RJ45 ports.
- Power Injection: The GPI8001 adds 48VDC power to the Ethernet lines according to IEEE 802.3af/at standards.
- Data + Power Output: The combined data and power are transmitted through the “Data Out” RJ45 ports to PoE-enabled devices.
- Power Management: The internal controller monitors each port’s load, dynamically allocating power and protecting against overload or short-circuit conditions.
- LED Monitoring: Front-panel LEDs indicate operational status, simplifying troubleshooting and network monitoring.

Use Cases and Applications:
- Expanding PoE capability in existing non-PoE networks.
- Powering IP surveillance cameras, wireless access points, VoIP phones, and network sensors.
- Industrial automation systems requiring centralized power distribution.
- Remote installations where AC power outlets are limited.
- Integration with RAYON’s PoE splitters (SP1301, SP2401) and PD modules (PD1301, PD2401) for mixed PoE/non-PoE environments.

Compatibility:
- Compatible with IEEE 802.3af-compliant powered devices.
- Backward-compatible with Cisco legacy PoE devices.
- Works with standard Cat5e/Cat6 Ethernet cabling up to 100 meters.

---

### 5. Components & Accessories

Included Items:
- GPI8001 PoE Injector main unit
- User manual and installation guide
- DC power input connector (for 48VDC supply)
- Mounting hardware (optional, depending on package)

Optional Accessories:
- Power Supply Units: External 48VDC power adapters or centralized DC power systems.
- PoE Splitters:
- SP1301: Converts PoE to 12.5VDC, 13W output (IEEE 802.3af Class 0).
- SP2401: Converts PoE to 24VDC, 24W output (IEEE 802.3at Class 4).
- PoE Device Modules:
- PD1301: 13W PoE module for device integration.
- PD2401: 24W PoE module for high-power device integration.
- Mounting Kits: Wall or rack-mount brackets for structured installations.
- Network Cables: Cat5e/Cat6 shielded Ethernet cables for optimal performance.

---

### 6. Installation & Setup

Requirements:
- 48VDC regulated power source with sufficient current capacity (minimum 120W total).
- Standard Ethernet cabling (Cat5e or higher).
- Non-PoE switch or router for data input.
- PoE-compatible or PoE-splitter-equipped devices for output.

Installation Steps:
1. Power Connection: Connect the 48VDC power supply to the injector’s DC input terminal.
2. Data Input: Connect the uplink (non-PoE) switch or router to the “Data In” RJ45 ports.
3. Data + Power Output: Connect PoE-enabled devices to the corresponding “Data Out” RJ45 ports.
4. Power On: Apply power to the injector; verify the PWR LED is illuminated.
5. Status Check: Observe the POE 1–8 LEDs for each port to confirm normal operation.
6. Mounting: Secure the unit in a rack, wall, or desktop location as required.

Configuration:
The GPI8001 operates as a plug-and-play device with automatic PoE detection and classification. No software configuration is required. For advanced power management or custom configurations, RAYON offers special-order firmware or hardware options.

---

### 7. Performance & Capabilities

- Speed: Supports full-duplex Gigabit Ethernet (10/100/1000 Mbps) on all ports.
- Power Capacity:
- 15.4W per port (standard IEEE 802.3af).
- Up to 30W per port for GPI8001C (high-power model).
- 120W total power budget across all ports.
- Efficiency: High conversion efficiency minimizes power loss and heat generation.
- Protection Features:
- Overload protection per port.
- Short-circuit protection.
- Over-temperature and under-voltage safeguards.
- Dynamic Power Allocation: Automatically adjusts power distribution based on connected device requirements.
- Latency: Negligible; transparent to network traffic.
- Reliability: Industrial-grade components ensure continuous operation in demanding environments.
- Limitations:
- Requires external 48VDC power source.
- Total power budget limits simultaneous maximum load on all ports.
- Not designed for outdoor use without protective enclosure.

---

### 8. Standards & Compliance

- IEEE 802.3af: Power over Ethernet standard (15.4W per port).
- IEEE 802.3at (optional): High-power PoE (up to 30W per port, GPI8001C).
- Cisco Legacy Detection: Ensures compatibility with older Cisco PoE devices.
- RoHS Compliance: Manufactured using environmentally safe materials.
- EMI/EMC Compliance: Meets standard electromagnetic interference and compatibility requirements for network equipment.
- Safety Standards: Designed in accordance with international electrical safety guidelines for low-voltage DC systems.
- Quality Assurance: Factory-tested for performance, reliability, and compliance with RAYON’s quality management system.

---

### 9. Additional Information

Warranty:
Standard manufacturer’s warranty (typically 1–2 years, depending on region and distributor). Covers defects in materials and workmanship under normal operating conditions.

Technical Support:
RAYON provides comprehensive technical support via email and phone, including installation assistance, troubleshooting, and product customization guidance.

Maintenance:
- Periodic inspection of power connections and cabling recommended.
- Ensure adequate ventilation to prevent overheating.
- Clean exterior surfaces with dry cloth; avoid moisture exposure.
- Firmware updates or configuration adjustments available for special-order models.

Product Updates and Variants:
- GPI8001A: Standard IEEE 802.3af detection only.
- GPI8001C: Enhanced model supporting high-power output (30W) and Cisco legacy detection.
- Custom Configurations: Available upon request for specialized PoE power distribution or integration with RAYON’s PoE switches (GPS8075, GPS8180).

Integration with RAYON Ecosystem:
The GPI8001 complements RAYON’s broader PoE product line, including:
- PoE Switches: GPS8075 (75W total PoE budget) and GPS8180 (180W total PoE budget).
- PoE Splitters and Modules: SP1301, SP2401, PD1301, PD2401 for flexible power conversion and device integration.

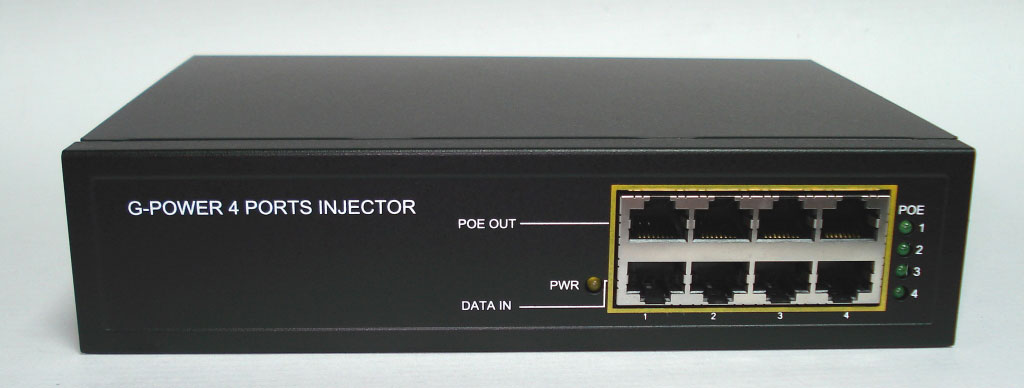

- PoE Injectors: FPI400, FPI401, GPI4000, GPI4001 for smaller-scale or lower-speed networks.

Applications Summary:
Ideal for enterprise networks, IP surveillance systems, wireless infrastructure, and industrial automation where centralized power distribution and simplified cabling are essential. The GPI8001 provides a scalable, cost-effective solution for upgrading existing Ethernet networks to PoE capability without replacing core switching hardware.

---

In Summary:
The RAYON GPI8001 PoE Power Injector is a robust, high-performance eight-port Gigabit injector designed to deliver reliable power and data connectivity to PoE-enabled devices. With IEEE 802.3af compliance, Cisco legacy support, dynamic power management, and a compact form factor, it offers a versatile and efficient solution for modern network infrastructures. Its modular design, flexible power options, and compatibility with RAYON’s PoE ecosystem make it an ideal choice for system integrators, network engineers, and IT professionals seeking to expand or modernize their PoE deployments.
