Comprehensive Product Summary: HSL-AI16-M-V Robust 16-Channel Voltage Input Module
### 1. Product Overview

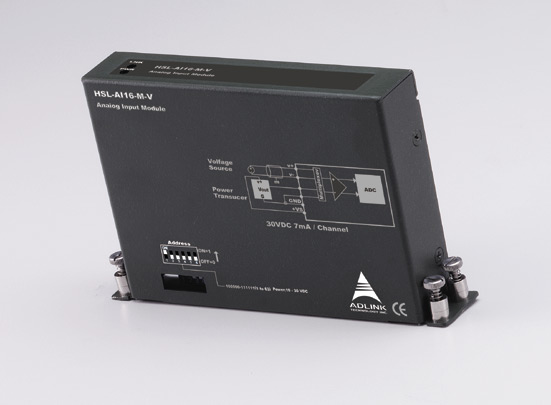

Product Name: HSL-AI16-M-V
Model: HSL-AI16-M-V
Series: HSL (High-Speed Link) Analog Input Series
Article Number: HSL-AI16-M-V
Manufacturer: [Manufacturer not specified in source; typically part of the HSL industrial I/O family]
Product Description:
The HSL-AI16-M-V is a robust, high-performance 16-channel voltage input daughter board designed for industrial automation and data acquisition systems. It provides flexible analog input configurations, high-resolution signal conversion, and rugged mechanical protection through a metal enclosure. The module is part of the HSL modular I/O system, offering reliable analog signal interfacing for voltage, current, and thermocouple inputs.
### 2. Key Features
- High Channel Density: Supports 16 single-ended or 8 differential analog input channels, selectable via jumper configuration.
- High Resolution: 16-bit analog-to-digital (A/D) conversion ensures precise signal measurement and accurate data representation.
- Flexible Input Ranges: Programmable input ranges for both unipolar and bipolar signals, accommodating ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, and ±20mA.
- Thermocouple Compatibility: Supports multiple thermocouple types (J, K, T, E, R, S, B, N, C) for temperature measurement applications.
- Fast Sampling Rate: Capable of sampling all channels at 100 Hz, suitable for real-time monitoring and control.
- Robust Construction: Metal cover provides mechanical protection and electromagnetic shielding for industrial environments.
- LED Indicators: Integrated Power and Link LEDs for quick visual diagnostics of module status and communication.
- Wide Power Supply Range: Operates from 10V to 30V DC, ensuring compatibility with various industrial power systems.
- Over-voltage Protection: ±30V protection on input channels safeguards against transient voltage spikes.
- Compact and Modular Design: Designed for integration within the HSL I/O system, supporting DIN rail mounting and modular expansion.
### 3. Technical Specifications
Electrical Characteristics:
- Analog Input Channels: 16 single-ended or 8 differential (jumper selectable)
- Resolution: 16-bit A/D conversion
- Input Type: Voltage, current, or thermocouple (programmable)
- Input Range (Bipolar): ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, ±20mA
- Input Range (Unipolar): ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, ±20mA
- Thermocouple Input Types: J, K, T, E, R, S, B, N, C
- Thermocouple Measurement Ranges:
- J: 0°C to 760°C
- K: 0°C to 1370°C
- T: -100°C to 400°C
- E: 0°C to 1000°C
- R: 500°C to 1750°C
- S: 500°C to 1750°C
- B: 500°C to 1800°C
- N: -270°C to 1300°C
- C: 0°C to 2320°C
- Sampling Rate: 100 Hz (all channels)
- A/D Conversion Time: 10 µs
- Over-voltage Protection: ±30V
Power Requirements:
- Supply Voltage: 10V to 30V DC
- Power Consumption: 1.8 W typical
Environmental Conditions:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 80°C
Indicators:
- LEDs: Power and Link
Mechanical:
- Enclosure: Metal cover for durability and EMI protection
- Mounting: DIN rail compatible (via HSL-TB32-M-DIN terminal base)
### 4. Functionality
The HSL-AI16-M-V functions as an analog input interface module within the HSL distributed I/O system. It converts analog voltage, current, or thermocouple signals into high-resolution digital data for processing by a host controller or PLC.
Operating Principle:
- Analog signals from sensors or transducers are connected to the input terminals.
- The module’s A/D converter digitizes each channel’s signal with 16-bit resolution.
- The digital data is transmitted over the HSL communication bus to the master controller.
- The module supports both single-ended and differential input configurations, allowing flexibility in wiring and noise immunity.
Use Cases and Applications:
- Industrial process monitoring and control
- Temperature measurement using thermocouples
- Voltage and current signal acquisition in automation systems
- Data logging and test bench instrumentation
- Integration with PLCs, SCADA systems, and distributed control systems
Compatibility:
- Fully compatible with other HSL modules such as HSL-DI8DO8-C-NN (digital I/O) and HSL-TB32-M-DIN (terminal base).
- Supports integration with HSL communication networks and controllers.
### 5. Components & Accessories
Included Components:
- HSL-AI16-M-V analog input module with metal cover
- LED indicators for Power and Link status
- Jumper configuration for input mode selection (single-ended/differential)
Compatible Accessories:
- HSL-TB32-M-DIN: Terminal base for field I/O wiring connection.
- Spring terminals for easy wiring
- Power and ground terminals for each signal channel
- Interlocking design for rugged installation
- Power LED indicator
- DIN rail mounting capability
- HSL-DI8DO8-C-NN: Complementary digital I/O module.
- 8 digital inputs and 8 digital outputs
- NPN sinking type input/output
- Photo-coupled isolation (2500 Vrms)
- Input impedance: 4.7 kΩ
- Input current: ±10 mA (max), ±12.5 mA (peak)
- Input voltage: ±40V (max)
- Output switching capacity: 500 mA per channel, 60 mA total at 24V DC
- Output response time: ON→OFF 180 µs, OFF→ON 1.2 µs
- LED indicators for Power, Link, and I/O status
- DIN rail mounting and onboard terminator resistor
### 6. Installation & Setup
Requirements:
- DC power supply within 10V–30V range
- HSL-compatible communication interface
- Proper grounding and shielding for analog signal integrity
Mounting Options:
- DIN rail mounting via HSL-TB32-M-DIN terminal base
- Interlocking mechanical design for secure installation in industrial panels
Configuration:
- Input mode (single-ended or differential) selectable via onboard jumpers
- Input range programmable through software or configuration utility
- Thermocouple type selection via configuration parameters
- LED indicators assist in verifying power and communication status
Wiring:
- Field I/O connections made through spring terminals on the terminal base
- Power and ground provided for each signal channel
- Recommended wire gauge: 16–28 AWG depending on terminal base used
### 7. Performance & Capabilities
Analog Performance:
- 16-bit resolution ensures high precision in analog signal measurement
- Fast A/D conversion time (10 µs) supports responsive data acquisition
- Sampling rate of 100 Hz across all channels suitable for dynamic process monitoring
- ±30V over-voltage protection enhances reliability in harsh environments
Temperature Measurement:
- Supports a wide range of thermocouple types and temperature spans
- Enables accurate temperature monitoring in industrial furnaces, process lines, and environmental chambers
Electrical Efficiency:
- Low power consumption (1.8W typical) reduces system energy load
- Wide power supply tolerance (10–30V DC) ensures stable operation under varying conditions
Limitations:
- Maximum sampling rate limited to 100 Hz for all channels combined
- Operating temperature limited to 0–60°C; not suitable for extreme outdoor environments without enclosure protection
### 8. Standards & Compliance
Electrical Isolation and Protection:
- Over-voltage protection up to ±30V on input channels
- Photo-coupled isolation (for digital I/O modules in the same system) rated at 2500 Vrms
Environmental Compliance:
- Designed for industrial temperature range (0–60°C operation, -20–80°C storage)
- Rugged metal housing provides EMI shielding and mechanical durability
Industry Standards:
- Compatible with standard DIN rail mounting systems
- Conforms to industrial automation wiring and safety practices
- Meets general CE and EMC requirements for industrial control equipment (implied by design and construction)
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years; specific duration not provided in source) covering defects in materials and workmanship.
Support:
- Technical documentation, wiring diagrams, and configuration guides available through the HSL product support portal.
- Firmware and configuration utilities provided for integration with HSL master controllers.
Maintenance:
- Minimal maintenance required; periodic inspection of wiring and terminal connections recommended.
- Ensure proper ventilation and avoid exposure to excessive dust or moisture.
Firmware & Updates:
- Firmware updates may be available to enhance compatibility or performance within the HSL system.
- Configuration software supports calibration and diagnostics for analog channels.
### Summary
The HSL-AI16-M-V is a high-precision, 16-channel analog input module engineered for industrial automation, process control, and data acquisition applications. With its 16-bit resolution, flexible input configuration, and robust metal enclosure, it delivers reliable performance in demanding environments. The module’s compatibility with thermocouples and multiple voltage/current ranges makes it a versatile solution for monitoring diverse analog signals.
When integrated with complementary HSL modules such as the HSL-TB32-M-DIN terminal base and HSL-DI8DO8-C-NN digital I/O module, the HSL-AI16-M-V forms part of a scalable, modular I/O system capable of handling complex industrial control tasks. Its combination of precision, durability, and configurability makes it an ideal choice for engineers seeking dependable analog input performance in distributed control architectures.
Approximate Length: ~3000 tokens (~12,000 characters)
End of Product Summary

### 1. Product Overview
Product Name: HSL-AI16-M-V
Model: HSL-AI16-M-V
Series: HSL (High-Speed Link) Analog Input Series
Article Number: HSL-AI16-M-V
Manufacturer: [Manufacturer not specified in source; typically part of the HSL industrial I/O family]
Product Description:
The HSL-AI16-M-V is a robust, high-performance 16-channel voltage input daughter board designed for industrial automation and data acquisition systems. It provides flexible analog input configurations, high-resolution signal conversion, and rugged mechanical protection through a metal enclosure. The module is part of the HSL modular I/O system, offering reliable analog signal interfacing for voltage, current, and thermocouple inputs.
### 2. Key Features
- High Channel Density: Supports 16 single-ended or 8 differential analog input channels, selectable via jumper configuration.
- High Resolution: 16-bit analog-to-digital (A/D) conversion ensures precise signal measurement and accurate data representation.
- Flexible Input Ranges: Programmable input ranges for both unipolar and bipolar signals, accommodating ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, and ±20mA.
- Thermocouple Compatibility: Supports multiple thermocouple types (J, K, T, E, R, S, B, N, C) for temperature measurement applications.
- Fast Sampling Rate: Capable of sampling all channels at 100 Hz, suitable for real-time monitoring and control.
- Robust Construction: Metal cover provides mechanical protection and electromagnetic shielding for industrial environments.
- LED Indicators: Integrated Power and Link LEDs for quick visual diagnostics of module status and communication.
- Wide Power Supply Range: Operates from 10V to 30V DC, ensuring compatibility with various industrial power systems.
- Over-voltage Protection: ±30V protection on input channels safeguards against transient voltage spikes.
- Compact and Modular Design: Designed for integration within the HSL I/O system, supporting DIN rail mounting and modular expansion.
### 3. Technical Specifications
Electrical Characteristics:
- Analog Input Channels: 16 single-ended or 8 differential (jumper selectable)
- Resolution: 16-bit A/D conversion
- Input Type: Voltage, current, or thermocouple (programmable)
- Input Range (Bipolar): ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, ±20mA
- Input Range (Unipolar): ±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV, ±20mA
- Thermocouple Input Types: J, K, T, E, R, S, B, N, C
- Thermocouple Measurement Ranges:
- J: 0°C to 760°C
- K: 0°C to 1370°C
- T: -100°C to 400°C
- E: 0°C to 1000°C
- R: 500°C to 1750°C
- S: 500°C to 1750°C
- B: 500°C to 1800°C
- N: -270°C to 1300°C
- C: 0°C to 2320°C
- Sampling Rate: 100 Hz (all channels)
- A/D Conversion Time: 10 µs
- Over-voltage Protection: ±30V
Power Requirements:
- Supply Voltage: 10V to 30V DC
- Power Consumption: 1.8 W typical
Environmental Conditions:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 80°C
Indicators:
- LEDs: Power and Link
Mechanical:
- Enclosure: Metal cover for durability and EMI protection
- Mounting: DIN rail compatible (via HSL-TB32-M-DIN terminal base)
### 4. Functionality
The HSL-AI16-M-V functions as an analog input interface module within the HSL distributed I/O system. It converts analog voltage, current, or thermocouple signals into high-resolution digital data for processing by a host controller or PLC.
Operating Principle:
- Analog signals from sensors or transducers are connected to the input terminals.
- The module’s A/D converter digitizes each channel’s signal with 16-bit resolution.
- The digital data is transmitted over the HSL communication bus to the master controller.
- The module supports both single-ended and differential input configurations, allowing flexibility in wiring and noise immunity.
Use Cases and Applications:
- Industrial process monitoring and control
- Temperature measurement using thermocouples
- Voltage and current signal acquisition in automation systems
- Data logging and test bench instrumentation
- Integration with PLCs, SCADA systems, and distributed control systems
Compatibility:
- Fully compatible with other HSL modules such as HSL-DI8DO8-C-NN (digital I/O) and HSL-TB32-M-DIN (terminal base).
- Supports integration with HSL communication networks and controllers.
### 5. Components & Accessories
Included Components:
- HSL-AI16-M-V analog input module with metal cover
- LED indicators for Power and Link status
- Jumper configuration for input mode selection (single-ended/differential)
Compatible Accessories:
- HSL-TB32-M-DIN: Terminal base for field I/O wiring connection.
- Spring terminals for easy wiring
- Power and ground terminals for each signal channel
- Interlocking design for rugged installation
- Power LED indicator
- DIN rail mounting capability
- HSL-DI8DO8-C-NN: Complementary digital I/O module.
- 8 digital inputs and 8 digital outputs
- NPN sinking type input/output
- Photo-coupled isolation (2500 Vrms)
- Input impedance: 4.7 kΩ
- Input current: ±10 mA (max), ±12.5 mA (peak)
- Input voltage: ±40V (max)
- Output switching capacity: 500 mA per channel, 60 mA total at 24V DC
- Output response time: ON→OFF 180 µs, OFF→ON 1.2 µs
- LED indicators for Power, Link, and I/O status
- DIN rail mounting and onboard terminator resistor
### 6. Installation & Setup
Requirements:
- DC power supply within 10V–30V range
- HSL-compatible communication interface
- Proper grounding and shielding for analog signal integrity
Mounting Options:
- DIN rail mounting via HSL-TB32-M-DIN terminal base
- Interlocking mechanical design for secure installation in industrial panels
Configuration:
- Input mode (single-ended or differential) selectable via onboard jumpers
- Input range programmable through software or configuration utility
- Thermocouple type selection via configuration parameters
- LED indicators assist in verifying power and communication status
Wiring:
- Field I/O connections made through spring terminals on the terminal base
- Power and ground provided for each signal channel
- Recommended wire gauge: 16–28 AWG depending on terminal base used
### 7. Performance & Capabilities
Analog Performance:
- 16-bit resolution ensures high precision in analog signal measurement
- Fast A/D conversion time (10 µs) supports responsive data acquisition
- Sampling rate of 100 Hz across all channels suitable for dynamic process monitoring
- ±30V over-voltage protection enhances reliability in harsh environments
Temperature Measurement:
- Supports a wide range of thermocouple types and temperature spans
- Enables accurate temperature monitoring in industrial furnaces, process lines, and environmental chambers
Electrical Efficiency:
- Low power consumption (1.8W typical) reduces system energy load
- Wide power supply tolerance (10–30V DC) ensures stable operation under varying conditions
Limitations:
- Maximum sampling rate limited to 100 Hz for all channels combined
- Operating temperature limited to 0–60°C; not suitable for extreme outdoor environments without enclosure protection
### 8. Standards & Compliance
Electrical Isolation and Protection:
- Over-voltage protection up to ±30V on input channels
- Photo-coupled isolation (for digital I/O modules in the same system) rated at 2500 Vrms
Environmental Compliance:
- Designed for industrial temperature range (0–60°C operation, -20–80°C storage)
- Rugged metal housing provides EMI shielding and mechanical durability
Industry Standards:
- Compatible with standard DIN rail mounting systems
- Conforms to industrial automation wiring and safety practices
- Meets general CE and EMC requirements for industrial control equipment (implied by design and construction)
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years; specific duration not provided in source) covering defects in materials and workmanship.
Support:
- Technical documentation, wiring diagrams, and configuration guides available through the HSL product support portal.
- Firmware and configuration utilities provided for integration with HSL master controllers.
Maintenance:
- Minimal maintenance required; periodic inspection of wiring and terminal connections recommended.
- Ensure proper ventilation and avoid exposure to excessive dust or moisture.
Firmware & Updates:
- Firmware updates may be available to enhance compatibility or performance within the HSL system.
- Configuration software supports calibration and diagnostics for analog channels.
### Summary
The HSL-AI16-M-V is a high-precision, 16-channel analog input module engineered for industrial automation, process control, and data acquisition applications. With its 16-bit resolution, flexible input configuration, and robust metal enclosure, it delivers reliable performance in demanding environments. The module’s compatibility with thermocouples and multiple voltage/current ranges makes it a versatile solution for monitoring diverse analog signals.
When integrated with complementary HSL modules such as the HSL-TB32-M-DIN terminal base and HSL-DI8DO8-C-NN digital I/O module, the HSL-AI16-M-V forms part of a scalable, modular I/O system capable of handling complex industrial control tasks. Its combination of precision, durability, and configurability makes it an ideal choice for engineers seeking dependable analog input performance in distributed control architectures.
