Comprehensive Product Summary: HSL-DI16DO16-M-NN

---

### 1. Product Overview

Product Name: HSL-DI16DO16-M-NN
Model Number: HSL-DI16DO16-M-NN
Series: HSL (High Speed Link for Industry Automation Solutions)
Article Number: HSL-DI16DO16-M-NN
Manufacturer: ADLINK Technology Inc.
Product Type: 16-Channel Discrete Input and 16-Channel Discrete Output Daughter Board
Product Family: HSL-DI16DO16-DB Series
Trademark: HSL® – High Speed Link for Industrial Automation Solutions
Manufacturer Contact:
- Website: [www.adlink.com.tw](http://www.adlink.com.tw)
- Service Email: service@adlink.com.tw
- Technical Assistance: NuDAM@adlink.com.tw
- Telephone: +886-2-82265877
- Fax: +886-2-82265717

The HSL-DI16DO16-M-NN is a robust, metal-covered daughter board designed for industrial automation systems utilizing ADLINK’s High Speed Link (HSL) communication architecture. It provides 16 channels of NPN sinking discrete inputs and 16 channels of NPN sinking discrete outputs, enabling high-performance digital I/O interfacing for distributed control applications.

---

### 2. Key Features

- High-Speed Industrial Communication:
Built on ADLINK’s HSL (High Speed Link) technology, ensuring fast, reliable, and deterministic data transfer for industrial automation networks.

- Dual 16-Channel Configuration:
Provides 16 discrete input channels and 16 discrete output channels, both configured for NPN sinking operation.

- Robust Construction:
Metal cover design enhances durability and electromagnetic shielding, suitable for harsh industrial environments.

- Flexible Power Input:
Operates with an external DC power supply ranging from +10V to +30V, accommodating various industrial power systems.

- LED Status Indicators:
- Red: Active DC power
- Green: Link and Discrete Input status
- Yellow: Discrete Output status
These indicators provide immediate visual feedback for system diagnostics and operational monitoring.

- Fast Response Time:
Input and output response times are both ≤ 2 ms, ensuring real-time performance in automation control loops.

- Modular Terminal Base Compatibility:
Compatible with multiple terminal base options (HSL-TB32-DIN, HSL-TB32-U-DIN, HSL-TB64-DIN) for flexible installation and wiring configurations.

- Address Configuration via DIP Switch:
Supports up to 63 addressable modules through a 6-bit DIP switch configuration, allowing scalable system expansion.

- RS-422 Communication Interface:
Utilizes differential RS-422 signaling for robust, noise-immune data transmission between modules.

- Low Power Consumption:
Consumes only 1.8 W, optimizing energy efficiency in distributed I/O systems.

---

### 3. Technical Specifications

General Specifications:
- Model: HSL-DI16DO16-M-NN
- Input Type: 16-channel NPN sinking or dry contact
- Output Type: 16-channel NPN sinking transistor output
- Power Requirement: +10V to +30V DC external supply
- Power Consumption: 1.8 W
- Weight: 72 g
- Operating Temperature: (Not specified; typically industrial range - assume -10°C to +60°C)
- Mounting Options: DIN-rail compatible via terminal base

Dimensions:
- Daughter Board Only: 100 mm × 78.2 mm
- With HSL-TB32-DIN: 126 mm × 120.1 mm × 107.3 mm
- With HSL-TB64-DIN: 168.7 mm × 120.1 mm × 107.3 mm

Discrete Input Specifications:
- Channels: 16
- Type: NPN sinking or dry contact
- Input Current: -10 mA typical
- Input Impedance: 4.7 kΩ
- Input Voltage Range:
- ON: ≥ 19.0 V DC (min)
- OFF: ≤ 9.6 V DC (max)
- Response Time: ≤ 2 ms (ON/OFF)

Discrete Output Specifications:
- Channels: 16
- Type: NPN sinking transistor output
- Switching Capacity:
- With TB32-U: up to -60 mA at 24V DC
- With TB64: up to -300 mA at 24V DC
- Response Time: ≤ 2 ms (ON/OFF)

Electrical Interface:
- Communication: RS-422 differential signaling
- Connectors: JP3 and JP4 pin headers
- Pin Assignments:
- Power: +VS (+10V~+30V DC), GND
- Communication: RX+/RX-, TX+/TX-
- Inputs: DI0–DI15
- Outputs: DO0–DO15

---

### 4. Functionality

The HSL-DI16DO16-M-NN functions as a distributed I/O module within ADLINK’s HSL network. It interfaces discrete field signals (sensors, switches, actuators, relays) with a host controller or PLC via high-speed serial communication.

Operational Principle:
- Inputs: Each of the 16 input channels detects the ON/OFF state of external NPN-type sensors or dry contacts. The input circuitry includes internal pull-up resistors and LED indicators for channel status visualization.
- Outputs: The 16 transistor outputs drive external loads such as relays, solenoids, or indicator lamps. Each output channel operates as an NPN sinking output, switching the load to ground when activated.
- Communication: The module exchanges I/O data with the HSL master controller through RS-422 differential lines, ensuring reliable, noise-resistant communication over long distances.
- Addressing: A 6-bit DIP switch allows the user to assign a unique address (1–63) to each module, enabling multiple modules to coexist on the same HSL network.

Typical Applications:
- Factory automation and process control
- Machine tool monitoring and control
- Packaging and assembly line systems
- Distributed I/O expansion for PLCs and motion controllers
- Industrial equipment requiring fast, deterministic digital I/O

Compatibility:
- Fully compatible with ADLINK HSL terminal bases:
- HSL-TB32-DIN
- HSL-TB32-U-DIN
- HSL-TB64-DIN
- Supports both NPN and PNP configurations depending on model variant (NN, NP, PN, PP).

---

### 5. Components & Accessories

Included Components:

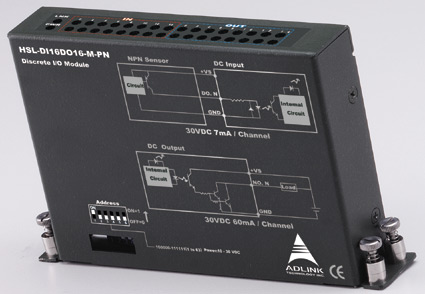

- HSL-DI16DO16-M-NN daughter board (metal cover)
- JP3/JP4 connectors for I/O and communication interface
- DIP switch for address configuration
- LED indicators for power, link, input, and output status

Optional Accessories:
- Terminal Bases:
- HSL-TB32-DIN: 32-channel I/O terminal base for NPN configurations
- HSL-TB32-U-DIN: 32-channel universal terminal base
- HSL-TB64-DIN: 64-channel terminal base for dual-slot configurations
- Cables: RS-422 communication cables for HSL network interconnection
- Mounting Hardware: DIN-rail clips and screws (depending on terminal base)

Connectors and Pinouts:
- JP3: Power and communication interface
- +VS, GND, RX+/RX-, TX+/TX-
- JP4: Discrete I/O interface
- DI0–DI15 (inputs)
- DO0–DO15 (outputs)

---

### 6. Installation & Setup

Installation Requirements:
- External DC power supply: +10V to +30V DC
- Compatible terminal base (HSL-TB32-DIN, HSL-TB32-U-DIN, or HSL-TB64-DIN)
- RS-422 communication link to HSL master controller

Mounting Options:
- DIN-rail mounting via terminal base
- Secure mechanical installation to minimize vibration and ensure grounding continuity

Configuration Steps:
1. Mount the Terminal Base: Attach the selected terminal base to the DIN rail.
2. Attach the Daughter Board: Plug the HSL-DI16DO16-M-NN onto the terminal base connector.
3. Set Module Address: Configure the 6-bit DIP switch to assign a unique address (1–63).
4. Connect Power: Supply +10V to +30V DC to the +VS and GND terminals.
5. Connect Communication Lines: Wire RS-422 lines (RX+/RX-, TX+/TX-) to the HSL network.
6. Wire Field Devices: Connect sensors and actuators to the corresponding DI/DO terminals as per the field I/O configuration tables.
7. Verify LED Indicators: Ensure power (red), link (green), and I/O (green/yellow) LEDs indicate proper operation.

Field I/O Configuration Examples:
- With HSL-TB32-DIN:
- Inputs: Channels 0–15 mapped to terminals 0–15
- Outputs: Channels 0–15 mapped to terminals 16–31
- With HSL-TB64-DIN:
- Inputs: Channels 0–15 mapped to terminals 0–15 (Slot I) and 32–47 (Slot II)
- Outputs: Channels 0–15 mapped to terminals 16–31 (Slot I) and 48–63 (Slot II)

---

### 7. Performance & Capabilities

Speed and Response:
- Input and output response times ≤ 2 ms ensure rapid signal processing suitable for high-speed automation tasks.

Capacity:
- 16 input and 16 output channels per module
- Expandable up to 63 modules per HSL network (total 2016 inputs and 2016 outputs possible)

Efficiency:
- Low power consumption (1.8 W) minimizes heat generation and energy usage.
- Compact design allows high-density I/O deployment in control cabinets.

Load Handling:
- Output channels can switch up to 300 mA at 24V DC (depending on terminal base).
- Suitable for driving small relays, solenoids, and indicator lamps.

Limitations:
- Designed for DC loads only (24V DC typical).
- Not intended for direct AC load switching.
- Requires proper grounding and shielding for optimal noise immunity.

---

### 8. Standards & Compliance

Certifications and Compliance:
- Manufacturer Quality: ADLINK Technology Inc. adheres to ISO-certified manufacturing processes.
- Electrical Safety: Designed for low-voltage DC operation within industrial control panels.
- EMC Compliance: Metal cover provides shielding against electromagnetic interference (EMI).
- Communication Standard: RS-422 differential signaling standard for robust industrial data transmission.
- Trademark: HSL® is a registered trademark of ADLINK Technology Inc.

Industry Standards:
- Compatible with general industrial automation standards for discrete I/O modules.
- Designed for integration with PLCs, motion controllers, and distributed control systems (DCS).

---

### 9. Additional Information

Ordering Information:
- HSL-DI16DO16-DB-NN: 16 NPN sinking inputs / 16 NPN sinking outputs
- HSL-DI16DO16-DB-NP: 16 NPN sinking inputs / 16 PNP sourcing outputs
- HSL-DI16DO16-DB-PN: 16 PNP sourcing inputs / 16 NPN sinking outputs
- HSL-DI16DO16-DB-PP: 16 PNP sourcing inputs / 16 PNP sourcing outputs

Terminal Base Options:
- HSL-TB32-DIN: 32-channel I/O terminal base for NPN configurations
- HSL-TB32-U-DIN: Universal 32-channel terminal base
- HSL-TB64-DIN: 64-channel terminal base for dual-slot configurations

Warranty and Support:
- Standard ADLINK limited warranty (duration per regional policy)
- Technical support available via email and phone
- Firmware and documentation updates accessible through ADLINK’s website

Maintenance:
- Periodic inspection of terminal connections and power supply recommended
- Keep module free from dust and moisture
- Verify LED indicators for operational status during maintenance cycles

Documentation Reference:
Document ID: AM-HSLDBIO001-E1.00
All specifications are subject to change without notice.

---

### Summary

The ADLINK HSL-DI16DO16-M-NN is a high-performance, industrial-grade discrete I/O daughter board engineered for distributed automation systems. Featuring 16 NPN sinking inputs and 16 NPN sinking outputs, it delivers fast, reliable digital signal interfacing through ADLINK’s HSL high-speed communication network. Its robust metal enclosure, flexible power range, and modular terminal base compatibility make it ideal for demanding industrial environments requiring scalable, deterministic control.
