Comprehensive Product Summary – ORing IDS‑1112 Industrial Wireless Device Server
### 1. Product Overview

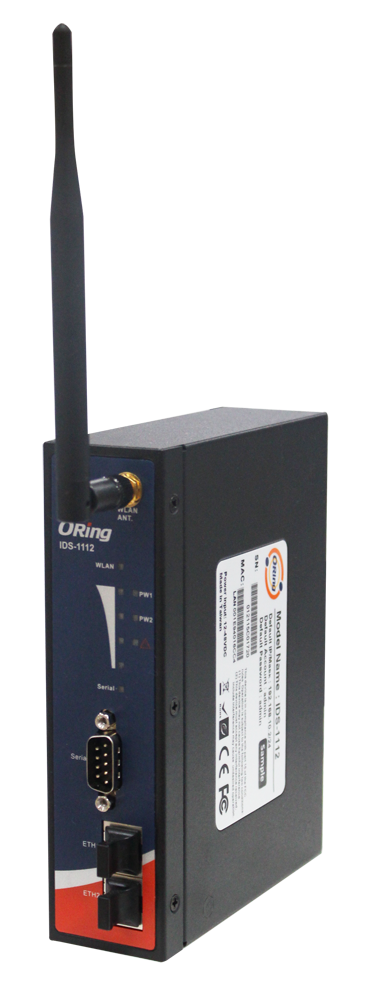

Product Name: Industrial Wireless Device Server
Model: IDS‑1112
Series: IDS Series
Article Number: IDS‑1112
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Headquarters: 3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com
The ORing IDS‑1112 is a compact, industrial‑grade wireless device server designed to connect serial RS‑232 devices to Ethernet and WLAN networks. It provides a reliable bridge between legacy serial equipment and modern IP‑based systems, supporting both wired and wireless connectivity with advanced redundancy, security, and management features. The unit is engineered for harsh industrial environments, offering robust construction, redundant power inputs, and comprehensive network management capabilities.
### 2. Key Features
- Dual Network Interfaces:
One 10/100Base‑T(X) Ethernet port (RJ‑45) with auto MDI/MDI‑X and one IEEE 802.11b/g WLAN interface for flexible deployment in wired or wireless networks.
- Wireless Connectivity:
Supports IEEE 802.11b/g standards with data rates up to 54 Mbps. Operates in client mode with DSSS/OFDM modulation and reverse SMA antenna connector.
- High Security:
Comprehensive wireless encryption and authentication: WEP (64/128‑bit), WPA/WPA2, WPA‑PSK (256‑bit), 802.1X authentication, TKIP, and AES encryption. Secure management via HTTPS and SSH.
- Redundant Power Inputs:
Dual 12–48 VDC inputs via terminal block and DC jack ensure uninterrupted operation in case of power source failure.
- Multiple Host Connections:
Supports up to five simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP modes, ensuring data redundancy and multi‑host accessibility.
- Event Notification System:
Configurable alerts via Syslog, Email, SNMP trap, relay output, or beeper for proactive fault management.
- Industrial‑Grade Design:
IP‑40 metal enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10 °C to 60 °C), and high vibration/shock resistance.
- Software Flexibility:
Supports Virtual COM, Serial Tunnel, TCP Server/Client, and UDP modes. Compatible with Windows NT/2000/XP/2003/Vista/7 (32/64‑bit).
- Network Management:
Configurable via DS‑Tool utility, web browser (HTTPS), or SSH console. Supports SNMP v1/v2c, DDNS, PPPoE, and NAT pass‑through.
- Ethernet Redundancy:
Fast recovery time (<10 ms) ensures continuous communication in redundant network topologies.
### 3. Technical Specifications
Network Interfaces:
- 1 × 10/100Base‑T(X) RJ‑45 port, auto MDI/MDI‑X
- 1 × IEEE 802.11b/g WLAN interface (client mode)
- Reverse SMA antenna connector
Wireless Specifications:
- Standards: IEEE 802.11b/g
- Frequency Range:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
- Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
- Transmission Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- Transmit Power: 18 dBm
- Receiver Sensitivity:
- –81 dBm @ 11 Mbps (PER < 8%)
- –64 dBm @ 54 Mbps (PER < 10%)
Serial Interface:
- Connector: DB9 male
- Interface: RS‑232 (DTE)
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
Network Protocols:
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE
LED Indicators:
- PWR1/PWR2: Green = active, Red = booting/fault
- ETH1/ETH2: Green = 100 Mbps LNK/ACT, Amber = 10 Mbps LNK/ACT
- WLAN: Green = link/activity
- WLAN Signal Strength: 1 < 25%, 2 < 50%, 3 < 75%, 4 < 100%
- Serial TX/RX: Green = transmit, Red = receive
- Fault LED: Red = system or power fault
Power:
- Dual DC inputs: 12–48 VDC (3‑pin terminal block and DC jack)
- Power consumption: 5.3 W (typical)
- Overload and reverse polarity protection
Physical Characteristics:
- Enclosure: IP‑40 rated metal housing
- Dimensions: 41 (W) × 114 (D) × 153 (H) mm (1.61 × 4.48 × 6.02 in)
- Weight: 551 g
Environmental:
- Operating Temperature: –10 °C to 60 °C (14 °F to 140 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing
Regulatory Approvals:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2/‑3/‑4/‑5/‑6/‑8/‑11
- Shock: IEC60068‑2‑27
- Vibration: IEC60068‑2‑6
- Free Fall: IEC60068‑2‑32
- Safety: EN60950‑1
Warranty: 5 years
### 4. Functionality
The IDS‑1112 acts as a transparent bridge between serial RS‑232 devices and Ethernet/WLAN networks. It converts serial data streams into TCP/IP packets, enabling remote monitoring, control, and data acquisition over LAN or wireless networks.
Operating Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing legacy applications to communicate as if directly connected. Supports up to five simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode: Initiates TCP connections to a specified server upon startup or data transmission.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel Mode: Creates a transparent serial link between two IDS devices over IP.
Use Cases:
- Industrial automation and SCADA systems
- Remote monitoring of PLCs, sensors, and meters
- Serial‑to‑Ethernet integration for legacy equipment
- Wireless data acquisition in manufacturing or utilities
- Secure remote console access for industrial controllers
Compatibility:
Supports Windows NT/2000/XP/2003/Vista/7 (32/64‑bit) via Virtual COM drivers. Linux systems supported via fixed TTY driver.
### 5. Components & Accessories
Included Items:
- IDS‑1112 main unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Power terminal block connector
- Quick installation guide and user manual
Connectors:
- 1 × DB9 male (RS‑232)
- 1 × RJ‑45 Ethernet port
- 1 × Reverse SMA antenna connector
- 1 × 3‑pin terminal block (PWR1/PWR2/Relay)
- 1 × DC power jack
- 1 × Reset button (5 s for factory default)
Optional Accessories:
- External 2.4 GHz antenna
- Power adapters (12–48 VDC)
- Ethernet cables (Cat 5/5e UTP)
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Mounting:
The unit includes a rear metal spring clip for quick DIN‑rail installation. Tilt, hook, and press until a “click” confirms secure attachment.
- Wall Mounting:
Remove the DIN‑rail kit, attach the wall‑mount panel using three provided screws, and fix the assembly to the wall.
Power Connection:
Connect dual DC inputs (12–48 VDC) via terminal block or DC jack. Redundant inputs ensure continuous operation.
Network Connection:
- Ethernet: Use Cat 3/4/5/5e UTP cables (100 m max). Supports auto MDI/MDI‑X.
- Wireless: Configure SSID, channel, and encryption via DS‑Tool or web interface.
Configuration Interfaces:
1. DS‑Tool Utility: Windows‑based software for device discovery, configuration, firmware updates, and monitoring.
2. Web Browser (HTTPS): Access via default IP 192.168.10.2 for full configuration.
3. SSH Console: Secure command‑line configuration using tools like PuTTY.
Default Settings:
- IP Address: 192.168.10.2
- DHCP: Disabled
- Password: None (set during initial configuration)
### 7. Performance & Capabilities
- Wireless Throughput: Up to 54 Mbps (802.11g)
- Serial Data Rate: Up to 460.8 kbps
- Ethernet Redundancy Recovery: < 10 ms
- Simultaneous Connections: Up to 5 hosts per serial port
- Power Efficiency: Typical consumption 5.3 W
- Reliability: Dual power inputs, fault relay output, and event notifications ensure high availability.
- Latency Optimization: Configurable throughput or latency modes for performance tuning.
- Buffer Management: 4 KB serial/Ethernet buffers with configurable flush timers (0–65535 s).
- Security: SSL encryption for data channels, HTTPS/SSH for management, IP access control, and password protection.
- Limitations: Single RS‑232 port; simultaneous LAN/WLAN operation not supported (WLAN enters standby when LAN active).
### 8. Standards & Compliance
Networking Standards:
- IEEE 802.3 10Base‑T
- IEEE 802.3u 100Base‑TX
- IEEE 802.11b/g WLAN
Safety & EMC Compliance:
- EMI: FCC Part 15 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11
- Safety: EN60950‑1
- Environmental Tests: IEC60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free Fall)
Industry Standards:
- IP‑40 enclosure rating
- RoHS‑compliant manufacturing
- Supports SNMP v1/v2c for network management integration
### 9. Additional Information
Warranty:
5‑year limited warranty covering defects in materials and workmanship. Excludes damage from misuse, unauthorized modification, or improper installation.
Maintenance:
- Periodically inspect power and network connections.
- Keep ventilation openings clear.
- Firmware updates available via DS‑Tool or web interface.
Support & Updates:
- Technical Support: support@oring-networking.com
- Firmware & Documentation: Available on manufacturer’s website.
- Configuration Backup: Export/import settings via DS‑Tool or web interface for rapid recovery.
Service & Repair:
Defective units within warranty period are repaired or replaced by ORing or authorized distributors. Shipping costs shared per warranty policy.
### Summary
The ORing IDS‑1112 Industrial Wireless Device Server is a robust, feature‑rich solution for integrating RS‑232 serial devices into modern Ethernet and WLAN infrastructures. Its dual network interfaces, redundant power design, and comprehensive management options make it ideal for mission‑critical industrial automation, remote monitoring, and control applications. With advanced security, flexible configuration modes, and compliance with international standards, the IDS‑1112 delivers reliable, secure, and efficient serial‑to‑IP connectivity in demanding industrial environments.
### 1. Product Overview
Product Name: Industrial Wireless Device Server
Model: IDS‑1112
Series: IDS Series
Article Number: IDS‑1112
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Headquarters: 3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com
The ORing IDS‑1112 is a compact, industrial‑grade wireless device server designed to connect serial RS‑232 devices to Ethernet and WLAN networks. It provides a reliable bridge between legacy serial equipment and modern IP‑based systems, supporting both wired and wireless connectivity with advanced redundancy, security, and management features. The unit is engineered for harsh industrial environments, offering robust construction, redundant power inputs, and comprehensive network management capabilities.
### 2. Key Features
- Dual Network Interfaces:
One 10/100Base‑T(X) Ethernet port (RJ‑45) with auto MDI/MDI‑X and one IEEE 802.11b/g WLAN interface for flexible deployment in wired or wireless networks.
- Wireless Connectivity:
Supports IEEE 802.11b/g standards with data rates up to 54 Mbps. Operates in client mode with DSSS/OFDM modulation and reverse SMA antenna connector.
- High Security:
Comprehensive wireless encryption and authentication: WEP (64/128‑bit), WPA/WPA2, WPA‑PSK (256‑bit), 802.1X authentication, TKIP, and AES encryption. Secure management via HTTPS and SSH.
- Redundant Power Inputs:
Dual 12–48 VDC inputs via terminal block and DC jack ensure uninterrupted operation in case of power source failure.
- Multiple Host Connections:
Supports up to five simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP modes, ensuring data redundancy and multi‑host accessibility.
- Event Notification System:
Configurable alerts via Syslog, Email, SNMP trap, relay output, or beeper for proactive fault management.
- Industrial‑Grade Design:
IP‑40 metal enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10 °C to 60 °C), and high vibration/shock resistance.
- Software Flexibility:
Supports Virtual COM, Serial Tunnel, TCP Server/Client, and UDP modes. Compatible with Windows NT/2000/XP/2003/Vista/7 (32/64‑bit).
- Network Management:
Configurable via DS‑Tool utility, web browser (HTTPS), or SSH console. Supports SNMP v1/v2c, DDNS, PPPoE, and NAT pass‑through.
- Ethernet Redundancy:
Fast recovery time (<10 ms) ensures continuous communication in redundant network topologies.
### 3. Technical Specifications
Network Interfaces:
- 1 × 10/100Base‑T(X) RJ‑45 port, auto MDI/MDI‑X
- 1 × IEEE 802.11b/g WLAN interface (client mode)
- Reverse SMA antenna connector
Wireless Specifications:
- Standards: IEEE 802.11b/g
- Frequency Range:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
- Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
- Transmission Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- Transmit Power: 18 dBm
- Receiver Sensitivity:
- –81 dBm @ 11 Mbps (PER < 8%)
- –64 dBm @ 54 Mbps (PER < 10%)
Serial Interface:
- Connector: DB9 male
- Interface: RS‑232 (DTE)
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
Network Protocols:
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE
LED Indicators:
- PWR1/PWR2: Green = active, Red = booting/fault
- ETH1/ETH2: Green = 100 Mbps LNK/ACT, Amber = 10 Mbps LNK/ACT
- WLAN: Green = link/activity
- WLAN Signal Strength: 1 < 25%, 2 < 50%, 3 < 75%, 4 < 100%
- Serial TX/RX: Green = transmit, Red = receive
- Fault LED: Red = system or power fault
Power:
- Dual DC inputs: 12–48 VDC (3‑pin terminal block and DC jack)
- Power consumption: 5.3 W (typical)
- Overload and reverse polarity protection
Physical Characteristics:
- Enclosure: IP‑40 rated metal housing
- Dimensions: 41 (W) × 114 (D) × 153 (H) mm (1.61 × 4.48 × 6.02 in)
- Weight: 551 g
Environmental:
- Operating Temperature: –10 °C to 60 °C (14 °F to 140 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing
Regulatory Approvals:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2/‑3/‑4/‑5/‑6/‑8/‑11
- Shock: IEC60068‑2‑27
- Vibration: IEC60068‑2‑6
- Free Fall: IEC60068‑2‑32
- Safety: EN60950‑1
Warranty: 5 years
### 4. Functionality
The IDS‑1112 acts as a transparent bridge between serial RS‑232 devices and Ethernet/WLAN networks. It converts serial data streams into TCP/IP packets, enabling remote monitoring, control, and data acquisition over LAN or wireless networks.
Operating Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing legacy applications to communicate as if directly connected. Supports up to five simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode: Initiates TCP connections to a specified server upon startup or data transmission.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel Mode: Creates a transparent serial link between two IDS devices over IP.
Use Cases:
- Industrial automation and SCADA systems
- Remote monitoring of PLCs, sensors, and meters
- Serial‑to‑Ethernet integration for legacy equipment
- Wireless data acquisition in manufacturing or utilities
- Secure remote console access for industrial controllers
Compatibility:
Supports Windows NT/2000/XP/2003/Vista/7 (32/64‑bit) via Virtual COM drivers. Linux systems supported via fixed TTY driver.
### 5. Components & Accessories
Included Items:
- IDS‑1112 main unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Power terminal block connector
- Quick installation guide and user manual
Connectors:
- 1 × DB9 male (RS‑232)
- 1 × RJ‑45 Ethernet port
- 1 × Reverse SMA antenna connector
- 1 × 3‑pin terminal block (PWR1/PWR2/Relay)
- 1 × DC power jack
- 1 × Reset button (5 s for factory default)
Optional Accessories:
- External 2.4 GHz antenna
- Power adapters (12–48 VDC)
- Ethernet cables (Cat 5/5e UTP)
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Mounting:
The unit includes a rear metal spring clip for quick DIN‑rail installation. Tilt, hook, and press until a “click” confirms secure attachment.
- Wall Mounting:
Remove the DIN‑rail kit, attach the wall‑mount panel using three provided screws, and fix the assembly to the wall.
Power Connection:
Connect dual DC inputs (12–48 VDC) via terminal block or DC jack. Redundant inputs ensure continuous operation.
Network Connection:
- Ethernet: Use Cat 3/4/5/5e UTP cables (100 m max). Supports auto MDI/MDI‑X.
- Wireless: Configure SSID, channel, and encryption via DS‑Tool or web interface.
Configuration Interfaces:
1. DS‑Tool Utility: Windows‑based software for device discovery, configuration, firmware updates, and monitoring.
2. Web Browser (HTTPS): Access via default IP 192.168.10.2 for full configuration.
3. SSH Console: Secure command‑line configuration using tools like PuTTY.
Default Settings:
- IP Address: 192.168.10.2
- DHCP: Disabled
- Password: None (set during initial configuration)
### 7. Performance & Capabilities
- Wireless Throughput: Up to 54 Mbps (802.11g)
- Serial Data Rate: Up to 460.8 kbps
- Ethernet Redundancy Recovery: < 10 ms
- Simultaneous Connections: Up to 5 hosts per serial port
- Power Efficiency: Typical consumption 5.3 W
- Reliability: Dual power inputs, fault relay output, and event notifications ensure high availability.
- Latency Optimization: Configurable throughput or latency modes for performance tuning.
- Buffer Management: 4 KB serial/Ethernet buffers with configurable flush timers (0–65535 s).
- Security: SSL encryption for data channels, HTTPS/SSH for management, IP access control, and password protection.
- Limitations: Single RS‑232 port; simultaneous LAN/WLAN operation not supported (WLAN enters standby when LAN active).
### 8. Standards & Compliance
Networking Standards:
- IEEE 802.3 10Base‑T
- IEEE 802.3u 100Base‑TX
- IEEE 802.11b/g WLAN
Safety & EMC Compliance:
- EMI: FCC Part 15 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11
- Safety: EN60950‑1
- Environmental Tests: IEC60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free Fall)
Industry Standards:
- IP‑40 enclosure rating
- RoHS‑compliant manufacturing
- Supports SNMP v1/v2c for network management integration
### 9. Additional Information
Warranty:
5‑year limited warranty covering defects in materials and workmanship. Excludes damage from misuse, unauthorized modification, or improper installation.
Maintenance:
- Periodically inspect power and network connections.
- Keep ventilation openings clear.
- Firmware updates available via DS‑Tool or web interface.
Support & Updates:
- Technical Support: support@oring-networking.com
- Firmware & Documentation: Available on manufacturer’s website.
- Configuration Backup: Export/import settings via DS‑Tool or web interface for rapid recovery.
Service & Repair:
Defective units within warranty period are repaired or replaced by ORing or authorized distributors. Shipping costs shared per warranty policy.
### Summary
The ORing IDS‑1112 Industrial Wireless Device Server is a robust, feature‑rich solution for integrating RS‑232 serial devices into modern Ethernet and WLAN infrastructures. Its dual network interfaces, redundant power design, and comprehensive management options make it ideal for mission‑critical industrial automation, remote monitoring, and control applications. With advanced security, flexible configuration modes, and compliance with international standards, the IDS‑1112 delivers reliable, secure, and efficient serial‑to‑IP connectivity in demanding industrial environments.
-
Datasheet_IDS-1112_V1.0_HQ.pdf
PDF Catalog
No accessories available.
