Comprehensive Product Summary – IES‑1082GP Industrial Unmanaged Ethernet Switch
### 1. Product Overview
Product Name: IES‑1082GP
Model Number: IES‑1082GP
Series: IES‑1000 Series – Industrial Unmanaged Ethernet Switches
Article Number: IES‑1082GP
Manufacturer: ORing Industrial Networking Corp.
Product Category: Industrial Ethernet Switches

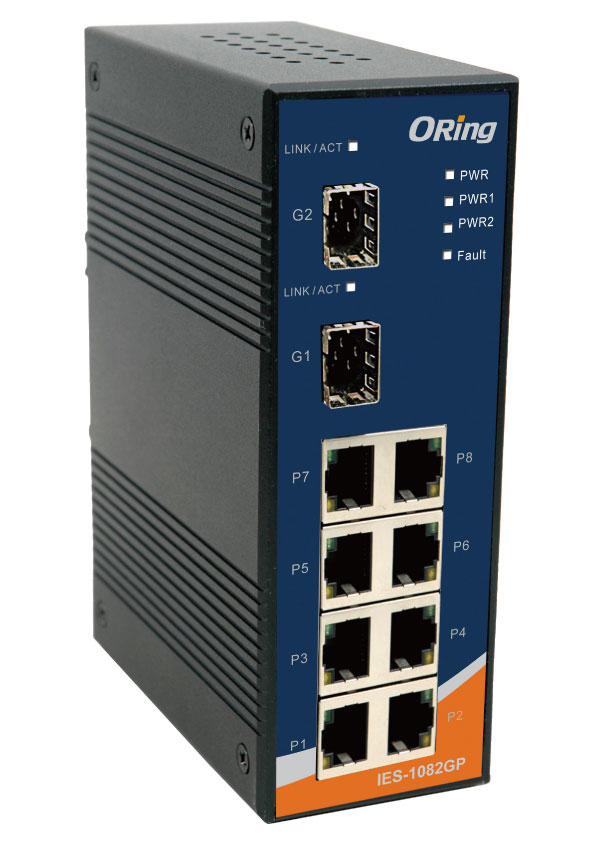

The ORing IES‑1082GP is a rugged, unmanaged industrial Ethernet switch designed for high‑reliability networking in harsh environments. It belongs to ORing’s IES‑1000 Series, which is known for robust construction, redundant power inputs, and extended temperature operation. The IES‑1082GP provides a total of ten Ethernet ports, including eight 10/100Base‑T(X) RJ‑45 ports and two 1000Base‑X SFP slots, enabling flexible copper and fiber connectivity for industrial automation, transportation, and surveillance networks.
### 2. Key Features
- Unmanaged Industrial Switch: Plug‑and‑play operation without configuration, ideal for simple, reliable network expansion.
- Port Configuration: 8 × 10/100Base‑T(X) RJ‑45 ports with Auto MDI/MDIX and 2 × 1000Base‑X SFP slots for fiber uplinks.
- High Reliability: Triple redundant DC power inputs (12–48 VDC) with automatic failover to ensure continuous operation.
- Rugged Design: IP30‑rated metal enclosure for protection against dust and mechanical impact.
- Wide Temperature Range: Operates from ‑40 °C to +70 °C, suitable for extreme industrial environments.
- Enhanced Electrical Protection:
- ESD protection: ±4 kV (EN61000‑4‑2)
- Surge protection: ±2 kVDC on power lines (EN61000‑4‑5)
- Low Power Consumption: Typical consumption around 8 W.
- Compact Form Factor: 52 mm (W) × 106 mm (D) × 144 mm (H) for space‑constrained installations.
- Mounting Flexibility: Supports DIN‑rail and wall mounting.
- High Performance Switching: Store‑and‑forward architecture with 8,192 MAC address table.
- Industrial‑Grade Components: Designed for continuous 24/7 operation in vibration‑prone or high‑temperature environments.
- Long Service Life: Backed by a 5‑year manufacturer warranty.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Ethernet Ports | 8 × 10/100Base‑T(X) RJ‑45 (Auto MDI/MDIX) |
| Fiber Ports | 2 × 1000Base‑X SFP slots (multi‑mode or single‑mode, depending on SFP module) |
| Switching Architecture | Store‑and‑Forward |
| MAC Address Table | 8,192 entries |
| Processing Type | Non‑blocking, wire‑speed switching |
| Enclosure | IP30‑rated metal housing |
| Dimensions | 52 (W) × 106 (D) × 144 (H) mm (2.05 × 4.17 × 5.67 in.) |
| Weight | Approx. 709 g |
| Power Input | Triple redundant 12–48 VDC (7‑pin terminal block) |
| Power Consumption | ~8 W typical |
| Protection | Overload current protection, reverse polarity protection |
| Operating Temperature | ‑40 °C to +70 °C (‑40 °F to +158 °F) |
| Storage Temperature | ‑40 °C to +85 °C (‑40 °F to +185 °F) |
| Operating Humidity | 5 % – 95 % RH, non‑condensing |
| Cooling | Passive, fanless design |
| Ingress Protection | IP30 |
| Mounting Options | DIN‑rail or wall‑mount |
| LED Indicators | Power 1, Power 2, Power 3, Fault, Link/Activity per port |
| Power Alarm Relay Output | 1 A @ 24 VDC (configurable via DIP switch) |
| Certifications | CE, FCC, EN60950‑1 Safety, EN61000‑4‑2/3/4/5/6/8/11 EMC |
| Warranty | 5 years |
### 4. Functionality
The IES‑1082GP functions as an unmanaged Layer 2 Ethernet switch, automatically forwarding packets between connected devices based on MAC address learning. It requires no software configuration, making it ideal for plug‑and‑play deployment in industrial networks.
Operation Principle:
- Each RJ‑45 port supports auto‑negotiation for 10/100 Mbps speeds and full/half duplex modes.
- The two SFP slots support 1000Base‑X fiber modules, allowing long‑distance uplinks or backbone connections.
- The switch uses store‑and‑forward packet processing to ensure error‑free data transmission.
- Built‑in MAC address learning and aging mechanisms optimize traffic flow and reduce collisions.
Typical Applications:
- Factory automation and process control networks
- Intelligent transportation systems (ITS)
- Power substation and utility monitoring
- IP surveillance and security systems
- Building automation and SCADA networks
- Marine and railway communication systems
Compatibility:
- Fully compliant with IEEE 802.3 (10Base‑T), IEEE 802.3u (100Base‑TX/FX), IEEE 802.3ab (1000Base‑T), and IEEE 802.3x (Flow Control).
- Compatible with standard Ethernet devices such as PLCs, HMIs, IP cameras, and other industrial controllers.
### 5. Components & Accessories
Included Items:
- IES‑1082GP switch unit
- DIN‑rail mounting kit (45 mm rail)
- Wall‑mounting kit (brackets and M3 × 5 flat screws)
- Quick Installation Guide (QIG)
- Dust covers for RJ‑45 and SFP ports
Optional Accessories:
- SFP transceivers (multi‑mode or single‑mode, 850 nm/1310 nm, SC or LC connectors)
- External DC power supplies (12–48 VDC)
- Panel‑mount brackets (optional)
Connectors:
- Ethernet: 8 × RJ‑45 (shielded)
- Fiber: 2 × SFP slots
- Power: 7‑pin terminal block for triple DC input
- Relay Output: 2‑pin terminal for fault alarm (1 A @ 24 VDC)
- Frame Ground: Dedicated grounding screw terminal
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the included DIN‑rail clip to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall Mounting: Use the provided wall‑mount brackets and screws to secure the unit to a flat surface.
Power Connection:
- Connect DC power sources (12–48 VDC) to the terminal block labeled PWR‑1, PWR‑2, and PWR‑3.
- The switch supports automatic power redundancy; if one input fails, the others maintain operation.
- The relay output can be configured via DIP switches to trigger alarms on PWR‑1 or PWR‑2 failure.
Grounding:
- Connect the frame ground terminal to earth ground to ensure electrical safety and EMI protection.
Startup:
- Once powered, the Power LEDs (PWR1, PWR2, PWR3) illuminate green.
- Link/Activity LEDs indicate network connectivity and data transmission.
- No software configuration is required; the switch begins forwarding traffic immediately.
Environmental Considerations:
- Install in a well‑ventilated enclosure or control cabinet.
- Maintain ambient temperature within ‑40 °C to +70 °C.
- Avoid exposure to direct sunlight, corrosive gases, or excessive vibration beyond IEC 60068‑2‑6 limits.
### 7. Performance & Capabilities
Switching Performance:
- Bandwidth: 10 × ports with non‑blocking switching fabric.
- Throughput: Wire‑speed forwarding on all ports.
- Latency: Low latency typical of store‑and‑forward architecture.
- MAC Table: 8,192 entries for efficient address learning.
- Packet Buffer: Optimized for industrial traffic patterns (exact buffer size not specified).
Electrical & Power Performance:
- Input Voltage Range: 12 – 48 VDC (terminal block), 12 – 45 VDC (power jack).
- Power Consumption: ~8 W typical.
- Protection: Overload current and reverse polarity protection.
- Relay Output: 1 A @ 24 VDC for power failure alarm.
Environmental Performance:
- Operating Temperature: ‑40 °C to +70 °C.
- Storage Temperature: ‑40 °C to +85 °C.
- Humidity: 5 % – 95 % RH, non‑condensing.
- Shock Resistance: IEC 60068‑2‑27 compliant.
- Vibration Resistance: IEC 60068‑2‑6 compliant.
- Free Fall Test: IEC 60068‑2‑32 compliant.
Limitations:
- Unmanaged design – no VLAN, QoS, or SNMP management.
- No PoE capability.
- Limited to Layer 2 switching (no routing functions).
Despite these, the IES‑1082GP excels in reliability, simplicity, and ruggedness for mission‑critical industrial networks.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
EMC & Safety Compliance:
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS:
- EN61000‑4‑2 (ESD) ±4 kV contact discharge
- EN61000‑4‑3 (RS) radiated susceptibility
- EN61000‑4‑4 (EFT) electrical fast transient
- EN61000‑4‑5 (Surge) ±2 kVDC
- EN61000‑4‑6 (CS) conducted susceptibility
- EN61000‑4‑8 (Power frequency magnetic field)
- EN61000‑4‑11 (Voltage dips and interruptions)
- Safety: EN60950‑1 (Information Technology Equipment Safety)
- Environmental Tests:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Ingress Protection: IP30 (dust‑resistant metal enclosure)
RoHS Compliance: Yes (lead‑free manufacturing)
### 9. Additional Information
Warranty:
- 5‑year limited hardware warranty covering manufacturing defects and component failures under normal industrial use.
Support & Maintenance:
- Technical support available via ORing Industrial Networking Corp.
- Firmware updates not applicable (unmanaged device).
- Preventive maintenance includes periodic inspection of power connections, grounding, and environmental conditions.
Manufacturer Contact:
- ORing Industrial Networking Corp.
- Tel: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014
- Email: support@oring‑networking.com
- Website: [www.oring‑networking.com](http://www.oring-networking.com)
Maintenance Recommendations:
- Ensure stable DC power supply within specified voltage range.
- Keep ventilation openings unobstructed.
- Periodically check LED indicators for abnormal power or link status.
- Replace SFP modules only when powered off to prevent ESD damage.
Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial control cabinets.
- Mean Time Between Failures (MTBF) exceeds typical industrial standards due to fanless design and solid‑state components.
Environmental Responsibility:
- Device and packaging are compliant with RoHS and WEEE directives.
- Printed documentation uses recycled paper.
### Summary
The ORing IES‑1082GP is a high‑performance, unmanaged industrial Ethernet switch engineered for mission‑critical applications requiring robust, maintenance‑free operation. With 8 × 10/100Base‑T(X) copper ports and 2 × 1000Base‑X SFP fiber uplinks, it provides flexible connectivity for mixed copper‑fiber networks. Its triple redundant 12–48 VDC power inputs, IP30 metal housing, and ‑40 °C to +70 °C operating range make it ideal for deployment in factories, substations, transportation systems, and outdoor enclosures.
The switch’s store‑and‑forward architecture, 8,192‑entry MAC table, and industrial EMC compliance ensure reliable, deterministic Ethernet communication even under electrical noise and temperature extremes. With no configuration required, the IES‑1082GP offers a cost‑effective, plug‑and‑play solution for expanding industrial networks while maintaining ORing’s hallmark reliability and 5‑year warranty support.
End of Product Summary – IES‑1082GP Industrial Unmanaged 2 × 1000SFP + 8 × 100TX Switch
### 1. Product Overview
Product Name: IES‑1082GP
Model Number: IES‑1082GP
Series: IES‑1000 Series – Industrial Unmanaged Ethernet Switches
Article Number: IES‑1082GP
Manufacturer: ORing Industrial Networking Corp.
Product Category: Industrial Ethernet Switches
The ORing IES‑1082GP is a rugged, unmanaged industrial Ethernet switch designed for high‑reliability networking in harsh environments. It belongs to ORing’s IES‑1000 Series, which is known for robust construction, redundant power inputs, and extended temperature operation. The IES‑1082GP provides a total of ten Ethernet ports, including eight 10/100Base‑T(X) RJ‑45 ports and two 1000Base‑X SFP slots, enabling flexible copper and fiber connectivity for industrial automation, transportation, and surveillance networks.
### 2. Key Features
- Unmanaged Industrial Switch: Plug‑and‑play operation without configuration, ideal for simple, reliable network expansion.
- Port Configuration: 8 × 10/100Base‑T(X) RJ‑45 ports with Auto MDI/MDIX and 2 × 1000Base‑X SFP slots for fiber uplinks.
- High Reliability: Triple redundant DC power inputs (12–48 VDC) with automatic failover to ensure continuous operation.
- Rugged Design: IP30‑rated metal enclosure for protection against dust and mechanical impact.
- Wide Temperature Range: Operates from ‑40 °C to +70 °C, suitable for extreme industrial environments.
- Enhanced Electrical Protection:
- ESD protection: ±4 kV (EN61000‑4‑2)
- Surge protection: ±2 kVDC on power lines (EN61000‑4‑5)
- Low Power Consumption: Typical consumption around 8 W.
- Compact Form Factor: 52 mm (W) × 106 mm (D) × 144 mm (H) for space‑constrained installations.
- Mounting Flexibility: Supports DIN‑rail and wall mounting.
- High Performance Switching: Store‑and‑forward architecture with 8,192 MAC address table.
- Industrial‑Grade Components: Designed for continuous 24/7 operation in vibration‑prone or high‑temperature environments.
- Long Service Life: Backed by a 5‑year manufacturer warranty.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Ethernet Ports | 8 × 10/100Base‑T(X) RJ‑45 (Auto MDI/MDIX) |
| Fiber Ports | 2 × 1000Base‑X SFP slots (multi‑mode or single‑mode, depending on SFP module) |
| Switching Architecture | Store‑and‑Forward |
| MAC Address Table | 8,192 entries |
| Processing Type | Non‑blocking, wire‑speed switching |
| Enclosure | IP30‑rated metal housing |
| Dimensions | 52 (W) × 106 (D) × 144 (H) mm (2.05 × 4.17 × 5.67 in.) |
| Weight | Approx. 709 g |
| Power Input | Triple redundant 12–48 VDC (7‑pin terminal block) |
| Power Consumption | ~8 W typical |
| Protection | Overload current protection, reverse polarity protection |
| Operating Temperature | ‑40 °C to +70 °C (‑40 °F to +158 °F) |
| Storage Temperature | ‑40 °C to +85 °C (‑40 °F to +185 °F) |
| Operating Humidity | 5 % – 95 % RH, non‑condensing |
| Cooling | Passive, fanless design |
| Ingress Protection | IP30 |
| Mounting Options | DIN‑rail or wall‑mount |
| LED Indicators | Power 1, Power 2, Power 3, Fault, Link/Activity per port |
| Power Alarm Relay Output | 1 A @ 24 VDC (configurable via DIP switch) |
| Certifications | CE, FCC, EN60950‑1 Safety, EN61000‑4‑2/3/4/5/6/8/11 EMC |
| Warranty | 5 years |
### 4. Functionality
The IES‑1082GP functions as an unmanaged Layer 2 Ethernet switch, automatically forwarding packets between connected devices based on MAC address learning. It requires no software configuration, making it ideal for plug‑and‑play deployment in industrial networks.
Operation Principle:
- Each RJ‑45 port supports auto‑negotiation for 10/100 Mbps speeds and full/half duplex modes.
- The two SFP slots support 1000Base‑X fiber modules, allowing long‑distance uplinks or backbone connections.
- The switch uses store‑and‑forward packet processing to ensure error‑free data transmission.
- Built‑in MAC address learning and aging mechanisms optimize traffic flow and reduce collisions.
Typical Applications:
- Factory automation and process control networks
- Intelligent transportation systems (ITS)
- Power substation and utility monitoring
- IP surveillance and security systems
- Building automation and SCADA networks
- Marine and railway communication systems
Compatibility:
- Fully compliant with IEEE 802.3 (10Base‑T), IEEE 802.3u (100Base‑TX/FX), IEEE 802.3ab (1000Base‑T), and IEEE 802.3x (Flow Control).
- Compatible with standard Ethernet devices such as PLCs, HMIs, IP cameras, and other industrial controllers.
### 5. Components & Accessories
Included Items:
- IES‑1082GP switch unit
- DIN‑rail mounting kit (45 mm rail)
- Wall‑mounting kit (brackets and M3 × 5 flat screws)
- Quick Installation Guide (QIG)
- Dust covers for RJ‑45 and SFP ports
Optional Accessories:
- SFP transceivers (multi‑mode or single‑mode, 850 nm/1310 nm, SC or LC connectors)
- External DC power supplies (12–48 VDC)
- Panel‑mount brackets (optional)
Connectors:
- Ethernet: 8 × RJ‑45 (shielded)
- Fiber: 2 × SFP slots
- Power: 7‑pin terminal block for triple DC input
- Relay Output: 2‑pin terminal for fault alarm (1 A @ 24 VDC)
- Frame Ground: Dedicated grounding screw terminal
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the included DIN‑rail clip to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall Mounting: Use the provided wall‑mount brackets and screws to secure the unit to a flat surface.
Power Connection:
- Connect DC power sources (12–48 VDC) to the terminal block labeled PWR‑1, PWR‑2, and PWR‑3.
- The switch supports automatic power redundancy; if one input fails, the others maintain operation.
- The relay output can be configured via DIP switches to trigger alarms on PWR‑1 or PWR‑2 failure.
Grounding:
- Connect the frame ground terminal to earth ground to ensure electrical safety and EMI protection.
Startup:
- Once powered, the Power LEDs (PWR1, PWR2, PWR3) illuminate green.
- Link/Activity LEDs indicate network connectivity and data transmission.
- No software configuration is required; the switch begins forwarding traffic immediately.
Environmental Considerations:
- Install in a well‑ventilated enclosure or control cabinet.
- Maintain ambient temperature within ‑40 °C to +70 °C.
- Avoid exposure to direct sunlight, corrosive gases, or excessive vibration beyond IEC 60068‑2‑6 limits.
### 7. Performance & Capabilities
Switching Performance:
- Bandwidth: 10 × ports with non‑blocking switching fabric.
- Throughput: Wire‑speed forwarding on all ports.
- Latency: Low latency typical of store‑and‑forward architecture.
- MAC Table: 8,192 entries for efficient address learning.
- Packet Buffer: Optimized for industrial traffic patterns (exact buffer size not specified).
Electrical & Power Performance:
- Input Voltage Range: 12 – 48 VDC (terminal block), 12 – 45 VDC (power jack).
- Power Consumption: ~8 W typical.
- Protection: Overload current and reverse polarity protection.
- Relay Output: 1 A @ 24 VDC for power failure alarm.
Environmental Performance:
- Operating Temperature: ‑40 °C to +70 °C.
- Storage Temperature: ‑40 °C to +85 °C.
- Humidity: 5 % – 95 % RH, non‑condensing.
- Shock Resistance: IEC 60068‑2‑27 compliant.
- Vibration Resistance: IEC 60068‑2‑6 compliant.
- Free Fall Test: IEC 60068‑2‑32 compliant.
Limitations:
- Unmanaged design – no VLAN, QoS, or SNMP management.
- No PoE capability.
- Limited to Layer 2 switching (no routing functions).
Despite these, the IES‑1082GP excels in reliability, simplicity, and ruggedness for mission‑critical industrial networks.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
EMC & Safety Compliance:
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS:
- EN61000‑4‑2 (ESD) ±4 kV contact discharge
- EN61000‑4‑3 (RS) radiated susceptibility
- EN61000‑4‑4 (EFT) electrical fast transient
- EN61000‑4‑5 (Surge) ±2 kVDC
- EN61000‑4‑6 (CS) conducted susceptibility
- EN61000‑4‑8 (Power frequency magnetic field)
- EN61000‑4‑11 (Voltage dips and interruptions)
- Safety: EN60950‑1 (Information Technology Equipment Safety)
- Environmental Tests:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Ingress Protection: IP30 (dust‑resistant metal enclosure)
RoHS Compliance: Yes (lead‑free manufacturing)
### 9. Additional Information
Warranty:
- 5‑year limited hardware warranty covering manufacturing defects and component failures under normal industrial use.
Support & Maintenance:
- Technical support available via ORing Industrial Networking Corp.
- Firmware updates not applicable (unmanaged device).
- Preventive maintenance includes periodic inspection of power connections, grounding, and environmental conditions.
Manufacturer Contact:
- ORing Industrial Networking Corp.
- Tel: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014
- Email: support@oring‑networking.com
- Website: [www.oring‑networking.com](http://www.oring-networking.com)
Maintenance Recommendations:
- Ensure stable DC power supply within specified voltage range.
- Keep ventilation openings unobstructed.
- Periodically check LED indicators for abnormal power or link status.
- Replace SFP modules only when powered off to prevent ESD damage.
Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial control cabinets.
- Mean Time Between Failures (MTBF) exceeds typical industrial standards due to fanless design and solid‑state components.
Environmental Responsibility:
- Device and packaging are compliant with RoHS and WEEE directives.
- Printed documentation uses recycled paper.
### Summary
The ORing IES‑1082GP is a high‑performance, unmanaged industrial Ethernet switch engineered for mission‑critical applications requiring robust, maintenance‑free operation. With 8 × 10/100Base‑T(X) copper ports and 2 × 1000Base‑X SFP fiber uplinks, it provides flexible connectivity for mixed copper‑fiber networks. Its triple redundant 12–48 VDC power inputs, IP30 metal housing, and ‑40 °C to +70 °C operating range make it ideal for deployment in factories, substations, transportation systems, and outdoor enclosures.
The switch’s store‑and‑forward architecture, 8,192‑entry MAC table, and industrial EMC compliance ensure reliable, deterministic Ethernet communication even under electrical noise and temperature extremes. With no configuration required, the IES‑1082GP offers a cost‑effective, plug‑and‑play solution for expanding industrial networks while maintaining ORing’s hallmark reliability and 5‑year warranty support.
End of Product Summary – IES‑1082GP Industrial Unmanaged 2 × 1000SFP + 8 × 100TX Switch
-
Datasheet_IES-1082GP_v1.4_HQ.pdf
PDF Catalog
-
Selection_Guide.pdf
Manual
-
QIG_IES-1000 Series.pdf
Manual
No accessories available.
