Comprehensive Product Summary – IGPS‑1411GTP‑24V Industrial Unmanaged Gigabit PoE Switch

---

### 1. Product Overview

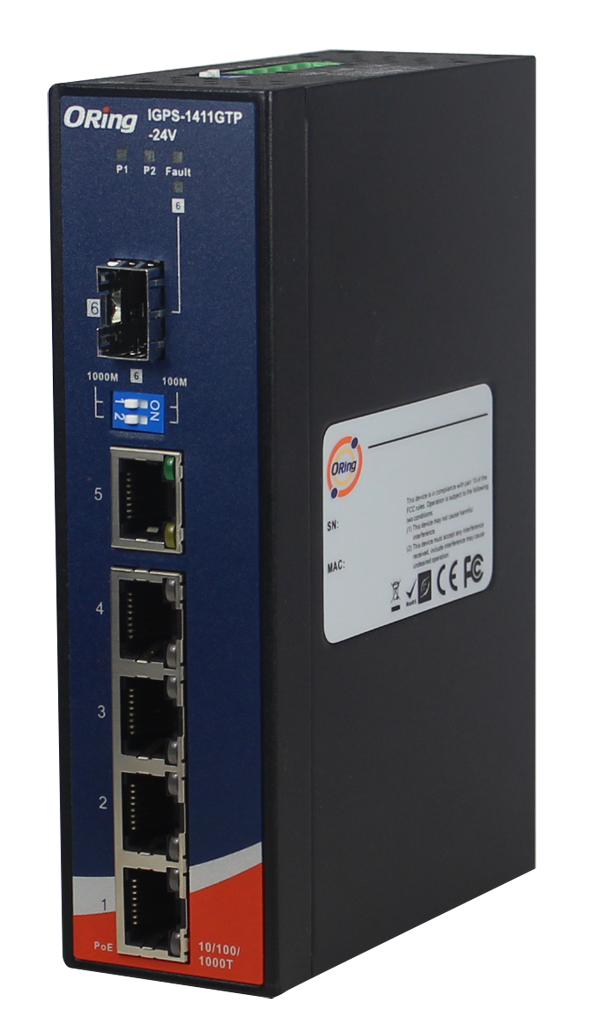

Product Name: IGPS‑1411GTP‑24V
Model Number: IGPS‑1411GTP‑24V
Series: IGPS Industrial Gigabit PoE Switch Series
Article Number: IGPS‑1411GTP‑24V
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial 6‑port unmanaged Gigabit Ethernet switch with Power Sourcing Equipment (P.S.E.) functionality
Product Description:
The IGPS‑1411GTP‑24V is a rugged, unmanaged industrial Ethernet switch designed for high‑performance networking in harsh environments. It provides four 10/100/1000Base‑T(X) PoE+ ports, one additional 10/100/1000Base‑T(X) port, and one 100/1000Base‑X SFP slot. The switch supports IEEE 802.3at Power over Ethernet (PoE) up to 30 W per port and operates from a 24–36 VDC power input range. Its compact IP‑30 metal enclosure, dual redundant power inputs, and extended temperature tolerance make it ideal for industrial automation, transportation, and surveillance applications.

---

### 2. Key Features

- Unmanaged Gigabit PoE Switch:
Provides plug‑and‑play operation without configuration, suitable for simple and reliable industrial network deployment.

- Port Configuration:
- 4 × 10/100/1000Base‑T(X) PoE+ ports (P.S.E.)
- 1 × 10/100/1000Base‑T(X) non‑PoE port
- 1 × 100/1000Base‑X SFP slot for fiber uplink

- PoE+ Power Sourcing:
Compliant with IEEE 802.3at standard, delivering up to 30 W per port. The switch internally boosts 24 VDC input to 50 VDC output for PoE operation.

- Wide Power Input Range:
Accepts dual 24–36 VDC inputs via a 6‑pin terminal block, supporting redundant power for uninterrupted operation.

- Rugged Industrial Design:
IP‑30 rated metal housing, fanless design, and extended operating temperature range (‑40 °C to +60 °C).

- Reliability Features:
- Dual redundant power inputs with automatic failover
- Relay output alarm for power failure events
- Overload current protection

- Flexible Mounting:
Supports both DIN‑rail and wall‑mount installation.

- High Performance:
- Store‑and‑forward switching architecture
- 1 K MAC address table
- Jumbo frame support up to 9 KB
- Full‑duplex flow control (IEEE 802.3x)

- LED Indicators:
Comprehensive LED panel for power, fault, link/activity, speed, and PoE status.

- SFP Speed Selection:
DIP‑switch configurable for 100 Mbps or 1000 Mbps fiber operation.

- Long‑Term Reliability:
Backed by a 5‑year manufacturer warranty.

---

### 3. Technical Specifications

Physical Ports:
- 4 × 10/100/1000Base‑T(X) RJ‑45 ports with PoE+ (Auto MDI/MDI‑X)
- 1 × 10/100/1000Base‑T(X) RJ‑45 port (Auto MDI/MDI‑X)
- 1 × 100/1000Base‑X SFP slot

Ethernet Standards Supported:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE+, up to 30 W per port)

Switching Performance:
- MAC Address Table: 1 K entries
- Switching Method: Store‑and‑Forward
- Jumbo Frame: Up to 9 KB

Power Characteristics:
- Input Voltage: Dual 24–36 VDC (6‑pin terminal block)
- Power Consumption: 6.5 W typical (excluding PoE load)
- PoE Output Voltage: 50 VDC (P.S.E.)
- PoE Power Budget: Up to 30 W per port (IEEE 802.3at)
- Overload Protection: Present
- Reverse Polarity Protection: Not present
- Relay Output: 1 A @ 24 VDC (for power failure alarm)

Mechanical:
- Enclosure: IP‑30 rated metal housing
- Dimensions: 41 (W) × 94.9 (D) × 144.3 (H) mm
- Weight: Approx. 550–615 g

Environmental:
- Operating Temperature: ‑40 °C to +60 °C (‑40 °F to +140 °F)
- Storage Temperature: ‑40 °C to +85 °C (‑40 °F to +185 °F)
- Operating Humidity: 5 % to 95 % (non‑condensing)

LED Indicators:
- Power: Green × 2 (PWR1, PWR2)
- Fault: Amber (PWR1/PWR2 failure)
- Port 1–4: Green (Link/Act), Green (PoE active)
- Port 5: Green (Link/Act), Amber (100 Mbps indicator)
- SFP Port: Green (Link/Act)

---

### 4. Functionality

Operational Overview:
The IGPS‑1411GTP‑24V functions as an unmanaged Layer 2 Ethernet switch, automatically learning and forwarding Ethernet frames between connected devices. It supports auto‑negotiation for speed and duplex mode, as well as auto MDI/MDI‑X for cable type detection, eliminating the need for crossover cables.

Power over Ethernet (PoE):
The four PoE+ ports act as Power Sourcing Equipment (P.S.E.), supplying both data and electrical power over standard Cat5e/6 cables to Powered Devices (P.D.) such as IP cameras, VoIP phones, and wireless access points. Each port can deliver up to 30 W, compliant with IEEE 802.3at.

Redundant Power Inputs:
Two independent DC power inputs ensure continuous operation. If the primary power source fails, the secondary input automatically takes over. The relay output can trigger an external alarm to signal power failure.

SFP Uplink Port:
The SFP slot supports both 100 Mbps and 1 Gbps fiber transceivers, selectable via DIP‑switch. This allows flexible network extension over long distances using multimode or single‑mode fiber modules.

Use Cases and Applications:
- Industrial automation and control systems
- IP surveillance networks (PoE cameras)
- Intelligent transportation systems
- Building management and access control
- Outdoor or remote network nodes requiring rugged hardware

Compatibility:
Compatible with standard Ethernet devices and SFP transceivers (100 Mbps SFP100 series or 1 Gbps SFP1G series). Works seamlessly with ORing’s industrial power supplies (DR‑45‑12/24, DR‑75‑12/24, DR‑120‑12/24).

---

### 5. Components & Accessories

Included in Package:
- IGPS‑1411GTP‑24V switch unit × 1
- Quick Installation Guide × 1
- 6‑pin terminal block for power input × 1
- DIN‑rail mounting kit × 1
- Wall‑mount kit × 1
- Dust covers for RJ‑45 and SFP ports

Optional Accessories:
- SFP100 Series: 100 Mbps SFP optical transceivers
- SFP1G Series: 1 Gbps SFP optical transceivers
- DR‑45‑12/24: 45 W DIN‑rail power supply
- DR‑75‑12/24: 75 W DIN‑rail power supply
- DR‑120‑12/24: 120 W DIN‑rail power supply

Connectors:
- RJ‑45 (8‑pin) for copper Ethernet ports
- SFP slot for fiber transceiver modules
- 6‑pin terminal block for dual DC power input and relay output

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Installation: Attach the included DIN‑rail clip to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall‑Mount Installation: Use the provided wall‑mount brackets and screws to secure the unit to a flat surface.

Power Connection:
Connect dual 24–36 VDC inputs to the 6‑pin terminal block. Observe polarity carefully (V1+, V1‑, V2+, V2‑). The relay output terminals can be wired to an external alarm system.

DIP‑Switch Configuration:
- SFP Speed Selection:
- DIP 1 & 2 ON → 100 Mbps mode
- DIP 1 & 2 OFF → 1000 Mbps mode
- Power Failure Alarm:
- DIP 1 ON → Enable PWR1 failure alarm
- DIP 2 ON → Enable PWR2 failure alarm

Cabling:
- 10/100Base‑T(X): Use Cat5e UTP/STP cables up to 100 m.
- 1000Base‑T: Use Cat5e or Cat6 cables up to 100 m.
- Fiber (SFP): Use appropriate multimode or single‑mode fiber depending on SFP module type.

Startup:
Once powered, the Power LEDs illuminate. Link/Act LEDs indicate network connectivity. PoE LEDs confirm power delivery to connected devices.

---

### 7. Performance & Capabilities

Switching Capacity:
The IGPS‑1411GTP‑24V provides non‑blocking wire‑speed switching across all ports, ensuring full‑duplex 1 Gbps performance per port.

PoE Power Delivery:
Each of the four P.S.E. ports can supply up to 30 W (IEEE 802.3at Type 2), sufficient for high‑power devices such as PTZ IP cameras or dual‑band APs. The switch internally boosts 24 VDC input to 50 VDC output for PoE compliance.

Efficiency:
Fanless design minimizes power consumption and mechanical wear. Typical system power draw is 6.5–7.5 W (excluding PoE load).

Reliability:
- Dual DC inputs with automatic failover
- Relay alarm output for power fault notification
- Overload current protection
- Industrial‑grade components rated for ‑40 °C to +60 °C operation

Limitations:
As an unmanaged switch, it does not support VLAN, QoS, or SNMP management. It is designed for straightforward, maintenance‑free operation in fixed configurations.

---

### 8. Standards & Compliance

Ethernet Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X), 802.3x (Flow Control), 802.3at (PoE+).

EMI/EMS Compliance:
- FCC Part 15, CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
- EN61000‑4‑8 (Magnetic Field)
- EN61000‑4‑11 (Dip/Interruption)

Environmental & Mechanical Tests:
- Shock: IEC 60068‑2‑27
- Free Fall: IEC 60068‑2‑32
- Vibration: IEC 60068‑2‑6

Safety Certification:
EN 60950‑1 (Safety of Information Technology Equipment)

Ingress Protection:
IP‑30 rated enclosure for protection against solid objects > 2.5 mm.

---

### 9. Additional Information

Warranty: 5 years limited manufacturer warranty.
Manufacturer Support:
- Company: ORing Industrial Networking Corp.
- Website: [www.oring-networking.com](https://www.oring-networking.com)
- Email: support@oring-networking.com
- Tel: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014

Maintenance:
The switch is fanless and requires minimal maintenance. Periodic inspection of power connections and cleaning of dust from ventilation openings is recommended. Firmware updates are not applicable as the device is unmanaged.

Ordering Information:
- Model: IGPS‑1411GTP‑24V
- Description: Industrial 6‑port unmanaged Gigabit PoE Ethernet switch with 4 × 10/100/1000Base‑T(X) P.S.E., 1 × 10/100/1000Base‑T(X), and 1 × 100/1000Base‑X SFP slot, 24 VDC power inputs.

Typical Applications:
- IP surveillance networks in factories and transport systems
- Industrial automation and control networks
- Power substations and energy management systems
- Outdoor PoE device deployment in harsh environments

Summary of Advantages:
- Compact and rugged industrial design
- Reliable dual power redundancy
- High‑power PoE+ support for multiple devices
- Flexible fiber uplink via SFP slot
- Simple plug‑and‑play operation with no configuration required
- Certified for industrial EMC and safety standards

---

In Summary:
The ORing IGPS‑1411GTP‑24V is a robust, high‑performance unmanaged industrial Ethernet switch engineered for mission‑critical applications requiring both data and power delivery over Ethernet. With four PoE+ ports, one Gigabit uplink, and one SFP fiber slot, it provides flexible connectivity for modern industrial networks. Its dual 24–36 VDC redundant power inputs, IP‑30 metal housing, and extended ‑40 °C to +60 °C temperature range ensure reliable operation in demanding environments. Fully compliant with IEEE 802.3 standards and industrial EMC regulations, the IGPS‑1411GTP‑24V offers a dependable, maintenance‑free solution for powering and connecting Ethernet devices in field installations.
