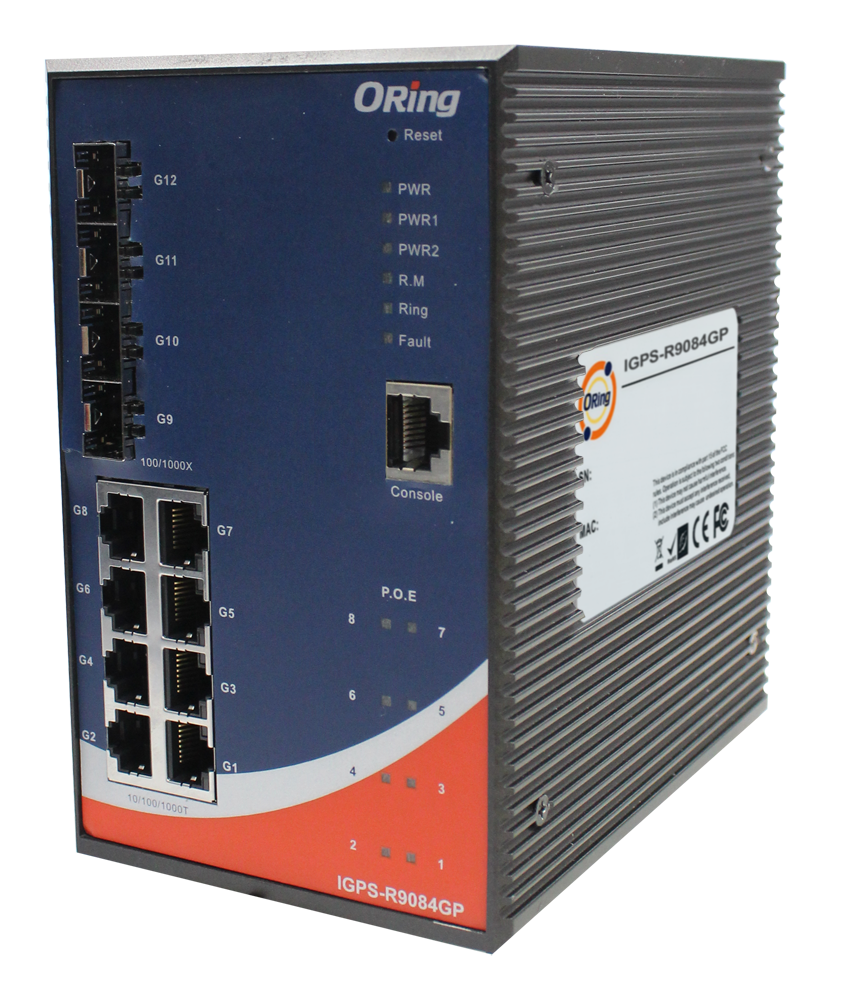

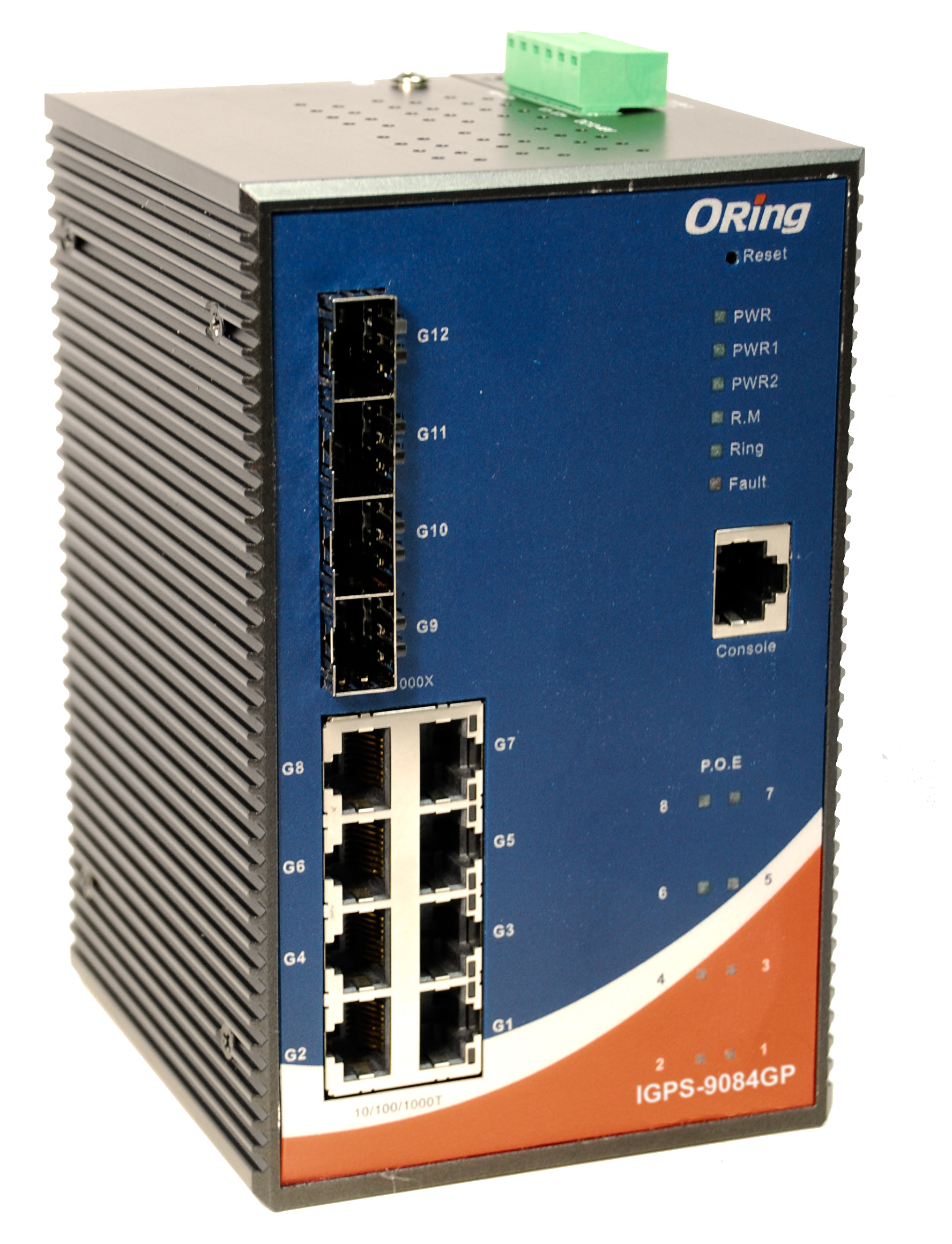

Comprehensive Product Summary – ORing IGPS‑R9084GP‑L3 Industrial Managed PoE Ethernet Switch

---

### 1. Product Overview

Product Name: Industrial Managed Gigabit PoE Ethernet Switch
Model: IGPS‑R9084GP‑L3
Series: IGPS‑R9000 Series
Article Number: IGPS‑R9084GP‑L3
Manufacturer: ORing Industrial Networking Corp., New Taipei City, Taiwan
Version: V1.0

The IGPS‑R9084GP‑L3 is a rugged, Layer‑3 managed industrial Ethernet switch designed for mission‑critical applications requiring high reliability, network redundancy, and Power‑over‑Ethernet (PoE) capability. It integrates eight 10/100/1000Base‑T(X) PoE P.S.E. ports and four 100/1000Base‑X SFP slots, supporting advanced routing, redundancy, and security features compliant with EN50155 and IEC industrial standards.

---

### 2. Key Features

- Layer‑3 Routing: Supports static routing and RIP for efficient inter‑VLAN and inter‑subnet communication.
- PoE Power Sourcing Equipment: Eight IEEE 802.3at‑compliant ports deliver up to 30 W per port (240 W total budget).
- High‑Speed Redundancy: Proprietary O‑Ring technology with recovery < 30 ms across 250 nodes; supports Open‑Ring, O‑Chain, and IEC 62439‑2 MRP for interoperability.
- Industrial‑Grade Design: IP‑30 metal housing, DIN‑rail and wall‑mount options, extended ‑40 °C to 75 °C operation.
- Comprehensive Management: Web GUI, CLI (console/Telnet/SSH), SNMP v1/v2c/v3, and ORing’s Open‑Vision Windows utility.
- Security Suite: 802.1x, ACL, TACACS+, RADIUS, HTTPS/SSH, DoS/DDoS prevention, device binding, IP source guard.
- Energy Efficiency: IEEE 802.3az Energy‑Efficient Ethernet reduces power consumption during low traffic.
- Industrial Protocols: Native Modbus TCP and EtherNet/IP for SCADA/PLC integration.
- Advanced QoS: 8 hardware queues, 802.1p/DSCP prioritization, application‑based QoS, bandwidth management.
- Diagnostics & Alerts: Syslog, SNMP traps, e‑mail notifications, relay output alarm, and LED indicators.
- Reliability: Dual 50–57 V DC redundant power inputs with overload and reverse‑polarity protection.
- Compliance: EN50155 railway standard, EN60950‑1 safety, FCC Part 15 Class A, CISPR 32 EMI, IEC 61000‑4 EMS.

---

### 3. Technical Specifications

| Category | Specification |
|---------------|------------------|
| Ethernet Ports | 8 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDIX, PoE P.S.E.) |
| Fiber Ports | 4 × 100/1000Base‑X SFP slots |
| Console Port | 1 × RS‑232 RJ‑45 (115200 bps, 8‑N‑1) |
| PoE Standard | IEEE 802.3af/at End‑span, 56 V DC output |
| PoE Power | 30 W max per port (802.3at), 15.4 W (802.3af); 240 W total budget |
| Switching Capacity | 24 Gbps non‑blocking |
| Throughput | 14.8 Mpps @ 64 bytes |
| MAC Table | 8 K entries |
| Buffer Memory | 4 Mbit shared |
| Latency | < 7 µs |
| Jumbo Frame | Up to 9.6 KB |
| VLANs | 4096 VLAN IDs (IEEE 802.1Q) |
| Priority Queues | 8 hardware queues |
| Power Input | Dual 50–57 V DC (6‑pin terminal block) |
| Power Consumption | 19 W typical (excluding PoE load) |
| Enclosure | IP‑30 metal housing |
| Dimensions (W×D×H) | 96.4 × 145.5 × 154 mm (3.8 × 5.73 × 6.06 in) |
| Weight | 1.56 kg |
| Operating Temp. | ‑40 °C to +75 °C (‑40 °F to +167 °F) |
| Storage Temp. | ‑40 °C to +85 °C (‑40 °F to +185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| MTBF | > 670,000 hours |
| Warranty | 5 years |

---

### 4. Functionality

Operation & Use Cases
The IGPS‑R9084GP‑L3 functions as a fully managed Layer‑3 switch for industrial automation, transportation, and surveillance networks. It aggregates PoE‑powered devices such as IP cameras, VoIP phones, and wireless access points while providing fiber uplinks for long‑distance backbone connectivity.

Applications:
- Railway and rolling‑stock Ethernet (EN50155)
- Factory automation and SCADA systems
- Intelligent transportation systems (ITS)
- Power substations and utilities
- IP surveillance and security networks

Compatibility:
Interoperable with standard Ethernet devices, SFP 100 Mb/1 Gb transceivers, and industrial protocols (Modbus TCP, EtherNet/IP).

---

### 5. Components & Accessories

Included in Package:
- IGPS‑R9084GP‑L3 switch × 1
- DIN‑rail mount kit × 1
- Console cable (RJ‑45 to DB‑9 F) × 1
- Quick Installation Guide × 1

Optional Accessories:
- Wall‑mount kit × 2
- ORing Tool CD (utilities and manuals)
- Open‑Vision M500 network management software (500 IP devices)
- DBU‑01 configuration backup unit
- SFP100 series 100 Mb transceivers
- SFP 1G series 1 Gb transceivers

Connectors:
- 6‑pin terminal block for dual DC input and relay output
- RJ‑45 Ethernet ports with PoE pin assignments (End‑span mode)
- SFP slots for LC fiber modules

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail: Attach the included kit to rear panel and snap onto standard 35 mm rail.
- Wall‑Mount: Use optional brackets and screws for flat surface installation.

Power Wiring:
- Dual redundant inputs (V1+, V1–, V2+, V2–) on terminal block.
- Relay contacts (1 A @ 24 V DC) for fault alarm output.
- Ground connection recommended to reduce EMI.

Configuration Interfaces:
- Web GUI: Accessible via default IP 192.168.10.1 (admin/admin).
- CLI: Through RS‑232 console or Telnet/SSH.
- SNMP: v1/v2c/v3 for remote monitoring.
- Open‑Vision: Windows‑based central management utility.

Initial Setup:
1. Connect power and verify PWR LEDs.
2. Connect PC to any RJ‑45 port.
3. Access Web interface and configure IP, VLANs, and PoE settings.
4. Optionally enable O‑Ring or MRP redundancy for network resilience.

---

### 7. Performance & Capabilities

- Switching Fabric: 24 Gbps non‑blocking architecture.
- Forwarding Rate: 14.8 Mpps @ 64 bytes.
- Latency: < 7 µs store‑and‑forward processing.
- PoE Budget: 240 W total (8 × 30 W max).
- Redundancy Recovery: < 20–30 ms (O‑Ring / O‑Chain / MRP).
- QoS: 8 priority queues, 802.1p/DSCP classification, bandwidth control.
- Security: 802.1x authentication, MAC filtering, ACL, TACACS+, RADIUS, HTTPS/SSH.
- Multicast: IGMP v2/v3 snooping per VLAN (256 groups).
- Routing: Static and RIP v1/v2 for Layer‑3 inter‑VLAN routing.
- Diagnostics: Cable test (VeriPHY), SFP DDM monitoring, Syslog, SNMP trap, e‑mail alerts.
- Reliability: Dual power inputs with auto failover and relay alarm.

Limitations:
- PoE budget limited to 240 W total; ensure adequate power supply.
- Reverse polarity protection not present on some variants.
- Configuration changes require reboot for certain firmware updates.

---

### 8. Standards & Compliance

Ethernet Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX/FX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X), 802.3x (flow control), 802.3ad (LACP), 802.3at (PoE+).

Network Management & Security:
IEEE 802.1p (CoS), 802.1Q (VLAN), 802.1D/w/s (STP/RSTP/MSTP), 802.1x (authentication), 802.1AB (LLDP).

Redundancy Protocols:
O‑Ring, Open‑Ring, O‑Chain, IEC 62439‑2 MRP, MSTP (RSTP/STP compatible).

Environmental & Safety:
- EMI/EMS: EN 55032 Class A, EN 55024, FCC Part 15 B, EN 61000‑3‑2/‑3‑3.
- Immunity: EN 61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11.
- Shock/Vibration: IEC 60068‑2‑27/‑2‑6/‑2‑32.
- Safety: EN 60950‑1.
- Railway: EN 50155 compliant for rolling‑stock applications.

---

### 9. Additional Information

Warranty & Support:
- 5‑year limited hardware warranty covering defects in materials and workmanship.
- Technical support via e‑mail (support@oringnet.com) and regional distributors.
- Firmware updates and manuals available at [www.oringnet.com](https://www.oringnet.com).

Maintenance:
- Periodic firmware updates recommended for security and feature enhancements.
- Configuration backup via DBU‑01 or Open‑Vision utility.
- Clean housing with dry cloth; avoid moisture and corrosive environments.

Manufacturer Contact:
ORing Industrial Networking Corp.
3F., No. 542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan R.O.C.
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014
E‑mail: sales@oringnet.com Website: www.oringnet.com

---

### Summary

The IGPS‑R9084GP‑L3 is a high‑performance, Layer‑3 managed industrial Gigabit switch engineered for harsh environments and critical infrastructures. With eight PoE+ ports, four SFP uplinks, and comprehensive redundancy and security mechanisms, it ensures uninterrupted communication for automation, transportation, and surveillance systems. Its compliance with EN50155, wide‑temperature tolerance, and dual‑power redundancy make it ideal for railway and factory networks requiring deterministic performance, rapid recovery, and centralized management.

Key Advantages:
- 12‑port Gigabit architecture with PoE+ support
- Sub‑30 ms redundant ring recovery
- Layer‑3 routing and industrial protocol integration
- Robust security and QoS framework
- Wide ‑40 °C to 75 °C operation and IP‑30 metal enclosure
- 5‑year warranty and long MTBF for industrial longevity

---
