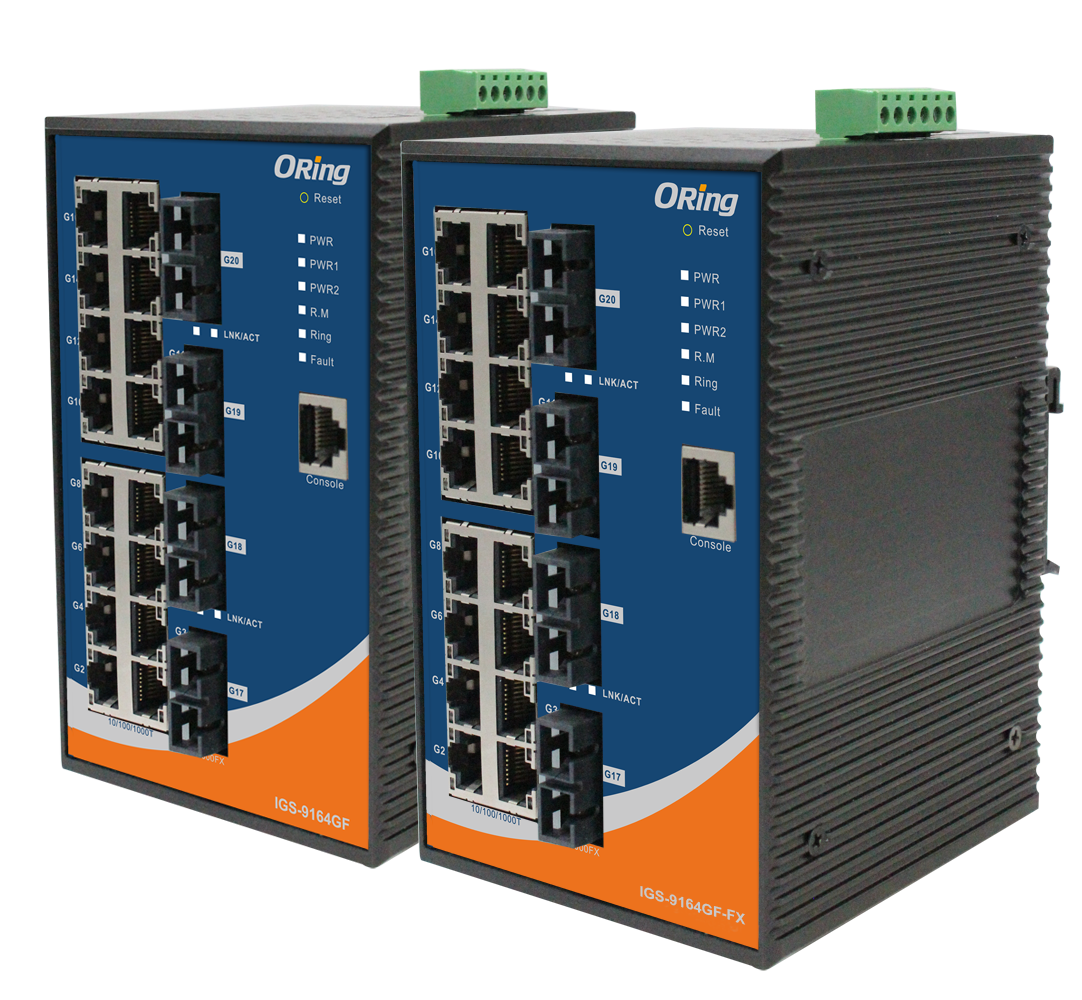

Comprehensive Product Summary – ORing IGS‑9164GF‑MM‑SC Industrial Managed Ethernet Switch
### 1. Product Overview
Product Name: Industrial Managed 20‑Port Gigabit Ethernet Switch
Model: IGS‑9164GF‑MM‑SC
Series: IGS‑9164GF/FX Series
Article Number: IGS‑9164GF‑MM‑SC
Manufacturer: ORing Industrial Networking Corp., New Taipei City, Taiwan
Version: Hardware/firmware V0.1 – “Designed for Rugged Excellence”
The ORing IGS‑9164GF‑MM‑SC is a fully managed, industrial‑grade Ethernet switch designed for mission‑critical applications requiring high reliability, redundancy, and extended environmental tolerance. It provides 20 total ports—16 copper Gigabit ports and 4 fiber‑optic Gigabit ports (multi‑mode, SC connectors)—and supports advanced redundancy technologies such as O‑Ring, Open‑Ring, O‑Chain, and MRP. The device is engineered for harsh industrial environments, offering a wide operating temperature range (‑40 °C to 75 °C), IP‑30 metal housing, and dual redundant DC power inputs.
### 2. Key Features
- High‑Density Port Configuration:
16 × 10/100/1000Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X and 4 × 1000Base‑SX multi‑mode fiber ports (SC connectors, 850 nm, 550 m typical distance).
- Industrial Redundancy Technologies:
- O‑Ring: Proprietary ORing redundancy with recovery < 30 ms over 250 nodes.
- Open‑Ring: Interoperability with other vendors’ ring protocols.
- O‑Chain: Multi‑ring redundancy topology for large‑scale networks.
- MRP (IEC 62439‑2): Standard Media Redundancy Protocol support.
- MSTP/RSTP/STP: IEEE 802.1D/w/s spanning tree compatibility.
- Network Management & Security:
- Web, Telnet, CLI (RS‑232 console), and Windows utility (Open‑Vision) management.
- SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, and IPv6 support.
- HTTPS/SSH encryption, ACL, TACACS+, 802.1x authentication, and Radius integration.
- Device Binding (IP/MAC pairing) and hardware‑based DoS/DDoS auto‑prevention.
- Performance Enhancements:
- 40 Gbps switching bandwidth, 7 µs latency, 8 priority queues, 8 K MAC table.
- Jumbo frame support up to 9.6 KB.
- IP‑based and application‑based QoS management.
- IEEE 1588v2 Precision Time Protocol for clock synchronization.
- IEEE 802.3az Energy‑Efficient Ethernet for reduced power consumption.
- Reliability & Monitoring:
- Fast recovery ring redundancy (< 30 ms).
- Fault relay output (1 A @ 24 V DC).
- Multiple alarm notifications: LED, relay, SYSLOG, SMTP e‑mail.
- DBU‑01 backup unit support for configuration backup/restore.
- Rugged Industrial Design:
- IP‑30 aluminum enclosure, DIN‑rail and wall‑mount options.
- Dual 12–48 V DC redundant power inputs with reverse polarity and overload protection.
- Operating temperature –40 °C to 75 °C; humidity 5–95 % non‑condensing.
### 3. Technical Specifications
Ports & Interfaces
- 16 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDI‑X)
- 4 × 1000Base‑SX multi‑mode fiber ports (SC connectors)
- RS‑232 console port (RJ‑45, 115200 bps, 8‑N‑1)
- Relay output: 1 A @ 24 V DC
Optical Characteristics (IGS‑9164GF‑MM‑SC)
- Fiber type: Multi‑mode 62.5/125 µm or 50/125 µm
- Connector: SC
- Wavelength: 850 nm
- Typical distance: 0.55 km
- Optical power: Tx –4 to –9.5 dBm; Rx –18 dBm (sensitivity); 0 dBm (saturation)
- Link budget: 8.5 dB
Switching Performance
- Switching bandwidth: 40 Gbps
- Latency: 7 µs (store‑and‑forward)
- MAC address table: 8 K entries
- VLANs: 256 max
- IGMP multicast groups: 128 per VLAN
- Jumbo frame: 9.6 KB
- Priority queues: 8
Electrical & Power
- Input voltage: Dual 12–48 V DC (redundant, 6‑pin terminal block)
- Typical power consumption: 16.32 W
- Overload and reverse polarity protection: Yes
Physical Characteristics
- Enclosure: IP‑30 metal housing
- Dimensions (W × D × H): 96.4 × 105.5 × 154 mm (3.80 × 4.15 × 6.06 in)
- Weight: 1.243 kg
Environmental
- Operating temperature: –40 °C to 75 °C (–40 °F to 167 °F)
- Storage temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Humidity: 5 % to 95 % non‑condensing
Regulatory Compliance
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN 60950‑1
Warranty: 5 years limited hardware warranty
### 4. Functionality
Operation & Management
The switch operates as a Layer 2 managed device supporting VLAN segmentation, QoS prioritization, redundancy, and security control. Configuration is accessible via:
- Web GUI: HTTP/HTTPS interface (default IP 192.168.10.1, admin/admin).
- CLI: Telnet or RS‑232 console.
- SNMP: v1/v2c/v3 for remote monitoring.
- Open‑Vision Utility: Windows‑based management suite for up to 500 devices.
Use Cases & Applications
- Power substations and utility automation networks.
- Transportation and rolling stock communications.
- Industrial factory automation and process control.
- IP surveillance and security systems.
- Oil and gas field communications and SCADA networks.
Compatibility
Complies with IEEE 802.3 Ethernet standards and interoperates with standard network equipment. Supports IPv4/IPv6 dual stack and Modbus TCP for industrial integration.
### 5. Components & Accessories
Included in Package
- IGS‑9164GF‑MM‑SC switch × 1
- DIN‑rail mount kit × 1
- Wall‑mount kit × 2
- Console cable (RJ‑45 to DB‑9) × 1
- Quick Installation Guide × 1
- ORing Tool CD × 1
Optional Accessories
- Open‑Vision M500: Windows network management utility for up to 500 devices.
- DR‑45/75/120 Series: DIN‑rail power supplies (45 W, 75 W, 120 W).
- SFP Modules: SFP100 (100 Mbps) and SFP 1G (1 Gbps) optical transceivers.
- DBU‑01: Configuration backup unit for rapid restore.
### 6. Installation & Setup
Mounting Options
- DIN‑Rail Installation: Attach the included kit to the rear panel and slide onto a standard DIN rail until it clicks securely.
- Wall Mounting: Use the two mount plates and six screws to secure the switch to a flat surface.
Power Wiring
- Dual redundant inputs (PWR1 and PWR2) on 6‑pin terminal block.
- Connect V+ and V– wires securely and tighten clamps.
- Relay contacts provide fault signaling (1 A @ 24 V DC).
Network Cabling
- 10BASE‑T: Cat 3/4/5 UTP (100 m max).
- 100BASE‑TX: Cat 5 UTP (100 m max).
- 1000BASE‑T: Cat 5e UTP (100 m max).
- Fiber ports: SC multi‑mode (62.5/125 µm or 50/125 µm, 550 m max).
Initial Configuration
1. Power on the device – PWR LED illuminates.
2. Connect a PC to any RJ‑45 port.
3. Access via browser at 192.168.10.1 (default credentials admin/admin).
4. Configure IP address, VLANs, redundancy, and security as required.
LED Indicators
- PWR/PWR1/PWR2 (Green): Power status.
- R.M. (Green): O‑Ring Master mode.
- Ring (Green/Blink): Ring active / broken.
- Fault (Amber): System fault or event.
- Port LEDs: Link/Activity (Green), Speed (Green = 1 Gbps, Amber = 100 Mbps, Off = 10 Mbps).
### 7. Performance & Capabilities
Throughput & Latency
- 40 Gbps non‑blocking switching fabric.
- 7 µs store‑and‑forward latency for Gigabit frames.
Redundancy Performance
- O‑Ring recovery time < 30 ms for up to 250 nodes.
- MRP recovery < 80 ms (IEC 62439‑2).
- MSTP recovery 5–6 s (standard RSTP timing).
Traffic Management
- 8 priority queues with 802.1p QoS and DiffServ/TOS support.
- Port‑based, COS, and TOS priority mapping.
- Weighted Fair Queue (8:4:2:1) and Strict Priority scheduling.
- Bandwidth control per port (ingress/egress).
Security & Access Control
- 802.1x port‑based authentication with RADIUS.
- SNMPv3 encrypted management.
- HTTPS/SSH secure sessions.
- IP security lists and MAC blacklists.
- Device Binding (IP/MAC pairing).
- Hardware DoS/DDoS attack prevention.
Reliability & Diagnostics
- Fault relay and LED alerts.
- SYSLOG and SMTP event notifications.
- System event log and port statistics monitoring.
- Ping diagnostic tool and MAC address table inspection.
Limitations
- Layer 2 switching only (no Layer 3 routing).
- Fiber distance limited to 550 m for multi‑mode (850 nm).
### 8. Standards & Compliance
Ethernet Protocols
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (Link Aggregation Control Protocol)
- IEEE 802.1p (Class of Service)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1w (RSTP) / 802.1s (MSTP)
- IEEE 802.1x (Authentication)
- IEEE 802.1AB (LLDP)
- IEEE 802.3az (Energy‑Efficient Ethernet)
- IEEE 1588v2 (Precision Time Protocol)
Environmental & Safety Compliance
- FCC Part 15 Class A, EN 55022 Class A (EMI)
- EN 61000‑4‑2/3/4/5/6/8/11 (EMS immunity)
- IEC 60068‑2‑27/‑2‑6/‑2‑32 (Shock, Vibration, Free Fall)
- EN 60950‑1 (Safety Standard)
Industry Protocols & Interoperability
- Modbus TCP for industrial automation.
- SNMP v1/v2c/v3 for network management.
- MRP (IEC 62439‑2) for redundant ring networks.
- IPv6 support for next‑generation networking.
### 9. Additional Information
Warranty & Support
- 5‑year limited hardware warranty covering defects in materials and workmanship.
- Technical support via e‑mail (support@oring‑networking.com) and phone (+886‑2‑2218‑1066).
- Firmware updates and Open‑Vision software available from www.oring‑networking.com.
Maintenance & Updates
- Configuration backup/restore via DBU‑01 or TFTP.
- Firmware upgrade through Web GUI or TFTP server.
- Factory reset via hardware button (5 s press).
- Periodic inspection of fiber connectors and terminal blocks recommended.
Manufacturer Contact
ORing Industrial Networking Corp.
3F., No. 542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014
Website: [www.oring‑networking.com](http://www.oring-networking.com)
E‑mail: support@oring‑networking.com
### Summary
The ORing IGS‑9164GF‑MM‑SC is a robust, high‑performance, industrial‑grade managed Ethernet switch engineered for environments demanding continuous uptime and deterministic communication. With 20 ports (16 Gigabit RJ‑45 + 4 Gigabit multi‑mode fiber SC), advanced redundancy (O‑Ring < 30 ms recovery), comprehensive management interfaces, and extensive security features, it ensures reliable data transmission in automation, transportation, and energy sectors. Its rugged IP‑30 design, wide temperature range, and dual redundant power inputs make it ideal for deployment in harsh industrial conditions where network resilience and manageability are paramount.
### 1. Product Overview
Product Name: Industrial Managed 20‑Port Gigabit Ethernet Switch
Model: IGS‑9164GF‑MM‑SC
Series: IGS‑9164GF/FX Series
Article Number: IGS‑9164GF‑MM‑SC
Manufacturer: ORing Industrial Networking Corp., New Taipei City, Taiwan
Version: Hardware/firmware V0.1 – “Designed for Rugged Excellence”
The ORing IGS‑9164GF‑MM‑SC is a fully managed, industrial‑grade Ethernet switch designed for mission‑critical applications requiring high reliability, redundancy, and extended environmental tolerance. It provides 20 total ports—16 copper Gigabit ports and 4 fiber‑optic Gigabit ports (multi‑mode, SC connectors)—and supports advanced redundancy technologies such as O‑Ring, Open‑Ring, O‑Chain, and MRP. The device is engineered for harsh industrial environments, offering a wide operating temperature range (‑40 °C to 75 °C), IP‑30 metal housing, and dual redundant DC power inputs.
### 2. Key Features
- High‑Density Port Configuration:
16 × 10/100/1000Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X and 4 × 1000Base‑SX multi‑mode fiber ports (SC connectors, 850 nm, 550 m typical distance).
- Industrial Redundancy Technologies:
- O‑Ring: Proprietary ORing redundancy with recovery < 30 ms over 250 nodes.
- Open‑Ring: Interoperability with other vendors’ ring protocols.
- O‑Chain: Multi‑ring redundancy topology for large‑scale networks.
- MRP (IEC 62439‑2): Standard Media Redundancy Protocol support.
- MSTP/RSTP/STP: IEEE 802.1D/w/s spanning tree compatibility.
- Network Management & Security:
- Web, Telnet, CLI (RS‑232 console), and Windows utility (Open‑Vision) management.
- SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, and IPv6 support.
- HTTPS/SSH encryption, ACL, TACACS+, 802.1x authentication, and Radius integration.
- Device Binding (IP/MAC pairing) and hardware‑based DoS/DDoS auto‑prevention.
- Performance Enhancements:
- 40 Gbps switching bandwidth, 7 µs latency, 8 priority queues, 8 K MAC table.
- Jumbo frame support up to 9.6 KB.
- IP‑based and application‑based QoS management.
- IEEE 1588v2 Precision Time Protocol for clock synchronization.
- IEEE 802.3az Energy‑Efficient Ethernet for reduced power consumption.
- Reliability & Monitoring:
- Fast recovery ring redundancy (< 30 ms).
- Fault relay output (1 A @ 24 V DC).
- Multiple alarm notifications: LED, relay, SYSLOG, SMTP e‑mail.
- DBU‑01 backup unit support for configuration backup/restore.
- Rugged Industrial Design:
- IP‑30 aluminum enclosure, DIN‑rail and wall‑mount options.
- Dual 12–48 V DC redundant power inputs with reverse polarity and overload protection.
- Operating temperature –40 °C to 75 °C; humidity 5–95 % non‑condensing.
### 3. Technical Specifications
Ports & Interfaces
- 16 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDI‑X)
- 4 × 1000Base‑SX multi‑mode fiber ports (SC connectors)
- RS‑232 console port (RJ‑45, 115200 bps, 8‑N‑1)
- Relay output: 1 A @ 24 V DC
Optical Characteristics (IGS‑9164GF‑MM‑SC)
- Fiber type: Multi‑mode 62.5/125 µm or 50/125 µm
- Connector: SC
- Wavelength: 850 nm
- Typical distance: 0.55 km
- Optical power: Tx –4 to –9.5 dBm; Rx –18 dBm (sensitivity); 0 dBm (saturation)
- Link budget: 8.5 dB
Switching Performance
- Switching bandwidth: 40 Gbps
- Latency: 7 µs (store‑and‑forward)
- MAC address table: 8 K entries
- VLANs: 256 max
- IGMP multicast groups: 128 per VLAN
- Jumbo frame: 9.6 KB
- Priority queues: 8
Electrical & Power
- Input voltage: Dual 12–48 V DC (redundant, 6‑pin terminal block)
- Typical power consumption: 16.32 W
- Overload and reverse polarity protection: Yes
Physical Characteristics
- Enclosure: IP‑30 metal housing
- Dimensions (W × D × H): 96.4 × 105.5 × 154 mm (3.80 × 4.15 × 6.06 in)
- Weight: 1.243 kg
Environmental
- Operating temperature: –40 °C to 75 °C (–40 °F to 167 °F)
- Storage temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Humidity: 5 % to 95 % non‑condensing
Regulatory Compliance
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN 60950‑1
Warranty: 5 years limited hardware warranty
### 4. Functionality
Operation & Management
The switch operates as a Layer 2 managed device supporting VLAN segmentation, QoS prioritization, redundancy, and security control. Configuration is accessible via:
- Web GUI: HTTP/HTTPS interface (default IP 192.168.10.1, admin/admin).
- CLI: Telnet or RS‑232 console.
- SNMP: v1/v2c/v3 for remote monitoring.
- Open‑Vision Utility: Windows‑based management suite for up to 500 devices.
Use Cases & Applications
- Power substations and utility automation networks.
- Transportation and rolling stock communications.
- Industrial factory automation and process control.
- IP surveillance and security systems.
- Oil and gas field communications and SCADA networks.
Compatibility
Complies with IEEE 802.3 Ethernet standards and interoperates with standard network equipment. Supports IPv4/IPv6 dual stack and Modbus TCP for industrial integration.
### 5. Components & Accessories
Included in Package
- IGS‑9164GF‑MM‑SC switch × 1
- DIN‑rail mount kit × 1
- Wall‑mount kit × 2
- Console cable (RJ‑45 to DB‑9) × 1
- Quick Installation Guide × 1
- ORing Tool CD × 1
Optional Accessories
- Open‑Vision M500: Windows network management utility for up to 500 devices.
- DR‑45/75/120 Series: DIN‑rail power supplies (45 W, 75 W, 120 W).
- SFP Modules: SFP100 (100 Mbps) and SFP 1G (1 Gbps) optical transceivers.
- DBU‑01: Configuration backup unit for rapid restore.
### 6. Installation & Setup
Mounting Options
- DIN‑Rail Installation: Attach the included kit to the rear panel and slide onto a standard DIN rail until it clicks securely.
- Wall Mounting: Use the two mount plates and six screws to secure the switch to a flat surface.
Power Wiring
- Dual redundant inputs (PWR1 and PWR2) on 6‑pin terminal block.
- Connect V+ and V– wires securely and tighten clamps.
- Relay contacts provide fault signaling (1 A @ 24 V DC).
Network Cabling
- 10BASE‑T: Cat 3/4/5 UTP (100 m max).
- 100BASE‑TX: Cat 5 UTP (100 m max).
- 1000BASE‑T: Cat 5e UTP (100 m max).
- Fiber ports: SC multi‑mode (62.5/125 µm or 50/125 µm, 550 m max).
Initial Configuration
1. Power on the device – PWR LED illuminates.
2. Connect a PC to any RJ‑45 port.
3. Access via browser at 192.168.10.1 (default credentials admin/admin).
4. Configure IP address, VLANs, redundancy, and security as required.
LED Indicators
- PWR/PWR1/PWR2 (Green): Power status.
- R.M. (Green): O‑Ring Master mode.
- Ring (Green/Blink): Ring active / broken.
- Fault (Amber): System fault or event.
- Port LEDs: Link/Activity (Green), Speed (Green = 1 Gbps, Amber = 100 Mbps, Off = 10 Mbps).
### 7. Performance & Capabilities
Throughput & Latency
- 40 Gbps non‑blocking switching fabric.
- 7 µs store‑and‑forward latency for Gigabit frames.
Redundancy Performance
- O‑Ring recovery time < 30 ms for up to 250 nodes.
- MRP recovery < 80 ms (IEC 62439‑2).
- MSTP recovery 5–6 s (standard RSTP timing).
Traffic Management
- 8 priority queues with 802.1p QoS and DiffServ/TOS support.
- Port‑based, COS, and TOS priority mapping.
- Weighted Fair Queue (8:4:2:1) and Strict Priority scheduling.
- Bandwidth control per port (ingress/egress).
Security & Access Control
- 802.1x port‑based authentication with RADIUS.
- SNMPv3 encrypted management.
- HTTPS/SSH secure sessions.
- IP security lists and MAC blacklists.
- Device Binding (IP/MAC pairing).
- Hardware DoS/DDoS attack prevention.
Reliability & Diagnostics
- Fault relay and LED alerts.
- SYSLOG and SMTP event notifications.
- System event log and port statistics monitoring.
- Ping diagnostic tool and MAC address table inspection.
Limitations
- Layer 2 switching only (no Layer 3 routing).
- Fiber distance limited to 550 m for multi‑mode (850 nm).
### 8. Standards & Compliance
Ethernet Protocols
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX/FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (Link Aggregation Control Protocol)
- IEEE 802.1p (Class of Service)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1w (RSTP) / 802.1s (MSTP)
- IEEE 802.1x (Authentication)
- IEEE 802.1AB (LLDP)
- IEEE 802.3az (Energy‑Efficient Ethernet)
- IEEE 1588v2 (Precision Time Protocol)
Environmental & Safety Compliance
- FCC Part 15 Class A, EN 55022 Class A (EMI)
- EN 61000‑4‑2/3/4/5/6/8/11 (EMS immunity)
- IEC 60068‑2‑27/‑2‑6/‑2‑32 (Shock, Vibration, Free Fall)
- EN 60950‑1 (Safety Standard)
Industry Protocols & Interoperability
- Modbus TCP for industrial automation.
- SNMP v1/v2c/v3 for network management.
- MRP (IEC 62439‑2) for redundant ring networks.
- IPv6 support for next‑generation networking.
### 9. Additional Information
Warranty & Support
- 5‑year limited hardware warranty covering defects in materials and workmanship.
- Technical support via e‑mail (support@oring‑networking.com) and phone (+886‑2‑2218‑1066).
- Firmware updates and Open‑Vision software available from www.oring‑networking.com.
Maintenance & Updates
- Configuration backup/restore via DBU‑01 or TFTP.
- Firmware upgrade through Web GUI or TFTP server.
- Factory reset via hardware button (5 s press).
- Periodic inspection of fiber connectors and terminal blocks recommended.
Manufacturer Contact
ORing Industrial Networking Corp.
3F., No. 542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014
Website: [www.oring‑networking.com](http://www.oring-networking.com)
E‑mail: support@oring‑networking.com
### Summary
The ORing IGS‑9164GF‑MM‑SC is a robust, high‑performance, industrial‑grade managed Ethernet switch engineered for environments demanding continuous uptime and deterministic communication. With 20 ports (16 Gigabit RJ‑45 + 4 Gigabit multi‑mode fiber SC), advanced redundancy (O‑Ring < 30 ms recovery), comprehensive management interfaces, and extensive security features, it ensures reliable data transmission in automation, transportation, and energy sectors. Its rugged IP‑30 design, wide temperature range, and dual redundant power inputs make it ideal for deployment in harsh industrial conditions where network resilience and manageability are paramount.
-
DataSheet_IGS-9164GF_FX_Series.pdf
PDF Catalog
-
QIG_IGS-9164GF_FX_V1.1.pdf
Manual
No accessories available.
 Series-large.gif)
