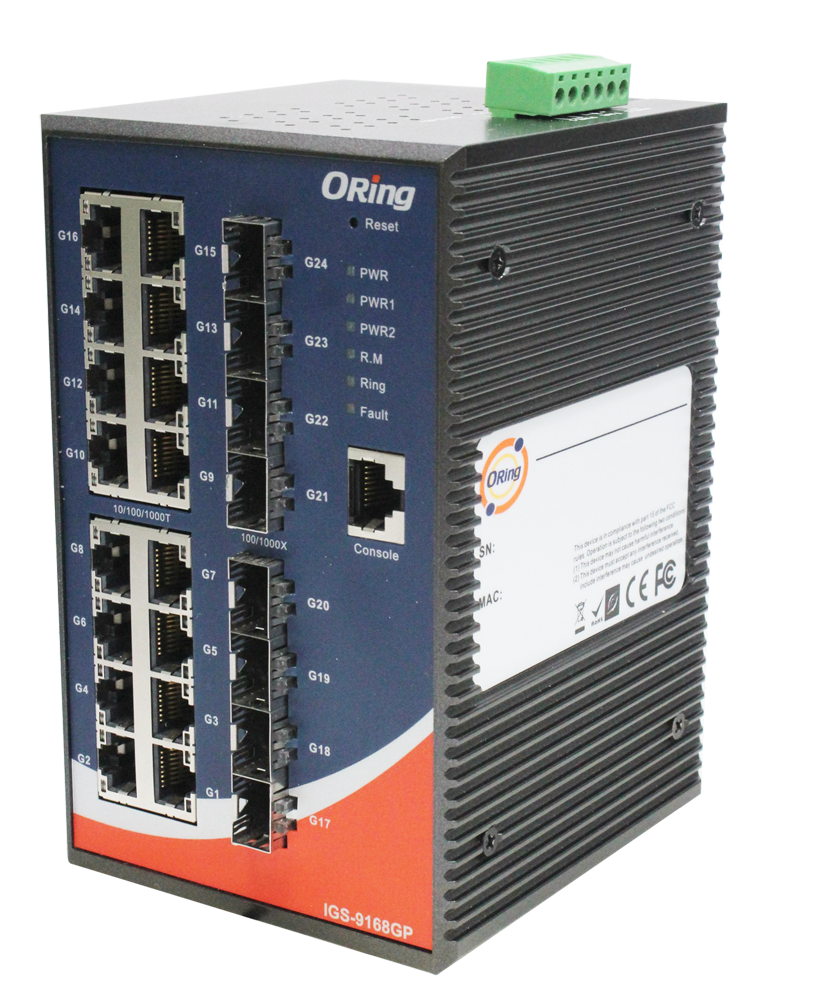

Comprehensive Product Summary: ORing IGS‑9168GP Industrial Managed Ethernet Switch

---

### 1. Product Overview

Product Name: Industrial Managed Ethernet Switch
Model: IGS‑9168GP
Series: ORing Industrial Gigabit Switch Series
Article Number: IGS‑9168GP
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 3F., No.542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Support Contact: support@oring‑networking.com
Warranty: 5 years standard limited warranty

The ORing IGS‑9168GP is a rugged, fully managed industrial Ethernet switch designed for mission‑critical applications requiring high reliability, redundancy, and advanced network management. It provides 24 Gigabit interfaces—16 copper 10/100/1000Base‑T(X) ports and 8 fiber 100/1000Base‑X SFP slots—supporting flexible deployment in harsh industrial environments.

---

### 2. Key Features

- High‑Performance Switching:
24‑port Gigabit architecture with 48 Gbps switching bandwidth and 7 µs latency.
Store‑and‑forward processing with 8 K MAC address table and 8 hardware priority queues.

- Redundant Networking:
- O‑Ring proprietary redundancy with < 30 ms recovery across up to 250 nodes.
- O‑Chain topology for multi‑ring interconnection.
- Open‑Ring interoperability with third‑party ring protocols.
- MRP (IEC 62439‑2) media redundancy support.
- STP/RSTP/MSTP (IEEE 802.1D/w/s) compatibility.
- Fast Recovery mode for multi‑port redundancy.

- Advanced Management:
- Web GUI, Telnet, SSH, HTTPS, RS‑232 console (CLI), and ORing Open‑Vision centralized management.
- SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, and DHCP Server/Client/Relay.
- Firmware upgrade and configuration backup/restore via web interface.

- Security & Access Control:
- IEEE 802.1x port‑based authentication, RADIUS/TACACS+ integration.
- Device Binding (IP/MAC/Port) with DoS/DDoS prevention and alive/stream checking.
- Access Control Lists (ACLs) with granular filtering (Ethernet, IPv4, ARP, ICMP, TCP/UDP).
- HTTPS/SSH encryption, SNMPv3 authentication, and password protection.

- Quality of Service (QoS):
- IEEE 802.1p Class of Service, DSCP‑based prioritization, and traffic shaping.
- 8 hardware queues per port with strict or weighted scheduling.
- Storm control, port policing, and bandwidth management.

- Industrial Reliability:
- Dual redundant 12–48 V DC power inputs (max 60 V DC on Rev. 2).
- Overload and reverse‑polarity protection.
- IP‑30 metal enclosure, fanless design, and extended ‑40 °C to +75 °C operation.
- DIN‑rail and wall‑mount installation options.
- Relay output alarm for power or port faults (1 A @ 24 V DC).

- Diagnostics & Monitoring:
- Cable diagnostics (VeriPHY), SFP DDM monitoring, system log, and SNMP traps.
- Syslog and SMTP email alerts for power, link, or topology events.
- Built‑in watchdog and buzzer alarm.

- Synchronization & Timing:
- IEEE 1588v2 Precision Time Protocol (PTP) with external clock I/O (1 PPS, VCXO).
- Configurable master/slave, boundary, or transparent clock modes.

---

### 3. Technical Specifications

| Category | Specification |
|---------------|-------------------|
| Ethernet Ports | 16 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDI‑X) |
| Fiber Ports | 8 × 100/1000Base‑X SFP slots (LC connectors, MM 0–550 m @ 850 nm, SM LC) |
| Console Port | 1 × RS‑232 (RJ‑45 to DB‑9 female cable, 115200 bps, 8‑N‑1) |
| Switching Capacity | 48 Gbps non‑blocking |
| Forwarding Rate | 35.7 Mpps (64‑byte packets) |
| MAC Table | 8 K entries |
| VLANs | 4095 IDs (1–4094), 256 active VLANs |
| IGMP Groups | 256 per VLAN |
| Jumbo Frame | Up to 9.6 KB |
| Latency | < 7 µs |
| Processing | Store‑and‑Forward |
| QoS Queues | 8 hardware queues per port |
| Power Input | Dual 12–48 V DC (6‑pin terminal block, max 60 V DC Rev. 2) |
| Power Protection | Overload & reverse‑polarity |
| Power Consumption | Approx. 20 W (typical) |
| Relay Output | 1 A @ 24 V DC for fault alarm |
| Enclosure | IP‑30 metal housing |
| Dimensions (W × D × H) | 96.4 × 105.5 × 154 mm (3.8 × 4.15 × 6.06 in) |
| Weight | ≈ 1.25 kg |
| Mounting | DIN‑rail and wall‑mount kits included |
| Operating Temp. | ‑40 °C to +75 °C (‑40 °F to +167 °F) |
| Storage Temp. | ‑40 °C to +85 °C (‑40 °F to +185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| Ingress Protection | IP‑30 |
| Shock/Vibration | IEC 60068‑2‑27 / ‑6 / ‑32 compliant |
| Safety | EN 60950‑1 |
| EMI/EMS | FCC Part 15 Class A, EN 55022 Class A, EN 61000‑4‑2/‑3/‑4/‑5/‑6/‑8/‑11 |
| Warranty | 5 years |

---

### 4. Functionality and Applications

Operation & Management:
The IGS‑9168GP supports multiple management interfaces—web browser, Telnet, SSH, and serial console—allowing flexible configuration and monitoring. It integrates seamlessly with ORing’s Open‑Vision management suite for centralized supervision of large‑scale industrial networks.

Use Cases:
- Factory automation and process control networks.
- Power substations and smart grid communication.
- Intelligent transportation systems (ITS).
- Oil, gas, and mining field networks.
- Surveillance and security backbones.
- Any mission‑critical Ethernet infrastructure requiring redundancy and extended temperature tolerance.

Compatibility:
Compliant with IEEE 802.3/802.3u/802.3ab/802.3z standards, interoperable with standard Ethernet devices and SFP transceivers. Supports IPv4/IPv6 dual stack, Modbus TCP for SCADA integration, and SNMP for network management.

---

### 5. Components & Accessories

Included in Package:
- IGS‑9168GP switch unit
- DIN‑rail mounting kit
- Wall‑mount brackets (2 pcs)
- RS‑232 console cable (RJ‑45 to DB‑9 F)
- Quick Installation Guide (QIG)
- Product CD (manuals and utilities)

Optional Accessories:
- Industrial SFP transceivers (multi‑mode/single‑mode, various distances)
- External DC power supplies (12–48 V DC)
- ORing Open‑Vision network management software license

Connectors:
- 6‑pin terminal block for dual DC inputs and fault relay
- RJ‑45 connectors for copper ports
- LC SFP slots for fiber modules
- Grounding screw for chassis earth connection

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail: Attach the supplied DIN‑rail clip to the rear panel and snap onto standard 35 mm rail.
- Wall‑Mount: Use the included brackets and screws; leave ~2 mm clearance for sliding installation.

Power Wiring:
- Connect V1+ / V1‑ and V2+ / V2‑ to dual DC sources (12–48 V DC).
- Tighten terminal screws to secure conductors.
- Relay contacts (1 A @ 24 V DC) provide fault alarm output.

Grounding:
- Connect the ground screw to a proper earth ground to minimize EMI.

Network Cabling:
- 10/100/1000Base‑T(X): Cat 5e UTP ≤ 100 m.
- 100/1000Base‑X SFP: LC fiber (50/125 µm MM ≤ 550 m @ 850 nm; SM up to 10 km @ 1310 nm).
- Auto MDI/MDI‑X supported.

Initial Configuration:
- Default IP 192.168.10.1 / 24, gateway 192.168.10.254.
- Default credentials: admin / admin.
- Access via web browser or console (115200 bps, 8‑N‑1).
- Configure VLANs, redundancy, and security as required.

---

### 7. Performance & Capabilities

- Throughput: Wire‑speed forwarding on all 24 Gigabit ports.
- Latency: < 7 µs for 64‑byte frames.
- Redundancy Recovery: < 30 ms (O‑Ring), < 10 ms (O‑Chain).
- QoS: 8 priority queues, DSCP/802.1p classification, weighted or strict scheduling.
- Bandwidth Control: Per‑port rate limiting and policing (100 kbps – 1 Gbps).
- Multicast: IGMP v2/v3 snooping, 256 groups per VLAN.
- Security: ACL filtering, 802.1x authentication, MAC binding, DoS/DDoS protection.
- Diagnostics: Cable test, SFP DDM, port statistics, system logs, SNMP traps.
- Synchronization: IEEE 1588v2 PTP with external clock I/O (1 PPS input/output, VCXO adjustment).

Limitations:
- No PoE power output (non‑PoE model).
- Management limited to 48 Gbps backplane; no stacking ports.
- SFP modules not included by default.

---

### 8. Standards & Compliance

Ethernet Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX/FX), 802.3ab (1000Base‑T), 802.3z (1000Base‑X), 802.3x (flow control), 802.3ad (LACP), 802.1p (CoS), 802.1Q (VLAN tagging), 802.1w (RSTP), 802.1s (MSTP), 802.1x (authentication), 802.1AB (LLDP), 802.3az (Energy‑Efficient Ethernet).

Environmental & Safety:
- EMI: FCC Part 15 Class A, EN 55022 Class A.
- EMS: EN 61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11.
- Shock/Vibration: IEC 60068‑2‑27/‑6/‑32.
- Safety: EN 60950‑1 (IT equipment).
- Ingress Protection: IP‑30 metal enclosure.

Industry Protocols:
- SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, DHCP Server/Relay, PTP IEEE 1588v2, MRP IEC 62439‑2.

---

### 9. Additional Information

Reliability & Maintenance:
- Fanless design for silent, maintenance‑free operation.
- Hardware watchdog ensures automatic recovery from system hang.
- Configurable fault relay and LED indicators for power, ring, and port status.
- Firmware upgradable via web or CLI; configuration backup/restore supported.

LED Indicators:
- PWR, PWR1, PWR2: Green – power status.
- R.M.: Green – Ring Master active.
- Ring: Green – ring enabled; blinking – ring broken.
- Fault: Amber – power failure or port fault.
- RJ‑45 Ports: Green/Amber – link/activity and speed.
- SFP Ports: Green – link; blinking – activity.

Maintenance & Support:
- 5‑year limited warranty covering materials and workmanship.
- Technical support via email and online documentation.
- Firmware and management utility updates available from ORing website.

Model Revision Notes:
- Rev. 1 (2014): ‑40 °C to +70 °C operation, 12–48 V DC input.
- Rev. 2 (2016): Extended to +75 °C and 60 V DC max input, enhanced PTP and console backup support.

---

### Summary

The ORing IGS‑9168GP is a high‑reliability, industrial‑grade managed Ethernet switch engineered for demanding automation and control networks. With 24 Gigabit interfaces, comprehensive redundancy (O‑Ring, O‑Chain, MRP, MSTP), advanced QoS and security mechanisms, and wide‑temperature operation, it ensures continuous connectivity in harsh environments. Its dual DC inputs, fault relay, and IP‑30 metal housing provide robust electrical and mechanical protection, while extensive management options (Web, CLI, SNMP, Modbus TCP) simplify integration into modern industrial infrastructures.

This switch is ideal for applications requiring deterministic performance, network resilience, and secure remote management across industrial automation, transportation, and energy sectors.
