Comprehensive Product Summary – ORing Industrial Networking Corp. IMG‑111 Series M2M Gateway
### 1. Product Overview

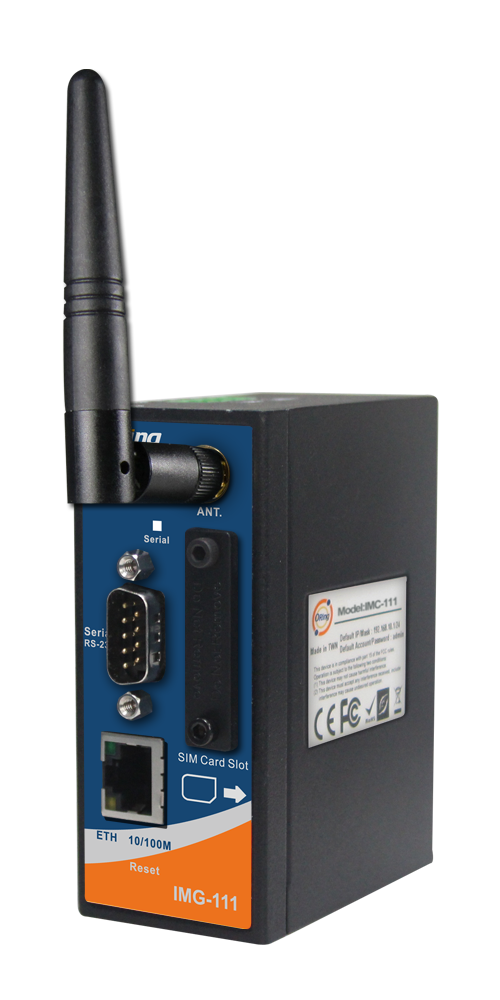

Product Name: Industrial M2M Gateway
Model: IMG‑111
Series: IMG‑111 Series (includes IMG‑111 and IMG‑111‑2G variants)
Article Number: IMG‑111
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com
The ORing IMG‑111 Series is a compact, industrial‑grade M2M (Machine‑to‑Machine) gateway designed to bridge serial RS‑232 devices with IP‑based networks via 2G GSM/GPRS or 3.5G HSUPA cellular connectivity. It provides reliable, secure, and flexible data transmission for remote monitoring, control, and automation applications in harsh industrial environments.
### 2. Key Features
- Integrated Cellular Connectivity:
Built‑in GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA modem supporting dual‑band (1900/2100 MHz) and quad‑band (850/900/1800/1900 MHz) operation. The IMG‑111‑2G variant supports GSM/GPRS dual‑band (900/1800 MHz or 850/900/1800/1900 MHz).
- Serial‑to‑IP Communication:
One RS‑232 port (DB9 male) enables transparent data transmission between serial devices and IP networks through TCP, UDP, or Virtual COM modes.
- Ethernet Interface:
One 10/100Base‑T(X) RJ‑45 port with auto MDI/MDI‑X detection for LAN connectivity.
- VPN and Security:
Supports OpenVPN and PPTP VPN for secure remote access. Includes IP/MAC filtering, NAT, DMZ, and UPnP/NAT‑PMP for flexible network configuration.
- Event and Alarm Management:
Provides event notifications via Syslog, SNMP Trap, Email, and relay output. Supports versatile event alarms and system logging.
- Redundant Host Support:
Up to five simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes; four IP ranges supported in UDP mode.
- Dynamic DNS (DDNS):
Allows dynamic IP addresses to be mapped to a fixed domain name for remote access.
- Industrial Design:
Rugged IP‑30 metal enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10 °C to 60 °C), and dual 12–48 VDC power inputs.
- Management Interfaces:
Web‑based GUI, DS‑Tool utility, and remote management via WAN. Supports firmware upgrades, configuration backup/restore, and system monitoring.
- Reliability and Safety:
Complies with FCC, CE, and EN industrial standards for EMI/EMS, vibration, and shock resistance.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Model Variants | IMG‑111 (3.5G HSUPA), IMG‑111‑2G (GSM/GPRS) |
| Ethernet Port | 1 × 10/100Base‑T(X) RJ‑45, Auto MDI/MDI‑X |
| Serial Port | 1 × RS‑232 (DB9 male) |
| Serial Parameters | Baud rate: 110 bps – 115.2 kbps; Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2; Parity: None, Even, Odd, Mark, Space; Flow control: None, XON/XOFF |
| Serial Signals | TxD, RxD, GND |
| Cellular Interface | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA |
| Frequency Bands | Dual‑band HSUPA 1900/2100 MHz; Quad‑band GSM/GPRS/EDGE 850/900/1800/1900 MHz; WCDMA/HSDPA 850/900/1900/2100 MHz |
| Antenna Connector | Reverse SMA |
| Antenna | 1 × GSM/DCS/UMT antenna |
| SIM Slot | 1 × SIM card slot |
| Power Input | 12 – 48 VDC (dual input) |
| Power Consumption | 4.5 W |
| Relay Output | 1 A @ 24 VDC |
| Enclosure | IP‑30 metal housing |
| Dimensions (W × D × H) | 41 × 70 × 95 mm (1.61 × 2.76 × 3.74 in) |
| Weight | 360 g (approx. 388 g with accessories) |
| Operating Temperature | ‑10 °C to 60 °C (14 °F to 140 °F) |
| Storage Temperature | ‑40 °C to 85 °C (‑40 °F to 185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| EMI Compliance | FCC Part 15, CISPR (EN55022) Class A |
| EMS Compliance | EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11 |
| Mechanical Tests | Shock IEC60068‑2‑27; Free Fall IEC60068‑2‑32; Vibration IEC60068‑2‑6 |
| Safety | EN60950‑1 |
| Warranty | 3 years |
### 4. Functionality
The IMG‑111 operates as a serial‑to‑IP gateway, enabling legacy RS‑232 devices to communicate over Ethernet or cellular networks. It supports multiple communication modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing transparent data exchange. Supports up to five simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode: Initiates TCP connections to a defined server upon startup or data transmission.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
Use Cases:
- Remote monitoring of industrial equipment and sensors
- SCADA and telemetry systems
- Energy management and smart grid communication
- Transportation and logistics tracking
- Environmental monitoring stations
- Remote PLC or RTU access
Compatibility:
Works with standard Ethernet networks, cellular carriers supporting GSM/GPRS/3G/HSUPA, and Windows‑based management utilities (DS‑Tool, web browser). Supports DDNS for dynamic IP environments.
### 5. Components & Accessories
Included Items:
- IMG‑111 M2M Gateway unit
- 4‑pin terminal block for power input
- GSM/DCS/UMT antenna (Reverse SMA)
- DIN‑rail mounting kit
- Wall‑mount brackets and screws (M3 × 3)
- Power cable with power jack
- Dust cover for RJ‑45 port
- Allen key (for SIM card slot)
- Quick Installation Guide (QIG) and user manual
Optional Accessories:
- External RF antenna and extension cable
- Additional DIN‑rail or wall‑mount kits
- Replacement power supply (12–48 VDC)
Connectors:
- RJ‑45 Ethernet port (10/100Base‑T(X))
- DB9 male RS‑232 port
- Reverse SMA antenna connector
- SIM card slot (standard size)
- 4‑pin terminal block for power and relay output
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation:
Attach the included DIN‑rail kit to the rear panel and slide the device onto the rail until it clicks securely.
- Wall Mounting:
Use the L‑shaped brackets and screws to mount the unit on a flat surface.
SIM Card Installation:
1. Power off the device.
2. Remove the SIM slot cover using the Allen key.
3. Insert the SIM card into the slot.
4. Replace and secure the cover before powering on.
Power Connection:
- Connect 12–48 VDC to the terminal block (V+ and V–).
- Relay output supports 1 A @ 24 VDC for fault signaling.
Network Configuration:
1. Connect a PC to the LAN port using a straight‑through or crossover Ethernet cable.
2. Access the web interface via default IP 192.168.10.1 (username/password: admin/admin).
3. Configure WAN (cellular) settings: APN, username, password, and PIN if required.
4. Set LAN IP, DHCP range, and routing parameters.
5. Optionally enable VPN, NAT, or DDNS services.
LED Indicators:
- PWR (Green): Power on
- Status (Green): System ready (steady); booting (blinking)
- Fault (Amber): WAN connection failure
- WAN (Green): Modem ready (steady); checking status (blinking)
- ETH (Green/Amber): 100 Mbps / 10 Mbps link activity
- Serial TX/RX (Green/Red): Data transmission/reception
### 7. Performance & Capabilities
- Data Throughput:
Optimized modes for either maximum throughput or minimum latency.
Serial buffer size: 4 KB per direction; configurable flush intervals (0–65535 s).
- Connection Capacity:
Up to five simultaneous TCP or Virtual COM connections; four IP ranges for UDP.
- Reliability:
Dual power inputs ensure redundancy. Relay output provides fault indication for external alarms.
- Efficiency:
Low power consumption (4.5 W) suitable for continuous operation in remote installations.
- Limitations:
Single RS‑232 port; no RS‑485/422 support on this model. Cellular performance depends on network coverage and SIM configuration.
### 8. Standards & Compliance
Electromagnetic Compatibility (EMC):
- FCC Part 15, CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
- EN61000‑4‑8 (Magnetic Field)
- EN61000‑4‑11 (Dip/Interruption)
Environmental & Mechanical:
- Shock: IEC60068‑2‑27
- Free Fall: IEC60068‑2‑32
- Vibration: IEC60068‑2‑6
Safety:
EN60950‑1 (Information Technology Equipment Safety)
Ingress Protection:
IP‑30 metal enclosure suitable for industrial control cabinets.
Regulatory Compliance Statement:
All products comply with applicable international and regional regulations for industrial networking equipment.
### 9. Additional Information
Warranty:
3‑year limited warranty covering defects in materials and workmanship. Excludes damage from misuse, improper installation, or unauthorized modification.
Maintenance:
- Periodically inspect connectors and power terminals for corrosion or looseness.
- Keep ventilation openings clear of dust.
- Firmware updates available via web interface or DS‑Tool utility.
- Configuration files can be saved/restored for backup or device replacement.
Firmware & Software Updates:
- Firmware upgrades performed through the web interface or DS‑Tool.
- Do not power off during upgrade.
- Supports configuration backup via Web or TFTP.
Support & Documentation:
- Comprehensive user manual and quick installation guide included.
- Online resources and firmware downloads available at [www.oring-networking.com](http://www.oring-networking.com).
- Technical support via email: support@oring-networking.com.
Typical Applications:
- Industrial automation and control systems
- Remote data acquisition (DAQ)
- Utility and energy monitoring (oil, gas, water)
- Transportation and fleet management
- Building management systems (BMS)
- Environmental and weather monitoring
### Summary
The ORing IMG‑111 Series Industrial M2M Gateway is a robust, feature‑rich communication bridge designed for industrial automation and remote telemetry. Combining a 10/100 Mbps Ethernet interface, an RS‑232 serial port, and integrated 2G/3.5G cellular connectivity, it enables seamless data exchange between legacy serial devices and modern IP networks. Its support for multiple communication modes (Virtual COM, TCP/UDP), VPN security, event notification, and redundant host connections makes it ideal for mission‑critical applications requiring secure, reliable, and flexible remote connectivity.
With its rugged IP‑30 enclosure, wide temperature tolerance, and compliance with stringent industrial standards, the IMG‑111 ensures dependable operation in demanding environments. The device’s intuitive web interface, DS‑Tool management utility, and comprehensive configuration options simplify deployment and maintenance, making it a versatile solution for industrial IoT and M2M communication infrastructures.
### 1. Product Overview
Product Name: Industrial M2M Gateway
Model: IMG‑111
Series: IMG‑111 Series (includes IMG‑111 and IMG‑111‑2G variants)
Article Number: IMG‑111
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com
The ORing IMG‑111 Series is a compact, industrial‑grade M2M (Machine‑to‑Machine) gateway designed to bridge serial RS‑232 devices with IP‑based networks via 2G GSM/GPRS or 3.5G HSUPA cellular connectivity. It provides reliable, secure, and flexible data transmission for remote monitoring, control, and automation applications in harsh industrial environments.
### 2. Key Features
- Integrated Cellular Connectivity:
Built‑in GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA modem supporting dual‑band (1900/2100 MHz) and quad‑band (850/900/1800/1900 MHz) operation. The IMG‑111‑2G variant supports GSM/GPRS dual‑band (900/1800 MHz or 850/900/1800/1900 MHz).
- Serial‑to‑IP Communication:
One RS‑232 port (DB9 male) enables transparent data transmission between serial devices and IP networks through TCP, UDP, or Virtual COM modes.
- Ethernet Interface:
One 10/100Base‑T(X) RJ‑45 port with auto MDI/MDI‑X detection for LAN connectivity.
- VPN and Security:
Supports OpenVPN and PPTP VPN for secure remote access. Includes IP/MAC filtering, NAT, DMZ, and UPnP/NAT‑PMP for flexible network configuration.
- Event and Alarm Management:
Provides event notifications via Syslog, SNMP Trap, Email, and relay output. Supports versatile event alarms and system logging.
- Redundant Host Support:
Up to five simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes; four IP ranges supported in UDP mode.
- Dynamic DNS (DDNS):
Allows dynamic IP addresses to be mapped to a fixed domain name for remote access.
- Industrial Design:
Rugged IP‑30 metal enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10 °C to 60 °C), and dual 12–48 VDC power inputs.
- Management Interfaces:
Web‑based GUI, DS‑Tool utility, and remote management via WAN. Supports firmware upgrades, configuration backup/restore, and system monitoring.
- Reliability and Safety:
Complies with FCC, CE, and EN industrial standards for EMI/EMS, vibration, and shock resistance.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Model Variants | IMG‑111 (3.5G HSUPA), IMG‑111‑2G (GSM/GPRS) |
| Ethernet Port | 1 × 10/100Base‑T(X) RJ‑45, Auto MDI/MDI‑X |
| Serial Port | 1 × RS‑232 (DB9 male) |
| Serial Parameters | Baud rate: 110 bps – 115.2 kbps; Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2; Parity: None, Even, Odd, Mark, Space; Flow control: None, XON/XOFF |
| Serial Signals | TxD, RxD, GND |
| Cellular Interface | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA |
| Frequency Bands | Dual‑band HSUPA 1900/2100 MHz; Quad‑band GSM/GPRS/EDGE 850/900/1800/1900 MHz; WCDMA/HSDPA 850/900/1900/2100 MHz |
| Antenna Connector | Reverse SMA |
| Antenna | 1 × GSM/DCS/UMT antenna |
| SIM Slot | 1 × SIM card slot |
| Power Input | 12 – 48 VDC (dual input) |
| Power Consumption | 4.5 W |
| Relay Output | 1 A @ 24 VDC |
| Enclosure | IP‑30 metal housing |
| Dimensions (W × D × H) | 41 × 70 × 95 mm (1.61 × 2.76 × 3.74 in) |
| Weight | 360 g (approx. 388 g with accessories) |
| Operating Temperature | ‑10 °C to 60 °C (14 °F to 140 °F) |
| Storage Temperature | ‑40 °C to 85 °C (‑40 °F to 185 °F) |
| Humidity | 5 % – 95 % non‑condensing |
| EMI Compliance | FCC Part 15, CISPR (EN55022) Class A |
| EMS Compliance | EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11 |
| Mechanical Tests | Shock IEC60068‑2‑27; Free Fall IEC60068‑2‑32; Vibration IEC60068‑2‑6 |
| Safety | EN60950‑1 |
| Warranty | 3 years |
### 4. Functionality
The IMG‑111 operates as a serial‑to‑IP gateway, enabling legacy RS‑232 devices to communicate over Ethernet or cellular networks. It supports multiple communication modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing transparent data exchange. Supports up to five simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to five concurrent sessions.
- TCP Client Mode: Initiates TCP connections to a defined server upon startup or data transmission.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
Use Cases:
- Remote monitoring of industrial equipment and sensors
- SCADA and telemetry systems
- Energy management and smart grid communication
- Transportation and logistics tracking
- Environmental monitoring stations
- Remote PLC or RTU access
Compatibility:
Works with standard Ethernet networks, cellular carriers supporting GSM/GPRS/3G/HSUPA, and Windows‑based management utilities (DS‑Tool, web browser). Supports DDNS for dynamic IP environments.
### 5. Components & Accessories
Included Items:
- IMG‑111 M2M Gateway unit
- 4‑pin terminal block for power input
- GSM/DCS/UMT antenna (Reverse SMA)
- DIN‑rail mounting kit
- Wall‑mount brackets and screws (M3 × 3)
- Power cable with power jack
- Dust cover for RJ‑45 port
- Allen key (for SIM card slot)
- Quick Installation Guide (QIG) and user manual
Optional Accessories:
- External RF antenna and extension cable
- Additional DIN‑rail or wall‑mount kits
- Replacement power supply (12–48 VDC)
Connectors:
- RJ‑45 Ethernet port (10/100Base‑T(X))
- DB9 male RS‑232 port
- Reverse SMA antenna connector
- SIM card slot (standard size)
- 4‑pin terminal block for power and relay output
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation:
Attach the included DIN‑rail kit to the rear panel and slide the device onto the rail until it clicks securely.
- Wall Mounting:
Use the L‑shaped brackets and screws to mount the unit on a flat surface.
SIM Card Installation:
1. Power off the device.
2. Remove the SIM slot cover using the Allen key.
3. Insert the SIM card into the slot.
4. Replace and secure the cover before powering on.
Power Connection:
- Connect 12–48 VDC to the terminal block (V+ and V–).
- Relay output supports 1 A @ 24 VDC for fault signaling.
Network Configuration:
1. Connect a PC to the LAN port using a straight‑through or crossover Ethernet cable.
2. Access the web interface via default IP 192.168.10.1 (username/password: admin/admin).
3. Configure WAN (cellular) settings: APN, username, password, and PIN if required.
4. Set LAN IP, DHCP range, and routing parameters.
5. Optionally enable VPN, NAT, or DDNS services.
LED Indicators:
- PWR (Green): Power on
- Status (Green): System ready (steady); booting (blinking)
- Fault (Amber): WAN connection failure
- WAN (Green): Modem ready (steady); checking status (blinking)
- ETH (Green/Amber): 100 Mbps / 10 Mbps link activity
- Serial TX/RX (Green/Red): Data transmission/reception
### 7. Performance & Capabilities
- Data Throughput:
Optimized modes for either maximum throughput or minimum latency.
Serial buffer size: 4 KB per direction; configurable flush intervals (0–65535 s).
- Connection Capacity:
Up to five simultaneous TCP or Virtual COM connections; four IP ranges for UDP.
- Reliability:
Dual power inputs ensure redundancy. Relay output provides fault indication for external alarms.
- Efficiency:
Low power consumption (4.5 W) suitable for continuous operation in remote installations.
- Limitations:
Single RS‑232 port; no RS‑485/422 support on this model. Cellular performance depends on network coverage and SIM configuration.
### 8. Standards & Compliance
Electromagnetic Compatibility (EMC):
- FCC Part 15, CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
- EN61000‑4‑8 (Magnetic Field)
- EN61000‑4‑11 (Dip/Interruption)
Environmental & Mechanical:
- Shock: IEC60068‑2‑27
- Free Fall: IEC60068‑2‑32
- Vibration: IEC60068‑2‑6
Safety:
EN60950‑1 (Information Technology Equipment Safety)
Ingress Protection:
IP‑30 metal enclosure suitable for industrial control cabinets.
Regulatory Compliance Statement:
All products comply with applicable international and regional regulations for industrial networking equipment.
### 9. Additional Information
Warranty:
3‑year limited warranty covering defects in materials and workmanship. Excludes damage from misuse, improper installation, or unauthorized modification.
Maintenance:
- Periodically inspect connectors and power terminals for corrosion or looseness.
- Keep ventilation openings clear of dust.
- Firmware updates available via web interface or DS‑Tool utility.
- Configuration files can be saved/restored for backup or device replacement.
Firmware & Software Updates:
- Firmware upgrades performed through the web interface or DS‑Tool.
- Do not power off during upgrade.
- Supports configuration backup via Web or TFTP.
Support & Documentation:
- Comprehensive user manual and quick installation guide included.
- Online resources and firmware downloads available at [www.oring-networking.com](http://www.oring-networking.com).
- Technical support via email: support@oring-networking.com.
Typical Applications:
- Industrial automation and control systems
- Remote data acquisition (DAQ)
- Utility and energy monitoring (oil, gas, water)
- Transportation and fleet management
- Building management systems (BMS)
- Environmental and weather monitoring
### Summary
The ORing IMG‑111 Series Industrial M2M Gateway is a robust, feature‑rich communication bridge designed for industrial automation and remote telemetry. Combining a 10/100 Mbps Ethernet interface, an RS‑232 serial port, and integrated 2G/3.5G cellular connectivity, it enables seamless data exchange between legacy serial devices and modern IP networks. Its support for multiple communication modes (Virtual COM, TCP/UDP), VPN security, event notification, and redundant host connections makes it ideal for mission‑critical applications requiring secure, reliable, and flexible remote connectivity.
With its rugged IP‑30 enclosure, wide temperature tolerance, and compliance with stringent industrial standards, the IMG‑111 ensures dependable operation in demanding environments. The device’s intuitive web interface, DS‑Tool management utility, and comprehensive configuration options simplify deployment and maintenance, making it a versatile solution for industrial IoT and M2M communication infrastructures.
-
Datasheet_IMG-111 Series.pdf
PDF Catalog
-
QIG-IMG111-1.1.pdf
Manual
No accessories available.
