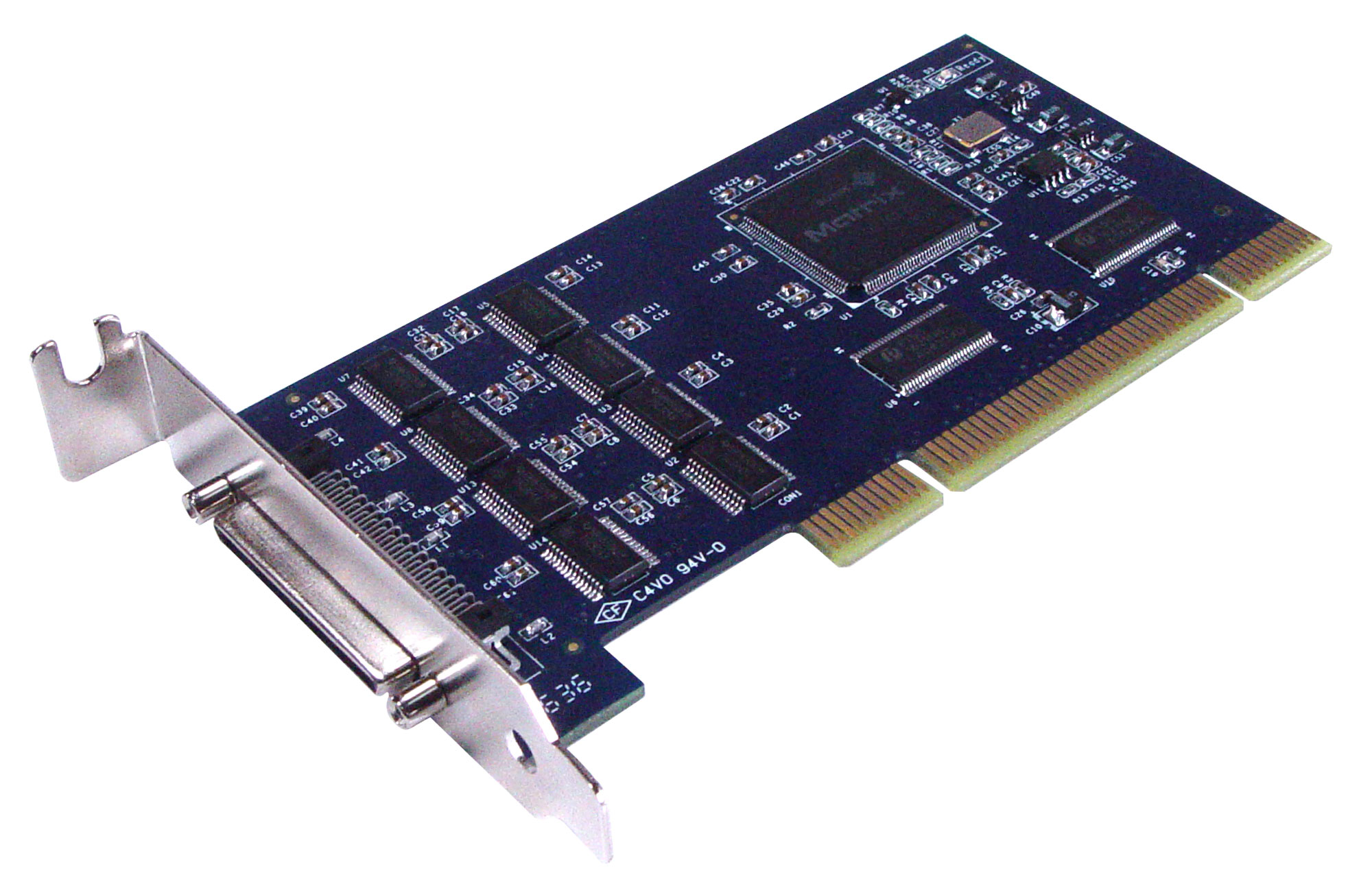

Comprehensive Product Summary: SUNIX IPC‑P1008 Universal PCI 8‑Port RS‑232 Professional Serial Card
### 1. Product Overview
Product Name: UPCI 8×RS‑232 Professional Card
Model: IPC‑P1008
Series: Universal PCI Multi‑Port Serial Communication Boards
Article Number: IPC‑P1008
Manufacturer: SUNIX Co., Ltd.
The SUNIX IPC‑P1008 is a professional‑grade Universal PCI serial communication card designed to provide eight independent RS‑232 serial ports for industrial, commercial, and embedded computing environments. It belongs to SUNIX’s family of multi‑port serial communication boards, which are engineered for high‑performance data transmission, robust electrical protection, and broad system compatibility. The IPC‑P1008 is ideal for applications requiring multiple serial interfaces such as industrial automation, POS systems, data acquisition, and instrumentation control.
### 2. Key Features
- Eight Independent RS‑232 Ports: Provides eight fully functional serial channels for simultaneous communication with multiple devices.
- Universal PCI Interface: Supports both 3.3 V and 5 V signaling, compatible with 32‑bit and 64‑bit PCI and PCI‑X buses operating at 33 MHz or 66 MHz.
- High‑Speed Data Transmission: Supports baud rates from 75 bps up to 921.6 kbps per port, ensuring reliable high‑speed serial communication.
- 64‑Byte Hardware FIFO: Each port includes a 64‑byte transmit/receive FIFO buffer, 16C750‑compatible, minimizing CPU overhead and improving throughput.
- Single‑Chip Matrix UART Controller: Integrates multiple UARTs into a single ASIC, reducing latency and power consumption while improving reliability.
- Embedded 15 kV ESD Protection: Built‑in electrostatic discharge protection on all signal lines safeguards connected equipment and the card itself.
- Mini SCSI 68‑Pin Connector: Compact high‑density connector on the card, with breakout cable to eight DB9 male connectors (available in 40 cm or 100 cm lengths).
- Unlimited Card Scalability: Multiple IPC‑P1008 cards can be installed in a single system, limited only by available PCI slots.
- Wide Operating Temperature Range: Designed for industrial environments with operating temperatures from 0 °C to 70 °C and storage temperatures from −40 °C to 85 °C.
- Comprehensive OS Support: Compatible with Windows 2000/XP/2003/Vista (32‑/64‑bit), DOS, Linux (2.4 x/2.6 x), and UNIX systems.
- Plug‑and‑Play Configuration: IRQ and I/O addresses are automatically assigned by the system BIOS or operating system—no jumpers or DIP switches required.
- Long‑Term Reliability: Backed by a 5‑year manufacturer’s warranty and designed for continuous industrial operation.
### 3. Technical Specifications
Bus Interface:
- Universal PCI, PCI‑X compliant (PCI Ver. 3.0/2.3/2.2)
- 64‑bit or 32‑bit bus width
- 3.3 V/5 V signaling
- 33 MHz / 66 MHz clock rate
Number of Ports: 8 independent RS‑232 ports
Connector Type: Mini SCSI 68‑pin on card; breakout cable to 8×DB9 male connectors
Baud Rate: 75 bps – 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: XON/XOFF (software)
FIFO Buffer: 64 bytes (hardware), 16C750 compatible
Signal Lines (RS‑232): TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
ESD Protection: 15 kV (embedded)
Dimensions: 63.5 mm × 120 mm (standard PCI form factor)
Weight: Approx. 100 g (card only, excluding cable)
Operating Temperature: 0 °C – 70 °C
Storage Temperature: −40 °C – 85 °C
Operating Humidity: 5 % – 95 % RH (non‑condensing)
Regulatory Approvals: CE, FCC Class B
Warranty: 5 years
### 4. Functionality
The IPC‑P1008 functions as an eight‑port RS‑232 serial expansion card for systems requiring multiple asynchronous communication channels. Each port operates independently, allowing simultaneous data exchange with multiple serial devices such as barcode scanners, printers, PLCs, sensors, or POS peripherals.
How It Works:
The card interfaces with the host system via the PCI bus. Each serial port is managed by the integrated Matrix UART controller, which handles data buffering, flow control, and interrupt management. The 64‑byte FIFO per channel ensures smooth data flow even under high‑speed or high‑load conditions. The card’s plug‑and‑play architecture allows automatic resource allocation by the operating system, eliminating manual configuration.
Use Cases and Applications:
- Industrial Automation: Communication with PLCs, sensors, and control modules.
- POS Systems: Connection of multiple peripherals such as receipt printers, cash drawers, and card readers.
- Data Acquisition: Integration with measurement instruments and data loggers.
- Networking and Control: Serial device networking in SCADA and building automation systems.
- Medical Equipment: Centralized data collection from diagnostic or monitoring devices.
- Embedded Systems: Expansion of serial interfaces in industrial PCs or embedded controllers.
Compatibility:
The IPC‑P1008 is compatible with all major operating systems supporting PCI serial devices. It supports Intel® and AMD® 32‑bit and 64‑bit architectures and can coexist with other PCI or PCI‑X cards without resource conflicts.
### 5. Components & Accessories
Included Items:
- IPC‑P1008 Universal PCI 8‑Port RS‑232 Card
- Mini SCSI 68‑pin to 8×DB9 Male breakout cable (available in 40 cm or 100 cm lengths)
- Driver CD (Windows, Linux, DOS)
- Standard PCI bracket (pre‑installed)
- Low‑profile bracket (optional, depending on package)
- Quick Installation Guide and User Manual
Optional Accessories:
- Extended‑length breakout cables
- DB25 adapter cables (for alternate connector types)
- Additional PCI slot brackets for custom mounting
Connectors:
- On‑board: Mini SCSI 68‑pin female
- External: DB9 male connectors (8 ports)
### 6. Installation & Setup
System Requirements:
- Available PCI or PCI‑X slot (32‑ or 64‑bit)
- Supported operating system (Windows 2000/XP/2003/Vista, Linux 2.4/2.6, DOS, UNIX)
- Administrative privileges for driver installation
Installation Steps:
1. Power off the computer and disconnect it from the power source.
2. Remove the system cover and locate an available PCI slot.
3. Insert the IPC‑P1008 card firmly into the slot and secure it with the bracket screw.
4. Replace the system cover and reconnect power.
5. Boot the system; the OS will automatically detect the new hardware.
6. Insert the provided driver CD and follow the on‑screen installation wizard.
7. Connect the breakout cable to the mini SCSI 68‑pin connector on the card.
8. Attach serial devices to the DB9 connectors.
Configuration:
- IRQ and I/O addresses are automatically assigned by the BIOS/OS.
- COM port numbers can be remapped via the Device Manager (Windows) or system configuration tools (Linux).
- FIFO buffer size and flow control options can be adjusted through driver settings.
Mounting Options:
- Standard PCI bracket for full‑height chassis.
- Low‑profile bracket for compact or embedded systems.
### 7. Performance & Capabilities
Data Throughput:
Each port supports up to 921.6 kbps, enabling high‑speed communication with minimal latency. The 64‑byte FIFO buffers reduce CPU load and prevent data loss during burst transmissions.
Latency and Efficiency:
The single‑chip Matrix UART architecture minimizes interrupt overhead and ensures deterministic response times, making the card suitable for real‑time control applications.
Scalability:
Multiple IPC‑P1008 cards can be installed in one system, limited only by available PCI slots. Each card operates independently, allowing up to dozens of serial ports in a single host.
Reliability:
Embedded 15 kV ESD protection ensures long‑term durability in electrically noisy environments. The card’s industrial‑grade design supports continuous 24/7 operation.
Limitations:
- RS‑232 only (no RS‑422/485 support on this model).
- Requires available PCI slot (not compatible with PCI‑Express).
- Cable length limited by RS‑232 transmission standards (typically up to 15 m).
### 8. Standards & Compliance
Electrical and Interface Standards:
- PCI Local Bus Specification v3.0/2.3/2.2 compliant
- RS‑232 serial communication standard compliant
- 16C750 UART compatible
Protection Standards:
- ESD Protection: 15 kV (IEC 61000‑4‑2 compliant)
- Surge Protection (for RS‑422/485 models): IEC 61000‑4‑5 (not applicable to IPC‑P1008)
Regulatory Compliance:
- CE (Conformité Européenne)
- FCC Class B (for electromagnetic compatibility)
Environmental Compliance:
- Operating Temperature: 0 °C – 70 °C
- Storage Temperature: −40 °C – 85 °C
- Humidity: 5 % – 95 % RH (non‑condensing)
Industry Standards:
- Compatible with Intel® and AMD® 32/64‑bit CPU architectures
- Supports major industrial communication protocols over RS‑232
### 9. Additional Information
Warranty:
5‑year limited hardware warranty covering manufacturing defects and component failures under normal operating conditions.
Technical Support:
SUNIX provides comprehensive technical support, driver updates, and documentation through its official website and support channels.
- Email: info@sunix‑ncci.com.tw
- Website: [www.sunix‑ncci.com.tw](http://www.sunix-ncci.com.tw)
Maintenance:
- Keep the card and connectors free from dust and moisture.
- Avoid exposure to direct sunlight or magnetic fields.
- Do not attempt to disassemble or repair the card; contact authorized service centers for support.
Firmware & Driver Updates:
Updated drivers for new operating systems and kernel versions are periodically released by SUNIX. Users can download the latest versions from the manufacturer’s website.
Safety Notes:
- Always power off the system before installation or removal.
- Ensure proper grounding to prevent electrostatic discharge.
- Use only SUNIX‑approved cables and accessories to maintain compliance and reliability.
### Summary
The SUNIX IPC‑P1008 Universal PCI 8‑Port RS‑232 Professional Card is a robust, high‑performance serial communication solution designed for industrial and commercial environments requiring multiple RS‑232 interfaces. Its universal PCI compatibility, high‑speed data handling, and integrated protection features make it a reliable choice for automation, control, and data communication systems. With a 64‑byte FIFO per port, 15 kV ESD protection, and support for a wide range of operating systems, the IPC‑P1008 delivers exceptional performance and flexibility. Its modular design, plug‑and‑play installation, and long‑term warranty ensure dependable operation and easy integration into existing systems.
