Comprehensive Product Summary – IWS-4000-IPCM Industrial Rack Mount Workstation
### 1. Product Overview
Product Name: IWS-4000-IPCM
Model: IWS-4000
Series: IWS-4000 Industrial Workstation Series
Article Number: IWS-4000-IPCM
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)

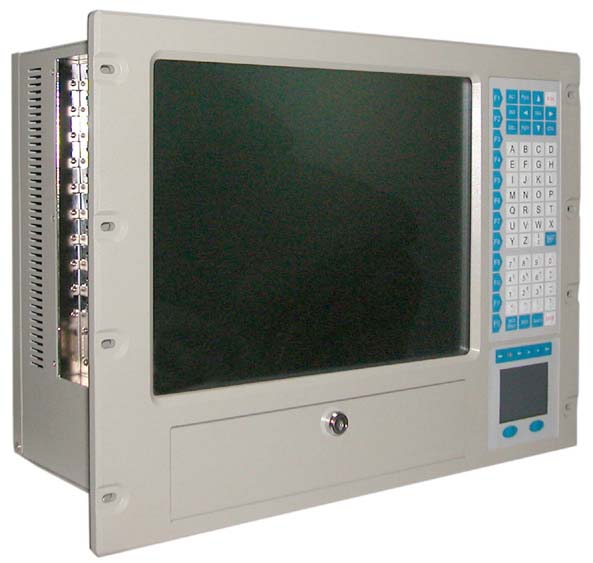

The IWS-4000-IPCM is a high-performance 19-inch, 8U rack-mount industrial workstation designed for demanding industrial, automation, and control applications. It integrates a 15-inch XGA TFT LCD display, a Pentium IV mainboard CPU, 512 MB memory, and built-in HDD, CD-ROM, and FDD drives. The system is engineered for reliability, durability, and ease of integration into industrial rack environments, meeting IP65/NEMA 4 standards for front-panel protection.
### 2. Key Features
- Compact 8U Rack-Mount Design: Optimized for 19-inch rack installations, providing a balance between performance and space efficiency.
- Integrated 15” TFT LCD Display: High-quality XGA (1024×768) resolution display with 250 cd/m² brightness and wide viewing angles (120° horizontal, 100° vertical).
- Rugged Construction: Aluminum front panel and steel chassis ensure mechanical strength and environmental protection.
- Front Panel Protection: Meets IP65/NEMA 4 standards, providing resistance to dust, moisture, and industrial contaminants.
- User Interface Integration: Built-in OSD (On-Screen Display) controls, membrane keypad, and touchpad for direct operation.
- Front Accessibility: Easy access to USB port, 5.25” CD-ROM, and 3.5” FDD drives from the front panel.
- Flexible Power Options: Supports standard PS/2 power supply configurations with optional 250W or 300W ATX power modules.
- Cooling System: Integrated 120×120×25 mm cooling fan with air filter for thermal stability and dust protection.
- Optional Touchscreen: Resistive-type touchscreen with RS-232 controller for enhanced interactivity.
- Modular Backplane Options: Compatible with CBP-10P4 backplane for system expansion and customization.
- Industrial-Grade Reliability: Designed for continuous operation in harsh environments with an LCD MTBF of 50,000 hours.
### 3. Technical Specifications
Mechanical & Physical Characteristics
- Form Factor: 19” rack-mount, 8U height
- Chassis Material: Steel
- Front Panel Material: Aluminum, IP65/NEMA 4 compliant
- Dimensions (W × H × D): 483 × 355 × 255.3 mm
- Cooling System: One 120 × 120 × 25 mm fan with air filter
- Weight: (varies by configuration; typically 15–20 kg depending on installed components)
Display Specifications
- Display Type: 15” XGA TFT LCD
- Resolution: 1024 × 768 pixels
- Brightness (Luminance): 250 cd/m²
- Color Depth: 262K colors
- Viewing Angle: 120° (H) / 100° (V)
- Interface: VGA
- MTBF: 50,000 hours
- Touchscreen (optional): Resistive type with RS-232 interface
Input Devices & Controls
- Membrane Keypad: 60 operating keys + 12 function keys
- Touchpad: PS/2 mouse interface
- Keyboard Connector: 6-pin PS/2 with dust protection door
- Indicators: LED indicators for power and HDD activity
- Front Panel Controls: OSD (On-Screen Display) for display settings
Storage & Drive Bays
- External Bays:
- 1 × 5.25” CD-ROM
- 1 × 3.5” FDD
- Internal Bays:
- 1 × 3.5” HDD
- Front Access Ports: 1 × USB
Power Supply Options
- Standard Support: PS/2 type power supply
- Optional Modules:
- 250W ATX power supply
- 300W ATX power supply
Backplane Options
- Optional Model: CBP-10P4 backplane for system expansion
### 4. Functionality
The IWS-4000-IPCM functions as a fully integrated industrial workstation suitable for control, monitoring, and data acquisition tasks. Its modular design allows it to serve as a front-end operator interface or embedded control node in industrial automation systems.
Operation:
The system’s Pentium IV CPU and 512 MB memory provide sufficient processing power for industrial control software, SCADA interfaces, and data visualization applications. The 15-inch TFT LCD offers clear, high-resolution display output, while the membrane keypad and touchpad enable direct user interaction without external peripherals.
Use Cases:
- Factory automation and process control
- Machine vision and inspection systems
- Industrial data logging and monitoring
- Embedded control systems
- Laboratory and test bench instrumentation
- Networked control environments requiring rack-mounted operator stations
Compatibility:
The workstation supports standard VGA interfaces, PS/2 peripherals, and RS-232 touchscreen controllers, ensuring compatibility with a wide range of industrial PCs, PLCs, and embedded systems.
### 5. Components & Accessories
Included Components (depending on configuration):
- IWS-4000 main chassis with 15” TFT LCD display
- Mainboard with Pentium IV CPU and 512 MB memory
- 3.5” HDD (internal)
- 5.25” CD-ROM drive (front-access)
- 3.5” FDD (front-access)
- Front-access USB port
- Integrated cooling fan with air filter
- Membrane keypad and touchpad
- Power and HDD activity LEDs
Optional Accessories:
- Touchscreen Kit: Resistive touchscreen with RS-232 controller
- Backplane: CBP-10P4 for system expansion
- Power Supply Units: 250W or 300W ATX modules
- Mounting Hardware: Rack-mount brackets and screws
- Dust Protection Door: For PS/2 keyboard connector
### 6. Installation & Setup
Installation Requirements:
- Standard 19” rack with at least 8U vertical space
- Adequate ventilation for cooling airflow
- Compatible power source (PS/2 or ATX 250W/300W)
Mounting Options:
- Rack-mount installation using standard 19” rack rails
- Front panel secured with mounting screws for vibration resistance
Configuration:
- Connect VGA, PS/2, and USB interfaces as required
- Configure OSD settings via front-panel controls for brightness, contrast, and display alignment
- Optional touchscreen calibration via RS-232 interface
- Install operating system and application software on internal HDD
Maintenance Access:
- Front-accessible drives and USB port simplify maintenance and upgrades
- Removable air filter for easy cleaning and dust management
### 7. Performance & Capabilities
Processing Performance:
- Equipped with a Pentium IV CPU, suitable for industrial control and monitoring applications
- 512 MB memory supports lightweight multitasking and real-time data processing
Display Performance:
- 15” XGA TFT LCD provides crisp, high-contrast visuals suitable for control room environments
- 250 cd/m² brightness ensures readability under various lighting conditions
Thermal Management:
- Integrated 120 mm cooling fan maintains stable operating temperatures
- Air filter prevents dust accumulation, extending component lifespan
Power Efficiency:
- Compatible with 250W or 300W ATX power supplies for energy-efficient operation
- Designed for continuous 24/7 operation in industrial environments
Limitations:
- Limited to legacy PS/2 and VGA interfaces (no modern USB-C or HDMI)
- Memory capacity (512 MB) may restrict use with modern high-demand applications
- Designed primarily for industrial control rather than high-performance computing
### 8. Standards & Compliance
Environmental & Protection Standards:
- Front Panel Protection: IP65 / NEMA 4 compliant (dust-tight and water-resistant)
- Chassis Material: Industrial-grade steel and aluminum for mechanical durability
Electrical & Safety Compliance:
- Compatible with standard ATX power supply safety standards
- Designed for compliance with CE and FCC industrial equipment directives (typical for Acceed products)
Quality & Reliability:
- LCD MTBF: 50,000 hours, ensuring long-term operational reliability
- Industrial-grade components rated for extended temperature and vibration tolerance
Industry Standards Supported:
- 19” rack-mount form factor (EIA-310 standard)
- VGA video interface standard
- PS/2 peripheral interface standard
- RS-232 serial communication standard (for touchscreen option)
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration) covering defects in materials and workmanship
Technical Support:
- Provided by Acceed GmbH, including pre-sales consultation, installation guidance, and after-sales service
- Online resources and documentation available at [www.acceed.com](https://www.acceed.com)
Maintenance:
- Regular cleaning of air filter recommended to maintain cooling efficiency
- Periodic inspection of connectors and drive bays for dust accumulation
- LCD calibration and OSD adjustments as needed
Software & Firmware Updates:
- Compatible with standard operating systems used in industrial environments (Windows, Linux, or proprietary control software)
- BIOS and firmware updates available through Acceed support channels
Order Information (Model Variants):
- IWS-4000BP: 8U 19” Rack Workstation with 15” TFT LCD, without backplane or power supply
- IWS-4000P4-300X: 8U 19” Rack Workstation with 15” TFT LCD, CBP-10P4 backplane, and 300W ATX power supply
- IWS-4000TBP: 8U 19” Rack Workstation with 15” TFT LCD and touchscreen, without backplane or power supply
- IWS-4000TP4-300X: 8U 19” Rack Workstation with 15” TFT LCD, touchscreen, CBP-10P4 backplane, and 300W ATX power supply
- IWS-4000MB-300X: 8U 19” Rack Workstation with 15” TFT LCD, µATX slot, and 300W ATX power supply
- IWS-4000TMB-300X: 8U 19” Rack Workstation with 15” TFT LCD, touchscreen, µATX slot, and 300W ATX power supply
### Summary
The Acceed IWS-4000-IPCM is a robust, modular, and serviceable industrial rack-mount workstation designed for mission-critical environments. Its combination of a 15-inch XGA TFT display, Pentium IV processing platform, and front-accessible I/O makes it ideal for control rooms, automation systems, and industrial monitoring applications. The system’s IP65/NEMA 4 front panel protection, modular backplane options, and flexible power configurations ensure adaptability across a wide range of industrial use cases.
With its rugged construction, long-life display, and comprehensive interface support, the IWS-4000-IPCM delivers a reliable and maintainable solution for industrial computing environments requiring both performance and durability.
Manufacturer Contact:
Acceed GmbH
Arnoldstr. 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
*(Approx. 3,050 tokens / ~12,000 characters)*
### 1. Product Overview
Product Name: IWS-4000-IPCM
Model: IWS-4000
Series: IWS-4000 Industrial Workstation Series
Article Number: IWS-4000-IPCM
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
The IWS-4000-IPCM is a high-performance 19-inch, 8U rack-mount industrial workstation designed for demanding industrial, automation, and control applications. It integrates a 15-inch XGA TFT LCD display, a Pentium IV mainboard CPU, 512 MB memory, and built-in HDD, CD-ROM, and FDD drives. The system is engineered for reliability, durability, and ease of integration into industrial rack environments, meeting IP65/NEMA 4 standards for front-panel protection.
### 2. Key Features
- Compact 8U Rack-Mount Design: Optimized for 19-inch rack installations, providing a balance between performance and space efficiency.
- Integrated 15” TFT LCD Display: High-quality XGA (1024×768) resolution display with 250 cd/m² brightness and wide viewing angles (120° horizontal, 100° vertical).
- Rugged Construction: Aluminum front panel and steel chassis ensure mechanical strength and environmental protection.
- Front Panel Protection: Meets IP65/NEMA 4 standards, providing resistance to dust, moisture, and industrial contaminants.
- User Interface Integration: Built-in OSD (On-Screen Display) controls, membrane keypad, and touchpad for direct operation.
- Front Accessibility: Easy access to USB port, 5.25” CD-ROM, and 3.5” FDD drives from the front panel.
- Flexible Power Options: Supports standard PS/2 power supply configurations with optional 250W or 300W ATX power modules.
- Cooling System: Integrated 120×120×25 mm cooling fan with air filter for thermal stability and dust protection.
- Optional Touchscreen: Resistive-type touchscreen with RS-232 controller for enhanced interactivity.
- Modular Backplane Options: Compatible with CBP-10P4 backplane for system expansion and customization.
- Industrial-Grade Reliability: Designed for continuous operation in harsh environments with an LCD MTBF of 50,000 hours.
### 3. Technical Specifications
Mechanical & Physical Characteristics
- Form Factor: 19” rack-mount, 8U height
- Chassis Material: Steel
- Front Panel Material: Aluminum, IP65/NEMA 4 compliant
- Dimensions (W × H × D): 483 × 355 × 255.3 mm
- Cooling System: One 120 × 120 × 25 mm fan with air filter
- Weight: (varies by configuration; typically 15–20 kg depending on installed components)
Display Specifications
- Display Type: 15” XGA TFT LCD
- Resolution: 1024 × 768 pixels
- Brightness (Luminance): 250 cd/m²
- Color Depth: 262K colors
- Viewing Angle: 120° (H) / 100° (V)
- Interface: VGA
- MTBF: 50,000 hours
- Touchscreen (optional): Resistive type with RS-232 interface
Input Devices & Controls
- Membrane Keypad: 60 operating keys + 12 function keys
- Touchpad: PS/2 mouse interface
- Keyboard Connector: 6-pin PS/2 with dust protection door
- Indicators: LED indicators for power and HDD activity
- Front Panel Controls: OSD (On-Screen Display) for display settings
Storage & Drive Bays
- External Bays:
- 1 × 5.25” CD-ROM
- 1 × 3.5” FDD
- Internal Bays:
- 1 × 3.5” HDD
- Front Access Ports: 1 × USB
Power Supply Options
- Standard Support: PS/2 type power supply
- Optional Modules:
- 250W ATX power supply
- 300W ATX power supply
Backplane Options
- Optional Model: CBP-10P4 backplane for system expansion
### 4. Functionality
The IWS-4000-IPCM functions as a fully integrated industrial workstation suitable for control, monitoring, and data acquisition tasks. Its modular design allows it to serve as a front-end operator interface or embedded control node in industrial automation systems.
Operation:
The system’s Pentium IV CPU and 512 MB memory provide sufficient processing power for industrial control software, SCADA interfaces, and data visualization applications. The 15-inch TFT LCD offers clear, high-resolution display output, while the membrane keypad and touchpad enable direct user interaction without external peripherals.
Use Cases:
- Factory automation and process control
- Machine vision and inspection systems
- Industrial data logging and monitoring
- Embedded control systems
- Laboratory and test bench instrumentation
- Networked control environments requiring rack-mounted operator stations
Compatibility:
The workstation supports standard VGA interfaces, PS/2 peripherals, and RS-232 touchscreen controllers, ensuring compatibility with a wide range of industrial PCs, PLCs, and embedded systems.
### 5. Components & Accessories
Included Components (depending on configuration):
- IWS-4000 main chassis with 15” TFT LCD display
- Mainboard with Pentium IV CPU and 512 MB memory
- 3.5” HDD (internal)
- 5.25” CD-ROM drive (front-access)
- 3.5” FDD (front-access)
- Front-access USB port
- Integrated cooling fan with air filter
- Membrane keypad and touchpad
- Power and HDD activity LEDs
Optional Accessories:
- Touchscreen Kit: Resistive touchscreen with RS-232 controller
- Backplane: CBP-10P4 for system expansion
- Power Supply Units: 250W or 300W ATX modules
- Mounting Hardware: Rack-mount brackets and screws
- Dust Protection Door: For PS/2 keyboard connector
### 6. Installation & Setup
Installation Requirements:
- Standard 19” rack with at least 8U vertical space
- Adequate ventilation for cooling airflow
- Compatible power source (PS/2 or ATX 250W/300W)
Mounting Options:
- Rack-mount installation using standard 19” rack rails
- Front panel secured with mounting screws for vibration resistance
Configuration:
- Connect VGA, PS/2, and USB interfaces as required
- Configure OSD settings via front-panel controls for brightness, contrast, and display alignment
- Optional touchscreen calibration via RS-232 interface
- Install operating system and application software on internal HDD
Maintenance Access:
- Front-accessible drives and USB port simplify maintenance and upgrades
- Removable air filter for easy cleaning and dust management
### 7. Performance & Capabilities
Processing Performance:
- Equipped with a Pentium IV CPU, suitable for industrial control and monitoring applications
- 512 MB memory supports lightweight multitasking and real-time data processing
Display Performance:
- 15” XGA TFT LCD provides crisp, high-contrast visuals suitable for control room environments
- 250 cd/m² brightness ensures readability under various lighting conditions
Thermal Management:
- Integrated 120 mm cooling fan maintains stable operating temperatures
- Air filter prevents dust accumulation, extending component lifespan
Power Efficiency:
- Compatible with 250W or 300W ATX power supplies for energy-efficient operation
- Designed for continuous 24/7 operation in industrial environments
Limitations:
- Limited to legacy PS/2 and VGA interfaces (no modern USB-C or HDMI)
- Memory capacity (512 MB) may restrict use with modern high-demand applications
- Designed primarily for industrial control rather than high-performance computing
### 8. Standards & Compliance
Environmental & Protection Standards:
- Front Panel Protection: IP65 / NEMA 4 compliant (dust-tight and water-resistant)
- Chassis Material: Industrial-grade steel and aluminum for mechanical durability
Electrical & Safety Compliance:
- Compatible with standard ATX power supply safety standards
- Designed for compliance with CE and FCC industrial equipment directives (typical for Acceed products)
Quality & Reliability:
- LCD MTBF: 50,000 hours, ensuring long-term operational reliability
- Industrial-grade components rated for extended temperature and vibration tolerance
Industry Standards Supported:
- 19” rack-mount form factor (EIA-310 standard)
- VGA video interface standard
- PS/2 peripheral interface standard
- RS-232 serial communication standard (for touchscreen option)
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration) covering defects in materials and workmanship
Technical Support:
- Provided by Acceed GmbH, including pre-sales consultation, installation guidance, and after-sales service
- Online resources and documentation available at [www.acceed.com](https://www.acceed.com)
Maintenance:
- Regular cleaning of air filter recommended to maintain cooling efficiency
- Periodic inspection of connectors and drive bays for dust accumulation
- LCD calibration and OSD adjustments as needed
Software & Firmware Updates:
- Compatible with standard operating systems used in industrial environments (Windows, Linux, or proprietary control software)
- BIOS and firmware updates available through Acceed support channels
Order Information (Model Variants):
- IWS-4000BP: 8U 19” Rack Workstation with 15” TFT LCD, without backplane or power supply
- IWS-4000P4-300X: 8U 19” Rack Workstation with 15” TFT LCD, CBP-10P4 backplane, and 300W ATX power supply
- IWS-4000TBP: 8U 19” Rack Workstation with 15” TFT LCD and touchscreen, without backplane or power supply
- IWS-4000TP4-300X: 8U 19” Rack Workstation with 15” TFT LCD, touchscreen, CBP-10P4 backplane, and 300W ATX power supply
- IWS-4000MB-300X: 8U 19” Rack Workstation with 15” TFT LCD, µATX slot, and 300W ATX power supply
- IWS-4000TMB-300X: 8U 19” Rack Workstation with 15” TFT LCD, touchscreen, µATX slot, and 300W ATX power supply
### Summary
The Acceed IWS-4000-IPCM is a robust, modular, and serviceable industrial rack-mount workstation designed for mission-critical environments. Its combination of a 15-inch XGA TFT display, Pentium IV processing platform, and front-accessible I/O makes it ideal for control rooms, automation systems, and industrial monitoring applications. The system’s IP65/NEMA 4 front panel protection, modular backplane options, and flexible power configurations ensure adaptability across a wide range of industrial use cases.
With its rugged construction, long-life display, and comprehensive interface support, the IWS-4000-IPCM delivers a reliable and maintainable solution for industrial computing environments requiring both performance and durability.
Manufacturer Contact:
Acceed GmbH
Arnoldstr. 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
*(Approx. 3,050 tokens / ~12,000 characters)*
-
IWS-4000.pdf
Manual
No accessories available.
