Comprehensive Product Summary – ADLINK MXC‑6302D Fanless Expandable Embedded Computer
### 1. Product Overview
Product Name: MXC‑6302D
Model: MXC‑6302D
Series: Matrix MXC‑6300/6310/6320 Series
Article Number: MXC‑6302D
Manufacturer: ADLINK Technology, Inc.
Product Type: Fanless expandable embedded computer with PCI/PCIe expansion slots
Processor Platform: Intel® Core™ i5‑3610ME (3rd Generation Ivy Bridge)
Chipset: Intel® QM77 Mobile Platform Controller Hub
The ADLINK MXC‑6302D is part of the Matrix MXC‑6300 series of rugged, fanless embedded computers designed for industrial automation, machine vision, transportation, and other mission‑critical applications. It integrates a 3rd‑generation Intel® Core™ i5 processor and QM77 chipset, offering high computing performance, multiple expansion options, and wide‑range DC power input in a compact, cable‑free chassis.
### 2. Key Features
- High‑Performance CPU: Intel® Core™ i5‑3610ME dual‑core processor, 2.7 GHz base frequency (3.3 GHz Turbo), 3 MB cache.
- Chipset: Intel® QM77 Mobile PCH supporting SATA III, USB 3.0, and Intel® AMT 8.0/11.0.
- Memory: Two DDR3 SO‑DIMM sockets supporting up to 16 GB DDR3 1600 MHz.
- Fanless Design: Completely fanless and cable‑free architecture for silent operation and high reliability in harsh environments.
- Expansion Flexibility:
- 1 × PCI slot
- 2 × PCIe x8 slots or 1 × PCIe x16 slot (auto‑switching, PCIe Gen 2)
- Triple Independent Display: Two DisplayPort 1.1a and one DVI‑I port supporting up to three simultaneous displays.
- Storage:
- 2 × SATA III (6 Gb/s) ports for 2.5″ HDD/SSD
- RAID 0/1 support
- 2 × CFast sockets (1 external + 1 internal)
- Networking:
- 2 × Intel GbE ports (Intel I210IT + 82579LM)
- Teaming, Wake‑on‑LAN, and Intel iAMT 8.0/11.0 support
- I/O Interfaces:
- 4 × USB 3.0, 2 × USB 2.0 (external), 1 × USB 2.0 (internal)
- 2 × RS‑232/422/485 (software‑selectable) + 2 × RS‑232
- 16‑channel isolated DI + 16‑channel isolated DO (1.5 kV isolation)
- 1 × Mic‑in, 1 × Line‑out, 1 × PS/2 keyboard, 1 × PS/2 mouse
- Power Input: 9 – 32 V DC wide‑range input with pluggable connector and remote on/off.
- Operating Temperature:
- Standard: 0 °C – 50 °C
- Extended: –20 °C – 60 °C (with industrial SSD/CFast)
- Rugged Construction: Aluminum alloy chassis, vibration‑resistant, shock‑resistant, and EMC‑compliant.
- Optional Fan Module: Smart‑controlled fan for additional cooling when high‑power PCI/PCIe cards are installed.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Processor | Intel® Core™ i5‑3610ME, Dual Core 2.7 GHz (3.3 GHz Turbo), 3 MB cache |
| Chipset | Intel® QM77 Mobile PCH |
| Memory | 2 × DDR3 SO‑DIMM sockets, up to 16 GB DDR3 1600 MHz |
| Graphics | Intel® HD Graphics 4000 integrated; 3 independent displays (2 × DisplayPort + 1 × DVI‑I) |
| Display Resolutions | DP1 up to 2560 × 1600 @ 60 Hz; DP2 up to 1920 × 1600; DVI‑I up to 1920 × 1200 |
| Expansion Slots | 1 × PCI + 2 × PCIe x8 or 1 × PCI + 1 × PCIe x16 (Gen 2) |
| Ethernet | 2 × Intel GbE (I210IT + 82579LM), teaming, Wake‑on‑LAN, Intel AMT 8.0 |
| Serial Ports | 2 × RS‑232/422/485 (COM1/2), 2 × RS‑232 (COM3/4) |
| USB Ports | 4 × USB 3.0 + 2 × USB 2.0 (external) + 1 × USB 2.0 (internal) |
| Digital I/O | 16 × DI + 16 × DO (1.5 kV isolation) |
| Audio | Realtek ALC269 HD Audio (24‑bit/192 kHz), Mic‑in + Line‑out |
| Storage | 2 × SATA III (6 Gb/s) for 2.5″ HDD/SSD, RAID 0/1; 2 × CFast sockets |
| Power Input | 9 – 32 V DC input via 3‑pin pluggable connector (GND, V–, V+) |
| Optional AC Adapter | 160 W external AC‑DC adapter |
| Dimensions | 172.5 (W) × 225 (D) × 213 (H) mm (6.79 × 8.86 × 8.39 in) |
| Weight | 4.3 kg (9.48 lb) |
| Mounting | Wall‑mount kit included |
| Operating Temperature | 0 – 50 °C (standard); –20 – 60 °C (industrial SSD/CFast) |
| Storage Temperature | –40 – 85 °C (excluding HDD) |
| Humidity | 95 % @ 40 °C (non‑condensing) |
| Vibration | 5 Grms (SSD/CFast); 0.5 Grms (HDD) |
| Shock | 50 G, 11 ms half‑sine (SSD/CFast) |
| EMC/Safety | CE, FCC Class A; UL/cUL, CB, KCC certified |
### 4. Functionality
The MXC‑6302D operates as a high‑performance embedded controller for industrial and automation environments. Its fanless design ensures silent, maintenance‑free operation. The system supports multiple OS platforms including Windows 7, Windows Embedded Standard 7, Windows XP Embedded, and Linux.
Typical Use Cases:
- Factory automation and machine vision systems
- Intelligent transportation and traffic control
- Maritime and offshore automation
- Surveillance and security systems
- High‑resolution medical imaging and diagnostics
Compatibility:
Supports PCI/PCIe Gen 2 add‑on cards, USB 3.0 devices, SATA III storage, and standard display interfaces (DP/DVI/VGA/HDMI via adapters).
### 5. Components & Accessories
Included Items:
- MXC‑6302D controller unit
- Wall‑mount brackets and screws
- HDD mounting screws
- User manual and ADLINK All‑in‑One DVD (driver package)
Optional Accessories:
- Fan Module: Smart‑controlled 12 V fan for PCI/PCIe heat dissipation
- Storage Options: Factory‑installed 500 GB/1 TB HDD or 32/64 GB SSD
- Power Adapter: 160 W industrial AC‑DC adapter (–20 °C to 70 °C)
- Display Adapters: DisplayPort‑to‑HDMI (P/N 30‑01119‑0000), DP‑to‑DVI (30‑01120‑0000), DP‑to‑VGA (30‑01121‑0000), Active DP‑to‑DVI (30‑01157‑0000)
- DIN‑68S‑01 and ACL‑10568‑1: Digital I/O access cables for VHDCI connector
### 6. Installation & Setup
Power Requirements:
9 – 32 V DC input via 3‑pin connector (GND, V–, V+). Optional remote power switch available. Ensure stable DC supply to avoid damage.
Mounting Options:
Wall‑mount kit included; requires removal of corner pads and installation of brackets using M4 screws. Maintain ≥ 5 cm clearance above unit for heat dissipation.
Storage Installation:
Supports two 2.5″ HDD/SSD units mounted on bracket with SATA connectors and RAID configuration via Intel Rapid Storage Technology.
Expansion Card Installation:

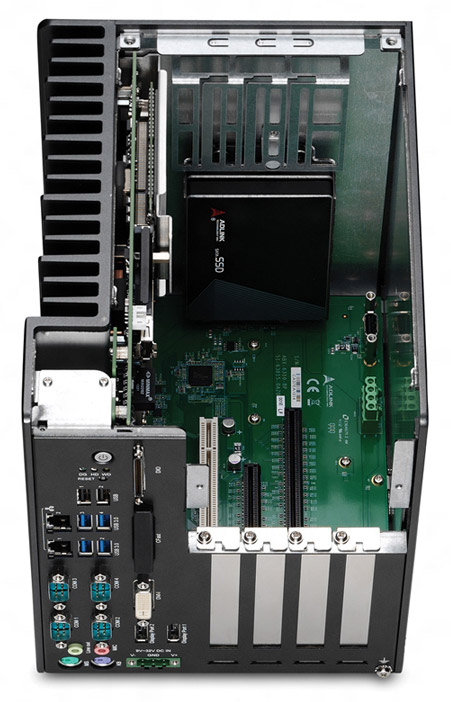

Remove top cover, insert PCI/PCIe card into slot, secure with brace, and reinstall cover. Optional fan module recommended for high‑power cards.
CFast Card Installation:
One internal and one external Type II CFast socket support system boot and data storage.
Driver Installation:
Drivers for chipset, graphics, LAN, audio, USB 3.0, Intel Management Engine, Watchdog Timer, and Digital I/O are provided on the ADLINK DVD or website.
### 7. Performance & Capabilities
- Processing Power: Dual‑core Intel i5 CPU with Hyper‑Threading and Turbo Boost up to 3.3 GHz.
- Memory Bandwidth: DDR3 1600 MHz up to 16 GB.
- Graphics Performance: Intel HD Graphics 4000 supports DirectX 11 and OpenGL 3.1.
- Storage Throughput: SATA III 6 Gb/s with RAID 0/1 for redundancy or speed.
- Network Performance: Dual Gigabit Ethernet with teaming for redundancy and load balancing.
- Power Consumption: Approx. 16.8 W idle, 67.2 W full load (@ 24 V DC).
- Reliability: Fanless design reduces MTBF failures; watchdog timer ensures system recovery from software hangs.
- Limitations: No internal fan by default; high‑power PCIe cards may require optional fan module for thermal stability.
### 8. Standards & Compliance
- EMC: CE and FCC Class A compliant
- Safety: UL/cUL, CB, KCC certified
- Environmental: RoHS and WEEE compliant
- Operating System Support: Windows 7 (32/64‑bit), Windows Embedded Standard 7, Windows XP Embedded, Linux
- Intel Technologies: Intel AMT 8.0/11.0 for remote management, Intel Rapid Storage Technology for RAID, Intel VT‑x and VT‑d for virtualization.
### 9. Additional Information
Warranty & Support:
Standard ADLINK limited warranty (typically 2 years). Technical support available through regional ADLINK offices and authorized distributors.
Maintenance:
Fanless design minimizes maintenance. Periodic dust inspection and connector tightening recommended. Firmware and BIOS updates available from ADLINK website.
BIOS Features:
AMI UEFI BIOS with support for Intel VT‑d, RAID configuration, watchdog control, and power management settings. CMOS clear jumper provided for recovery.
Environmental Responsibility:
Manufactured in compliance with RoHS and WEEE directives. ADLINK encourages proper recycling and disposal of electronic equipment.
Service Contacts:
ADLINK Technology Inc., New Taipei City, Taiwan (+886‑2‑8226‑5877) and regional offices in USA, China, Europe, Japan, Korea, Singapore, and India.
### Summary
The ADLINK MXC‑6302D is a robust, high‑performance, fanless embedded computer engineered for industrial automation and mission‑critical applications requiring reliability, expandability, and long‑term availability. Powered by an Intel® Core™ i5‑3610ME processor and QM77 chipset, it delivers strong CPU and graphics performance, supports triple independent displays, and offers extensive I/O connectivity including dual GbE, USB 3.0, serial ports, and isolated digital I/O. Its modular expansion architecture with PCI/PCIe slots enables flexible system integration, while the rugged, cable‑free chassis ensures dependable operation in environments from –20 °C to +60 °C.
With comprehensive driver support, RAID capability, and optional accessories such as fan modules and industrial‑grade power adapters, the MXC‑6302D provides a versatile, long‑life platform for automation, vision, and embedded control applications.
### 1. Product Overview
Product Name: MXC‑6302D
Model: MXC‑6302D
Series: Matrix MXC‑6300/6310/6320 Series
Article Number: MXC‑6302D
Manufacturer: ADLINK Technology, Inc.
Product Type: Fanless expandable embedded computer with PCI/PCIe expansion slots
Processor Platform: Intel® Core™ i5‑3610ME (3rd Generation Ivy Bridge)
Chipset: Intel® QM77 Mobile Platform Controller Hub
The ADLINK MXC‑6302D is part of the Matrix MXC‑6300 series of rugged, fanless embedded computers designed for industrial automation, machine vision, transportation, and other mission‑critical applications. It integrates a 3rd‑generation Intel® Core™ i5 processor and QM77 chipset, offering high computing performance, multiple expansion options, and wide‑range DC power input in a compact, cable‑free chassis.
### 2. Key Features
- High‑Performance CPU: Intel® Core™ i5‑3610ME dual‑core processor, 2.7 GHz base frequency (3.3 GHz Turbo), 3 MB cache.
- Chipset: Intel® QM77 Mobile PCH supporting SATA III, USB 3.0, and Intel® AMT 8.0/11.0.
- Memory: Two DDR3 SO‑DIMM sockets supporting up to 16 GB DDR3 1600 MHz.
- Fanless Design: Completely fanless and cable‑free architecture for silent operation and high reliability in harsh environments.
- Expansion Flexibility:
- 1 × PCI slot
- 2 × PCIe x8 slots or 1 × PCIe x16 slot (auto‑switching, PCIe Gen 2)
- Triple Independent Display: Two DisplayPort 1.1a and one DVI‑I port supporting up to three simultaneous displays.
- Storage:
- 2 × SATA III (6 Gb/s) ports for 2.5″ HDD/SSD
- RAID 0/1 support
- 2 × CFast sockets (1 external + 1 internal)
- Networking:
- 2 × Intel GbE ports (Intel I210IT + 82579LM)
- Teaming, Wake‑on‑LAN, and Intel iAMT 8.0/11.0 support
- I/O Interfaces:
- 4 × USB 3.0, 2 × USB 2.0 (external), 1 × USB 2.0 (internal)
- 2 × RS‑232/422/485 (software‑selectable) + 2 × RS‑232
- 16‑channel isolated DI + 16‑channel isolated DO (1.5 kV isolation)
- 1 × Mic‑in, 1 × Line‑out, 1 × PS/2 keyboard, 1 × PS/2 mouse
- Power Input: 9 – 32 V DC wide‑range input with pluggable connector and remote on/off.
- Operating Temperature:
- Standard: 0 °C – 50 °C
- Extended: –20 °C – 60 °C (with industrial SSD/CFast)
- Rugged Construction: Aluminum alloy chassis, vibration‑resistant, shock‑resistant, and EMC‑compliant.
- Optional Fan Module: Smart‑controlled fan for additional cooling when high‑power PCI/PCIe cards are installed.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Processor | Intel® Core™ i5‑3610ME, Dual Core 2.7 GHz (3.3 GHz Turbo), 3 MB cache |
| Chipset | Intel® QM77 Mobile PCH |
| Memory | 2 × DDR3 SO‑DIMM sockets, up to 16 GB DDR3 1600 MHz |
| Graphics | Intel® HD Graphics 4000 integrated; 3 independent displays (2 × DisplayPort + 1 × DVI‑I) |
| Display Resolutions | DP1 up to 2560 × 1600 @ 60 Hz; DP2 up to 1920 × 1600; DVI‑I up to 1920 × 1200 |
| Expansion Slots | 1 × PCI + 2 × PCIe x8 or 1 × PCI + 1 × PCIe x16 (Gen 2) |
| Ethernet | 2 × Intel GbE (I210IT + 82579LM), teaming, Wake‑on‑LAN, Intel AMT 8.0 |
| Serial Ports | 2 × RS‑232/422/485 (COM1/2), 2 × RS‑232 (COM3/4) |
| USB Ports | 4 × USB 3.0 + 2 × USB 2.0 (external) + 1 × USB 2.0 (internal) |
| Digital I/O | 16 × DI + 16 × DO (1.5 kV isolation) |
| Audio | Realtek ALC269 HD Audio (24‑bit/192 kHz), Mic‑in + Line‑out |
| Storage | 2 × SATA III (6 Gb/s) for 2.5″ HDD/SSD, RAID 0/1; 2 × CFast sockets |
| Power Input | 9 – 32 V DC input via 3‑pin pluggable connector (GND, V–, V+) |
| Optional AC Adapter | 160 W external AC‑DC adapter |
| Dimensions | 172.5 (W) × 225 (D) × 213 (H) mm (6.79 × 8.86 × 8.39 in) |
| Weight | 4.3 kg (9.48 lb) |
| Mounting | Wall‑mount kit included |
| Operating Temperature | 0 – 50 °C (standard); –20 – 60 °C (industrial SSD/CFast) |
| Storage Temperature | –40 – 85 °C (excluding HDD) |
| Humidity | 95 % @ 40 °C (non‑condensing) |
| Vibration | 5 Grms (SSD/CFast); 0.5 Grms (HDD) |
| Shock | 50 G, 11 ms half‑sine (SSD/CFast) |
| EMC/Safety | CE, FCC Class A; UL/cUL, CB, KCC certified |
### 4. Functionality
The MXC‑6302D operates as a high‑performance embedded controller for industrial and automation environments. Its fanless design ensures silent, maintenance‑free operation. The system supports multiple OS platforms including Windows 7, Windows Embedded Standard 7, Windows XP Embedded, and Linux.
Typical Use Cases:
- Factory automation and machine vision systems
- Intelligent transportation and traffic control
- Maritime and offshore automation
- Surveillance and security systems
- High‑resolution medical imaging and diagnostics
Compatibility:
Supports PCI/PCIe Gen 2 add‑on cards, USB 3.0 devices, SATA III storage, and standard display interfaces (DP/DVI/VGA/HDMI via adapters).
### 5. Components & Accessories
Included Items:
- MXC‑6302D controller unit
- Wall‑mount brackets and screws
- HDD mounting screws
- User manual and ADLINK All‑in‑One DVD (driver package)
Optional Accessories:
- Fan Module: Smart‑controlled 12 V fan for PCI/PCIe heat dissipation
- Storage Options: Factory‑installed 500 GB/1 TB HDD or 32/64 GB SSD
- Power Adapter: 160 W industrial AC‑DC adapter (–20 °C to 70 °C)
- Display Adapters: DisplayPort‑to‑HDMI (P/N 30‑01119‑0000), DP‑to‑DVI (30‑01120‑0000), DP‑to‑VGA (30‑01121‑0000), Active DP‑to‑DVI (30‑01157‑0000)
- DIN‑68S‑01 and ACL‑10568‑1: Digital I/O access cables for VHDCI connector
### 6. Installation & Setup
Power Requirements:
9 – 32 V DC input via 3‑pin connector (GND, V–, V+). Optional remote power switch available. Ensure stable DC supply to avoid damage.
Mounting Options:
Wall‑mount kit included; requires removal of corner pads and installation of brackets using M4 screws. Maintain ≥ 5 cm clearance above unit for heat dissipation.
Storage Installation:
Supports two 2.5″ HDD/SSD units mounted on bracket with SATA connectors and RAID configuration via Intel Rapid Storage Technology.
Expansion Card Installation:
Remove top cover, insert PCI/PCIe card into slot, secure with brace, and reinstall cover. Optional fan module recommended for high‑power cards.
CFast Card Installation:
One internal and one external Type II CFast socket support system boot and data storage.
Driver Installation:
Drivers for chipset, graphics, LAN, audio, USB 3.0, Intel Management Engine, Watchdog Timer, and Digital I/O are provided on the ADLINK DVD or website.
### 7. Performance & Capabilities
- Processing Power: Dual‑core Intel i5 CPU with Hyper‑Threading and Turbo Boost up to 3.3 GHz.
- Memory Bandwidth: DDR3 1600 MHz up to 16 GB.
- Graphics Performance: Intel HD Graphics 4000 supports DirectX 11 and OpenGL 3.1.
- Storage Throughput: SATA III 6 Gb/s with RAID 0/1 for redundancy or speed.
- Network Performance: Dual Gigabit Ethernet with teaming for redundancy and load balancing.
- Power Consumption: Approx. 16.8 W idle, 67.2 W full load (@ 24 V DC).
- Reliability: Fanless design reduces MTBF failures; watchdog timer ensures system recovery from software hangs.
- Limitations: No internal fan by default; high‑power PCIe cards may require optional fan module for thermal stability.
### 8. Standards & Compliance
- EMC: CE and FCC Class A compliant
- Safety: UL/cUL, CB, KCC certified
- Environmental: RoHS and WEEE compliant
- Operating System Support: Windows 7 (32/64‑bit), Windows Embedded Standard 7, Windows XP Embedded, Linux
- Intel Technologies: Intel AMT 8.0/11.0 for remote management, Intel Rapid Storage Technology for RAID, Intel VT‑x and VT‑d for virtualization.
### 9. Additional Information
Warranty & Support:
Standard ADLINK limited warranty (typically 2 years). Technical support available through regional ADLINK offices and authorized distributors.
Maintenance:
Fanless design minimizes maintenance. Periodic dust inspection and connector tightening recommended. Firmware and BIOS updates available from ADLINK website.
BIOS Features:
AMI UEFI BIOS with support for Intel VT‑d, RAID configuration, watchdog control, and power management settings. CMOS clear jumper provided for recovery.
Environmental Responsibility:
Manufactured in compliance with RoHS and WEEE directives. ADLINK encourages proper recycling and disposal of electronic equipment.
Service Contacts:
ADLINK Technology Inc., New Taipei City, Taiwan (+886‑2‑8226‑5877) and regional offices in USA, China, Europe, Japan, Korea, Singapore, and India.
### Summary

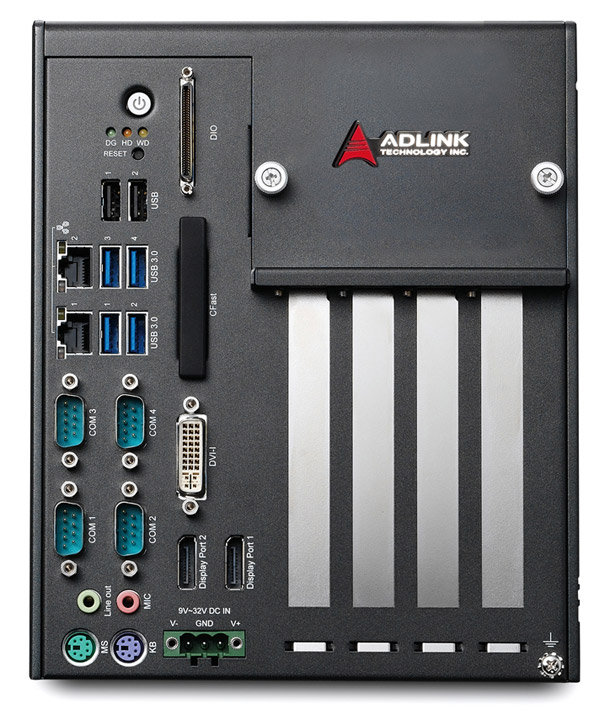

The ADLINK MXC‑6302D is a robust, high‑performance, fanless embedded computer engineered for industrial automation and mission‑critical applications requiring reliability, expandability, and long‑term availability. Powered by an Intel® Core™ i5‑3610ME processor and QM77 chipset, it delivers strong CPU and graphics performance, supports triple independent displays, and offers extensive I/O connectivity including dual GbE, USB 3.0, serial ports, and isolated digital I/O. Its modular expansion architecture with PCI/PCIe slots enables flexible system integration, while the rugged, cable‑free chassis ensures dependable operation in environments from –20 °C to +60 °C.
With comprehensive driver support, RAID capability, and optional accessories such as fan modules and industrial‑grade power adapters, the MXC‑6302D provides a versatile, long‑life platform for automation, vision, and embedded control applications.
-
MXC-6300Series_Datasheet_en_1.pdf
PDF Catalog
No accessories available.
