Comprehensive Product Summary – ADLINK MXE-5302 Fanless Embedded Computer

---

### 1. Product Overview

Product Name: ADLINK Matrix MXE-5302
Model: MXE-5302
Series: MXE-5300 Series (MXE-5301 / MXE-5302 / MXE-5303)
Article Number: MXE-5302
Manufacturer: ADLINK Technology, Inc.
Product Type: Fanless Embedded Computer
Processor Platform: Intel® Core™ i5-2510E (2nd Generation) with Intel® QM67 Chipset
Product Category: Industrial-grade, fanless embedded controller for rugged and mission-critical applications

The ADLINK MXE-5302 is part of the Matrix MXE-5300 series of fanless embedded computers designed for industrial automation, intelligent transportation, and surveillance applications. It combines high-performance Intel® Core™ i5 processing with a rugged, maintenance-friendly design and extensive I/O connectivity in a compact, fanless chassis.

---

### 2. Key Features

- Processor and Chipset:
Equipped with a 2nd Generation Intel® Core™ i5-2510E dual-core processor and Intel® QM67 Mobile Platform Controller Hub, providing a balance of performance and energy efficiency.

- Fanless Operation:
Completely fanless design ensures silent operation and high reliability in harsh environments. Supports extended temperature operation from -20°C to +70°C (with industrial SSD or CFast).

- Rugged Design:
Built for industrial use with 5 Grms vibration resistance, 50G shock tolerance, and wide 9–32 VDC power input range.

- Rich I/O Connectivity:
- 4 Gigabit Ethernet ports (2 Realtek® 8111C, 1 Intel® 82574IT, 1 Intel® 82579LM PHY)
- 4 COM ports (2 RS-232/422/485 programmable, 2 RS-232)
- 6 USB ports (2 USB 3.0 + 4 USB 2.0)
- 4 isolated digital I/O channels (1.5 kV isolation)
- 1 audio input/output (mic-in, line-out)
- 1 PS/2 combo port for keyboard/mouse

- Display Support:
Dual independent display via DVI-I connector supporting VGA and DVI-D outputs (up to 2048×1536 analog, 1920×1080 digital).

- Storage Options:
- 1 SATA-III (6.0 Gb/s) port for 2.5" HDD/SSD
- 1 external CFast slot
- 1 eSATA port for external storage expansion

- Expansion Capability:
- 2 internal Mini PCIe sockets (one with USIM socket for 3G communication, one supporting mSATA)
- Optional wireless modules (3G, Wi-Fi, Bluetooth, GPS)

- Remote Management:
Supports Intel® Active Management Technology (AMT) 7.0 for remote diagnostics, updates, and BIOS configuration.

- Software Compatibility:
Supports Windows® XP, Windows® 7, and Linux (distribution available upon request).

---

### 3. Technical Specifications

Processor: Intel® Core™ i5-2510E (2.5 GHz, dual-core, 2nd Gen)
Chipset: Intel® QM67 Mobile Platform Controller Hub
Memory: 4 GB DDR3 1066 MHz SODIMM (expandable up to 16 GB via two SODIMM sockets)
Graphics: Integrated Intel® HD Graphics 3000
Video Output: DVI-I connector (VGA + DVI-D dual display)
Maximum Resolution:
- VGA: 2048 × 1536 (QXGA)
- DVI: 1920 × 1080 (Full HD)

Ethernet:
- 4 × Gigabit Ethernet ports
- 2 × Realtek® 8111C
- 1 × Intel® 82574IT
- 1 × Intel® 82579LM PHY

Serial Ports:
- 2 × RS-232/422/485 (BIOS programmable)
- 2 × RS-232

USB Ports:
- 2 × USB 3.0
- 4 × USB 2.0

Digital I/O:
- 4 isolated digital inputs and 4 isolated digital outputs (1.5 kV isolation)

Audio:
- 1 × Mic-in
- 1 × Line-out (Realtek ALC269 HD Audio Codec)

Storage Interfaces:
- 1 × SATA-III (6.0 Gb/s) for 2.5" HDD/SSD
- 1 × external CFast slot
- 1 × eSATA port

Expansion Slots:
- 2 × Mini PCIe (one with USIM socket, one with mSATA support)

Power Input:
- 9–32 VDC wide-range input via 3-pin pluggable connector (GND, V-, V+)
- Optional 160 W AC-DC adapter

Dimensions: 230 mm (W) × 205 mm (D) × 75 mm (H)
Weight: 3.8 kg (8.39 lbs)
Mounting: Wall-mount kit included

Environmental Conditions:
- Operating Temperature:
- Standard: 0°C to +50°C
- Extended: -20°C to +70°C (with industrial SSD/CFast)
- Storage Temperature: -40°C to +85°C (excluding HDD/SSD/CFast)
- Humidity: 95% @ 40°C (non-condensing)
- Vibration:
- 5 Grms (SSD/CFast)
- 0.5 Grms (HDD)
- Shock: 50 G, half sine 11 ms (SSD/CFast)
- ESD Protection: ±4 kV contact, ±8 kV air
- EMC Compliance: CE and FCC Class A

---

### 4. Functionality

The MXE-5302 operates as a high-performance, fanless embedded controller suitable for industrial and transportation environments. It integrates computing, communication, and control functions in a single ruggedized platform.

Operation:
The system boots from internal SATA, CFast, or USB storage. It supports BIOS-level configuration for serial communication modes, boot priorities, and power management. The watchdog timer ensures system reliability by automatically resetting the system in case of software failure.

Use Cases:
- Intelligent Transportation Systems (ITS)
- Building Automation and Facility Management
- Digital Surveillance and Security Systems
- In-vehicle Multimedia and Data Acquisition
- Industrial Control and Machine Automation

Compatibility:
Compatible with Windows XP, Windows 7, and Linux operating systems. Supports Intel® AMT for remote management and BIOS configuration via Ethernet.

---

### 5. Components & Accessories

Included Items:
- MXE-5302 main unit
- Wall-mount bracket and screw pack
- User’s manual
- COM port breakout cable (DB-62 to DB-9 and DB-25 DIO)

Optional Accessories:
- DDR3 Memory Upgrade: 8 GB or 16 GB
- Storage Options:
- 500 GB SATA HDD (0–50°C)
- 8 GB / 32 GB / 64 GB industrial-grade SSD (SLC/MLC, -40°C to +85°C)
- 160 W AC-DC Adapter (-20°C to +70°C)
- Wireless Module Options: 3G, Wi-Fi, Bluetooth, GPS
- Extended Temperature Screening:
- MXE-5302: -20°C to +70°C (with industrial SSD/CFast)

Connectors:

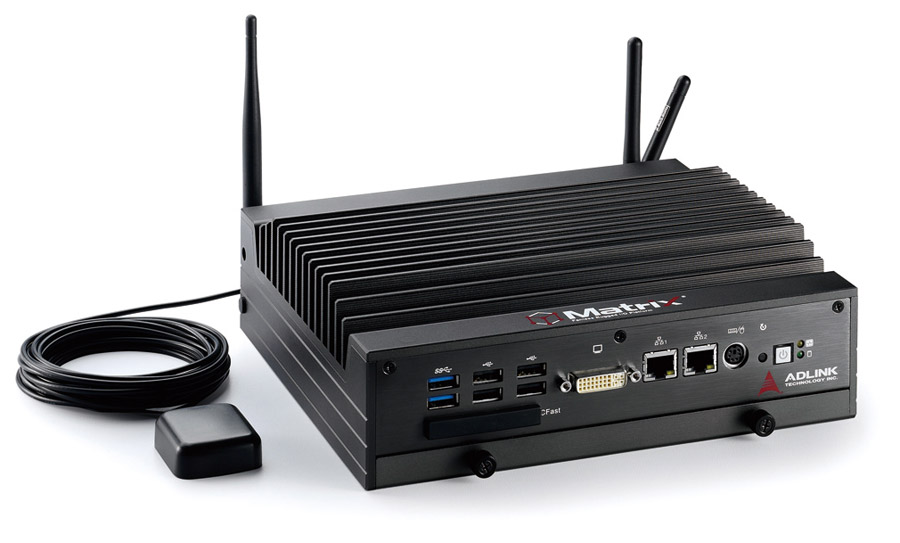

- Front Panel: Power button, reset, LED indicators, PS/2, 2× GbE, DVI-I, 6× USB, CFast slot

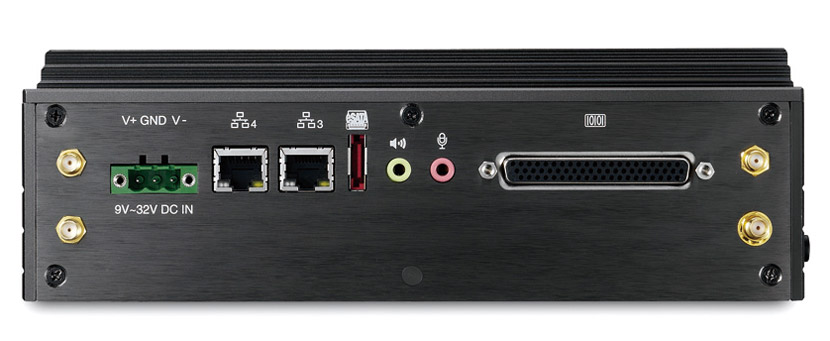

- Rear Panel: 2× GbE, eSATA, audio jacks, DB-62 COM/DIO, DC power input

---

### 6. Installation & Setup

Power Requirements:
- 9–32 VDC input via 3-pin pluggable connector
- Optional 160 W AC-DC adapter for AC input

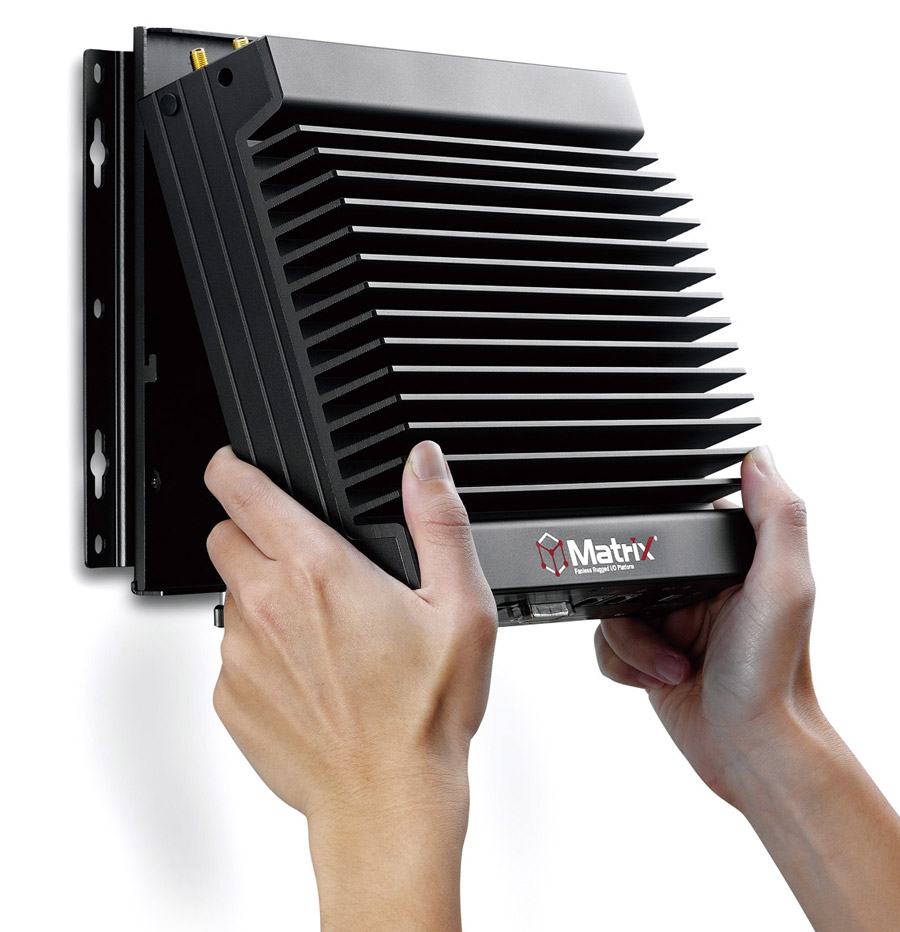

Mounting Options:
- Wall-mount kit included (M4-P screws and brackets)
- Requires removal of bottom pads for bracket installation

Storage Installation:
- Supports 2.5" HDD/SSD via SATA-III interface
- CFast card installation via front-panel slot
- eSATA port for external storage expansion

Memory Installation:
- Two SODIMM slots accessible via bottom cover
- Supports up to 16 GB DDR3 1066 MHz

Thermal Considerations:
- Maintain at least 5 cm clearance above chassis for optimal heat dissipation
- Heat-generating components are thermally coupled to the chassis via heat sink and pads

Configuration:
- BIOS setup for device configuration, boot order, and power management
- Supports Intel® AMT for remote BIOS and system management

---

### 7. Performance & Capabilities

Processing Power:
- Intel® Core™ i5-2510E dual-core processor delivers high computing performance with low power consumption.

Graphics Performance:
- Integrated Intel® HD Graphics 3000 supports dual independent displays with hardware acceleration for multimedia and visualization tasks.

Networking:
- Four independent Gigabit Ethernet ports enable network redundancy, load balancing, or multi-network segmentation.

Storage Performance:
- SATA-III interface supports up to 6.0 Gb/s transfer rate for SSDs.
- CFast and eSATA interfaces provide flexible storage expansion.

Reliability:
- Fanless design eliminates moving parts, reducing maintenance and failure points.
- Watchdog timer ensures automatic system recovery in case of software hang.
- Wide temperature and voltage tolerance for industrial reliability.

Limitations:
- OS installation via USB 3.0 CD-ROM not supported.
- Extended temperature operation requires industrial-grade SSD or CFast.

---

### 8. Standards & Compliance

Certifications:
- CE (Conformité Européenne)
- FCC Class A (Federal Communications Commission)

Environmental Compliance:
- RoHS (Restriction of Hazardous Substances)
- WEEE (Waste Electrical and Electronic Equipment)

Industry Standards:
- IEEE 802.3 (Ethernet)
- USB 2.0 / 3.0
- SATA-III (6.0 Gb/s)
- Intel® AMT 7.0
- ACPI 2.0 Power Management

ESD & EMC Protection:
- ±4 kV contact discharge
- ±8 kV air discharge

---

### 9. Additional Information

Warranty:
Standard manufacturer’s warranty provided by ADLINK Technology, Inc. (terms vary by region).

Support & Maintenance:
- Global technical support via ADLINK regional offices
- BIOS and driver updates available from [www.adlinktech.com](https://www.adlinktech.com)
- Linux distribution support available upon request

Maintenance Guidelines:
- Ensure proper ventilation and clearance for heat dissipation
- Use only specified voltage and power adapters
- Avoid exposure to moisture, dust, or corrosive environments
- Regularly check connectors and cables for secure attachment

Service Contacts:
ADLINK Technology provides worldwide service centers in Taiwan, USA, China, Japan, Korea, Singapore, India, Israel, and Europe.

---

### Summary

The ADLINK MXE-5302 is a robust, fanless embedded computer engineered for industrial and transportation applications requiring high reliability, wide temperature operation, and extensive connectivity. Powered by an Intel® Core™ i5-2510E processor and Intel® QM67 chipset, it delivers strong computing performance in a compact, maintenance-friendly chassis. With four Gigabit Ethernet ports, multiple serial interfaces, isolated digital I/O, and dual display support, the MXE-5302 is ideal for automation, surveillance, and control systems. Its rugged design, wide DC input range, and compliance with industrial standards make it a dependable platform for mission-critical deployments.
