Name: Jetson Orin NX edge AI computer with 8GB memory and six USB 3.2 camera ports.
Brand: Neousys Technology
SKU: NRU-156-JON8

INDUSTRIAL SOLUTION?

Discover embedded, communication and automation solutions tailored to your application.

NRU-156-JON8

Jetson Orin NX edge AI computer with 8GB memory and six USB 3.2 camera ports.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer

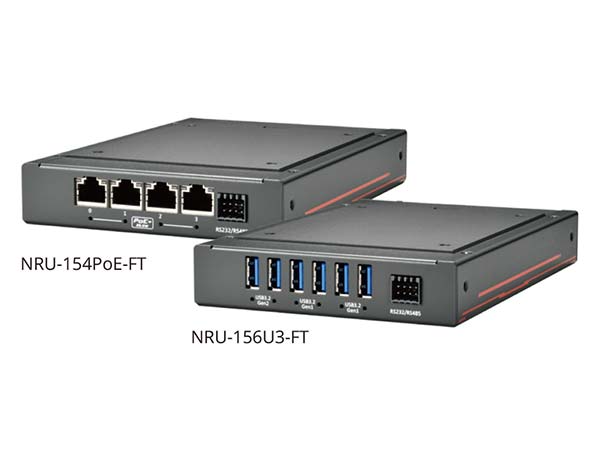

The NRU-156-JON8 is a compact edge AI computer featuring NVIDIA Jetson Orin NX, 8GB LPDDR5 and a 128GB NVMe drive with a pre-installed system image. Six screw-lock USB 3.2 connections support industrial USB3 cameras, comprising two 10Gbps Gen2 ports and four 5Gbps Gen1 ports. Other interfaces include USB 2.0, Gigabit Ethernet, DisplayPort, RS-232 and isolated RS-485. The fanless system uses a flattop heatsink to transfer heat through a metal enclosure and operates from -25°C to 60°C under the specified mounting conditions.

Compact fanless edge AI computer with NVIDIA Jetson Orin NX, 8GB LPDDR5, 128GB NVMe and a pre-installed system image. Camera connectivity comprises two USB 3.2 Gen2 ports and four USB 3.2 Gen1 ports, all with screw locks. It also provides two USB 2.0 ports, one GbE port, DisplayPort, RS-232 and isolated RS-485. The flattop heatsink supports conduction-cooled cabinet installation. Dimensions are 116 x 171 x 27 mm; fanless operating temperature is -25°C to 60°C under the specified mounting conditions.

Processor Platform NVIDIA Jetson Orin NX with NVIDIA Ampere GPU and ARM Cortex CPU
Installed Memory 8 GB LPDDR5
Included NVMe Capacity 128 GB
NVMe Interface M.2 2242 M-key, PCIe Gen4 x2
USB 3.2 Gen2 Ports 2 ports
USB 3.2 Gen1 Ports 4 ports
USB 2.0 Ports 2 ports
Ethernet Ports 1 GbE port
Serial Interfaces 1x RS-232; 1x isolated RS-485
Maximum Display Resolution 3840 x 2160 at 60Hz
Dimensions 116 x 171 x 27 mm
Weight 1.0 kg
Form Factor Compact fanless wall-mount computer with flattop conduction heatsink
Connector 2x USB 3.2 Gen2, 4x USB 3.2 Gen1, 2x USB 2.0, 1x GbE, DisplayPort, RS-232, isolated RS-485, micro USB OTG, 12V DC input
Dimensions 116 x 171 x 27 mm
Operating Temperature -25 to 60 °C
Storage Temperature -40 to 85 °C
Operating Temperature -25°C to 60°C fanless at 20W TDP with specified heat-conduction mounting
DC Input 12 V DC
Bus Interface M.2 2242 M-key, PCIe Gen4 x2
Resolution DisplayPort up to 3840 x 2160 at 60Hz
Key Features NVIDIA Jetson Orin NX; 8GB LPDDR5; 128GB NVMe; 6x screw-lock USB 3.2; full-bandwidth camera connectivity; flattop conduction heatsink; fanless operation; isolated RS-485; JetPack support
Accessories PA-60W-OW
