Comprehensive Product Summary: Nuvis-3304af-E Fanless Vision System

---

### 1. Product Overview

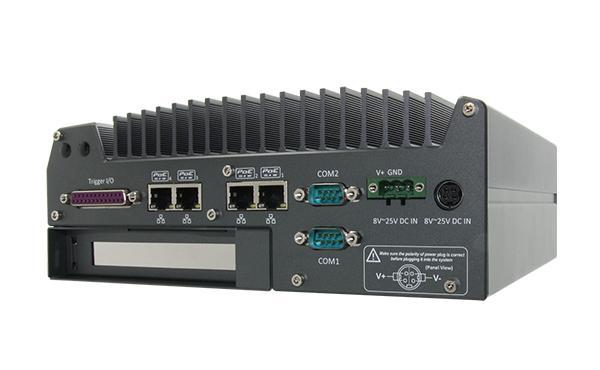

Product Name: Nuvis-3304af-E
Model: Nuvis-3304af-E
Series: Nuvis-3304af Series
Article Number: Nuvis-3304af-E
Manufacturer: Neousys Technology Inc.

Product Description:
The Nuvis-3304af-E is a high-performance, fanless machine vision controller designed for industrial automation and vision inspection applications. It integrates Intel® 3rd Generation Core™ i7/i5 processors, Power-over-Ethernet (PoE) camera interfaces, and Neousys’ proprietary Deterministic Trigger I/O (DTIO) technology. The system combines robust computing power, precise I/O timing control, and flexible expansion capabilities in a rugged, compact chassis optimized for harsh industrial environments.

---

### 2. Key Features

- Intel® 3rd Generation Core™ i7/i5 Processors: Supports Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) and Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache) CPUs, providing quad-core performance for demanding vision tasks.
- Fanless Architecture: Proven Neousys fanless design ensures silent operation, high reliability, and extended MTBF (93,732 hours).
- Deterministic Trigger I/O (DTIO): Patented technology (R.O.C. Patent No. I526834) enabling 25 µs timing resolution between input and output signals for precise trigger/strobe synchronization.
- Integrated PoE Camera Interfaces: 4x Gigabit IEEE 802.3af PoE ports (15.4W each) plus 1x standard Gigabit Ethernet port, all powered by Intel® I210 controllers.

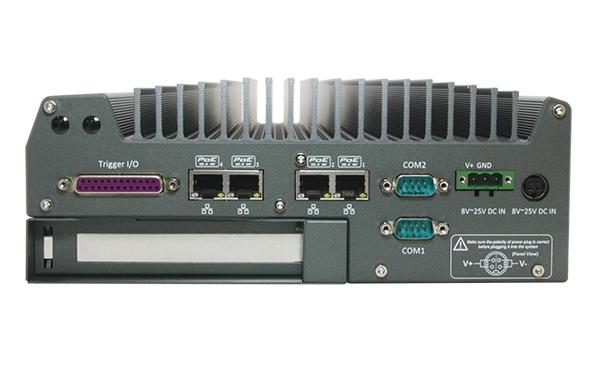

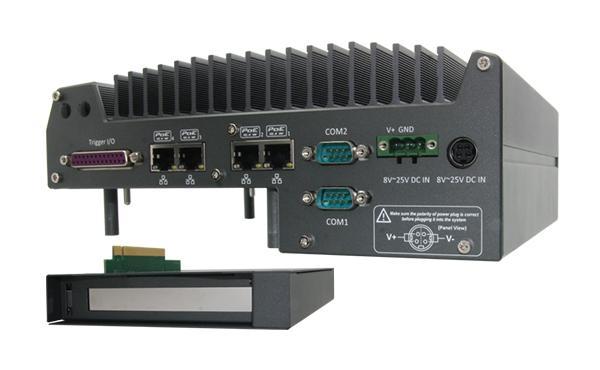

- Cassette Expansion Technology: Patented modular expansion (R.O.C. Patent No. M456527) supporting PCIe x16 (x8 signal) or PCI slot for additional camera or motion control interfaces.
- Wide Operating Temperature: -25°C to +70°C (with i5 CPU) and -25°C to +60°C (with i7 CPU) under full CPU load.
- High Shock and Vibration Resistance: 5 Grms vibration (IEC60068-2-64) and 50 Grms shock (IEC60068-2-27) with SSD.

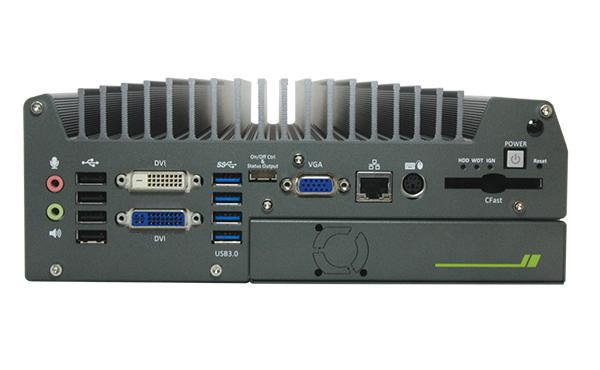

- Multiple Display Outputs: VGA (2048×1536) and dual DVI-D (1920×1080) outputs supporting dual independent displays.
- Comprehensive I/O: 8x USB ports (4x USB 3.0, 4x USB 2.0), 2x RS-232/422/485 ports, PS/2, audio I/O, and external CFast slot.
- Flexible Power Input: 8–25 VDC input via 4-pin mini-DIN or 3-pin terminal block; optional 160W AC/DC adapter.
- Industrial-Grade Reliability: CE/FCC Class A certified, designed for 24/7 operation in industrial environments.

---

### 3. Technical Specifications

Processor Options:
- Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache)
- Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache)
- Supports additional 3rd Gen Intel® Core™ i7/i5/i3 and Celeron® CPUs (rPGA988 socket)

Chipset: Intel® HM76 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics 4000
Memory: Up to 16 GB DDR3 1333/1600 MHz SDRAM (2x SO-DIMM slots)
Storage:
- 1x 2.5” SATA III HDD/SSD
- 1x external CFast socket

Networking:
- 4x Gigabit PoE ports (IEEE 802.3af, 15.4W each)
- 1x Gigabit Ethernet port (Intel® I210)

Expansion:
- 2x Mini PCIe slots (one with SIM socket)
- 1x PCIe x16 slot (x8 signal) via Cassette (Nuvis-3304af-E)
- Optional PCI slot (Nuvis-3304af-P variant)

I/O Interfaces:
- 2x RS-232/422/485 (software-programmable)
- 4x USB 3.0, 4x USB 2.0
- 1x PS/2 (6-pin mini-DIN)
- 1x Mic-in, 1x Speaker-out
- 1x VGA (DB-15), 2x DVI-D
- 1x 10-pin remote on/off and status LED connector

Deterministic Trigger I/O (DTIO):
- 8x isolated digital inputs (5–24V logic high, 0–1.5V logic low)
- 8x isolated digital outputs (100 mA sustained, 250 mA peak)
- 2500 Vrms isolation
- 25 µs timing resolution, change-of-state interrupt support

Power Supply:
- Input: 8–25 VDC
- Consumption:
- 72.96W (i7-3610QE)
- 48.83W (i5-3610ME)
- Optional 160W AC/DC adapter (PA-160W-OW)

Mechanical:
- Dimensions: 240 mm (W) × 225 mm (D) × 90 mm (H)
- Weight: 4.4 kg (with HDD and RAM)
- Mounting: Wall-mount (standard) or DIN-rail (optional)

Environmental:
- Operating Temperature: -25°C to +70°C (i5) / -25°C to +60°C (i7)
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90%, non-condensing
- Vibration: 5 Grms, 5–500 Hz, 3 axes (SSD)
- Shock: 50 Grms, half-sine 11 ms (SSD)

Certifications: CE/FCC Class A (EN 55022 & EN 55024)

---

### 4. Functionality

The Nuvis-3304af-E is engineered as a complete vision system controller for industrial automation, inspection, and robotics. It integrates computing, camera connectivity, and precise I/O control in one platform.

Operation Principle:
- The system processes image data from PoE or USB3.0 cameras.
- DTIO provides deterministic synchronization between sensors, lighting, and camera triggers.
- The Cassette expansion allows integration of specialized camera interfaces (Camera Link, CoaXPress, 1394, or analog).
- The embedded Intel® HD Graphics 4000 supports dual independent displays for visualization and control interfaces.

Use Cases:
- Automated optical inspection (AOI)
- Robotics vision guidance
- Industrial quality control
- Traffic monitoring and surveillance
- Scientific imaging and measurement systems

Compatibility:
- Supports Windows XP, Windows 7 (32/64-bit), and major Linux distributions (Ubuntu, Debian, Fedora, CentOS).
- Compatible with Neousys WDT_DIO driver library for DTIO and PoE control APIs.

---

### 5. Components & Accessories

Included Items:
- Nuvis-3304af-E main unit
- Wall-mounting brackets and screws
- 3-pin pluggable terminal block
- Foot pads
- HDD thermal pad (if HDD not pre-installed)
- Neousys Drivers & Utilities DVD

Optional Accessories:
- DINRAIL-O: DIN-rail mounting kit
- PA-160W-OW: 160W AC/DC adapter (20V/8A, -30°C to +70°C)
- Fan-25: 25×25×10 mm fan assembly for Cassette cooling
- Cassette Modules:
- CSM-PoE354: PCIe-PoE354 module with passive heat spreader
- CSM-USB380: PCIe-USB380 module with passive heat spreader

---

### 6. Installation & Setup

Requirements:
- DC power source (8–25 VDC) or AC/DC adapter
- Compatible DDR3 SO-DIMM memory modules
- 2.5” SATA HDD/SSD or CFast card

Mounting Options:
- Standard wall-mount using included brackets
- Optional DIN-rail mounting for cabinet integration

Configuration Steps:
1. Install DDR3 memory modules (up to 16 GB).
2. Mount 2.5” HDD/SSD using thermal pad and bracket.
3. Connect DC power via 4-pin mini-DIN or 3-pin terminal block.
4. Connect cameras via PoE or USB3.0 ports.
5. Configure BIOS for COM port modes, SATA mode (IDE/AHCI), and power-on behavior.
6. Install operating system and drivers using the “One-Click” utility or manual setup.
7. Optionally install WDT_DIO driver package for DTIO and PoE control functions.

Power-On Methods:
- Front panel power button
- External non-latched switch (via 10-pin connector)
- Wake-on-LAN (WOL) function

---

### 7. Performance & Capabilities

Processing Power:
- Quad-core Intel® Core™ i7/i5 CPUs deliver high-speed image processing and real-time control.

Networking:
- 5x independent Gigabit Ethernet ports with dedicated PCIe lanes ensure full bandwidth for multiple cameras.
- PoE ports supply up to 15.4W each, eliminating external camera power supplies.

I/O Precision:
- DTIO provides 25 µs timing resolution for deterministic trigger/strobe control.
- Supports polling, change-of-state interrupt, and trigger fan-out modes.

Expansion Capability:
- PCIe x16 (x8 signal) slot supports high-speed frame grabbers or motion control cards.
- Mini PCIe slots enable wireless, GPS, or RAID module integration.

Thermal & Environmental Performance:
- Operates reliably in -25°C to +70°C environments.
- Fanless design ensures dust-free, maintenance-free operation.

Limitations:
- Limited to 16 GB DDR3 memory.
- Single 2.5” SATA drive bay.
- PoE power limited to IEEE 802.3af (15.4W per port).

---

### 8. Standards & Compliance

Certifications:
- CE (EN 55022, EN 55024)
- FCC Class A (Part 15)

Environmental & Mechanical Compliance:
- Vibration: IEC60068-2-64 (5 Grms, 5–500 Hz, 3 axes)
- Shock: IEC60068-2-27 (50 Grms, 11 ms half-sine)

Patents:
- Cassette Expansion Design: R.O.C. Patent No. M456527
- Deterministic Trigger I/O (DTIO): R.O.C. Patent No. I526834

Industry Standards:
- IEEE 802.3af PoE compliance
- Intel® Embedded Roadmap CPU support (7-year lifecycle)

---

### 9. Additional Information

Warranty & Support:
- Standard manufacturer warranty (contact Neousys for terms).
- Technical support includes driver updates, BIOS revisions, and application notes.
- Comprehensive user manual and API documentation for DTIO and PoE control.

Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic inspection of connectors and power terminals recommended.
- SSDs or wide-temperature HDDs advised for sub-zero operation.

Software & Updates:
- “Drivers & Utilities DVD” includes chipset, graphics, audio, LAN, USB3.0, and ME drivers.
- WDT_DIO library provides APIs for watchdog timer, DTIO, and PoE control.
- Compatible with Windows XP/7 and major Linux distributions.

Mean Time Between Failures (MTBF): 93,732 hours
Manufacturer Website: [www.neousys-tech.com](https://www.neousys-tech.com)

---

### Summary

The Neousys Nuvis-3304af-E is a purpose-built, industrial-grade vision controller that merges high-performance computing, precise I/O timing, and robust connectivity in a compact, fanless chassis. Its combination of Intel® Core™ processing power, integrated PoE camera interfaces, and patented DTIO technology makes it ideal for machine vision, automation, and inspection systems requiring deterministic control and long-term reliability. With flexible expansion via Cassette modules, wide temperature tolerance, and comprehensive I/O, the Nuvis-3304af-E stands as a versatile and dependable platform for advanced vision-based industrial applications.
