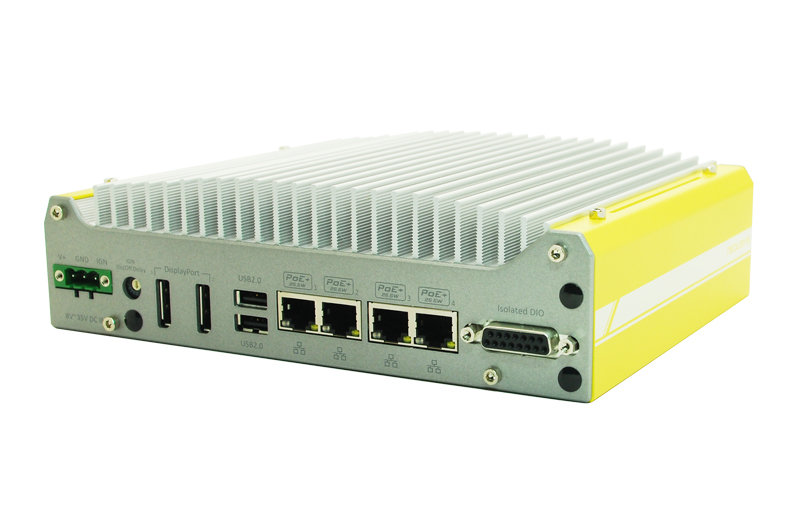

Comprehensive Product Summary – Nuvo-3100VTC Fanless In-Vehicle Controller
### 1. Product Overview
Product Name: Nuvo-3100VTC
Model: Nuvo-3100VTC
Series: Nuvo-3100 Series
Article Number: Nuvo-3100VTC
Manufacturer: Neousys Technology Inc.
The Nuvo-3100VTC is a rugged, fanless in-vehicle embedded controller designed for demanding mobile and industrial applications. It belongs to Neousys’ Nuvo-3100 series, which integrates Intel® 3rd Generation Core™ i7/i5/i3 processors (Ivy Bridge architecture) with the Intel® QM77 chipset. The system is engineered for high performance, reliability, and extended environmental endurance, featuring configurable CPU power modes, multiple PoE ports, ignition power control, and E-Mark certification for vehicular use.
### 2. Key Features
- Intel® 3rd-Gen Core™ i7/i5/i3 Processor Support:
Supports PGA-type CPUs including i7-3610QE, i5-3610ME, and Celeron 1020E, offering scalable performance options.
- Configurable CPU Power Mode:
Unique BIOS-configurable feature allowing users to select between *Maximal Performance*, *Reduced Performance*, or *Extended Temperature* modes to balance thermal conditions and computing power.
- Fanless, Compact Design:
Ultra-compact chassis (212 × 165 × 62 mm) with passive cooling for silent, maintenance-free operation.
- In-Vehicle Power Management:
Wide-range 8–35 VDC input with ignition power control and user-selectable on/off delay, supporting 12V/24V vehicle systems.
- Power over Ethernet (PoE):
Four IEEE 802.3at-compliant Gigabit Ethernet ports (25.5W per port, 75W total budget) for powering IP cameras or sensors directly.
- Dual SATA Storage with RAID Support:
One internal 2.5" SATA III bay and one hot-swappable 2.5" HDD/SSD tray, supporting RAID 0/1 configurations.
- Rich I/O Connectivity:
Includes 4× USB 3.0, 2× USB 2.0, 2× RS-232/422/485 serial ports, isolated digital I/O (4 DI / 4 DO), audio I/O, and triple independent display outputs (DVI-I + 2× DisplayPort).
- Expansion Flexibility:
Two Mini PCI Express slots (1 full-size with USIM socket, 1 half-size) and one full-size mSATA slot with SIM support for wireless modules (3G/4G/LTE/GPS).
- Rugged Environmental Design:
Operating temperature range from -25°C to +70°C (depending on CPU and mode), vibration resistance up to 5 Grms, and shock resistance up to 50 Grms.
- Certifications:
E-Mark for in-vehicle compliance, CE/FCC Class A, and EN 50155/EN 50121-3-2 railway standards.
### 3. Technical Specifications
Processor Options:
- Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache)
- Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache)
- Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache)
Chipset: Intel® QM77 PCH with AMT and RAID support
Graphics: Integrated Intel® HD Graphics 4000
Memory: 1× 204-pin SO-DIMM, up to 8 GB DDR3 1333/1600 MHz
Storage:
- 1× Internal 2.5" SATA III HDD/SSD
- 1× Hot-swappable 2.5" SATA III HDD/SSD tray
- 1× Full-size mSATA (SATA/USB/W_DISABLE#) with USIM socket
Expansion:
- 1× Full-size Mini PCIe with USIM socket
- 1× Half-size Mini PCIe
Ethernet:
- 1× Intel® 82579LM GbE (supports AMT, WoL)
- 3× Intel® I210 GbE with PoE PSE (IEEE 802.3at, 25.5W/port)
Video Outputs:
- 1× DVI-I (VGA 2048×1536 / DVI 1920×1080)
- 2× DisplayPort (2560×1600 each)
USB Ports: 4× USB 3.0, 2× USB 2.0
Serial Ports: 2× RS-232/422/485 (software-selectable)
Digital I/O: 4× isolated DI (COS interrupt), 4× isolated DO
Audio: 1× Mic-in, 1× Speaker-out
Power Input: 8–35 VDC via 3-pin terminal block
Ignition Control: User-selectable on/off delay, BIOS-configurable
Power Consumption:
- i7-3610QE: 68.8W (3.62A @19V)
- i5-3610ME: 46.9W (2.47A @19V)
- Celeron 1020E: 41.4W (2.18A @19V)
Mechanical:
- Dimensions: 212 × 165 × 62 mm
- Weight: 2.8 kg (with HDD and RAM)
- Mounting: Wall-mount (standard) or DIN-rail (optional)
Environmental:
- Operating Temperature:
- Max Performance: -25°C to +50°C (i7), +60°C (i5), +70°C (Celeron)
- Reduced Performance: up to +70°C
- Extended Temperature: up to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90% non-condensing
- Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC60068-2-64)
- Shock: 50 Grms, 11 ms half-sine (IEC60068-2-27)
### 4. Functionality
The Nuvo-3100VTC operates as a high-performance embedded controller for vehicular and industrial automation. It is powered by Intel’s Ivy Bridge processors and designed for fanless operation in harsh environments. The system’s configurable CPU power mode allows users to optimize between performance and thermal endurance.
Use Cases:
- Mobile NVR (Network Video Recorder) for fleet surveillance
- Intelligent transportation and fleet management
- Real-time video analytics and security monitoring
- Industrial automation and control
- High-end digital signage and edge computing
Compatibility:
Supports Windows XP/7/8 (32/64-bit), Ubuntu, Debian, Fedora, and CentOS. Linux users may need to manually install Intel I210 drivers.
### 5. Components & Accessories
Included Items:
- 1× Nuvo-3100VTC unit
- Accessory box containing:
- Neousys Drivers & Utilities DVD
- Damping brackets for in-vehicle mounting
- Shock-absorbing grommets
- DVI-to-VGA adapter
- 3-pin pluggable terminal block
- Key for hot-swappable HDD tray
- HDD thermal pad
- Screw pack
- Nuvo-3100 Series User Manual
Optional Accessories:
- DIN-rail mounting kit
- Additional storage drives
- Mini-PCIe wireless modules (Wi-Fi, LTE, GPS)
- External antennas via SMA connectors
### 6. Installation & Setup
Mounting Options:
- In-Vehicle Damping Brackets: Standard for vibration absorption.
- Wall Mounting: Brackets included for fixed installations.
- DIN-Rail Mounting: Optional kit for cabinet integration.
Power Connection:
- 3-pin terminal block for 8–35 VDC input (V+, GND, IGN).
- Supports ignition signal wiring for automotive ACC input.
- BIOS-configurable ignition control with adjustable on/off delay.
Storage Installation:
- Internal 2.5" HDD/SSD via “Pet-Door” access.
- Hot-swappable front HDD tray with lock and key.
- RAID configuration available via BIOS.
Memory Installation:
- Single DDR3 SO-DIMM slot accessible via bottom panel.
Expansion Modules:
- Mini-PCIe and mSATA slots accessible internally for wireless or storage modules.
Software Setup:
- “One-Click” driver installation utility for Windows.
- Manual driver installation supported for all OS versions.
### 7. Performance & Capabilities
CPU Performance vs. Temperature (Passmark® Benchmark):
| Mode | i7-3610QE | i5-3610ME | i7-3517UE (BGA) |
|------|------------|------------|----------------|
| Max Performance | 7407 @ 50°C | 4388 @ 60°C | 4388 @ 60°C |
| Reduced Performance | 5873 @ 60°C | 3896 @ 70°C | 3896 @ 70°C |
| Extended Temperature | 3471 @ 70°C | 3896 @ 70°C | 3896 @ 70°C |
Thermal Efficiency:
The configurable CPU power mode allows operation up to +70°C under full CPU load, ensuring reliability in extreme environments.
Network Performance:
Four independent Intel Gigabit controllers with dedicated PCIe lanes ensure full bandwidth utilization. PoE ports deliver up to 25.5W each, ideal for powering IP cameras or sensors.
Storage Performance:
Dual SATA III interfaces with RAID 0/1 support provide high throughput and data redundancy. Hot-swappable HDD tray simplifies maintenance and data exchange.
Reliability:
- Fanless design eliminates moving parts.
- Industrial-grade components rated for -25°C to +70°C.
- Shock and vibration resistance compliant with IEC standards.
### 8. Standards & Compliance
Certifications:
- E-Mark: Certified for in-vehicle applications (UN ECE regulations).
- CE/FCC Class A: Conforms to EN 55022 and EN 55024 for electromagnetic compatibility.
- EN 50155 / EN 50121-3-2: Railway and transportation compliance.
- RoHS: Restriction of Hazardous Substances compliant.
Regulatory Notes:
- FCC Class A digital device compliance ensures minimal interference in commercial environments.
- CE marking guarantees conformity with EU directives for safety and EMC.
### 9. Additional Information
Warranty & Support:
- Standard manufacturer warranty (contact Neousys for terms).
- Technical support via Neousys Technology’s global service network.
- Firmware and BIOS updates available through official channels.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Hot-swappable HDD tray allows easy drive replacement.
- BIOS-configurable watchdog timer ensures system recovery from software hangs.
Software & Utilities:
- Neousys “Drivers & Utilities DVD” includes chipset, graphics, audio, LAN, USB 3.0, and ME drivers.
- WDT_DIO library for programming watchdog and digital I/O functions.
- AMT configuration supported for remote management.
Operating System Support:
- Windows XP/7/8 (32/64-bit)
- Ubuntu ≥11.04, Debian ≥6.0, Fedora 14, CentOS 6.4
- Linux kernel ≥2.6.19 recommended for AHCI and I210 driver support.
Ignition Power Control (Advanced):
- MCU-based ignition controller with BIOS-configurable parameters.
- Supports smart off-delay, low battery detection, and hard-off timeout.
- 16 selectable modes (Rev. A2/A3) for flexible power sequencing.
Watchdog Timer:
- Hardware watchdog with programmable timeout (seconds/minutes).
- Automatic or manual reset options via BIOS or API.
- Ensures system recovery in case of software failure.
Isolated Digital I/O:
- 4× DI (5–24V logic high, 0–1.5V logic low, 2500 Vrms isolation).
- 4× DO (100 mA sustained, 250 mA peak per channel).
- Supports polling and Change-of-State interrupt modes.
### Summary
The Neousys Nuvo-3100VTC is a robust, high-performance fanless in-vehicle controller engineered for mission-critical mobile computing. Its combination of Intel® Ivy Bridge processing power, configurable thermal modes, and extensive I/O—including four PoE ports—makes it ideal for mobile NVR, fleet management, and industrial automation. With E-Mark certification, wide temperature tolerance, and advanced ignition control, it delivers exceptional reliability in harsh vehicular and field environments.
Key Advantages:
- High computing performance with flexible CPU options
- Rugged, fanless design for extreme conditions
- Integrated PoE for simplified camera/sensor deployment
- Intelligent ignition and power management
- Comprehensive I/O and expansion capabilities
- Certified for automotive and industrial standards
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
### 1. Product Overview
Product Name: Nuvo-3100VTC
Model: Nuvo-3100VTC
Series: Nuvo-3100 Series
Article Number: Nuvo-3100VTC
Manufacturer: Neousys Technology Inc.
The Nuvo-3100VTC is a rugged, fanless in-vehicle embedded controller designed for demanding mobile and industrial applications. It belongs to Neousys’ Nuvo-3100 series, which integrates Intel® 3rd Generation Core™ i7/i5/i3 processors (Ivy Bridge architecture) with the Intel® QM77 chipset. The system is engineered for high performance, reliability, and extended environmental endurance, featuring configurable CPU power modes, multiple PoE ports, ignition power control, and E-Mark certification for vehicular use.
### 2. Key Features
- Intel® 3rd-Gen Core™ i7/i5/i3 Processor Support:
Supports PGA-type CPUs including i7-3610QE, i5-3610ME, and Celeron 1020E, offering scalable performance options.
- Configurable CPU Power Mode:
Unique BIOS-configurable feature allowing users to select between *Maximal Performance*, *Reduced Performance*, or *Extended Temperature* modes to balance thermal conditions and computing power.
- Fanless, Compact Design:
Ultra-compact chassis (212 × 165 × 62 mm) with passive cooling for silent, maintenance-free operation.
- In-Vehicle Power Management:
Wide-range 8–35 VDC input with ignition power control and user-selectable on/off delay, supporting 12V/24V vehicle systems.
- Power over Ethernet (PoE):
Four IEEE 802.3at-compliant Gigabit Ethernet ports (25.5W per port, 75W total budget) for powering IP cameras or sensors directly.
- Dual SATA Storage with RAID Support:
One internal 2.5" SATA III bay and one hot-swappable 2.5" HDD/SSD tray, supporting RAID 0/1 configurations.
- Rich I/O Connectivity:
Includes 4× USB 3.0, 2× USB 2.0, 2× RS-232/422/485 serial ports, isolated digital I/O (4 DI / 4 DO), audio I/O, and triple independent display outputs (DVI-I + 2× DisplayPort).
- Expansion Flexibility:
Two Mini PCI Express slots (1 full-size with USIM socket, 1 half-size) and one full-size mSATA slot with SIM support for wireless modules (3G/4G/LTE/GPS).
- Rugged Environmental Design:
Operating temperature range from -25°C to +70°C (depending on CPU and mode), vibration resistance up to 5 Grms, and shock resistance up to 50 Grms.
- Certifications:
E-Mark for in-vehicle compliance, CE/FCC Class A, and EN 50155/EN 50121-3-2 railway standards.
### 3. Technical Specifications
Processor Options:
- Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache)
- Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache)
- Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache)
Chipset: Intel® QM77 PCH with AMT and RAID support
Graphics: Integrated Intel® HD Graphics 4000
Memory: 1× 204-pin SO-DIMM, up to 8 GB DDR3 1333/1600 MHz
Storage:
- 1× Internal 2.5" SATA III HDD/SSD
- 1× Hot-swappable 2.5" SATA III HDD/SSD tray
- 1× Full-size mSATA (SATA/USB/W_DISABLE#) with USIM socket
Expansion:
- 1× Full-size Mini PCIe with USIM socket
- 1× Half-size Mini PCIe
Ethernet:
- 1× Intel® 82579LM GbE (supports AMT, WoL)
- 3× Intel® I210 GbE with PoE PSE (IEEE 802.3at, 25.5W/port)
Video Outputs:
- 1× DVI-I (VGA 2048×1536 / DVI 1920×1080)
- 2× DisplayPort (2560×1600 each)
USB Ports: 4× USB 3.0, 2× USB 2.0
Serial Ports: 2× RS-232/422/485 (software-selectable)
Digital I/O: 4× isolated DI (COS interrupt), 4× isolated DO
Audio: 1× Mic-in, 1× Speaker-out
Power Input: 8–35 VDC via 3-pin terminal block
Ignition Control: User-selectable on/off delay, BIOS-configurable
Power Consumption:
- i7-3610QE: 68.8W (3.62A @19V)
- i5-3610ME: 46.9W (2.47A @19V)
- Celeron 1020E: 41.4W (2.18A @19V)
Mechanical:
- Dimensions: 212 × 165 × 62 mm
- Weight: 2.8 kg (with HDD and RAM)
- Mounting: Wall-mount (standard) or DIN-rail (optional)
Environmental:
- Operating Temperature:
- Max Performance: -25°C to +50°C (i7), +60°C (i5), +70°C (Celeron)
- Reduced Performance: up to +70°C
- Extended Temperature: up to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 10–90% non-condensing
- Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC60068-2-64)
- Shock: 50 Grms, 11 ms half-sine (IEC60068-2-27)
### 4. Functionality
The Nuvo-3100VTC operates as a high-performance embedded controller for vehicular and industrial automation. It is powered by Intel’s Ivy Bridge processors and designed for fanless operation in harsh environments. The system’s configurable CPU power mode allows users to optimize between performance and thermal endurance.
Use Cases:
- Mobile NVR (Network Video Recorder) for fleet surveillance
- Intelligent transportation and fleet management
- Real-time video analytics and security monitoring
- Industrial automation and control
- High-end digital signage and edge computing
Compatibility:
Supports Windows XP/7/8 (32/64-bit), Ubuntu, Debian, Fedora, and CentOS. Linux users may need to manually install Intel I210 drivers.
### 5. Components & Accessories
Included Items:
- 1× Nuvo-3100VTC unit
- Accessory box containing:
- Neousys Drivers & Utilities DVD
- Damping brackets for in-vehicle mounting
- Shock-absorbing grommets
- DVI-to-VGA adapter
- 3-pin pluggable terminal block
- Key for hot-swappable HDD tray
- HDD thermal pad
- Screw pack
- Nuvo-3100 Series User Manual
Optional Accessories:
- DIN-rail mounting kit
- Additional storage drives
- Mini-PCIe wireless modules (Wi-Fi, LTE, GPS)
- External antennas via SMA connectors
### 6. Installation & Setup
Mounting Options:
- In-Vehicle Damping Brackets: Standard for vibration absorption.
- Wall Mounting: Brackets included for fixed installations.
- DIN-Rail Mounting: Optional kit for cabinet integration.
Power Connection:
- 3-pin terminal block for 8–35 VDC input (V+, GND, IGN).
- Supports ignition signal wiring for automotive ACC input.
- BIOS-configurable ignition control with adjustable on/off delay.
Storage Installation:
- Internal 2.5" HDD/SSD via “Pet-Door” access.
- Hot-swappable front HDD tray with lock and key.
- RAID configuration available via BIOS.
Memory Installation:
- Single DDR3 SO-DIMM slot accessible via bottom panel.
Expansion Modules:
- Mini-PCIe and mSATA slots accessible internally for wireless or storage modules.
Software Setup:
- “One-Click” driver installation utility for Windows.
- Manual driver installation supported for all OS versions.
### 7. Performance & Capabilities
CPU Performance vs. Temperature (Passmark® Benchmark):
| Mode | i7-3610QE | i5-3610ME | i7-3517UE (BGA) |
|------|------------|------------|----------------|
| Max Performance | 7407 @ 50°C | 4388 @ 60°C | 4388 @ 60°C |
| Reduced Performance | 5873 @ 60°C | 3896 @ 70°C | 3896 @ 70°C |
| Extended Temperature | 3471 @ 70°C | 3896 @ 70°C | 3896 @ 70°C |
Thermal Efficiency:
The configurable CPU power mode allows operation up to +70°C under full CPU load, ensuring reliability in extreme environments.
Network Performance:
Four independent Intel Gigabit controllers with dedicated PCIe lanes ensure full bandwidth utilization. PoE ports deliver up to 25.5W each, ideal for powering IP cameras or sensors.
Storage Performance:
Dual SATA III interfaces with RAID 0/1 support provide high throughput and data redundancy. Hot-swappable HDD tray simplifies maintenance and data exchange.
Reliability:
- Fanless design eliminates moving parts.
- Industrial-grade components rated for -25°C to +70°C.
- Shock and vibration resistance compliant with IEC standards.
### 8. Standards & Compliance
Certifications:
- E-Mark: Certified for in-vehicle applications (UN ECE regulations).
- CE/FCC Class A: Conforms to EN 55022 and EN 55024 for electromagnetic compatibility.
- EN 50155 / EN 50121-3-2: Railway and transportation compliance.
- RoHS: Restriction of Hazardous Substances compliant.
Regulatory Notes:
- FCC Class A digital device compliance ensures minimal interference in commercial environments.
- CE marking guarantees conformity with EU directives for safety and EMC.
### 9. Additional Information
Warranty & Support:
- Standard manufacturer warranty (contact Neousys for terms).
- Technical support via Neousys Technology’s global service network.
- Firmware and BIOS updates available through official channels.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Hot-swappable HDD tray allows easy drive replacement.
- BIOS-configurable watchdog timer ensures system recovery from software hangs.
Software & Utilities:
- Neousys “Drivers & Utilities DVD” includes chipset, graphics, audio, LAN, USB 3.0, and ME drivers.
- WDT_DIO library for programming watchdog and digital I/O functions.
- AMT configuration supported for remote management.
Operating System Support:
- Windows XP/7/8 (32/64-bit)
- Ubuntu ≥11.04, Debian ≥6.0, Fedora 14, CentOS 6.4
- Linux kernel ≥2.6.19 recommended for AHCI and I210 driver support.
Ignition Power Control (Advanced):
- MCU-based ignition controller with BIOS-configurable parameters.
- Supports smart off-delay, low battery detection, and hard-off timeout.
- 16 selectable modes (Rev. A2/A3) for flexible power sequencing.
Watchdog Timer:
- Hardware watchdog with programmable timeout (seconds/minutes).
- Automatic or manual reset options via BIOS or API.
- Ensures system recovery in case of software failure.
Isolated Digital I/O:
- 4× DI (5–24V logic high, 0–1.5V logic low, 2500 Vrms isolation).
- 4× DO (100 mA sustained, 250 mA peak per channel).
- Supports polling and Change-of-State interrupt modes.
### Summary
The Neousys Nuvo-3100VTC is a robust, high-performance fanless in-vehicle controller engineered for mission-critical mobile computing. Its combination of Intel® Ivy Bridge processing power, configurable thermal modes, and extensive I/O—including four PoE ports—makes it ideal for mobile NVR, fleet management, and industrial automation. With E-Mark certification, wide temperature tolerance, and advanced ignition control, it delivers exceptional reliability in harsh vehicular and field environments.
Key Advantages:
- High computing performance with flexible CPU options
- Rugged, fanless design for extreme conditions
- Integrated PoE for simplified camera/sensor deployment
- Intelligent ignition and power management
- Comprehensive I/O and expansion capabilities
- Certified for automotive and industrial standards
Manufacturer: Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
-
Nuvo-3100VTC.pdf
PDF Catalog
- Nuvo-PA-160W - 160W AC/DC Power Adapter for Nuvo-1300af/3005 PoE models
- Nuvo-PA-120W - 120W AC/DC Power Adapter for Nuvo-3000 series
- DINRAIL-31 - DIN-rail mounting for Nuvo-3100VTC series
