Comprehensive Product Summary – Nuvo‑3616VR Fanless Surveillance System
### 1. Product Overview
Product Name: Nuvo‑3616VR
Model: Nuvo‑3616VR
Series: Nuvo‑3616VR/3608VR Series
Article Number: Nuvo‑3616VR
Manufacturer: Neousys Technology Inc.
The Nuvo‑3616VR is a rugged, fanless surveillance and video analytics platform designed for both stationary and mobile applications. It integrates sixteen IEEE 802.3at PoE+ ports, a 3rd‑generation Intel® Core™ i7/i5 processor, and a four‑drive RAID subsystem within a compact, industrial‑grade chassis. Developed by Neousys Technology, the system combines high‑performance computing, extensive network connectivity, and robust environmental tolerance for mission‑critical video recording and analytic workloads.
### 2. Key Features
- High‑Performance Processing:
Supports Intel® 3rd‑Generation Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache) or Core™ i5‑3610ME (2.7/3.3 GHz, 3 MB cache) CPUs, providing quad‑core computing for intensive video analytics.
- Intel® QM77 Chipset:
Integrated Platform Controller Hub with Intel® AMT and hardware RAID 0/1/5/10 support.
- Fanless Architecture:
Proven Neousys fanless thermal design ensures silent operation and reliability in harsh environments from –25 °C to +60 °C at full CPU load.
- 16 × PoE+ Ports:
Sixteen IEEE 802.3at‑compliant Gigabit Ethernet ports (25.5 W each, 160 W total budget) with per‑port power on/off control for IP cameras or powered devices.
- Integrated RAID Storage:
Four × 2.5″ SATA HDD/SSD bays supporting RAID 0/1/5/10; two bays feature patented easy‑swap trays for quick drive replacement.
- Wide‑Range DC Input & Ignition Control:
8 – 35 V DC input via 3‑pin terminal block with ignition‑signal‑based power sequencing for in‑vehicle use.
- Dual Independent Displays:
Intel® HD Graphics 4000 with 1 × VGA (2048 × 1536) and 2 × DVI‑D (1920 × 1200) outputs.
- Expansion Capability:
Two internal Mini PCI Express slots (one with USIM socket) for Wi‑Fi, 3G/4G, GPS, or RAID modules.
- Rugged Design:
CE/FCC Class A certified, E‑Mark approved for automotive environments, vibration resistance 5 Grms (IEC 60068‑2‑64), shock resistance 50 Grms (IEC 60068‑2‑27).
- Comprehensive I/O:
1 × Intel 82579LM GbE port (with AMT), 2 × USB 3.0, 2 × USB 2.0, 2 × RS‑232/422/485, 1 × PS/2, 1 × Mic‑in, 1 × Speaker‑out, 1 × CFast socket.
### 3. Technical Specifications
Processor Options:
- Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache)
- Intel® Core™ i5‑3610ME (2.7/3.3 GHz, 3 MB cache)
Chipset: Intel® QM77 PCH with AMT and RAID support
Graphics: Intel® HD Graphics 4000
Memory: 2 × 204‑pin SO‑DIMM slots, up to 16 GB DDR3 1333/1600 MHz
Storage:
- 4 × SATA ports for 2.5″ HDD/SSD (RAID 0/1/5/10)
- 1 × CFast socket
Ethernet:
- 16 × IEEE 802.3at PoE+ (25.5 W each, 160 W total)
- 1 × Intel 82579LM GbE (with AMT, no PoE)
Video Outputs:
- 1 × VGA (DB‑15) 2048 × 1536
- 2 × DVI‑D 1920 × 1200
USB: 2 × USB 3.0, 2 × USB 2.0
Serial: 2 × RS‑232/422/485 (COM1 & COM2, software‑selectable)
Audio: Mic‑in and Speaker‑out (Realtek ALC262 Codec)
Keyboard/Mouse: 1 × PS/2 mini‑DIN
Expansion: 2 × Mini PCIe (1 with USIM socket)
Power Input: 8 – 35 V DC via 3‑pin terminal block
Power Consumption: 81.8 W (i7) / 62.7 W (i5) @ 24 V
Dimensions: 240 (W) × 255 (D) × 70 (H) mm
Weight: 5.0 kg
Mounting: Wall‑mount brackets included
Environmental:
- Operating Temp: –25 °C to +60 °C (@ 100 % CPU load)
- Storage Temp: –40 °C to +85 °C
- Humidity: 10 – 90 % non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes)
- Shock: 50 Grms (11 ms half‑sine)
Compliance: CE/FCC Class A (EN 55022 & EN 55024), E‑Mark automotive
### 4. Functionality
The Nuvo‑3616VR functions as a high‑performance network video recorder and analytics engine. Sixteen PoE+ ports directly power and connect IP cameras—bullet, dome, or PTZ—eliminating external injectors. The integrated RAID array provides redundant or high‑throughput storage for continuous video capture.
The Intel Core i7 CPU enables real‑time analytics such as motion detection, facial recognition, or object tracking. Dual independent displays allow simultaneous monitoring and configuration.
Use Cases:
- Fixed or mobile surveillance systems
- Intelligent transportation and fleet monitoring
- Industrial inspection and process recording
- Smart city and public safety deployments
Compatibility:
Supports Windows XP/7/8 (32/64‑bit) and major Linux distributions (Ubuntu, Debian, Fedora, CentOS).
### 5. Components & Accessories
Included:
- Nuvo‑3616VR main unit
- Wall‑mount brackets and M4 screws
- 3‑pin pluggable terminal block
- Foot pads
- Neousys Drivers & Utilities DVD
Optional:
- PA‑280W‑OW – 280 W AC/DC adapter (24 V / 11.67 A, –30 °C to +60 °C)
- Mini‑PCIe modules (Wi‑Fi, 3G/4G, GPS)
- External antennas for wireless modules
Connectors:

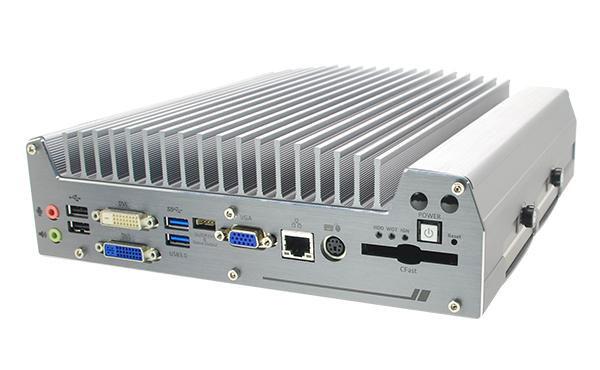

Front panel – Power button, Reset, LED indicators (HDD/WDT/IGN), CFast, PS/2, VGA, 2 × DVI‑D, 2 × USB 3.0, 2 × USB 2.0, Audio jacks, 10‑pin remote control header.
Rear panel – 16 × PoE+ RJ‑45, 2 × COM ports, 3‑pin DC/IGN terminal.
### 6. Installation & Setup
Mounting:
Attach wall‑mount brackets using M4 screws; mount on flat surface or vertical wall for optimal heat dissipation.
Power Connection:
Wire 8–35 V DC to V+ and GND on the terminal block; optional IGN input for vehicle ACC signal.
Storage Installation:
- Two internal SATA ports for fixed drives.
- Two easy‑swap trays for removable HDD/SSD (install only when system is off).
Memory Installation:
Two 204‑pin SO‑DIMM slots accessible after removing bottom cover; supports up to 16 GB.
Mini‑PCIe Modules:
Install Wi‑Fi/3G/4G cards on internal connectors; route antennas through SMA apertures.
Ignition Control:
Configurable rotary switch (Mode 0–7) or BIOS parameters define power‑on/off delays and battery protection.
Power‑On Methods:
- Front panel power button
- External non‑latched switch via 10‑pin header
- Wake‑on‑LAN packet
### 7. Performance & Capabilities
- Processing Power: Quad‑core Intel i7 3610QE delivers high throughput for multi‑channel video encoding and analytics.
- Network Bandwidth: 16 × Gigabit PoE+ ports (160 W total budget) plus 1 × Intel 82579LM GbE for management.
- Storage Throughput: RAID 0/5/10 modes provide enhanced read/write performance and data redundancy.
- Graphics: Intel HD 4000 supports dual independent displays for monitoring and configuration.
- Reliability: Fanless design eliminates moving parts; industrial components rated for –25 °C to +60 °C operation.
- Limitations: SATA easy‑swap bays are not hot‑pluggable; total PoE power limited to 160 W.
### 8. Standards & Compliance
- Electrical & Safety: IEEE 802.3at PoE+ PSE compliance (25.5 W per port).
- Environmental Testing: IEC 60068‑2‑64 (vibration), IEC 60068‑2‑27 (shock).
- EMC: CE/FCC Class A (EN 55022, EN 55024).
- Automotive: E‑Mark certified for in‑vehicle applications.
- RoHS Compliance: All materials meet RoHS environmental standards.
### 9. Additional Information
Warranty & Support:
Standard Neousys limited warranty (typically 2 years); technical support and driver updates available via Neousys website.
Maintenance:
- Clean air vents periodically to maintain thermal efficiency.
- Replace storage drives using easy‑swap trays only when powered off.
- Firmware and BIOS updates available through Neousys support.
Software & Drivers:
Drivers for chipset, graphics, LAN, audio, USB 3.0, and ME are provided on the Drivers & Utilities DVD with “one‑click” installation utility.
WDT_DIO library enables watchdog timer and per‑port PoE control APIs for custom applications.
Operating System Support:
Windows XP/7/8 (32/64‑bit), Ubuntu 10.10 or later, Debian 6.0+, Fedora 14+, CentOS 6.4+.
Reliability Features:
- Hardware watchdog timer for system recovery.
- Ignition control with low‑battery protection and hard‑off timeout.
- BIOS POST check and auto‑retry boot mechanism.
### Summary
The Neousys Nuvo‑3616VR is a purpose‑built, industrial‑grade surveillance computer integrating sixteen PoE+ ports, RAID storage, and a powerful Intel Core i7/i5 processor in a fanless enclosure. Its wide temperature operation, ignition power control, and rugged mechanical design make it ideal for both fixed and mobile video applications. With comprehensive I/O, expandability, and software support, the Nuvo‑3616VR delivers a reliable platform for next‑generation surveillance and video analytics deployments.
