Comprehensive Product Summary – Neousys Nuvo‑6108GC Industrial GPU Computing Platform

---

### 1. Product Overview

Product Name: Nuvo‑6108GC
Model/Article Number: Nuvo‑6108GC
Series: Nuvo‑6108GC Series
Manufacturer: Neousys Technology Inc.
Manufacturer Headquarters: 15F, No.868‑3, Zhongzheng Rd., Zhonghe Dist., New Taipei City, 23586, Taiwan
Regional Offices: Northbrook, Illinois, USA; Shanghai, China

Product Type: Industrial‑grade GPU computing platform designed for high‑performance graphics and parallel processing applications.
Product Variants:
- Nuvo‑6108GC: Supports up to 180 W NVIDIA® GTX‑1080 GPU
- Nuvo‑6108GC‑TI: Supports up to 250 W NVIDIA® GTX‑1080 Ti GPU

---

### 2. Key Features

- Industrial GPU Computing: First ruggedized embedded system capable of hosting a full‑length, high‑power NVIDIA® GPU (up to 250 W TDP).
- Processor Support: Intel® Xeon® E3 v5 or 6th‑Gen Core™ i7/i5 (Skylake) LGA1151 CPUs.
- Chipset: Intel® C236 platform controller hub.
- Memory: Up to 32 GB DDR4‑2133 MHz ECC or non‑ECC SODIMM (2 slots).
- PCIe Expansion:
- 1 × PCIe x16 Gen3 slot (16 lanes) for GPU
- 2 × PCIe x8 Gen3 slots (4 lanes each) for additional expansion cards
- Storage: 4 × 2.5″ SATA III ports supporting RAID 0/1/5/10.
- Networking: Dual Intel® Gigabit Ethernet ports (I219‑LM and I210‑IT).
- Video Output: Dual DVI‑D connectors supporting up to 1920 × 1200 resolution.
- Serial Communication: 2 × software‑programmable RS‑232/422/485 ports.
- USB Connectivity: 4 × USB 3.0 external ports, 1 × internal USB 2.0 port.
- Audio: 1 × 3.5 mm speaker‑out jack (Realtek ALC262 codec).

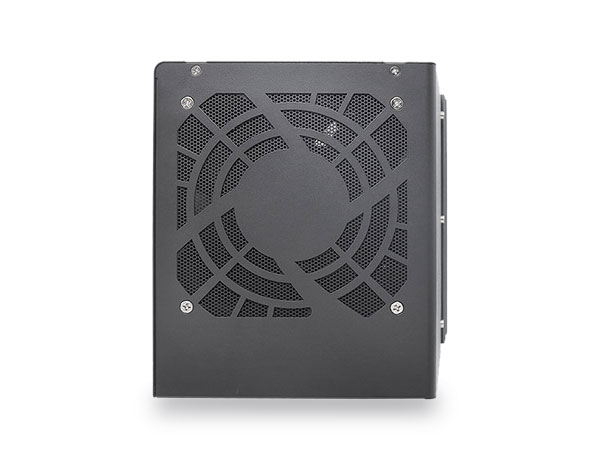

- Thermal Design: Patented cold‑air intake system ensuring stable GPU operation at 60 °C under full load.

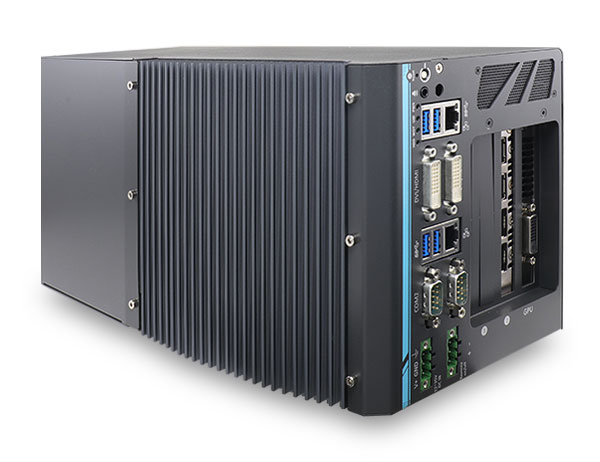

- Mechanical Design: Shock‑absorbing wall‑mount brackets and anti‑vibration grommets for field deployment.
- Power Input: 24 V DC via 3‑pin terminal block; optional 280 W or 480 W AC/DC adapters.
- Operating Range: ‑25 °C to +60 °C with 100 % CPU/GPU load; vibration resistance 1 Grms (5–500 Hz, 3 axes).
- Compliance: CE/FCC Class A, EN 55022/55024/55032, IEC 60068‑2‑64 vibration standard.

---

### 3. Technical Specifications

Processor Options:
- Intel® Xeon® E3‑1275 v5 (8 MB cache, 3.6/4.0 GHz)
- Intel® Xeon® E3‑1268L v5 (8 MB cache, 2.4/3.4 GHz)
- Intel® Core™ i7‑6700 (8 MB cache, 3.4/4.0 GHz)
- Intel® Core™ i5‑6500 (6 MB cache, 3.2/3.6 GHz)
- Intel® Core™ i7‑6700TE (8 MB cache, 2.4/3.4 GHz)
- Intel® Core™ i5‑6500TE (6 MB cache, 2.3/3.3 GHz)

Chipset: Intel® C236 PCH
Graphics:
- Independent GPU via PCIe x16 PEG slot (up to 250 W TDP)
- Integrated Intel® HD Graphics 530/510

Memory: 2 × DDR4 SODIMM slots, up to 32 GB DDR4‑2133 ECC/non‑ECC

Storage:
- 4 × SATA III ports for 2.5″ HDD/SSD
- RAID 0/1/5/10 support

Expansion Interfaces:
- 1 × PCIe x16 Gen3 (16 lanes)
- 2 × PCIe x8 Gen3 (4 lanes each)
- 1 × M.2 B‑key socket with SIM slot (for 3G/4G modules)
- 1 × full‑size mini‑PCIe slot
- 1 × 2×6‑pin header for remote on/off and status LED output

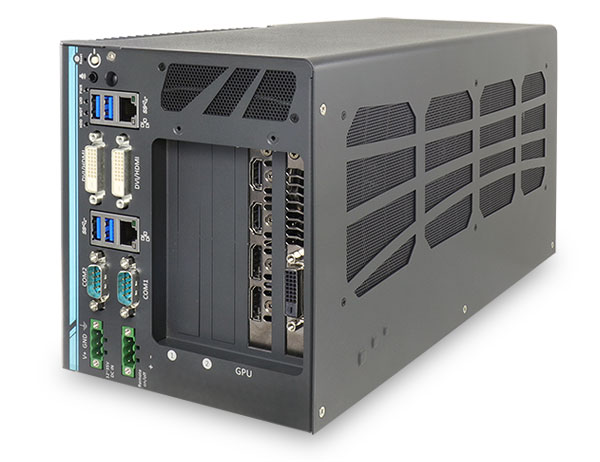

I/O Ports:
- 2 × Gigabit Ethernet (Intel I219‑LM + I210‑IT)
- 4 × USB 3.0 (Type‑A)
- 2 × RS‑232/422/485 software‑selectable COM ports
- 2 × DVI‑D video outputs
- 1 × 3.5 mm speaker‑out
- 1 × internal USB 2.0 port

Power:
- Input: 24 V DC via 3‑pin terminal block
- Optional remote on/off control via 3‑pin connector
- Typical consumption (24 V DC): 35–58 W depending on CPU model

Mechanical:
- Dimensions: 164 (W) × 360 (D) × 174 (H) mm
- Weight: Approx. 4.7 kg (including CPU, GPU, memory, HDD)
- Mounting: Wall‑mount with damping brackets

Environmental:
- Operating Temperature: ‑25 °C to +60 °C (100 % CPU/GPU load)
- Storage Temperature: ‑40 °C to +85 °C
- Humidity: 10 % – 90 %, non‑condensing
- Vibration: 1 Grms (5–500 Hz, 3 axes, IEC 60068‑2‑64)

---

### 4. Functionality

The Nuvo‑6108GC functions as a compact, ruggedized GPU computing node for industrial and embedded AI workloads. It integrates a high‑performance Intel® CPU with a discrete NVIDIA® GPU through a full‑bandwidth PCIe x16 Gen3 interface. The system’s architecture supports parallel GPU computing frameworks such as CUDA®, OpenCL™, and TensorRT™, enabling real‑time inference, machine vision, and simulation tasks.

Typical Applications:
- Artificial intelligence and deep learning inference at the edge
- Machine vision and industrial automation
- Autonomous vehicle computing and sensor fusion
- Virtual reality and simulation systems
- High‑speed data analytics and GPU‑accelerated modeling

Compatibility:
Supports Windows 8/10 (x64) and major Linux distributions (CentOS 7, Debian 8.7, Fedora 24, OpenSUSE 42.1, Ubuntu 14.04/16.04 LTS). Linux users may need to manually install Intel® graphics and I210 GbE drivers.

---

### 5. Components & Accessories

Included in Standard Package:
- Nuvo‑6108GC system unit
- SATA HDD/SSD bracket and mounting screws
- Damping brackets for in‑vehicle deployment
- Shock‑absorbing grommets (8 pcs)
- 3‑pin power terminal block
- Neousys Drivers & Utilities DVD
- Screw pack and documentation

Optional Accessories:
- PA‑280W‑OW: 280 W AC/DC adapter (24 V 11.67 A, ‑30 °C to +60 °C)
- PA‑480W‑DIN: 480 W DIN‑rail mount AC/DC adapter (24 V 20 A, ‑20 °C to +70 °C)
- DVI‑to‑VGA adapter and DVI‑to‑HDMI cable
- Antenna kits for 3G/4G or Wi‑Fi modules

---

### 6. Installation & Setup

Mounting:
Wall‑mount installation using supplied damping brackets and anti‑vibration grommets. The system can also be cabinet‑mounted with remote power control.

Internal Component Installation:
- CPU: LGA1151 socket with retention bracket and heatsink assembly.
- Memory: Two 260‑pin DDR4 SODIMM slots (up to 32 GB).
- Storage: Four SATA ports for 2.5″ HDD/SSD installation with dedicated brackets and trays.
- Expansion: Accessible PCIe x16/x8 slots for GPU and I/O cards; M.2 and mini‑PCIe slots for wireless modules.
- Power: Connect 24 V DC input to 3‑pin terminal block (verify polarity before connection).

Configuration:
BIOS supports advanced settings for COM port modes, SATA (AHCI/RAID), TPM 2.0, Wake‑on‑LAN, power recovery, and watchdog timer control.
RAID configuration is accessible via Intel RAID utility (Ctrl + I during boot).

Operating System Installation:
Supports UEFI and Legacy boot modes. Drivers are provided on the Neousys DVD with automatic or manual installation options.

---

### 7. Performance & Capabilities

- GPU Support: Up to 250 W NVIDIA® GeForce® GTX 1080 Ti or equivalent PCIe x16 graphics card.
- CPU Performance: Supports Intel® Xeon® E3 v5 and 6th‑Gen Core™ processors with up to 4 cores and 8 threads.
- Memory Bandwidth: DDR4‑2133 MHz dual‑channel architecture.
- Storage Throughput: SATA III 6 Gb/s with RAID 0/1/5/10 support.
- Network Throughput: Dual Gigabit Ethernet with independent PCIe lanes for maximum bandwidth.
- Thermal Efficiency: Patented cold‑air intake design maintains GPU temperature within operational limits at 60 °C ambient.
- Power Efficiency: Optimized for 24 V DC industrial power systems; supports remote on/off control.
- Reliability: 1 Grms vibration resistance and ‑25 °C to +60 °C operation ensure continuous uptime in harsh environments.

Limitations:
- Designed for single GPU operation (up to 250 W TDP).
- Requires adequate airflow and 24 V DC power supply for full performance.
- Operating temperature range may decrease with higher TDP CPUs.

---

### 8. Standards & Compliance

- EMC: CE/FCC Class A compliance (EN 55022, EN 55024, EN 55032).
- Vibration: IEC 60068‑2‑64 certified (1 Grms, 5–500 Hz, 3 axes).
- Safety: Meets industrial installation and ESD precautions standards.
- Environmental: Designed for ‑25 °C to +60 °C continuous operation with SSD storage for sub‑zero conditions.
- RoHS/CE Marking: All components are CE‑compliant and RoHS certified.
- FCC Statement: Class A digital device per Part 15 of FCC Rules; intended for commercial environments.

---

### 9. Additional Information

Warranty & Support:
Neousys Technology provides a standard limited hardware warranty per its latest policy. Firmware and software updates are available through the Neousys website or authorized service partners. Technical support is available via regional offices and email (contact sales@neousys‑tech.com).

Maintenance:
- Only qualified personnel should service the system.
- Disconnect power and cables before servicing.
- Observe ESD precautions when handling internal modules.
- Use anti‑static work pads and grounded wrist straps.

Software & Drivers:
- “Drivers & Utilities” DVD includes chipset, graphics, audio, LAN, and management engine drivers.
- Watchdog Timer and DIO library (WDT_DIO_Setup v2.2.6 or later) provides API functions for system monitoring and control.

Watchdog Timer Functions:
- InitWDT() – Initialize watchdog timer
- SetWDT() – Define timeout value and unit (seconds/minutes)
- StartWDT() – Begin countdown and activate WDT LED
- ResetWDT() – Refresh timer to prevent system reset
- StopWDT() – Halt countdown and deactivate WDT LED

Operating System Support:
- Windows 8/10 (x64)
- Linux distributions (CentOS 7, Debian 8.7, Fedora 24, OpenSUSE 42.1, Ubuntu 14.04/16.04 LTS)
- UEFI and Legacy boot modes supported

BIOS Features:
- COM port mode selection (RS‑232/422/485)
- SATA mode (AHCI/RAID)
- TPM 2.0 enable/disable
- Auto Wake on S5 and Power Recovery options
- CPU SKU Power Configuration for thermal management
- Wake‑on‑LAN and Watchdog Timer for boot control
- Boot type selection (Legacy/UEFI) and boot order management

Regulatory Notes:
To maintain CE compliance, only CE‑certified components and proper cabling techniques should be used. Operation in residential areas may cause radio interference and requires user mitigation.

---

### Summary

The Neousys Nuvo‑6108GC is a purpose‑built industrial GPU computing platform engineered for edge AI, machine vision, and high‑performance embedded applications. Combining Intel® Xeon® E3 v5/6th‑Gen Core™ processors with a discrete NVIDIA® GPU (up to 250 W TDP), it delivers desktop‑class computing power in a rugged, compact form factor. Its patented thermal design ensures stable operation at 60 °C ambient temperature under full GPU load, while its shock‑resistant mounting and wide temperature range make it ideal for industrial and vehicular deployments. Comprehensive I/O, expandability, and RAID‑capable storage provide flexibility for data‑intensive tasks. With CE/FCC Class A certification and long‑term support from Neousys Technology, the Nuvo‑6108GC stands as a robust solution for GPU‑accelerated industrial computing environments.
