1. Product Overview
Product Name: Nuvo-7505D
Model: Nuvo-7505D
Series: Nuvo-7501 Series
Article Number: Nuvo-7505D
Manufacturer: Neousys Technology Inc.

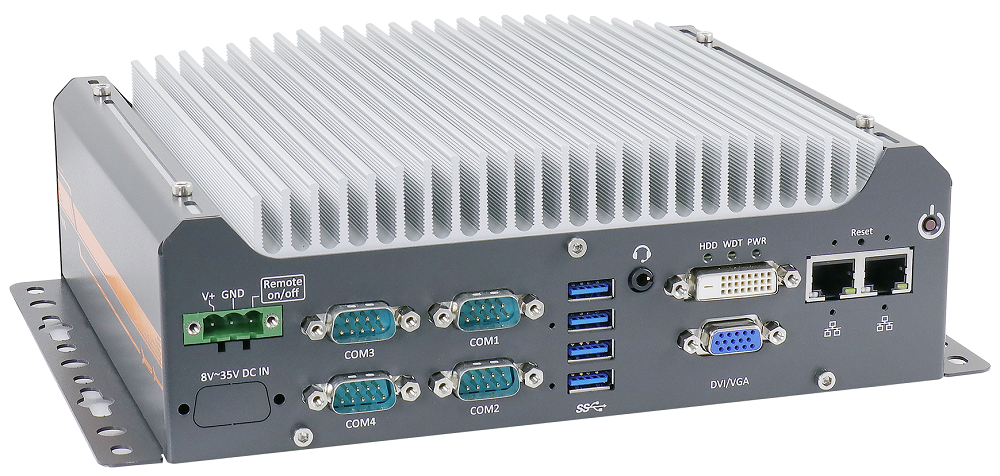

The Nuvo-7505D is a rugged, compact, fanless embedded computer designed for industrial and field applications requiring high reliability, wide temperature tolerance, and extensive I/O connectivity. It belongs to the Nuvo-7501 Series, which integrates Intel® 8th and 9th Generation Core™ processors (LGA1151 socket) and the Intel® H310 chipset. The Nuvo-7505D variant distinguishes itself from the base Nuvo-7501 model by offering isolated digital I/O (DIO) and isolated COM ports, providing enhanced protection against electrical noise and ground loops in harsh industrial environments.
2. Key Features
- Intel® 8th/9th-Gen Core™ i7/i5/i3 CPU Support:
Supports 35W LGA1151 processors, including Intel® Core™ i7-8700/9700E, i5-8500/9500E, and i3-8100/9100E series.
Provides up to 50% performance improvement over previous-generation embedded platforms.
- Fanless Rugged Design:
Operates reliably in ambient temperatures from -25°C to 60°C, with passive cooling and no moving parts.
Designed for vibration and shock resistance per MIL-STD-810G standards.
- Compact Form Factor:
Dimensions: 255 mm (W) x 173 mm (D) x 76 mm (H)
Weight: 2.68 kg
Ideal for space-constrained industrial environments.
- Rich I/O Connectivity:
- 2x Gigabit Ethernet ports (Intel® I219 and I210 controllers)
- 4x USB 3.1 Gen1 ports (5 Gbps)
- 6x COM ports (2x isolated RS-232/422/485, 2x isolated RS-232, 2x standard RS-232)
- 8x isolated digital inputs (DI) and 8x isolated digital outputs (DO)
- 1x VGA and 1x DVI-D video outputs (up to 1920x1200 resolution)
- 1x 3.5 mm audio jack for mic-in and speaker-out
- Flexible Storage Options:
- 1x internal SATA port for 3.5” or 2.5” HDD/SSD
- 1x M.2 2280 SATA interface for SSD storage
- Expansion Capability:
- 1x full-size mini PCI Express socket
- 1x M.2 2242 B key socket with internal SIM slot for wireless or cellular modules
- Wide Power Input Range:
Accepts 8–35 VDC via a 3-pin pluggable terminal block, suitable for vehicle or industrial DC power systems.
- Isolated I/O Protection:
Isolated COM and DIO interfaces safeguard against voltage spikes and ground potential differences, ensuring stable operation in electrically noisy environments.
3. Technical Specifications
Processor Support:
- Intel® 8th/9th-Gen Core™ i7/i5/i3 CPUs (LGA1151 socket)
- i7-8700, i7-8700T, i7-9700E, i7-9700TE
- i5-8500, i5-8500T, i5-9500E, i5-9500TE
- i3-8100, i3-8100T, i3-9100E, i3-9100TE
- Thermal Note: 65W CPUs are configured to operate in 35W mode by default.
- Graphics: Integrated Intel® UHD Graphics 630
Chipset: Intel® H310 Platform Controller Hub
Memory:
- 1x SODIMM slot supporting up to 32 GB DDR4 2666/2400 SDRAM
Storage Interfaces:
- 1x internal SATA port for 3.5” or 2.5” HDD/SSD
- 1x M.2 2280 SATA interface
Expansion Slots:
- 1x full-size mini PCI Express socket
- 1x M.2 2242 B key socket with internal SIM slot
Video Outputs:
- 1x VGA port (up to 1920 x 1200 resolution)
- 1x DVI-D port (up to 1920 x 1200 resolution)
Audio:
- 1x 3.5 mm jack for microphone input and speaker output
Ethernet:
- 2x Gigabit Ethernet ports (Intel® I219 and I210 controllers)
USB Ports:
- 4x USB 3.1 Gen1 (5 Gbps)
Serial Ports:
- 2x isolated software-programmable RS-232/422/485 (COM1/COM2)
- 2x isolated RS-232 (COM3/COM4)
- 2x standard RS-232 (COM5/COM6)
Digital I/O:
- 8x isolated digital inputs (DI)
- 8x isolated digital outputs (DO)
Power Input:
- 1x 3-pin pluggable terminal block for 8–35 VDC input
Remote Control & Status:
- 1x 10-pin (2x5) header for remote on/off control and status LED output
Mechanical:
- Dimensions: 255 mm (W) x 173 mm (D) x 76 mm (H)
- Weight: 2.68 kg
- Mounting: Wall-mount or optional DIN-rail
Environmental:
- Operating Temperature: -25°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 10%–90%, non-condensing
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC Compliance:
- CE/FCC Class A, compliant with EN 55032 and EN 55024
4. Functionality
The Nuvo-7505D functions as a rugged embedded controller for industrial automation, machine vision, transportation, and edge computing applications. Its fanless design ensures silent operation and long-term reliability in dusty or vibration-prone environments.
Operation:
The system integrates an Intel® Core™ CPU and Intel® UHD Graphics 630 GPU, providing sufficient processing and graphical performance for control, monitoring, and visualization tasks. The wide DC input range allows direct connection to industrial power sources or vehicle batteries.
Use Cases:
- Industrial automation and process control
- Machine vision and inspection systems
- Intelligent transportation and fleet management
- Edge computing and IoT gateways
- Data acquisition and control in harsh environments
Compatibility:
Compatible with standard operating systems such as Windows 10 IoT, Linux, and other x86-based OS distributions. Expansion slots (mini PCIe and M.2) allow integration of wireless communication modules, additional storage, or specialized I/O cards.
5. Components & Accessories
Included Components:
- Nuvo-7505D main unit
- 3-pin pluggable terminal block for DC power input
- Wall-mount brackets
Optional Accessories:
- PA-120W-OW: 120W AC/DC power adapter (20V/6A, 18AWG, 120 cm cable, terminal block connection, operating temperature -30°C to 70°C)
- DINRAIL-31: DIN-rail mounting assembly for Nuvo-7501 series
Connectors:
- 3-pin terminal block (DC input)
- VGA and DVI-D video connectors
- RJ45 Ethernet ports
- USB Type-A ports (USB 3.1 Gen1)
- DB9 connectors for COM ports
- 3.5 mm audio jack
- 10-pin header for remote control and LED status
6. Installation & Setup
Requirements:
- DC power source between 8–35 VDC
- Compatible storage device (2.5”/3.5” HDD or M.2 SSD)
- Appropriate mounting surface or DIN-rail kit
Mounting Options:
- Wall-mount: Standard brackets included for fixed installation.
- DIN-rail: Optional DINRAIL-31 kit for cabinet or rack integration.
Configuration:
- Memory and storage installation via accessible internal slots.
- BIOS configuration for boot sequence and I/O settings.
- Software setup for serial port modes (RS-232/422/485) and digital I/O mapping.
- Remote on/off control can be configured through the 10-pin header interface.
Thermal Considerations:
- Ensure adequate airflow around the chassis for passive heat dissipation.
- For sub-zero operation, use wide-temperature-rated HDD or SSD.
- Note: i7 CPUs may experience thermal throttling under sustained full load at 60°C ambient.
7. Performance & Capabilities
Processing Power:
The Nuvo-7505D supports up to 8-core Intel® Core™ CPUs, delivering high computational throughput for multitasking and real-time control. The integrated Intel® UHD Graphics 630 supports dual independent displays, suitable for visualization and HMI applications.
Memory & Storage Performance:
DDR4 memory up to 32 GB ensures smooth multitasking and data buffering. The M.2 SATA interface provides high-speed SSD performance, while the internal SATA port supports large-capacity HDDs for data logging.
I/O Throughput:
- USB 3.1 Gen1 ports deliver up to 5 Gbps transfer rates.
- Dual Gigabit Ethernet interfaces enable network redundancy or segmented communication.
- Isolated COM and DIO interfaces ensure reliable data exchange in electrically noisy environments.
Efficiency:
Fanless thermal design minimizes maintenance and power consumption. The wide DC input range supports direct connection to industrial power buses without external converters.
Limitations:
- 65W CPUs are limited to 35W operation due to thermal constraints.
- For extreme cold environments, storage devices must be rated for wide temperature operation.
8. Standards & Compliance
Environmental & Mechanical:
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Electromagnetic Compatibility (EMC):
- CE/FCC Class A
- EN 55032 (Electromagnetic emissions)
- EN 55024 (Immunity requirements)
Safety & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Isolated I/O interfaces provide electrical protection and system stability.
9. Additional Information
Warranty:
Standard manufacturer warranty provided by Neousys Technology (duration and terms vary by region).
Support:
Technical documentation, drivers, and BIOS updates available from the Neousys Technology website.
Customer support includes configuration assistance, RMA service, and firmware updates.
Maintenance:
- No active cooling components, minimizing maintenance requirements.
- Periodic inspection recommended for dust accumulation and connector integrity.
- Firmware and BIOS updates can be applied via USB or network interface.
Product Lifecycle & Updates:
The Nuvo-7505D is part of Neousys’ long-term support embedded product line, ensuring component availability and software compatibility for extended industrial deployments.
Summary
The Neousys Nuvo-7505D is a high-performance, compact, and rugged fanless embedded computer engineered for industrial automation, transportation, and edge computing applications. It combines Intel® 8th/9th-Gen Core™ processing power with robust I/O connectivity, isolated interfaces, and wide temperature operation. Its fanless design, MIL-STD-810G compliance, and flexible mounting options make it ideal for mission-critical environments where reliability and durability are paramount.
With support for dual displays, multiple communication ports, and expansion via mini PCIe and M.2 slots, the Nuvo-7505D offers a versatile platform for system integrators and OEMs seeking a balance of performance, connectivity, and ruggedness in a compact embedded form factor.
Product Name: Nuvo-7505D
Model: Nuvo-7505D
Series: Nuvo-7501 Series
Article Number: Nuvo-7505D
Manufacturer: Neousys Technology Inc.
The Nuvo-7505D is a rugged, compact, fanless embedded computer designed for industrial and field applications requiring high reliability, wide temperature tolerance, and extensive I/O connectivity. It belongs to the Nuvo-7501 Series, which integrates Intel® 8th and 9th Generation Core™ processors (LGA1151 socket) and the Intel® H310 chipset. The Nuvo-7505D variant distinguishes itself from the base Nuvo-7501 model by offering isolated digital I/O (DIO) and isolated COM ports, providing enhanced protection against electrical noise and ground loops in harsh industrial environments.
2. Key Features
- Intel® 8th/9th-Gen Core™ i7/i5/i3 CPU Support:
Supports 35W LGA1151 processors, including Intel® Core™ i7-8700/9700E, i5-8500/9500E, and i3-8100/9100E series.
Provides up to 50% performance improvement over previous-generation embedded platforms.
- Fanless Rugged Design:
Operates reliably in ambient temperatures from -25°C to 60°C, with passive cooling and no moving parts.
Designed for vibration and shock resistance per MIL-STD-810G standards.
- Compact Form Factor:
Dimensions: 255 mm (W) x 173 mm (D) x 76 mm (H)
Weight: 2.68 kg
Ideal for space-constrained industrial environments.
- Rich I/O Connectivity:
- 2x Gigabit Ethernet ports (Intel® I219 and I210 controllers)
- 4x USB 3.1 Gen1 ports (5 Gbps)
- 6x COM ports (2x isolated RS-232/422/485, 2x isolated RS-232, 2x standard RS-232)
- 8x isolated digital inputs (DI) and 8x isolated digital outputs (DO)
- 1x VGA and 1x DVI-D video outputs (up to 1920x1200 resolution)
- 1x 3.5 mm audio jack for mic-in and speaker-out
- Flexible Storage Options:
- 1x internal SATA port for 3.5” or 2.5” HDD/SSD
- 1x M.2 2280 SATA interface for SSD storage
- Expansion Capability:
- 1x full-size mini PCI Express socket
- 1x M.2 2242 B key socket with internal SIM slot for wireless or cellular modules
- Wide Power Input Range:
Accepts 8–35 VDC via a 3-pin pluggable terminal block, suitable for vehicle or industrial DC power systems.
- Isolated I/O Protection:
Isolated COM and DIO interfaces safeguard against voltage spikes and ground potential differences, ensuring stable operation in electrically noisy environments.
3. Technical Specifications
Processor Support:
- Intel® 8th/9th-Gen Core™ i7/i5/i3 CPUs (LGA1151 socket)
- i7-8700, i7-8700T, i7-9700E, i7-9700TE
- i5-8500, i5-8500T, i5-9500E, i5-9500TE
- i3-8100, i3-8100T, i3-9100E, i3-9100TE
- Thermal Note: 65W CPUs are configured to operate in 35W mode by default.
- Graphics: Integrated Intel® UHD Graphics 630
Chipset: Intel® H310 Platform Controller Hub
Memory:
- 1x SODIMM slot supporting up to 32 GB DDR4 2666/2400 SDRAM
Storage Interfaces:
- 1x internal SATA port for 3.5” or 2.5” HDD/SSD
- 1x M.2 2280 SATA interface
Expansion Slots:
- 1x full-size mini PCI Express socket
- 1x M.2 2242 B key socket with internal SIM slot
Video Outputs:
- 1x VGA port (up to 1920 x 1200 resolution)
- 1x DVI-D port (up to 1920 x 1200 resolution)
Audio:
- 1x 3.5 mm jack for microphone input and speaker output
Ethernet:
- 2x Gigabit Ethernet ports (Intel® I219 and I210 controllers)
USB Ports:
- 4x USB 3.1 Gen1 (5 Gbps)
Serial Ports:
- 2x isolated software-programmable RS-232/422/485 (COM1/COM2)
- 2x isolated RS-232 (COM3/COM4)
- 2x standard RS-232 (COM5/COM6)
Digital I/O:
- 8x isolated digital inputs (DI)
- 8x isolated digital outputs (DO)
Power Input:
- 1x 3-pin pluggable terminal block for 8–35 VDC input
Remote Control & Status:
- 1x 10-pin (2x5) header for remote on/off control and status LED output
Mechanical:
- Dimensions: 255 mm (W) x 173 mm (D) x 76 mm (H)
- Weight: 2.68 kg
- Mounting: Wall-mount or optional DIN-rail
Environmental:
- Operating Temperature: -25°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 10%–90%, non-condensing
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC Compliance:
- CE/FCC Class A, compliant with EN 55032 and EN 55024
4. Functionality
The Nuvo-7505D functions as a rugged embedded controller for industrial automation, machine vision, transportation, and edge computing applications. Its fanless design ensures silent operation and long-term reliability in dusty or vibration-prone environments.
Operation:
The system integrates an Intel® Core™ CPU and Intel® UHD Graphics 630 GPU, providing sufficient processing and graphical performance for control, monitoring, and visualization tasks. The wide DC input range allows direct connection to industrial power sources or vehicle batteries.
Use Cases:
- Industrial automation and process control
- Machine vision and inspection systems
- Intelligent transportation and fleet management
- Edge computing and IoT gateways
- Data acquisition and control in harsh environments
Compatibility:
Compatible with standard operating systems such as Windows 10 IoT, Linux, and other x86-based OS distributions. Expansion slots (mini PCIe and M.2) allow integration of wireless communication modules, additional storage, or specialized I/O cards.
5. Components & Accessories
Included Components:
- Nuvo-7505D main unit
- 3-pin pluggable terminal block for DC power input
- Wall-mount brackets
Optional Accessories:
- PA-120W-OW: 120W AC/DC power adapter (20V/6A, 18AWG, 120 cm cable, terminal block connection, operating temperature -30°C to 70°C)
- DINRAIL-31: DIN-rail mounting assembly for Nuvo-7501 series
Connectors:
- 3-pin terminal block (DC input)
- VGA and DVI-D video connectors
- RJ45 Ethernet ports
- USB Type-A ports (USB 3.1 Gen1)
- DB9 connectors for COM ports
- 3.5 mm audio jack
- 10-pin header for remote control and LED status
6. Installation & Setup
Requirements:
- DC power source between 8–35 VDC
- Compatible storage device (2.5”/3.5” HDD or M.2 SSD)
- Appropriate mounting surface or DIN-rail kit
Mounting Options:
- Wall-mount: Standard brackets included for fixed installation.
- DIN-rail: Optional DINRAIL-31 kit for cabinet or rack integration.
Configuration:
- Memory and storage installation via accessible internal slots.
- BIOS configuration for boot sequence and I/O settings.
- Software setup for serial port modes (RS-232/422/485) and digital I/O mapping.
- Remote on/off control can be configured through the 10-pin header interface.
Thermal Considerations:
- Ensure adequate airflow around the chassis for passive heat dissipation.
- For sub-zero operation, use wide-temperature-rated HDD or SSD.
- Note: i7 CPUs may experience thermal throttling under sustained full load at 60°C ambient.
7. Performance & Capabilities
Processing Power:
The Nuvo-7505D supports up to 8-core Intel® Core™ CPUs, delivering high computational throughput for multitasking and real-time control. The integrated Intel® UHD Graphics 630 supports dual independent displays, suitable for visualization and HMI applications.
Memory & Storage Performance:
DDR4 memory up to 32 GB ensures smooth multitasking and data buffering. The M.2 SATA interface provides high-speed SSD performance, while the internal SATA port supports large-capacity HDDs for data logging.
I/O Throughput:
- USB 3.1 Gen1 ports deliver up to 5 Gbps transfer rates.
- Dual Gigabit Ethernet interfaces enable network redundancy or segmented communication.
- Isolated COM and DIO interfaces ensure reliable data exchange in electrically noisy environments.
Efficiency:
Fanless thermal design minimizes maintenance and power consumption. The wide DC input range supports direct connection to industrial power buses without external converters.
Limitations:
- 65W CPUs are limited to 35W operation due to thermal constraints.
- For extreme cold environments, storage devices must be rated for wide temperature operation.
8. Standards & Compliance
Environmental & Mechanical:
- Vibration: MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Electromagnetic Compatibility (EMC):
- CE/FCC Class A
- EN 55032 (Electromagnetic emissions)
- EN 55024 (Immunity requirements)
Safety & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Isolated I/O interfaces provide electrical protection and system stability.
9. Additional Information
Warranty:
Standard manufacturer warranty provided by Neousys Technology (duration and terms vary by region).
Support:
Technical documentation, drivers, and BIOS updates available from the Neousys Technology website.
Customer support includes configuration assistance, RMA service, and firmware updates.
Maintenance:
- No active cooling components, minimizing maintenance requirements.
- Periodic inspection recommended for dust accumulation and connector integrity.
- Firmware and BIOS updates can be applied via USB or network interface.
Product Lifecycle & Updates:
The Nuvo-7505D is part of Neousys’ long-term support embedded product line, ensuring component availability and software compatibility for extended industrial deployments.
Summary
The Neousys Nuvo-7505D is a high-performance, compact, and rugged fanless embedded computer engineered for industrial automation, transportation, and edge computing applications. It combines Intel® 8th/9th-Gen Core™ processing power with robust I/O connectivity, isolated interfaces, and wide temperature operation. Its fanless design, MIL-STD-810G compliance, and flexible mounting options make it ideal for mission-critical environments where reliability and durability are paramount.
With support for dual displays, multiple communication ports, and expansion via mini PCIe and M.2 slots, the Nuvo-7505D offers a versatile platform for system integrators and OEMs seeking a balance of performance, connectivity, and ruggedness in a compact embedded form factor.
- PA-120W-OW - 120W AC/DC power adapter 20V/6A
