Comprehensive Product Summary: Nuvo-8240GC Edge AI Platform
### 1. Product Overview

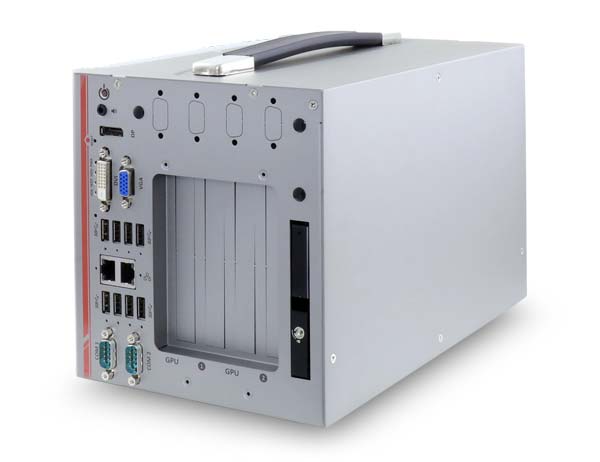

Product Name: Nuvo-8240GC
Model Number: Nuvo-8240GC
Series: Nuvo Industrial Edge AI Computing Platform Series
Article Number: Nuvo-8240GC
Manufacturer: Neousys Technology Inc.
Product Type: Industrial-grade Edge AI Platform supporting dual NVIDIA® Tesla T4 GPUs and Intel® Xeon® E or 9th/8th-Gen Core™ processors
The Nuvo-8240GC is a ruggedized, high-performance edge AI computing platform engineered by Neousys Technology for advanced inference acceleration and GPU-accelerated industrial applications. Designed to operate reliably in harsh environments, it combines powerful CPU and GPU computing capabilities with robust mechanical design, wide-range DC power input, and extensive I/O connectivity.
### 2. Key Features
- Dual NVIDIA® Tesla T4 GPU Support:
Accommodates two NVIDIA® Tesla T4 GPUs, each delivering up to 65 TFLOPS FP16 or 260 TOPS INT4 performance, enabling up to 130 TFLOPS FP16 and 520 TOPS INT4 combined GPU computing power for AI inference and deep learning workloads.
- Intel® Xeon® E and 9th/8th-Gen Core™ CPU Compatibility:
Supports Intel® Xeon® E-series and 9th/8th-Gen Core™ i7/i5/i3 processors (LGA1151 socket) with up to 8 cores and 16 threads, providing flexible CPU performance options for diverse industrial and AI applications.
- Workstation-Grade Chipset:
Integrated Intel® C246 Platform Controller Hub ensures high reliability, ECC memory support, and compatibility with professional-grade components.
- Memory Capacity:
Up to 128 GB DDR4 2133 MHz ECC or non-ECC memory via four SODIMM slots, ensuring high data integrity and performance for compute-intensive tasks.
- Rugged Design for Harsh Environments:
Proven thermal design supports operation from -25°C to 60°C (depending on CPU configuration) and withstands vibration up to 3 Grms per MIL-STD-810G standards.
- Wide-Range DC Power Input:
Accepts 8–48V DC input with built-in ignition power control, ideal for in-vehicle and field-deployed applications.
- Flexible Expansion:
Two PCIe x16 (8-lane) slots for GPUs, two PCIe x8 (4-lane) slots for add-on cards, plus M.2 and mini-PCIe expansion options for communication, storage, or I/O modules.
- Comprehensive I/O Connectivity:
Includes dual Gigabit Ethernet ports, multiple USB 3.1 Gen1/Gen2 ports, serial ports, audio, and triple video outputs (VGA, DVI-D, DisplayPort).
- Storage Versatility:
Supports hot-swappable and internal 2.5” SATA drives, M.2 NVMe SSDs, and RAID 0/1 configurations for redundancy and performance.
- Industrial Reliability:
Features patented damping brackets, MIL-STD-810G compliance, and CE/FCC Class A EMC certification for dependable operation in industrial and transportation environments.
### 3. Technical Specifications
Processor Support:
- Intel® Xeon® E-series and 9th/8th-Gen Core™ CPUs (LGA1151 socket)
- Supported models include:
- Xeon® E-2176G, E-2278GE, E-2278GEL (8C/16T)
- Core™ i7-9700E, i7-9700TE, i7-8700, i7-8700T
- Core™ i5-9500E, i5-9500TE, i5-8500, i5-8500T
- Core™ i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset: Intel® C246 Platform Controller Hub
Graphics: Integrated Intel® UHD Graphics 630
Memory:
- Up to 128 GB DDR4 2133 MHz ECC/non-ECC SDRAM
- Four SODIMM slots
Expansion Bus:
- 2 × PCIe x16 slots (Gen3, 8-lanes each) for GPUs
- 2 × PCIe x8 slots (Gen3, 4-lanes each) for add-on cards
M.2 and Mini-PCIe:
- 1 × M.2 2242 B key socket (dual SIM mode with selected LTE module)
- 1 × M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory
- 2 × full-size mini-PCIe sockets (mux with mSATA)
Storage Interfaces:
- 1 × hot-swappable 2.5” SATA HDD/SSD tray
- 1 × internal 2.5” SATA port (supports RAID 0/1)
- 2 × full-size mSATA ports (shared with mini-PCIe)

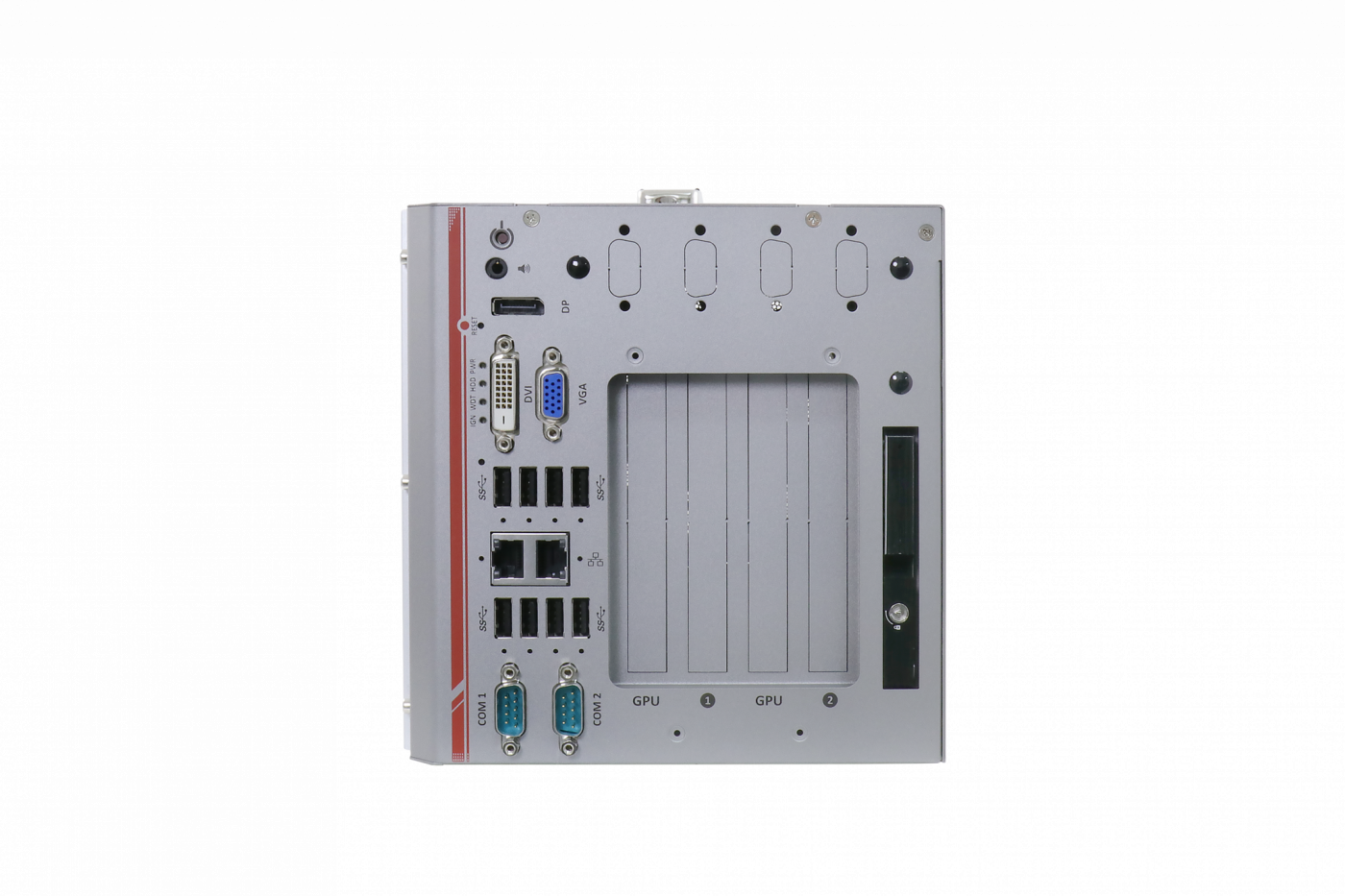

I/O Interfaces:
- Ethernet: 2 × Gigabit Ethernet ports (Intel® I219-LM and I210-IT)
- USB: 4 × USB 3.1 Gen2 (10 Gbps), 4 × USB 3.1 Gen1 (5 Gbps), 1 × internal USB 2.0
- Serial Ports: 2 × software-programmable RS-232/422/485 (COM1/COM2)
- Video Outputs:
- 1 × VGA (1920 × 1200)
- 1 × DVI-D (1920 × 1200)
- 1 × DisplayPort (4096 × 2304)
- Audio: 1 × 3.5 mm jack (mic-in/speaker-out)
Power Supply:

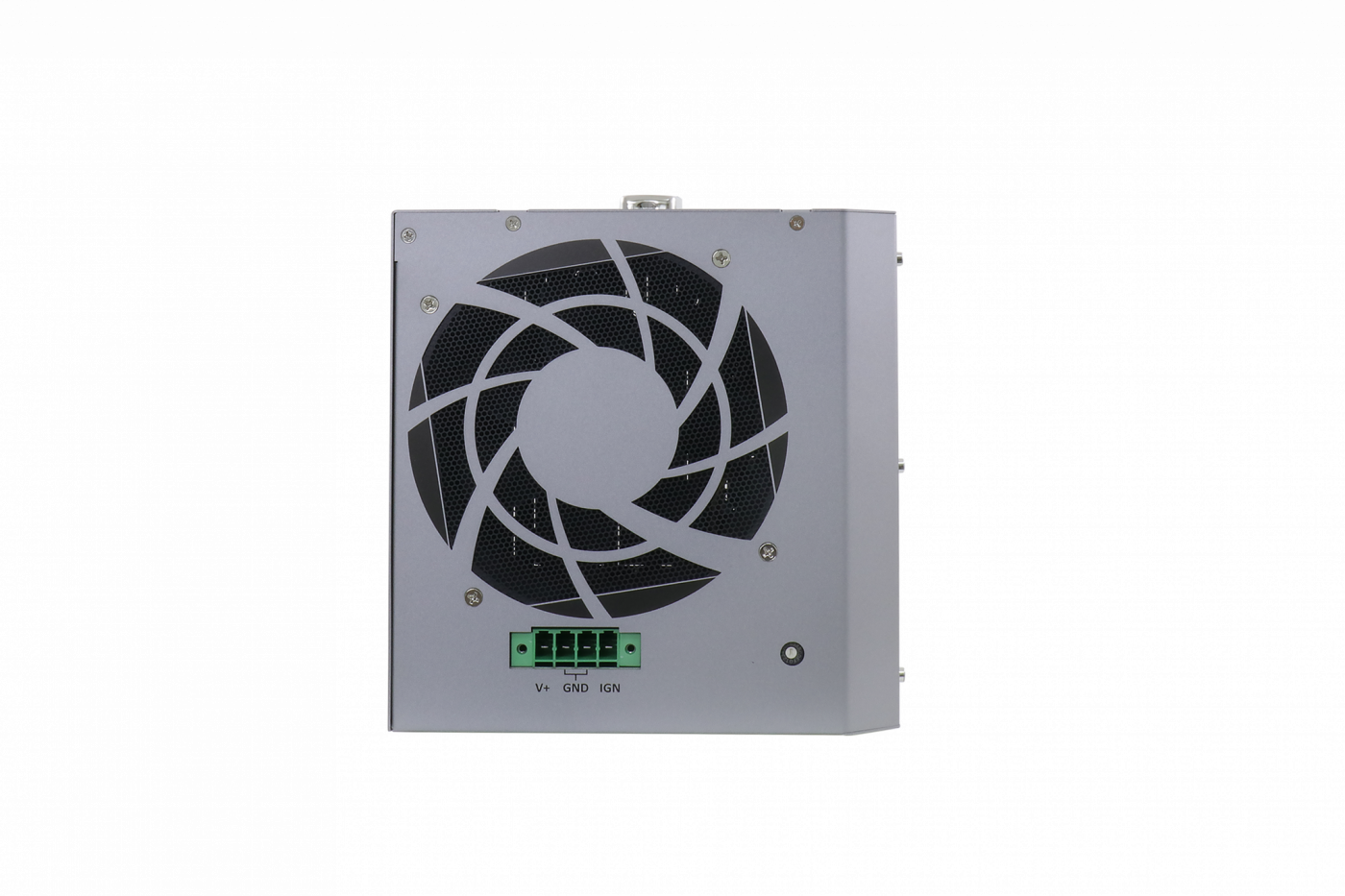

- 1 × 4-pin pluggable terminal block for 8–48V DC input
- Built-in ignition control
Mechanical:
- Dimensions: 190 mm (W) × 271 mm (D) × 198.5 mm (H)
- Weight: 5 kg
- Mounting: Wall-mount with damping brackets
Environmental:
- Operating Temperature:
- With 35W CPU: -25°C to 60°C
- With 65W CPU: -25°C to 50°C (or 60°C in 35W TDP mode)
- With Tesla T4 GPUs: 0°C to 50°C (per NVIDIA warranty policy)
- Storage Temperature: -40°C to 85°C
- Humidity: 10%–90%, non-condensing
- Vibration: 3 Grms, MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I
EMC Compliance: CE/FCC Class A (EN 55032 & EN 55024)
### 4. Functionality
The Nuvo-8240GC functions as a high-performance edge AI computing node capable of executing deep learning inference, machine vision, and data analytics workloads directly at the edge. Its dual Tesla T4 GPUs provide massive parallel processing power for AI frameworks such as TensorFlow, PyTorch, and Caffe, while the Intel® Xeon® or Core™ CPU handles general-purpose computing and system management tasks.
Use Cases and Applications:
- Industrial automation and robotics
- Smart city and intelligent transportation systems
- Video analytics and surveillance
- Autonomous vehicle data processing
- Edge-based deep learning inference
- Predictive maintenance and industrial IoT analytics
Compatibility:
Compatible with major AI frameworks, GPU-accelerated libraries (CUDA, TensorRT), and standard operating systems such as Windows 10 IoT Enterprise and Linux distributions (Ubuntu, CentOS).
### 5. Components & Accessories
Included Components:
- Nuvo-8240GC main system unit
- Wall-mount damping brackets
- Terminal block connector for DC power input
- User documentation and quick installation guide
Optional Accessories:
- PA-280W-ET2: 280W AC/DC power adapter (24V/11.67A, 16AWG/100cm cable, terminal block connectors, operating temperature -30°C to 60°C)
- Additional storage drives (2.5” HDD/SSD, M.2 NVMe SSD)
- M.2 LTE/5G communication modules
- Mini-PCIe I/O or communication expansion cards
Connectors:
- Lockable front-access GbE and USB ports for secure industrial connections
- 4-pin terminal block for DC input
- Standard audio and video connectors
### 6. Installation & Setup
Requirements:
- DC power source (8–48V) or optional AC/DC adapter
- Compatible Intel® CPU and DDR4 memory modules
- Supported NVIDIA® Tesla T4 GPUs
Mounting Options:
- Wall-mount installation using included damping brackets
- Optional rack or custom mounting solutions for industrial enclosures
Configuration:
- BIOS configuration for CPU TDP and power management
- RAID setup via BIOS or OS-level configuration
- GPU installation in dual PCIe x16 (8-lane) slots
- Optional ignition control setup for vehicle-based deployments
Setup Process:
1. Install CPU, memory, and storage devices.
2. Mount GPUs in designated PCIe slots.
3. Connect DC power via terminal block or optional adapter.
4. Configure BIOS settings for performance and thermal management.
5. Install operating system and GPU drivers.
6. Deploy AI frameworks and application software.
### 7. Performance & Capabilities
GPU Performance:
- Dual NVIDIA® Tesla T4 GPUs deliver up to 130 TFLOPS FP16 or 520 TOPS INT4 combined performance.
- Optimized for AI inference, computer vision, and deep learning acceleration.
CPU Performance:
- Up to 8-core/16-thread Intel® Xeon® E or Core™ i7 processors.
- Supports Intel® AMT 12.0 for remote management and TPM 2.0 for hardware security.
Memory & Storage Performance:
- Up to 128 GB DDR4 memory ensures smooth handling of large datasets.
- NVMe SSD support provides high-speed data access for AI workloads.
- RAID 0/1 configuration enhances data redundancy or throughput.
Efficiency & Reliability:
- Advanced thermal design maintains stable operation under full GPU load.
- Wide temperature and vibration tolerance ensure reliability in industrial and mobile environments.
- Power efficiency optimized through BIOS-configurable CPU TDP modes.
Limitations:
- Operating temperature limited to 0–50°C when dual Tesla T4 GPUs are installed (per NVIDIA policy).
- Requires wide-temperature SSDs for sub-zero operation.
### 8. Standards & Compliance
Environmental and Mechanical Standards:
- MIL-STD-810G (Vibration: Method 514.6, Category 4; Shock: Method 516.6, Procedure I)
- CE/FCC Class A compliance (EN 55032, EN 55024)
Safety and Reliability:
- Designed for industrial-grade operation with 3 Grms vibration resistance.
- Complies with NVIDIA® Tesla T4 thermal and operational guidelines.
Security and Management:
- TPM 2.0 hardware security module
- Intel® AMT 12.0 for remote system management
Quality Assurance:
- Manufactured under Neousys’ ISO-certified production standards.
- All specifications validated for industrial deployment and long-term reliability.
### 9. Additional Information
Warranty:
Standard manufacturer warranty provided by Neousys Technology (duration and terms vary by region).
Support:
- Technical documentation, drivers, and BIOS updates available via Neousys support portal.
- Dedicated technical support for system integration and GPU configuration.
Maintenance:
- Tool-free access to hot-swappable storage bay for easy maintenance.
- Regular firmware and BIOS updates recommended for optimal performance.
Software Updates:
- Compatible with NVIDIA® CUDA Toolkit and TensorRT updates.
- Supports OS-level updates for Windows and Linux environments.
Product Lifecycle:
- Designed for long-term availability and industrial deployment stability.
- Backward compatibility with existing Neousys edge AI systems.
Last Updated: June 7, 2020
Manufacturer Website: [www.neousys-tech.com](https://www.neousys-tech.com)
### Summary
The Neousys Nuvo-8240GC represents a new generation of ruggedized edge AI computing platforms, purpose-built for demanding industrial and AI-driven applications. With dual NVIDIA® Tesla T4 GPU support, Intel® Xeon® E or 9th/8th-Gen Core™ CPU options, and up to 128 GB ECC memory, it delivers exceptional computational throughput for real-time inference and analytics at the edge. Its robust mechanical design, wide-range DC input, and compliance with MIL-STD-810G standards make it ideal for deployment in harsh environments such as factories, vehicles, and outdoor installations.
Combining high performance, expandability, and industrial reliability, the Nuvo-8240GC is a comprehensive solution for organizations seeking to deploy advanced AI capabilities closer to data sources, reducing latency and enhancing operational intelligence in mission-critical applications.
### 1. Product Overview
Product Name: Nuvo-8240GC
Model Number: Nuvo-8240GC
Series: Nuvo Industrial Edge AI Computing Platform Series
Article Number: Nuvo-8240GC
Manufacturer: Neousys Technology Inc.
Product Type: Industrial-grade Edge AI Platform supporting dual NVIDIA® Tesla T4 GPUs and Intel® Xeon® E or 9th/8th-Gen Core™ processors
The Nuvo-8240GC is a ruggedized, high-performance edge AI computing platform engineered by Neousys Technology for advanced inference acceleration and GPU-accelerated industrial applications. Designed to operate reliably in harsh environments, it combines powerful CPU and GPU computing capabilities with robust mechanical design, wide-range DC power input, and extensive I/O connectivity.
### 2. Key Features
- Dual NVIDIA® Tesla T4 GPU Support:
Accommodates two NVIDIA® Tesla T4 GPUs, each delivering up to 65 TFLOPS FP16 or 260 TOPS INT4 performance, enabling up to 130 TFLOPS FP16 and 520 TOPS INT4 combined GPU computing power for AI inference and deep learning workloads.
- Intel® Xeon® E and 9th/8th-Gen Core™ CPU Compatibility:
Supports Intel® Xeon® E-series and 9th/8th-Gen Core™ i7/i5/i3 processors (LGA1151 socket) with up to 8 cores and 16 threads, providing flexible CPU performance options for diverse industrial and AI applications.
- Workstation-Grade Chipset:
Integrated Intel® C246 Platform Controller Hub ensures high reliability, ECC memory support, and compatibility with professional-grade components.
- Memory Capacity:
Up to 128 GB DDR4 2133 MHz ECC or non-ECC memory via four SODIMM slots, ensuring high data integrity and performance for compute-intensive tasks.
- Rugged Design for Harsh Environments:
Proven thermal design supports operation from -25°C to 60°C (depending on CPU configuration) and withstands vibration up to 3 Grms per MIL-STD-810G standards.
- Wide-Range DC Power Input:
Accepts 8–48V DC input with built-in ignition power control, ideal for in-vehicle and field-deployed applications.
- Flexible Expansion:
Two PCIe x16 (8-lane) slots for GPUs, two PCIe x8 (4-lane) slots for add-on cards, plus M.2 and mini-PCIe expansion options for communication, storage, or I/O modules.
- Comprehensive I/O Connectivity:
Includes dual Gigabit Ethernet ports, multiple USB 3.1 Gen1/Gen2 ports, serial ports, audio, and triple video outputs (VGA, DVI-D, DisplayPort).
- Storage Versatility:
Supports hot-swappable and internal 2.5” SATA drives, M.2 NVMe SSDs, and RAID 0/1 configurations for redundancy and performance.
- Industrial Reliability:
Features patented damping brackets, MIL-STD-810G compliance, and CE/FCC Class A EMC certification for dependable operation in industrial and transportation environments.
### 3. Technical Specifications
Processor Support:
- Intel® Xeon® E-series and 9th/8th-Gen Core™ CPUs (LGA1151 socket)
- Supported models include:
- Xeon® E-2176G, E-2278GE, E-2278GEL (8C/16T)
- Core™ i7-9700E, i7-9700TE, i7-8700, i7-8700T
- Core™ i5-9500E, i5-9500TE, i5-8500, i5-8500T
- Core™ i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset: Intel® C246 Platform Controller Hub
Graphics: Integrated Intel® UHD Graphics 630
Memory:
- Up to 128 GB DDR4 2133 MHz ECC/non-ECC SDRAM
- Four SODIMM slots
Expansion Bus:
- 2 × PCIe x16 slots (Gen3, 8-lanes each) for GPUs
- 2 × PCIe x8 slots (Gen3, 4-lanes each) for add-on cards
M.2 and Mini-PCIe:
- 1 × M.2 2242 B key socket (dual SIM mode with selected LTE module)
- 1 × M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory
- 2 × full-size mini-PCIe sockets (mux with mSATA)
Storage Interfaces:
- 1 × hot-swappable 2.5” SATA HDD/SSD tray
- 1 × internal 2.5” SATA port (supports RAID 0/1)
- 2 × full-size mSATA ports (shared with mini-PCIe)
I/O Interfaces:
- Ethernet: 2 × Gigabit Ethernet ports (Intel® I219-LM and I210-IT)
- USB: 4 × USB 3.1 Gen2 (10 Gbps), 4 × USB 3.1 Gen1 (5 Gbps), 1 × internal USB 2.0
- Serial Ports: 2 × software-programmable RS-232/422/485 (COM1/COM2)
- Video Outputs:
- 1 × VGA (1920 × 1200)
- 1 × DVI-D (1920 × 1200)
- 1 × DisplayPort (4096 × 2304)
- Audio: 1 × 3.5 mm jack (mic-in/speaker-out)
Power Supply:
- 1 × 4-pin pluggable terminal block for 8–48V DC input
- Built-in ignition control
Mechanical:
- Dimensions: 190 mm (W) × 271 mm (D) × 198.5 mm (H)
- Weight: 5 kg
- Mounting: Wall-mount with damping brackets
Environmental:
- Operating Temperature:
- With 35W CPU: -25°C to 60°C
- With 65W CPU: -25°C to 50°C (or 60°C in 35W TDP mode)
- With Tesla T4 GPUs: 0°C to 50°C (per NVIDIA warranty policy)
- Storage Temperature: -40°C to 85°C
- Humidity: 10%–90%, non-condensing
- Vibration: 3 Grms, MIL-STD-810G, Method 514.6, Category 4
- Shock: MIL-STD-810G, Method 516.6, Procedure I
EMC Compliance: CE/FCC Class A (EN 55032 & EN 55024)
### 4. Functionality
The Nuvo-8240GC functions as a high-performance edge AI computing node capable of executing deep learning inference, machine vision, and data analytics workloads directly at the edge. Its dual Tesla T4 GPUs provide massive parallel processing power for AI frameworks such as TensorFlow, PyTorch, and Caffe, while the Intel® Xeon® or Core™ CPU handles general-purpose computing and system management tasks.
Use Cases and Applications:
- Industrial automation and robotics
- Smart city and intelligent transportation systems
- Video analytics and surveillance
- Autonomous vehicle data processing
- Edge-based deep learning inference
- Predictive maintenance and industrial IoT analytics
Compatibility:
Compatible with major AI frameworks, GPU-accelerated libraries (CUDA, TensorRT), and standard operating systems such as Windows 10 IoT Enterprise and Linux distributions (Ubuntu, CentOS).
### 5. Components & Accessories
Included Components:
- Nuvo-8240GC main system unit
- Wall-mount damping brackets
- Terminal block connector for DC power input
- User documentation and quick installation guide
Optional Accessories:
- PA-280W-ET2: 280W AC/DC power adapter (24V/11.67A, 16AWG/100cm cable, terminal block connectors, operating temperature -30°C to 60°C)
- Additional storage drives (2.5” HDD/SSD, M.2 NVMe SSD)
- M.2 LTE/5G communication modules
- Mini-PCIe I/O or communication expansion cards
Connectors:
- Lockable front-access GbE and USB ports for secure industrial connections
- 4-pin terminal block for DC input
- Standard audio and video connectors
### 6. Installation & Setup
Requirements:
- DC power source (8–48V) or optional AC/DC adapter
- Compatible Intel® CPU and DDR4 memory modules
- Supported NVIDIA® Tesla T4 GPUs
Mounting Options:
- Wall-mount installation using included damping brackets
- Optional rack or custom mounting solutions for industrial enclosures
Configuration:
- BIOS configuration for CPU TDP and power management
- RAID setup via BIOS or OS-level configuration
- GPU installation in dual PCIe x16 (8-lane) slots
- Optional ignition control setup for vehicle-based deployments
Setup Process:
1. Install CPU, memory, and storage devices.
2. Mount GPUs in designated PCIe slots.
3. Connect DC power via terminal block or optional adapter.
4. Configure BIOS settings for performance and thermal management.
5. Install operating system and GPU drivers.
6. Deploy AI frameworks and application software.
### 7. Performance & Capabilities
GPU Performance:
- Dual NVIDIA® Tesla T4 GPUs deliver up to 130 TFLOPS FP16 or 520 TOPS INT4 combined performance.
- Optimized for AI inference, computer vision, and deep learning acceleration.
CPU Performance:
- Up to 8-core/16-thread Intel® Xeon® E or Core™ i7 processors.
- Supports Intel® AMT 12.0 for remote management and TPM 2.0 for hardware security.
Memory & Storage Performance:
- Up to 128 GB DDR4 memory ensures smooth handling of large datasets.
- NVMe SSD support provides high-speed data access for AI workloads.
- RAID 0/1 configuration enhances data redundancy or throughput.
Efficiency & Reliability:
- Advanced thermal design maintains stable operation under full GPU load.
- Wide temperature and vibration tolerance ensure reliability in industrial and mobile environments.
- Power efficiency optimized through BIOS-configurable CPU TDP modes.
Limitations:
- Operating temperature limited to 0–50°C when dual Tesla T4 GPUs are installed (per NVIDIA policy).
- Requires wide-temperature SSDs for sub-zero operation.
### 8. Standards & Compliance
Environmental and Mechanical Standards:
- MIL-STD-810G (Vibration: Method 514.6, Category 4; Shock: Method 516.6, Procedure I)
- CE/FCC Class A compliance (EN 55032, EN 55024)
Safety and Reliability:
- Designed for industrial-grade operation with 3 Grms vibration resistance.
- Complies with NVIDIA® Tesla T4 thermal and operational guidelines.
Security and Management:
- TPM 2.0 hardware security module
- Intel® AMT 12.0 for remote system management
Quality Assurance:
- Manufactured under Neousys’ ISO-certified production standards.
- All specifications validated for industrial deployment and long-term reliability.
### 9. Additional Information
Warranty:
Standard manufacturer warranty provided by Neousys Technology (duration and terms vary by region).
Support:
- Technical documentation, drivers, and BIOS updates available via Neousys support portal.
- Dedicated technical support for system integration and GPU configuration.
Maintenance:
- Tool-free access to hot-swappable storage bay for easy maintenance.
- Regular firmware and BIOS updates recommended for optimal performance.
Software Updates:
- Compatible with NVIDIA® CUDA Toolkit and TensorRT updates.
- Supports OS-level updates for Windows and Linux environments.
Product Lifecycle:
- Designed for long-term availability and industrial deployment stability.
- Backward compatibility with existing Neousys edge AI systems.
Last Updated: June 7, 2020
Manufacturer Website: [www.neousys-tech.com](https://www.neousys-tech.com)
### Summary
The Neousys Nuvo-8240GC represents a new generation of ruggedized edge AI computing platforms, purpose-built for demanding industrial and AI-driven applications. With dual NVIDIA® Tesla T4 GPU support, Intel® Xeon® E or 9th/8th-Gen Core™ CPU options, and up to 128 GB ECC memory, it delivers exceptional computational throughput for real-time inference and analytics at the edge. Its robust mechanical design, wide-range DC input, and compliance with MIL-STD-810G standards make it ideal for deployment in harsh environments such as factories, vehicles, and outdoor installations.
Combining high performance, expandability, and industrial reliability, the Nuvo-8240GC is a comprehensive solution for organizations seeking to deploy advanced AI capabilities closer to data sources, reducing latency and enhancing operational intelligence in mission-critical applications.
- PA-280W-ET2 - 280W AC/DC power adapter 24V/11.67A 16AWG
