Name: Fanless IP66 Intel Core computer with four M12 PoE+ Ethernet ports.
Brand: Neousys Technology
SKU: Nuvo-9650AWP-PoE

INDUSTRIAL SOLUTION?

Discover embedded, communication and automation solutions tailored to your application.

Fanless IP66 Intel Core computer with four M12 PoE+ Ethernet ports.

Nuvo-9650AWP-PoE

Fanless IP66 Intel Core computer with four M12 PoE+ Ethernet ports.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer

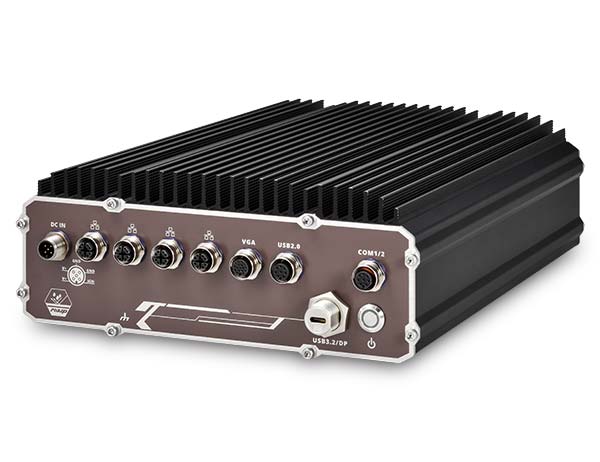

The Nuvo-9650AWP-PoE is a fanless, IP66-protected embedded computer with four M12 Ethernet ports and IEEE 802.3at PoE+, providing a total power budget of 100 W. It supports 14th, 13th and 12th Gen Intel Core processors and up to 128 GB of DDR5-4800 memory. A waterproof USB 3.2 Type-C port with DisplayPort, USB 2.0, VGA and isolated serial interfaces enable flexible integration. Storage options include two SATA bays and a PCIe Gen4 x4 NVMe socket. Its 8 to 48 VDC input, ignition control and MIL-STD-810H-tested ruggedness make it suitable for harsh industrial and in-vehicle environments.

PoE+ variant of the IP66-rated Nuvo-9650AWP platform, supporting 14th, 13th and 12th Gen Intel Core LGA1700 processors and up to 128 GB DDR5-4800. It offers four M12 Ethernet ports with optional IEEE 802.3at PoE+ PSE and a 100 W total power budget, plus waterproof USB 3.2 Type-C with DisplayPort, USB 2.0, VGA and isolated serial ports. Storage includes two 2.5-inch SATA bays and PCIe Gen4 x4 NVMe. It accepts 8 to 48 VDC, includes ignition control and is qualified for MIL-STD-810H shock and vibration.

Ingress Protection IP66
Supported Processor Generations Intel Core 14th, 13th and 12th Gen
Processor TDP 35 or 65 W
Chipset Intel H610E
Maximum Memory 128 GB
Memory Type DDR5-4800 SODIMM, two slots
PoE+ Ethernet Ports 4 ports
Ethernet Speeds 3x 2.5GbE and 1x GbE
PoE Standard IEEE 802.3at PoE+ PSE
Total PoE Power Budget 100 W
Ethernet Connector M12 X-coded
External USB 3.2 Ports 1x USB 3.2 Gen1 Type-C
External USB 2.0 Ports 2 ports
DisplayPort Maximum Resolution 4096 x 2304 pixels
VGA Maximum Resolution 1920 x 1200 pixels
Serial Interfaces 1x isolated RS-232; 1x isolated RS-422/485
SATA Storage Bays 2x internal 2.5-inch HDD/SSD
NVMe Socket 1x M.2 2280 M key, PCIe Gen4 x4
Mini PCI Express Sockets 2x full-size Mini PCIe, PCIe plus USB 2.0
Cellular Expansion Socket 1x M.2 2242/3052 B key with SIM slot for 5G/4G
DC Input Range 8–48 VDC
DC Input Connector M12 L-coded
Ignition Power Control Built-in
Dimensions 225 x 286 x 90 mm
Weight 5.25 kg
Form Factor Fanless IP66 rugged embedded computer

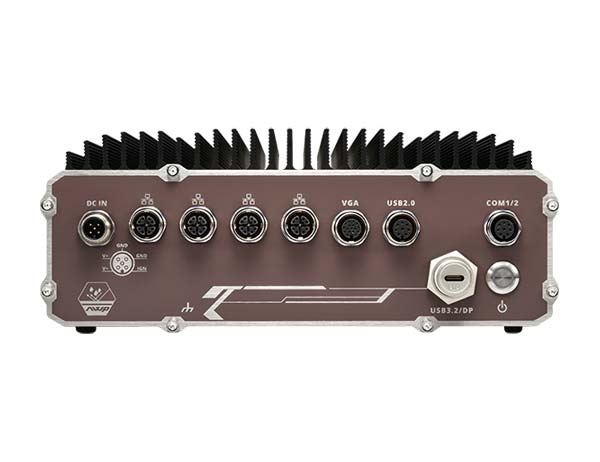

Connector 4x M12 X-coded PoE+ Ethernet; M12 A-coded USB/VGA/serial; M12 L-coded DC; waterproof USB Type-C
Dimensions 225 x 286 x 90 mm
Maximum Operating Temperature 70 °C
Minimum Operating Temperature -25 °C
Storage Temperature -40 to 85 °C
Humidity 10–90, non-condensing % RH
Operating Temperature -25°C to 70°C with 35W CPU; -25°C to 70°C at 35W TDP or -25°C to 50°C at 65W TDP with 65W CPU
Vibration Standard MIL-STD-810H Method 514.8 Category 4
Shock Standard MIL-STD-810H Method 516.8 Procedure I
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
Bus Interface 2x full-size Mini PCIe; M.2 2280 M key PCIe Gen4 x4; M.2 2242/3052 B key
Resolution DisplayPort up to 4096 x 2304; VGA up to 1920 x 1200
Key Features IP66 waterproof and dustproof design; fanless operation; 14th/13th/12th Gen Intel Core support; up to 128 GB DDR5-4800; 4x M12 PoE+ Ethernet; 100 W PoE power budget; waterproof USB 3.2 Type-C with DisplayPort; 8–48 VDC input with ignition control; MIL-STD-810H shock and vibration compliance
Accessories PA-280W-CW6P-2P, Cblkit-M12-Nuvo-9650AWP-PoE, Cbl-TpCPlug-DPM-1M, Cbl-TpCPlug-U3TA-50CM, Cbl-TpCPlug-UTpCF-50CM, Wmkit-Nuvo9650AWP
