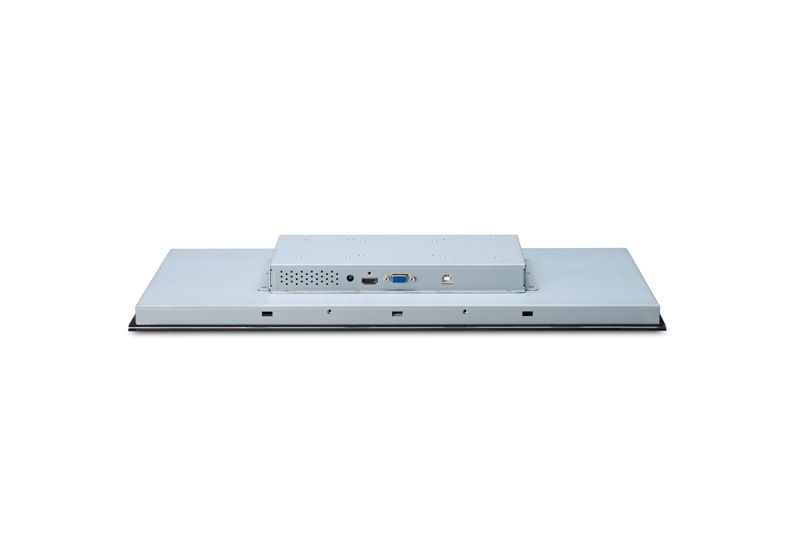

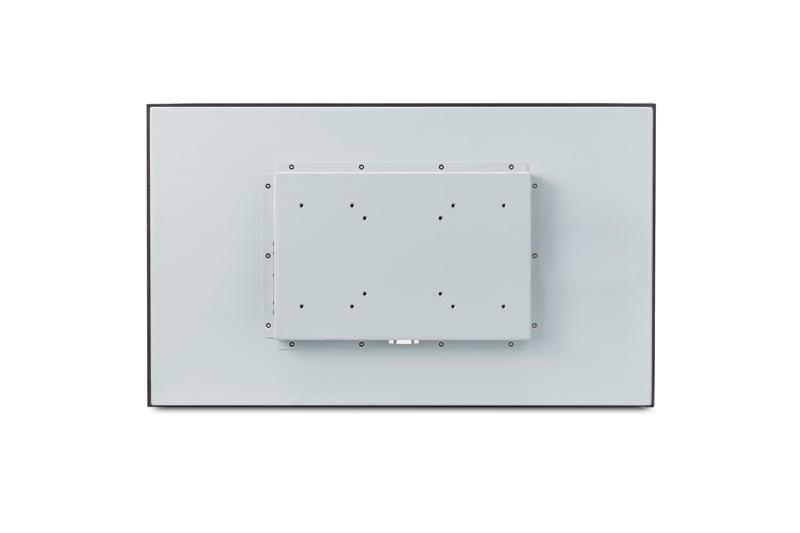

15.6-inch widescreen industrial touch monitor
15.6-inch widescreen industrial touch monitor 15.6-inch widescreen industrial touch monitor 15.6-inch widescreen industrial touch monitor 15.6-inch widescreen industrial touch monitor

OM-156

15.6-inch widescreen industrial touch monitor
Request a quote
  • Manufacturer Adlink Technology Inc.
  • Category: No category
  • The OM-156 is a 15.6-inch widescreen open-frame industrial monitor with Full HD resolution for modern control and display applications. The panel provides 1920 x 1080 pixels, 200 nits brightness, and an LED backlight rated for up to 50,000 hours. Its 10-point PCAP touchscreen with anti-fingerprint surface supports precise interaction. HDMI, VGA, and USB Type-B for touch are provided. With front IP65 protection, air bonding, support for VESA, panel, and wall mounting, and an operating range of 0°C to 70°C, the monitor is built for industrial installations.
15.6-inch open-frame industrial touch monitor with 1920 x 1080 resolution, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 70°C.
  • Display Size 15.6 inch
  • Maximum Resolution 1920 x 1080
  • Aspect Ratio 16:9
  • Color Depth 16.7M
  • Brightness 200 nits
  • Backlight Life 50000 hours
  • Viewing Angle 89/89/89/89
  • Contrast Ratio 1000:1
  • Bonding Air bonding
  • Touchscreen 10-point PCAP
  • Surface Treatment Anti-fingerprint coating
  • USB Port USB Type-B for touch
  • Video Input HDMI x1; VGA x1
  • Audio No audio
  • Operating Temperature 0 to 70 °C
  • Storage Temperature -20 to 70 °C
  • Humidity 10 to 80 @ 40 non-condensing %
  • Surface Hardness 7H
  • Vibration 1G random 5 to 500Hz
  • Shock 20G acceleration part to part, 11ms
  • IP Rating Front IP65
  • Operating Temperature 0°C to 70°C
  • Certifications CE/FCC
  • Power Input DC 12V 5A Max.
  • Power Consumption 13.9 W
  • Net Weight 2.9 kg
  • Gross Weight 2.5 kg
  • Packing Dimensions 430 x 610 x 165 mm
  • VESA Mount MIS-D 75 x 75 mm; 100 x 100 mm
  • Mounting Panel and wall mount
  • Panel Mount Clips Qty 14
  • Form Factor Open-frame
  • Connector USB Type-B; HDMI; VGA
  • Dimensions 370.8 x 371.8 x 49.7 mm
  • Resolution 1920 x 1080
  • Key Features 15.6-inch widescreen LCD; Full HD; LED backlight; 10-point PCAP touchscreen; anti-fingerprint coating; HDMI input; VGA input; USB Type-B for touch; front IP65; panel/wall/VESA mount
  • Accessories 31-62156-1010-A0, 33-50003-0000-A0, 30-01012-0000
