Comprehensive Product Summary – OPD-1126 12.1" SVGA Open Frame Display Monitor

---

### 1. Product Overview

Product Name: 12.1" SVGA Open Frame Display Monitor
Model Number: OPD-1126
Article Number: OPD-1126
Series: OPD Industrial Display Series
Manufacturer: Aplex Technology Inc.

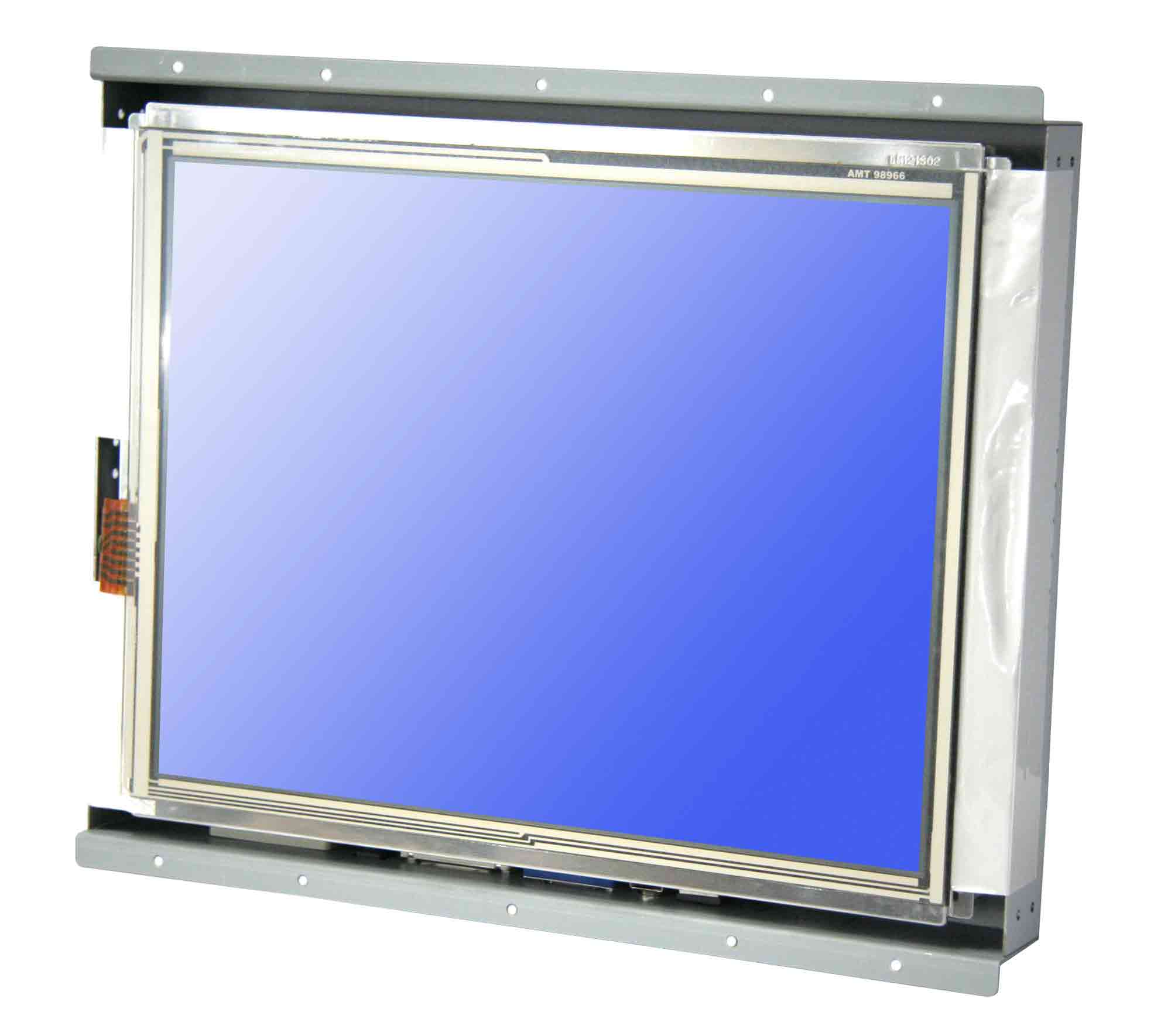

The Aplex OPD-1126 is a 12.1-inch open-frame industrial display monitor designed for integration into embedded systems, kiosks, industrial control panels, and automation environments. It combines a rugged steel chassis with a high-quality TFT LCD panel, providing reliable visual performance in demanding industrial and commercial applications. The monitor supports multiple video input options and optional touch screen interfaces, making it a versatile solution for system integrators and OEMs requiring a compact, durable, and configurable display platform.

---

### 2. Key Features

- 12.1-inch SVGA TFT LCD Panel: Delivers a native resolution of 800 × 600 pixels, providing clear and sharp image quality suitable for industrial visualization and control interfaces.
- Open Frame Design: Engineered for easy integration into custom enclosures, kiosks, or control cabinets. The open-frame structure allows flexible mounting and seamless system integration.
- Multiple Video Inputs: Standard VGA input, with optional DVI, RCA (Video), and S-Video interfaces for compatibility with a wide range of video sources.
- Optional Touch Screen: Available with RS-232 or USB touch interface options, enabling interactive control and user input in industrial or commercial applications.
- On-Screen Display (OSD) Control: Rear-mounted OSD control buttons allow users to adjust brightness, contrast, color, and other display parameters easily.
- Wide Power Input Range: Standard 12V DC input, with optional 11–28V DC range for flexible power configurations in industrial environments.
- Rugged Steel Chassis: Durable construction ensures mechanical stability and protection against vibration and shock, suitable for harsh operating conditions.
- VESA 75 Mounting Compatibility: Supports VESA 75 mm mounting pattern for standardized installation on brackets, arms, or panel mounts.
- Industrial-Grade Environmental Tolerance: Designed to operate reliably in temperature ranges from 0°C to 50°C, with storage capability from –20°C to 60°C.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display Panel:
- Type: 12.1-inch Color TFT LCD
- Resolution: 800 × 600 (SVGA)
- Aspect Ratio: 4:3
- Display Colors: 16.2 million (typical)
- Brightness: (Not specified, typically 250–400 cd/m² for this class)
- Viewing Angle: (Not specified, typically 140°/120° H/V)

Input Interfaces:
- Standard: 1 × VGA (DB-15 connector)
- Optional: 1 × DVI, 1 × RCA (Video), 1 × S-Video
- Touch Interface (optional): RS-232 or USB

Power Input:
- Standard: DC 12V
- Optional Range: DC 11–28V
- Connector: DC power jack (rear panel)

Mechanical Construction:
- Chassis Material: Steel
- Mounting: Open frame with VESA 75 mm mount
- Dimensions: 300 mm (W) × 250 mm (H) × 38 mm (D)
- Weight: (Not specified; estimated 2.5–3.0 kg typical for steel chassis 12.1" display)

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: –20°C to 60°C (–4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random)
- Shock Resistance: 15G peak acceleration, 11 ms duration

Certifications:
- CE
- FCC Class A

---

### 4. Functionality

The OPD-1126 functions as a high-reliability industrial display module designed for embedded integration. It operates by receiving video signals through its VGA or optional DVI/Video/S-Video inputs and rendering them on its 12.1-inch TFT LCD panel. The optional touch screen layer, when installed, allows interactive control via either RS-232 or USB communication interfaces.

Typical Use Cases and Applications:
- Industrial Automation: Human-Machine Interface (HMI) terminals, control panels, and monitoring systems.
- Kiosk Systems: Information kiosks, ticketing machines, and self-service terminals.
- Embedded Systems: Integration into OEM equipment, testing instruments, or industrial PCs.
- Transportation and Logistics: Vehicle-mounted displays, warehouse terminals, and control consoles.
- Retail and Point-of-Sale (POS): Customer-facing displays, digital signage, and transaction terminals.

Compatibility:
The OPD-1126 is compatible with standard VGA and DVI video outputs from PCs, embedded controllers, and industrial computers. The optional touch interface supports standard operating systems with appropriate drivers (Windows, Linux, or embedded OS variants).

---

### 5. Components & Accessories

Included Components:
- OPD-1126 Display Module (12.1" TFT LCD in open-frame steel chassis)
- VGA input connector (standard)
- DC power input connector (12V)
- OSD control buttons (rear-mounted)

Optional Accessories and Add-ons:
- Touch Screen Kit: Resistive touch panel with RS-232 or USB interface cable.
- Video Input Options: DVI, RCA (Video), or S-Video connectors for multimedia compatibility.
- Power Adapter: External AC-to-DC adapter (12V or 24V depending on configuration).
- Mounting Brackets: VESA 75-compatible brackets or panel-mount kits for integration.
- Cables: VGA, DVI, or USB cables depending on configuration.

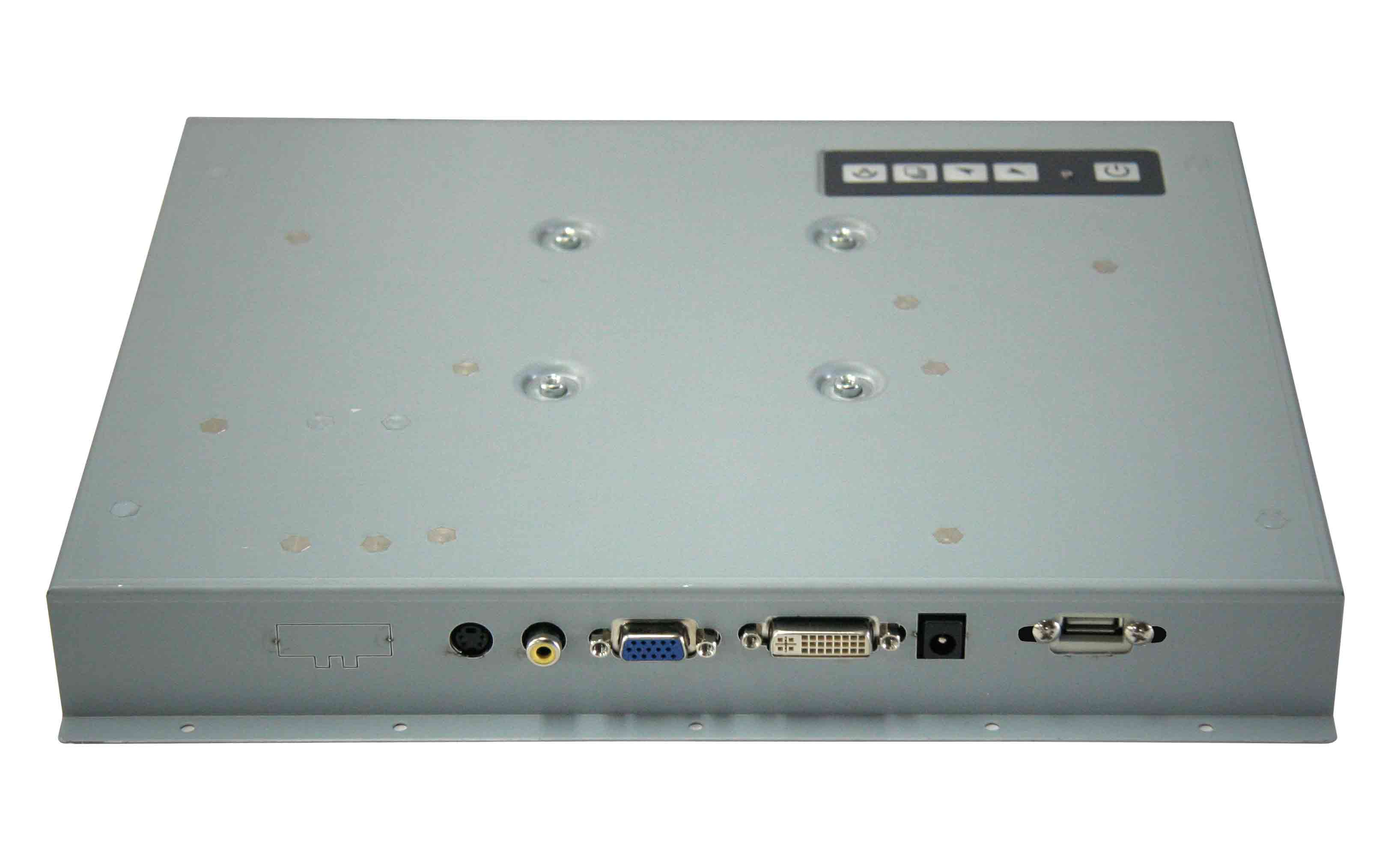

Connectors (Rear Panel Layout):
- 1 × DC Power Input
- 1 × VGA Input
- Optional: 1 × DVI, 1 × S-Video, 1 × RCA (Video)
- Optional: 1 × RS-232 or 1 × USB (for touch screen interface)

---

### 6. Installation & Setup

Installation Requirements:
- Power Supply: 12V DC regulated power source (or 11–28V DC optional input).
- Mounting Surface: Compatible with VESA 75 mm mounting pattern or custom open-frame integration.
- Video Source: VGA or DVI output from host system.

Mounting Options:
- Open Frame Integration: Designed to be mounted behind a front panel or enclosure window.
- VESA 75 Mounting: Allows attachment to standard monitor arms, brackets, or panel mounts.

Configuration and Setup:
1. Power Connection: Connect the DC power input to a regulated 12V DC source.
2. Video Connection: Connect the VGA (or optional DVI/Video) cable to the host system.
3. Touch Interface (if applicable): Connect the RS-232 or USB cable to the host controller.
4. OSD Adjustment: Use the rear-mounted OSD buttons to configure brightness, contrast, and display settings.
5. System Integration: Secure the monitor within the enclosure or mounting frame using the provided mounting holes or brackets.

---

### 7. Performance & Capabilities

Display Performance:
The OPD-1126 provides stable and consistent image quality with SVGA resolution, suitable for displaying control data, graphics, and user interfaces. The TFT LCD technology ensures good color reproduction and response time for industrial visualization tasks.

Power Efficiency:
Operating on a 12V DC supply, the monitor is optimized for low power consumption, making it suitable for continuous operation in embedded or mobile systems.

Durability and Reliability:
The steel chassis construction and industrial-grade components ensure long-term reliability under vibration and shock conditions. The display is designed for 24/7 operation in industrial environments.

Environmental Robustness:
With an operating temperature range of 0°C to 50°C and resistance to vibration and shock, the OPD-1126 is well-suited for factory floors, transportation systems, and other demanding environments.

Limitations:
- Resolution limited to 800 × 600 (SVGA), which may not be suitable for high-definition applications.
- Brightness and contrast specifications are not explicitly stated and may vary depending on panel configuration.
- Touch functionality is optional and may require additional configuration or driver installation.

---

### 8. Standards & Compliance

The OPD-1126 adheres to international standards for electromagnetic compatibility and safety, ensuring reliable operation in industrial and commercial environments.

Certifications and Compliance:
- CE (Conformité Européenne): Complies with European safety, health, and environmental protection requirements.
- FCC Class A: Meets U.S. Federal Communications Commission standards for electromagnetic interference (EMI) in industrial and commercial environments.

Industry Standards Supported:
- VESA Mounting Standard: 75 mm pattern for universal mounting compatibility.
- Video Standards: VGA, DVI, and analog video formats (RCA, S-Video).
- Touch Interface Standards: RS-232 serial communication and USB HID (optional).

These certifications confirm that the OPD-1126 is suitable for deployment in regulated industrial and commercial installations.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor, commonly 1–2 years) covering defects in materials and workmanship under normal use.

Technical Support:
Aplex provides technical documentation, driver support (for touch screen models), and integration assistance. Firmware and driver updates are available through the manufacturer’s support channels.

Maintenance:
- Cleaning: Use a soft, dry cloth to clean the display surface. Avoid solvents or abrasive materials.
- Ventilation: Ensure adequate airflow around the chassis to prevent overheating.
- Periodic Inspection: Check connectors and mounting hardware periodically for secure attachment.

Product Lifecycle and Updates:
The OPD-1126 is part of Aplex’s industrial display product line, designed for long-term availability and stable component sourcing. Future revisions may include updated LCD panels or enhanced input options while maintaining mechanical and electrical compatibility.

---

### Summary Table

| Parameter | Specification |
|----------------|-------------------|
| Model | OPD-1126 |
| Display Size | 12.1" TFT LCD |
| Resolution | 800 × 600 (SVGA) |
| Aspect Ratio | 4:3 |
| Input Interfaces | VGA (standard), DVI/S-Video/RCA (optional) |
| Touch Interface | RS-232 or USB (optional) |
| Power Input | 12V DC (standard), 11–28V DC (optional) |
| Chassis Material | Steel |
| Mounting | Open Frame / VESA 75 mm |
| Dimensions (W × H × D) | 300 × 250 × 38 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 60°C |
| Humidity | 10–90% @ 40°C, non-condensing |
| Vibration | 1G peak, 5–500 Hz (random) |
| Shock | 15G peak, 11 ms duration |
| Certifications | CE, FCC Class A |
| Manufacturer | Aplex Technology Inc. |

---

### Conclusion

The Aplex OPD-1126 12.1" SVGA Open Frame Display Monitor is a robust, versatile, and integration-ready display solution engineered for industrial and embedded applications. Its combination of a durable steel chassis, flexible input options, optional touch functionality, and wide power input range makes it ideal for OEMs and system integrators seeking a reliable display component for control systems, kiosks, and automation interfaces. With compliance to CE and FCC Class A standards, the OPD-1126 ensures dependable performance and regulatory conformity in professional environments.
