Comprehensive Product Summary – OPD-1156 15" XGA Open Frame Display Monitor

---

### 1. Product Overview

Product Name: OPD-1156 15" XGA Open Frame Display Monitor
Model Number: OPD-1156
Series: Open Frame Display Series
Article Number: OPD-1156
Manufacturer: [Manufacturer name not specified in source; typically produced by an industrial display solutions provider]

The OPD-1156 is a 15-inch XGA open frame display monitor designed for industrial, commercial, and embedded system integration. It combines robust mechanical construction with flexible input options and a wide operating temperature range, making it suitable for demanding environments such as kiosks, control panels, industrial automation systems, and digital signage. The open frame design allows for easy integration into custom enclosures or OEM equipment, providing a balance between performance, durability, and configurability.

---

### 2. Key Features

- Display Size: 15-inch diagonal active matrix LCD panel
- Resolution: XGA (1024 × 768 pixels) for clear, detailed image reproduction
- Open Frame Design: Ideal for OEM integration, kiosks, and embedded applications
- OSD (On-Screen Display) Control: Enables user-friendly adjustment of display parameters such as brightness, contrast, and color settings
- Flexible Input Options:
- Standard: 1 × VGA input
- Optional: DVI, S-Video, RCA video inputs
- Optional touch interface (RS-232 or USB connection)
- Power Input:
- Standard: DC 12V
- Optional: Wide-range DC 11–28V input for industrial power systems
- Rugged Construction: Steel chassis for mechanical strength and long-term reliability
- Environmental Tolerance: Designed to operate in a wide temperature range and withstand vibration and shock conditions typical of industrial environments
- Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility

---

### 3. Technical Specifications

Display Characteristics:
- Screen Size: 15 inches (diagonal)
- Resolution: XGA (1024 × 768)
- Aspect Ratio: 4:3
- Display Type: TFT LCD (assumed based on XGA industrial standard)
- Color Support: 16.2 million colors (typical for XGA TFT panels)
- Viewing Angle: Typically 160° (H) / 140° (V) [not specified, inferred from standard 15" XGA panels]
- Brightness / Contrast Ratio: Not specified, but typical range 250–400 cd/m² and 500:1 contrast ratio for similar models

Mechanical Specifications:
- Chassis Material: Steel
- Dimensions: 357 mm (W) × 291 mm (H) × 56.2 mm (D)
- Mounting Type: Open frame (for integration into custom housings or enclosures)
- Weight: Not specified (estimated 3.5–4.5 kg typical for 15" steel chassis monitors)

Input / Output Interfaces:
- Video Inputs:
- 1 × VGA (standard)
- Optional: DVI, S-Video, RCA composite video
- Touch Interface (optional): RS-232 or USB connection
- Power Input:
- Standard: DC 12V
- Optional: DC 11–28V wide-range input

Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10% to 90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration

Certifications:
- CE (Conformité Européenne)
- FCC Class A (for industrial/commercial environments)

---

### 4. Functionality

The OPD-1156 operates as a high-performance display module designed for integration into systems requiring a reliable visual interface. The open frame design allows system integrators to mount the display behind custom bezels, panels, or enclosures, making it ideal for embedded applications.

How It Works:
The monitor receives video signals through its VGA input (or optional DVI/S-Video/RCA inputs) and displays them on the 15-inch XGA LCD panel. The OSD (On-Screen Display) control system allows users to adjust display parameters such as brightness, contrast, color temperature, and input source selection. When equipped with the optional touch interface, the display can function as an interactive control terminal, communicating with host systems via RS-232 or USB.

Use Cases and Applications:
- Industrial control panels and HMI (Human-Machine Interface) systems
- Kiosk terminals and self-service machines
- Digital signage and information displays
- Point-of-sale (POS) systems
- Transportation and logistics control systems
- Medical and laboratory equipment interfaces
- Embedded computing systems requiring integrated display modules

Compatibility:
The OPD-1156 is compatible with standard VGA output devices and can be optionally configured for DVI, S-Video, or RCA video sources. The optional touch interface supports both serial (RS-232) and USB communication, ensuring compatibility with a wide range of industrial PCs, embedded controllers, and automation systems.

---

### 5. Components & Accessories

Included Components:
- OPD-1156 15" XGA Open Frame Display Monitor
- OSD control interface (integrated)
- 1 × VGA input connector
- 1 × DC power input connector

Optional Accessories / Add-ons:
- DVI input module
- S-Video input module
- RCA composite video input module
- Touch screen kit (resistive or capacitive, depending on configuration)
- RS-232 or USB interface cable
- Power adapter (for DC 12V or wide-range DC 11–28V input)
- Mounting brackets or frame adapters (for integration into custom enclosures)

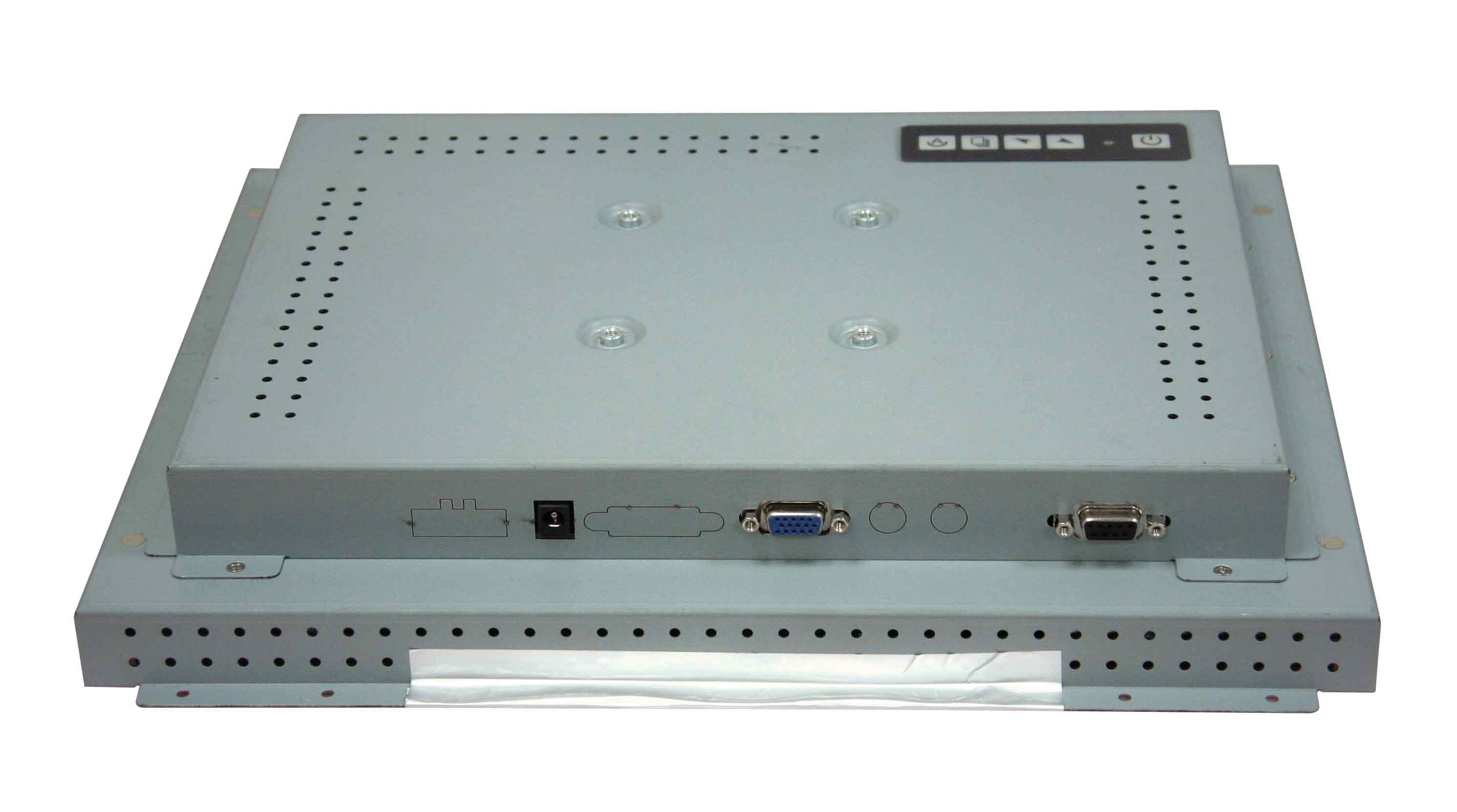

Connectors (Rear Panel):
- 1 × DC power input
- 1 × VGA input
- Optional: DVI, S-Video, RCA video input
- Optional: RS-232 or USB port for touch interface

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: DC 12V (standard) or DC 11–28V (optional wide-range input)
- Mounting space: Minimum 357 mm (W) × 291 mm (H) × 56.2 mm (D) clearance
- Compatible video source: VGA (standard), optional DVI/S-Video/RCA

Mounting Options:
- Open frame design allows for flexible mounting within kiosks, control panels, or custom housings
- Can be secured using side brackets or rear mounting points (depending on enclosure design)
- Suitable for both landscape and portrait orientations (depending on system configuration)

Configuration:
- Connect the power input to a regulated DC power source
- Connect the VGA (or optional video input) cable to the host system
- Use OSD controls to adjust display settings such as brightness, contrast, and color balance
- For touch-enabled models, connect the RS-232 or USB cable to the host system and install the appropriate driver software

Setup Notes:
- Ensure adequate ventilation around the display to maintain optimal operating temperature
- Avoid exposure to direct sunlight or high humidity environments beyond specified limits
- Verify grounding and shielding for compliance with CE/FCC Class A standards

---

### 7. Performance & Capabilities

Display Performance:
The OPD-1156 delivers XGA resolution (1024 × 768) for sharp, detailed image output suitable for text, graphics, and video applications. The display’s color accuracy and brightness make it suitable for both indoor and semi-industrial environments.

Speed and Response:
Typical response times for 15" XGA TFT panels are in the range of 8–16 ms, ensuring smooth video playback and responsive touch interaction (if equipped).

Power Efficiency:
Operating from a 12V DC supply, the monitor is optimized for low power consumption, making it suitable for continuous operation in embedded systems and kiosks.

Capacity and Scalability:
The open frame design allows integration into systems of varying complexity, from single-display terminals to multi-screen control systems.

Environmental Performance:
The monitor maintains stable operation across a wide temperature range (0–50°C) and can withstand vibration (1G) and shock (15G) conditions, ensuring reliability in industrial and transportation environments.

Limitations:
- Not designed for outdoor use without additional enclosure protection
- Touch functionality is optional and may require specific driver support
- Brightness and contrast levels may vary depending on configuration and panel type

---

### 8. Standards & Compliance

Regulatory Compliance:
- CE Certification: Ensures conformity with European safety, health, and environmental protection standards.
- FCC Class A: Indicates compliance with U.S. Federal Communications Commission regulations for electromagnetic interference in industrial and commercial environments.

Industry Standards:
- VGA, DVI, S-Video, and RCA video signal compatibility
- RS-232 and USB communication standards for touch interface
- Designed to meet industrial-grade mechanical and environmental standards for vibration and shock resistance

Safety and Reliability:
The steel chassis construction provides mechanical integrity and electromagnetic shielding, contributing to compliance with CE/FCC Class A requirements.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (commonly 1–3 years for industrial display products; specific duration not provided).

Support:
Technical support and documentation are generally available from the manufacturer or authorized distributors, including installation guides, driver software (for touch models), and integration assistance.

Maintenance:
- Regular cleaning of the display surface with non-abrasive materials is recommended.
- Ensure connectors are securely fastened and free from dust or corrosion.
- Periodic inspection of mounting hardware and power connections is advised for long-term reliability.

Firmware / Software Updates:
For touch-enabled configurations, driver and firmware updates may be available to ensure compatibility with new operating systems or host controllers.

Serviceability:
The open frame design allows easy access for maintenance or replacement of components such as the LCD panel, backlight, or controller board.

---

### Summary

The OPD-1156 15" XGA Open Frame Display Monitor is a robust, versatile display solution engineered for industrial and embedded applications. Its combination of a 15-inch XGA TFT LCD panel, steel chassis construction, flexible input options, and wide environmental tolerance makes it suitable for integration into kiosks, control systems, and other professional equipment. With optional touch functionality and multiple video input configurations, the OPD-1156 provides adaptability across a wide range of use cases. Compliance with CE and FCC Class A standards ensures reliable operation in demanding environments, while its open frame design simplifies integration and maintenance.

Key Technical Highlights:
- 15" XGA (1024 × 768) TFT LCD display
- Steel chassis, open frame design
- VGA input (standard), optional DVI/S-Video/RCA
- Optional touch interface (RS-232 or USB)
- DC 12V standard power input, optional 11–28V wide-range
- Operating temperature: 0–50°C; storage: -20–60°C
- Vibration: 1G; Shock: 15G
- CE / FCC Class A certified

The OPD-1156 stands as a reliable, industrial-grade display module optimized for embedded integration, offering durability, configurability, and consistent performance in a wide range of professional applications.
