1. Product Overview
Product Name: OPD-1176
Model Number: OPD-1176
Series: Open Frame Display Series
Article Number: OPD-1176
Manufacturer: [Manufacturer not specified in source content; typically produced by an industrial display solutions provider specializing in open-frame monitors for embedded and OEM integration.]

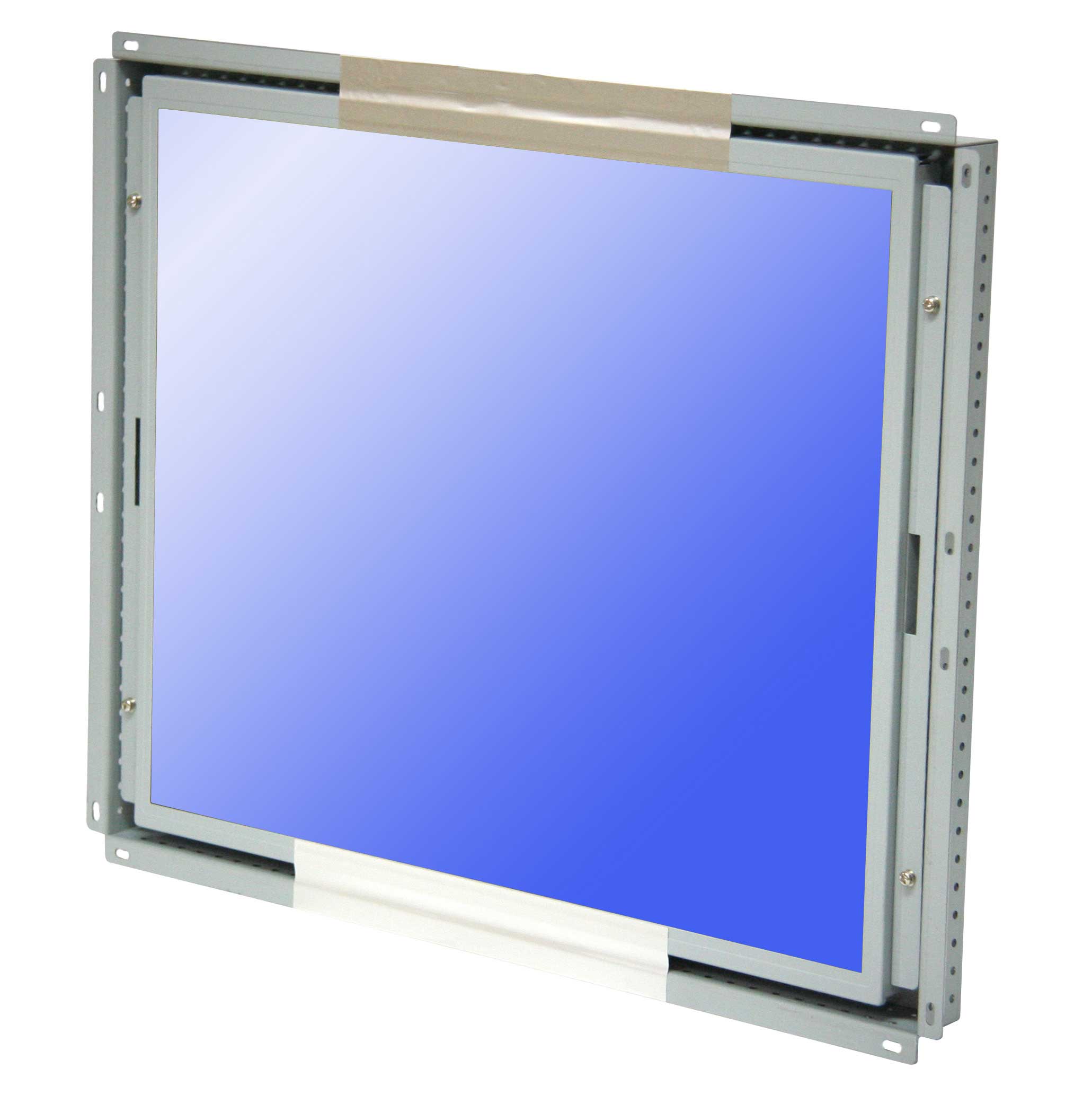

The OPD-1176 is a 17-inch SXGA Open Frame Display Monitor designed for industrial, commercial, and embedded system applications. It provides a robust mechanical design, flexible input options, and reliable performance under a wide range of environmental conditions. The open-frame construction allows for easy integration into kiosks, control panels, industrial machinery, and other custom enclosures.
2. Key Features
- Display Size: 17-inch diagonal active display area
- Resolution: SXGA (1280 × 1024 pixels) for sharp, high-definition image quality
- Open Frame Design: Engineered for OEM and system integrators, allowing seamless integration into custom housings or enclosures
- OSD (On-Screen Display) Control: Provides user-friendly access to display settings such as brightness, contrast, color temperature, and input source selection
- Flexible Input Options: Standard VGA input with optional DVI, S-Video, and RCA video interfaces for versatile connectivity
- Touchscreen Support (Optional): Available with resistive or capacitive touch options, supporting RS-232 or USB interface for interactive applications
- Power Input Flexibility: Standard DC 12V input, with optional wide-range DC 11–28V input for industrial and vehicular environments
- Durable Construction: Steel chassis ensures mechanical strength, rigidity, and long-term durability in demanding environments
- Environmental Robustness: Designed to operate in a wide temperature range and withstand vibration and shock conditions typical of industrial settings
- Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety
3. Technical Specifications
Display Characteristics:
- Screen Size: 17 inches (diagonal)
- Resolution: SXGA (1280 × 1024 pixels)
- Aspect Ratio: 5:4
- Display Type: TFT LCD (assumed based on SXGA industrial display standard)
- Viewing Angle, Brightness, Contrast Ratio: [Not specified in source; typically 250–350 cd/m² brightness and 700:1 contrast ratio for this class of display.]
Mechanical Specifications:
- Chassis Material: Steel
- Dimensions: 410 mm (W) × 330 mm (H) × 58.8 mm (D)
- Mounting Type: Open frame, suitable for panel or rear mounting within custom enclosures
- Weight: [Not specified; estimated 4–6 kg typical for 17" steel chassis open-frame displays.]
Input/Output Interfaces:
- Video Inputs:
- 1 × VGA (standard)
- Optional: DVI, S-Video, RCA composite video
- Touch Interface (optional): RS-232 or USB
- Power Input:
- Standard: DC 12V
- Optional: DC 11–28V wide-range input
Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10% to 90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
Certifications:
- CE / FCC Class A compliance
4. Functionality
The OPD-1176 functions as a high-resolution display module intended for embedded and industrial applications. Its open-frame design allows system integrators to mount the display directly into custom housings, kiosks, or control panels without the need for an external bezel or enclosure.
Operation:
The monitor receives video signals through its VGA input (or optional DVI/S-Video/RCA inputs) and displays them on the 17-inch SXGA panel. The OSD control interface enables users to adjust display parameters such as brightness, contrast, color balance, and input source selection.
Touchscreen Functionality (optional):
When equipped with a touchscreen, the OPD-1176 can serve as an interactive interface for industrial control systems, kiosks, or point-of-sale terminals. The touchscreen communicates with the host system via RS-232 or USB, depending on configuration.
Use Cases and Applications:
- Industrial automation and control systems
- Human-Machine Interface (HMI) panels
- Kiosk and digital signage systems
- Point-of-sale (POS) terminals
- Transportation and vehicle-mounted systems
- Medical and laboratory instrumentation displays
- Embedded computing systems requiring integrated display modules
Compatibility:
The OPD-1176 is compatible with standard VGA and DVI video outputs from PCs, embedded controllers, and industrial computers. Optional touch interfaces are compatible with Windows, Linux, and other operating systems supporting USB or serial touch input drivers.
5. Components & Accessories
Included Components:
- OPD-1176 17" SXGA Open Frame Display Monitor
- OSD control interface (integrated or external button board)
- Power input connector (DC 12V)
- VGA signal cable (standard)
Optional Accessories:
- DVI input module
- S-Video or RCA composite video input module
- Touchscreen kit (resistive or capacitive) with RS-232 or USB interface cable
- Power adapter (AC to DC 12V or wide-range 11–28V)
- Mounting brackets or panel-mount kits
- Extended temperature or ruggedized versions (depending on manufacturer options)

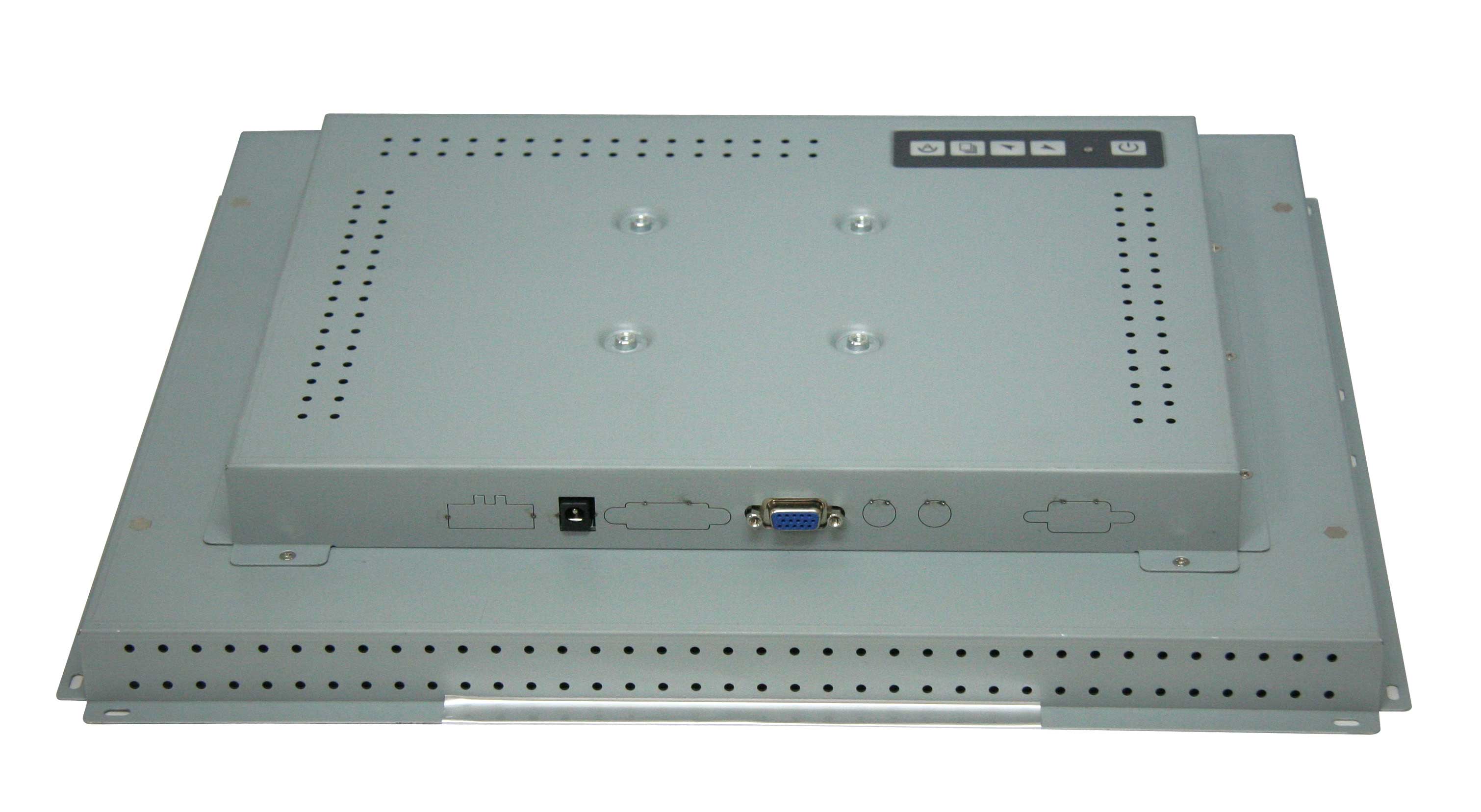

Connectors (Rear Panel):
- 1 × DC power input
- 1 × VGA input
- Optional: DVI, S-Video, RCA video input
- Optional: Touch interface (RS-232 or USB)
6. Installation & Setup
Installation Requirements:
- DC power source (12V standard, or 11–28V optional)
- Compatible video signal source (VGA, DVI, S-Video, or RCA)
- Mounting surface or enclosure designed for open-frame integration
Mounting Options:
The open-frame design allows for flexible mounting configurations, including:
- Rear mounting within a control panel or kiosk enclosure
- Integration into custom housings or OEM equipment
- Bracket or rack mounting using optional hardware
Setup Procedure:
1. Secure the display chassis into the designated mounting frame or enclosure.
2. Connect the DC power input to a regulated 12V (or 11–28V) power supply.
3. Connect the video input cable (VGA or optional DVI/S-Video/RCA) to the source device.
4. If equipped with a touchscreen, connect the RS-232 or USB cable to the host system.
5. Power on the system and use the OSD controls to adjust display parameters.
Configuration:
The OSD (On-Screen Display) menu provides access to configuration settings such as brightness, contrast, color temperature, input selection, and image alignment.
7. Performance & Capabilities
Display Performance:
The SXGA resolution (1280 × 1024) ensures crisp image quality suitable for detailed graphical interfaces and data visualization. The display supports standard refresh rates and color depths compatible with VGA and DVI sources.
Power Efficiency:
Operating from a DC 12V input, the OPD-1176 is optimized for low power consumption, making it suitable for embedded and mobile applications. The optional wide-range 11–28V input enhances compatibility with industrial and vehicular power systems.
Environmental Durability:
The monitor is engineered to perform reliably in environments with moderate vibration and shock exposure. Its steel chassis provides mechanical rigidity, while the specified vibration (1G peak, 5–500 Hz) and shock (15G, 11 ms) ratings ensure resilience in industrial and transportation applications.
Operational Limitations:
- Operating temperature limited to 0–50°C; not suitable for extreme outdoor or high-temperature environments without additional thermal management.
- Humidity tolerance up to 90% non-condensing; prolonged exposure to moisture should be avoided.
- Touchscreen performance may vary depending on environmental conditions and interface type.
Reliability:
The robust construction and compliance with CE/FCC Class A standards ensure stable operation and minimal electromagnetic interference in industrial environments.
8. Standards & Compliance
Certifications:
- CE (Conformité Européenne): Ensures compliance with European Union safety, health, and environmental protection standards.
- FCC Class A: Indicates compliance with U.S. Federal Communications Commission regulations for electromagnetic emissions in commercial and industrial environments.
Industry Standards:
- VGA and DVI video signal compatibility
- RS-232 and USB communication standards for touch interface
- DC power input standards for industrial electronics (12V and 11–28V range)
Regulatory Compliance:
The OPD-1176 meets the necessary electromagnetic compatibility (EMC) and safety requirements for integration into industrial and commercial systems.
9. Additional Information
Warranty:
[Not specified in source; typically 1–3 years limited warranty depending on manufacturer policy.]
Technical Support:
Manufacturers typically provide technical documentation, driver support (for touch-enabled models), and integration assistance for OEM customers.
Maintenance:
- Periodic cleaning of the display surface and ventilation openings recommended.
- Ensure stable power supply and proper grounding to prevent electrical interference.
- Firmware or driver updates (for touch interface) may be available from the manufacturer’s support portal.
Product Lifecycle & Availability:
The OPD-1176 is part of a long-term support product line, designed for extended availability to meet industrial and OEM lifecycle requirements.
Summary:
The OPD-1176 17" SXGA Open Frame Display Monitor is a versatile, industrial-grade display solution offering high-resolution performance, flexible connectivity, and durable construction. Its open-frame design makes it ideal for integration into custom systems, while its environmental resilience and compliance with CE/FCC standards ensure reliable operation in demanding applications. With optional touchscreen functionality and wide-range power input, the OPD-1176 provides a scalable platform for a wide variety of embedded display applications.
Comprehensive Technical Summary (Condensed Table):
| Parameter | Specification |
|----------------|-------------------|
| Model | OPD-1176 |
| Display Size | 17 inches |
| Resolution | SXGA (1280 × 1024) |
| Aspect Ratio | 5:4 |
| Chassis Material | Steel |
| Dimensions (W × H × D) | 410 × 330 × 58.8 mm |
| Video Inputs | 1 × VGA (standard), optional DVI, S-Video, RCA |
| Touch Interface (optional) | RS-232 or USB |
| Power Input | DC 12V (standard), optional DC 11–28V |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10–90% @ 40°C, non-condensing |
| Vibration | 1G peak, 5–500 Hz (random) |
| Shock | 15G peak, 11 ms duration |
| Certifications | CE / FCC Class A |
| Mounting Type | Open frame (panel/rear mount) |
| OSD Control | Integrated |
| Applications | Industrial control, kiosks, POS, HMI, embedded systems |
Final Summary Statement:
The OPD-1176 represents a robust and adaptable 17-inch SXGA open-frame display solution engineered for industrial and embedded applications. Its combination of high-resolution imaging, flexible input options, optional touchscreen capability, and rugged steel construction ensures dependable performance across a wide range of operational environments. With compliance to CE and FCC Class A standards, the OPD-1176 is a reliable choice for OEMs and system integrators seeking a long-life, high-quality display module for professional and industrial use.
