Comprehensive Product Summary: ADLINK PCIe-2602 3G/HD/SD-SDI Video/Audio Capture Card
### 1. Product Overview

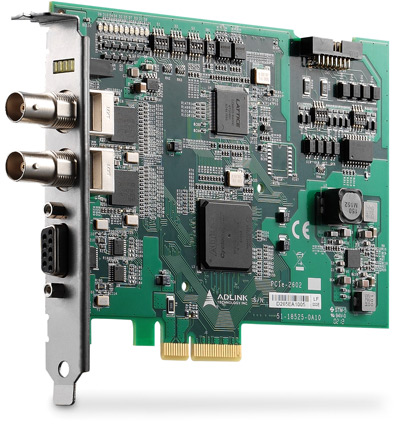

Product Name: PCIe-2602
Model: PCIe-2602
Series: PCIe*4 2-Channel 3G/HD/SD-SDI Video/Audio Capture Card
Article Number: PCIe-2602
Manufacturer: ADLINK Technology, Inc.
Part Number: 50-11251-1010 (User’s Manual), 50-11252-1000 (Function Library Reference)
Revision: Manual Rev. 3.00 (Aug. 23, 2013)
The ADLINK PCIe-2602 is a high-performance PCI Express x4 video/audio capture card designed for professional-grade acquisition of dual-channel 3G-SDI signals. It supports uncompressed, low-latency video capture up to Full HD 1920×1080p at 60 frames per second, with advanced color sampling formats (12-bit 4:4:4 and 10-bit 4:2:2). The card is optimized for applications requiring precise image fidelity and real-time processing, such as medical imaging, military vision systems, and intelligent video analytics.
### 2. Key Features
- Dual 3G-SDI Input Channels: Supports simultaneous capture of two independent 3G-SDI video streams.
- High-Resolution Video Capture: Up to 1920×1080p at 60 fps, supporting 3G/HD/SD-SDI standards.
- Color Accuracy: 12-bit 4:4:4 (1080i/60fps) and 10-bit 4:2:2 (1080p/60fps) color formats for superior image fidelity.
- Low Latency, Uncompressed Streaming: Ensures real-time video acquisition without compression artifacts.
- Long-Distance Transmission: Supports up to 100 meters over 75Ω coaxial cable without signal degradation.
- Integrated Audio Capture: Two-channel embedded digital audio per SDI input.
- RS-485 and Digital I/O: Two RS-485 ports and 4-channel digital input/output for external device control.
- DirectShow Compatibility: Fully compliant with Microsoft DirectShow for seamless integration with Windows-based applications.
- Software Utility: Bundled with ADLINK ViewCreator Pro™ for configuration, testing, and debugging without programming.
- LED Indicators: Four status LEDs for signal detection and channel activity.
- PCI Express x4 Interface: Compliant with PCIe Gen2 x4, compatible with x4, x8, and x16 slots.
- Environmental Robustness: Wide operating temperature range and RoHS/WEEE compliance.
### 3. Technical Specifications
Form Factor: PCI Express x4
Video Input:
- 2 × BNC connectors (3G/HD/SD-SDI)
- Supported resolutions and frame rates:
- 720p: 24/25/30/50/60 fps
- 1080i: 50/60 fps
- 1080p: 24/25/30/50/60 fps
- SD: 525i (720×486i@59.94/60Hz), 625i (720×576i@50Hz)
- Sampling formats:
- 8/10-bit 4:2:2
- 8/10/12-bit 4:4:4
- 12-bit 4:2:2
Audio Input:
- 2-channel embedded digital audio per SDI input
- Sample word lengths: 16/20/24 bits
- Sampling rate: 48 kHz
Digital I/O:
- 4 digital inputs, 4 digital outputs
- Input resistance: 1 kΩ
- Input high threshold: 2–12 V
- Output type: Open collector/TTL
- Output sink current: 50 mA
Communication Ports:
- 2 × RS-485 (D-Sub 9-pin male)
Power Requirements:
- +12 V @ 1.2 A (max)
- +3.3 V @ 1.5 A (max)
Dimensions:
- 149 mm (W) × 98.4 mm (L) (5.96” × 3.93”)
- Board layout includes SDI, RS-485, and DIO connectors
Weight: Approx. 200 g (typical for PCIe form factor)
Operating Environment:
- Temperature: 0°C to +60°C
- Humidity: 5%–90% RH (non-condensing)
Storage Environment:
- Temperature: -20°C to +80°C
- Humidity: 0–95% RH (non-condensing)
Compliance: CE, FCC, RoHS, WEEE
### 4. Functionality
The PCIe-2602 captures uncompressed video and audio data directly from SDI sources. Each channel supports independent acquisition, enabling dual-stream capture for synchronized or separate feeds. The card processes incoming 3G-SDI signals through its onboard FPGA and transfers raw data via the PCIe x4 interface to the host system memory.
Use Cases:
- Medical Imaging: High-precision frame grabbing for diagnostic imaging systems.
- Military Imaging: Real-time video acquisition for defense-grade surveillance and targeting systems.
- Video Analytics / IVS: Intelligent video surveillance, motion detection, and AI-based analytics.
- Broadcast and Production: Multi-channel HD-SDI capture for live production and post-processing.
Compatibility:
- Operating Systems: Windows XP, 7, 8 (32/64-bit)
- Software: Microsoft DirectX, Visual C++, C#, VB.NET, C++ Builder
- Requires Microsoft .NET Framework 3.5 for Windows 8
### 5. Components & Accessories
Included Items:
- PCIe-2602 capture card
- Quick Start Guide
- ViewCreator Pro™ software utility
Connectors:
- 2 × BNC (SDI input)
- 1 × D-Sub 9-pin (RS-485)
- 1 × 16-pin header (Digital I/O)
Optional Accessories:
- D-Sub connector cable with external bracket (ADLINK Part No. 30-25013-0000) for external DI/O access.
Indicators:
- 4 × LEDs for channel and signal status:
- LEDs 0/2: Channel 0 sync and data verification
- LEDs 1/3: Channel 1 sync and data verification
### 6. Installation & Setup
System Requirements:
- CPU: Intel Core i5 or higher
- RAM: Minimum 4 GB
- PCIe slot: x4, x8, or x16 available
Installation Steps:
1. Power off the host system and remove the cover.
2. Insert the PCIe-2602 into an available PCIe slot.
3. Secure the card with the mounting screw.
4. Connect SDI sources via BNC cables.
5. Power on the system and install ADLINK drivers.
6. Launch ViewCreator Pro™ for configuration and testing.
Software Setup:
- Drivers automatically integrate with Microsoft DirectShow.
- ViewCreator Pro™ provides GUI-based configuration for video format, color space, and I/O control.
Switch Settings:
- S1: Card ID (0–15) for multi-card systems.
- S4/S5: Digital I/O configuration (pull-up/pull-down).
### 7. Performance & Capabilities
Video Throughput:
- Up to 2.97 Gbps per channel (3G-SDI)
- Supports 1.485 Gbps (HD-SDI) and 270 Mbps (SD-SDI)
Frame Rate Performance:
- Verified 60 fps capture across multiple benchmark systems (Intel i7 platforms).
- Stable dual-channel operation under full HD 1080p60 conditions.
Latency:
- Ultra-low latency, suitable for real-time applications.
Bandwidth Requirements:
- Requires PCIe x4 or higher bandwidth; shared PCIe lanes may reduce performance.
Benchmarks:
- Tested on multiple platforms (ASUS, GIGABYTE, ADLINK MXC series) with consistent 60 fps capture across all channels.
Limitations:
- 720p30 8/10-bit 4:4:4 input supports video-only capture (no audio).
- Requires discrete GPU for optimal video rendering.
### 8. Standards & Compliance
Video Standards:
- SMPTE 259M, 292M, 424M compliant (SD, HD, 3G-SDI)
- SMPTE 352M payload identification supported
Electrical & Safety:
- CE and FCC certified
- RoHS and WEEE compliant for environmental safety
Software Standards:
- Microsoft DirectShow API compliant
- Compatible with DirectX SDK and Windows SDK for DirectShow development
Environmental Compliance:
- Manufactured under ADLINK’s environmental responsibility program ensuring minimal ecological impact.
### 9. Additional Information
Warranty:
- Standard ADLINK limited hardware warranty (contact regional office for terms).
Support & Maintenance:
- Global technical support via ADLINK service centers in Taiwan, USA, China, Japan, Korea, Singapore, and Europe.
- Email support: service@adlinktech.com
Maintenance Recommendations:
- Ensure adequate ventilation and avoid exposure to moisture.
- Use only recommended power sources and cables.
- Periodically check firmware and driver updates from ADLINK’s website.
Software Updates:
- Driver and API updates available at [www.adlinktech.com](http://www.adlinktech.com).
- ViewCreator Pro™ and SDK updates provided for registered users.
Documentation:
- User’s Manual (Rev. 3.00, Aug. 2013)
- Function Library Reference (Rev. 2.00, Nov. 2013)
- DirectShow Programming Guide included for developers.
### Summary
The ADLINK PCIe-2602 is a robust, industrial-grade dual-channel 3G-SDI video/audio capture card engineered for high-precision, low-latency applications. With support for uncompressed Full HD video, advanced color sampling, and integrated digital I/O and RS-485 interfaces, it provides a complete solution for professional imaging systems. Its compliance with DirectShow and inclusion of the ViewCreator Pro™ utility make it both developer-friendly and production-ready. Designed for reliability, scalability, and accuracy, the PCIe-2602 is ideal for demanding environments such as medical diagnostics, defense imaging, and intelligent surveillance systems.
